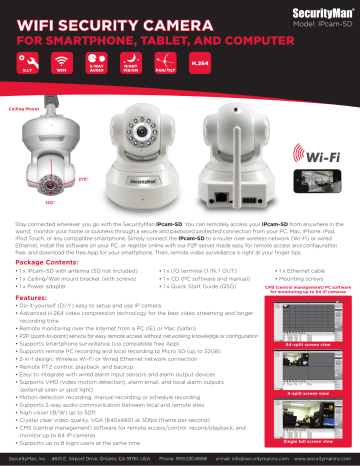

WIFI SECURITY CAMERA
Model: IPcam-SD
FOR SMARTPHONE, TABLET, AND COMPUTER
Ceiling Mount
270°
120°
Stay connected wherever you go with the SecurityMan IPcam-SD. You can remotely access your IPcam-SD from anywhere in the
world; monitor your home or business through a secure and password protected connection from your PC, Mac, iPhone, iPad,
iPod Touch, or any compatible smartphone. Simply connect the IPcam-SD to a router over wireless network (Wi-Fi) or wired
Ethernet, install the software on your PC, or register online with our P2P server made easy for remote access and configuration
free, and download the free App for your smartphone. Then, remote video surveillance is right at your finger tips.
Package Contents:
• 1 x IPcam-SD with antenna (SD not included)
• 1 x Ceiling/Wall mount bracket (with screws)
• 1 x Power adapter
• 1 x I/O terminal (1 IN, 1 OUT)
• 1 x CD (PC software and manual)
• 1 x Quick Start Guide (QSG)
Features:
• Do-it-yourself (D.I.Y) easy to setup and use IP camera
• Advanced H.264 video compression technology for the best video streaming and longer
recording time
• Remote monitoring over the Internet from a PC (IE) or Mac (Safari)
• P2P (point-to-point) service for easy remote access without networking knowledge or configuration
• Supports smartphone surveillance (via compatible free App)
• Supports remote PC recording and local recording to Micro SD (up to 32GB)
• 2-in-1 design: Wireless Wi-Fi or Wired Ethernet network connection
• Remote PTZ control, playback, and backup
• Easy to integrate with wired alarm input sensors and alarm output devices
• Supports VMD (video motion detection), alarm email, and local alarm outputs
(external siren or spot light)
• Motion detection recording, manual recording or schedule recording
• Supports 2-way audio communication between local and remote sites
• Nigh vision (B/W) up to 50ft
• Crystal clear video quality, VGA (640x480) at 30fps (frame per second)
• CMS (central management) software for remote access/control, record/playback, and
monitor up to 64 IP cameras
• Supports up to 8 login users at the same time
• 1 x Ethernet cable
• Mounting screws
CMS (central management) PC software
for monitoring up to 64 IP cameras
64-split screen view
4-split screen view
Single full screen view
Key Specifications:
Video
Image Sensor
1/5” CMOS, color
Video compression
H.264 high profile, BMP snapshot and JPG (email notification)
Signal system
NTSC/PAL (default NTSC)
Lens
4mm
Min. Illumination
0.1 Lux (IR OFF), 0 Lux (IR ON)
Frame rate
30fps NTSC (25fps PAL)
Resolution
VGA (640x480), QVGA (320x240)
Video adjustment
Brightness, contrast, and saturation
Video bit rate
32 Kbps ~ 2.5 Mbps
Pan & Tilt
Horizontal: 270°. Vertical: 120°
Zoom
Portion picture enlargement
Night vision
Up to 50ft (IR built-in; auto switch to B/W in dark)
Audio compression
G711
Microphone
1 built-in Mic. (For live audio monitoring and 2-way audio communication).
Effective up to 5m (16ft)
Audio
Recording and
Playback
Alarm
Audio output
1 audio output to speaker (used for 2-way audio)
2-way audio
Yes (communication between local and remote)
Recording mode
Motion detection, manual, and schedule
Storage
Records to local MicroSD (up to 32GB, not included), to remote PC, & FTP site
VMD recording
1~120 minutes
Pre-Alarm recording
1~30 seconds
Backup
Remote backup to PC
Playback
Playback via SD reader; real time remote playback; remotely download and playback
Motion detection
VMD (video motion detection; software oriented)
VMD sensitivity level
Highest, Higher, High, Medium, Low, Lower, or Lowest
Input terminal
1 alarm input (for any wired alarm sensors)
Output terminals
1 alarm output (for any wired alarm output devices like siren or spot light)
Alarm action
Email notifications; record video/photo to FTP; record video/photo to SD; triggers alarm output;
alarm tour (camera touring to first preset , second preset position, and etc.)
Network
Wired network
NIC 10/100 BaseTX Ethernet
Wireless network
Wi-Fi 802.11 b/g/n
IP mode
Dynamic IP address; static IP address
Protocol
TCP/IP, HTTP, TCP, ICMP, UDP, ARSP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, and RTSP.
Online users
Unlimited number of users; up to 8 simultaneous login users
Mobile surveillance
Supports: iPhone/iPad/iPod Touch, Android, Windows Mobile, Symbian & Blackberry.
Adapts to free App (free downloadable) of the compatible smartphones
Internet viewing
Supports browsers: IE (PC), Safari (Mac/PC), Firefox(Mac/PC)
Remote access and control
Yes
CMS software
Central management software for recording, remote monitoring, remote access and control,
search and playback. Manage up to 64 surveillance cameras
Software
CPU and System
Others
User levels for CMS
Administrator, Normal, and Guest (viewing only)
Split screens of CMS
Supports 1(full), 4(Quad), 9, 16, 25, 36, and 64 split screens (for multiple IP cameras)
Camera name
Up to 26 digits of characters/numbers
Password protection
Yes
Operating system
Embedded Linux OS
Micro processor
32Bit RISC embedded processor
System requirement
Windows 2000, XP, Vista, 7, & 8(32/64-bit OS)
Indoor/outdoor usage
Indoor
Operating temperature
-10 ~ 50 °C/14 ~ 122 °F
Humidity
95% RH
Power
DC5V 2.0A
Dimensions(LXWXH)
121 x 105 x 125mm (4.76”x4.13”x4.92”)
Package dimensions
217 X 165 X 135mm
Weight (net and gross)
1.46 lbs (product only without package); 2 lbs (with package)
