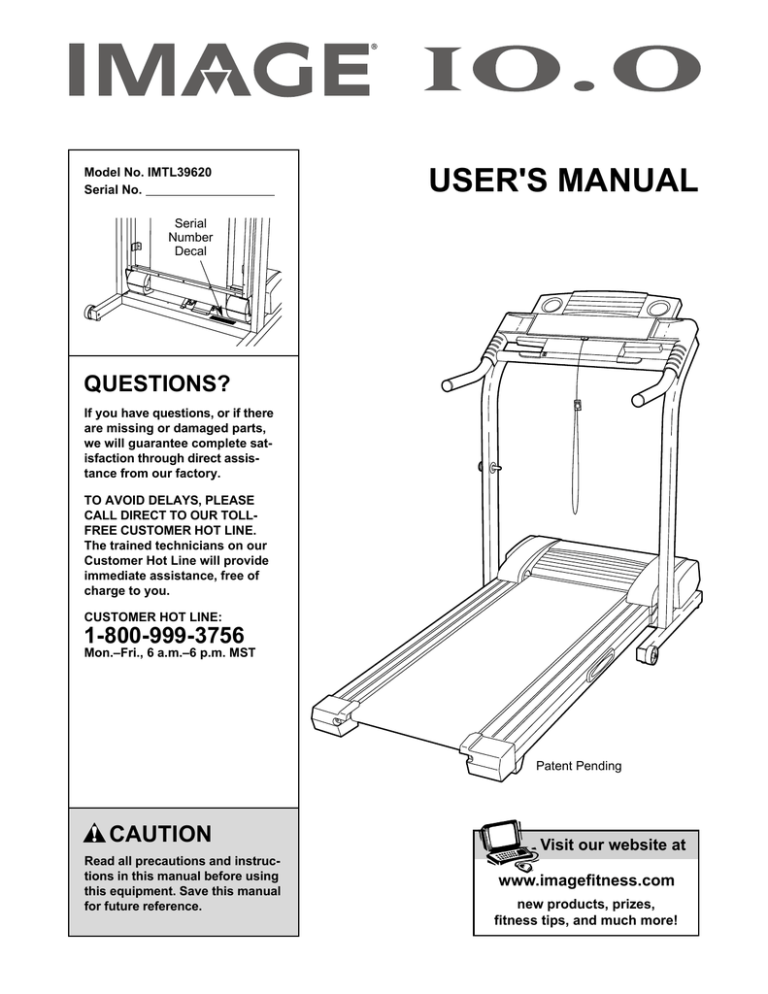

Model No. IMTL39620
Serial No.
USER'S MANUAL
Serial
Number
Decal
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete satisfaction through direct assistance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Patent Pending
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
IMAGE is a registered trademark of ICON Health & Fitness, Inc.
2
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 if the treadmill is not working properly.)
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
15. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
16. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
17. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
7. The treadmill should not be used by persons
weighing more than 250 pounds.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
18. Never leave the treadmill unattended while it
is running. Always remove the key, and unplug the power cord when the treadmill is not
in use.
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.) You
must be able to safely lift 45 pounds (20 kg) in
order to raise, lower, or move the treadmill.
10. When connecting the power cord (see page 9),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
20. Do not change the incline of the treadmill by
placing objects under the treadmill.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 9. To purchase a surge suppressor, see
your local IMAGE dealer or call 1-800-806-3651
and order part number 146148.
21. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
3
22. When using iFIT.com CD’s and videos, an
electronic “chirping” sound will alert you
when the speed of the treadmill is about to
change. Always listen for the “chirp” and be
prepared for speed changes. In some instances, the speed may change before the
personal trainer describes the change.
treadmill regularly.
26. Never insert or drop any object into any
opening.
27.
DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
23. When using iFIT.com CD’s and videos, you
can manually override the speed setting at
any time by pressing the speed buttons.
However, when the next “chirp” is heard, the
speed will change to the next settings for the
CD or video program.
24. Always remove iFIT.com CD’s and videos
from your CD player or VCR when you are not
using them.
28. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
25. Inspect and properly tighten all parts of the
WARNING:
Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown have been placed on your treadmill. If a decal is missing, or if
it is not legible, please call our Customer Service Department, toll-free, to order
a free replacement decal (see the front cover of this manual). Apply the decal in
the location shown. Note: The decals are not all shown at actual size.
4
BEFORE YOU BEGIN
Thank you for selecting the new IMAGE® 10.0 treadmill. The 10.0 treadmill combines advanced technology
with innovative design to help you get the most from
your exercise program in the convenience of your
home. And when you’re not exercising, the unique 10.0
can be folded up, requiring less than half the floor
space of other treadmills.
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number of the treadmill is
IMTL39620. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).
For your benefit, read this manual carefully before
using the treadmill. If you have questions after reading this manual, please call our Customer Service
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Book Holder
Water Bottle
Holder (Bottle
not included)
Console
Thumb Pulse Sensor
Handrail
Key/Clip
Latch Knob
RIGHT SIDE
LEFT SIDE
Circuit Breaker
Foot Rail
Walking Belt
Power Cord
Front Wheel
Cushioned Walking Platform
Rear Roller
Adjustment Bolts
5
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires your own Phillips screwdriver
, adjustable wrench
, wire cutters
, and needlenose
pliers
.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
To identify small parts during assembly, use the part identification drawings below.
1 1/2” Screw (79)–4
Silver Screw
(107)–1
3/4” Tek Screw
(101)–5
3/4” Screw (68)–2
4” Bolt (89)–4
Washer (29)–8
Wheel Bolt (86)–2
3” Bolt (47)–4
Wheel Nut (15)–2
1. Make sure that the power cord is not plugged in.
1
101
97
86
82
95
101
97
15
With the help of a second person, carefully tip the
treadmill onto its left side. Partially fold the Frame (12) so
that the treadmill will be more stable. Do not fully fold
the treadmill until it is completely assembled.
Attach two Base Pads (97) to the bottom of the Base (82)
with two 3/4” Tek Screws (101). Attach a Wheel (95) to
the outside of the Base with a Wheel Bolt (86) and a
Wheel Nut (15).
6
12
2. Identify the Right Upright (10), which has a large rectangular hole near the upper end (see drawing 2b). Have a
second person hold the Right Upright near the Wire
Harness (17). Insert the end of the Wire Harness into the
Right Upright and out of the rectangular hole near the
upper end as shown. If necessary, use needlenose pliers
to pull the Wire Harness out of the hole.
2a
10
17
2b
Rectangular
Hole
10
17
3. Make sure that the Right Upright (10) is turned so it
bends in the direction shown. Insert two 3” Bolts (47) with
Washers (29) through the Base (82) and hand tighten
the Bolts into the lower end of the Right Upright.
3
82
47
10
With the help of a second person, tip the treadmill onto
its other side and repeat steps 1 through 3. Note: There
is not a wire harness in the Left Upright (not shown). An
extra Base Pad my be included.
29
Bend
4. With the help of a second person, set the treadmill flat on
the floor so that the Right Upright (10) and the Left
Upright (not shown) are vertical.
Hold one of the Handrails (85) near the Right Upright
(10). Insert the end of the Wire Harness (17) into the bottom of the Handrail and out of the indicated hole. Using the
Silver Screw (107), attach the end of the ground wire to
the small hole in the side of the Handrail.
4
107
17
Ground
Wire
Hole
85
5. Have a second person hold the Console Base (87) and
the Handrail (85) in the position shown. Touch the Right
Upright (10) to discharge any static. Insert the Wire
Harness (17) through the two Plastic Ties (108) on the
Console Base. Find the 3-wire connector on the end of
the Wire Harness. Insert the connector into the red
socket beneath the Console Base. The connector
should slide easily into the socket and “snap” into
place. If the connector does not slide easily and snap
into place, turn the connector and then insert it. If the
connectors are not inserted properly, the Console
may be damaged when the power is turned on.
Insert the 5-wire connector into the black socket in the
same way. Make sure that the connectors and wires appear as shown in the inset drawing. Insert the excess
Wire Harness (17) down through the Handrail (85).
10
5
87
108
85
17
5-wire
10
3-wire
17
Securely tighten the Plastic Ties (108) to prevent the
Wire Harness (17) from slipping. Then, cut off the ends
of the Plastic Ties.
7
6. Attach the Handrail (85) to the Console Base (87) with
two 1 1/2” Screws (79) as shown. Attach the other
Handrail (not shown) to the other side of the Console
Base in the same way.
6
87
17
79
Insert the excess Wire Harness (17) down into the Right
Upright (10) as you set the right Handrail (85) on the Right
Upright. Hand tighten two 4” Bolts (89) with Washers (29)
through the Right Upright into the right Handrail. Be careful
not to pinch the Wire Harness. Do not tighten the Bolts
yet.
29
85
89
10
Attach the left Handrail to the Left Upright (not shown) in
the same way. Note: There is not a wire harness in the
Left Upright.
7. Hold the Connector Cover (110) on the Console Base
(87) in the position shown. Attach the Connector Cover
to the Console Base with two 3/4” Screws (68).
7
110
68
8. Remove the Latch Knob (105) from the Latch Pin (11).
Make sure that the Latch Pin Collar (14) and the Spring
(56) are on the Latch Pin as shown. Insert the Latch Pin
into the Storage Latch (77) and tighten the Latch Knob
onto the Latch Pin.
87
8
85
56
105
77
14
11
9
9. Lower the Uprights (9, 10) until the Handrails (not shown)
are touching the floor. Make sure that the treadmill Frame
(12) is centered between the Uprights. Refer to step 3.
Firmly tighten the four 3” Bolts (47). Refer to step 6.
Firmly tighten the four 4” Bolts (89). Raise the Uprights
back to the vertical position.
9
Top View
87
Make sure that the two Cup Holders (118) are pressed
into the round holes near the top of the Console Base (87).
118
10
9
12
10.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrench in a secure place; the allen wrench is used to adjust the walking
belt (see page 23). To protect the floor or carpet from damage, place a mat under the treadmill.
8
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking platform. Such substances will deteriorate the walking
belt and cause excessive wear.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
HOW TO PLUG IN THE POWER CORD
DANGER:
Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances being turned on or off. To decrease the possibility of your treadmill being damaged, always
use a surge suppressor with your treadmill (see
drawing 1 at the right). To purchase a surge suppressor, see your local IMAGE dealer or call 1-800806-3651 and order part number 146148.
Grounding Pin
Grounded Outlet
Grounding Plug
2
Grounded Outlet Box
Adapter
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
Surge Suppressor
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
This product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having
9
CONSOLE DIAGRAM
Note: If there is a thin sheet of
plastic on the console, remove it.
Clip
Key
The console also features iFIT.com interactive technology. IFIT.com technology is like having a personal trainer
right in your home. Using the included audio cable, you
can connect the treadmill to your home stereo, portable
stereo, or computer and play special iFIT.com CD programs (iFIT.com CD’s are available separately).
IFIT.com CD programs automatically control the speed
of the treadmill as a personal trainer guides you through
every step of your workout. High-energy music provides
added motivation. Each CD features two programs designed by certified personal trainers.
CAUTION:
Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turning on the power.
• Always wear the clip (see the drawing
above) while operating the treadmill.
• Adjust the speed in small increments to
avoid sudden jumps in speed.
In addition, you can connect the treadmill to your VCR
and TV and play iFIT.com video programs (videocassettes are available separately). Video programs offer
the same benefits as iFIT.com CD programs, but add
the excitement of working out with a class and an
instructor—the hottest new trend at health clubs.
• To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console and place only a sealed
water bottle in the water bottle holder.
FEATURES OF THE CONSOLE
With the treadmill connected to your computer, you
can also go to our Web site at www.iFIT.com and access programs directly from the internet. See
www.iFIT.com for details.
The console offers a selection of features designed to
help you get the most from your exercise. When the
manual mode of the console is selected, the speed
and incline of the treadmill can be changed with a touch
of a button. As you exercise, the console will display
continuous exercise feedback. You can even measure
your heart rate using the built-in pulse sensor.
To purchase iFIT.com CD’s or videocassettes, call
toll-free 1-800-735-0768.
To use the manual mode of the console, follow the
steps beginning on page 11. To use a personal trainer
speed program, see page 12.To use an iFIT.com CD
or video program, see page 17. To use an iFIT.com
program directly from our Web site, see page 18.
Four certified personal trainer speed programs are
also offered. Each program automatically controls the
speed of the treadmill as it guides you through an
effective workout.
10
HOW TO TURN ON THE POWER
1
Plug in the power cord (see page 9).
2
Stand on the foot rails of the treadmill.
3
Find the clip attached to the key (see the drawing
on page 10), and slide the clip onto the waistband
of your clothes. Next, insert the key into the console. After a moment, the displays and various indicators will light. Test the clip by carefully taking a few steps backward until the key is
pulled from the console. If the key is not
pulled from the console, adjust the position of
the clip.
Each time a button is pressed, the speed setting
will change by 0.1 mph; if a button is held down,
the speed setting will change in increments of 0.5
mph. Note: The console can display speed and
distance in either miles or kilometers (see
SPEED DISPLAY on page 12). For simplicity, all
instructions in this section refer to miles.
To stop the walking belt, press the Stop button.
The Time display will begin to flash. To restart the
walking belt, press the Start button or the Speed ▲
button.
Note: The first time you use the treadmill, periodically inspect the alignment of the walking belt, and
align it if necessary (see page 23).
4
To change the incline of the treadmill, press either
of the Incline buttons until the desired incline level
is reached.
HOW TO USE THE MANUAL MODE
1
5
Insert the key fully into the console.
Select the manual mode.
When the key is inserted, the manual
mode will be selected
and the Manual Control
indicator will light. If a
program has been
selected, press the Mode button repeatedly to reselect the manual mode.
3
Follow your progress with the LED track and
the displays.
The LED Track—When
the manual mode or the
iFIT.com mode is selected, the LED display
will show a track representing 1/4 mile. As you
exercise, the indicators
around the track will light in sequence until you
have completed 1/4 mile. A new lap will then
begin.
See HOW TO TURN ON THE POWER above.
2
Change the incline of the treadmill as desired.
Calories/Fat Calories/
Pulse display—This display shows the approximate numbers of calories
and fat calories you have
burned (see FAT BURNING on page 24). The display will change from
one number to the other every few seconds. The
FAT indicator will light when the number of fat
calories is shown. The display will also show your
heart rate when you use the pulse sensor (see
step 6 on page 12).
Press the Start button or the Speed ▲ button to
start the walking belt.
A moment after the button is pressed, the
walking belt will begin to
move. Hold the
handrails and begin
walking. As you exercise, change the speed of the walking belt as desired by pressing the Speed buttons.
11
Time display—When
the manual mode or the
iFIT.com mode is selected, this display will
show the elapsed time.
When a personal trainer
program is selected, the display will show the time
remaining in the program.
If the displayed heart rate appears to be too high
or too low, or if your heart rate is not displayed, lift
your thumb off the pulse sensor for a few seconds.
Then, place your thumb on the pulse sensor as described above. Remember to stand still while measuring your heart rate.
7
Distance display—This
display shows the distance that you have
walked or run.
Step onto the foot rails and press the Stop button.
Adjust the incline of the treadmill to the lowest
setting. Next, remove the key from the console and
put it in a secure place.
Speed display—This
display shows the speed
of the walking belt.
HOW TO USE PERSONAL TRAINER PROGRAMS
1
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
11.
Note: The console can
display speed and distance in either miles or
kilometers. To see which
unit of measurement is
selected, hold down the
Stop button, insert the key into the console, and
continue to hold the Stop button for a few seconds.
An “E” for English miles or an “M” for metric kilometers will appear in the display. Press the Speed
▲ button to change the unit of measurement.
When the desired unit of measurement is selected,
remove the key and then reinsert it.
2
Select a personal trainer program.
When the key is inserted, the manual
mode will be selected.
To select a personal
trainer program, press
the Mode button repeatedly until one of the four
personal trainer program indicators lights. When a
personal trainer program is selected, the Time display will show how long the program will last and
the Speed display will flash the maximum speed
setting for the program for a few seconds.
To reset the displays, press the Stop button, remove the key, and then reinsert the key.
6
When you are finished exercising, remove the
key.
Measure your heart rate, if desired.
The profiles in the center of the console show
how the speed of the
treadmill will change
during the programs.
The first four speed settings for the selected
program will be shown in the LED display.
To measure
your heart rate,
Pulse Sensor
stand on the
foot rails and
place your
thumb on the
pulse sensor.
Do not press
too hard, or
the circulation in your thumb will be restricted
and your pulse will not be detected. After a few
seconds, the PULSE indicator beside the Calories/
Fat Calories/Pulse display will light and then your
heart rate will be shown. Hold your thumb on the
pulse sensor for about 15 seconds for the most accurate reading.
12
3
The program will continue until the speed setting
for the last period is shown in the Current Period
column and no time remains in the Time display.
The walking belt will then slow to a stop.
Press the Start button or the Speed ▲ button to
start the program.
A moment after the button is pressed, the treadmill will automatically adjust to the first speed setting for the program. Hold the handrails and begin
walking.
Note: If the speed setting for the current period is
too high or too low, you can manually override the
setting by pressing the Speed buttons. Every few
times a button is pressed, an additional indicator
will light or darken in the Current Period column. (If
any of the columns to the right of the Current
Period column have the same number of lit indicators as the Current Period column, an additional
indicator may light or darken in those columns as
well.) Important: When the current period of the
program ends, the treadmill will automatically
adjust to the speed setting for the next period.
Each program is divided into several time periods
of different lengths. One speed setting is programmed for each period. (The same speed setting may be programmed for consecutive periods.)
The speed setting for
the first period will be
shown in the flashing
Current Period
Current Period column
of the LED display. The
speed settings for the
next four periods will
be shown in the four
columns to the right.
To stop the program temporarily, press the Stop
button. The Time display will begin to flash. To
restart the program, press the Start button or the
Speed ▲ button. To end the program, press the
Stop button, remove the key, and then reinsert the
key.
When only three seconds remain in the first period
of the program, the Speed display will flash, the
Current Period column and the column to the right
will flash, and a series of tones will sound. When
the first period is completed, all speed settings will
move one column to the left. The speed setting for
the second period will then be shown in the flashing Current Period column and the treadmill will
automatically adjust to the speed setting for the
second period. (When the same speed setting is
programmed for consecutive periods, the Speed
display will not flash and the column to the right of
the Current Period column will not flash during the
last three seconds of the current period.)
4
Follow your progress with the displays.
See step 5 on page 11.
5
Measure your heart rate, if desired.
See step 6 on page 12.
6
When the program is completed, remove the
key from the console.
When the program has ended, adjust the incline
of the treadmill to the lowest setting. Next, remove the key from the console and put it in a safe
place.
Note: If all of the indicators in the Current Period
column are lit after the speed settings have moved
to the left, the speed settings will move downward
so that only the highest indicators in the columns
appear in the LED display. If some indicators in the
Current Period column are not lit after the speed
settings have moved to the left again, the speed
settings will move back up.
To change the incline of the treadmill during the
program, press the Incline buttons until the desired incline level is reached.
13
HOW TO CONNECT YOUR PORTABLE STEREO
HOW TO CONNECT THE TREADMILL TO YOUR
CD PLAYER, VCR, OR COMPUTER
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
To use iFIT.com CD’s, the treadmill must be connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
14 and 15 for connecting instructions. To use iFIT.com
videocassettes, the treadmill must be connected to
your VCR. See page 16 for connecting instructions. To
use iFIT.com programs directly from our internet
site, the treadmill must be connected to your home
computer. See page 15 for connecting instructions.
A. Plug one end of the audio cable into the jack beneath
the console. Plug the other end of the cable into the
included adapter. Plug the adapter into an AUDIO
OUT jack on your stereo.
A
HOW TO CONNECT YOUR PORTABLE CD PLAYER
AUDIO OUT
RIGHT
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
Adapter
LEFT
Audio
Cable
A. Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable
into the LINE OUT jack on your CD player. Plug
your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable
into the LINE OUT jack on your stereo.
A
PHONES LINE OUT
LINE OUT
PHONES
B
Headphones
Audio
Cable
LINE OUT
Audio
Cable
B. Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable
into a 3.5mm Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
C. Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable
into a 3.5mm Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the other
side of the Y-adapter.
B
PHONES
C
PHONES
Audio
Cable
3.5mm
Y-adapter
PHONES
Audio
Cable
Headphones
3.5mm
Y-adapter
Headphones
14
HOW TO CONNECT YOUR HOME STEREO
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable
into the included adapter. Plug the adapter into the
LINE OUT jack on your stereo.
A. Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable
into the LINE OUT jack on your computer.
A
A
CD
LINE OUT
VCR
Amp
LINE OUT
Audio
Cable
LINE OUT
Adapter
Audio
Cable
B. Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable
into a 3.5mm Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speakers into the other side of the Y-adapter.
B. Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable
into the included adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the wire
into the unused side of the Y-adapter. Plug the Yadapter into the LINE OUT jack on your stereo.
B
B
PHONES
CD
Audio
Cable
VCR
Amp
3.5mm
Y-adapter
LINE OUT
Headphones/Speakers
RCA
Y-adapter
Audio
Cable Adapter
Wire removed from
LINE OUT jack
15
HOW TO CONNECT YOUR VCR
B. Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable
into the included adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the AUDIO OUT jack on your VCR.
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 15.
A. Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable
into the included adapter. Plug the adapter into the
AUDIO OUT jack on your VCR.
B
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
A
RCA Y-adapter
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
Audio
Cable Adapter
AUDIO OUT
RIGHT
LEFT
Adapter
Wire removed from
AUDIO OUT jack
Audio
Cable
16
If the speed setting is too high or too low, you can
manually override the setting at any time by
pressing the Speed buttons on the console.
However, when the next “chirp” is heard, the
speed will change to the next setting of the CD
or video program.
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
To use iFIT.com CD’s or videocassettes, the treadmill
must be connected to your portable CD player, portable
stereo, home stereo, computer with CD player, or
VCR. See HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER on page
14. Note: IFIT.com CD and video programs will control only the speed of your treadmill.
To stop the walking belt at any time, press the
Stop button on the console. The Time display will
begin to flash. To restart the program, press the
Start button or the Speed ▲ button. After a moment, the walking belt will begin to move. When
the next “chirp” is heard, the speed will
change to the next setting of the CD or video
program.
To purchase iFIT.com CD’s or videocassettes, call
toll-free 1-800-735-0768.
Follow the steps below to use an iFIT.com CD or video
program.
1
When the CD or video program is completed, the
walking belt will stop and the Time display will
begin to flash. Note: To use another CD or video
program, press the Stop button or remove the key
and go to step 1.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 11.
2
Note: If the speed of the treadmill does not
change when a “chirp” is heard:
Select the iFIT.com mode.
• Make sure that the iFIT.com indicator is lit and
that the Time display is not flashing. If the
Time display is flashing, press the Start button or the Speed ▲ button on the console.
When the key is inserted, the manual
mode will be selected.
To use iFIT.com CD’s
or videocassettes,
press the Mode button
repeatedly until the iFIT.com indicator lights.
3
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the console may not detect the program signals.
Insert the iFIT.com CD or videocassette.
• Make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
4
5
Press the PLAY button on your CD player or
VCR.
Follow your progress with the LED track and
the displays.
See step 5 on page 11.
6
A moment after the button is pressed, your personal trainer will begin guiding you through your
workout. Simply follow your personal trainer’s
instructions. Note: If the Time display is flashing,
press the Start button or the Speed ▲ button on
the console. The treadmill will not respond to a
CD or video program when the Time display is
flashing.
Measure your heart rate, if desired.
See step 6 on page 12.
7
When the program is completed, remove the
key.
See step 6 on page 13.
CAUTION: Always remove iFIT.com CD’s and
videocassettes from your CD player or VCR
when you are finished using them.
During the CD or video program, an electronic
“chirping” sound will alert you when the speed of
the treadmill is about to change. CAUTION:
Always listen for the “chirp” and be prepared
for speed changes. In some instances, the
speed may change before the personal trainer
describes the change.
17
7
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
“chirping” sound will alert you when the speed of
the treadmill is about to change. CAUTION:
Always listen for the “chirp” and be prepared
for speed changes.
Our Web site at www.iFIT.com allows you to access
programs directly from the internet. See www.iFIT.com
for details. Note: Programs will control only the
speed of your treadmill.
To use programs from our Web site, the treadmill must
be connected to your home computer. See HOW TO
CONNECT YOUR COMPUTER on page 15. In
addition, you must have an internet connection and
an internet service provider. A list of specific system requirements will be found on our Web site.
If the speed setting is too high or too low, you can
manually override the setting at any time by pressing the Speed buttons on the console. However,
when the next “chirp” is heard, the speed will
change to the next setting for the program.
Follow the steps below to use a program from our
Web site.
1
To stop the walking belt at any time, press the
Stop button on the console. The Time display will
begin to flash. To restart the program, press the
Start button or the Speed ▲ button. After a moment, the walking belt will begin to move. When
the next “chirp” is heard, the speed will change
to the next setting for the program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 11.
2
Select the iFIT.com mode.
When the key is inserted, the manual
mode will be selected.
To use a program from
our Web site, press the
Mode button repeatedly
until the iFIT.com indicator lights.
3
Go to your computer and start an internet
connection.
4
Start your web browser, if necessary, and go to
our Web site at www.iFIT.com.
5
Follow the desired links on our Web site to select a program.
When the program is completed, the walking belt
will stop and the Time display will begin to flash.
Note: To use another program, press the Stop
button and go to step 5.
Note: If the speed of the treadmill does not
change when a “chirp” is heard, make sure that
the iFIT.com indicator is lit and that the Time
display is not flashing. In addition, make sure
that the audio cable is properly connected, that
it is fully plugged in, and that it is not wrapped
around a power cord.
8
Read and follow the on-line instructions for using a
program.
6
Return to the treadmill and stand on the foot
rails. Find the clip attached to the key and slide
the clip onto the waistband of your clothes.
Follow your progress with the LED track and
the displays.
See step 5 on page 11.
9
Follow the on-line instructions to start the
program.
Measure your heart rate, if desired.
See step 6 on page 12.
When you start the program, an on-screen countdown will begin.
the program is completed, remove the
10 When
key.
See step 6 on page 13.
18
THE INFORMATION MODE
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been operated and the total number of miles that the
walking belt has moved. The information mode also allows you to switch the console from miles per hour to
kilometers per hour.
To select the information mode, hold down the Stop
button, insert the key into the console, and continue to
hold the Stop button for a few seconds. When the information mode is selected, the following information will
be shown:
The Distance/Laps display will
show the total number of miles
(or kilometers) that the walking
belt has moved.
An “E” for english miles or an
“M” for metric kilometers will
appear in the Speed display.
Press the Speed ▲ button to
change the unit of measurement.
To exit the information mode, remove the key from the
console.
The Time display will show the
total number of hours the
treadmill has been used.
19
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
1
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be
permanently damaged. Next, unplug the power cord.
CAUTION: You must be able to safely lift 45 pounds (20
kg) in order to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. CAUTION: To decrease the possibility of
injury, bend your legs and keep your back straight. As
you raise the treadmill, make sure to lift with your legs
rather than your back. Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob
to the left and hold it. Raise the treadmill until the catch is
past the pin on the latch knob. Slowly release the latch
knob. Make sure that the catch is securely held by the
pin.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit.
2
Open
Latch
Knob
Closed
Pin
Catch
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the catch
is securely held by the pin on the latch knob.
1. Hold the handrails as shown and place one foot against a
wheel.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location.
Never move the treadmill without tipping it back. To
reduce the risk of injury, use extreme caution while
moving the treadmill. Do not attempt to move the
treadmill over an uneven surface.
3. Place one foot on a wheel, and carefully lower the treadmill until it is resting in the storage position.
20
Base
Wheels
HOW TO LOWER THE TREADMILL FOR USE
1
1. Hold the upper end of the treadmill with your right hand
as shown. Using your left hand, pull the latch knob to the
left and hold it. Pivot the treadmill down until the frame is
past the pin on the latch knob. Slowly release the latch
knob.
Latch
Knob
Pin
Catch
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. Do not drop the treadmill frame
to the floor. CAUTION: To decrease the possibility of
injury, bend your legs and keep your back straight.
21
2
Open
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department tollfree at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor
that meets all of the specifications described on page 9. Important: The treadmill is not compatible
with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
c
Tripped
Reset
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the
circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our toll-free Customer Service Department.
PROBLEM: The speed display on the console does not function properly
SOLUTION: a. Remove the key and UNPLUG THE POWER CORD.
Remove the hood from the treadmill. Locate the Reed
Switch (21) and the Magnet (43) on the left side of the
Pulley (42). Turn the Pulley until the Magnet is aligned
with the Reed Switch. Make sure that the gap between the Magnet and the Reed Switch is about
1/8”. If necessary, loosen the 3/4” Screw (76) and
move the Reed Switch slightly. Retighten the Screw.
Re-attach the hood, and run the treadmill for a few
minutes to check for a correct speed reading.
22
a
1/8”
76
21
Top
View
42
43
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.
b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 3 to
4 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, insert the key and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
b
3”–4”
Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, please
call our toll-free Customer Service Department.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
bolt counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Plug in the power cord,
insert the key and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
a
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
b
23
CONDITIONING GUIDELINES
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in
your training zone.
WARNING:
Before beginning this
or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with preexisting health problems.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise—never
hold your breath.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “training zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-exercise problems.
EXERCISE FREQUENCY
To measure your heart rate during exercise, use the
pulse sensor.
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for en-
24
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
1
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
2
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps
and hip muscles.
25
5
NOTES
26
PART LIST—Model No. IMTL39620
R0203A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key
No. Qty.
1
2
3
4*
1
1
4
1
5
6
7
8
9
10
11
12
13
14
15
1
2
1
1
1
1
1
1
1
1
6
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30*
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
4
1
2
1
2
1
1
1
1
1
1
1
1
10
1
1
2
2
1
1
1
1
4
4
1
1
1
1
4
2
Description
Motor Belt
Pulley/Flywheel/Fan
Motor Nut
Motor/Pulley/
Flywheel/ Fan
Incline Motor Bolt
Incline Motor Spacer
Incline Motor
Stop Bracket
Left Upright
Right Upright
Latch Pin
Frame
Pin Clip
Latch Pin Collar
Wheel Nut/
Incline Motor Nut
Belt Guide Screw
Wire Harness
Hood Bracket
Front Hood Bracket
Warning Decal
Reed Switch
Reed Switch Clip
Left Handrail
Controller
Electronics Bracket
Circuit Breaker
Power Cord
Power Cord Grommet
Washer
Latch Assembly
Incline Frame
Frame Pivot Bolt
Frame Pivot Spacer
Tension Bushing
Front Roller Adj. Bolt
Foot Rail Cap (Right)
Motor Tension Nut
Motor Bolt
Cap Screw
Foot Rail Cap (Left)
Left Foot Rail
Front Roller/Pulley
Magnet
Platform Screw
Isolator
Key
No. Qty.
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
4
4
1
2
1
1
8
3
4
1
1
1
4
2
1
1
20
1
1
2
1
1
14
2
1
1
5
1
1
2
6
1
1
4
2
4
1
2
2
85
86
87
88
89
90
91
2
2
1
1
4
1
1
Description
Isolator Fastener
3” Bolts
Shield
Belt Guide
Battery Cover
Front Belly Pan
U-nut
Cable Tie Clamp
Cable Tie
Walking Belt
Spring
Rear Roller
Hood Screw
Rear Foot
iFIT Jack
Ground Wire
Screw
Left Rear Endcap
Right Rear Endcap
Rear Roller Adj. Bolt
Motor
Latch Decal
Console Screw
Latch Catch Screw
Latch Catch
Walking Platform
8” Cable Tie
Incline Bolt
Motor Tension Bolt
Right Foot Rail
3/4” Screw
Storage Latch Bracket
Console
1 1/2” Screw
Incline Pivot Nut
Motor Star Washer
Base
Incline Frame Bolt
Motor Tension
Washer
Handrail
Wheel Bolt
Console Base
Console Crossbar
4” Bolt
Key/Clip
Incline Motor Belly Pan
27
Key
No. Qty.
Description
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
#
#
#
#
#
#
#
Roller Adj. Washer
Book Holder
Motor Hood
Front Wheel
Incline Motor Shield
Base Pad
iFIT Wire
Upright Grommet
Allen Wrench
3/4” Tek Screw
Handrail Endcap
Power Board Plate
Base Cap
Latch Knob
Choke
Silver Screw
Plastic Tie
Power Board
Connector Cover
Hood Spacer
Bumper
Edge Guard
Upright Endcap
Metal Plate
Belly Pan Interface
Rear Foot Spacer
Cup Holder
Power Board Bracket
Controller Wire
Warning Decal
Lift Spacer
Plastic Standoff
Pulse Plate Cover
8” Blue Wire, 2F
4” Blue Wire, 2F
8” White Wire, 2F
4” White Wire, M/F
8” Green Wire, 2 Ring
User's Manual
2
1
1
2
1
4
1
1
1
5
2
1
4
1
1
1
2
1
1
1
2
1
2
2
2
2
2
1
1
1
2
4
1
1
1
1
1
1
1
* Includes all parts shown in the
box.
# These parts are not illustrated.
Specifications are subject to
change without notice.
65
92
63
100
101
59
12
67
44
65
92
117
70
69
41
64
62
61
57
45
16
55
49
46
39
101
59
117
44
40
44
71
1
32
3
43
2
54
42
33
4*
66
37
45
46
44
75
36
22
53
62
39
21
76
6
49
106
81
111
62 122
38
62
80
18
16
3
5
15
7
19
76
80
34
103
73
81
15
38 35
16
8
84
62
51
18
33
62
74
24
15
116
32
31
62
122
76
123
25
76
109
26
116
62
76
119
101
28
76
27
EXPLODED DRAWING—Model No. IMTL39620
R0203A
68
58
115
88
87
94
78
68
68
121 115
113
93
118
68
58
68
58
118
68
50
58
110
60
98
108
72
120
105
30*
97
101
86
95
102
104
56
76
20
52
15
14
13
77
85
11
96
47
52
29
101
101
79
112
9
79
83
102
104
15
85
20
82
107
86
101
101
95
17
104
101
97
112
89
29
114
99
52
29
97
101
79
47
10
79
52
17
83
89
29
101
97
114
104
91
90
101
EXPLODED DRAWING—Model No. IMTL39620
R0203A
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
• The MODEL NUMBER OF THE PRODUCT (IMTL39620)
• The NAME OF THE PRODUCT (IMAGE® 10.0 treadmill)
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING in the center of
this manual and the PART LIST on page 27)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 196005 R0203A
Printed in USA © 2003 ICON Health & Fitness, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
