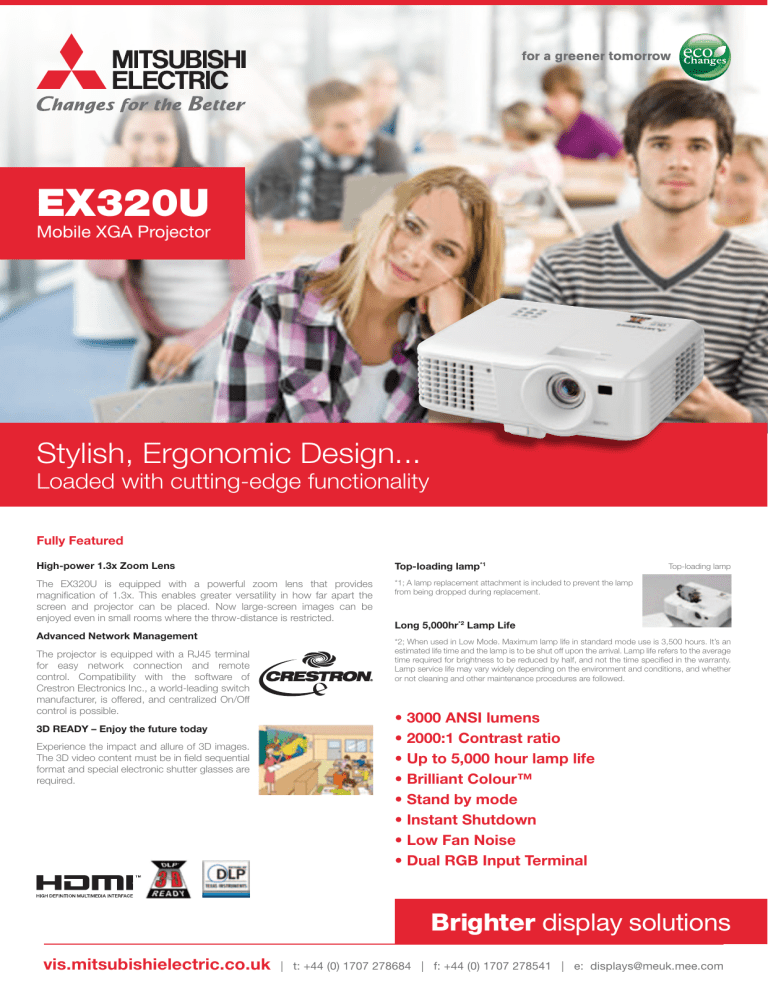

EX320U
Mobile XGA Projector
Stylish, Ergonomic Design...
Loaded with cutting-edge functionality
Fully Featured
High-power 1.3x Zoom Lens
Top-loading lamp*1
The EX320U is equipped with a powerful zoom lens that provides
magnification of 1.3x. This enables greater versatility in how far apart the
screen and projector can be placed. Now large-screen images can be
enjoyed even in small rooms where the throw-distance is restricted.
*1; A lamp replacement attachment is included to prevent the lamp
from being dropped during replacement.
Advanced Network Management
The projector is equipped with a RJ45 terminal
for easy network connection and remote
control. Compatibility with the software of
Crestron Electronics Inc., a world-leading switch
manufacturer, is offered, and centralized On/Off
control is possible.
3D READY – Enjoy the future today
Experience the impact and allure of 3D images.
The 3D video content must be in field sequential
format and special electronic shutter glasses are
required.
Top-loading lamp
Long 5,000hr*2 Lamp Life
*2; When used in Low Mode. Maximum lamp life in standard mode use is 3,500 hours. It’s an
estimated life time and the lamp is to be shut off upon the arrival. Lamp life refers to the average
time required for brightness to be reduced by half, and not the time specified in the warranty.
Lamp service life may vary widely depending on the environment and conditions, and whether
or not cleaning and other maintenance procedures are followed.
• 3000 ANSI lumens
• 2000:1 Contrast ratio
• Up to 5,000 hour lamp life
• Brilliant Colour™
• Stand by mode
• Instant Shutdown
• Low Fan Noise
• Dual RGB Input Terminal
Brighter display solutions
vis.mitsubishielectric.co.uk
| t: +44 (0) 1707 278684 | f: +44 (0) 1707 278541 | e: [email protected]
Specifications
EX320U
Mobile XGA Projector
Low
Brilliant
Wall
Password Instant Long-life Standby
Lock Shutdown Lamp
Colour TM Screen
Power
Top
Loading
Lamp
Closed
Low
LAN
Caption Fan Noise (RJ-45)
Picture Performance
User Friendly
HDMI
Input and Output Terminals
1
2
3
4
5 6
7
Model
EX320U
Display Technology
Resolution
0.55" 1-Chip DMD
1024 x 768 (Total 786,432 pixels)
Brightness
3000lm
Contrast Ratio
2000 : 1
Picture Size*1
40" - 300"
Throw Ratio*1
1.5 - 2.0
Source Lamp
170W (5000hr*2) with Low Mode,
230W (3500hr*2) with Standard Mode
PC Compatibility
640 x 480 - 1600 x 1200,
True : 1024 x 768, Sync on Green available
Video Compatibility
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video ; 480i/p (525i/p), 576i/p (625i/p),
720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p (1125i/p 50Hz)
Input Terminals
RGB ; mini D-sub 15pin x 2
Video ; RCA x 1 + S-VIDEO x 1
Digital ; HDMI*3 x 1
Audio ; Stereo mini jack (ø3.5mm) x 1
Output Terminals
RGB ; mini D-sub 15pin x 1
Audio ; Stereo mini jack (ø3.5mm) x 1
Communication Terminal
Serial; D-Sub 9pin x 1 (RS-232C)
Speaker Output
2W Mono
Dimensions ( W x H x D)
282 x 94 x 229 mm / 11.1 x 3.7 x 9.0 inch (Not including protrusion)
Weight
2.5kg / 5.5lbs
Power Requirements
AC 100-240V, 50/60Hz
Optional Lamp
VLT-EX320LP
LAN ; RJ-45 x 1
• Compliant with ISO21118-2005
• All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
*1: Actual values may vary slightly from those listed here.
*2: Lamp service life varies depending on usage environment and maintenance.
*3: “HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.”
8
9
Screen size and Projection distance
4 Serial RS-232C
5 LAN (RJ-45)
6 Audio input
7 Audio output
8 S-Video
9 Video
EX320U
Hd
1 Monitor output
2 PC/Component video input
3 HDMI
Height
As seen from the side
Projection Distance (L)
Top View
Bottom View
Unit:mm
Screen size chart (4:3 aspect ratio)
229
282
Front View
Side View
inch
40
60
80
100
120
150
200
250
300
cm
102
152
203
254
305
381
508
635
762
Width (W)
inch
32
48
64
80
96
120
160
200
240
cm
81
122
163
203
244
305
406
508
610
Height
projected
image ( Hd)
Distance from screen ( L)
Screen
Diagonal Size
Height (H)
inch
24
36
48
60
72
90
120
150
180
cm
61
91
122
152
183
229
305
381
457
Shortest (Wide)
inch
48
73
97
121
145
182
242
303
363
m
1.2
1.8
2.5
3.1
3.7
4.6
6.2
7.7
9.2
Longest (Tele)
inch
63
94
126
157
189
236
315
394
472
m
1.6
2.4
3.2
4.0
4.8
6.0
8.0
10.0
12.0
inch
2
3
4
5
5
7
9
11
14
cm
5
7
9
11
14
17
23
29
34
The above numbers are approximate, and may be slightly different from the actual measurements.
94
Screen size chart (16:9 aspect ratio)
Distance from screen ( L)
Screen
Diagonal Size
Eco Changes is the Mitsubishi Electric
Group’s environmental statement, and
expresses the Group’s stance on
environmental management. Through a
wide range of businesses, we are helping
contribute to the realization of a
sustainable society.
inch
40
60
80
100
120
150
200
250
300
cm
102
152
203
254
305
381
508
635
762
Width (W)
inch
35
52
70
87
105
131
174
218
261
cm
89
133
177
221
266
332
443
553
664
Height (H)
inch
20
29
39
49
59
74
98
123
147
cm
50
75
100
125
149
187
249
311
374
Shortest (Wide)
inch
52
78
105
131
157
196
261
327
392
m
1.3
2.0
2.7
3.3
4.0
5.0
6.6
8.3
10.0
Longest (Tele)
inch
68
102
136
170
204
255
340
425
–
m
1.7
2.6
3.5
4.3
5.2
6.5
8.6
10.8
–
Height
projected
image ( Hd)
inch
5
8
10
13
16
19
26
32
39
cm
13
20
26
33
40
49
66
82
99
The above numbers are approximate, and may be slightly different from the actual measurements.
EX320U
MITSUBISHI
ELECTRIC EUROPE
New publication, effective December 2010 Specifications subject to change without notice.
vis.mitsubishielectric.co.uk
| t: +44 (0) 1707 278684 | f: +44 (0) 1707 278541 | e: [email protected]
