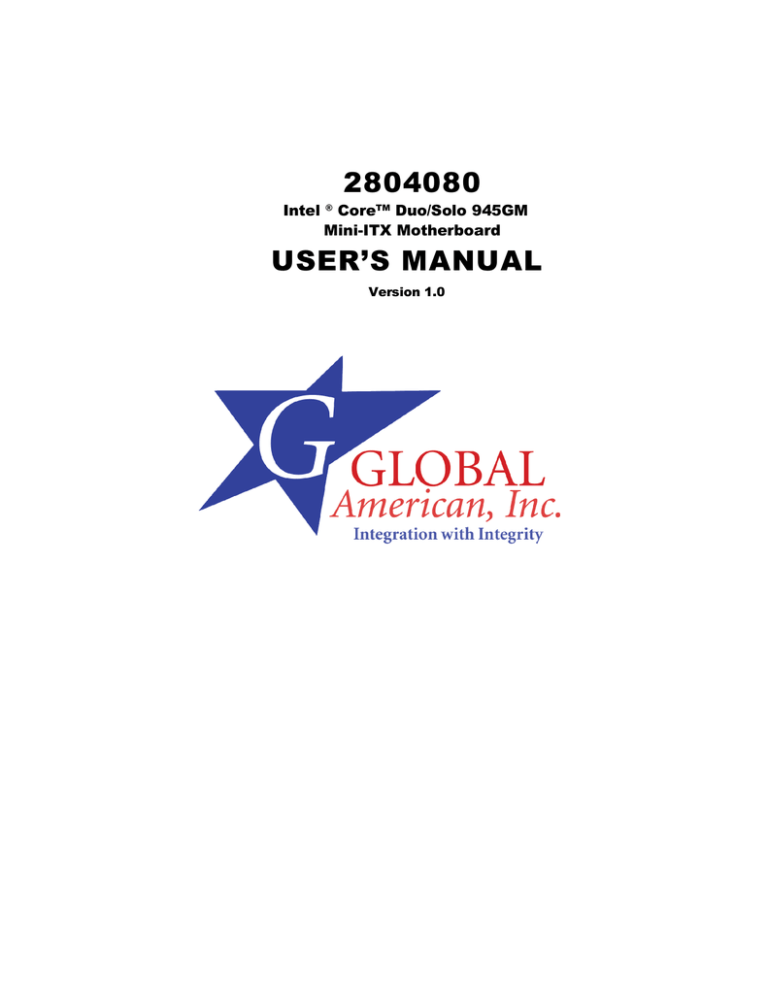

Intel
2804080
CoreTM Duo/Solo 945GM
Mini-ITX Motherboard
®
USER’S MANUAL
Version 1.0
Acknowledgments
Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Intel® Core Duo and Intel® Core Solo processors are
registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
ii
2804080 User’s Manual
Table of Contents
Introduction .......................................................1
Product Description............................................................. 1
Checklist.............................................................................. 2
2804080 Specifications ....................................................... 3
Board Dimensions ............................................................... 4
Installations .......................................................5
Installing the CPU ............................................................... 6
Installing the Memory ......................................................... 7
Setting the Jumpers ............................................................. 8
Connectors on 2804080 ...................................................... 11
BIOS Setup .......................................................27
Drivers Installation ......................................51
Intel Chipset Software Installation Utility......................... 52
VGA Drivers Installation .................................................. 54
AC97 Codec Audio Driver Installation............................. 56
LAN Drivers Installation................................................... 57
Appendix ...........................................................59
A. I/O Port Address Map................................................... 59
B. Interrupt Request Lines (IRQ) ...................................... 60
C. Watchdog Timer Configuration.................................... 61
2804080 User’s Manual
iii
IMPORTANT NOTE: When the system boots without the CRT being
connected, there will be no image on screen when you insert the
CRT/VGA cable. To show the image on screen, the hotkey must be
pressed (CTRL-ALT-F1).
THE 2804080 MINI ITX MOTHERBOARD
iv
2804080 User’s Manual
INTRODUCTION
Introduction
Product Description
The 2804080 Mini ITX board incorporates the Mobile Intel® 945GM
Express Chipset for Embedded Computing, consisting of the Intel® 945GM
Graphic Memory Controller Hub (GMCH) and Intel® I/O Controller Hub
7-M (ICH7-M), an optimized integrated graphics solution with a 533MHz
and 667MHz front-side bus. Dimensions of the board are 170mm x 170mm.
The integrated powerful 3D graphics engine, based on Intel® Graphics Media
Accelerator 950 (Intel® GMA 950) architecture, operates at core speeds of up to
400 MHz. It features a low-power design, is validated with the Intel® Core Duo
and Intel® Core Solo processors on 65nm process. With dual channel DDR2
667MHz two DIMM socket on board, the board supports up to 4GB of DDR2
system memory.
Intel® Graphics supports a unique intelligent memory management scheme
called Dynamic Video Memory Technology (DVMT). DVMT handles diverse
applications by providing the maximum (224MB) availability of system memory
for general computer usage, while supplying additional graphics memory when a
3D-intensive application requests it. The Intel GMA 950 graphics architecture
also takes advantage of the high-performance Intel processor. Intel GMA 950
graphics supports Dual Independent Display technology.
The main features of the board are:
Supports Intel® CoreTM Duo /Solo processors
Supports up to 2.33GHz, 533MHz/667MHz FSB
Two DDR2 SDRAM DIMM, Max. 4GB memory
Onboard 10/100 BaseT and Marvell PCI-Express Gigabit LAN
Intel® 945GM Express VGA for CRT / LVDS
2x SATA, 6x USB 2.0, 2x COM, Watchdog timer, 1394
1x MiniPCI, 1x MiniPCI-E, 1x PCI,1xPCI-E(x1) slots, optional DVI
Optional daughter cards:
ID390: Chrontel 7308, supports 24 bit single or dual LVDS channel
ID390C: Chrontel, 7021, supports CRT
ID391: Chrontel 7307C, single DVI (connector on cable)
ID391D: Chrontel 7307C, dual DVI (connector on cable)
2804080 User’s Manual
1
INTRODUCTION
Checklist
Your 2804080 package should include the items listed below.
The 2804080 Mini-ITX motherboard
This User’s Manual
1 CD containing chipset drivers and flash memory utility
Cable kit (IDE, Serial port, Serial ATA)
2
2804080 User’s Manual
INTRODUCTION
2804080 Specifications
CPU Supported
CPU Voltage
System Speed
CPU FSB
Cache
Green /APM
CPU Socket
Chipset
BIOS
Memory
VGA
SDVO (Dual CH)
LVDS LCD Panel
LAN
USB
Serial ATA Ports
1394
Parallel IDE
Audio
LPC I/O
Digital IO
Keyboard/Mouse
Expansion Slots
Edge Connector
Onboard Header/
Connector
Watchdog Timer
System Voltage
Others
Board Size
Intel® Core TM Duo /Solo processors
0.700V ~ 1.5V (IMVP-6)
Up to 2.33GHz or above
533MHz/667MHz FSB
2MB
APM1.2
mPGA 478MT Socket
Intel 945GM Chipset
GMCH: 82945GM 1466-pin Micro-FCBGA
ICH7M: 82801GBM 652-pin mBGA
Award BIOS, support ACPI Function
DDR2 667/533 SDRAM DIMM x2 (w/o ECC function), Max. 4GB
945GM built-in, supports CRT,RCA,S-VIDEO,HDTV
Through ID390 card (Chrontel 7308, 18+18 bits single/dual channel
LVDS, Chrontel 7021, CRT, RCA, S-VIDEO or HDTV)
Through ID391 card (Chrontel 7307C,DVI single or Dual)
945GM built-in, supports 18+18 bits, single or dual channel LVDS
1. ICH7M built-in 10/100BT MAC + Intel 82562ET PHY
2. Marvell 88E8053 PCI Express Gigabit LAN controller x1
ICH7M built-in USB 2.0 host controller, support 6 ports
ICH7M built-in SATA controller, supports 2 ports
TI TSB43LV22(dual port)
ICH7M built-in one channel Ultra DMA 33/66/100,CF
ICH7M Built-in Audio controller + AC97 Codec ALC655 w/ 6 channels
(Line-out, Line-in, Mic.), SPDIF-OUT + NS LM4950 (8-ohm 2W stereo
audio power amplifier)
W83627EHF: COM1, COM2 (RS232), Slim FDC 1.44MB, IrDA x1 &
hardware monitor (3 thermal, 4 voltage monitor inputs, 2 fan headers)
4 in & 4 out
Supports PS/2 Keyboard/Mouse Connector
PCI slot x1, PIC-E (x1) slot x1 and Mini PCI socket x1, Mini PCIe X1
PS/2 Connector x1 for keyboard/mouse
Gbit LAN RJ-45 + dual USB stack connector
10/100 LAN RJ45 + dual USB stack connector
DB9 x1 for COM 1; DB15 x1 for VGA
RCA Jack x1 +S-Video for TV-Out
SPDIF-OUT connector x1; 1394 Connector x1
RCA Jack 3x1 for Audio (Line-Out, Line-In & Mic)
40 pins box-header x1 for IDE1; 26 pins header x1 for Slim Floppy
CF Connector x1 @ solder side
10 pins pin-headerx1 for Digital I/O; 10 pins pin-header x1 for COM2
8 pins pin-header x 1 for USB 5,6; 5 pins pin-header x 1 for IrDA
DF13 Connector x2 for LVDS; 8 pins pin-header x1 for HDTV
7 pins pin-header x1 for audio Line-Out & Mic
4 pins pin-header x1 for built-in speaker; 7 pins pin-header x1 for 1394
SATA connector x2 for 2 SATA ports
Yes (256 segments, 0, 1, 2 255 sec/min)
+5V, +3.3V, +12V, -12V, 5VSB (2A)
Modem Wakeup, LAN Wakeup
170mm x 170mm (Mini ITX)
2804080 User’s Manual
3
INTRODUCTION
[
Board Dimensions
4
2804080 User’s Manual
INSTALLATIONS
Installations
This section provides information on how to use the jumpers and
connectors on the 2804080 in order to set up a workable system.
The topics covered are:
Installing the CPU ........................................................................ 6
Installing the Memory .................................................................. 7
Setting the Jumpers ...................................................................... 8
Connectors on 2804080 ............................................................... 11
2804080 User’s Manual
5
INSTALLATIONS
Installing the CPU
The 2804080 board supports a Socket 478MT processor socket for Intel®
CoreTM Duo and Intel® CoreTM Solo processors
The processor socket comes with a screw to secure the processor. As
shown in the left picture below, loosen the screw first before inserting
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, fasten the
screw. Refer to the figures below.
NOTE: Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.
6
2804080 User’s Manual
INSTALLATIONS
Installing the Memory
The 2804080 board supports two DDR2 memory socket for a
maximum total memory of 4GB in DDR2 memory type.
Installing and Removing Memory Modules
To install the DDR2 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR2 module so that the key of the DDR2 module align
with those on the memory slot.
2. Gently push the DDR2 module in an upright position until the clips of
the slot close to hold the DDR2 module in place when the DDR2
module touches the bottom of the slot.
3. To remove the DDR2 module, press the clips with both hands.
Lock
DDR2 Module
Lock
Lock
Lock
2804080 User’s Manual
7
INSTALLATIONS
Setting the Jumpers
Jumpers are used on 2804080 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on 2804080 and their respective functions.
Jumper Locations on 2804080........................................................ 9
JP5: LCD Panel Power Selection.................................................. 10
JP6: 1394 EPROM Write Selection.............................................. 10
JP7: Clear CMOS Setting ............................................................. 10
JP8: CompactFlash Slave/Master Selection.................................. 10
IMPORTANT NOTE: When the system boots without the CRT being
connected, there will be no image on screen when you insert the
CRT/VGA cable. To show the image on screen, the hotkey must be
pressed.
8
2804080 User’s Manual
INSTALLATIONS
Jumper Locations on 2804080
Jumpers on 2804080...........................................................................Page
JP5: LCD Panel Power Selection ................................................. 10
JP6: 1394 EPROM Write Selection ............................................. 10
JP7: Clear CMOS Setting ............................................................. 10
JP8: CompactFlash Slave/Master Selection ................................. 10
2804080 User’s Manual
9
INSTALLATIONS
JP5: LCD Panel Power Selection
JP3
LCD Panel Power
3.3V
5V
JP6: 1394 EPROM Write Selection
JP6
1394 EPROM
For EPROM Write
Normal
JP7: Clear CMOS Setting
JP4
Setting
Normal
Clear CMOS
JP8: CompactFlash Slave/Master Selection
JP8
CF Setting
Master
Slave
[
10
2804080 User’s Manual
INSTALLATIONS
Connectors on 2804080
The connectors on 2804080 allows you to connect external devices
such as keyboard, floppy disk drives, hard disk drives, printers, etc.
The following table lists the connectors on 2804080 and their
respective functions.
CN1: PS/2 Keyboard and PS/2 Mouse Connectors...................... 13
CN2, CN3: COM1 and VGA Connector...................................... 13
CN4: 10/100 RJ-45 and USB1/2 Ports ......................................... 14
CN5: 1394 Connector................................................................... 14
J12: SPDIF Out Connector ........................................................... 14
CN6,CN7: GbE RJ-45 and USB3/4 Ports .................................... 14
CN8: Audio Connector................................................................. 14
CN9, CN10: Serial ATA Connectors ........................................... 14
FAN1: System Fan Power Connector .......................................... 14
FAN2: CPU Fan Power Connector .............................................. 14
IDE1: IDE Connector ................................................................... 15
FDD1: Floppy Drive Connector ................................................... 15
J14: ATX Power Supply Connector ............................................. 16
J1: IrDA Connector ...................................................................... 16
J2: Digital I/O ............................................................................... 16
J3: System Function Connector .................................................... 17
J4: TV-OUT (S-VIDEO & Composite) Connector ...................... 18
J5: TV-OUT (Y,Pr,Pb) Connector ............................................... 18
J6: USB5/6 Port Pin Header ......................................................... 19
J7: COM2 Serial Port ................................................................... 19
J8: Wake On LAN Connector ...................................................... 19
J9, J10: LVDS Connectors (1st channel, 2nd channel) ................ 20
J11: LCD Backlight Connector .................................................... 20
J13: Mini PCI Connector.............................................................. 20
U36: Mini PCI- E(x1) Connector ................................................. 20
J15: Speaker Connector ................................................................ 20
J16: 1394 Connector..................................................................... 21
J17: Front Audio Connector ......................................................... 21
J18: PCI-E(x1) Slot ...................................................................... 21
J19: CD-In Pin Header ................................................................. 21
J20: Compact Flash Connector..................................................... 21
PCI1: PCI Slot (supports 2 Master).............................................. 21
CON1: SDVO Port Connector ..................................................... 22
Headers and Connectors on 2804080 Daughter Cards................... 23
2804080 User’s Manual
11
INSTALLATIONS
Connector Locations on 2804080
12
2804080 User’s Manual
INSTALLATIONS
CN1: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name
Keyboard data
N.C.
GND
5V
Keyboard clock
N.C.
Keyboard
1
2
3
4
5
6
Mouse
1
2
3
4
5
6
Signal Name
Mouse data
N.C.
GND
5V
Mouse clock
N.C.
CN2, CN3: COM1 and VGA Connector
Signal Name Pin #
DCD
1
RXD
2
TXD
3
DTR
4
GND
5
[
Pin # Signal Name
6
DSR
7
RTS
8
CTS
9
RI
10
Not Used
[[[[
Signal Name
Red
Blue
GND
GND
N.C.
N.C.
HSYNC
NC
Pin #
1
3
5
7
9
11
13
15
2804080 User’s Manual
Pin # Signal Name
2
Green
4
N.C.
6
GND
8
GND
10
GND
12
N.C.
14
VSYNC
13
INSTALLATIONS
CN4: 10/100 RJ-45 and USB1/2 Ports
CN5: 1394 Connector
J12: SPDIF Out Connector
CN6: GbE RJ-45 and USB3/4 Ports
CN8: Audio Connector
The audio connector, from top to bottom, is composed of Line in, Line
out and Microphone jacks.
CN9, CN10: Serial ATA Connectors
FAN1: System Fan Power Connector
FAN1 is a 3-pin header for system fans. The fan must be a 12V
(500mA).
Pin #
1
2
3
Signal Name
Ground
+12V
Rotation detection
FAN2: CPU Fan Power Connector
FAN2 is a 3-pin header for the CPU fan. The fan must be a 12V fan.
Pin #
1
2
3
14
Signal Name
Ground
+12V
Rotation detection
2804080 User’s Manual
INSTALLATIONS
IDE1: IDE Connector
Signal Name
Reset IDE
Host data 7
Host data 6
Host data 5
Host data 4
Host data 3
Host data 2
Host data 1
Host data 0
Ground
DRQ0
Host IOW
Host IOR
IOCHRDY
DACK0
IRQ14
Address 1
Address 0
Chip select 0
Activity
Pin #
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
Pin #
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
Signal Name
Ground
Host data 8
Host data 9
Host data 10
Host data 11
Host data 12
Host data 13
Host data 14
Host data 15
Protect pin
Ground
Ground
Ground
Host ALE
Ground
No connect
No connect
Address 2
Chip select 1
Ground
FDD1: Floppy Drive Connector
FDD1is a slim 26-pin connector and will support up to 2.88MB FDD.
Signal Name
VCC
VCC
VCC
NC
NC
DINST
NC
GND
GND
GND
NC
GND
GND
Pin #
1
3
5
7
9
11
13
15
17
19
21
23
25
Pin #
2
4
6
8
10
12
14
16
18
20
22
24
26
2804080 User’s Manual
Signal Name
INDEX
DRV_SEL
DSK_CH
NC
MOTOR
DIR
STEP
WDATA
WGATE
TRACK
WPROT
RDATA
SIDE
15
INSTALLATIONS
J14: ATX Power Supply Connector
11
1
20
10
Signal Name
3.3V
-12V
Ground
PS-ON
Ground
Ground
Ground
-5V
+5V
+5V
Pin #
11
12
13
14
15
16
17
18
19
20
Pin #
1
2
3
4
5
6
7
8
9
10
Signal Name
3.3V
3.3V
Ground
+5V
Ground
+5V
Ground
Power good
5VSB
+12V
J1: IrDA Connector
Pin #
1
2
3
4
5
J2: Digital I/O
Signal Name Pin
GND
1
OUT3
3
OUT2
5
IN3
7
IN2
9
16
Signal Name
+5V
No connect
Ir RX
Ground
Ir TX
Pin
2
4
6
8
10
Signal Name
VCC
OUT1
OUT0
IN1
IN0
2804080 User’s Manual
INSTALLATIONS
J3: System Function Connector
J3 provides connectors for system indicators that provide light indication
of the computer activities and switches to change the computer status. J3
is a 20-pin header that provides interfaces for the following functions.
Hard Disk Drive LED
Reset Switch
Not Defined
ATX Power On Switch
Not Defined
Power LED
Speaker
Speaker: Pins 1 - 4
This connector provides an interface to a speaker for audio
tone generation. An 8-ohm speaker is recommended.
Pin #
Signal Name
1
Speaker out
2
No connect
3
Ground
4
+5V
Power LED: Pins 11 - 15
Pin #
11
12
13
14
15
Signal Name
Power LED
No connect
Ground
No connect
Ground
ATX Power ON Switch: Pins 7 and 17
This 2-pin connector is an “ATX Power Supply On/Off
Switch” on the system that connects to the power switch on
the case. When pressed, the power switch will force the
system to power on. When pressed again, it will force the
system to power off.
2804080 User’s Manual
17
INSTALLATIONS
Reset Switch: Pins 9 and 19
The reset switch allows the user to reset the system without
turning the main power switch off and then on again.
Orientation is not required when making a connection to
this header.
Hard Disk Drive LED Connector: Pins 10 and 20
This connector connects to the hard drive activity LED on
control panel. This LED will flash when the HDD is being
accessed.
Pin #
10
20
Signal Name
HDD Active
5V
J4: TV-OUT (S-VIDEO & Composite) Connector
J5: TV-OUT (Y,Pr,Pb) Connector
The pin assignments of the TV out connector are as follows:
Signal Name
NC
SL/Y
SC/Pr
CVBS/Pb
Pin
1
3
5
7
Pin
2
4
6
8
CVBS : Composite signal
Pb : Component Chrominance (Pb) analog signal
SL : S-Video Luminance analog signal
Y : Component Luminance (Y) analog signal
SC : S-Video Chrominance analog signal
Pr : Component Chrominance (Pr) analog signal
18
2804080 User’s Manual
Signal Name
NC
Ground
Ground
Ground
INSTALLATIONS
J6: USB5/6 Port Pin Header
Signal Name Pin
Vcc
1
D2
D+
3
Ground
4
Pin
5
6
7
8
Signal Name
Ground
D+
DVcc
J7: COM2 Serial Port
COM2
Signal Name
DCD, Data carrier detect
RXD, Receive data
TXD, Transmit data
DTR, Data terminal ready
GND, ground
Pin #
1
2
3
4
5
Pin #
6
7
8
9
10
Signal Name
DSR, Data set ready
RTS, Request to send
CTS, Clear to send
RI, Ring indicator
Not Used
J8: Wake On LAN Connector
J8 is a 3-pin header for the Wake On LAN function. Wake On LAN will
function properly only with an ATX power supply with 5VSB that has
200mA.
Pin #
Signal Name
1
+5VSB
2
Ground
3
-PME
2804080 User’s Manual
19
INSTALLATIONS
J9, J10: LVDS Connectors (1st channel, 2nd channel)
The LVDS connectors on board consist of the first channel (J9) and
second channel (J10) and supports 18-bit or 36-bit.
Signal Name
TX0Ground
TX15V/3.3V
NA
TX2Ground
TXC5V/3.3V
+12V
Pin #
2
4
6
8
10
12
14
16
18
20
Pin #
1
3
5
7
9
11
13
15
17
19
Signal Name
TX0+
Ground
TX1+
Ground
NA
TX2+
Ground
TXC+
ENABKL
+12V
J11: LCD Backlight Connector
Pin #
Signal Name
1
+12V
2
Backlight Enable
3
Ground
J13: Mini PCI Connector
U36: Mini PCI- E(x1) Connector (bottom side)
J15: Speaker Connector
The J15 connector supports 2W/8ohm stereo audio power amplifier.
Pin # Signal Name
1
Audio L
2
Ground
3
Ground
4
Audio R
20
2804080 User’s Manual
INSTALLATIONS
J16: 1394 Connector
Signal Name Pin
TPA+
1
TPA3
+DV5
5
GND
7
Pin
2
4
6
8
Signal Name
TPB+
TPBNC
NC
J17: Front Audio Connector
Signal Name Pin
Pin
Signal Name
5
6
7
8
Rear Audio L
Front Audio L
VREF Out
Rear Audio R
Front Audio R
Mic In
Ground
1
2
3
4
REMARKS: To use the front audio connector, the jumpers on pin 1-3
and pin 2-4 must be removed.
J18: PCI-E(x1) Slot
J19: CD-In Pin Header
Pin # Signal Name
1
CD Audio R
2
Ground
3
Ground
4
CD Audio L
J20: Compact Flash Connector
PCI1: PCI Slot (supports 2 Master)
2804080 User’s Manual
21
INSTALLATIONS
CON1: SDVO Port Connector
22
Signal Name
Pin #
Pin #
Signal Name
+12V
+12V
+5V
3.3V
RESET
GND
SDVOC_CLK+
SDVOC_Blue+
GND
SDVOC_Green+
SDVOC_Red+
GND
SDVO TVClkIn+
SDVOB Int+
GND
SDVO CtrlData
SDVOB Clk+
GND
SDVOB Blue+
SDVOB Green+
GND
SDVOB Red+
SDVO Stall+
GND
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
+12V
+12V
+5V
3.3V
GND
GND
SDVOC_CLKSDVOC_BlueGND
SDVOC_GreenSDVOC_RedGND
SDVO TVClkInSDVOB IntGND
SDVO CtrlClk
SDVOB ClkGND
SDVOB BlueSDVOB GreenGND
SDVOB RedSDVO StallGND
2804080 User’s Manual
INSTALLATIONS
Headers and Connectors on 2804080 Daughter Cards
ID390
JP4 LCD Panel Power Selection
JP4
Voltage
3.3V
5V
ID390
J1 LCD Backlight Setting
Pin #
1
2
3
ID390
Signal Name
+12V
Backlight Enable
Ground
J3 and J2 1st/2nd LVDS Channel Connectors
Signal Name
TX0Ground
TX15V/3.3V
TX3TX2Ground
TXC5V/3.3V
+12V
Pin #
2
4
6
8
10
12
14
16
18
20
Pin #
1
3
5
7
9
11
13
15
17
19
Signal Name
TX0+
Ground
TX1+
Ground
TX3+
TX2+
Ground
TXC+
ENABKL
+12V
2804080 User’s Manual
23
INSTALLATIONS
ID390C
J4 VGA Connector
[[[[
Signal Name
+5V
Ground
N.C.
SDA
HSYNC
VSYNC
SCL
N.C.
24
Pin #
2
4
6
8
10
12
14
16
Pin # Signal Name
1
RED
3
GREEN
5
BLUE
7
N.C.
9
Ground
11
Ground
13
Ground
15
Ground
2804080 User’s Manual
INSTALLATIONS
ID391
J2 DVI Connector
Signal Name
TDC1Ground
TLC+5V
NC
TDC2Ground
TDC0NC
DDC_SC
ID391D
Pin #
2
4
6
8
10
12
14
16
18
20
Pin #
1
3
5
7
9
11
13
15
17
19
Signal Name
TDC1+
Ground
TLC+
Ground
HPDET
TDC2+
Ground
TDC0+
NC
DDC_SD
J1, J2 1st/2nd DVI Connectors
Signal Name
TDC1Ground
TLC+5V
NC
TDC2Ground
TDC0NC
DDC_SC
Pin #
2
4
6
8
10
12
14
16
18
20
Pin #
1
3
5
7
9
11
13
15
17
19
Signal Name
TDC1+
Ground
TLC+
Ground
HPDET
TDC2+
Ground
TDC0+
NC
DDC_SD
Remarks: When using dual DVI, the first DVI video output is through J1. After
setting the drivers in Windows, then the second DVI output (via J2) will
function. ID391D and ID391 are different since the latter (ID391) has video
output via J2. The pin assignments of J1 and J2 are the same.
2804080 User’s Manual
25
INSTALLATIONS
This page is intentionally left blank.
26
2804080 User’s Manual
BIOS SETUP
BIOS Setup
This chapter describes the different settings available in the Award
BIOS that comes with the board. The topics covered in this chapter are
as follows:
BIOS Introduction ........................................................................ 28
BIOS Setup................................................................................... 28
Standard CMOS Setup ................................................................. 30
Advanced BIOS Features ............................................................. 33
Advanced Chipset Features .......................................................... 36
Integrated Peripherals ................................................................... 39
Power Management Setup ............................................................ 43
PNP/PCI Configurations .............................................................. 46
PC Health Status........................................................................... 47
Frequency/Voltage Control .......................................................... 48
Load Fail-Safe Defaults................................................................ 49
Load Optimized Defaults ............................................................. 49
Set Supervisor/User Password...................................................... 49
Save & Exit Setup ........................................................................ 49
Exit Without Saving ..................................................................... 49
2804080 User’s Manual
27
BIOS SETUP
BIOS Introduction
The Award BIOS (Basic Input/Output System) installed in your
computer system’s ROM supports Intel processors. The BIOS provides
critical low-level support for a standard device such as disk drives, serial
ports and parallel ports. It also adds virus and password protection as
well as special support for detailed fine-tuning of the chipset controlling
the entire system.
BIOS Setup
The Award BIOS provides a Setup utility program for specifying the
system configurations and settings. The BIOS ROM of the system stores
the Setup utility. When you turn on the computer, the Award BIOS is
immediately activated. Pressing the <Del> key immediately allows you
to enter the Setup utility. If you are a little bit late pressing the <Del>
key, POST (Power On Self Test) will continue with its test routines, thus
preventing you from invoking the Setup. If you still wish to enter Setup,
restart the system by pressing the ”Reset” button or simultaneously
pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by
turning the system Off and back On again. The following message will
appear on the screen:
Press
<DEL>
to
Enter
Setup
In general, you press the arrow keys to highlight items, <Enter> to
select, the <PgUp> and <PgDn> keys to change entries, <F1> for help
and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.
28
2804080 User’s Manual
BIOS SETUP
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
PC Health Status
Exit Without Saving
ESC : Quit
F10 : Save & Exit Setup
Ç È Æ Å : Select Item
Time, Date, Hard Disk Type
The section below the setup items of the Main Menu displays the control
keys for this menu. At the bottom of the Main Menu just below the
control keys section, there is another section, which displays information
on the currently highlighted item in the list.
Note:
If the system cannot boot after making and saving system
changes with Setup, the Award BIOS supports an override to
the CMOS settings that resets your system to its default.
Warning: It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both Award and your system
manufacturer to provide the absolute maximum performance
and reliability. Changing the defaults could cause the system
to become unstable and crash in some cases.
2804080 User’s Manual
29
BIOS SETUP
Standard CMOS Setup
“Standard CMOS Setup” choice allows you to record some basic
hardware configurations in your computer system and set the system
clock and error handling. If the motherboard is already installed in a
working system, you will not need to select this option. You will need to
run the Standard CMOS option, however, if you change your system
hardware configurations, the onboard battery fails, or the configuration
stored in the CMOS memory was lost or damaged.
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Date (mm:dd:yy)
Wed, Apr 28, 2004
Time (hh:mm:ss)
00 : 00 : 00
Menu Level >
Item Help
IDE Channel 0 Master
IDE Channel 0 Slave
IDE Channel 1 Master
None
None
None
Change the day, month,
Year and century
IDE Channel 1 Slave
None
Drive A
Drive B
1.44M, 3.5 in.
None
Video
Halt On
EGA/VGA
All Errors
Base Memory
Extended Memory
Total Memory
640K
129024K
130048K
At the bottom of the menu are the control keys for use on this menu. If
you need any help in each item field, you can press the <F1> key. It will
display the relevant information to help you. The memory display at the
lower right-hand side of the menu is read-only. It will adjust
automatically according to the memory changed. The following
describes each item of this menu.
Date
The date format is:
Day :
Month :
Date :
Year :
30
Sun to Sat
1 to 12
1 to 31
1999 to 2099
2804080 User’s Manual
BIOS SETUP
To set the date, highlight the “Date” field and use the PageUp/
PageDown or +/- keys to set the current time.
Time
The time format is:
Hour : 00 to 23
Minute : 00 to 59
Second : 00 to 59
To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn>
or +/- keys to set the current time.
IDE Channel Master/Slave
The onboard PCI IDE connector provides Primary and Secondary
channels for connecting up to two IDE hard disks or other IDE devices.
Press <Enter> to configure the hard disk. The selections include Auto,
Manual, and None. Select ‘Manual’ to define the drive information
manually. You will be asked to enter the following items.
CYLS :
HEAD :
PRECOMP :
LANDING ZONE :
SECTOR :
Number of cylinders
Number of read/write heads
Write precompensation
Landing zone
Number of sectors
The Access Mode selections are as follows:
CHS (HD < 528MB)
LBA (HD > 528MB and supports
Logical Block Addressing)
Large (for MS-DOS only)
Auto
Remarks: The main board supports two serial ATA ports and are
represented in this setting as IDE Channel 0.
Drive A / Drive B
These fields identify the types of floppy disk drive A or drive B that has
been installed in the computer. The available specifications are:
360KB 1.2MB 720KB 1.44MB 2.88MB
5.25 in. 5.25 in. 3.5 in.
3.5 in.
3.5 in.
2804080 User’s Manual
31
BIOS SETUP
Video
This field selects the type of video display card installed in your system.
You can choose the following video display cards:
EGA/VGA
For EGA, VGA, SEGA, SVGA
or PGA monitor adapters. (default)
CGA 40
Power up in 40 column mode.
CGA 80
Power up in 80 column mode.
MONO
For Hercules or MDA adapters.
Halt On
This field determines whether or not the system will halt if an error is
detected during power up.
No errors
The system boot will not be halted for any error
that may be detected.
All errors
Whenever the BIOS detects a non-fatal error,
the system will stop and you will be prompted.
All, But Keyboard
The system boot will not be halted for a
keyboard error; it will stop for all other errors
All, But Diskette
The system boot will not be halted for a disk
error; it will stop for all other errors.
All, But Disk/Key
The system boot will not be halted for a keyboard or disk error; it will stop for all others.
32
2804080 User’s Manual
BIOS SETUP
Advanced BIOS Features
This section allows you to configure and improve your system and
allows you to set up some system features according to your preference.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
CPU Feature
Hard Disk Boot Priority
Virus Warning
CPU L1 and L2 Cache
Quick Power On Self Test
First Boot Device
Second Boot Device
Third Boot Device
Boot Other Device
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up NumLock Status
Gate A20 Option
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
APIC Mode
MPS Version Control for OS
OS Select For DRAM>64MB
Report No FDD For WIN 95
Small Logo (EPA) Show
Press Enter
Press Enter
Disabled
Enabled
Enabled
Floppy
Hard Disk
CDROM
Enabled
Disabled
Disabled
On
Fast
Disabled
6
250
Setup
Enabled
1.4
Non-OS2
Yes
Enabled
ITEM HELP
Menu Level >
CPU Feature
Press Enter to configure the settings relevant to CPU Feature.
Hard Disk Boot Priority
With the field, there is the option to choose, aside from the hard disks connected,
Bootable add-in Cards which refers to other external devices.
Virus Warning
If this option is enabled, an alarm message will be displayed when trying to write
on the boot sector or on the partition table on the disk, which is typical of the
virus.
CPU L1 and L2 Cache
Cache memory is additional memory that is faster than conventional DRAM
(system memory). CPUs from 486-type on up contain internal cache memory,
and most, but not all, modern PCs have additional (external) cache memory.
When the CPU requests data, the system transfers the requested data from the
main DRAM into cache memory, for even faster access by the CPU. These allow
you to enable (speed up memory access) or disable the cache function.
2804080 User’s Manual
33
BIOS SETUP
Quick Power On Self Test
When enabled, this field speeds up the Power On Self Test (POST) after
the system is turned on. If it is set to Enabled, BIOS will skip some
items.
First/Second/Third Boot Device
These fields determine the drive that the system searches first for an
operating system. The options available include Floppy, LS120, Hard
Disk, CDROM, ZIP100, USB-Floppy, USB-ZIP, USB-CDROM, LAN
and Disable.
Boot Other Device
These fields allow the system to search for an OS from other devices
other than the ones selected in the First/Second/Third Boot Device.
Swap Floppy Drive
This item allows you to determine whether or not to enable Swap Floppy
Drive. When enabled, the BIOS swaps floppy drive assignments so that
Drive A becomes Drive B, and Drive B becomes Drive A. By default,
this field is set to Disabled.
Boot Up Floppy Seek
This feature controls whether the BIOS checks for a floppy drive while
booting up. If it cannot detect one (either due to improper configuration
or its absence), it will flash an error message.
Boot Up NumLock Status
This allows you to activate the NumLock function after you power up
the system.
Gate A20 Option
This field allows you to select how Gate A20 is worked. Gate A20 is a
device used to address memory above 1 MB.
Typematic Rate Setting
When disabled, continually holding down a key on your keyboard will
generate only one instance. When enabled, you can set the two typematic
controls listed next. By default, this field is set to Disabled.
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, the system registers repeated
keystrokes speeds. Settings are from 6 to 30 characters per second.
34
2804080 User’s Manual
BIOS SETUP
Typematic Delay (Msec)
When the typematic rate is enabled, this item allows you to set the time
interval for displaying the first and second characters. By default, this
item is set to 250msec.
Security Option
This field allows you to limit access to the System and Setup. The default
value is Setup. When you select System, the system prompts for the User
Password every time you boot up. When you select Setup, the system
always boots up and prompts for the Supervisor Password only when the
Setup utility is called up.
APIC Mode
APIC stands for Advanced Programmable Interrupt Controller. The
default setting is Enabled.
MPS Version Control for OS
This option is specifies the MPS (Multiprocessor Specification) version
for your operating system. MPS version 1.4 added extended
configuration tables to improve support for multiple PCI bus
configurations and improve future expandability. The default setting is
1.4.
OS Select for DRAM > 64MB
This option allows the system to access greater than 64MB of DRAM
memory when used with OS/2 that depends on certain BIOS calls to
access memory. The default setting is Non-OS/2.
Report No FDD For WIN 95
If you are using Windows 95/98 without a floppy disk drive, select
Enabled to release IRQ6. This is required to pass Windows 95/98's SCT
test. You should also disable the Onboard FDC Controller in the
Integrated Peripherals screen when there's no floppy drive in the system.
If you set this feature to Disabled, the BIOS will not report the missing
floppy drive to Win95/98.
Small Logo (EPA) Show
The EPA logo appears at the right side of the monitor screen when the
system is boot up. The default setting is Enabled.
2804080 User’s Manual
35
BIOS SETUP
Advanced Chipset Features
This Setup menu controls the configuration of the chipset.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
DRAM Timing Selectable
CAS Latency Time
DRAM RAS# to CAS# Delay
DRAM RAS# Precharge
Precharge delay (tRAS)
System Memory Frequency
SLP_S4# Assertion Width
System BIOS Cacheable
Video BIOS Cacheable
Memory Hole at 15M-16M
Express Root Port Func
** On-Chip VGA Setting **
PEG/On Chip VGA Control
On-Chip Frame Buffer Size
DVMT Mode
DVMT/FIXED memory Size
SDVO Device Setting
SDVO LVDS Protocol
SDVO Panel Number
Boot Display
Panel Scaling
Panel Number
Onboard PCI-E LAN
LAN PXE Option ROM
By SPD
4
4
4
12
533MHZ
1 to 2 Sec
Enabled
Disabled
Disabled PCI
Press Enter
ITEM HELP
Menu Level >
Auto
8MB
DVMT
128MB
1CH SPWG, 24bit
1024x768
Auto
Auto
1024x768 18 bit SC
Enable
All Disable
DRAM Timing Selectable
This option refers to the method by which the DRAM timing is selected.
The default is By SPD.
CAS Latency Time
You can configure CAS latency time in HCLKs as 2 or 2.5 or 3. The
system board designer should set the values in this field, depending on
the DRAM installed. Do not change the values in this field unless you
change specifications of the installed DRAM or the installed CPU.
DRAM RAS# to CAS# Delay
This option allows you to insert a delay between the RAS (Row Address
Strobe) and CAS (Column Address Strobe) signals. This delay occurs
when the SDRAM is written to, read from or refreshed. Reducing the
delay improves the performance of the SDRAM.
36
2804080 User’s Manual
BIOS SETUP
DRAM RAS# Precharge
This option sets the number of cycles required for the RAS to
accumulate its charge before the SDRAM refreshes. The default setting
for the Active to Precharge Delay is 4.
Precharge Delay (tRAS)
The default setting for the Precharge Delay is 12.
System Memory Frequency
The default setting is 533MHz.
SLP_S4# Assertion Width
The default setting is 1 to 2 Sec.
System BIOS Cacheable
The setting of Enabled allows caching of the system BIOS ROM at
F000h-FFFFFh, resulting in better system performance. However, if
any program writes to this memory area, a system error may result.
Video BIOS Cacheable
The Setting Enabled allows caching of the video BIOS ROM at
C0000h-F7FFFh, resulting in better video performance. However, if
any program writes to this memory area, a system error may result.
Memory Hole At 15M-16M
In order to improve performance, certain space in memory can be
reserved for ISA cards. This memory must be mapped into the memory
space below 16 MB. The choices are Enabled and Disabled.
On-Chip VGA Setting
The fields under the On-Chip VGA Setting and their default settings are:
PEG/On Chip VGA Control: Auto
On-Chip Frame Buffer Size: 8MB
DVMT Mode: DVTM
DVMT/Fixed Memory Size: 128MB
SDVO Device Setting: (LVDS, DVI, Dual DVI, CRT)
Remarks: Set to LVDS for ID390, Set to CRT to ID390C, Set to DVI for
ID391/ID392/ID391D/ID392D
SDVO LVDS Protocol: 1Ch SPWG, 24bit
SDVO Panel Number: 1024x768
Boot Display: Auto
Panel Scaling: Auto
Panel Number: 1024x768 18 bit SC
2804080 User’s Manual
37
BIOS SETUP
Panel Scaling
The default setting is Auto. The options available include On and Off.
Panel Number
These fields allow you to select the LCD Panel type. The default values
for these ports are:
640x480
800x480
800x600
1024x768
1280x1024
1280x768
1400x1050
1600x1200
18bit
18bit
18bit
18bit
18bit
18bit
18bit
18bit
SC
SC
SC
SC
DC
SC
DC
DC
Onboard PCI-E LAN
By default, this setting is enabled.
LAN PXE Option ROM
By default, this setting is disabled. Other selections include ICH6
Integrated LAN and Marvell PCI-E LAN.
38
2804080 User’s Manual
BIOS SETUP
Integrated Peripherals
This section sets configurations for your hard disk and other integrated
peripherals. The first screen shows three main items for user to select.
Once an item selected, a submenu appears. Details follow.
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals
Press Enter
Press Enter
Press Enter
OnChip IDE Device
Onboard Device
SuperIO Device
ITEM HELP
Menu Level >
Phoenix - AwardBIOS CMOS Setup Utility
OnChip IDE Device
IDE HDD Block Mode
On-chip Primary PCI IDE
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Primary Master UDMA
IDE Primary Slave UDMA
On-Chip Secondary PCI IDE
IDE Secondary Master PIO
Secondary Slave PIO
Secondary Master UDMA
Secondary Slave UDMA
Enabled
Enabled
Auto
Auto
Auto
Auto
Enabled
Auto IDE
Auto IDE
Auto IDE
Auto
*** On-Chip Serial ATA Setting ***
On-Chip Serial ATA
PATA IDE Mode
SATA port
Auto
Secondary
P0, P2 is Primary
ITEM HELP
Menu Level >
Phoenix - AwardBIOS CMOS Setup Utility
Onboard Device
USB Controller
USB 2.0 Controller
USB Keyboard Support
AC97 Audio Select
Enabled
Enabled
Disabled
Auto
2804080 User’s Manual
ITEM HELP
Menu Level >
39
BIOS SETUP
Phoenix - AwardBIOS CMOS Setup Utility
SuperIO Device
POWER ON Function
KB Power ON Password
Hot Key power ON
Onboard FDC Controller
Onboard Serial Port 1
Onboard Serial Port 2
UART Mode Select
RxD , TxD Active
IR Transmission Delay
UR2 Duplex Mode
Use IR Pins
PWRON After PWR-Fail
BUTTON ONLY
Enter
Ctrl-F1
Enabled
3F8/IRQ4
2F8/IRQ3
Normal
Hi, Lo
Disabled
Half
IR-Rx2Tx2
Off
ITEM HELP
Menu Level >
IDE HDD Block Mode
This field allows your hard disk controller to use the fast block mode to
transfer data to and from your hard disk drive.
On-chip Primary PCI IDE Enabled
This field, by default, is enabled
OnChip Primary/Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with
support for two IDE channels. Select Enabled to activate each channel
separately.
IDE Primary/Secondary Master/Slave PIO
These fields allow your system hard disk controller to work faster.
Rather than have the BIOS issue a series of commands that transfer to or
from the disk drive, PIO (Programmed Input/Output) allows the BIOS to
communicate with the controller and CPU directly.
The system supports five modes, numbered from 0 (default) to 4, which
primarily differ in timing. When Auto is selected, the BIOS will select
the best available mode.
IDE Primary/Secondary Master/Slave UDMA
These fields allow your system to improve disk I/O throughput to
33Mb/sec with the Ultra DMA/33 feature. The options are Auto and
Disabled.
40
2804080 User’s Manual
BIOS SETUP
On-Chip Serial ATA Setting
The fields under the SATA setting includes On-Chip Serial ATA (Auto),
PATA IDE Mode (Secondary) and SATA Port (PO, P2 is Primary).
USB Controller
The options for this field are Enabled and Disabled. By default, this field
is set to Enabled.
USB 2.0 Controller
The options for this field are Enabled and Disabled. By default, this field
is set to Enabled. In order to use USB 2.0, necessary OS drivers must be
installed first. Please update your system to Windows 2000 SP4 or
Windows XP SP2.
USB Keyboard Support
The options for this field are Enabled and Disabled. By default, this field
is set to Disabled.
AC97 Audio Select
This field, by default, is set to Auto.
Power ON Function
This field is related to how the system is powered on – such as with the
use of conventional power button, keyboard or hot keys. The default is
BUTTON ONLY.
KB Power ON Password
This field allows users to set the password when keyboard power on is
the mode of the Power ON function.
Hot Key Power ON
This field sets certain keys, also known as hot keys, on the keyboard that
can be used as a ‘switch’ to power on the system.
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC)
installed on the motherboard and you wish to use it. If you install an
add-in FDC or the system has no floppy drive, select Disabled in this
field. This option allows you to select the onboard FDD port.
2804080 User’s Manual
41
BIOS SETUP
Onboard Serial Port
These fields allow you to select the onboard serial ports and their
addresses. The default values for these ports are:
Serial Port 1
3F8/IRQ4
Serial Port 2
2F8/IRQ3
UART Mode Select
This field determines the UART 2 mode in your computer. The default
value is Normal. Other options include IrDA and ASKIR.
PWRON After PWR-Fail
This field sets the system power status whether on or off when power
returns to the system from a power failure situation.
42
2804080 User’s Manual
BIOS SETUP
Power Management Setup
Phoenix - AwardBIOS CMOS Setup Utility
Power Management Setup
ACPI Function
ACPI Suspend
RUN VGABIOS if S3 Resume
Power Management
Video Off Method
Off In Suspend
Type
Modem Use IRQ
Enabled
S1(POS)
Auto
User Define
DPMS Video
Yes Suspend
Stop Grant
3
Suspend Mode
HDD Power Down
Soft-Off by PWR-BTTN
Wake-Up by PCI Card
Power On by Ring
Resume by Alarm
Date (of Month) Alarm
Time (hh:mm:ss) Alarm
Disabled
Disabled
Instant-Off
Disabled
Disabled
Disabled
0
0:0:0
** Reload Global Timer Events **
Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
FDD, COM, LPT Port
PCI PIRQ[A-D] #
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
ITEM HELP
Menu Level >
ACPI Function
Enable this function to support ACPI (Advance Configuration and
Power Interface).
ACPI Suspend
The default setting of the ACPI Suspend mode is S1(POS).
RUN VGABIOS if S3 Resume
The default setting of this field is Auto.
Power Management
This field allows you to select the type of power saving management
modes. There are four selections for Power Management.
Min. Power Saving
Minimum power management
Max. Power Saving
Maximum power management.
User Define
Each of the ranges is from 1 min. to
1hr. Except for HDD Power Down
which ranges from 1 min. to 15 min.
2804080 User’s Manual
43
BIOS SETUP
Video Off Method
This field defines the Video Off features. There are three options.
V/H SYNC + Blank
Default setting, blank the screen and turn
off vertical and horizontal scanning.
DPMS
Allows BIOS to control the video display.
Blank Screen
Writes blanks to the video buffer.
Video Off In Suspend
When enabled, the video is off in suspend mode. The default setting is
Yes.
Suspend Type
The default setting for the Suspend Type field is Stop Grant.
Modem Use IRQ
This field sets the IRQ used by the Modem. By default, the setting is 3.
Suspend Mode
When enabled, and after the set time of system inactivity, all devices
except the CPU will be shut off.
HDD Power Down
When enabled, and after the set time of system inactivity, the hard disk
drive will be powered down while all other devices remain active.
Soft-Off by PWRBTN
This field defines the power-off mode when using an ATX power
supply. The Instant Off mode allows powering off immediately upon
pressing the power button. In the Delay 4 Sec mode, the system powers
off when the power button is pressed for more than four seconds or
enters the suspend mode when pressed for less than 4 seconds.
Wake up by PCI Card
By default, this field is disabled.
Power On by Ring
This field enables or disables the power on of the system through the
modem connected to the serial port or LAN.
44
2804080 User’s Manual
BIOS SETUP
Resume by Alarm
This field enables or disables the resumption of the system operation.
When enabled, the user is allowed to set the Date and Time.
Reload Global Timer Events
The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can
prevent the system from entering a power saving mode or can awaken
the system from such a mode. When an I/O device wants to gain the
attention of the operating system, it signals this by causing an IRQ to
occur. When the operating system is ready to respond to the request, it
interrupts itself and performs the service.
2804080 User’s Manual
45
BIOS SETUP
PNP/PCI Configurations
This option configures the PCI bus system. All PCI bus systems on the
system use INT#, thus all installed PCI cards must be set to this value.
Phoenix - AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
Init Display First
PCI Slot
Reset Configuration Data
Disabled
Resources Controlled By
IRQ Resources
Auto (ESCD)
Press Enter
PCI/VGA Palette Snoop
Disabled
INT Pin
INT Pin
INT Pin
INT Pin
INT Pin
INT Pin
INT Pin
INT Pin
1 Assignment
2 Assignment
3 Assignment
4 Assignment
5 Assignment
6 Assignment
7 Assignment
8 Assignment
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
**PCI Express relative items**
Maximum Payload Size
4096
ITEM HELP
Menu Level
Select Yes if you are
using a Plug and Play
capable operating
system Select No if
you need the BIOS to
configure non-boot
devices
Init Display First
The default setting is PCI Card.
Reset Configuration Data
This field allows you to determine whether to reset the configuration
data or not. The default value is Disabled.
Resources Controlled by
This PnP BIOS can configure all of the boot and compatible devices
with the use of a PnP operating system such as Windows 95.
PCI/VGA Palette Snoop
Some non-standard VGA display cards may not show colors properly.
This field allows you to set whether or not MPEG ISA/VESA VGA
cards can work with PCI/VGA. When this field is enabled, a PCI/VGA
can work with an MPEG ISA/VESA VGA card. When this field is
disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.
Maximum Payload Size
The default setting of the PCI Express Maximum Payload Size is 4096.
46
2804080 User’s Manual
BIOS SETUP
PC Health Status
This section shows the parameters in determining the PC Health Status.
These parameters include temperatures, fan speeds and voltages.
Phoenix - AwardBIOS CMOS Setup Utility
PC Health Status
Shutdown Temperature
CPU Warning Temperature
Current System Temp
Current CPU Temp
System FAN Speed
CPU FAN Speed
Vcore(V)
12 V
1.8V
Disabled
Disabled
45°C/113°F
45°C/113°F
5400 RPM
5400 RPM
1.02 V
1.32 V
1.8V
-5V
+5V
-12V
3.3V
-5.02V
5.25 V
-12.59
3.37V
VBAT (V)
3.21 V
5VSB(V)
Smart Fan2 Temperature
Smart Fan2 Tolerance Value
5.67 V
Disabled
5
ITEM HELP
Menu Level >
CPU Warning Temperature
This field allows the user to set the temperature so that when the
temperature is reached, the system sounds a warning. This function can
help prevent damage to the system that is caused by overheating.
Temperatures/Voltages
These fields are the parameters of the hardware monitoring function
feature of the motherboard. The values are read-only values as
monitored by the system and show the PC health status.
Shutdown Temperature
This field allows the user to set the temperature by which the system
automatically shuts down once the threshold temperature is reached.
This function can help prevent damage to the system that is caused by
overheating.
Smart Fan2 Temperature
This field enables or disables the smart fan feature. At a certain
temperature, the fan starts turning. Once the temperature drops to a
certain level, it stops turning again.
Smart Fan Tolerance Value
The default value is 5.
2804080 User’s Manual
47
BIOS SETUP
Frequency/Voltage Control
This section shows the user how to configure the processor frequency.
Phoenix - AwardBIOS CMOS Setup Utility
Frequency/Voltage Control
Auto Detect PCI Clk
Disabled
Spread Spectrum Modulated
Disabled
ITEM HELP
Menu Level >
Auto Detect PCI Clk
This field enables or disables the auto detection of the PCI clock.
Spread Spectrum Modulated
This field sets the value of the spread spectrum. The default setting is
Disabled. This field is for CE testing use only.
48
2804080 User’s Manual
BIOS SETUP
Load Fail-Safe Defaults
This option allows you to load the troubleshooting default values
permanently stored in the BIOS ROM. These default settings are
non-optimal and disable all high-performance features.
Load Optimized Defaults
This option allows you to load the default values to your system
configuration. These default settings are optimal and enable all high
performance features.
Set Supervisor Password
These two options set the system password. Supervisor Password sets a
password that will be used to protect the system and Setup utility. User
Password sets a password that will be used exclusively on the system. To
specify a password, highlight the type you want and press <Enter>. The
Enter Password: message prompts on the screen. Type the password, up
to eight characters in length, and press <Enter>. The system confirms
your password by asking you to type it again. After setting a password,
the screen automatically returns to the main screen.
To disable a password, just press the <Enter> key when you are
prompted to enter the password. A message will confirm the password to
be disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.
Save & Exit Setup
This option allows you to determine whether or not to accept the
modifications. If you type “Y”, you will quit the setup utility and save all
changes into the CMOS memory. If you type “N”, you will return to
Setup utility.
Exit Without Saving
Select this option to exit the Setup utility without saving the changes you
have made in this session. Typing “Y” will quit the Setup utility without
saving the modifications. Typing “N” will return you to Setup utility.
2804080 User’s Manual
49
BIOS SETUP
This page is intentionally left blank.
50
2804080 User’s Manual
DRIVERS INSTALLATION
Drivers Installation
This section describes the installation procedures for software and
drivers under the Windows 2000 and Windows XP. The software and
drivers are included with the motherboard. If you find the items missing,
please contact the vendor where you made the purchase. The contents of
this section include the following:
Intel Chipset Software Intallation Utility ................................... 52
VGA Drivers Installation ........................................................... 54
AC97 Codec Audio Driver Installation ..................................... 56
LAN Drivers Installation ........................................................... 57
IMPORTANT NOTE:
After installing your Windows operating system (Windows 2000/ XP),
you must install first the Intel Chipset Software Installation Utility
before proceeding with the drivers installation.
2804080 User’s Manual
51
DRIVER INSTALLATION
Intel Chipset Software Installation Utility
The Intel Chipset Drivers should be installed first before the software
drivers to enable Plug & Play INF support for Intel chipset components.
Follow the instructions below to complete the installation under
Windows 2000/XP.
1. Insert the CD that comes with the board. Click Intel Chipsets and then
Intel(R) I945GMChipset Drivers.
2. Click Intel(R) Chipset Software Installation Utility.
3. When the Welcome screen appears, click Next to continue.
52
2804080 User’s Manual
DRIVERS INSTALLATION
4. Click Yes to accept the software license agreement and proceed with
the installation process.
5. On Readme Information screen, click Next to continue the
installation.
6. The Setup process is now complete. Click Finish to restart the
computer and for changes to take effect. When the computer has
restarted, the system will be able to find some devices. Restart your
computer when prompted.
2804080 User’s Manual
53
DRIVER INSTALLATION
VGA Drivers Installation
To install the VGA drivers, follow the steps below to proceed with the
installation.
1. Insert the CD that comes with the motherboard. Click Intel Chipsets
and then Intel(R) I945GMChipset Drivers.
2. Click Intel(R) I945GMChipset Family Graphics Driver.
3. When the Welcome screen appears, click Next to continue.
54
2804080 User’s Manual
DRIVERS INSTALLATION
4. Click Yes to to agree with the license agreement and continue the
installation.
5. Restart the computer as promted and for changes to take effect.
IMPORTANT NOTE:
When you have restarted the computer, your computer screen will be
blank. At this point, press CTRL-ALT-F1 simultaneously, if you are
using CRT monitor. If you are using LVDS LCD panel, press
CTRL-ALT-F3. If you are using DVI monitor, press CTRL-ALT-F4.
2804080 User’s Manual
55
DRIVER INSTALLATION
AC97 Codec Audio Driver Installation
Follow the steps below to install the Realtek AC97 Codec Audio
Drivers.
1. Insert the CD that comes with the motherboard. Click Intel Chipsets
and then Intel(R) I945GMChipset Drivers.
2. Click Realtek AC'97 Codec Audio Driver.
3. Click Finish to restart the computer and for changes to take effect. .
56
2804080 User’s Manual
DRIVERS INSTALLATION
LAN Drivers Installation
Follow the steps below to complete the installation of the Intel PRO
LAN drivers.
1. Insert the CD that comes with the motherboard. Click Intel Chipsets
and then Intel(R) I945GMChipset Drivers, then Intel(R) PRO LAN
Network Drivers.
2. Click Install Base Software to continue.
3. When prompted, please to restart the computer for new settings to take
effect.
2804080 User’s Manual
57
DRIVER INSTALLATION
Follow the steps below to install the Marvell Gigabit LAN drivers.
1. Insert the CD that comes with the motherboard. Click LAN Card and
then Marvell LAN Controller Driver.
2. Click Next when the InstallShield Wizard welcome screen appears.
3. Click Next to agree with the license agreement.
4. Click Next when the Readme Information screen appears to proceed
with the drives installation process.
5. When the Installation is complete, click Finish for the changes to take
effect.
58
2804080 User’s Manual
APPENDIX
Appendix
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses which also becomes the identity of the device. The following
table lists the I/O port addresses used.
Address
000h - 01Fh
020h - 03Fh
040h - 05Fh
060h - 06Fh
070h - 07Fh
080h - 09Fh
0A0h - 0BFh
0C0h - 0DFh
0F0h
0F1h
1F0h - 1F7h
278 - 27F
2F8h - 2FFh
2B0 - 2DF
378h - 3FFh
360 - 36F
3B0 - 3BF
3C0 - 3CF
3D0 - 3DF
3F0h - 3F7h
3F8h - 3FFh
Device Description
DMA Controller #1
Interrupt Controller #1
Timer
Keyboard Controller
Real Time Clock, NMI
DMA Page Register
Interrupt Controller #2
DMA Controller #2
Clear Math Coprocessor Busy Signal
Reset Math Coprocessor
IDE Interface
Parallel Port #2(LPT2)
Serial Port #2(COM2)
Graphics adapter Controller
Parallel Port #1(LPT1)
Network Ports
Monochrome & Printer adapter
EGA adapter
CGA adapter
Floppy Disk Controller
Serial Port #1(COM1)
2804080 User’s Manual
59
APPENDIX
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the
service required. The following table shows the IRQ used by the devices
on board.
Level
IRQ0
IRQ1
IRQ2
IRQ3
IRQ4
IRQ5
IRQ6
IRQ7
IRQ8
IRQ9
IRQ10
IRQ11
IRQ12
IRQ13
IRQ14
IRQ15
60
Function
System Timer Output
Keyboard
Interrupt Cascade
Serial Port #2
Serial Port #1
Reserved
Floppy Disk Controller
Parallel Port #1
Real Time Clock
Reserved
Reserved
Reserved
PS/2 Mouse
80287
Primary IDE
Secondary IDE
2804080 User’s Manual
APPENDIX
C. Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sorts of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user will
restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE:
//===========================================================================
//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//===========================================================================
#include <stdio.h>
#include <stdlib.h>
#include "W627EHF.H"
//===========================================================================
int main (int argc, char *argv[]);
void copyright(void);
void EnableWDT(int);
void DisableWDT(void);
//===========================================================================
int main (int argc, char *argv[])
{
unsigned char bBuf;
unsigned char bTime;
char **endptr;
copyright();
if (argc != 2)
{
printf(" Parameter incorrect!!\n");
return 1;
}
if (Init_W627EHF() == 0)
{
printf(" Winbond 83627HF is not detected, program abort.\n");
return 1;
}
bTime = strtol (argv[1], endptr, 10);
printf("System will reset after %d seconds\n", bTime);
EnableWDT(bTime);
return 0;
}
//===========================================================================
2804080 User’s Manual
61
APPENDIX
void copyright(void)
{
printf("\n======== Winbond 83627EHF Watch Timer Tester (AUTO DETECT) ========\n"\
"
Usage : W627E_WD reset_time\n"\
"
Ex : W627E_WD 3 => reset system after 3 second\n"\
"
W627E_WD 0 => disable watch dog timer\n");
}
//===========================================================================
void EnableWDT(int interval)
{
unsigned char bBuf;
bBuf = Get_W627EHF_Reg( 0x2D);
bBuf &= (!0x01);
Set_W627EHF_Reg( 0x2D, bBuf);
//Enable WDTO
Set_W627EHF_LD( 0x08);
Set_W627EHF_Reg( 0x30, 0x01);
//switch to logic device 8
//enable timer
bBuf = Get_W627EHF_Reg( 0xF5);
bBuf &= (!0x08);
Set_W627EHF_Reg( 0xF5, bBuf);
//count mode is second
Set_W627EHF_Reg( 0xF6, interval);
//set timer
}
//===========================================================================
void DisableWDT(void)
{
Set_W627EHF_LD(0x08);
//switch to logic device 8
Set_W627EHF_Reg(0xF6, 0x00);
//clear watchdog timer
Set_W627EHF_Reg(0x30, 0x00);
//watchdog disabled
}
//===========================================================================
62
2804080 User’s Manual
APPENDIX
//===========================================================================
//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//===========================================================================
#include "W627EHF.H"
#include <dos.h>
//===========================================================================
unsigned int W627EHF_BASE;
void Unlock_W627EHF (void);
void Lock_W627EHF (void);
//===========================================================================
unsigned int Init_W627EHF(void)
{
unsigned int result;
unsigned char ucDid;
W627EHF_BASE = 0x2E;
result = W627EHF_BASE;
ucDid = Get_W627EHF_Reg(0x20);
if (ucDid == 0x88)
{
goto Init_Finish;
}
W627EHF_BASE = 0x4E;
result = W627EHF_BASE;
ucDid = Get_W627EHF_Reg(0x20);
if (ucDid == 0x88)
{
goto Init_Finish;
}
W627EHF_BASE = 0x00;
result = W627EHF_BASE;
Init_Finish:
return (result);
}
//===========================================================================
void Unlock_W627EHF (void)
{
outportb(W627EHF_INDEX_PORT, W627EHF_UNLOCK);
outportb(W627EHF_INDEX_PORT, W627EHF_UNLOCK);
}
//===========================================================================
void Lock_W627EHF (void)
{
outportb(W627EHF_INDEX_PORT, W627EHF_LOCK);
}
//===========================================================================
void Set_W627EHF_LD( unsigned char LD)
{
Unlock_W627EHF();
outportb(W627EHF_INDEX_PORT, W627EHF_REG_LD);
outportb(W627EHF_DATA_PORT, LD);
Lock_W627EHF();
}
2804080 User’s Manual
63
APPENDIX
//===========================================================================
void Set_W627EHF_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_W627EHF();
outportb(W627EHF_INDEX_PORT, REG);
outportb(W627EHF_DATA_PORT, DATA);
Lock_W627EHF();
}
//===========================================================================
unsigned char Get_W627EHF_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_W627EHF();
outportb(W627EHF_INDEX_PORT, REG);
Result = inportb(W627EHF_DATA_PORT);
Lock_W627EHF();
return Result;
}
//===========================================================================
//===========================================================================
//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//===========================================================================
#ifndef __W627EHF_H
#define __W627EHF_H
1
//===========================================================================
#define
W627EHF_INDEX_PORT
(W627EHF_BASE)
#define
W627EHF_DATA_PORT
(W627EHF_BASE+1)
//===========================================================================
#define
W627EHF_REG_LD
0x07
//===========================================================================
#define W627EHF_UNLOCK
0x87
#define
W627EHF_LOCK
0xAA
//===========================================================================
unsigned int Init_W627EHF(void);
void Set_W627EHF_LD( unsigned char);
void Set_W627EHF_Reg( unsigned char, unsigned char);
unsigned char Get_W627EHF_Reg( unsigned char);
//===========================================================================
#endif //__W627EHF_H
64
2804080 User’s Manual
Any advice or comments about our products and service, or anything we can help
you with please don t hesitate to contact with us. We will do our best to support
you for your products, projects and business
Global American Inc.
Address
17 Hampshire Drive
Hudson, NH 03051
TEL
Toll Free (U.S. Only) 800-833-8999
(603)886-3900
FAX
(603)886-4545
Website
http://www.globalamericaninc.com
E-Mail
[email protected]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
