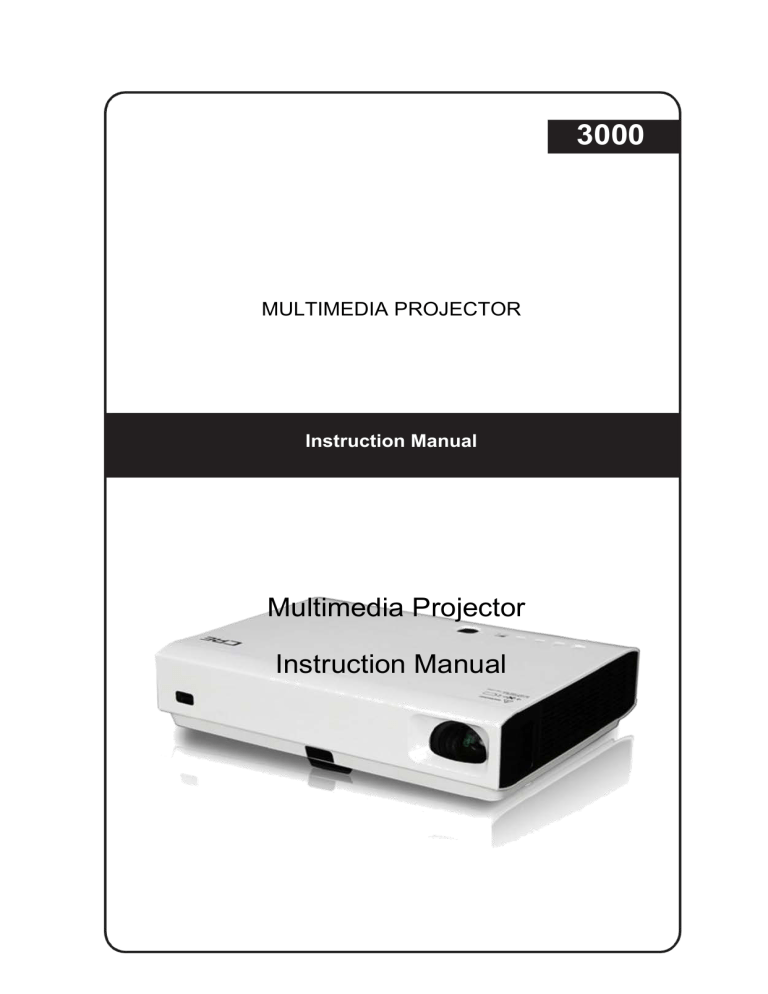

MULTIMEDIA PROJECTOR

Instruction Manual

Multimedia Projector

Instruction Manual

3000

Contents

Accessories-----------------------------------------------------------------------------------------------------------2

Chapter 1

Overview----------------------------------------------------------------------------------------------2

Chapter 2

Start Using--------------------------------------------------------------------------------------------4

Chapter 3

Media---------------------------------------------------------------------------------------------------8

Chapter 4

Screen Display(OSD)Setting ------------------------------------------------------------------12

Chapter 5

Maintenance----------------------------------------------------------------------------------------18

Distance and Screen Size---------------------------------------------------------------------------------------20

1

Accessories

All packages will contain the following parts. If there is some missing, please contact with distributor.

●Projector------------------------------

1pc

● Power supply Adapter---------------------------

1pc

●Power Plug---------------------------

1pc

● Instruction Manual --------------------------------

1pc

●Remote Control --------------------

1pc

● 4 Bolts for Fixing ---------------------------------

4pcs

● Carry Bag-----------------------------

1pc

Chapter 1 Overview

Top/Right Side Overview

Focus ( Adjust definition )

Zoom (Adjust screen size)

Left and Right Heat Vent

(Do not cover)

Key Overview

Power

Menu

Source IR Sensor

Direction & Enter

Quick Indicator Light

2

Bottom Overview

Projection Image Height Adjustment

Heat Emission Hole( Don’t cover)

Installation Diagram

(Follow it to install )

Tilt Adjustment Knob

(Rotate it to adjust the left and right height of the projection image)

Back Overview

Audio-out Audio-in HDMI- 2

VGA HDMI-1

Adapter

Anti-theft Lock

Battery Video Input

USB

TF Card

Remote Control Overview

3D Shortcut Volume Adjustment Menu Enter On/Off

Multifunction

Shortcut

Media play

/pause button

Last

(Media )

Next

(Media)

Return Direction Mute

Importance:

1. Make sure no obstacle between remote control and projector. If there is obstacle between them, remote control signal may be reflected back by the particular surface ,which will affect operation.

2. Buttons and keys on projector have the same function with buttons of remote control. Our manual introduces functions based on remote control.

3

Source

Chapter 2 Start Using

Warning:

To be safe, cut power between projector and relative equipment before connect cable.

Select The Signal for the Projector

When you connect projector with different equipment, you should press SOURCE key to choose corresponding input channel. Otherwise, there won’t be image could be projected out.

1. Press ( SOURCE ) to get source menu.

2. Press

▲and ▼

to choose correct channel.

3. Press to confirm and exit.

Projector Connection Set

Connect with HDMI device

Use HDMI wire to connect projector with HDMI device.

C onnect with Personal Computer

Use VGA to connect projector with personal computer

Note

PC must have a VGA output port, then it can use VGA wire to connect projector.

4

Insert USB flash driver /TF card

Insert the storage device into the corresponding port, and then the USB flash driver/TF card will be connected to the projector.

Connect the Video

Connect the video equipment to the projector by video cable.

Connect the Audio

Insert earphone or external mini speaker to the audio output of the projector,insert the audio cable from DVD , set top box or other signal devices to the audio input of the projector. Then there will be audio out to the earphone or external mini speaker.

5

Turn on /off the Projector

1.

Connect the AC power cord to the adapter's three hole socket (A), connect the other end of the AC power cord into a wall outlet.The output end of the adapter is connected to the projector (B).

Note: Make sure the flat side of the output end of the adapter is up when connecting the projector.

2.

Press or press button

“ POWER” to turn on /off the projector.

Adjust Image

Using image focusing control button (Located on the side of the projector) Adjust the projected image sharpness(A).

Using image zoom control button (Located on the side of the projector) Adjust the projected image size (B).

A

6

Set the Remote Control

The remote control is equipped with a 3V lithium battery

(CR2025). Battery was pre-installed in the remote control.

Before use the remote control, take out the plastic sheet from the battery warehouse .

Note: If the goods shipped by Express or by Air(Battery is not allowed with cargo on the plane), the battery pre-installed will be taken out before shipping, so please buy the battery in your local store.

Change Remote Control

Battery

1.Toward the direction of

2.

Remove the old

3.

Fit on battery’s

arrow(A) ,move and open the battery cover.Toward the direction of arrow(B) battery, install new battery(the positive upward).

cover.

pull out of the cover.

A

B

Note:

1. Can only use 3V lithium battery (CR2025)

2. In accordance with the relevant local regulations dispose the waste batteries.

3. Long time do not use the equipment ,should take out the battery.

Scope of Work

The remote control controls the projector through the infrared transmission . Remote control in the radius of about 7 m (23 ft) and above or below projector’s range of 15 degrees ,it can work normally (but the remote control can not perpendicular to the bottom of the projector ). If the projector does not response to the remote control instruction, please move it near to the projector.

7

Chapter 3 Media

General View

Media design helps you to access inserted USB flash driver or TF card’s file easily .

Movies, musics, photos and other documents can be displayed.

Media center menu includes four access application:

• Movie – Video Player,can play multiple formats of videos.

• Music –

Music Player,Supports many types of audio files.

• Photos – Photo Browser,support multiple formats of pictures,contains slide function.

• File – Document Brower,can display TXT document.

Movie

Supported Formats

Supports the following movie formats:

 H. 264 video, up to 720 p @ 30 fps; Main Profile level 3.1, AAC - LC audio, up to 160Kbps, 48 khz, “.m4v”, “.mp4 ”and “.mov ” format stereo audio.

 MPEG-4 video, up to 2.5 Mbps, 640 x480 pixels @ 30 fps; Simple Profile, AAC - LC audio, maximum 160 Kbps/channel, 48 khz, “.m4v”, “. Mp4” and “.mov” format stereo audio.

 Motion JPEG (M - JPEG) up to 35 Mbps, 1280 x720 pixel, 30 fps, U - Law audio,

“.avi” file’ PCM stereo audio .

 VC-1,WMV9,DivX(Xvid),Real Video,AVS.

 Unicode subtitle file: “.ssa”, “.ass”, “.srt”, “.smi”.

Watch Movie

If you want to open the movie list, please do the following steps: (other applications operation is the same)

1.

Press button ◄ and ► on the media center menu list to choose“movie” icon.

2. Press button to open the file directory .

3.

Press button ◄ and ► button choose the movie’s folder.

4.

Press button picked out the movie needed to play.

5. Press button play the selected movie .

8

Under the directory menu,press “menu button” , you can perform to modify, add or remove files.

Other applications operation is the same.

Movie Playback Menu

When playing movie ,press “menu button” ,the “playback menu “as following will jump out .

If the time that the user don’t operate the menu over 15 seconds, the “ playback menu” will automatically disappear.

Control functions described in the following table:

Button Function

/

/

Return to previous one/ Forward to next one

Pause / Play

Stop playing

Fast backward/ Fast forward

Slow play

Set special time frame to play

Zoom in/ Zoom out

Loop playback

Movie play list

Movie information

Setting(Image& Sound Mode/Ratio Mode/Brightness Mode/

3D Setting)

9

Music Playing

Audio player support below format

• MP3(Max 256 Kbps bit rate)

• WMA,MID,MIDI,MP1,MP2,OGG,AAC,AMR,WAV,AC3,M4A,AWB,APE

Play Music

If you want to play the music , do as following steps

1.Press button ◄ and ► on media center menu list to select “Music” icon. 2.Press button to open the file directory.

3.Press button ◄ and ► , select the folder which include the song you need. 4.Press to select the song.

5.Press

to play.

On the directory menu, press button”menu” ,you can add or delete document.

Music Playback Menu

Music player control as below:

Button

/

Function

Return to previous one/ Forward to next one

/ Pause / Play

Stop playing

Loop playback

Song play list

Song information

Photo Browsing

Photo browser support below format

• BMP ( Max 4000 x 3000 pixel )

• PNG ( Max 4000 x 3000 pixel )

• JPG (Max 4000 x 3000 pixel )

10

View photos

If you want to see a photo via photo browser, do as follow steps

1.

Press button ◄ and ► on media center menu to select “Photo ” icon.

2. Press button to open the document directory.

3.

Press button ◄ and ► , select the folder which include the photo you need

4. Press to select the photo.

5. Press to play the selected photo.

On the directory menu, press “menu button” ,you can add or delete document.

Photo Playback Menu

Photo browser control as below

Button

/

/

Function

Return to previous one/ Forward to next one

Pause / Play

Stop playing

Rotate photo

Zoom in/ Zoom out

Loop playback

Photo play list

Photo information

Light source working mode(Text. Image. Saving)

Document browser

If you want to read a document via file browser,do as follow steps

1.

Press button ◄ and ► on Media Center Menu to select “File” icon

2. Press button to open the document directory

3.Press button ◄ and ► , select the folder which include the document you need

4.Press to select the .

5.Press to play the selected photo.

On the directory menu, press button”menu button” ,you can add or delete document.

11

Chapter 4 Screen Display(OSD)Setting

OSD Menu Control

Projector have screen display (OSD) setting menu

,which could be used to adjust and change setting.

OSD Menu have 5 menus:

• Picture

• Option

Adjust the image quality in all aspects in this menu

Adjust the default language and other setting

• 3D Adjust 3D signal source display setting

• Sounds Adjust sound effect

• Application Adjust and set some special function

Note:

•If usder don’t operate OSD Menu over 15 seconds,OSD Menu will close automatically.

•Because of different signal sources, OSD items could be settled will be different.

So not all the OSD items could be settles when connected to one signal source.

For example ,If projector is connected to PC via VGA,user can alter the“Horizontal position/ Vertical Position of “Picture>Screen”.If connected to other signal source,this setting could not be changed and display by gray color.

Set OSD Language

OSD Display language can swift,if change OSD language,do it as following:

1.Press

Enter OSD menu,Press ◄ and ► button go to “OPTION” Page.

2.

Press ▲and ▼move to “OSD language” .

3.Press enter to set language menu(submenu).

4.Pr

ess◄ and ►button,till to the language you want.

5.Press to save setting and go back to last menu.

12

Picture Menu

Visit picture menu and adjust setting ,do it as following:

1. Press enter into OSD menu then press ◄ and ► to go to “PICTURE" menu.

2.

Press ▲and ▼ move to the menu to be adjusted.

3. Press to adjust option setting

,or enter into then press◄ and ►or ▲and

▼setting parameter.

4. Press to save setting and go back to last menu.

Note : Only menu “picture mode/color temperature” in User mode, inner parameter can be adjusted (Brightness,Contrast,Color)

Item

Picture Mode

Color Temperature

Aspect Ratio

Scaler

Noise Reduction

Instruction

Press then press◄ and ► to set picture display mode

(contrast ,brightness, sharpness)

Press then press◄ and ► adjust color temperature value of picture (red, green, blue)

Press Adjust width and height ratio of picture

(auto 16:10 16:9 4:3)

Press adjust picture size (0-9 optional)

Press to set level of noise reduction

(Low Middle High Auto off)

MPEG Noise Reduction Press set level of noise reduction

(low middle high off)

Dynamic Contrast

Screen

Lightbrightness

Press set dynamic contrast enhancement ( on/off )

Press then Press ◄ and ► adjust position of picture

(VGA mode is available)

Press then Press◄ and ► adjust picture brightness mode

(Text Video Saving)

13

Option Settings

To access the options menu and adjust the settings, perform the following steps:

1. Press the key to enter the OSD menu, press buttons

◄ and ►

to select the “OPTION” menu.

2. Press button

▲and ▼

to move to the item needs to be adjusted.

3. Press the button to adjust the option settings, or after you enter the menu, press buttons ◄ and ►or press button ▲and ▼ to set parameters.

4. Press the key to save settings and return to the previous menu.

Item

OSD Language

Close Menu time

Instructions

Press the key to enter , then press buttons

◄ and ► to set the

OSD menu language.

Press the button to enter,then press buttons ◄ and ►to set the time to close the menu if the usder do not operate the menu.

Auto Turnover Press set auto turnover ( on/off )

NoSignal Screen Color Press the key to enter , then press buttons ◄ and ►to set the screen color when there is no signal.

Shape Mode

Press the button to enter to set the image projection Mode

Front , rear , front ceiling, rear ceiling.

Auto Keystone

Keystone

Press set auto keystone ( on/off )

Press the button to enter, then press button ◄ and ► to manually correct the trapezoid image.

14

3D Settings

To access the 3D setting menu and adjust the settings, perform the following steps: 1. Press the key to enter the OSD menu.

2.

Press buttons ◄ and ► to select the menu of 3D.

3.

Press button ▲and ▼ to move to the item needs to be adjusted.

4. Press the button to adjust the option settings.

Item

Display Mode

Display Format

3D Output Aspect

LR View switch

Press the key

(2D, 3D )

Instructions to set the 3D signal source display mode.

Press the key to set the 3D signal playback format.

(Side by side ,

Top bottom

Press the key to set the ratio of the 3D image output.

(Full screen, Center, Auto Adapted)

Press the key to set to exchange the image of left and right or not.

Note:

1. If use the function of 3D, you must set the display mode as 3D in the 3D menu. Set the display format to a format that matches the signal source format( Side by side , Top bottom )

2. If use the 3D must have the correct 3D signal source.

3. Need to use 3D shutter glasses to view 3D images. And follow the configuration instructions that came with the glasses to complete the setup process of the Glasses.

15

Sound Settings

To access the sound setting menu and adjust the settings, perform the following steps:

1. Press the key to enter the OSD menu.

2.

Press buttons ◄ and ► to select the menu of sound.

3.

Press button ▲and ▼ to move to the item needs to be adjusted.

4. Press the button to adjust the option settings.

Item

Sound Mode

Balance

Auto Volume

Instructions

Press the key to enter , then press buttons and to set the sound mode.

(Standard . Music .User. Sports )

Press the key ,then press the buttons and to set the balance of the left and right sound channel .

Press the key adjustment.

to set the on or off function of automatic volume

Surround Sound Press the key to set the on or off function of surround sound.

SPDIF mode Press the key to set the mode of audio-out.

(Auto,PCM)

Application Settings

To access the application setting menu and adjust the settings, perform the following steps:

1. Press the key to enter the OSD menu.

2.

Press buttons ◄ and ► to select the menu of application.

3.

Press button ▲and ▼to move to the item needs to be adjusted.

4. Press the button to adjust the option settings.

16

Item

Temperature

Instruction

Read and display the working temperature of the light source.

Software Update (USB) Press the key to enter , then press again to confirm the upgrade, press the menu key to exit and return.

Widi /Miracast

Press the key to enter into the mode of wireless transmission screen.

Auto Sync

Time Domain

Press the key the time.

to set automatically sync on or off function of

Press the key , then press buttons and to select the geographical location.

Wireless transmission screen

Open wireless transmission screen

If you want to use the function,do as follow steps

1. Press button

,then press ◄ and ►, select “Application”

2.

Press “▲” and “▼” ,select “Wireless transmission screen”

3. Press to enter into.

4. Press to exit when the device can’t support or unable to connect.

Note: The device that do wireless transmission screen with the projector need to be equipped with wireless transmission screen APP.

17

Chapter 5 Maintenance

Cleaning the Projector

Cleaning the projector to remove dust and grime will help running normally.

Warning:

1. Before cleaning, turn off the projector and unplug the power cord.

Otherwise, it may result in injury or damage to the system.

2. When cleaning ,you should only use a damp cloth . Do not allow water to enter the ventilation of the projector.

3. If a little water enter the interior of the projector when cleaning, please don’t connect the projector to power ,the projector should be placed in a well ventilated area for several hours before using.

Cleaning the Lens

Cleaning fluid of optical lens can be purchased from most camera stores and other retail shops. To clean the projector lens, perform the following steps:

1. Sprinkle a few drops of optical lens cleaning fluid on a clean soft cloth. (Do not apply the cleaning liquid directly to dribble onto the lens.)

2. Gently wipe the lens circumferentially.

Note:

1. Do not use abrasive cleaners or solutions.

2. To prevent discoloration or fading, do not let the cleaning liquid contact projector cabinet.

Troubleshooting

Problem of no Image

• Use another electrical device to confirm the power socket is normal.

• Ensure the projector is turned on.

• Make sure all connections are secure.

• Make sure select the correct signal input source.

• Make sure the connected device is turned on.

• Ensure a connected PC is not in suspend or sleep mode.

• Make sure the laptop is is configured with external display correctly.

Problem of remote control

Problem: The projector does not respond to remote control commands

1. Point the remote control at the remote sensor of the projector.

2. Make sure there are no obstructions between the remote control and the sensor.

3. Turn off the fluorescent lights in the room.

4. Check the battery polarity is correct.

5. Replace the battery.

6. Turn off other equipment infrared enabled in the near region .

7. Send remote control for repair .

18

FAQ

1. Can the projector be used together with PC, notebook or netbook ?

Yes. Use a VGA cable or HDMI cable that comes. If there is a corresponding HDMI or VGA port on the PC, laptop or netbook, the projector can connect to these devices. To play the audio, you need a stereo audio cable to connect the projector's audio jack.

2. Can the projector be connected to a game console, such as Microsoft® Xbox or Sony® PS3?

Yes. The projector can display content from the Xbox or PS3 console. Just use the

HDMI cable to connect the game console with the projector.

3. Can the projector project the content from TV?

TV can generate image on its own screen, if you want to watch TV content, then need to connect a cable box, digital set-top box or satellite receiver. For example, if you use a cable box, you can connect it to the projector via the video cable or HDMI cable.

4 . How to display images from a digital camera or USB flash driver?

By connecting the following devices to the projector, you can display the corresponding image or other content:

• USB flash driver, hard disk, card reader

• Digital camera

• Smartphone

• Media storage browser

After connecting the device, you can use the projector media channel display images.

5. What kind of cables will be needed to connect video equipment to the projector?

If the video device configured the appropriate port, you can use the audio / video cable or HDMI cable to connect it to the projector. If you want to play audio ,RCA cable can also be connected to the projector.

6. What kind of video formats supported by the projector at Media channel? H.264

、MPEG-4、VC-1、WMV9、DivX(Xvid)、Real Video、AVS、and MJPEG.

7. What kind of image formats supported by the projecto at Media channel?

JPEG.PNG and BMP.

8. What kind of audio formats supported by the projectorm at Media channel ?

MP3 (The maximum bit rate :256kbps)

WMA,MID,MIDI,MP1,MP2,OGG,AAC,AMR,WAV,AC3,M4A,AWB,APE

9. What kind of document formats supported by the projector at Media channel?

Text File (txt).

19

Distance and Screen Size

Projection Distance

Keystone Angle

Image Size-

Diagonal


Width


Height

Projection distance

Max/Min

(mm)

(Inch) (mm) (mm)

40 861 538 1990/1640

50 107 675 2480/2050

60 128 800 3040/2533

70 150 945 3470/2870

80 171 1070 4040/3352

90 193 1215 4460/3700

100 2100 1300 5030/4176

110 2340 1485 5455/4520

120 2560 1600 6020/5000

Disclaimer:

Our company reserve the right to make changes to the contents of this instruction manual without any advance notice .

Continuous upgrading of the software may bring some differences to the OSD operation menu and the picture of this instruction manual , but does not affect the normal operation of the functional operation described in this instruction manual . We are sorry if this brings inconvenience to you, please kindly understand.

Thanks for choosing our projector!

20

Warranty Card

User’s Name

Address

Model No.:

Serial No.:

Problem

Analysis

Result

Tel No.:

Invoice Date

Fax No.:

User Signature Factory Signature

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
