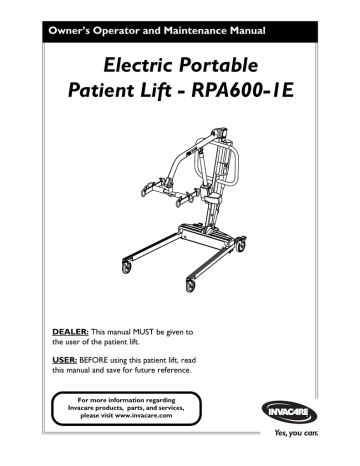

Owner’s Operator and Maintenance Manual
Electric Portable
Patient Lift - RPA600-1E
DEALER: This manual MUST be given to
the user of the patient lift.
USER: BEFORE using this patient lift, read
this manual and save for future reference.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com
SYMBOL LEGEND
WARNING
DO NOT USE THIS PRODUCT OR ANY AVAILABLE OPTIONAL
EQUIPMENT WITHOUT FIRST COMPLETELY READING AND
UNDERSTANDING THESE INSTRUCTIONS AND ANY
ADDITIONAL INSTRUCTIONAL MATERIAL SUCH AS OWNER’S
MANUALS, SERVICE MANUALS OR INSTRUCTION SHEETS
SUPPLIED WITH THIS PRODUCT OR OPTIONAL EQUIPMENT. IF
YOU ARE UNABLE TO UNDERSTAND THE WARNINGS,
CAUTIONS OR INSTRUCTIONS, CONTACT A HEALTHCARE
PROFESSIONAL, DEALER OR TECHNICAL PERSONNEL BEFORE
ATTEMPTING TO USE THIS EQUIPMENT - OTHERWISE, INJURY
OR DAMAGE MAY OCCUR.
ACCESSORIES WARNING
Invacare products are specifically designed and manufactured for use in
conjunction with Invacare accessories. Accessories designed by other
manufacturers have not been tested by Invacare and are not
recommended for use with Invacare products.
SYMBOL LEGEND
"ATTENTION, see
instructions for use".
2008
CAUTION - Pinch Points, fingers
could be pinched.
Between Boom and
Swivel Bar
Base of Lift
"Date of Manufacture"
Device contains Lead Acid
batteries. DO NOT dispose
of batteries in normal
household waste. They
MUST be taken to a proper
disposal site. Contact your
local waste management
company for information.
EMERGENCY
Mechanical Lowering Pull UP on
EMERGENCY Ring.
Push DOWN on Boom.
WARNING - When
positioning Lift, be
aware of the position of
the Swivel Bar and the
patient. Injury could
occur.
NOTE: Updated versions of this manual are available on www.invacare.com.
Electric Portable Patient Lift - RPA600-1E
2
Part No 1078988
TABLE OF CONTENTS
TABLE OF CONTENTS
SYMBOL LEGEND .............................................................................. 2
SPECIAL NOTES ................................................................................ 5
LABEL LOCATION ............................................................................ 6
PRODUCT PARAMETERS .................................................................. 7
Patient Lift RPA600-1E ..............................................................................................................................7
Reliant Scale RLS6 ......................................................................................................................................7
SECTION 1—GENERAL GUIDELINES ................................................... 8
Weight Limitation.......................................................................................................................................8
Assembling the Lift .....................................................................................................................................8
Using the Sling .............................................................................................................................................8
Operating the Lift .......................................................................................................................................9
Lifting the Patient........................................................................................................................................9
Transferring the Patient ..........................................................................................................................10
Performing Maintenance .........................................................................................................................10
SECTION 2— ASSEMBLY .................................................................. 11
Assembling the Patient Lift .....................................................................................................................11
Assembling the Mast to the Base .....................................................................................................11
Assembling the Electric Actuator to the Boom............................................................................12
Installing the Shifter Handle ...................................................................................................................13
Attaching the Battery Charger Mounting Bracket to the Wall .....................................................13
SECTION 3—OPERATION ................................................................ 14
Introduction ...............................................................................................................................................14
Operating the Patient Lift .......................................................................................................................14
Locking/Unlocking the Rear Casters ...............................................................................................14
Raising/Lowering the Patient Lift......................................................................................................14
Using the Emergency Stop .................................................................................................................14
Closing/Opening the Legs ..................................................................................................................16
Closing the Legs .............................................................................................................................16
Opening the Legs ...........................................................................................................................16
Activating a Mechanical Emergency Release..................................................................................17
Primary Emergency Release .........................................................................................................17
Secondary Emergency Release ....................................................................................................17
Charging the Battery................................................................................................................................18
Part No 1078988
3
Electric Portable Patient Lift - RPA6001E
TABLE OF CONTENTS
TABLE OF CONTENTS
SECTION 4—LIFTING THE PATIENT ................................................. 19
Preparing the Lift for Use .......................................................................................................................19
Positioning the Lift ...............................................................................................................................19
Attaching a Sling to the Swivel Bar ..................................................................................................20
Lifting/Moving the Patient .......................................................................................................................20
SECTION 5—TRANSFERRING THE PATIENT .................................... 22
Introduction ...............................................................................................................................................22
Transferring to a Commode Chair ......................................................................................................23
Transferring to a Standard Commode ................................................................................................24
Transferring to a Wheelchair ................................................................................................................24
SECTION 6— TROUBLESHOOTING ................................................... 26
SECTION 7— MAINTENANCE .......................................................... 27
Maintenance Safety Inspection Checklist ............................................................................................27
Lubricating the Lift ...................................................................................................................................28
Detecting Wear and Damage ................................................................................................................29
Cleaning the Sling and the Lift ...............................................................................................................29
Replacing the Electric Actuator.............................................................................................................29
Checking and Tightening Mast Pivot Bolt ...........................................................................................30
Replacing the Swivel Bar .........................................................................................................................30
SECTION 8— ACCESSORIES ............................................................. 32
Reliant Scale RLS6 ....................................................................................................................................32
Removing the Swivel Bar....................................................................................................................32
Installing the Reliant Scale ..................................................................................................................33
Operating the Scale..................................................................................................................................34
Keypad Functions.................................................................................................................................34
Weighing the Patient................................................................................................................................35
Replacing the Battery...............................................................................................................................36
Calibrating the Reliant Scale ..............................................................................................................36
Troubleshooting........................................................................................................................................37
Display Codes.......................................................................................................................................37
LIMITED WARRANTY ..................................................................... 39
Electric Portable Patient Lift - RPA6001E
4
Part No 1078988
SPECIAL NOTES
SPECIAL NOTES
Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. Refer to the table below for definitions of the signal words.
SIGNAL WORD
MEANING
DANGER
Danger indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
Warning indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Caution indicates a potentially hazardous situation which, if not avoided, may result in
property damage or minor injury or both.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO
CHANGE WITHOUT NOTICE.
RADIO FREQUENCY INTERFERENCE
Most electronic equipment is influenced by Radio Frequency Interference (RFI).
CAUTION should be exercised with regard to the use of portable communication
equipment in the area around such equipment. If RFI causes erratic behavior, PUSH
the RED Emergency Stop Button IMMEDIATELY. DO NOT turn the Red
Emergency Stop Button OFF while transmission is in progress.
MAINTENANCE
Maintenance MUST be performed ONLY by qualified personnel.
Part No 1078988
5
Electric Portable Patient Lift - RPA6001E
LABEL LOCATION
LABEL LOCATION
WARNING
Mast pivot MUST be
tight to ensure safe use
of your patient lift. Bolt
MUST be checked at
least every six (6) months
in conjunction with periodic
maintenance.
See Owner's Manual.
P/N 1130200 Rev. B
WARNING
WARNING
Electric Portable Patient Lift - RPA600-1E
6
Part No 1078988
PRODUCT PARAMETERS
PRODUCT PARAMETERS
Patient Lift RPA600-1E
204.5 kg Electric
Low- Profile
204.5 Electric
Standard
272.7 kg Electric
Heavy-duty
Height at Sling Hook-up - MAX.:
188 cm
193 cm
177.8 cm
Height at Sling Hook-up - MIN.:
61 cm
66 cm
76.2 cm
Base Width OPEN:
104 cm
104,1 cm
104,1 cm
Base Width CLOSED:
67,3 cm
67,3 cm
67,3 cm
Base Height (Clearance):
11,4 cm
17,3 cm
17,3 cm
Base Length:
121,9 cm
121,9 cm
121,9 cm
7,6/12,7 cm
12,7 cm
12,7 cm
Weight Capacity:
204,5 kg
204,5 kg
272,7 kg
Weight Out of Carton:
48,2 kg
48,2 kg
50,9 kg
24V DC
(RECHARGEABLE)
24V DC
(RECHARGEABLE)
24V DC
(RECHARGEABLE)
100-240V AC
100-240V AC
100-240V AC
29,5V DC Max 6 hrs
29,5V DC Max 6 hrs
29,5V DC Max 6 hrs
Yes
Yes
Yes
Motor Safety Devices:
Anti-Entrapment
Anti-Entrapment
Anti-Entrapment
*Approx. Lifts per Charge:
*100-200 Cycles
per charge
*100-200 Cycles
per charge
*100-200 Cycles
per charge
Warranty Lift/Electronics:
3 Years/1 Year
3 Years/1 Year
3 Years/1 Year
Emergency Stop Button:
Yes
Yes
Yes
Caster Size (FRONT/REAR):
Battery:
Charger Input:
Charger Output/Charging Time:
Audio Low Battery Alarm:
*NOTE: Varies depending upon load and stroke.
Reliant Scale RLS6
Weight Range:
Up to 600 Lbs. (272.7 Kg)
Resolution:
+/- 0.2 Lbs (.1 Kg)
Display:
Liquid Crystal Digital
Automatic Power Down:
Two (2) minutes
Size:
5-3/4 L X 3-5/8 W X 4 H
Weight:
.55 Lbs
Power:
Nine (9) Volt Alkaline battery (included)
Battery Life:
Approximately 1500 readings
Temperature Range:
50° To 104°F (10° To 40°C)
Part No 1078988
7
Electric Portable Patient Lift - RPA6001E
SECTION 1—GENERAL GUIDELINES
SECTION 1—GENERAL GUIDELINES
WARNING
SECTION 1 - GENERAL GUIDELINES contains important information for the safe
operation and use of this product.
Check all parts for shipping damage before using. In case of damage, DO NOT use the equipment. Contact the Dealer for further instructions.
The Invacare patient lift is NOT a transport device. It is intended to transfer an individual from one resting surface to another (such as a bed to a wheelchair). Moving a person suspended in a sling over ANY distance is NOT recommended.
DO NOT attempt any transfer without approval of the patient’s physician, nurse or medical assistant. Thoroughly read the instructions in this Owner’s Manual, observe a trained team of experts perform the lifting procedures and then perform the entire lift procedure several times with proper supervision and a capable individual acting as a patient.
Invacare Stand Assist and Transfer slings are specifically designed to be used in conjunction with Invacare patient lifts. Slings and accessories designed by other manufacturers are not to be utilized as a component of Invacare’s patient lift system. Use of these products is prohibited and will void the lift’s warranty. Use the sling that is recommended by the individual’s doctor, nurse or medical assistant for the comfort and safety of the individual that is being lifted.
Weight Limitation
DO NOT exceed maximum weight limitation of the patient lift. The weight limitation for the Electric Portable Patient Lift is 600 lbs.
Assembling the Lift
DO NOT overtighten mounting hardware. This will damage mounting brackets.
Using the Sling
Individuals that use the Stand Assist Sling MUST be able to support the majority of their own weight, otherwise injury may occur.
Stand Assist Slings: DO NOT use the stand assist sling in combination with the patient lift as a transport device. It is intended to transfer an individual from one resting surface to another (such as a bed to a wheelchair). Moving a person using the stand assist sling in combination with the patient lift over ANY distance is NOT recommended.
Electric Portable Patient Lift - RPA6001E
8
Part No 1078988
SECTION 1—GENERAL GUIDELINES
Stand Assist Slings: Before lifting the patient, make sure the bottom edge of the stand assist sling is positioned on the lower back of the patient and the patient’s arms are outside the stand assist sling.
Stand Assist Slings: The belt MUST be snug, but comfortable on the patient, otherwise the patient can slide out of the sling during transfer, possibly causing injury.
Transfer Slings: Before lifting the patient, make sure the bottom edge of the transfer sling is at the base of the spine and the patient’s arms are outside the transfer sling.
Transfer Slings: DO NOT raise the patient to a full standing position while using the transfer sling, otherwise injury may occur.
DO NOT use any kind of plastic back incontinence pad or seating cushion between patient and sling material that may cause the patient to slide out of the sling during transfer.
After each laundering (in accordance with instructions on the sling), inspect sling(s) for wear, tears, and loose stitching.
Bleached, torn, cut, frayed, or broken slings are unsafe and could result in injury. Discard immediately.
DO NOT alter slings.
Be sure to check the sling attachments each time the sling is removed and replaced, to ensure that it is properly attached before the patient is removed from a stationary object (bed, chair or commode).
If the patient is in a wheelchair, secure the wheel locks in place to prevent the chair from moving forwards or backwards.
When connecting slings equipped with color coded straps to the patient lift, the shortest of the straps MUST be at the back of patient for support. Using long section will leave little or no support for patientʹs back. The loops of the sling are color coded and can be used to place patient in various positions. The colors make it easy to connect both sides of the sling equally. Make sure that there is sufficient head support when lifting a patient.
Operating the Lift
Make sure there is an audible click when mounting battery on the battery charger to confirm proper mounting. Otherwise, injury or damage may occur.
Use the handles to push or pull the patient lift.
Lifting the Patient
Before positioning the legs of the stand up lift around the patient, make sure that the patient’s feet are out of the way of the foot plate, otherwise injury may occur.
Adjustments for safety and comfort should be made before moving the patient. Patientʹs arms should be outside of the sling straps.
Part No 1078988
9
Electric Portable Patient Lift - RPA6001E
SECTION 1—GENERAL GUIDELINES
Before lifting a patient from a stationary object (wheelchair, commode or bed), slightly raise the patient off the stationary object and check that all sling attachments are secure. If any attachment is not correct, lower the patient and correct the problem, then raise the patient and check again.
During transfer, with the patient suspended in a sling attached to the lift, DO NOT roll caster base over objects such as carpet, raised carpet bindings, door frames, or any uneven surfaces or obstacles that would create an imbalance of the patient lift and could cause the patient lift to tip over. Use steering handle on the mast at ALL times to push or pull the patient lift.
Invacare recommends locking the rear swivel casters ONLY when positioning or removing the sling (stand assist or transfer) from around the patient.
Invacare does NOT recommend locking of the rear casters of the patient lift when lifting an individual. Doing so could cause the lift to tip and endanger the patient and assistants. Invacare DOES recommend that the rear casters be left unlocked during lifting procedures to allow the patient lift to stabilize itself when the patient is initially lifted from a chair, bed or any stationary object.
Transferring the Patient
Before transferring, check that the product’s weight capacity can withstand the patientʹs weight.
Wheelchair wheel locks MUST be in a locked position before lowering the patient into the wheelchair for transport.
Performing Maintenance
Regular maintenance of patient lifts and accessories is necessary to assure proper operation.
After the first 12 months of operation, inspect all pivot points and fasteners for wear. If the metal is worn, the parts MUST be replaced. Perform this inspection every six months thereafter.
DO NOT overtighten mounting hardware. This will damage mounting brackets.
Casters and axle bolts require inspections every six months to check for tightness and wear.
Electric Portable Patient Lift - RPA6001E
10
Part No 1078988
SECTION 2—ASSEMBLY
SECTION 2—ASSEMBLY
Assembling the Patient Lift
Assembling the Mast to the Base
NOTE: The mast assembly may be removed from the base for storage or transporting. The mast assembly MUST be properly secured to the base assembly before use.
DETAIL “A” LOCKING/UNLOCKING REAR CASTERS
Step Here
to Lock
NOTE: For this procedure, refer to FIGURE 2.1.
Step Here to
Unlock
1. Put the base on a level surface so all casters make contact with the floor.
2. Lock the rear casters (Detail “A”).
Locking
Lever
Caster
3. Remove the shoulder bolt, nut and washer, that secures the mast to the base.
4. Put the mast into the U‐shaped cut‐out in the base.
Washers
5. While supporting the mast, insert the shoulder bolt through the base, mast and washers.
Shoulder
Bolt
6. Secure the mast in place with a nut.
Nut
Washer
Washer
Shoulder
Bolt
Nut
FIGURE 2.1 Assembling the Mast to the Base
Part No 1078988
11
Electric Portable Patient Lift - RPA600-1E
SECTION 2—ASSEMBLY
Assembling the Electric Actuator to the Boom
NOTE: For this procedure, refer to FIGURE 2.2.
1. Remove the shoulder bolt, washer and nut from the mounting bracket on the boom assembly.
Mounting Bracket
2. Unpack the pinch guard from the patient lift carton.
NOTE: The bottom of the electric actuator assembly will already be assembled to the mast mounting bracket.
Pinch Guard
NOTE: Turn 90°
3. Cut the plastic‐wrap that secures the boom and mast together.
4. Lift‐up on the boom and place it on your left shoulder. FIGURE 2.2 Assembling the Electric Actuator
to the Boom
5. Let the actuator rest on your right‐side of your chest and rotate the shaft extension of the actuator assembly until it lines‐up with the mounting holes in the boom assembly.
6. Place the pinch guard over the shaft extension of the actuator.
7. Align the holes of the boom assembly mounting bracket with those of the actuator and insert the bolt. Secure with nut.
NOTE: Be sure that the bolt is completely through the holes of the boom assembly mounting bracket and the actuator assembly. The boom assembly will pivot easily if the mounting hardware is aligned properly when the boom assembly is secured to the mast.
CAUTION
DO NOT overtighten the nut and bolt. This damages the mounting bracket.
8. Plug in the electrical connectors from the electric actuator to the bottom of the battery assembly.
9. Plug the pendant control into the bottom of the battery assembly.
NOTE: The bottom of the actuator assembly will already be assembled to the mast mounting bracket.
Electric Portable Patient Lift - RPA600-1E
12
Part No 1078988
SECTION 2—ASSEMBLY
Installing the Shifter Handle
NOTE: For this procedure, refer to FIGURE 2.3.
Shifter Handle
1. Line‐up the shifter handle threads with threaded opening in the base. Threads
2. Turn the shifter handle clockwise and securely tighten into the base.
Opening in Base
FIGURE 2.3 Installing the Shifter Handle
Attaching the Battery Charger Mounting Bracket to the
Wall
NOTE: For this procedure, refer to FIGURE 2.4.
1. Place the battery charger mounting bracket on the wall at the desired position.
2. With a pencil, mark the middle hole position.
3. Measure down 6½ inches from the pencil mark and drill one mounting hole.
4. Install the bottom mounting screw until there is an approximate 1/8‐inch gap between the screw head and the wall.
5. Put the battery charger mounting bracket onto the bottom mounting screw.
6. Drill the other two mounting holes.
7. Screw the mounting screws through the battery charger mounting bracket and into the wall. Tighten securely.
CAUTION
Make sure there is an audible click when mounting battery on the battery charger to
confirm proper mounting. Otherwise, injury or damage may occur.
8. Put the battery charger in place on the mounting bracket.
9. Plug the battery charger into an electrical outlet.
NOTE: An LED will illuminate when power is applied to battery charger.
Mounting Bracket
Mounting
Screws
Bottom Mounting Screw
FIGURE 2.4 Attaching the Battery Charger Mounting Bracket to the Wall
Part No 1078988
13
Electric Portable Patient Lift - RPA600-1E
SECTION 3—OPERATION
SECTION 3—OPERATION
Introduction
WARNING
DO NOT attempt to transfer a patient without approval of the patient’s physician,
nurse, or medical assistant. Thoroughly read the instructions in this owner’s manual,
observe a trained team of experts performing the lifting procedures and then perform
the entire lift procedure several times with proper supervision and a capable individual
acting as a patient.
The legs of the patient lift MUST be in the maximum open position for optimum stability and safety. If it is necessary to close the legs to maneuver the patient lift under a bed,
close the legs only as long as it takes to position the patient lift over the patient and lift
the patient off of the bed surface. When the legs of the patient lift are no longer under
the bed, return the legs to the maximum open position.
NOTE: Invacare recommends that two assistants be used for all lifting preparation and transferring to/
from procedures; however, the patient lift can be operated by one assistant. The use of the patient lift by one assistant should be based on the evaluation of the health care professional for each individual case.
Operating the Patient Lift
Locking/Unlocking the Rear Casters
NOTE: For this procedure, refer to Detail A of FIGURE 3.1.
• To Lock the Caster: Push tab down.
• To Unlock the Caster: Push tab up.
Raising/Lowering the Patient Lift
NOTE: For this procedure, refer to Detail B of FIGURE 3.1.
• To Raise the Patient Lift: Press the up (Ï) button on the hand control.
NOTE: If the patient lift is raised to the highest level, it may be necessary to pull down gently on the lift arms before the mast will begin to lower. Pull down gently on both arms at the same time to avoid making the lift unstable.
• To Lower the Patient Lift: Press the down button (Ð) on the hand control.
Using the Emergency Stop
NOTE: For this procedure, refer to Detail C of FIGURE 3.1.
• Push the RED emergency button in to stop the lift arms from raising or lowering.
• To reset, rotate the emergency button clockwise.
Electric Portable Patient Lift - RPA600-1E
14
Part No 1078988
SECTION 3—OPERATION
DETAIL “A” LOCKING/UNLOCKING REAR CASTERS
Step Here
to Lock
DETAIL “B” - HAND CONTROL DETAILS
Up Button
Step Here to
Unlock
Down Button
Hand Control
Caster
Locking
Lever
DETAIL “C” - EMERGENCY STOP
Emergency Button
Push in to stop,
turn clockwise
to reset.
FIGURE 3.1 Operating the Patient Lift
Part No 1078988
15
Electric Portable Patient Lift - RPA600-1E
SECTION 3—OPERATION
Closing/Opening the Legs
NOTE: For this procedure, refer to FIGURE 3.2.
WARNING
If the shifter handle is NOT positioned completely into its mounting slot, DO NOT use
the patient lift until the shifter handle is properly seated and the legs of the patient lift
are locked in place. Otherwise, injury and/or damage may occur.
WARNING
The legs of the lift must be in the maximum open position and the shifter handle locked
in place for optimum stability and safety. If it is necessary to close the legs of the lift to
maneuver the lift under a bed, close the legs of the lift only as long as it takes to position
the lift over the patient and lift the patient off the surface of the bed. When the legs of
the lift are no longer under the bed, return the legs of the lift to the maximum open
position and lock the shifter handle immediately.
Closing the Legs
1. Stand at the rear of the patient lift and grasp the shifter handle with one hand and place the opposite hand on the steering handle of the mast for balance.
NOTE: The shifter handle MUST lock into its mounting slot to lock the legs in the full closed position. 2. Pull the shifter handle away from the patient lift and then to your left until it locks in the notch of the bracket (Detail “A”).
Opening the Legs
1. Stand at the rear of the patient lift and grasp the shifter handle with one hand and place the opposite hand on the steering handle of the mast for balance.
NOTE: The shifter handle MUST lock into its mounting slot to lock the legs in the full open position. 2. Pull the shifter handle away from the patient lift and then to your right (Detail “B”).
DETAIL “B” - OPENING THE LEGS
DETAIL “A” - CLOSING THE LEGS
FIGURE 3.2 Closing/Opening the Legs
Electric Portable Patient Lift - RPA600-1E
16
Part No 1078988
SECTION 3—OPERATION
Activating a Mechanical Emergency Release
Primary Emergency Release
NOTE: For this procedure, refer to FIGURE 3.3.
NOTE: This procedure will bring the boom down or lift it up if the hand control is not functioning properly.
To activate the primary emergency release, insert a pen into the hole labeled Emergency Up or Emergency Down on the control box.
Control
Box
EMER
GENC
Y
Emergency
Release
Hole
FIGURE 3.3 Primary Emergency Release
Secondary Emergency Release
NOTE: For this procedure, refer to FIGURE 3.4.
NOTE: All patient lift actuators are equipped with a mechanical emergency release. The mechanical release will enable the actuator to retract without power.
NOTE: Use the primary emergency release first before using the secondary emergency release procedure. This procedure should only be used if the primary emergency release procedure is not functioning or is unreachable.
NOTE: The lift MUST be under a load for the mechanical release to function.
To activate the secondary release, pull up on the EMERGENCY ring and push down on the boom at the same time.
Push DOWN
on Boom
Pull UP on
EMERGENCY
Ring.
FIGURE 3.4 Secondary Emergency Release
Part No 1078988
17
Electric Portable Patient Lift - RPA600-1E
SECTION 3—OPERATION
Charging the Battery
NOTE: For this procedure, refer to FIGURE 3.5.
NOTE: Invacare recommends the battery be recharged daily to prolong battery life.
NOTE: An audible alarm will sound when battery is low.
1. Lift up on the handle on the back of the battery.
2. Lift the battery up and away from the control box.
CAUTION
Make sure there is an audible click when mounting battery on the battery charger to
ensure proper mounting. Otherwise, injury or damage may occur.
3. Place the battery on the battery charger. Push the top of the battery against the mounting bracket until there is an audible click.
NOTE: The charge LED will illuminate. When charged, the LED will stop illuminating.
NOTE: It will take approximately four hours to charge a battery that requires a full charge.
4. Lift up on the handle on the back of the battery.
5. Lift the battery up and away from the battery charger.
CAUTION
Make sure there is an audible click when mounting battery onto the control box to
ensure proper mounting. Otherwise, injury or damage may occur.
6. Place the battery on the control box. Push the top of the battery against the mounting bracket until there is an audible click.
Battery
Battery
Charger
(STEP 3)
Control Box
(STEP 6)
Handle
(STEPS 1, 2, 4 and 5)
Audible click
when properly
installed
(STEPS 3 and 6)
FIGURE 3.5 Charging the Battery
Electric Portable Patient Lift - RPA600-1E
18
Part No 1078988
SECTION 4—LIFTING THE PATIENT
SECTION 4—LIFTING THE PATIENT
Preparing the Lift for Use
NOTE: Although Invacare recommends that two assistants be used for all lifting preparation, transferring from and transferring to procedures, our equipment will permit proper operation by one assistant. The use of one assistant is based on the evaluation of the health care professional for each individual case.
Positioning the Lift
NOTE: For this procedure, refer to FIGURE 4.1.
NOTE: Refer to General Guidelines on page 9 in this manual before proceeding further and observe all warnings indicated.
NOTE: Before positioning the legs of the patient lift under a bed, make sure that the area is clear of any obstructions. WARNING
The legs of the lift must be in the maximum open position and the shifter handle
locked in place for optimum stability and safety. If it is necessary to close the legs of
the lift to maneuver the lift under a bed, close the legs of the lift only as long as it
takes to position the lift over the patient and lift the patient off the surface of the
bed. When the legs of the lift are no longer under the bed, return the legs of the lift
to the maximum open position and lock the shifter handle immediately.
1. With the legs of the base open and locked, use the steering handle to push the patient lift into position.
2. Lower the patient lift for easy attachment of the sling.
FIGURE 4.1 Positioning the Lift
Part No 1078988
19
Electric Portable Patient Lift - RPA6001E
SECTION 4—LIFTING THE PATIENT
Attaching a Sling to the Swivel Bar
WARNING
The maximum weight capacity of the RPA600-1E patient lift is 600 lbs. DO NOT
exceed the maximum weight capacity of the patient lift otherwise, injury or damage
may occur.
Before using the sling, read and understand all operating instructions provided in
the sling owner’s manual.
Bleached, torn, cut, frayed or broken slings are unsafe and could result in injury.
Discard IMMEDIATELY. DO NOT alter slings in any way.
Invacare slings are made specifically for use with Invacare Patient Lifts. For the
safety of the patient, DO NOT use slings and patient lifts of different manufacturers.
1. Place the straps of the sling over hooks of the swivel bar. 2. Match the corresponding colors on each side of the sling for an even lift of the patient.
NOTE: The Invacare Swivel Bars have three hookup points per side.
WARNING
The patient lift MUST be moved with the push handles on the mast assembly otherwise, injury or damage may occur.
DO NOT move the patient outside the center of gravity achieved after the patient
is suspended in the sling and the patient lift adjusts.
3. Lift the patient. Refer to Lifting/Moving the Patient.
Lifting/Moving the Patient
WARNING
DO NOT lock the rear casters of the lift when lifting an individual. Locking the rear
casters could cause the lift to tip and endanger the patient and assistants.
DO NOT move the patient if the sling is not properly connected to the hooks of the
swivel bar. When the sling is elevated a few inches off the surface of the bed and before
moving the patient, check again to make sure that the sling is properly connected to the
hooks of the swivel bar. If any attachments are NOT properly in place, lower the
patient back onto the stationary surface and correct this problem - otherwise, injury or
damage may occur.
Adjustments for safety and comfort should be made before moving the patient.
Patient's arms should be inside of the straps.
DO NOT use slings and patient lifts of different manufacturers. Invacare slings are
made specifically for use with Invacare patient lifts. Injury or damage may occur.
Electric Portable Patient Lift - RPA6001E
20
Part No 1078988
SECTION 4—LIFTING THE PATIENT
NOTE: For this procedure, refer to FIGURE 4.2.
NOTE: When the patient is lifted from the bed or the floor (with the patient’s head supported by the sling and/or an assistant), he/she will be raised to a sitting position (Detail “A” of FIGURE 4.2).
1. Press the up button on the hand control to raise the patient high enough to clear the bed surface. The patient’s full body weight will be supported by the lift.
NOTE: The boom will stay in this position until the up or down buttons are pushed on the hand control.
2. Place the patient’s arms inside of the sling.
3. When the patient is clear of the bed surface, swing their feet off the bed (Detail “B” of FIGURE 4.2).
4. Using the handle, move the patient lift away from the bed.
5. Turn the patient so that he/she faces assistant operating the patient lift (Detail “C” of FIGURE 4.2).
6. Press the down button to lower the patient so that his/her feet rest on the base of the lift, straddling the mast.
NOTE: The lower center of gravity provides stability making the patient feel more secure and the lift easier to move.
7. Push the lift with both hands firmly on the steering handle.
DETAIL “A” - LIFTING THE PATIENT
DETAIL “B” - MOVING THE PATIENT
DETAIL “C” - MOVING THE PATIENT LIFT AWAY FROM THE BED
FIGURE 4.2 Lifting/Moving the Patient
Part No 1078988
21
Electric Portable Patient Lift - RPA6001E
SECTION 5—TRANSFERRING THE PATIENT
SECTION 5—TRANSFERRING THE
PATIENT
Introduction
WARNING
DO NOT attempt any transfer of a patient without approval of the patient's
physician, nurse, or medical assistant.
DO NOT move the patient if the sling is not properly connected to the hooks of the
swivel bar. When the sling is a few inches off the surface of the bed and before
moving the patient, check to make sure that the sling is properly connected to the
hooks of the swivel bar. If any attachments are NOT properly in place, lower the
patient back onto the stationary surface and correct this problem - otherwise, injury
or damage may occur.
Adjustments for safety and comfort should be made before moving the patient. The
patient's arms should be inside the straps.
DO NOT use slings and patient lifts of different manufacturers. Invacare slings are
made specifically for use with Invacare patient lifts. Otherwise, injury or damage
may occur.
DO NOT lock the rear casters of the patient lift when lifting an individual. Locking
the rear casters could cause the patient lift to tip and endanger the patient and
assistants.
The legs of the patient lift MUST be in the maximum open position for optimum
stability and safety. If it is necessary to close the legs to maneuver the patient lift
under a bed, close the legs only as long as it takes to position the patient lift over the
patient and lift the patient off the surface of the bed. When the legs of the patient
lift are no longer under the bed, return the legs to the maximum open position.
Be sure to check the sling attachments each time the sling is removed and replaced to
ensure that it is properly attached before the patient is removed from a bed or chair.
The slings with commode openings are designed to be used with either a commode chair or standard commode.
NOTE: Invacare recommends that the sling remain connected to the swivel bar hooks during the patient’s use of either the commode chair or standard commode.
NOTE: Invacare recommends that two assistants be used for all lifting preparation and transferring to/from procedures; however, our equipment will permit proper operation by one assistant. The use of one assistant is based on the evaluation of the health care professional for each individual case. Electric Portable Patient Lift - RPA6001E
22
Part No 1078988
SECTION 5—TRANSFERRING THE PATIENT
Transferring to a Commode Chair
NOTE: For this procedure, refer to FIGURE 5.1.
1. Lift the patient from the bed. Refer to Lifting the Patient on page 19.
2. Press the UP button on the hand control to elevate the patient high enough to clear the arms of the commode chair. Their weight will be supported by the patient lift.
3. Guide the patient onto the commode chair. This may require two assistants.
4. Press the DOWN button on the hand control to lower the patient onto the commode chair leaving the sling attached to the swivel bar hooks.
5. When complete, recheck the sling for correct attachments.
6. Press the UP button on the hand control to raise the patient off the commode chair.
7. When the patient is clear of the commode surface (using the steering handles), move the patient lift away from the commode chair.
8. To return the patient to bed, reverse Lifting the Patient on page 19.
9. To return or place the patient in a wheelchair, refer to Transferring to a Wheelchair on page 24.
FIGURE 5.1 Transferring to a Commode Chair
Part No 1078988
23
Electric Portable Patient Lift - RPA6001E
SECTION 5—TRANSFERRING THE PATIENT
Transferring to a Standard Commode
NOTE: The Invacare patient lift is NOT intended as a transport device. Moving a person suspended in a sling over any distance is NOT recommended. If the bathroom facilities are not near the bed or if the patient lift cannot be easily maneuvered towards the commode, then the patient MUST be transferred to a wheelchair and transported to the bathroom facilities before using the patient lift again to position the patient on a standard commode. Refer to Transferring to a Wheelchair. 1. Use an empty patient lift to check if the patient lift can maneuver around the commode.
2. If the patient lift can maneuver around the commode, lift the patient from the bed. Refer to Lifting the Patient on page 19.
3. Transport the patient to the bathroom facility.
4. Press the UP/DOWN buttons on the hand control to elevate the patient high enough to clear the commode. Their weight will be supported by the patient lift.
5. Guide the patient onto the commode. This may require two assistants.
6. Press the DOWN button on the hand control to lower the patient onto the standard commode leaving the sling attached to the swivel bar hooks.
7. When complete, recheck the sling for correct attachments.
8. Press the UP button on the hand control to raise the patient off the commode.
9. When patient is clear of the commode surface (using the steering handle), move the lift away from the commode.
10. To return the patient to bed, reverse Lifting the Patient on page 19.
11. To return or place patient in a wheelchair, refer to Transferring to a Wheelchair.
Transferring to a Wheelchair
NOTE: For this procedure, refer to FIGURE 5.2.
1. Lift the patient from the bed. Refer to Lifting the Patient on page 19.
2. Ensure the legs of the lift with patient in the sling are in the open position. Press the legs open button until in maximum open position.
3. Move the wheelchair into position.
4. Engage the wheel locks of the wheelchair to prevent movement of the chair.
WARNING
DO NOT place the patient in the wheelchair if the locks are not engaged. The
wheelchair wheel locks MUST be in a locked position before lowering the patient
into the wheelchair for transport. Otherwise, injury may result.
Electric Portable Patient Lift - RPA6001E
24
Part No 1078988
SECTION 5—TRANSFERRING THE PATIENT
5. Use the straps or handles on the side and the back of the sling to guide the patient’s hips as far back as possible into the seat for proper positioning.
6. Position the patient over the seat with their back against the back of the chair.
7. Begin to lower the patient pressing the DOWN button on the hand control.
8. Use two assistants ‐ One assistant stands behind the chair and the other operates the patient lift. The assistant behind the chair pulls back on the grab handle (on select models) or sides of the sling to seat the patient well into the back of the chair. NOTE: This will maintain a good center of balance and prevent the chair from tipping forward.
9. Leave the sling in place unless a divided leg sling was used. Remove a divided leg sling.
10. Reverse Lifting the Patient on page 19 to return to the seating surface of the wheelchair.
FIGURE 5.2 Transferring to a Wheelchair
Part No 1078988
25
Electric Portable Patient Lift - RPA6001E
SECTION 6—TROUBLESHOOTING
SECTION 6—TROUBLESHOOTING
SYMPTOMS
FAULTS
SOLUTION
Patient Lift feels loose.
Mast/Base joint loose.
Tie - Rods are loose.
Refer to Assembly on page 11.
Noisy or dry sound
from pivots.
Needs lubrication.
Refer to Lubricating the Lift on page 28.
Electric actuator fails to
lift when button is
pressed.
Hand-control or actuator connector loose.
Charge batteries. Refer to Charging the Battery
on page 18.
Battery low.
Rotate RED emergency stop button CLOCKWISE until it pops out.
RED emergency stop button
pressed IN.
Reconnect the battery to the control box. Refer
to Charging the Battery on page 18.
Battery not connected properly to control box.
Replace the battery pack. Refer to Charging the
Battery on page 18.
The connecting terminals are
damaged.
Refer to Replacing the Electric Actuator on
page 29. Contact your Dealer.
Electric actuator in need of service or load is too high.
Unusual noise from
actuator.
Actuator is worn or damaged
or spindle is bent.
Refer to Replacing the Electric Actuator on
page 29. Contact your Dealer.
Lift arms will not lower
in uppermost position.
Lift arms require a minimum
weight load to lower from the
uppermost position.
Pull down slightly on the lift arms.
Lift arms will not lower
during a power retraction.
Shoulder bolt at the junction of
the boom and mast may not be
properly installed.
Refer to Checking and Tightening Mast Pivot Bolt
on page 30.
NOTE: If problems are not remedied by the suggested means, please contact your dealer or Invacare.
Electric Portable Patient Lift - RPA6001E
26
Part No 1078988
SECTION 7—MAINTENANCE
SECTION 7— MAINTENANCE
Maintenance Safety Inspection Checklist
ITEM
INITIALLY
INSTITUTIONAL
INSPECT/ADJUST
MONTHLY
IN-HOME
INSPECT EVERY
SIX (6) MONTHS
THE CASTER BASE
Inspect for missing hardware.
Base opens/closes with ease.
Inspect casters and axle bolts for tightness.
Inspect casters for smooth swivel and roll.
Inspect and clear wheels of debris.
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
SHIFTER HANDLE
Operates smoothly.
Locks adjustable base whenever engaged.
X
X
X
X
X
X
THE MAST
Mast MUST be securely assembled to boom.
Inspect for bends or deflections.
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
THE PUMP HANDLE
Check for smooth operation.
X
X
X
CLEANING
Whenever necessary.
X
X
X
SLINGS AND HARDWARE
CHECK ALL SLING ATTACHMENTS each
time it is used to ensure proper connection and
patient safety.
Inspect sling material for wear.
Inspect straps for wear.
X
X
X
X
X
X
X
X
X
THE BOOM
Check all hardware and swivel bar supports.
Inspect for bends or deflections.
Inspect bolted joints of boom for wear.
Inspect to ensure that the boom is centered
between the base legs.
Check the mast pivot bolt under the rubber
boot. Ensure that the bolt is tightly secured.
THE SWIVEL BAR
Check the bolt / hooks for wear or damage.
Check sling hooks for wear or deflection.
ELECTRIC ACTUATOR ASSEMBLY
Check for leakage.
Inspect hardware on mast and boom.
Check for wear or deterioration.
(IF DAMAGED, RETURN TO FACTORY).
Cycle to ensure smooth quiet operation.
*NOTE: For individual home use, a full inspection is required prior to each new user.
**NOTE: Regular cleaning will reveal loose or worn parts, enhance smooth operation and extend the life expectancy of the lift.
NOTE: Follow the maintenance procedures described in this manual to keep your patient lift in continuous service.
Part No 1078988
27
Electric Portable Patient Lift - RPA600-1E
SECTION 7—MAINTENANCE
The Invacare Patient Lift is designed to provide a maximum of safe, efficient and satisfactory service with minimum care and maintenance.
All parts of the Invacare Lift are made of the best grades of steel, but metal to metal contact will wear after considerable use.
There is no adjustment or maintenance of either the casters or brakes, other than cleaning, lubrication and checking axle and swivel bolts for tightness. Remove all debris, etc. from the wheel and swivel bearings. If any parts are worn, replace these parts immediately. If you question the safety of any part of the lift, contact your Dealer immediately and advise him/her of your problem.
Lubricating the Lift
NOTE: For this procedure, refer to FIGURE 7.1.
The Invacare lift is designed for minimum maintenance. However, a six month check and lubrication should ensure continued safety and reliability.
Keep lift and slings clean and in good working order. Any defect should be noted and reported to your dealer as soon as possible.
The casters MUST swivel and roll smoothly. A light grease (waterproof auto lubricant) may be applied to the ball bearing swivel of the casters once a year. Apply more frequently if the casters are exposed to extreme moist conditions.
Refer to FIGURE 7.1 for lubrication points. Lubricate all pivot points. Wipe all excess lubricant from lift surface.
1. Swivel Bar
2. Boom Mounting Bracket
3. Boom/Mast Mount
4. Mast Mounting Bracket
2
1
3
4
FIGURE 7.1 Lubricating the Lift
Electric Portable Patient Lift - RPA600-1E
28
Part No 1078988
SECTION 7—MAINTENANCE
Detecting Wear and Damage
It is important to inspect all stressed parts, such as slings, spreader bar and any pivot for slings for signs of cracking, fraying, deformation or deterioration. Replace any defective parts immediately and ensure that the lift is not used until repairs are made.
Cleaning the Sling and the Lift
The sling should be washed regularly in water temperature of 180°F (82°C) and a biological solution. A soft cloth, dampened with water and a small amount of mild detergent, is all that is needed to clean the patient lift. The lift can be cleaned with non‐abrasive cleaners.
Replacing the Electric Actuator
NOTE: For this procedure, refer to FIGURE 7.2.
1. Remove the nut, washer and shoulder bolt that secure the electric actuator to the mast mounting bracket.
2. Rest the boom on your shoulder and remove the nut, bolt, plastic bushing and pinch guard from the boom mounting bracket.
3. Remove the electric actuator assembly.
4. Reverse steps for installation.
CAUTION
DO NOT overtighten the nut and bolt. This damages the mounting bracket.
Boom
Pinch Guard
Mast
Bushing
FIGURE 7.2 Replacing the Electric Actuator
Part No 1078988
29
Electric Portable Patient Lift - RPA600-1E
SECTION 7—MAINTENANCE
Checking and Tightening Mast Pivot Bolt
NOTE: For this procedure, refer to FIGURE 7.3.
1. Lift up the back of the rubber boot and slide it off the mast along the boom.
2. Check that the bolt is through the bracket and the locknut is tight and secure.
3. If needed, do one or more of the following:
• tighten locknut and back‐off the locknut 1/8 of a turn.
• replace the locknut.
4. Reposition the rubber boot.
Rubber Boot
Washer
Boom
Bolt
Spacer
(if equipped)
Locknut
Mast
Bracket
FIGURE 7.3 Checking and Tightening Mast Pivot Bolt
Replacing the Swivel Bar
WARNING
After the first year of use, the hooks of the swivel bar and mounting brackets of the
boom should be inspected every six months to determine the extent of wear. If
these parts become worn, replacement must be made.
NOTE: For this procedure, refer to FIGURE 7.4.
1. The swivel bar comes attached to the boom with bolt, nut, washers, and pinch guard.
NOTE: Washers should be placed against both sides of the boom mounting bracket to eliminate damage.
NOTE: The swivel bar has three hooks on both ends to attach the sling that supports the patient during lift.
2. Remove existing hardware and replace the swivel bar.
CAUTION
DO NOT overtighten the nut and bolt. This damages the mounting bracket.
Electric Portable Patient Lift - RPA600-1E
30
Part No 1078988
SECTION 7—MAINTENANCE
Boom
Boom Mounting Bracket
Washer
Shoulder Bolt
Locknut
Pinch Guard
Swivel Bar
Nylon Washers
Swivel Bar Pin
FIGURE 7.4 Replacing the Swivel Bar
Part No 1078988
31
Electric Portable Patient Lift - RPA600-1E
SECTION 8—ACCESSORIES
SECTION 8—ACCESSORIES
Reliant Scale RLS6
The Reliant Scale is a compact precision scale system designed specifically for the Invacare Patient Lift System.
Removing the Swivel Bar
NOTE: For this procedure, refer to FIGURE 8.1.
1. Remove the shoulder bolt, locknut, pinch guard and washer which secure the swivel bar to the boom mounting bracket.
NOTE: Save the shoulder bolt and locknut to secure the Reliant Scale to the boom. The pinch guard will not be used when the scale is installed. Save the pinch guard for future use of the swivel bar without scale.
NOTE: Removing the swivel bar hardware will release the swivel bar, two nylon washers and the swivel bar pin. Save the swivel bar pin and the two nylon washers for future use of the swivel bar without the scale.
Boom
Boom Mounting Bracket
Washer
Shoulder Bolt
Locknut
Pinch Guard
Swivel Bar
Nylon Washers
Swivel Bar Pin
FIGURE 8.1 Removing the Swivel Bar
Electric Portable Patient Lift - RPA6001E
32
Part No 1078988
SECTION 8—ACCESSORIES
Installing the Reliant Scale
NOTE: For this procedure, refer to FIGURE 8.2.
WARNING
Patient and sling MUST be removed from the lift during ALL installation procedures.
1. Position the load cell assembly of the Reliant Scale into the boom mounting bracket. Refer to Detail ʺAʺ in FIGURE 8.2.
NOTE: Use 1/4‐inch nylon washer. 2. Secure the Reliant Scale to the boom mounting bracket with a shoulder bolt, two nylon washers and a locknut. Securely tighten. Refer to Detail ʺAʺ in FIGURE 8.2 for washer orientation.
NOTE: Ensure the shaft of the shoulder bolt passes through both sides of the boom mounting bracket.
3. Insert swivel bar pin with two nylon washers through the swivel bar. Refer to Detail ʺBʺ in FIGURE 8.2.
4. Align the mounting holes in the swivel bar pin with the mounting holes in the load cell assembly. Refer to Detail ʺBʺ in FIGURE 8.2.
5. Secure swivel bar pin to the load cell assembly with the provided mounting screw and locknut. Securely tighten. Refer to Detail ʺBʺ in FIGURE 8.2.
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
6. Weigh the patient. Refer to Operating the Scale on page 34 and Weighing the Patient on page 35.
DETAIL “A”
Reliant
Scale
Boom
DETAIL “B”
Locknut
Boom
Mounting
Bracket
Nylon
Washer
Reliant
Scale
Mounting
Screw
Locknut
Shoulder
Bolt
Nylon
Washer
Nylon
Washers
Swivel Bar
Load Cell
Assembly
Swivel Bar Pin
FIGURE 8.2 Installing the Reliant Scale
Part No 1078988
33
Electric Portable Patient Lift - RPA6001E
SECTION 8—ACCESSORIES
Operating the Scale
Keypad Functions
NOTE: For this procedure, refer to FIGURE 8.3.
KEY
INDICATOR
DISPLAYED
ON
OFF
OFF
ZERO
INDICATOR
LOCATION
DEFINITION
Center of Display Window
Pressing this key will apply
power to the scale and turn
the unit on. When the scale is
already on, pressing the button
will turn the unit off.
ZERO
Lower Left Corner of the Display Window
Pressing this key when the
scale is on will reset the weight
shown in the display window
to zero.
UNITS
lb or kg
Upper Right Corner of the Display Window
The function of this key is to
change the unit of measurement from pounds (lb) to kilograms (kg).
LOCK
UNLOCK
LOCK
Lower Right Corner of the Display Window
This key is used to lock or
unlock a weight value in the
display window.
NOTE: Weight displayed is a
STORED weight and not the current weight when the key is used
in the lock position.
N/A
LO BAT
Center of Display Window
Indicator is shown in the display window to notify when
battery is low.
Display
Window
lb kg
ZERO
Operation
Keys
ON
OFF
LOCK
ZERO
UNITS
By
LOCK
UNLOCK
Reliant Scale
Model RLS6
CAPACITY 600 LB, 272 KG
DETECTO
To Operate:
1. Attach sling.
2. Press ON key.
3. Press ZERO key.
4. Lift patient.
5. Press LOCK key
6. Lower Patient
7. Read Weight
ON
ZERO
LOCK
WEIGHT
FIGURE 8.3 Operating the Scale - Keypad Functions
Electric Portable Patient Lift - RPA6001E
34
Part No 1078988
SECTION 8—ACCESSORIES
Weighing the Patient
WARNING
The weight capacity is limited to the lowest rated capacity of any one of the components in use (e.g. Patient Lift, Sling or Scale). The patient's weight MUST not
exceed the lowest rated capacity of any component.
1. Attach sling straps to the swivel bar. For proper attachment instructions refer to Attaching a Sling to the Swivel Bar on page 20.
NOTE: For improved accuracy on the Reliant lifts, attach all sling straps to the center hooks on both sides of the swivel bar. However, patient comfort may require a different configuration of sling straps.
2. Press the ON/OFF key.
WARNING
DO NOT operate key strokes with pointed objects (e.g. pencils, pens, fingernails,
etc.) Otherwise damage to the key pad will result.
NOTE: The display will indicate the last weight that was measured. The word ʺLOCKʺ will be seen in the display box.
NOTE: The ZERO key is pressed in order to avoid capturing the weight of the sling and the hardware. If the ZERO key is not pressed the weight of the sling and the weight of the hardware will be included in the weight displayed. NOT ZERO‐ING OUT WILL GIVE A FALSE READING OF THE USERʹS TRUE WEIGHT.
3. Press the ZERO key. When the ZERO key is pushed the following will happen:
A. The scale will reset to zero and the word ʺZEROʺ will appear in the display.
B. The lock function will then be turned off and the word ʺLOCKʺ will disappear from the display.
NOTE: The scale is now active and continually updating the weight display.
4. Place the patient in the sling. For patient placement instructions refer to Operation on page 14.
5. Activate the lift mechanism to raise the patient until they are completely supported by the lift. For patient lifting instructions, refer to Lifting the Patient on page 19.
6. Note the weight display.
7. When the weight display becomes stable press the LOCK button to lock the weight display. This will be indicated by the word ʺLOCKʺ appearing in the display window. NOTE: Should it be necessary to unlock the weight while the patient is still supported by the lift, the UNLOCK button may be pressed. The weight will unlock and the word ʺLOCKʺ will disappear from the display window. The weight value will then be updated. Once the weight becomes stable the weight can be locked again by pressing the LOCK button.
Part No 1078988
35
Electric Portable Patient Lift - RPA6001E
SECTION 8—ACCESSORIES
NOTE: Stable being defined as the weight fluctuating two tenths of a pound. For example, a patient weighing one hundred pounds, the scale will fluctuate between 99.8 and 100.2 until the LOCK key is pressed. Fluctuation of the weight displayed is normal as noted above. Press the LOCK button to lock the weight.
NOTE: The UNITS button can be pressed to toggle between units of pounds and kilograms. This is indicated by lb or kg appearing in the display window.
8. The lift may now be lowered and the sling removed from the patient.
NOTE: The patientʹs weight will continue to be seen in the display window. The display will turn off automatically after a two minute period of non‐use [no changes in weight exceeding five pounds (two kilograms)]. You can NOT adjust the time delay for automatic shut off. After the display has turned off, the weight may be recalled by pressing the ON/OFF button. The unit can be turned off by pressing the ON/OFF button a second time. Replacing the Battery
NOTE: For this procedure, refer to FIGURE 8.4.
NOTE: The scale is powered by a nine volt alkaline battery that should provide approximately 1500 readings before needing replacement.
When battery replacement is needed, LO BAT will appear on the display. Perform the following:
1. Slide the battery door open in the direction of the arrow.
2. Remove existing battery.
3. Install the new battery.
4. Reinstall the battery door.
Assembled
Scale
9V Battery
Battery
Door
Arrow
FIGURE 8.4 Replacing the Battery
Calibrating the Reliant Scale
NOTE: The Reliant Scale will be pre‐calibrated at the factory with the load cell. Should it be necessary to re‐calibrate the scale, follow the instructions outlined below.
1. The patient and the sling must be removed from the scale to properly calibrate the Reliant Scale. For removing the patient instructions refer to Operation on page 14. For sling detachment instructions refer to Lifting the Patient on page 19.
2. With the Reliant Scale on, remove the four screws on the back of the enclosure and remove the front cover to expose the PC board.
Electric Portable Patient Lift - RPA6001E
36
Part No 1078988
SECTION 8—ACCESSORIES
3. Press the CAL button located on the PC board. The CAL switch is not labeled but is the only button on the PC board located in the lower right corner. Once the CAL button is pushed ʺCAL1ʺ will be seen in the display window.
NOTE: CAL1 selects the calibration mode using 50 pounds of calibrated weight. CAL2 selects the calibration mode for use with 200 pounds of calibrated weight. Pressing the UNITS key toggles between CAL1 and CAL2.
4. When the desired calibration mode is displayed, press the LOCK/UNLOCK key. NOTE: The display window will now show UnLd.
5. Ensure that there is no load on the scale and press the ZERO key.
6. The display window will show a dashed line (‐‐‐‐‐‐) scrolling across and then the word LOAD will appear in the display window.
7. Perform one of the following:
A. FOR CAL1 OPTION ‐ support 50 pounds of calibrated weight from the scale and press the ZERO key.
B. FOR CAL2 OPTION ‐ support 200 pounds of calibrated weight from the scale and press the ZERO key.
8. The display window will show a dashed line (‐‐‐‐‐‐) scrolling across and then the word DONE will appear in the display window.
9. Remove the weight from the scale and press the LOCK/UNLOCK key.
NOTE: The unit will now be in a temporary test mode and will not lock the weight display. This will allow weight to be loaded and unloaded to check the calibration. 10. Turn the unit off by pressing the ON/OFF key. 11. Turn the unit on by pressing the ON/OFF key.
NOTE: Scale will now be in normal operation.
Troubleshooting
SYMPTON
Unit does NOT work properly.
PROBABLE CAUSE
Battery failure.
SOLUTIONS
Check battery. Replace if necessary.
Battery has been replaced and unit
still does NOT work properly.
Contact Invacare for Service at 1-800-3336900
Display Codes
CAL
CALIBRATION REQUIRED ‐ Indicates improper stored calibration data, calibration is necessary.
OCAP
OVER CAPACITY ‐ Indicates a weight exceeding the capacity has been loaded on the scale.
Part No 1078988
37
Electric Portable Patient Lift - RPA6001E
NOTES
NOTES
Electric Portable Patient Lift - RPA6001E
38
Part No 1078988
LIMITED WARRANTY
LIMITED WARRANTY
Available At:
United Kingdom:
Invacare Ltd, South Road, Bridgend Industrial Estate, UK‐Bridgend CF31 3PY
Tel: (44) (0)1656 664 321, Fax: (44) (0)1656 667 532
[email protected]
Part No 1078988
39
Electric Portable Patient Lift - RPA600-1E
Invacare Corporation
www.invacare.com
USA
One Invacare Way
Elyria, Ohio USA
44036-2125
800-333-6900
Canada
570 Matheson Blvd. E Unit 8
Mississauga Ontario
L4Z 4G4 Canada
800-668-5324
All rights reserved. Trademarks are
identified by ™ and ®. All trademarks
are owned by or licensed to Invacare
Corporation unless otherwise noted.
©2008 Invacare Corporation
Part No 1078988
Rev B - 09/08
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
