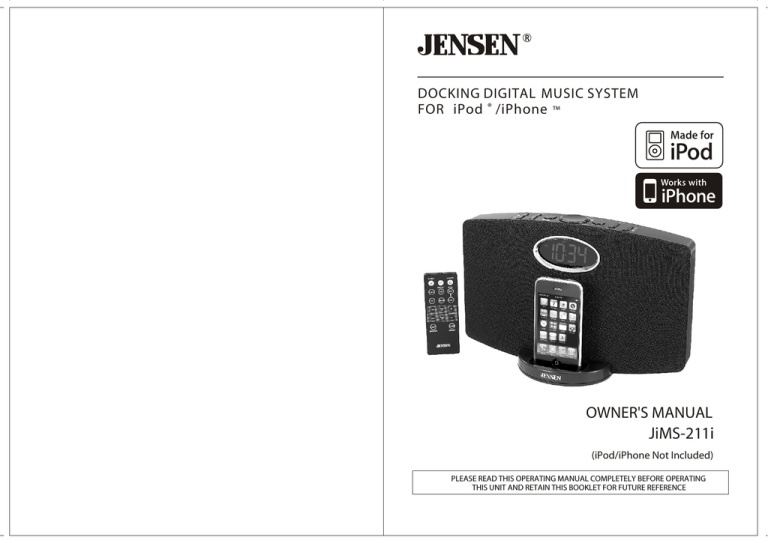

DOCKING DIGITAL MUSIC SYSTEM
FOR iPod ® /iPhone
TM
OWNER'S MANUAL
JiMS-211i
(iPod/iPhone Not Included)
PLEASE READ THIS OPERATING MANUAL COMPLETELY BEFORE OPERATING
THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE
TABLE OF CONTENTS
DEAR JENSEN® CUSTOMER
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT NOTES
COMPLIANCE WITH FCC REGULATIONS
PRODUCT FEATURES
INSTALLATION
LOCATION OF CONTROLS
RADIO OPERATIONS
iPod/iPhone DOCKING
VIDEO OUT FROM THE iPod / iPhone
EQ SETTING
AUXILIARY INPUT
CLOCK SETTING
ALARM OPERATIONS
SLEEP TIMER FUNCTION
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
SPECIFICATIONS
WARRANTY
DEAR JENSEN CUSTOMER
2
3
3
4
4
5
6
8
9
10
10
11
11
12
13
13
14
15
16
Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical
enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers.
This manufacturer and the Electronic Industries Association's Consumer Electronics Group want you to get
the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and
clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So what
sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your
equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
Start your volume control at a low setting.
Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:
Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want
you listening for a lifetime.
We Want You Listening For a Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage
from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries
Association's Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise.
Customer's Record:
The serial number of this product is found on its back cover. You should note the serial number of this unit
in the space provided as a permanent record of your purchase to aid in identification in the event of theft of
loss.
"Made for iPod" and "Works with iPhone" mean that an electronic accessory has been designed to connect
specifically to iPod/iPhone and has been certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory
standards.
Model Number: JiMS-211i
Serial Number:
iPod/iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
2
IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and manufactured to ensure your
personal safety. However, improper use can result in potential electrical shock or fire hazards. Please
read all safety and operating instructions carefully before installation and use, and keep these
instructions handy for future reference. Take special note of all warnings listed in these instructions and
on the unit.
1. Read these instructions
2. Keep these instructions
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable
operation of the product and to protect it from overheating, and these openings must not be blocked or
covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Grounding or Polarization
This product may be equipped with a polarized alternating-current
line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the
plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments / accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
14. This appliance shall not be exposed to dripping or splashing water and that no object filled with
liquids such as vases shall be placed on the apparatus.
15. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
16. The MAINS plug is used as the disconnect device, the disconnect device
shall remain readily operable.
17.Battery pack or battery installed shall not be exposed to excessive heat such
as sunshine, fire or the like.
18.Name plate is located on back of product.
COMPLIANCE WITH FCC REGULATIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)this device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Radio Receiver, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio technician for help.
CAUTION
Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
PRODUCT FEATURES
JiMS-211i is an iPod/iPhone Docking Music System which incorporates the following features :
iPhone, iPod, iPod mini, iPod classic, iPod touch and iPod nano Player/Re-charger
Digital Tuning FM Stereo receiver with 20 presets
Audio line-in for connecting other digital audio player
Clock and Alarm timer function
Wake up to Alarm, iPod/iPhone or Radio with Snooze function
Sleep timer function
Built-in 2 High Fidelity Speakers
LCD display with backlight
Attached FM Antenna wire for better radio reception
Video Line-out provides video signal output when iPod/iPhone with video is docked
IMPORTANT NOTES
Avoid installing the unit in locations described below:
-
Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters.
Dusty places.
Places subject to constant vibration.
Humid or moist places.
3
4
INSTALLATION
Clock setting battery back-up
The battery back-up compartment is located at rear of the unit.
(1) Remove the battery compartment door.
(2) Follow the polarity diagram shown inside the compartment and install 2 x AAA batteries (not
included).
(3) Replace the battery compartment door.
LOCATION OF CONTROLS
Main Unit
Top view
10
WARNING:
- Be sure that the batteries are installed correctly. Wrong polarity may damage the unit.
- Do not mix old and new batteries.
- Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
- Only batteries of the same or equivalent type as recommend are to be used.
- If the unit is not to be used for an extended period of time, remove the battery.
- Do not dispose of batteries in re, batteries may explode or leak.
Battery Low indication
If the battery low indicat or
9
8
7
4
5
6
3
11
2
1
Rear view
Front view
blinks on LCD display, replace the back-up battery with fresh one.
AC-DC Adaptor Connection
The unit is powered by an external AC-DC Power Adaptor with an output of 8V DC / 2000mA
(included).
(1) Plug the adaptor into an outlet rated at 120V AC / 60Hz.
(2) Insert the adaptor's DC output plug into the DC-IN jack on the back of the unit.
NOTE: This unit is not magnetically shielded and may cause color distortion on the screen of some TVs or
video monitors. T o avoid this, you may need to move the unit further away from the TV or monitor if
unnatural color shifts or image distortion occurs.
20
15
16
18
17
PROTECT YOUR FURNITURE!!
This system is equipped with non-skid rubber ‘feet’ to prevent the product from moving when you operate
the controls. These ‘feet’ are made from non-migrating rubber material specially formulated to avoid leaving
any marks or stains on your furniture. However certain types of oil based furniture polishes, wood
preservatives, or cleaning sprays may cause the rubber ‘feet’ to soften, and leave marks or a rubber residue
on the furniture.
To prevent any damage to your furniture we strongly recommend that you purchase small self-adhesive felt
pads, available at hardware stores and home improvement centers everywhere, and apply these pads to
the bottom of the rubber ‘feet’ before you place the product on fine wooden furniture.
5
19
13
14
12
13
1. iPod/iPhone docking station
2. iPod/iPhone docking connector
3. POWER On/Off
button ----- Turns the unit on or standby.
4. Function button ----- Select FM RADIO, iPod/iPhone, AUX modes.
5. SLEEP
button ----- Select the time duration of the sleep timer.
6. CH+/- button ----- Select preset radio station.
7. VOLUME wheel/ MODE button
MODE button ----- In standby mode, press to adjust clock and alarm setting.
In FM radio
mode, press to select FM stereo or mono reception.
VOLUME wheel -- Rotate to adjust the volume level up or down;
Rotate to adust hour/minute of clock/alarm.
8. SNOOZE/DIMMER button ----- Activate the snooze function; turn LCD backlight Bright/DIM/OFF .
9. PRESET /
button----- Save radio preset station; iPod/iPhone play-pause.
10.
/
button ----- In iPod/iPhone mode, skip tracks Forward / Backward or perform
high-speed search.
In Radio mode,
turn the radio frequency up/down.
11. ALARM
button ----- Turn the alarm on and off.
12. LCD display
13. Pair of Speakers
14. Remote Infrared Sensor
15. Battery Compartment
16. AUX IN jack : Auxiliary audio signal input.
17. RCA VIDEO Jack ------ Composite video signal output.
18. DC-in jack : For the connection of external DC power supply.
19. RESET button ----- For resetting the unit.
20. FM Antenna wire
6
LOCATION OF CONTROLS
Remote Control
1
8
9
2
10
4
3
11
12
5
13
14
6
15
7
16
1. Infra-red Transmitter
2. POWER
button --- Turns the unit ON/Standby .
3. PRESET /
button ---- Save radio preset station ;
iPod/iPhone play-pause.
4. iPod REP button ---- iPod / iPhone repeat playback.
5. iPod RAN button ---- iPod / iPhone random playback.
6. VOLUME + / - button ---- Adjusts volume level up or down ;
Adjusts hour/minute of clock/alarm.
7. ALARM ON/OFF button ----Turn the alarm on and off.
8. MUTE button ---- Mute the volume.
9. SLEEP
button ----Select the time duration of the sleep timer.
10. FUNC button ---- Select FM RADIO, iPod/iPhone, AUX modes.
11. EQ button ---- Select preset EQ effect.
12. MODE button
---- In standby mode, press to adjust clock and alarm setting.
---- In FM radio mode, press to select FM stereo or mono reception.
13. CH +/- button ---- Select preset radio station.
14. TUN+ / FF and TUN- / FR buttons--- In iPod/iPhone mode, skip tracks Forward/Backward or perform
highspeed search.
- In Radio mode, tune the radio frequency up/down.
15. SNOOZE/DIMMER button ---- Activate the snooze function ;
turn LCD backlight bright/dim/off.
16. Battery Compartment
RADIO OPERATIONS
FMAntenna
Unwrap and fully extend the FM Antenna for best FM reception
Radio Tuning
1. Press the POWER
button to turn on the unit.
2. Press the FUNCTION button to select FM radio mode.
3.To manually tune to desired station, repeatedly press the /TUN- or
/ TUN + button.
4.To automatically search for stations with strong signals, press and hold the /
TUN- or
/ TUN +
button until the frequency digits on display begins to scan then release the button. The tuner will stop on
the first strong station signal it finds.
Notes:
t.BOVBMUVOFUPTFMFDUXFBLFSTUBUJPOTUIBUNJHIUCFCZTLJQQFEEVSJOHBVUPNBUJDUVOJOH
t*GUIFBVUPNBUJDUVOJOHEPFTOPUTUPQPOUIFFYBDUGSFRVFODZPGUIFTUBUJPO
GPSFYBNQMFJUTUPQTPO.)[JOTUFBEPG.)[VTFUIFNBOVBMUVOJOHNFUIPEUPöOFUVOF
UPUIFFYBDUGSFRVFODZPGUIFEFTJSFETUBUJPO
t:PVNBZQSFTTUIF MODE button to select FM stereo or mono receiving mode, if necessary.
*OTUFSFPNPEFXIFOB'.TUFSFPCSPBEDBTUJTSFDFJWFEBOEXJMMJOEJDBUFJOUIF-$%
Radio Preset Stations
5IFVOJUBMMPXTZPVUPTUPSFVQUP'.TUBUJPOTGPSFBTZSFDBMMBUBOZUJNF
Preset Stations
1. Press POWER
button to turn on the unit.
2. Press the FUNCTION button to select FM radio mode.
3. Tune to the radio station you want to store in memory by using the
/TUN- or
/ TUN + button.
4. Press the PRESET CVUUPO5IFQSFTFUDIBOOFMOVNCFS$BQQFBSTPOEJTQMBZBOEøBTIJOH
5. T o select desired preset station number, press
CH + / - button.
6. T o confirm preset location, press the PRESET button.
7. Repeat steps 3 to 6 to store other stations if necessary.
Note:
1. There is a 5 second delay when programming, after 5 seconds, the unit will automatically switch
CBDLUPOPSNBMUVOFSNPEF
:PVDBOPWFSXSJUFBQSFTFOUTUBUJPOCZPWFSXSJUJOHBOETUPSJOHUIFOFXGSFRVFODZJOJUTQMBDF
Recalling the preset stations
1. Press the POWER
button to turn on the unit.
2. Press the FUNCTION button to switch to the radio mode.
3. Press the CH + or CH - button to select the preset channels .
7
8
iPod/iPhone DOCKING
If the docking port will not be used for an extended period of time, it is recommended to cover the
docking port by using the “Dock Cover” insert (included).
1. Use the iPod adaptor included in your iPod and insert it into the docking area. No adaptor required if
you use iPhone. Your iPod/iPhone can now be inserted into the docking port by placing the connector
on the bottom of the iPod/iPhone onto the connector in the docking bay.
Note: - Please be careful when seating the iPod/iPhone into the docking to avoid damaging the 30-pin
connector on the iPod/iPhone or in the docking system.
2. Press the POWER
button to turn on the unit.
3. Press FUNCTION button to select iPod/iPhone mode. The iPod/iPhone will start playing automatically
and start charging immediately.
4. Press the PRESET/
button to pause or resume iPod/iPhone playback.
5. Adjust the sound level by turning the VOLUME wheel.
Note : The volume level cannot be adjusted using the volume control on
your iPod/iPhone after being docked.
6. The iPod/iPhone charges even during playback.
Note : The iPod/iPhone will charge in all modes.
7. To remove the iPod/iPhone from the unit, press and hold the
button for three seconds to switch
off the device and then gently remove it from the docking connector.
iPod/iPhone playback control:
- Press the
button to pause or resume the iPod/iPhone playback;
- Press the iPod/iPhone Skip/Search Forward
or Backward
button to skip to the next or previous song;
- Press and hold the iPod/iPhone Skip/Search Forward
or Backward
button for fast-forwarding or
fast-rewinding during playback.
VIDEO OUT FROM THE iPod/iPhone
1. You can connect this unit to a television or other video display that has a composite video input.
2. Securely dock your iPhone or iPod with video.
3. Connect one end of an RCA cable (not included) to rear RCA video jack on the unit.
4. Connect the other end of the RCA cable to VIDEO IN of television or video display.
5. Press the FUNCTION button to select iPod/iPhone mode.
6. Select a movie from your iPod/iPhone menu.
7. iPod: On the main menu choose video then select video setting.
8. iPod: Make sure the TV Out section is set to "ON".
9. iPod: Switch back to the movie library and play the movie of your choice
Note: V ideo out will automatic when us ing an iP od touch or iP hone
EQ SETTING (REMOTE CONTROL ONLY)
This unit provides 4 preset EQ settings for your selection.
In either RADIO, iPod/iPhone or AUX modes:
To select preset EQ: ROCK, CLASSIC, POP or JAZZ ; press EQ button from the remote control.
The corresponding indicator shows on display .
You can select the desired effect by pressing the "EQ" button on remote control repeatedly at
following sequence:
iPod/iPhone control function keys (using remote control):
- To repeat playback song / file, press iPod REP button.
- To random playback song / file, press iPod RAN button.
9
10
A UXIL IA R Y INP UT
T his unit provides an auxiliary audio signal input for connecting external audio devices.
Use an audio cable with 3.5 mm stereo plug to connect the external device to the AUX IN J ack
located on the back of the unit.
C onnect the other end of the cable to a Line Out J ack or Headphone J ack of your non-dockable MP 3 player,
C D player and older, non-dockable iP ods (except 3rd gen iP od shuffle) then listen to your external source
through the speakers of this system.
1.
2.
3.
4.
5.
C onnect the audio cable with 3.5 mm stereo plug to the AUX IN J ack located at rear of the unit.
C onnect the other end of the cable to a Line Out J ack or Headphone J ack of your external audio device.
T urn on the external audio device.
T o select auxiliary audio input, press the F UNC T ION button until the AUX indicator is displayed on the LC D.
T he volume level can now be controlled through the main unit. Operate all other functions on the auxiliary
device as usual.
Note:
(1) If you're connected to the Line Out J ack of your external device, then you only need to adjust the volume
control of this unit. If you're connected to the Headphone J ack of your external device, then you may need to
adjust both the volume control of your external device and the volume control of this unit to find the most
desirable volume setting.
(2) P ress the P OWE R
button turning off the unit when you finish listening.
Don't forget to switch off the power of your external device as well.
CLOCK SETTING
When the unit is OFF (power off mode) :
Set Clock
1. Press the MODE button 3 times, the hour digits blink.
2. To set hour, turn the VOLUME wheel to obtain a desired value.
Note: Make sure the hour is set so that the AM or PM indicators are displayed correctly.
3. Press the MODE button again, the minute digits blink.
4. To set minute, turn the VOLUME wheel to obtain a desired value.
Set 12/24 Hour format
5. Press the MODE button repeatedly to enter 12/24 hour format setting mode, "H12" appears and flashing.
6. To select H12 (12Hour) or H24 (24 Hour) format, rotate the VOLUME wheel.
Exit setting mode
7. To save all settings and exit the setting mode, press the SNOOZE button.
11
ALARM OPERATIONS
Setting the Alarm time
When the unit is at the standby mode :
1. Press the MODE button once , the alarm hour digits blink.
2. To set hour, turn the VOLUME wheel to obtain a desired value.
3. Press the MODE button again , the alarm minute digits blink.
4. To set minute, turn the VOLUME wheel to obtain a desired value.
Select wake up alarm source
5. When either the alarm hour or minute digits blink, each press of the FUNCTION button allows you to
select Buzzer , iPod/iPhone or Radio as the alarm source where the corresponding indicator "Alm
"Alm iPod/iPhone" or "AlmRad" displays on screen.
",
Note :
- If "Wake to iPod/iPhone " is selected but your iPod/iPhone has not been docked, the alarm source
will be redirected to the Alarm Buzzer automatically when the alarm time is reached.
- When "Wake to Radio" is selected, make sure the radio staion you want to wake to is tuned.
6. To save all settings and exit the setting mode, press the SNOOZE button.
7. To activate the daily alarm, press the ALARM ON/OFF button and the corresponding alarm source indicator
appears on LCD display.
Wake to Buzzer
* When the alarm time is reached, the buzzer alarm will sound for one minute.
* It goes into Auto Snooze mode if no button has been pressed. The display shows the “SNOOZE”
indicator. The buzzer turns off for the snooze time (around 10 minutes) then comes on again.
This operation will be repeated three times. After the fourth alarm is finished, the alarm will shut
off until the same alarm time on the next day.
* You may also activate the snooze function manually after the alarm sounds by pressing the
SNOOZE button. The buzzer stops for the snooze time then comes again.
* The snooze operation (including auto snooze and manual snooze) can be repeated by 3 times only.
* To stop the alarm immediately after the buzzer sounds, you can also press the ALARM ON/OFF button.
It resets itself for the following day.
Wake to iPod/iPhone or Radio
* When the alarm time is reached, the selected alarm source (iPod/iPhone or Radio) will automatically turn on.
It starts softly and gradually becomes louder.
* It plays for 60 minutes then shuts off and resets itself for the following day.
* During the activation of the alarm source, you may press the SNOOZE button to activate the
snooze function. The alarm stops for the snooze time (around 10 minutes) then turns on again.
This manual snooze operation can be repeated three times. Each time the alarm turns on, it plays
for 60 minutes (without pressing the snooze button).
* To stop the alarm immediately after the alarm sounds, you may also press the ALARM button.
It resets itself for the following day.
Note :
- For the alarm source iPod/iPhone is selected and the corresponding device has not been docked
in the station. When the alarm comes, it will redirect to “Wake to Buzzer” automatically.
12
SLEEP TIMER FUNCTION
Sleep to Timer
This feature allows you to fall asleep to the radio, iPod/iPhone for up to 120 minutes.
The unit automatically shuts off automatically when the time expires.
(1) Press the POWER
button to turn the unit on.
(2) Either tune to the desired radio station in Tuner mode, playback music from the iPod/iPhone.
(3) To select the sleep timer to turn the unit off after 15, 30, 45, 60, 90 or 120 minutes, press the
SLEEP button repeatedly. The display will show the indicator "
". The unit plays for the
selected length of time then automatically turns off.
(4) To turn the unit off before the sleep timer counts down to zero, press the POWER
button
at any time.
Note :
If you are falling asleep to music from an external device connected to the AUX Input, the sleep timer
will shut off the power to this system but it will not turn off the external device.
TROUBLESHOOTING GUIDE
Symptom
The unit does
not respond (no power)
iPod/iPhone does not
dock properly
C A R E A ND MA INT E NA NC E
-
Do not s ubject the unit to exces s ive force, s hock, dus t or extreme temperature.
Do not tamper the internal components of the unit.
C lean your unit with a damp (never wet) cloth. S olvent or detergent s hould never be us ed.
Avoid leaving your unit in direct s unlight or in hot, humid or dus ty places .
K eep your unit away from heating appliances and s ources of electrical nois e s uch as fluores cent lamps
or motors .
R es etting the Unit
If the unit experiences a power s urge or electric s hock, it is pos s ible that the internal micro-controller may
lock up and the unit will not res pond to any commands from the top panel controls or remote control.
1.In this event, unplug and then reconnect the AC power plug into the wall outlet.
2.Us e a s traightened paper clip, toothpick or s imilar objects to pres s the R E S E T button located at the rear
of the main unit (s ee the below figure). T he res et operation clears the s ys tem memory and all of your
previous s ettings will be eras ed. C A UT ION: DO NOT US E S HA R P, P OINT E D OB J E C T T O P R E S S
T HE R E S E T B UT T ON. IT MA Y DA MA G E T HE R E S E T S WIT C H INS IDE T HE UNIT.
Possible Problem
AC Adaptor is not plugged into a
wall outlet or the connector is not
plugged into the power supply jack
on the back of the unit.
Plug the AC adaptor into a wall
outlet and plug the connector into
the supply jack on the unit.
Wall outlet is not functioning.
Plug another device into the same
outlet to confirm the outlet is working.
Using no/wrong iPod/iPhone Adaptor.
Make sure the dock insert is the
proper fit for your iPod/iPhone
iPod/iPhone does not install properly.
Remove your iPod/iPhone from the dock
and check for obstruction on the
connectors in the dock and on your
iPod/iPhone. Then reseat it in the dock.
iPod/iPhone is not installed properly.
Remove your iPod/iPhone from the dock
and check for obstruction on the
connectors in the dock and on your
iPod/iPhone. Then reseat it on the dock.
Your iPod/iPhone is locked up.
Please make sure that your iPod/iPhone is
working properly before docking into
the unit. Please refer to your iPod/iPhone
manual for details.
iPod/iPhone is not installed properly.
Remove your iPod/iPhone from the
dock and check for obstruction on the
connectors in the dock and on your
iPod/iPhone. Then reseat it in the dock.
iPod/iPhone does not
charge up
iPod/iPhone is locked up/ frozen.
iPod/iPhone battery has problem.
Please make sure your iPod/iPhone is
working properly before docking into
the unit. Please refer to your iPod/
iPhone manual for details.
iPod/iPhone
unintentionally wake up
in PAUSEmode
It may be caused during function
switching
Wait for 3 minutes, iPod will enter
sleep mode automatically
Volume level is set too high.
Decrease the volume.
iPod/iPhone does not
respond to the speaker
system
Sound is distorted
If the iPod/iPhone original sound
source is of poor quality, distortion
and noise areeasily noticed with highpower speakers. Try a different audio
source such as a music CD.
Sound source is distorted.
If you are using an external sound
source like older generation of iPod,
try reducing the output volume on the
device itself. Also try turning bass boost
OFF or change the EQ setting.
R E S E T button
Unit gets warm after
extended play at
high volume
13
Solution
This is normal.
Turn the unit off for a period of time or
lower volume.
14
SPECIFICATIONS
Power Supply
Power Adaptor (included)
90 DAY LIMITED WARRANTY AND SERVICE
VALID IN THE U.S.A ONLY
Input: AC 120V~60Hz
Output: DC8V/2000mA
Battery Back-up for Clock
Remote Control
2 x DC1.5V 'AAA' (UM-4) Batteries (not included)
1 x CR2032 Lithium Battery (included)
Frequency Range
FM 87.5
108 MHz, 0.1 MHz tuning step
SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials
or factory workmanship for a period of 90 days from the date of original customer purchase and provided the
product is utilized within the U.S.A. This warranty is not assignable or transferable. Our obligation under this
warranty is the repair or replacement of the defective unit or any part thereof, except batteries, when it is
returned to the SPECTRA Service Department, accompanied by proof of the date of original consumer
purchase, such as a duplicated copy of a sales receipt.
You must pay all shipping charges required to ship the product to SPECTRA for warranty service. If the
product is repaired or replaced under warranty, the return charges will be at SPECTRA's expense. There
are no other express warranties other than those stated herein.
This warranty is valid only in accordance with the conditions set forth below:
1. The warranty applies to the SPECTRA product only while:
a. It remains in the possession of the original purchaser and proof of purchase is demonstrated
b. It has not been subjected to accident, misuse, abuse, improper service, usage outside the descriptions
and warnings covered within the owner's manual or non-SPECTRA approved modifications
c. Claims are made within the warranty period
2. This warranty does not cover damage or equipment failure caused by electrical wiring not
in compliance with electrical codes or SPECTRA owner's manual specifications, or failure to
provide reasonable care and necessary maintenance as outlined in the owner's manual.
3. Warranty of all SPECTRA products applies to residential use only and is void when products are used in
a nonresidential environment or installed outside the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state. TO OBTAIN SERVICE please remove all batteries (if any) and pack the unit carefully and send it
prepaid by insured parcel post or UPS to SPECTRA at the address shown below. IF THE UNIT IS
RETURNED WITHIN THE WARRANTY PERIOD shown above, please include a proof of purchase (dated
cash register receipt) so that we may establish your eligibility for warranty service and repair of the unit
without cost. Also include a note with a description explaining how the unit is defective. A customer service
representative may need to contact you regarding the status of your repair, so include your name, address,
phone number and e-mail address to speed the process.
IF THE UNIT IS OUTSIDE THE WARRANTY PERIOD, please include a check for $40.00 to cover the cost of
repair, handling and return postage. All out of warranty returns must be sent prepaid.
It is recommended that you contact SPECTRA first at 1-800-777-5331 or by e-mail at [email protected]
for updated information on the unit requiring service. In some cases the model you have may be
discontinued and SPECTRA reserves the right to offer alternative options for repair or replacement.
SPECTRA MERCHANDISING INTERNATIONAL, INC.
4230 North Normandy Avenue,
Chicago, IL60634, USA.
1-800-777-5331
Printed in China
15
To register your product, visit the link below on the website to enter your information.
http://www.spectraintl.com/wform.htm
16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
