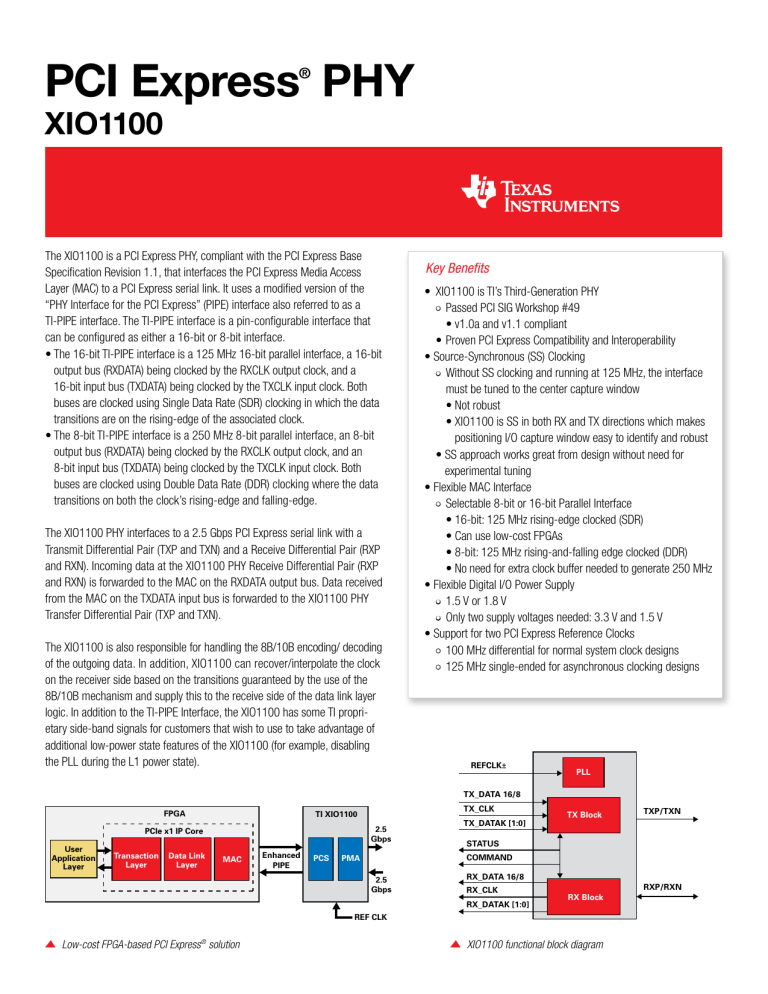

PCI Express PHY - Texas Instruments
PCI Express PHY
®
XIO1100
The XIO1100 is a PCI Express PHY, compliant with the PCI Express Base
Specification Revision 1.1, that interfaces the PCI Express Media Access
Layer (MAC) to a PCI Express serial link. It uses a modified version of the
“PHY Interface for the PCI Express” (PIPE) interface also referred to as a
TI-PIPE interface. The TI-PIPE interface is a pin-configurable interface that
can be configured as either a 16-bit or 8-bit interface.
• The 16-bit TI-PIPE interface is a 125 MHz 16-bit parallel interface, a 16-bit
output bus (RXDATA) being clocked by the RXCLK output clock, and a
16-bit input bus (TXDATA) being clocked by the TXCLK input clock. Both
buses are clocked using Single Data Rate (SDR) clocking in which the data
transitions are on the rising-edge of the associated clock.
• The 8-bit TI-PIPE interface is a 250 MHz 8-bit parallel interface, an 8-bit
output bus (RXDATA) being clocked by the RXCLK output clock, and an
8-bit input bus (TXDATA) being clocked by the TXCLK input clock. Both
buses are clocked using Double Data Rate (DDR) clocking where the data
transitions on both the clock’s rising-edge and falling-edge.
The XIO1100 PHY interfaces to a 2.5 Gbps PCI Express serial link with a
Transmit Differential Pair (TXP and TXN) and a Receive Differential Pair (RXP
and RXN). Incoming data at the XIO1100 PHY Receive Differential Pair (RXP
and RXN) is forwarded to the MAC on the RXDATA output bus. Data received
from the MAC on the TXDATA input bus is forwarded to the XIO1100 PHY
Transfer Differential Pair (TXP and TXN).
The XIO1100 is also responsible for handling the 8B/10B encoding/ decoding
of the outgoing data. In addition, XIO1100 can recover/interpolate the clock
on the receiver side based on the transitions guaranteed by the use of the
8B/10B mechanism and supply this to the receive side of the data link layer
logic. In addition to the TI-PIPE Interface, the XIO1100 has some TI proprietary side-band signals for customers that wish to use to take advantage of
additional low-power state features of the XIO1100 (for example, disabling
the PLL during the L1 power state).
Key Benefits
• XIO1100 is TI’s Third-Generation PHY
•Passed PCI SIG Workshop #49
• v1.0a and v1.1 compliant
•Proven PCI Express Compatibility and Interoperability
• Source-Synchronous (SS) Clocking
•Without SS clocking and running at 125 MHz, the interface
must be tuned to the center capture window
• Not robust
• XIO1100 is SS in both RX and TX directions which makes
positioning I/O capture window easy to identify and robust
• SS approach works great from design without need for
experimental tuning
• Flexible MAC Interface
•Selectable 8-bit or 16-bit Parallel Interface
• 16-bit: 125 MHz rising-edge clocked (SDR)
• Can use low-cost FPGAs
• 8-bit: 125 MHz rising-and-falling edge clocked (DDR)
• No need for extra clock buffer needed to generate 250 MHz
• Flexible Digital I/O Power Supply
•1.5 V or 1.8 V
•Only two supply voltages needed: 3.3 V and 1.5 V
• Support for two PCI Express Reference Clocks
•100 MHz differential for normal system clock designs
•125 MHz single-ended for asynchronous clocking designs
REFCLK±
PLL
TX_DATA 16/8
FPGA
2.5
Gbps
PCIe x1 IP Core
User
Application
Layer
Transaction
Layer
Data Link
Layer
TX_CLK
TI XIO1100
MAC
Enhanced
PIPE
PCS
TX_DATAK [1:0]
TX Block
STATUS
COMMAND
PMA
2.5
Gbps
RX_DATA 16/8
RX_CLK
RX_DATAK [1:0]
RXP/RXN
RX Block
REF CLK
Low-cost FPGA-based PCI Express® solution
TXP/TXN
XIO1100 functional block diagram
