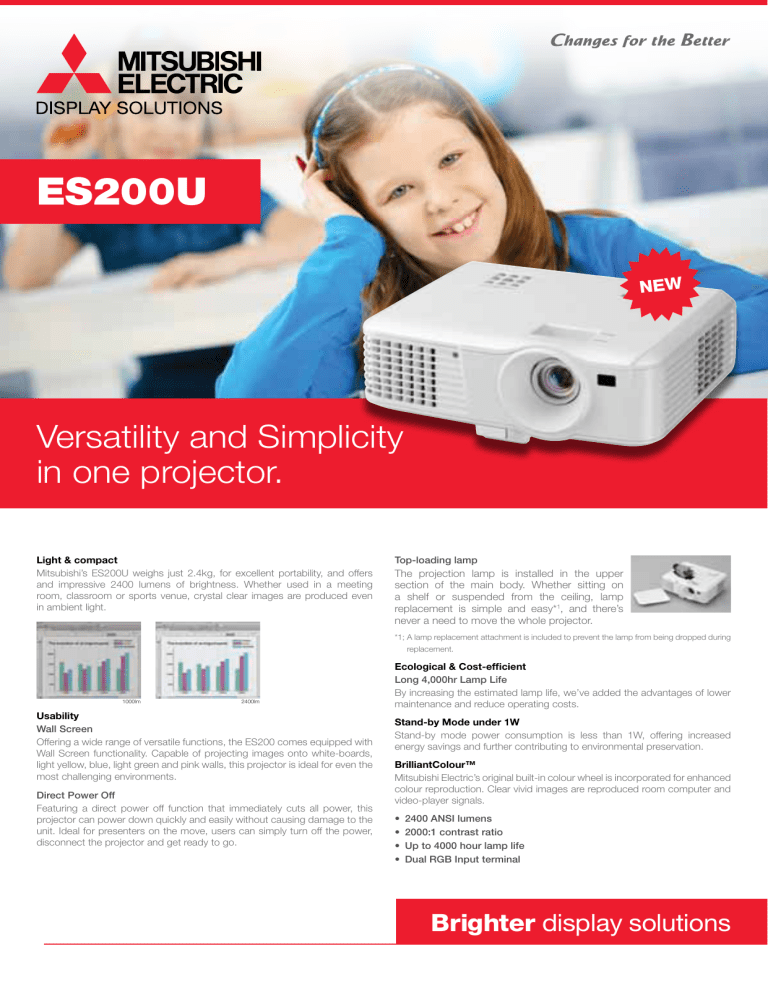

ES200U
ES200U
NEW
Versatility and Simplicity
in one projector.
Light & compact
Mitsubishi’s ES200U weighs just 2.4kg, for excellent portability, and offers
and impressive 2400 lumens of brightness. Whether used in a meeting
room, classroom or sports venue, crystal clear images are produced even
in ambient light.
Top-loading lamp
The projection lamp is installed in the upper
section of the main body. Whether sitting on
a shelf or suspended from the ceiling, lamp
replacement is simple and easy*1, and there’s
never a need to move the whole projector.
*1; A lamp replacement attachment is included to prevent the lamp from being dropped during
replacement.
1000lm
2400lm
Usability
Wall Screen
Offering a wide range of versatile functions, the ES200 comes equipped with
Wall Screen functionality. Capable of projecting images onto white-boards,
light yellow, blue, light green and pink walls, this projector is ideal for even the
most challenging environments.
Direct Power Off
Featuring a direct power off function that immediately cuts all power, this
projector can power down quickly and easily without causing damage to the
unit. Ideal for presenters on the move, users can simply turn off the power,
disconnect the projector and get ready to go.
Ecological & Cost-efficient
Long 4,000hr Lamp Life
By increasing the estimated lamp life, we’ve added the advantages of lower
maintenance and reduce operating costs.
Stand-by Mode under 1W
Stand-by mode power consumption is less than 1W, offering increased
energy savings and further contributing to environmental preservation.
BrilliantColour™
Mitsubishi Electric’s original built-in colour wheel is incorporated for enhanced
colour reproduction. Clear vivid images are reproduced room computer and
video-player signals.
• 2400 ANSI lumens
• 2000:1 contrast ratio
• Up to 4000 hour lamp life
• Dual RGB Input terminal
Brighter display solutions
Specifications
NEW
ES200U
Mobile SVGA Projector
Top
Loading
Lamp
Low
Wall
Password Direct Long-life Standby
Lock Power Off Lamp
Screen
Power
User Friendly
Input and Output Terminals
2
3
4
5
6
1 Serial RS-232C
2 Monitor output
3 PC/Component
video input
4 S-Video/Video
5 Audio input
6 Audio output
0.55" 1-Chip DMD
800 x 600 (Total 480,000 pixels)
Brightness
2400lm
Contrast Ratio
2000 : 1
Picture Size*1
40" - 300"
Throw Ratio*1
1.9 - 2.1
Source Lamp
160W (4000hr*2) with Low Mode,
185W (3000hr*2) with Standard Mode
PC Compatibility
640 x 480 - 1600 x 1200,
True : 800 x 600, Sync on Green available
Video Compatibility
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video ; 480i/p (525i/p), 576i/p (625i/p),
720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p (1125i/p 50Hz)
Input Terminals
RGB ; mini D-sub 15pin x 2
Video ; RCA x 1 + S-VIDEO x 1
Audio ; Stereo mini jack (ø3.5mm) x 1
Output Terminals
RGB ; mini D-sub 15pin x 1
Audio ; Stereo mini jack (ø3.5mm) x 1
Communication Terminal
RS-232C; D-Sub 9pin x 1
Speaker Output
2W Mono
Dimensions ( W x H x D)
282 x 94 x 229 mm / 11.1 x 3.7 x 9.0 inch (Not including protrusion)
Weight
2.4kg / 5.3lbs
Power Requirements
AC 100-240V, 50/60Hz
Optional Lamp
VLT-EX240LP
Bottom View
• Compliance with ISO21118-2005
• All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
*1; Value may vary a few percent from that listed in the chart.
*2; It's an estimated life time and the lamp is to be shut off upon the arrival. And it's not the time specified in the warranty.
*3; The above numbers are approximate, and may be slightly different from the actual measurements.
Screen size and Projection distance
As seen from the side
Unit:mm
ES200U
Hd
Top View
Resolution
Picture Performance
Low
Fan Noise
1
ES200U
Display Technology
Height
Brilliant
ColorTM
Model
Projection Distance (L)
229
Screen size chart (4:3 aspect ratio)
282
Front View
Side View
94
inch
40
60
80
100
150
200
250
300
cm
102
152
203
254
381
508
635
762
Width (W)
inch
32
48
64
80
120
160
200
240
cm
81
122
163
203
305
406
508
610
Height
projected
image ( Hd)
Distance from screen ( L)
Screen
Diagonal Size
Height (H)
inch
24
36
48
60
90
120
150
180
cm
61
91
122
152
229
305
381
457
Shortest (Wide)
inch
60
90
120
150
225
300
375
450
m
1.5
2.3
3.0
3.8
5.7
7.6
9.5
11.4
Longest (Tele)
inch
66
99
132
165
247
330
412
–
m
1.7
2.5
3.4
4.2
6.3
8.4
10.5
–
inch
2
4
5
6
9
12
15
18
The above numbers are approximate, and may be slightly different from the actual measurements.
cm
6
9
12
15
23
30
38
46
Screen size chart (16:9 aspect ratio)
Distance from screen ( L)
Screen
Diagonal Size
inch
40
60
80
100
150
200
250
275
cm
102
152
203
254
381
508
635
699
Width (W)
inch
35
52
70
87
131
174
218
240
cm
89
133
177
221
332
443
553
609
Height (H)
inch
20
29
39
49
74
98
123
135
cm
50
75
100
125
187
249
311
342
Shortest (Wide)
inch
66
99
132
166
248
331
414
455
m
1.7
2.5
3.4
4.2
6.3
8.4
10.5
11.6
Longest (Tele)
inch
73
109
146
182
273
364
455
–
m
1.9
2.8
3.7
4.6
6.9
9.3
11.6
–
Height
projected
image ( Hd)
inch
6
9
12
15
22
29
37
40
The above numbers are approximate, and may be slightly different from the actual measurements.
cm
15
22
30
37
56
75
93
103
Brighter display solutions
Media-Office N.V. - IZ Klein Gent - Saffierstraat 5 / unit 13 - B-2200 HERENTALS
T + 32 14 51 50 66 - F + 32 14 50 17 02 - [email protected]office.be
New publication, effective March 2010 Specifications subject to change without notice.
