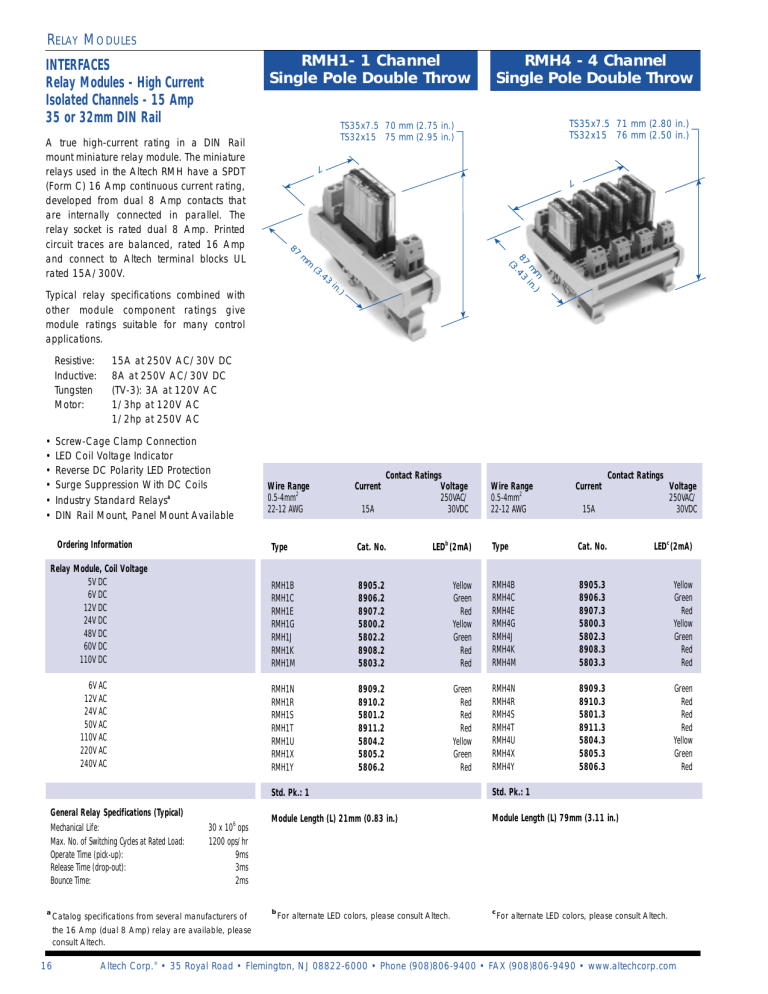

RELAY MODULES
RMH1- 1 Channel
Single Pole Double Throw
INTERFACES
Relay Modules - High Current
Isolated Channels - 15 Amp
35 or 32mm DIN Rail
L
L
87
3
.4
(3
.)
in
15A at 250V AC/30V DC
8A at 250V AC/30V DC
(TV-3): 3A at 120V AC
1/3hp at 120V AC
1/2hp at 250V AC
Screw-Cage Clamp Connection
LED Coil Voltage Indicator
Reverse DC Polarity LED Protection
Surge Suppression With DC Coils
Industry Standard Relaysa
DIN Rail Mount, Panel Mount Available
Ordering Information
Relay Module, Coil Voltage
5V DC
6V DC
12V DC
24V DC
48V DC
60V DC
110V DC
6V AC
12V AC
24V AC
50V AC
110V AC
220V AC
240V AC
General Relay Specifications (Typical)
Mechanical Life:
Max. No. of Switching Cycles at Rated Load:
Operate Time (pick-up):
Release Time (drop-out):
Bounce Time:
a
m )
m in.
87 .43
(3
m
m
Typical relay specifications combined with
other module component ratings give
module ratings suitable for many control
applications.
•
•
•
•
•
•
TS35x7.5 71 mm (2.80 in.)
TS32x15 76 mm (2.50 in.)
TS35x7.5 70 mm (2.75 in.)
TS32x15 75 mm (2.95 in.)
A true high-current rating in a DIN Rail
mount miniature relay module. The miniature
relays used in the Altech RMH have a SPDT
(Form C) 16 Amp continuous current rating,
developed from dual 8 Amp contacts that
are internally connected in parallel. The
relay socket is rated dual 8 Amp. Printed
circuit traces are balanced, rated 16 Amp
and connect to Altech terminal blocks UL
rated 15A/300V.
Resistive:
Inductive:
Tungsten
Motor:
RMH4 - 4 Channel
Single Pole Double Throw
30 x 106 ops
1200 ops/hr
9ms
3ms
2ms
Catalog specifications from several manufacturers of
Wire Range
0.5-4mm2
22-12 AWG
Current
15A
Contact Ratings
Voltage
250VAC/
30VDC
Contact Ratings
Wire Range
0.5-4mm2
22-12 AWG
Current
Voltage
250VAC/
30VDC
Type
Cat. No.
LEDc (2mA)
15A
Type
Cat. No.
LEDb (2mA)
RMH1B
RMH1C
RMH1E
RMH1G
RMH1J
RMH1K
RMH1M
8905.2
8906.2
8907.2
5800.2
5802.2
8908.2
5803.2
Yellow
Green
Red
Yellow
Green
Red
Red
RMH4B
RMH4C
RMH4E
RMH4G
RMH4J
RMH4K
RMH4M
8905.3
8906.3
8907.3
5800.3
5802.3
8908.3
5803.3
Yellow
Green
Red
Yellow
Green
Red
Red
RMH1N
RMH1R
RMH1S
RMH1T
RMH1U
RMH1X
RMH1Y
8909.2
8910.2
5801.2
8911.2
5804.2
5805.2
5806.2
Green
Red
Red
Red
Yellow
Green
Red
RMH4N
RMH4R
RMH4S
RMH4T
RMH4U
RMH4X
RMH4Y
8909.3
8910.3
5801.3
8911.3
5804.3
5805.3
5806.3
Green
Red
Red
Red
Yellow
Green
Red
Std. Pk.: 1
Std. Pk.: 1
Module Length (L) 21mm (0.83 in.)
Module Length (L) 79mm (3.11 in.)
b
c
For alternate LED colors, please consult Altech.
For alternate LED colors, please consult Altech.
the 16 Amp (dual 8 Amp) relay are available, please
consult Altech.
16
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
DC Coil Circuit
DC Coil Circuit Specifications (Typical)
Ambient temperature range: -40° to 70°C (-40° to 158°F)
Table values are for cold coil at 20°C (68°F) and exclude coil exterior circuit.
Coil
Voltage
V AC
5
6
12
24
48
60
110
Operate
(pull-in) V
Max. V AC
3.5
4.2
8.7
16.8
33.6
42.0
77.0
Drop-Out
(rel.) V
Min. V AC
0.5
0.6
1.2
2.4
4.8
6.0
11.0
Coil
Current
mA(50/60Hz)
92.6
88.2
44.4
21.8
11.4
9.2
4.8
Coil
Resistance
Ohms
54±15%
68±10%
270±10%
1,100±15%
4,200±15%
6,540±15%
23,100±15%
Diode: 1N4007 or equivalent
AC Coil Circuit Specifications (Typical)
Ambient temperature range: -40° to 60°C (-40° to 140°F)
Table values are for cold coil at 20°C (68°F) and exclude coil exterior circuit.
Coil
Voltage
V AC
6
12
24
50
115
220
240
Operate
(pull-in) V
Max. V AC
4.8
9.6
19.2
40.0
92.0
176.0
176.0
Drop-Out
(rel.) V
Min. V AC
1.8
3.6
7.2
15.0
34.5
66.0
66.0
Coil
Current
mA(50/60Hz)
190/150
90/75
44/35
22/18
11/9
5/4
4.7/4.1
Coil
Resistance
Ohms
15±10%
65±10%
280±10%
1,130±10%
5,600±15%
23,400±15%
23,400±15%
Diode: 1N4007 or equivalent
Contact Specifications (Typical)
Rated Current (Resistive):
Rated Current (Ind. P.F. = 0.4):
At Rated Voltage:
Max. Operating Voltage:
Breaking Current (Resistive):
Breaking Capacity (Resistive):
Contact Material:
Contact Electrical Life:
16A
8A
30V DC, 250V AC
125V DC, 380V AC
25A
4,000VA
AgCdO
Min. 105 ops
(AC Resistive Load)
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
17
