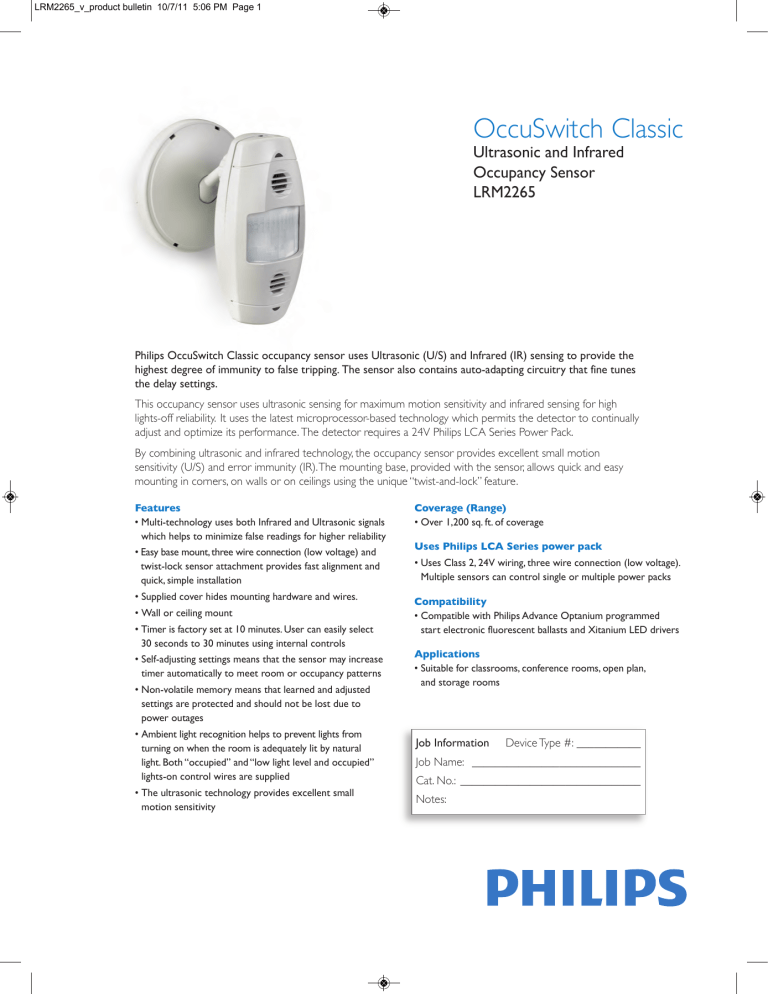

LRM2265_v_product bulletin 10/7/11 5:06 PM Page 1
OccuSwitch Classic
Ultrasonic and Infrared
Occupancy Sensor
LRM2265
Philips OccuSwitch Classic occupancy sensor uses Ultrasonic (U/S) and Infrared (IR) sensing to provide the
highest degree of immunity to false tripping. The sensor also contains auto-adapting circuitry that fine tunes
the delay settings.
This occupancy sensor uses ultrasonic sensing for maximum motion sensitivity and infrared sensing for high
lights-off reliability. It uses the latest microprocessor-based technology which permits the detector to continually
adjust and optimize its performance. The detector requires a 24V Philips LCA Series Power Pack.
By combining ultrasonic and infrared technology, the occupancy sensor provides excellent small motion
sensitivity (U/S) and error immunity (IR). The mounting base, provided with the sensor, allows quick and easy
mounting in corners, on walls or on ceilings using the unique “twist-and-lock” feature.
Features
• Multi-technology uses both Infrared and Ultrasonic signals
which helps to minimize false readings for higher reliability
• Easy base mount, three wire connection (low voltage) and
twist-lock sensor attachment provides fast alignment and
quick, simple installation
• Supplied cover hides mounting hardware and wires.
• Wall or ceiling mount
• Timer is factory set at 10 minutes. User can easily select
30 seconds to 30 minutes using internal controls
• Self-adjusting settings means that the sensor may increase
timer automatically to meet room or occupancy patterns
• Non-volatile memory means that learned and adjusted
settings are protected and should not be lost due to
power outages
• Ambient light recognition helps to prevent lights from
turning on when the room is adequately lit by natural
light. Both “occupied” and “low light level and occupied”
lights-on control wires are supplied
• The ultrasonic technology provides excellent small
motion sensitivity
Coverage (Range)
• Over 1,200 sq. ft. of coverage
Uses Philips LCA Series power pack
• Uses Class 2, 24V wiring, three wire connection (low voltage).
Multiple sensors can control single or multiple power packs
Compatibility
• Compatible with Philips Advance Optanium programmed
start electronic fluorescent ballasts and Xitanium LED drivers
Applications
• Suitable for classrooms, conference rooms, open plan,
and storage rooms
Job Information
Device Type #: ___________
Job Name: _____________________________
Cat. No.: _______________________________
Notes:
LRM2265_v_product bulletin 10/7/11 5:06 PM Page 2
OccuSwitch Classic
Ultrasonic and Infrared Occupancy Sensor (LRM2265)
Technical specifications*:
Ultrasonic sensitivity: 0 to 100%; green knob (factory setting: 50%)
Infrared sensitivity: 0 to 100%; red knob (factory setting: 75%)
Indicator: Red LED lamp—infrared motion; Green LED lamp—
ultrasonic motion
Construction: High-impact, injection molded plastic.
Color coded wire leads are 6" long (16.24 cm)
Size and weight: Sensor—6" H x 2" W x 1.5" D, 6 oz,
(excluding mounting hardware)
Power requirements: 24VDC, 20mA from Philips LCA Series
Power Pack
Photocell: Blue knob, 20 to 3,000 Lux
(factory setting: 3,000 Lux, photocell disabled)
Timer settings: Automatic and manual—30 seconds to 30 minutes.
Test mode—6 seconds. Auto resets in 15 minutes to normal
Lens: 110° aperture, lens opening 2.2" x 1.47", 36 elements
(72 zones) small motion range 31', large motion 68'
Wiring diagram:
Operational frequencies: 32kHz
Output: 24VDC active high logic control signal with short circuit
protection (blue wire). Gray wire adds photocell logic
Operation environment: 32°F to 104°F (0°C to 40°C); 0% to 95%
non-condensing, relative humidity. For indoor use only
Field of view (in feet):
Sensor
LCA Series Power Pack
TOP VIEW
NC-Brown
Common-Green To HVAC
System
NO-Brown/White
58
Red (24VDC)
Black
Blue
(Control)
Black
Red
31
Black
LCA
Blue*
(occupancy)
Gray*
Blue
Hot (Black)
Load
(photocell +
occupancy)
Blue
16
11.5
Red
Black
0
Black
Line
120/277/347VAC
60Hz
White
Blue*
White
(occupancy)
Gray*
11.5
16
(photocell +
occupancy)
31
Neutral (White)
Minor Motion, IR
Dimensions:
Major Motion, IR
58
4.67 inch
Mounting
Base
Major Motion, Ultrasonic
6.43 inch
4.23 inch
Minor Motion, Ultrasonic
SIDE VIEW
8
Base Cover
0
0 3 8 15
Sensor
23
31
32
68
*Subject to change without notice.
Ordering information
Ordering
Code
LRM226500
Description
Low Voltage Sensor, Multi-Tech
© 2011 Philips Lighting Electronics N.A.
A Division of Philips Electronics North America Corporation.
All rights reserved.
Published and printed in USA 10/11
Form No. LRM2265
