GB User instruction CredaZone 6

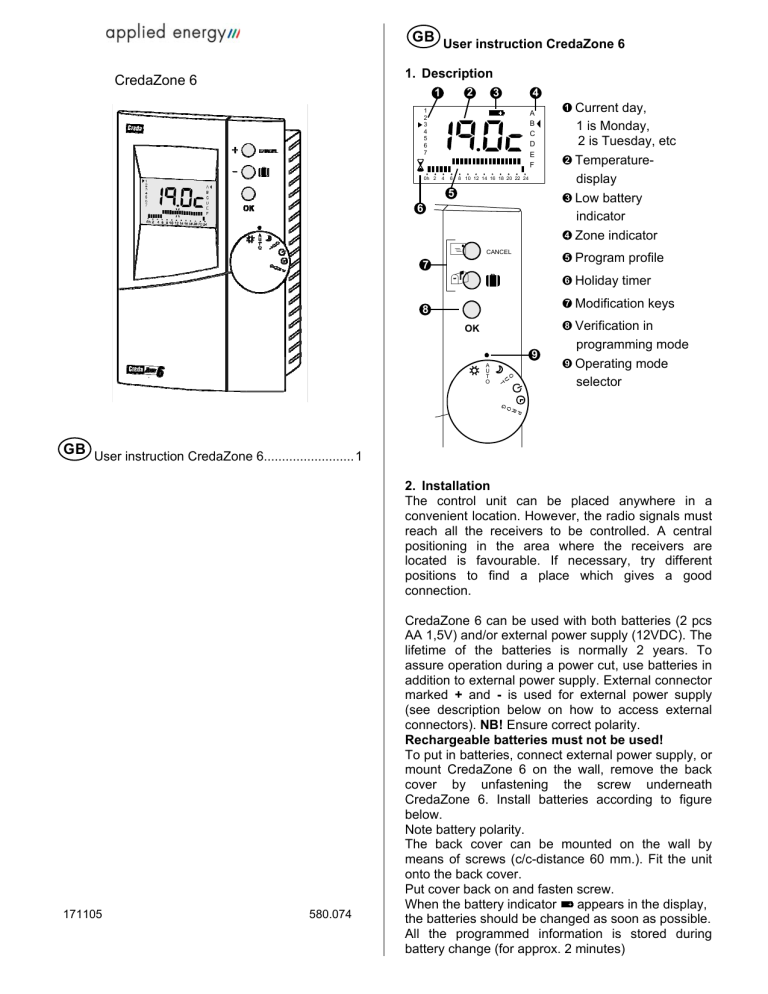

1. Description
CredaZone 6
2
1
3
1
2
3
4
5
6
7
0h 2
4
A
B
C
D
E
F
4
6
8 10 12 14 16 18 20 22 24
5
6
7
➊ Current day,
1 is Monday,
2 is Tuesday, etc
➋ Temperaturedisplay
➌ Low battery
indicator
➍ Zone indicator
➎ Program profile
CANCEL
➏ Holiday timer
➐ Modification keys
8
OK
9
A
U
T
O
➑ Verification in
programming mode
➒ Operating mode
selector
GB User instruction CredaZone 6.........................1
2. Installation
The control unit can be placed anywhere in a
convenient location. However, the radio signals must
reach all the receivers to be controlled. A central
positioning in the area where the receivers are
located is favourable. If necessary, try different
positions to find a place which gives a good
connection.
171105
580.074
CredaZone 6 can be used with both batteries (2 pcs
AA 1,5V) and/or external power supply (12VDC). The
lifetime of the batteries is normally 2 years. To
assure operation during a power cut, use batteries in
addition to external power supply. External connector
marked + and - is used for external power supply
(see description below on how to access external
connectors). NB! Ensure correct polarity.
Rechargeable batteries must not be used!
To put in batteries, connect external power supply, or
mount CredaZone 6 on the wall, remove the back
cover by unfastening the screw underneath
CredaZone 6. Install batteries according to figure
below.
Note battery polarity.
The back cover can be mounted on the wall by
means of screws (c/c-distance 60 mm.). Fit the unit
onto the back cover.
Put cover back on and fasten screw.
When the battery indicator
appears in the display,
the batteries should be changed as soon as possible.
All the programmed information is stored during
battery change (for approx. 2 minutes)
3. Clock adjustment
Set the mode selector to .
Set the correct time by pressing the + or – button. By
passing 24:00, a new day comes up. Quick pressing
of the key gives 1 min. steps. Press and hold, gives
fast change.
1
2
3
4
5
6
7
A
B
C
D
E
F
After a power or battery failure the display will be
blinking. Set the mode selector to
, set correct
time, and confirm by pressing OK.
4. Configuration/ test
Before you can use your system all receivers must
be configured. The configuration establishes a
unique link between each receiver and CredaZone 6.
Note that each zone must be configured separately.
CredaZone 6:
Set the mode selector to .
Hold the + button down for 3 seconds until the
display shows CnF, meaning configuration mode
(see figure).
A
B
C
D
E
F
0h 2 4 6 8 10 12 14 16 18 20 22 24
Choose the desired zone for the receivers you are
about to configure (A - F) with the OK button.
Receivers:
See user instructions for receiver, but normally the
receiver is configured by pressing the button on the
receiver once. Note that CredaZone 6 must be in
configuration mode and the desired zone must be
selected.
All receivers in every zone must be configured.
Press the + button once to end the configuration.
For test of the radio communication and configuration
switch the mode selector to .
Hold the – button down for 3 seconds until the
display shows test mode (see figure).
A
B
C
D
E
F
0h 2 4 6 8 10 12 14 16 18 20 22 24
Choose desired zone by pushing the OK button. If
the receivers in the zone selected are configured
correctly, the LED on each receiver will flash 3 times
every 3 seconds, indicating that the communication
and the configuration are OK. Press the – button to
end the test.
5. Setting the temperatures
Setting the frost-protection temperature
Set the mode selector to OUT.
Adjust the temperature by pressing the + or – button.
The mode selector in OUT position will set all zones
to the chosen temperature (typically frost protection).
All relays will be switched off.
Setting the setback temperature
Set the mode selector to .
Choose desired zone by pressing the OK button.
Adjust temperature by the + or – button (see figure).
1
2
3
4
5
6
7
A
B
C
D
E
F
0h 2 4 6 8 10 12 14 16 18 20 22 24
Setting the comfort temperature
Set the mode selector to .
Choose desired zone by pressing the OK button.
Adjust temperature by pressing the + or – button
(see figure).
1
2
3
4
5
6
7
A
B
C
D
E
F
0h 2 4 6 8 10 12 14 16 18 20 22 24
6. Week programming
Set the mode selector to PROG
Choose desired day and zone by pressing the OK
button.
No temperature is displayed and you can see the
program for the first day. The first time slot flashes.
(see figure).
Pressing the + button once will give comfort in the
time slot selected, while pressing the – button will
give set-back. Repeat the procedure to program
desired temperature profile.
1
2
3
4
5
6
7
A
B
C
D
E
F
0h 2 4 6 8 10 12 14 16 18 20 22 24
When the program has the desired profile, press the
OK button to store the day profile. The next day will
come up. Repeat to program every day.
Repeat the same procedure for each day
and for all zones A to F.
When you have done your programming, switch the
selector to AUTO to run your weekly program.
By pressing the OK button in AUTO, you switch
between different zones and can view the
temperature and program profile (see figure).
1
2
3
4
5
6
7
A
B
C
D
E
F
0h 2 4 6 8 10 12 14 16 18 20 22 24
When the mode selector is set to
, setback
temperature will be activated for all zones all the
time. To view the setback temperature for each zone
press the OK button.
When the mode selector is set to
, comfort
temperature is activated for all zones all the time. To
view the comfort temperature for each zone press
the OK button.
7. Operating relays
In all zones relay receivers can be operated by
CredaZone 6. For relays,
will result in relays
switched off, while
will switch relays on. This is
valid both when using the mode selector and during
a pre-programmed week’s program profile. The
temperature displayed is not relevant during relay
operation.
8. Setback override zone by zone
CredaZone 6 is able to temporarily override setback
zone by zone. This is a feature if one desires comfort
temperature in a zone which normally is programmed
to setback. The override will automatically cancel at
midnight.
1
2
3
4
5
6
7
A
B
C
D
E
F
0h 2 4 6 8 10 12 14 16 18 20 22 24
The feature is only possible when CredaZone 6 is in
AUTO mode and setback is preprogrammed. To
override a setback period, hold the CANCEL button
down for 3 seconds. The display will indicate the
override by blinking both of both time slots at the
actual hour. The override can be cancelled by again
holding the CANCEL button down for 3 seconds.
9. Holiday timer
It is possible to program CredaZone 6 to lower the
temperature when you are away for a certain period
of time, and automatically activate AUTO mode prior
to coming home. The travel timer will work from 1
hour up to 99 days. For example, if you are away for
9 days you can program CredaZone 6 to start
heating the house after 8 days.
The feature is possible when CredaZone 6 is in
AUTO mode. To activate the travel timer press the
button. The display will show 01h, which means
timer is set to 1 hour. By pressing the + or – button
the length of time for the countdown can be modified.
First by hours up to 48h, and then by days up to 99d,
as a maximum time for countdown. When the desired
amount of time is chosen, press the OK button. The
display will then show the temperature which will be
active during the countdown period. Adjust
temperature by pressing the + or – button. Confirm
temperature by pressing OK. The symbol
will be
visible in the display, meaning the travel timer is
activated.
The travel timer can be cancelled by setting the
mode selector to
10.
Characteristics
Choice of 3 temperatures
• Frost protection 5-30°C
• Setback 5-30°C
• Comfort 5-30°C
Controlling up to 6 individual zones
Weekly programmable
Radio communication 433 MHz
Range 80m (free sight)
Simple installation/configuration
Holiday timer
Setback override zone by zone
Power supply by battery and/or 12VDC
Battery lifetime 2 years (2pcs 1,5 V AA)
Dry contacts for external control
Dimensions 128 x 85 x 33 mm (w x h x d)
