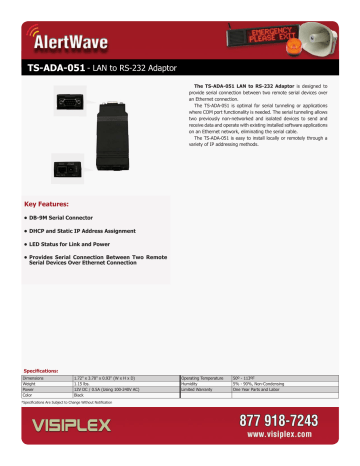

TS-ADA-051 LAN to RS-232 Adaptor
TS-ADA-051 - LAN to RS-232 Adaptor
The TS-ADA-051 LAN to RS-232 Adaptor is designed to
provide serial connection between two remote serial devices over
an Ethernet connection.
The TS-ADA-051 is optimal for serial tunneling or applications
where COM port functionality is needed. The serial tunneling allows
two previously non-networked and isolated devices to send and
receive data and operate with existing installed software applications
on an Ethernet network, eliminating the serial cable.
The TS-ADA-051 is easy to install locally or remotely through a
variety of IP addressing methods.
Key Features:
•DB-9M Serial Connector
•DHCP and Static IP Address Assignment
•LED Status for Link and Power
•Provides Serial Connection Between Two Remote
Serial Devices Over Ethernet Connection
Specifications:
Dimensions
Weight
Power
Color
1.72" x 3.70" x 0.93" (W x H x D)
1.15 lbs.
12V DC / 0.5A (Using 100-240V AC)
Black
*Specifications Are Subject to Change Without Notification
Operating Temperature
Humidity
Limited Warranty
50º - 113ºF
5% - 90%, Non-Condensing
One Year Parts and Labor
