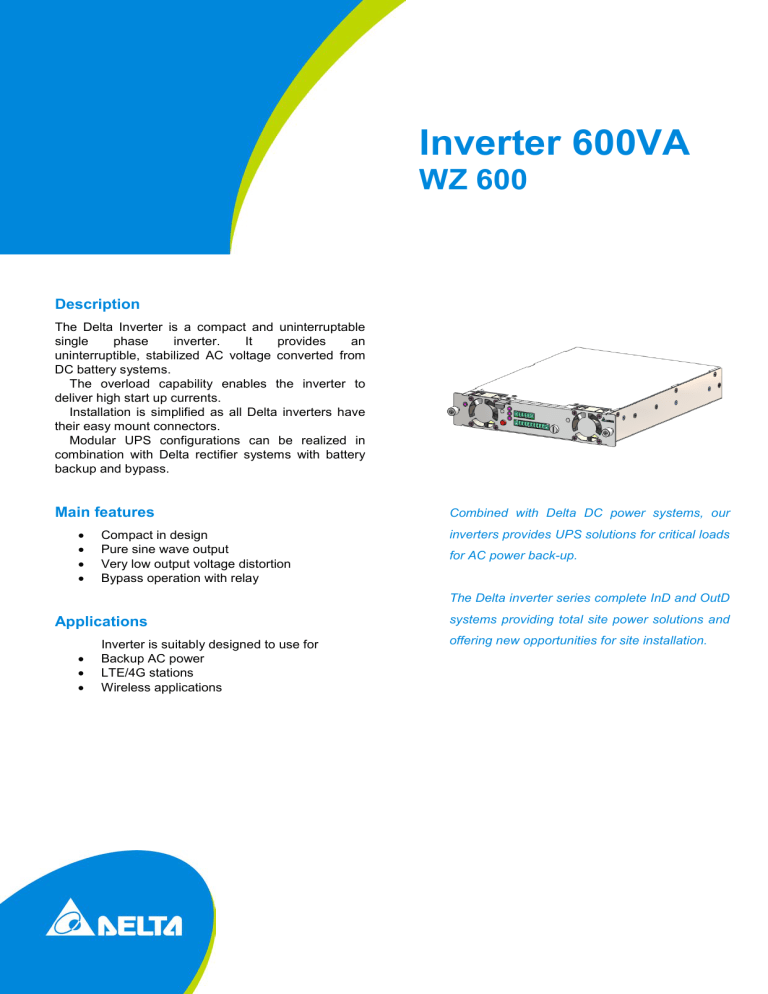

Inverter 600VA WZ 600 - Delta Electronics India
Inverter 600VA
WZ 600
Description
The Delta Inverter is a compact and uninterruptable
single
phase
inverter.
It
provides
an
uninterruptible, stabilized AC voltage converted from
DC battery systems.
The overload capability enables the inverter to
deliver high start up currents.
Installation is simplified as all Delta inverters have
their easy mount connectors.
Modular UPS configurations can be realized in
combination with Delta rectifier systems with battery
backup and bypass.
Main features
•
•
•
•
Compact in design
Pure sine wave output
Very low output voltage distortion
Bypass operation with relay
Combined with Delta DC power systems, our
inverters provides UPS solutions for critical loads
for AC power back-up.
The Delta inverter series complete InD and OutD
Applications
•
•
•
•
Inverter is suitably designed to use for
Backup AC power
LTE/4G stations
Wireless applications
systems providing total site power solutions and
offering new opportunities for site installation.
Inverter 600VA
WZ 600
Technical specifications
1. Input
DC voltage range
40 - 60 VDC
4. General
Nominal Voltage
48V
Efficiency
87%
Nominal current
12A
Control and monitoring
Protection
Internal fuse
Nominal system voltage
230V AC + 5%
Frequency
50Hz
Power limitation
600VA(480W)
Output THD
<3 % (Linear load)
Overload capability
105%~125% ~180 sec,
126%~150% ~30 sec,
User interface
Dry alarm contact
Dry alarm contact (PFC)
1. Overload
2. DC Abnormal
3. Fault
LED
1. Inverter
2. Bypass
3. Fault
4. Battery Rev
LED
Dimensions (W x H x D)
210 x 1U x 252 mm
Output Distribution
Backplane
Weight
1.8 Kg
Control and monitoring
2. Output
User interface
Protection
Internal fuse
Peak value coefficient of out3:1
put current
Switch time for inverter to
<20ms
bypass status
<10% (25%-75%-25%,
Dynamic voltage transient
50%-100%-50%) 1 cycle
Resume time of dynamic
transient (ms)
< 60ms
Battery rev Protection
Protections
DC Low voltage alarm
DC High voltage alarm
DC Low voltage protection
DC High voltage protection
Cooling
Fan cooled
Acoustics
55 dB (A)
-10 to 70 °C (full Power
upto 65 deg C)
Operating temperature
Yes
3. AC Input
DC voltage range
176- 265 VAC
Nominal current
2.1 A max
*Subject to change without notice with technical enhancement.
Delta Power Solutions India Private Limited
Plot no. 43, Sector 34, HSIIDC,
Gurgaon – 122001, India.
Phone: +91 124 4169040, Fax: +91 124 4874945
www.deltapowersolutions.com
Fact_Sheet_48-230-600VA_en0104.docx
•
