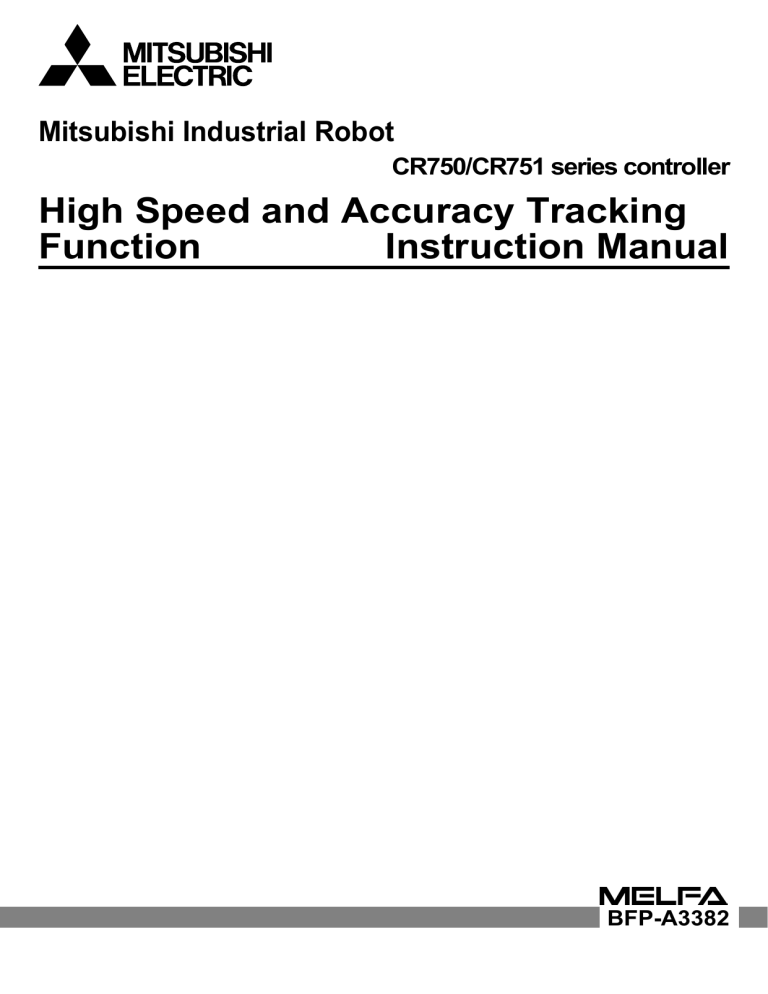

Mitsubishi Industrial Robot
CR750/CR751 series controller
High Speed and Accuracy Tracking
Function
Instruction Manual
BFP-A3382
Safety Precautions
Always read the following precautions and the separate "Safety
Manual" before starting use of the robot to learn the required
measures to be taken.
CAUTION
All teaching work must be carried out by an operator who has received special
training.
(This also applies to maintenance work with the power source turned ON.)
→Enforcement of safety training
CAUTION
For teaching work, prepare a work plan related to the methods and procedures
of operating the robot, and to the measures to be taken when an error occurs
or when restarting. Carry out work following this plan.
(This also applies to maintenance work with the power source turned ON.)
→Preparation of work plan
WARNING Prepare a device that allows operation to be stopped immediately during
teaching work.
(This also applies to maintenance work with the power source turned ON.)
→Setting of emergency stop switch
CAUTION
During teaching work, place a sign indicating that teaching work is in progress
on the start switch, etc.
(This also applies to maintenance work with the power source turned ON.)
→Indication of teaching work in progress
DANGER
Provide a fence or enclosure during operation to prevent contact of the operator
and robot.
→Installation of safety fence
CAUTION
Establish a set signaling method to the related operators for starting work,
and follow this method.
→Signaling of operation start
CAUTION
As a principle turn the power OFF during maintenance work. Place a sign
indicating that maintenance work is in progress on the start switch, etc.
→Indication of maintenance work in progress
CAUTION
Before starting work, inspect the robot, emergency stop switch and other
related devices, etc., and confirm that there are no errors.
→Inspection before starting work
The points of the precautions given in the separate "Safety Manual" are given below.
Refer to the actual "Safety Manual" for details.
DANGER
When automatic operation of the robot is performed using multiple control
devices (GOT, programmable controller, push-button switch), the interlocking
of operation rights of the devices, etc. must be designed by the customer.
CAUTION
Use the robot within the environment given in the specifications. Failure to do
so could lead to faults or a drop of reliability.
(Temperature, humidity, atmosphere, noise environment, etc.)
CAUTION
Transport the robot with the designated transportation posture. Transporting
the robot in a non-designated posture could lead to personal injuries or faults
from dropping.
CAUTION
Always use the robot installed on a secure table. Use in an instable posture
could lead to positional deviation and vibration.
CAUTION
Wire the cable as far away from noise sources as possible. If placed near a
noise source, positional deviation or malfunction could occur.
CAUTION
Do not apply excessive force on the connector or excessively bend the cable.
Failure to observe this could lead to contact defects or wire breakage.
CAUTION
Make sure that the workpiece weight, including the hand, does not exceed the
rated load or tolerable torque. Exceeding these values could lead to alarms or
faults.
WARNING
Securely install the hand and tool, and securely grasp the workpiece. Failure to
observe this could lead to personal injuries or damage if the object comes off or
flies off during operation.
WARNING
Securely ground the robot and controller. Failure to observe this could lead to
malfunctioning by noise or to electric shock accidents.
CAUTION
Indicate the operation state during robot operation. Failure to indicate the state
could lead to operators approaching the robot or to incorrect operation.
WARNING
When carrying out teaching work in the robot's movement range, always secure
the priority right for the robot control. Failure to observe this could lead to
personal injuries or damage if the robot is started with external commands.
CAUTION
Keep the jog speed as low as possible, and always watch the robot. Failure to do
so could lead to interference with the workpiece or peripheral devices.
CAUTION
After editing the program, always confirm the operation with step operation before
starting automatic operation. Failure to do so could lead to interference with
peripheral devices because of programming mistakes, etc.
CAUTION
Make sure that if the safety fence entrance door is opened during automatic
operation, the door is locked or that the robot will automatically stop. Failure to do
so could lead to personal injuries.
CAUTION
Never carry out modifications based on personal judgments, non-designated
maintenance parts. Failure to observe this could lead to faults or failures.
WARNING
When the robot arm has to be moved by hand from an external area, do not place
hands or fingers in the openings. Failure to observe this could lead to hands or
fingers catching depending on the posture.
CAUTION
Do not stop the robot or apply emergency stop by turning the robot controller's
main power OFF. If the robot controller main power is turned OFF during automatic
operation, the robot accuracy could be adversely affected. Also a dropped or
coasted robot arm could collide with peripheral devices.
CAUTION
Do not turn OFF the robot controller's main power while rewriting the robot
controller's internal information, such as a program and parameter. Turning OFF
the robot controller's main power during automatic operation or program/parameter
writing could break the internal information of the robot controller.
DANGER
Do not connect the Handy GOT when using the GOT direct connection function of
this product. Failure to observe this may result in property damage or bodily injury
because the Handy GOT can automatically operate the robot regardless of whether
the operation rights are enabled or not.
DANGER
Do not connect the Handy GOT to a programmable controller when using an iQ
Platform compatible product with the CR750-Q/CR751-Q controller. Failure to
observe this may result in property damage or bodily injury because the Handy GOT
can automatically operate the robot regardless of whether the operation rights are
enabled or not.
DANGER
Do not remove the SSCNET III cable while power is supplied to the multiple CPU
system or the servo amplifier. Do not look directly at light emitted from the tip of
SSCNET III connectors or SSCNET III cables of the Motion CPU or the servo
amplifier. Eye discomfort may be felt if exposed to the light.
(Reference: SSCNET III employs a Class 1 or equivalent light source as
specified in JIS C 6802 and IEC60825-1 (domestic standards in Japan).)
DANGER
Do not remove the SSCNET III cable while power is supplied to the controller.
Do not look directly at light emitted from the tip of SSCNET III connectors or
SSCNET III cables. Eye discomfort may be felt if exposed to the light.
(Reference: SSCNET III employs a Class 1 or equivalent light source as
specified in JIS C 6802 and IEC60825-1 (domestic standards in Japan).)
DANGER
Attach the cap to the SSCNET III connector after disconnecting the SSCNET III cable.
If the cap is not attached, dirt or dust may adhere to the connector pins, resulting in
deterioration connector properties, and leading to malfunction.
CAUTION
Make sure there are no mistakes in the wiring. Connecting differently to the way
specified in the manual can result in errors, such as the emergency stop not
being released. In order to prevent errors occurring, please be sure to check
that all functions (such as the teaching box emergency stop, customer
emergency stop, and door switch) are working properly after the wiring setup
is completed.
CAUTION
Use the network equipments (personal computer, USB hub, LAN hub, etc)
confirmed by manufacturer. The thing unsuitable for the FA environment
(related with conformity, temperature or noise) exists in the equipments connected
to USB. When using network equipment, measures against the noise, such as
measures against EMI and the addition of the ferrite core, may be necessary.
Please fully confirm the operation by customer. Guarantee and maintenance
of the equipment on the market (usual office automation equipment) cannot
be performed.
Revision history
Date of print
2015-03-20
Specifications No.
BFP-A3382
First print
Details of revisions
■Preface
Thank you very much for purchasing Mitsubishi Electric Industrial Robot.
High speed and accuracy tracking function allows robots to follow workpiece on a conveyer with high speed and
accuracy, line up and process the workpieces without having to stop the conveyer.
Please be sure to read this manual carefully and understand the contents thoroughly before starting to use the
equipment in order to make full use of high speed and accuracy tracking function.
Within this manual, we have tried to describe all ways in which the equipment can be handled, including non-standard
operations, to the greatest extent possible. Please avoid handling the equipment in any way not described in this
manual.
Note that this manual is written for the following software version.
CR750-Q/CR751-Q series : Ver. R6 or later
CR750-D/CR751-D series : Ver. S6 or later
 When robot controller before Ver. R6/S6 is used
Please refer to “Tracking Function Instruction Manual” (BFP-A8664).
 When not the straight conveyer, but the circular arc conveyer or turntable is used
Please refer to “Circular Arc Tracking Function Instruction Manual” (BFP-A3380).
・No part of this manual may be reproduced by any means or in any form, without prior consent from
Mitsubishi.
・The contents of this manual are subject to change without notice.
・An effort has been made to make full descriptions in this manual. However, if any discrepancies or
unclear points are found, please contact your service provider.
・The information contained in this document has been written to be accurate as much as possible.
Please interpret that items not described in this document "cannot be performed." or "alarm may
occur".
Please contact your service provider if you find any doubtful, wrong or skipped point.
・This specifications is original.
・The ETHERNET is a registered trademark of the Xerox Corp.
・All other company names and production names in this document are the trademarks or registered
trademarks of their respective owners.
Copyright(C) 2015 MITSUBISHI ELECTRIC CORPORATION
[Contents]
Overview .......................................................................................................................................................................................................................... 1-1
1.1. What is high Speed and Accuracy Tracking Function? ............................................................................................................... 1-1
1.2. System that can achieve ............................................................................................................................................................................... 1-2
1.3. The terminology explanation....................................................................................................................................................................... 1-4
2. System Configuration................................................................................................................................................................................................ 2-5
2.1. Components ........................................................................................................................................................................................................ 2-5
2.1.1. Robot controller enclosure products ............................................................................................................................................ 2-5
2.1.2. Devices Provided by Customers .................................................................................................................................................... 2-5
2.2. Example of System Configuration ........................................................................................................................................................... 2-8
2.2.1. Configuration Example of Conveyer Tracking Systems [Q type] ................................................................................. 2-8
2.2.2. Configuration Example of Vision Tracking Systems [Q type] ......................................................................................... 2-8
2.2.3. Configuration Example of Conveyer Tracking Systems [D type] .................................................................................. 2-9
2.2.4. Configuration Example of Vision Tracking Systems [D type] ......................................................................................... 2-9
3. Specification.................................................................................................................................................................................................................3-10
3.1. High Speed and Accuracy Tracking Specifications .....................................................................................................................3-10
3.1.1. Q type .........................................................................................................................................................................................................3-10
3.1.2. D type ..........................................................................................................................................................................................................3-11
3.2. Q173DPX(manual pulser input)unit specification ........................................................................................................................3-12
4. Operation Procedure ...............................................................................................................................................................................................4-18
5. Connection of Equipment .....................................................................................................................................................................................5-19
5.1. Connection of Equipment [Q type].........................................................................................................................................................5-19
5.1.1. Connection of Unit ...............................................................................................................................................................................5-19
5.1.2. Connection with encoder for conveyer and encoder cable............................................................................................5-19
5.1.3. Connection of Photoelectronic Sensor .....................................................................................................................................5-21
5.1.4. Connection of Vision Sensor ..........................................................................................................................................................5-21
5.2. Connection of Equipment [D type] .........................................................................................................................................................5-22
5.2.1. Connection with encoder for conveyer and encoder cable............................................................................................5-22
5.2.2. Installation of encoder cable ...........................................................................................................................................................5-25
5.2.3. Connection of Photoelectronic Sensor .....................................................................................................................................5-26
5.2.4. Connection of Vision Sensor ..........................................................................................................................................................5-26
5.3. Measures against the noize ......................................................................................................................................................................5-27
6. Parameter Setting .....................................................................................................................................................................................................6-28
6.1. Tracking Parameter Setting ......................................................................................................................................................................6-28
6.1.1. Sequencer CPU Parameter Setting [Q type] .........................................................................................................................6-28
6.1.2. Robot Parameter Setting .................................................................................................................................................................. 6-31
6.1.3. Example of three robot’s CPU sharing one Q173DPX [D type] ..................................................................................6-35
6.2. Operation Parameters ..................................................................................................................................................................................6-40
6.3. Dedicated Input/Output Parameters .....................................................................................................................................................6-40
7. Installation of a sample robot program ..........................................................................................................................................................7-42
7.1. Conveyer Tracking .........................................................................................................................................................................................7-42
7.2. Vision Tracking................................................................................................................................................................................................. 7-42
8. Calibration of Conveyer and Robot Coordinate Systems (“A1” program) ..................................................................................8-43
8.1. Preliminary Preparaions ..............................................................................................................................................................................8-43
8.1.1. Setting of tool length ...........................................................................................................................................................................8-43
8.1.2. Confirm the encoder value ..............................................................................................................................................................8-44
8.2. Operation procedure .....................................................................................................................................................................................8-45
8.3. Confirmation after operation .....................................................................................................................................................................8-49
8.4. When multiple conveyers are used .......................................................................................................................................................8-49
9. Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program) ................................................................9-50
9.1. Operation procedure .....................................................................................................................................................................................9-50
9.2. Confirmation after operation .....................................................................................................................................................................9-57
9.3. When multiple conveyers are used .......................................................................................................................................................9-57
1.
10.
Workpiece Recognition and Teaching (“C1” program) ................................................................................................................. 10-58
10.1.
Conveyer Tracking ................................................................................................................................................................................. 10-58
10.1.1.
Operation procedure................................................................................................................................................................... 10-58
10.1.2.
Confirmation after operation ................................................................................................................................................... 10-61
10.1.3.
When multiple conveyers are used .................................................................................................................................... 10-61
10.2.
Vision Tracking ........................................................................................................................................................................................ 10-62
10.2.1.
Tasks................................................................................................................................................................................................... 10-62
10.2.2.
Operation procedure................................................................................................................................................................... 10-69
10.2.3.
Confirmation after operation ................................................................................................................................................... 10-74
10.2.4.
When multiple conveyers are used .................................................................................................................................... 10-74
11.
Teaching and Setting of Adjustment Variables (“1” program) .................................................................................................. 11-75
11.1.
Teaching ...................................................................................................................................................................................................... 11-75
11.2.
Setting of adjustment variables in the program ...................................................................................................................... 11-76
11.3.
Automatic Operation ............................................................................................................................................................................. 11-78
11.4.
Adjustment of operating conditions ............................................................................................................................................... 11-80
11.5.
Adjustment of Tracking starting possible area ........................................................................................................................ 11-82
11.6.
Occurrence of error ............................................................................................................................................................................... 11-84
12.
Sensor Monitoring Program (“CM1” program) .................................................................................................................................. 12-85
12.1.
Conveyer Tracking ................................................................................................................................................................................. 12-85
12.2.
Vision Tracking ........................................................................................................................................................................................ 12-85
13.
Maintenance of robot program................................................................................................................................................................... 13-86
13.1.
MELFA-BASIC V Instructions .......................................................................................................................................................... 13-86
13.1.1.
List of Instructions ........................................................................................................................................................................ 13-86
13.1.2.
List of Robot Status Variables ............................................................................................................................................... 13-86
13.1.3.
Explanation of Tracking Operation instructions ........................................................................................................... 13-88
13.2.
Timing Diagram of Dedicated Input/Output Signals........................................................................................................... 13-131
13.2.1.
Robot Program Start Processing .......................................................................................................................................13-131
14.
Troubleshooting ............................................................................................................................................................................................... 14-132
14.1.
Occurrence of errors of Tracking and Vision Sensor ........................................................................................................ 14-132
14.2.
In such a case (improvement example) ................................................................................................................................... 14-136
14.2.1.
The adsorption position shifts (Conveyer Tracking) ................................................................................................ 14-136
14.2.2.
The adsorption position shifts (Vision Tracking)........................................................................................................ 14-137
14.2.3.
Make adsorption and release of the work speedy .................................................................................................... 14-140
14.2.4.
Make movement of the robot speedy .............................................................................................................................. 14-140
14.2.5.
Restore backup data to another controller ................................................................................................................... 14-141
14.2.6.
Circular arc movement in Tracking ................................................................................................................................... 14-141
14.2.7.
Draw the square while doing the Tracking ................................................................................................................... 14-142
15.
Appendix .............................................................................................................................................................................................................. 15-143
15.1.
List of Parameters Related to Tracking .................................................................................................................................... 15-143
15.2.
List of Parameters Related to Vision Sensor ......................................................................................................................... 15-145
15.3.
Scene of changing parameter........................................................................................................................................................15-146
15.4.
Expansion serial interface Connector Pin Assignment .................................................................................................... 15-149
15.5.
Calibration sheet ................................................................................................................................................................................... 15-151
1 Overview
1. Overview
1.1. What is high Speed and Accuracy Tracking Function?
High speed and accuracy tracking function allows a robot to follow workpieces moving on a conveyer with high
speed and accuracy. With this function, it becomes possible to transport, line up and process workpieces
without having to stop the conveyer. It also eliminates the need for mechanical fixtures and so forth required to
fix workpiece positions.
The features of this function are described below.
1) It is possible to follow lined-up workpieces moving on a conveyer while working on them (conveyer
tracking making use of photo electronic sensors).
2) It is possible to follow workpieces that are not in a line moving on a conveyer while working on them,
even in the case of different types of workpieces (vision tracking combined with vision sensors).
3) It is possible to follow changes of movement speed due to automatic calculation of conveyer movement
speed.
4) It increases in the conveyance ability about 15 % (The ratio of our company) compared with the
conventional tracking function.
5) Tracking function can be easily achieved by using Mitsubishi’s robot command MELFA-BASIC V.
6) System construction is made easy by use of sample programs.
What is high Speed and Accuracy Tracking Function?
1-1
1 Overview
1.2. System that can achieve
With high speed and accuracy tracking function of CR750-Q/CR751-Q series, CR750-D/CR751-D series, the
example of the system that can be achieved is shown as following.
No.
Table 1-1 Example of system that can be achieved by high speed and accuracy tracking function
CR750-Q
CR750-D
Example of the system
CR751-Q
CR751-D
When a robot picks the workpieces moving on a conveyer, it is tracking.
(transportation)
When a robot places workpieces which taken out from the pallet to a
2
●
●
conveyer, it is tracking (transportation). It is also possible to hang
workpieces on S character hook that moves the above of the robot.
A robot decorates (processing) the workpieces moving on a conveyer while
3
●
●
tracking.
A robot attaches the parts (assembling) with the workpieces moving on a
4
●
●
conveyer while tracking.
A robot has the vision sensor (hand eye) and it checks the workpieces
5
●
●
moving on a conveyer. (inspection) It also can check and push the button
while tracking, not the vision sensor.
When a robot picks the workpieces moving on a conveyer A, the tracking is
6
●
●
done and a robot places the workpieces while tracking to marking on a
conveyer B.
The tracking is done with an encoder of line driver (differential motion)
7
●
●
output type.
8
●
(●) Note1) The tracking is done with an encoder of voltage output/open collector type.
In case of multi CPU system, it makes possible to add max 9 pcs Q173DPX
9
●
units (3 units per 1 CPU). However, in each CPU, only the two channels
can be used at the 3rd set of Q173DPX units.
Note1) This system requires the Encoder distribution unit. Please refer to the Encoder Distribution Unit Manual
(BFP-A3300) for details.
1
●
●
Tracking is primarily intended for applications such as the following.
(1) Transfer of processed food pallets
Figure 1-1
1-2
System that can achieve
Example of Processed Food Pallet Transfer
1 Overview
(2) Lining up parts
Figure 1-2
Example of Parts Lineup
(3) Assembly of small electrical products
Figure 1-3 Example of Small Electrical Products Assembly
System that can achieve
1-3
1 Overview
1.3. The terminology explanation
Term
Table 1-2 The terminology explanation for high speed and accuracy tracking
Q type
D type
High speed and accuracy
tracking function
Conveyer tracking
Vision tracking
Q173DPX unit
Physical encoder number
Logical encoder number
TREN signal
SKIP input
1-4
Explanation
CR750-Q/CR751-Q series robot controller.
CR750-D/CR751-D series robot controller.
The tracking function allows a robot to follow workpieces moving on a
conveyer with high speed and accuracy. With this function, it becomes
possible to transport line up and process workpieces without having to stop
the conveyer.
The conveyer tracking allows a robot to follow workpieces lining up on a
conveyer. With this function, it becomes possible to transport, process
workpieces.
The vision tracking allows a robot to follow workpieces not lining up on a
conveyer. With this function, it becomes possible to transport line up and
process workpieces.
Q173DRX unit is manual pulser input unit for motion controller. At Q series
CPU, it is used as intelligent function unit ( occupation 32 points)
Each encoder figure can be got by connection with 1 pc the manual pulser
machine (MR-HDP01) or 3pcs the incremental encoder.
Physical encoder numbers a number of the encoder physically allocated
according to a certain rule.
In the CR750-Q/CR751-Q series, the number is allocated by arranging the
encoder connected with Q173DPX unit.
The encoder which connected with CH1 of the Q173DPX unit specified for
parameter “ENC UNIT1” is the first, the encoder which connected with CH2
is the second and with CH3 is the third.
It becomes from 4 to 6 for the Q173DPX unit specified for
parameter”ENCUNIT2”.
It becomes from 7 to 8 for the Q173DPX unit specified for
parameter”ENCUNIT3”.
Note) The 3rd set of Q173DPX units can use only the two channels.
The physical encoder number change to the logical encoder number by
parameter “EXTENC”. The purpose of this is to change freely number by the
parameter for the encoder physically arranged. This logical encoder number
is used with the instruction and the state variable of the robot program.
Tracking enable signal
SKIP input is an input for receiving signal from vision sensor.
The terminology explanation
2 System Configuration
2. System Configuration
2.1. Components
2.1.1. Robot controller enclosure products
The product structure of the tracking functional relation enclosed by the robot controller is shown in the Table
2-1 List of Configuration in the tracking functional-related product.
Table 2-1 List of Configuration in the tracking functional-related product
Product
High
speed
and
accuracy
Tracking Function
INSTRUCTION MANUAL
Sample program
Model name
BFP-A3382
-
Remark
It is downloades by Web.
Please refer to “7 Installation of a sample robot
program” for the sample robot program.
2.1.2. Devices Provided by Customers
When configuring the system, the customers must have certain other devices in addition to this product. The
table below shows the minimum list of required devices. Note that different devices are required depending on
whether conveyer tracking or vision tracking is used. Please refer to “Table 2-2 List of Devices Provided by
Customers (Conveyer Tracking)” and “Table 2-3 List of Devices Provided by Customers (Vision Tracking)” for
further details.
Table 2-2 List of Devices Provided by Customers (Conveyer Tracking)
Target type
Name of devices to be
Model
Quantity
Remark
provided by customers
Q
D
Hand
1
●
●
-
●
●
●
●
●
●
Hand sensor
Solenoid valve set
Hand input cable
-
(1)
See the
Remark column
(1)
-
(1)
Q173DPX
1
2D-TZ368/
2D-TZ378
1
Calibration jig
●
●
Manual pulser input unit
●
Parallel I/O interface
●
●
●
●
Conveyer
Encoder
-
[Confirmed
operation
product]
Omron encoder
E6B2-CWZ1X
-1000/
E6B2-CWZ1X
-2000
Used to confirm that workpieces
are gripped correctly. Provide as
necessary.
Different models are used
depending on the robot used.
Check the robot version and
provide as necessary.
This is a jig with a sharp tip that is
attached to the mechanical
interface of the robot arm and used
for calibration tasks. It is
recommended to use the jig if high
precision is required.
Manual pulser input unit for motion
controller
Used to confirm the input of the
photoelectronic sensor.
[*]In the case of
CR750-Q/CR751-Q, This interface
and unit are unnecessary to input
to the TREN signal of the
Q173DPX unit.
1
1
Voltage output/open collector type
Line driver output
Components
2-5
2 System Configuration
Target type
Q
D
Name of devices to be
provided by customers
Encoder
●
Encoder cable
●
●
Encoder cable
5V power supply
●
●
●
●
●
●
●
●
●
●
●
1
-
1
24V power supply
-
1
3D-11C-WINE
3D-12C-WINE
1
Hand sensor
Solenoid valve set
Hand input cable
●
Manual pulser input unit
●
-
(1)
See the
Remark column
(1)
-
(1)
Q173DPX
1
2D-TZ368/
2D-TZ378
1
-
1
Parallel I/O interface
●
●
2-6
●
Components
Line driver output
Shielded twisted pair cable
+5V DC (±10%):For Encoder
[*]In the case of Q type, the
Q173DPX unit supplies 5V power
supply to the encoder.
Used to detect a workpiece
position
+24 VDC (±10%) : For the photo
electronic sensor
Please refer to the instruction
manual of RT ToolBox2 for the
details of the personal computer
specifications.
Table 2-3 List of Devices Provided by Customers (Vision Tracking)
Name of devices to be
Model
Quantity
Remark
provided by customers
Hand
1
-
Calibration jig
●
Remark
1
Photo electronic sensor
●
Target type
Q
D
1
1
RT ToolBox2
●
[Confirmed
operation
product]
Omron encoder
E6B2-CWZ1X
-1000/
E6B2-CWZ1X
-2000
2D-CBL05/
2D-CBL15
-
Quantity
-
●
●
Model
Conveyer
Used to confirm that workpieces
are gripped correctly. Provide as
necessary.
Different models are used
depending on the robot used.
Check the robot version and
provide as necessary.
This is a jig with a sharp tip that is
attached to the mechanical
interface of the robot arm and used
for calibration tasks. It is
recommended to use the jig if high
precision is required.
Manual pulser input unit for motion
controller
Used to confirm the input of the
photoelectronic sensor.
[*]In the case of
CR750-Q/CR751-Q, This interface
and unit are unnecessary to input
to the TREN signal of the
Q173DPX unit.
2 System Configuration
Target type
Q
D
Name of devices to be
provided by customers
Encoder
●
Encoder
●
Encoder cable
●
●
Encoder cable
5V power supply
●
Model
[Confirmed
operation
product]
Omron encoder
E6B2-CWZ1X
-1000/
E6B2-CWZ1X
-2000
[Confirmed
operation
product]
Omron encoder
E6B2-CWZ1X
-1000/
E6B2-CWZ1X
-2000
2D-CBL05/
2D-CBL15
-
Quantity
Remark
1
Voltage output/open collector type
Line driver output
1
Line driver output
1
1
-
1
2F-YZ581
(1)
2F-YZ581
(1)
-
1
-
1
-
1
-
-
(1)
1
-
1
3D-11C-WINE
3D-12C-WINE
1
Encoder distribution unit
●
Encoder distribution unit
●
●
●
●
●
●
●
●
●
●
●
●
●
In-Sight 5000 series
In-Sight Micro
In-Sight EZ
Lens
Breakout cable
Lighting installation
Hub
24V power supply
RT ToolBox2
●
●
Shielded twisted pair cable
+5V DC (±10%):For Encoder
[*]In the case of Q type, the
Q173DPX unit supplies 5V power
supply to the encoder.
The Encoder distribution unit is
required when two or more manual
pulser input units are connected to
the one encoder. Provide this unit
as necessary. Refer to the
Encoder Distribution Unit Manual
(BFP-A3300) for details.
The Encoder distribution unit is
required when two or more robot
controllers are connected to the
one encoder. Provide this unit as
necessary.
If the Encoder distribution unit is
used, a 5V power source for the
encoder is not necessary.
Refer to the Encoder Distribution
Unit Manual (BFP-A3300) for
details.
COGNEX Vision sensor
C-mount lens
This cable is used
accuracy tracking.
Provide as necessary
by
high
+24 VDC (±10%) : For the Vision
sensor
Please refer to the instruction
manual of RT ToolBox2 for the
details of the personal computer
specifications.
Components
2-7
2 System Configuration
2.2. Example of System Configuration
The following figure shows examples of conveyer tracking systems and vision tracking systems.
2.2.1. Configuration Example of Conveyer Tracking Systems [Q type]
The following figure shows a configuration example of a system that recognizes lined-up workpieces on a
conveyer passing a photo electronic sensor and follows the workpieces.
Q172DRCPU
Q173DPX
TREN input
signal cable
PULSER
24V power
supply
Controller
Photoelectric
sensor
Vacuum hand
Example of CR750-Q controller
Conveyor
Robot arm
Flow direction
→
Encoder cable
5V power supply
Encoder
Figure2-1 Configuration Example of Conveyer Tracking Systems [Q type]
2.2.2. Configuration Example of Vision Tracking Systems [Q type]
The following figure shows a configuration example of a system that recognizes positions of workpieces that
are not lined up on a conveyer with a vision sensor and follows the workpieces.
Q172DRCPU
Q173DPX
Ethernet cable
Hub
PULSER
Ethernet cable
Personal
computer
Cable for the visions
Breakout cable
24V power
supply
Vision sensor
Vacuum hand
Lightning
Robot arm
Controller
Example of CR750-Q controller
Flow direction
→
Encoder cable
5V power supply
Encoder
Figure2-2 Configuration Example of Vision Tracking Systems [Q type]
2-8
Example of System Configuration
2 System Configuration
2.2.3. Configuration Example of Conveyer Tracking Systems [D type]
The following figure shows a configuration example of a system that recognizes lined-up workpieces on a
conveyer passing a photo electronic sensor and follows the workpieces.
Parallel I/O
interface
Parallel I/O
cable
24V power
supply
Controller
Photoelectric
sensor
Vacuum hand
Example of CR750-D controller
Conveyor
Robot arm
Flow direction
→
5V power
supply
Encoder
Encoder cable
Figure2-3 Configuration Example of Conveyer Tracking Systems [D type]
2.2.4. Configuration Example of Vision Tracking Systems [D type]
The following figure shows a configuration example of a system that recognizes positions of workpieces that
are not lined up on a conveyer with a vision sensor and follows the workpieces.
Ethernet cable
Hub
Personal
computer
Ethernet Cable
Controller
Breakout cable
Cable for the visions
24V power
supply
Vision sensor
Vacuum hand
Example of CR750-D controller
Lightning
Robot arm
Encoder
Flow direction
→
5V power
supply
Figure2-4 Configuration Example of Vision Tracking Systems [D type]
Example of System Configuration
2-9
3 Specification
3. Specification
3.1. High Speed and Accuracy Tracking Specifications
The table below shows the high speed and accuracy tracking specifications.
Please refer to “Standard Specifications Manual” for the specifications of the robot arm and controller to be
used.
3.1.1. Q type
Table3-1 CR750-Q/CR751-Q Series Controller High Speed and Accuracy Tracking Function Specifications
Item
Supported robots (*1)
Applicable robot controller
Conveyer Number of
conveyer
(*2)
Movement
Speed(*3)
Specification
RH-FH-Q series / RV-F-Q series
CR750-Q/CR751-Q series controller
Max 8pcs (in case 1pc encoder connect to 1 pc conveyer)
Encoder 3 pcs / Q173DPX unit 1pc
Q173DPX unit 3pcs / system
Possible to support up to 300mm/s (When the robot always transport the
workpieces)
Possible to support up to 500mm/s when the interval of workpiece is wide.
Encoder
Voltage output/open collector type : A、B、Z
(*4)
Line driver output
: A、A、B、B、Z、Z (*5)
Resolution(pulse/rotation) : Up to 2000 (4000 and 8000 uncorrespond)
Confirmed operation product : Omuron E6B2-CWZ1X-1000
E6B2-CWZ1X-2000
Encoder cable 2D-CBL05(External I/O cable 5m)
2D-CBL15(External I/O cable 15m)
Encoder unit
Only Q173DPX unit
Photoelectronic
Used to detect workpieces positions in conveyer tracking.
Sensor(*6)
Output signal of sensor need to be connected to TREN terminal of Q173DPX
unit. (Input signal number 810 to 817)
And a momentary encoder value that the input enters is preserved in state
variable "M_EncL".
Vision Sensor(*7)
COGNEX’s vision sensor.
Output signal of sensor need to be connected to SKIP input terminal of
CNUSR2.
Approximately ±1 mm (when the conveyer speed is approximately 300 mm/s)
Precision at handling
(Photoelectronic sensor recognition accuracy, robot repeatability accuracy
position(*3)
and so on)
(*1)
(*2)
(*3)
(*4)
(*5)
(*6)
(*7)
3-10
The sample program doesn't correspond to the RV-5 axis robot.
The encoder connected with the third channel of the Q173DPX unit specified for parameter "ENCUNIT3"
cannot be used.
The specification values in the table should only be considered guidelines. The actual values depend on
the specific operation environment, robot model, hand, Sensitivity of the sensor and other factors.
Voltage output/open collector type is an output circuit with two output transistors of NPN and PNP.
The line driver output is a data transmission circuit in accordance with RS-422A. It enables the
long-distance transmission.
Please connect the output signal of a photoelectric sensor with the terminal TREN of the Q173DPX unit.
This input can be confirmed,by the input signal 810th-817th.
Please connect the output signal of a breakout cable with SKIP input terminal of CNUSR2.
High Speed and Accuracy Tracking Specifications
3 Specification
3.1.2. D type
Table3-2 CR750-D/CR751-D Series Controller High Speed and Accuracy Tracking Function Specifications
Item
Supported robots (*1)
Applicable robot controller
Conveyer Number of
conveyer
Specification
RH-FH-D series / RV-F-D series
CR750-D/CR751-D series controller
Max 2pcs (in case 1pc encoder connect to 1 pc conveyer)
Encoder 2 pcs / system
Possible to support up to two conveyers by robot controller standard
constitution
Movement
Possible to support up to 300mm/s (When the robot always transport the
Speed(*2)
workpieces)
Possible to support up to 500mm/s when the interval of workpiece is wide.
Encoder
Line driver output
: A、A、B、 B 、Z、 Z (*3)
Resolution(pulse/rotation) : Up to 2000 (4000 and 8000 uncorrespond)
Confirmed operation product : Omuron E6B2-CWZ1X-1000
E6B2-CWZ1X-2000
Maximum response frequency : 100 kHz
Encoder cable Shielded twisted-pair cable
Outside dimension : Maximum phi6mm
Conductor size: 24AWG (0.2 mm2) Cable length: Up to 25 m
Encoder wiring
An encoder and the robot controller are accessible with one to one
Encoder Distribution Unit
Photoelectronic
Used to detect workpieces positions in conveyer tracking.
Sensor(*4)
Output signal of sensor need to be connected to TREN terminal of Q173DPX
unit. (Input signal number 810 to 817)
And a momentary encoder value that the input enters is preserved in state
variable "M_EncL".
Vision Sensor(*5)
COGNEX’s vision sensor.
Output signal of sensor need to be connected to SKIP input terminal of
CNUSR2.
Approximately ±1 mm (when the conveyer speed is approximately 300 mm/s)
Precision at handling
(Photoelectronic sensor recognition accuracy, robot repeatability accuracy
position(*3)
and so on)
(*1)
(*2)
(*3)
(*4)
(*5)
The sample program doesn't correspond to the RV-5 axis robot.
The specification values in the table should only be considered guidelines. The actual values depend on
the specific operation environment, robot model, hand, Sensitivity of the sensor and other factors.
The line driver output is a data transmission circuit in accordance with RS-422A. It enables the
long-distance transmission.
Please input the output signal of the photoelectric sensor into the general-purpose input signal
(voluntarily) of the robot controller.
Please connect the output signal of a breakout cable with SKIP input terminal of CNUSR2.
High Speed and Accuracy Tracking Specifications
3-11
3 Specification
3.2. Q173DPX(manual pulser input)unit specification
Add Q173DPX unit into PLC base unit (Q3□DB) when the customer use Q type high speed and accuracy
tracking function.
Please refer to "Q173DCPU/Q172DCPU user's manual" about details of this unit.
(1) External and name of Q173DPX unit.
Figure3-1 Externals of Q173DPX unit
3-12
Q173DPX(manual pulser input)unit specification
3 Specification
(2) Dip switch
By setting the dip switch, the condition of the tracking enable signal is decided.
Table3-3 Item of dip switch
Q173DPX(manual pulser input)unit specification
3-13
3 Specification
(3) Specification of hardware
3-14
Q173DPX(manual pulser input)unit specification
3 Specification
(4) Wiring
The pin layout of the Q173DPX PULSER connecter viewed from the unit is shown below
Figure3-2 Pin assignment of the PULSER connector
Q173DPX(manual pulser input)unit specification
3-15
3 Specification
Interface between PULSER connecter and manual pulse generator (Differential-output type)/ Incremental
synchronous encoder
Figure3-3 Wiring connection with rotary encoder
As above image, because DC5V voltage is output from Q173DPX unit, it makes possible to supply 5V from
Q173DPX unit to rotary encoder. When 24V encoder type of power supply is used, it makes possible to use 24V
output from PLC power unit.
3-16
Q173DPX(manual pulser input)unit specification
3 Specification
The interface between tracking enable signal is shown follow.
This signal is used for input signal when the photoelectronic sensor is used to find workpieces so please connect
output signal of photoelectronic sensor.
Figure3-4 Connected composition of tracking enable signal
The connection robot system with Q173DPX unit is shown as follow.
Item
Table3-4 Spec list of Q173DPX in robot system
Spec and Remark
Encoder
Incremental synchronous encoder 3pcs
Tracking input points
3points
Three points can be input to ± TREN1-3 in the pin assignment of the unit.
When the input of a photoelectric sensor is put, this input is used.
Slot
that
can
be Connection with the base unit Possible to install I/O slot since 3
connected
(Impossible to install CPU slot or I/O slot 0 to 2)
Connection with additional base unit Possible to install all slots.
Robot CPU unit that Q173DPX unit 3pcs
can be managed
Robot CPU encoder Max 8pcs
that can be managed
Impossible to use the third channel of the third Q173DPX unit.
And impossible to use the encoder connected with the third channel of the unit
specified for parameter「ENCUNIT3」.
Q173DPX(manual pulser input)unit specification
3-17
4 Operation Procedure
4. Operation Procedure
This chapter explains the operation procedure for constructing a high speed and accuracy tracking system.
Start of operation
↓
1.Connection of Equipment ········································································ Refer to “Chapter 5.”
[Q type]
Chapter 5 explains Q173DPX (manual pulser input) unit preparation and the connection with the
encoder.
[D type]
Chapter 5 explains setting of the option card and the connection with the encoder.
↓
2.Parameter Setting ················································································· Refer to “Chapter 6.”
Chapter 6 explains assignment of signals for external equipment to control a robot and parameter
about the tracking and parameter about movement such as the length of the tool.
↓
3.Installation of a sample robot program ······················································· Refer to “Chapter 7.”
Chapter 7 explains functions related to sample programs.
↓
4.Calibration of Conveyer and Robot Coordinate Systems (“A1” program)············ Refer to “Chapter 8.”
Chapter 8 explains how to calculate the amount of robot movement per encoder pulse.
↓
5.Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program) · Refer to “Chapter 9.”
Chapter 9 explains how to display the position of a workpiece recognized by the vision sensor in the
robot coordinate system.
*Only Vision Tracking
↓
6.Workpiece Recognition and Teaching (“C1” program) ··································· Refer to “Chapter 10.”
[Conveyer Tracking]
Chapter 10 explains how to calculate the relationship between the position of a workpiece
recognized by the photoelectronic sensor and the position at which the robot grabs the workpiece.
[Vision Tracking]
Chapter 10 explains how to calculate the relationship between the position of a workpiece
recognized by the vision sensor and the position at which the robot grabs the workpiece.
↓
7.Teaching and Setting of Adjustment Variables (“1” program) ·························· Refer to “Chapter 11.”
Chapter 11 explains adjustment of the conveyance route in the automatic driving and a change of the
adsorption time.
↓
End of operation
8.Maintenance of robot program ································································· Refer to “Chapter 13.”
9.Troubleshooting ···················································································· Refer to “Chapter 14.”
4-18
Q173DPX(manual pulser input)unit specification
5 Connection of Equipment
5. Connection of Equipment
This section explains how to connect each of the prepared pieces of equipment.
Prepare equipment by referring to “Table 2-2” and “Table 2-3”.
5.1. Connection of Equipment [Q type]
The connection with each equipments is explained as follow.
5.1.1. Connection of Unit
Q173DPX unit is connected to base unit (Q3□DB) or Q6□B increase base unit.
For example, attach Q173DPX unit to I/O5 slot as follows.
5.1.2. Connection with encoder for conveyer and encoder cable
E6B2-CWZ1X (made by Omron) is used, and the wiring for the encoder and the encoder cable for the
conveyer is shown in “Figure5-2 The encoder for the conveyer and the wiring diagram of the encoder cable [Q
type]”.
The encoder for the conveyer up to 3 pcs can be connected per Q173DP unit 1pc. The signal cables needed in
case of the connection are power supply (+,-) and encoder A,B,Z each +,-, total 8 cables. Please refer to the
manual of the encoder, please connect signal cable correctly. Also please ground shield line (SLD).
The wiring example by the thing is shown below.
(Please note that the connector shape is different depending on the controller)
Figure5-1 Wiring example from an encoder to aunit [Q type]
Connection of Equipment [Q type]
5-19
5 Connection of Equipment
Pin assignment of the
PULSER connector
Twisted-pair cable
A19
B19
A18
B18
A17
B17
A16
B16
A14
B14
A13
B13
A12
B12
A11
B11
SLD
SG
SG
HPSEL1
5V
HA1P
HA1N
HB1P
HB1N
Blue(+0V)
Brown(+5V)
Encoder
Black
Black/Red stripe
White
White/Red stripe
Ex.)Omuron
E6B2-CWZ1X
SLD
SG
SG
HPSEL2
5V
HA2P
HA2N
HB2P
HB2N
Blue(+0V)
Brown(+5V)
Encoder
Black
Black/Red stripe
White
White/Red stripe
Ex.)Omuron
E6B2-CWZ1X
Photoelectric
sensor
(Example of 3 line type)
Twisted-pair cable
24V
A4
B4
TREN1+
TREN10V
A3
B3
24V
TREN2+
TREN2-
0V
External power supply
Photoelectric
sensor
(Example of 3 line type)
Figure5-2 The encoder for the conveyer and the wiring diagram of the encoder cable [Q type]
*Please refer to "Figure3-2 Pin assignment of the PULSER connector" with the pin crack of the PULSER
connector that arrives at the unit.
5-20
Connection of Equipment [Q type]
5 Connection of Equipment
5.1.3. Connection of Photoelectronic Sensor
If a photoelectronic sensor is used for detection of workpieces, connect the output signal of the photoelectronic
sensor to a tracking enable signal of the Q173DPX unit.
In this section, the connection example to 1 channel (A4, B4) is shown below.
Q173DPX PULSER connector
Photoelectric
sensor
(Example of 3 line type)
24V
A4
B4
TREN1+
TREN10V
External power supply
Figure5-3 Photoelectronic Sensor Connection Example (6th General Input Signal is Used) [Q type]
The tracking enable signal is connected to the robot input signal as follows.
Table5-1 List with signal crack of tracking enable signal (TREN)
Encoder
physics
number
1
2
3
4
5
6
7
8
Connection channel Q type
Robot Input
signal number
1st channel of Parameter ENCUNIT1
2nd channel
3rd channel
st
1 channel of Parameter ENCUNIT2
2nd channel
3rd channel
st
1 channel of Parameter ENCUNIT3
2nd channel
810
811
812
813
814
815
816
817
5.1.4. Connection of Vision Sensor
If a vision sensor is used for detection of workpieces, connect “HS OUT 0” and “GROUND (Micro series: HS
COMMON)” of the vision sensor to SKIP input terminal of CNUSR connector.
In this section, the connection example to 2 channel (10, 35) is shown below.
Refer to a manual of the vision sensor which you use about specification of a breakout cable.
CNUSR2
10
+24V
GND
330
35
2.2k
External power
supply
GROUND
(5000 series : Brown
Micro series : Gray)
Breakout cable
HS OUT 0
(5000 series : Blue
Micro series : Brown)
Figure5-4 Vision Sensor Connection Example (SKIP “2” Input Signal is Used) [Q type]
Connection of Equipment [Q type]
5-21
5 Connection of Equipment
5.2. Connection of Equipment [D type]
The connection with each equipments is explained as follow.
5.2.1. Connection with encoder for conveyer and encoder cable
E6B2-CWZ1X (made by Omron) is used, and the wiring for the encoder and the encoder cable for the
conveyer is shown in “Figure5-6 The encoder and the wiring diagram of the encoder cable (CR750-D series
controller)” and “Figure5-8 The encoder and the wiring diagram of the encoder cable (CR751-D series
controller)”.
The a maximum of two encoders for the conveyors are connectable as standard specification. A total of 8
signal wires are required for the connection for the power supply (+ and - terminals) and the + and - terminals
of the differential encoders' A, B and Z phases. Refer to the instruction manual of the encoders to be used and
connect the signal wires correctly. Note that shielded wires (SLD) should be connected to the ground of the
controller and system.
5-22
Connection of Equipment [D type]
5 Connection of Equipment
(1)CR750-D series controller
The wiring example by the thing is shown below.
(Please note that the connector shape is different depending on the controller)
5 V power supply
Figure5-5 Wiring example (CR570-D series controller)
<CR751-D
connector>
CH1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
+5V power
supply unit
<CR750-D
connector>
28
33
21
46
22
47
23
48
SLD
CH1
CNUSR11 6
CNUSR12 6
CNUSR13 3
CNUSR13 4
CNUSR13 5
CNUSR13 6
CNUSR13 8
CNUSR13 10
Terminal
CH1 SG
SG
LAH1
LAL1
LBH1
LBL1
LZH1
LZL1
Brown(+5V)
Blue(+0V)
Black
Black/Red stripe
Ferrite core
White
Encorder
White/Red stripe
Orange
Orange/Red stripe
+5V power
supply unit
SLD
CH2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
15
40
21
46
22
47
23
48
CH2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
Brown(+5V)
15
40
21
46
22
47
23
48
CH2 SG
SG
LAH2
LAL2
LBH2
LBL2
LZH2
LZL2
Blue(+0V)
Black
Black/Red stripe
Ferrite core
White
White/Red stripe
Encorder
Orange
Orange/Red stripe
Figure5-6 The encoder and the wiring diagram of the encoder cable (CR750-D series controller)
*Refer to "Table 15-4
CNUSR.
Connectors: CNENC/CNUSR Pin Assignment" with pin assignment of connector
Connection of Equipment [D type]
5-23
5 Connection of Equipment
(2)CR751-D series controller
The wiring example by the thing is shown below.
(Please note that the connector shape is different depending on the controller)
5 V power supply
Figure5-7 Wiring example (CR751-D series controller)
CH1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
+5V power
supply unit
<CR750-D
connector>
<CR751-D
connector>
28
33
21
46
22
47
23
48
SLD
Terminal
CH1
CNUSR11 6
CNUSR12 6
CNUSR13 3
CNUSR13 4
CNUSR13 5
CNUSR13 6
CNUSR13 8
CNUSR13 10
CH1 SG
SG
LAH1
LAL1
LBH1
LBL1
LZH1
LZL1
Brown(+5V)
Blue(+0V)
Black
Black/Red stripe
Ferrite core
White
Encorder
White/Red stripe
Orange
Orange/Red stripe
+5V power
supply unit
SLD
CH2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
15
40
21
46
22
47
23
48
CH2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
Brown(+5V)
15
40
21
46
22
47
23
48
CH2 SG
SG
LAH2
LAL2
LBH2
LBL2
LZH2
LZL2
Blue(+0V)
Black
Black/Red stripe
Ferrite core
White
White/Red stripe
Encorder
Orange
Orange/Red stripe
Figure5-8 The encoder and the wiring diagram of the encoder cable (CR751-D series controller)
*Refer to "Table 15-4
CNUSR.
5-24
Connectors: CNENC/CNUSR Pin Assignment" with pin assignment of connector
Connection of Equipment [D type]
5 Connection of Equipment
5.2.2. Installation of encoder cable
The installation method of the encoder cable is shown by controller to be used.
*CR750-D series: “Figure5-9 Installation of encoder cable (CR750-D series)”
*CR751-D series: “Figure5-10 Installation of encoder cable (CR751-D series)”
And, the description about the measures against the noise is shown in the figure “5.3 Measures against the
noize”.
(1)CR750-D series controller
<CR750-D
series controller (rear)>
<CR750-Dシリーズコントローラ(背面)>
CNUSR13コネクタ
CNUSR11
connector
CNUSR12 connector
CNUSR13 connector
Within300mm以内
300mm
Within 300mm
CNUSR2コネクタ
CNUSR2
connector
300mm以内
1
25
フェライトコア(付属品)
Ferrite
core (attachment)
2回通し
Pass
twice
50
26
Encoder cable
エンコーダケーブル
Figure5-9 Installation of encoder cable (CR750-D series)
(2)CR751-D series controller
<CR750-D
series controller (front)>
<CR751-Dシリーズコントローラ(前面)>
Within300mm以内
300mm
1
25
CNUSR2
connector
CNUSR2コネクタ
50
フェライトコア(付属品)
Ferrite
core (attachment)
2回通し
Pass
twice
26
Encoder cable
エンコーダケーブル
Figure5-10 Installation of encoder cable (CR751-D series)
Connection of Equipment [D type]
5-25
5 Connection of Equipment
5.2.3. Connection of Photoelectronic Sensor
If a photoelectronic sensor is used for detection of workpieces, connect the output signal of the photoelectronic
sensor to a general input signal of the robot controller. Any general input signal number of the robot controller
can be selected.
In this section, a connection example where the photoelectronic sensor signal is connected to the 6th general
input signal is shown in “Figure5-11 Photoelectronic Sensor Connection Example (6th General Input Signal is
Used) [D type]”.
Controller
general-purpose input
Photoelectric
sensor
(Example of 3 line type)
24V
Parallel I/O I/F card (option)
3.3K
14C(General-purpose input 6)
24V
2C (COM)
0V
External power supply
Note) The external power supply and photoelectric sensor must be prepared by the
customer.
Note) This connection example shows the connection of the source type.
Figure5-11 Photoelectronic Sensor Connection Example (6th General Input Signal is Used) [D type]
5.2.4. Connection of Vision Sensor
If a vision sensor is used for detection of workpieces, connect “HS OUT 0” and “GROUND (Micro series: HS
COMMON)” of the vision sensor to SKIP input terminal of CNUSR connector.
In this section, the connection example to 2 channel (10, 35) is shown below.
Refer to a manual of the vision sensor which you use about specification of a breakout cable.
CNUSR2
10
+24V
GND
330
35
2.2k
External power
supply
GROUND
(5000 series : Brown
Micro series : Gray)
Breakout cable
HS OUT 0
(5000 series : Blue
Micro series : Brown)
Figure5-12 Vision Sensor Connection Example (SKIP “2” Input Signal is Used) [D type]
5-26
Connection of Equipment [D type]
5 Connection of Equipment
5.3. Measures against the noize
The example of noise measures of the tracking system is shown in the following.
Please implement the measures against the noise if needed in the power supply periphery section for the
encoders which prepared of the customer.
1) Please insert AC line filter (recommendation: MXB-1210-33 * Densei-Lambda) in the AC input side cable
of the power supply for the encoders.
2) Please insert the ferrite core (recommendation: E04SR301334 * SEIWA ELECTRIC MFG.) in the DC
output side cable of the power supply for the encoders.
3) Please connect the power supply case for the encoders to the installation operator control panel, connect
the earth wire to grounding or the case, and insert the ferrite core (recommendation: E04SR301334 *
SEIWA ELECTRIC MFG.).
Encoder section, power supply section for
the encoders
(customer preparation)
AC power supply
Robot
arm
AC line filter
Encoder
AC input side
AC/DC
power
supply
Chassis
ground
Robot controller
DC input side
Ferrite
core
Relay terminal
Ferrite core
Ferrite core
(attachments)
Encoder cable (customer
preparation)
Figure5-13 Example of noise measures of tracking system
Measures against the noize
5-27
6 Parameter Setting
6. Parameter Setting
This chapter explains how to set dedicated input/output signals that play the role of interface between a robot and
an external device (e.g., a Programmable Logic Controller) and parameters related to the tracking function.
Please refer to “Detailed Explanations of Functions and Operations” for how to set the parameters.
6.1. Tracking Parameter Setting
Specify to which channel of the encoder connector an encoder of conveyer is connected.
The parameter to set is shown below, make settings as required.
6.1.1. Sequencer CPU Parameter Setting [Q type]
In the case of Q type, it is necessary to set multi CPU related parameters for both the sequencer CPU and robot
CPU In order to use the sequencer link function.
a) Multiple CPU setting : Set the number of CPU units.
b) I/O assignment : Select I/O units and/or Intelligent units.
c) Control PLC setting : Set the CPU Unit numbers which control the Q173DPX unit.
The setting procedure of the parameter is as below.
The following explanation assumes the case that attached Q173DPX unit to the fifth slot of baseboard.
(1) Execute the GX Works2 and select the project file.
(2) Double-click the “PLC Parameter”, then the “Q Parameter Setting” is displayed.
6-28
Tracking Parameter Setting
6 Parameter Setting
(3) Double-click the “Multiple CPU Setting”
Set the number of CPU and this system area size (K Points)
(4) Double-click the “I/O assignment”
When Q173DPX unit is attached to fifth slot, change the type of slot 5 to the “Intelligent”.
Tracking Parameter Setting
6-29
6 Parameter Setting
(5) Click the “Detailed Setting” button.
Because the robot CPU manages the Q173DPX unit, change the Control PLC of slot 5 to the
“PLC No.2” (Robot CPU).
(6) Click the “END” button. The Parameters are memorized into the sequencer CPU.
(7) A power supply of a sequencer is reset.
(8) Close GX Works2.
6-30
Tracking Parameter Setting
6 Parameter Setting
6.1.2. Robot Parameter Setting
After the installation of Q173DPX module and connection with the encoder are complete, use the following steps to
establish robot CPU parameters.
(1) Set a parameter TRMODE to 1, validate a function of tracking.
(2) Specify the channel to which the encoder is connected using a parameter EXTENC.
(3) In the case of Q type, Using parameter ENCUNT* (*=1 to 3), designate the slot in which Q173DPX module
under the control of robot CPU is installed.
(4) Reset a power supply and reflect a parameter.
Table 6-1
Parameter
Parameter
name
Tracking mode
TRMODE
Encoder
number
allocation
EXTENC
(*1)
Tracking Parameter Setting
Number
of
Explanation
element
s
1 integer Enable the tracking function
Please set it to “1" when you use the tracking
function.
0: Disable/1: Enable
8
Set connection destinations on the connector for
integers encoder numbers 1 to 8.
Parameter elements correspond to encoder number
1, encoder number 2 … encoder number 8 of a state
variable "M_Enc" from the left.
Setting value is input encoder physics number from below
list.
Encoder
physics
number
Connection channel
Q
D
1
1 channel of
Parameter ENCUNIT1
2
2nd channel
Standard
CH1
Standard
CH2
-
st
Value set at
factory
shipping
0 → 1
[Q type]
1,2,3,4,5,6,7,8
[D type]
1,2,1,2,1,2,1,2
↓
Change the
set value
according to
the situation.
3rd channel
1st channel of
4
Parameter ENCUNIT2
nd
5
2 channel
6
3rd channel
1st channel of
7
Parameter ENCUNIT3
nd
8
2
channel
In the case of Q type, it is convenient to check the
status variable “M_Enc” when determining the
setting value of the “EXTENC” parameter.
In the case of D type, The value of the encoder
which wired the channel 1 in case of the standard
encoder input connector [CNENC] for the robot
controller is equipped with the encoder cable with
initial setting, The value of the encoder which wired
the channel 2 by the status variable "M_Enc (1)",
"M_Enc (3)", "M_Enc (5)", and "M_Enc (7)",It can
confirm by the status variable "M_Enc (2)", "M_Enc
(4)", "M_Enc (6)", and "M_Enc (8)."
3
Please refer to "13.1.2 List of Robot Status
Variables” for the explanation of state variable
“M_Enc".
Please refer to “Detailed Explanations of Functions
and Operations” for how to check the status variable.
Tracking Parameter Setting
6-31
6 Parameter Setting
Parameter
Parameter
name
Tracking
Workpiece
judgment
distance
TRCWDST
first Q173DPX
ENCUNIT1
Second
Q173DPX
ENCUNIT2
Number
of
Explanation
element
s
1 integer Distance to judge that the same workpiece is being
tracked (mm)
The sensor reacts many times when the workpiece
with the ruggedness passes the sensor. Then, the
robot controller judged that one workpiece is two or
more pieces.
The sensor between values [mm] set to this
parameter does not react after turning on the sensor.
2
The base unit-number of the first Q173DPX unit
integers (element 1) that robot CPU uses and slot number
(element 2) are set.
[Element 1]
-1 :No connection
0 :Basic base unit
1 - 7 :Increase base unit
[Element 2]
0 - 11 : I/O Slot number
2
The base unit-number of the second Q173DPX unit
integers (element 1) that robot CPU uses and slot number
(element 2) are set.
[Element 1]
-1 :No connection
0 :Basic base unit
1 - 7 :Increase base unit
[Element 2]
0 - 11 : I/O Slot number
Value set at
factory
shipping
5.00
↓
Size of the
workpiece
[Q type]
-1,0
↓
Installation
of
place
Q173DPX
[Q type]
-1,0
(*1) The example of a setting of a parameter EXTENC is shown as follow.
Hardware configuration
In CR750-D and a CR751-D controller, when using a common encoder cable, it is convenient to use CNUSR2
connector.
In this case, in order to connect with the channel 2 of an encoder, an encoder value will be checked using a
state variable "M_Enc (2)."
5V power
supply
6-32
Tracking Parameter Setting
6 Parameter Setting
Monitoring the encoder value
When the encoder value is showed by variable monitor of “Program monitor”, the encoder value changes as
follows.
In this way, in the case of connection to channel 2, the encoder data is stored in “M_Enc(2)”.
It is useful to change parameter EXTENC when confirming the encoder value by using “M_Enc(1)”and
encoder value 1.
Tracking Parameter Setting
6-33
6 Parameter Setting
Common control to “M_Enc(1)” by parameter EXTENC
Change the first element of a parameter EXTENC into “2” from “1”.
If you reset a power supply and reflect the parameter value, the encoder value is displayed in M_Enc(1)” as
follows.
6-34
Tracking Parameter Setting
6 Parameter Setting
6.1.3. Example of three robot’s CPU sharing one Q173DPX [D type]
For example, the setting of one Q173DPX ,three robots CPU, and one encoder is shown as follows.
You will be able to understand some parameters ENCUNIT* and EXTENC.
[Conditions]
- An encoder is connected to the channel 3.
- Robot CPU1 and 2 use the parameter ENCUNIT1 and robot CPU3 uses the parameter ENCUNIT2.
Hardware configuration
In the case of
connecting to
channel 3.
Parameter setting of the robot
(1) Display the list of parameters of three robots CPU.
Tracking Parameter Setting
6-35
6 Parameter Setting
(2) In the setting of robot CPU1 and robot CPU2, specify the value of the parameter ENCUNIT1 to “0,4”.
(3) In the setting of robot CPU3, specify the value of the parameter ENCUNIT2 to “0,4”.
(4) In the setting of each robot CPU(1 - 3), change parameter TRMODE to “1”.
6-36
Tracking Parameter Setting
6 Parameter Setting
Parameter setting of GX Works
The example of the second unit (robot CPU1) controlling Q173DPX unit.
Change “Control PLC” columns to “PLC No.2” in slot 4(0-4) rows of No.5.
Reset the power supply of sequencer and the robot controller after the setting was changed.
Monitoring the encoder value
When the encoder value is showed by variable monitor of “Program monitor”, the encoder value changes as
follows.
Tracking Parameter Setting
6-37
6 Parameter Setting
In this way, in the case of connection to channel 3, the data of robot CPU1 and robot CPU2 is stored in
“M_Enc(3)”.
The data of robot CPU3 is stored in”M_Enc(6)” because parameter ENCUNIT2 is specified.
It is useful to change parameter EXTENC when confirming the encoder value by using “M_Enc(1)”and
encoder value 1.
Common control to “M_Enc(1)” by parameter EXTENC
In the setting of the robot CPU1 and CPU2, change the first element of a parameter EXTENC into “3” from
“1”.
6-38
Tracking Parameter Setting
6 Parameter Setting
In the setting of the robot CPU3, changes the first element of a parameter EXTENC into “6” from “1”.
If you reset a power supply and reflect the parameter value, the encoder value is displayed in M_Enc(1)” as
follows.
Tracking Parameter Setting
6-39
6 Parameter Setting
6.2. Operation Parameters
The following list the setting items of parameters required to operate the robot at the optimal
acceleration/deceleration.
Parameter name
Tool
coordinate system
(MEXTL)
(*1)
Tool data 1 - 16
(MEXTL1 - 16)
(*1)
Optimal
acceleration/
deceleration hand
data
(HANDDAT1)
List of Operation Parameter
Explanation
Reference value
A parameter "MEXTL" designates a coordinate system of a tool Defaults:
installed in the mechanical interface side of the robot (hand).
(0,0,0,0,0,0,0)
For example it's possible to move and revolve based on a tip of a For example:
hand.
(0,0,+80,0,0,0,0)
Table 6-2
I can point out the tool data for 16 as needed.
For example when changing a hand by a multi-hand and a hand
changer, it's possible to establish and change the respective tool
coordinate systems.
Specify hand weight and so on to make settings that allow optimal
acceleration/deceleration operations.
For example, if the hand weighs 3 kg, changing the weight setting
value from 10 kg to 3 kg makes the robot movement faster.
(Hand weight (kg), size (mm) X, Y, Z, gravity (mm) X, Y, Z)
Optimal
acceleration/
deceleration
workpiece data
(WRKDAT1)
Specify workpiece weight and so on to make settings that allow
optimum acceleration/deceleration operations.
If a workpiece is grabbed via the HClose instruction, the
acceleration/deceleration becomes slower. If a workpiece is
released via the HOpen instruction, acceleration/deceleration
becomes faster.
(Workpiece weight (kg), size (mm) X, Y, Z, gravity (mm) X, Y, Z)
(*1) Refer to “8.1.1 Setting of tool length” about setting of a tool length.
Defaults:
(0,0,0,0,0,0,0)
For example:
(0,0,+80,0,0,0,0)
(3,0,0,0,0,0,0)
The setting values
are different for
each robot model.
Use these values
as reference only.
(1,0,0,0,0,0,0)
The setting values
are different for
each robot model.
Use these values
as reference only.
6.3. Dedicated Input/Output Parameters
The following list the setting items of dedicated input/output parameters used to operate the robot via instructions
from an external device. Set the signal numbers according to your system using the setting values in the table as
reference. It is not necessary to set these parameters if the robot operates by itself, rather than via
instructions from an external device.
Table 6-3
Input name/output name
(parameter name)
Stop/pausing
(STOP) or (STOP2)
Servo OFF/servo ON
disabled
(SRVOFF)
Error reset/error occurring
(ERRRESET)
Start/operating
(START)
Servo ON/turning servo ON
(SRVON)
Operation right/operation
right enabled (IOENA)
Program reset/program
selectable
(SLOTINIT)
6-40
Operation Parameters
List of Dedicated Input/Output Parameters
Explanation
Input: Stop a program
Output: Output program standby status
Input: Turn the servo off
Output: Output servo ON disabled status
Input: Cancel error status
Output: Output error status
Input: Start automatic operation
Output: Output program running status
Input: Turn the servo on
Output: Output servo on status
Input: Enable/disable operation right of external
signal control
Output: Output external signal control operation
enabled status
Input: Initiate a program. The program execution
returns to the first step.
Output: Output a status where program No. can be
changed
Setting
Example (*1)
Q
D
10000, -1
0 , -1
10011, -1
1 , -1
10009, -1
2 , -1
10006, 1
3,1
10010, 0
4,0
10005, -1
5 , -1
10008, -1
10 , -1
6 Parameter Setting
Input name/output name
(parameter name)
General output signal reset
(OUTRESET)
User specification area 1
(USRAREA)
(*1)
Setting
Example (*1)
Explanation
Input: Reset a general output signal
Output an indication that the robot is in an area
specified by a user
Set the start number and end number
Q
D
10015, -1
11 , -1
10064, 10071
8,8
“-1” in the Setting value column means “not set.”
Dedicated Input/Output Parameters
6-41
7 Installation of a sample robot program
7. Installation of a sample robot program
This chapter explains the structure of the sample robot programs.
Two types of sample robot programs are provided; for conveyer tracking and for vision tracking.
Their program structures are shown in “Table 7-1 List of Sample Robot Programs (Conveyer Tracking)” and
“Table 7-2 List of Sample Robot Programs (Vision Tracking)” respectively.
Refer to “RT ToolBox2 Robot Total Engineering Support Software Instruction Manual” for how to install
programs to the robot controller.
7.1. Conveyer Tracking
Table 7-1
Program name
List of Sample Robot Programs (Conveyer Tracking)
Description
Explanation
This program matches the coordinate systems of the conveyer
and robot and calculates the amount of robot movement per
encoder pulse.
Workpiece coordinate system This program calculates the coordinates at which the robot
- robot coordinate system
grabs a workpiece based on the coordinates at which a sensor
matching program
is activated.
This program handles transporting workpieces while following
recognized workpieces.
Operation program
(1) Movement to the robot origin
(2) Workpiece suction and transportation operation while
following movement
Workpiece coordinate monitor This program monitors encoder values and stores workpiece
program
coordinates.
Conveyer - robot coordinate
system calibration program
A1
C1
1
CM1
7.2. Vision Tracking
Table 7-2
Program name
A1
B1
C1
1
CM1
7-42
List of Sample Robot Programs (Vision Tracking)
Description
Conveyer - robot coordinate
system calibration program
Vision coordinate system –
robot coordinate system
calibration program
Workpiece coordinate system
- robot coordinate system
matching program
Explanation
This program matches the coordinate systems of the conveyer
and robot and calculates the amount of robot movement per
encoder pulse.
This program matches the vision coordinate system and the
robot coordinate system.
This program calculates the coordinates at which the robot
grabs a workpiece based on the coordinates at which a vision
sensor has detected the workpiece.
This program handles transporting workpieces while following
recognized workpieces.
Operation program
(1) Movement to the robot origin
(2) Workpiece suction and transportation operation while
following movement
Workpiece coordinate monitor This program monitors encoder values and stores workpiece
program
coordinates.
Conveyer Tracking
8 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
8. Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
This chapter explains the tasks carried out by using “A1” program.
* “A1” program contains operations required for both conveyer tracking and vision tracking.
Calibration of a conveyer refers to determining the movement direction of the conveyer in the robot coordinate
system and the amount of movement of the robot per encoder pulse. This amount of movement is stored in the
robot’s status variable “P_EncDlt.”
“A1” Program performs specified tasks and automatically calculates the amount of movement of the robot per
encoder pulse mentioned above.
The procedures of operations specified by “A1” program and items to be confirmed after the operations are
explained below.
Please refer to “Detailed Explanations of Functions and Operations” for the steps involved in each operation.
Please monitor status variable “M_Enc(1)" to “M_Enc(8)" before it works, rotate the encoder, and confirm the
value changes.
8.1. Preliminary Preparaions
This chapter explains the knowledge about confirmation and operation necessary to a minimum before
beginning work.
The contents which should be checked are "Tool length" and "change in the encoder value".
8.1.1. Setting of tool length
When you'd like to change the angle at the place which isn't a flange part of a robot(For example, tip of a
hand), you have to set tool length.
The "tool length automatic measuring system" function of RT ToolBox2 is useful when setting tool length.
Refer to “RT ToolBox2 Robot Total Engineering Support Software Instruction Manual” about operational
details.
When the robot model and robot controller which have connected, correspond to this function, a [Tool
automatic calculation] is displayed under [Maintenance] in the project tree. Double-click [Online]
->[Maintenance] -> [Tool automatic calculation] in the project tree.
Preliminary Preparaions
8-43
8 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
Tool length is calculated automatically by instructing in the location of 3-8 points as follows in the screen
mentioned above.
8.1.2. Confirm the encoder value
An important one is a change in the encoder value in this work. Confirm whether a robot controller grasps the
turn of the encoder.
From the project tree, click the target project [Online] -> [Monitor] -> [Movement Monitor] -> [Program Monitor],
then double click the "Task slot" to monitor.
(2) Program
(1) Program information
(3) Variable monitor
(4) Add
(5) Select
8-44
Preliminary Preparaions
(6) Delete
(7) Change
(8) Load
(9) Save
(10) View
8 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
Click a [Add] button and open a “Add display variables” screen. Input "M_Enc (1)" to a space "variable name",
and click a [OK] button. also input "M_Enc (2)"-"M_Enc (8)" equally, and click a [OK] button.
Confirm that the value of "M_Enc" changes by a revolution of a conveyer.
When the encoder value doesn't change, confirm the parameter setting and the wiring of "6.1.2 Robot
Parameter Setting".
8.2. Operation procedure
Using "A1" program, operate in the following procedures.
(1) Set the controller mode to "MANUAL". Set the T/B to "ENABLE".
O/P
T/B
↑上:DISABLE
↓下:ENABLE
★
Lamp lighting
T/B rear
(2) Press one of the keys (example, [EXE] key) while the <TITLE> screen is displayed. The <MENU> screen
will appear.
Operation procedure
8-45
8 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
MELFA CR75x-D
RH-3FH5515-D
Ver. S6
<MENU>
1.FILE/EDIT
3.PARAM
5.SET/INIT
COPYRIGHT (C) 2015 MITSUBISHI
ELECTRIC CORPORATION ALL RIGHTS
RESERVED
2.RUN
4.ORIGIN/BRK
○
○
123
○
CLOSE
(3) Select "1. FILE /EDIT" screen on the <MENU> screen.
<MENU>
<FILE/EDIT>
1.FILE/EDIT
3.PARAM
5.SET/INIT
2.RUN
4.ORIGIN/BRK
○
○
○
123
1
A1
CM1
CLOSE
EDIT
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
POSI
123
NEW
COPY
(4) Press the arrow key, combine the cursor with the program name "A1" and press the [EXE] key. Display the
<program edit> screen.
<FILE/EDIT>
1
A1
CM1
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
EDIT
POSI
NEW
123
COPY
<PROGRAM> A1
1'################################
2 '# Program for calibration between
3 '# Program Type : A1.prg
4 '# Date of creation/version : 201
EDIT
POSI
123
NEW
COPY
(5) Press the [FUNCTION] key, and change the function display
<PROGRAM> A1
1'################################
2 '# Program for calibration between
3 '# Program Type : A1.prg
4 '# Date of creation/version : 201
<PROGRAM> A1
1'################################
2 '# Program for calibration between
3 '# Program Type : A1.prg
4 '# Date of creation/version : 201
EDIT
FWD
DELETE 123
INSERT
TEACH
JUMP
123
BWD
(6) Press the [F1] (FWD) key and execute step feed. “(1) Input an encoder … “is displayed. Execute work
according to the comment in the robot program.
<PROGRAM> A1
4 '# Date of creation/version : 201
5 '# COPYRIGHT : MITSUBISHI ELECTRIC
6 '#############################
7 '(1)Input an encoder number to th
FWD
JUMP
BWD
123
Specify the encoder number.
If you want to change the encoder number, please edit the program as follows.
(a) Display the following command.
<PROGRAM> A1
5 '# COPYRIGHT : MITSUBISHI ELECTRIC
6'################################
7 '(1)Input an encoder number to th
8 MEncNo = 1
' Set an enc
EDIT
DELETE 123
INSERT
TEACH
(b) Press the [F1](FWD) key and specify the encoder number in the variable “MEncNo”
Example)When “2” is specified as the encoder number.
<PROGRAM> A1
8 MEncNo = 1
EDIT
8-46
DELETE 123
Operation procedure
Edit
INSERT
TEACH
<PROGRAM> A1
8 MEncNo = 2
EDIT
DELETE 123
Edit
INSERT
TEACH
8 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
(c) Press the [F1] (FWD) key and the change is determined.
<PROGRAM> A1
5 '# COPYRIGHT : MITSUBISHI ELECTRIC
6'################################
7 '(1)Input an encoder number to th
8 MEncNo = 2
' Set an enc
EDIT
DELETE 123
INSERT
TEACH
(7) Press the [F1] (FWD) key and execute step feed. “(2) Attach a marking sticker…”is displayed.
Attach a marking sticker on the conveyer (a sticker with an X mark is the best choice for the marking
sticker).Drive the conveyer and stop it when the marking sticker comes within the robot movement range.
Robot
Robot movement of range
R
Conveyer flow
Marking sticker
Figure 8-1 Position of Marking Sticker on Conveyer
(8) Press [F1] (FWD) key and execute step feed “(3) Move the robot to the po…”is displayed.
Move the robot to the position right at the center of the marking sticker on the conveyer.
* With this operation, encoder data and robot position are acquired.
Sensor recognition
area
Move the robot to the
center of the sticker
Robot movement area
Operation procedure
8-47
8 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
(9) Press [F1] (FWD) key and execute step feed “(4) Raise the robot” is displayed.
Raise the robot.
(10) Press [F1] (FWD) key and execute step feed “(5) Move the sticker in the…” is displayed.
Drive the conveyer and stop at a position where the marking sticker is immediately outside the robot
movement range.
Sensor recognition
area
Move the sticker
Robot movement area
(11) Press [F1] (FWD) key and execute step feed “(6) Move the robot to the posi…” is displayed.
Move the robot to the position right above the center of the marking sticker on the moved conveyer.
* With this operation, encoder data and robot position are acquired.
Sensor recognition
area
Move the robot to the
center of the sticker
Robot movement area
(12) Press [F1] (FWD) key and execute step feed “(7) Raise the robot” is displayed.
Raise the robot.
(13) Press [F1] (FWD) key and execute step feed “(8) Perform step operation…” is displayed.
8-48
Operation procedure
8 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
Perform step operation until “End.”
* The amount of robot movement per encoder pulse is calculated based on this operation.
8.3. Confirmation after operation
Check the value of “P_EncDlt” using T/B.
* This value indicates the movement of each coordinate (mm) of the robot coordinate system,
corresponding to the movement of the conveyer per pulse.
Example) If ”0.5” is displayed for the Y coordinate only
This means that if the conveyer moves for 100 pulses, the workpiece moves 50 mm (0.5 x 100 = 50)
in the +Y direction in the robot coordinate system.
When backing up, the data of “P_EncDlt" is not backed up.
Please work referring to "14.2.5 Restore backup data to another controller" when you restore data to another
tracking system.
8.4. When multiple conveyers are used
Carry out the same operations as above when multiple conveyers are used as well, but pay attention to the
following points.
Example) When using conveyer 2 (encoder number “2”),
(a) Copy the “A1” program, please create a “A2” program.
(b) Please change the encoder number for variable “MEncNo” in the “A2” program to “2”.
Confirmation after operation
8-49
9 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
9. Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
This chapter explains the tasks carried out by using “B1” program.
* “B1” program only contains operations required when constructing a vision tracking system.
These operations are not necessary when constructing a conveyer tracking system.
Calibration of a vision sensor refers to converting the position of a workpiece recognized by the vision
sensor to the corresponding position in the robot coordinate system.
This calibration operation is easily performed by the “Mitsubishi robot tool” in In-Sight Explorer. Refer to
"Mitsubishi robot tool manual for EasyBuilder" for the details of this function.
“B1” program performs specified tasks and allows acquiring the workpiece coordinates recognized by the
vision sensor in the robot coordinate system (position coordinates of robot movement).
The procedures of operations specified by “B1” program and items to be confirmed after the operations are
explained below.
This chapter explains on the assumption that "Mitsubishi robot tool" is used.
Please refer to “Detailed Explanations of Functions and Operations” for the steps involved in each
operation.
This operation needs a Calibration sheet (Appendix 15.5 Calibration sheet).Print the Calibration sheet in
advance.
9.1. Operation procedure
1)
Start In-Sight Explorer and set the IP Address of vision sensor.
From the menu of In-Sight Explorer, select [System]-[Add Sensor/Device To Network…].
In the “Add Sensor/Device To Network” screen, the sensor or device which can add to the network is
displayed. Select it from the list and input the IP Address. Then, click the [Apply] button.
2)
To communicate the Mitsubishi robot tool and the vision sensor, set a necessary parameter by using RT
ToolBox2.
A necessary parameter is three (“NETIP", "Element 9 of NETTERM", and “CTERME19").
In RT ToolBox2, select [Online]-[parameter]-[parameter list].
Input the following parameters to "Parameter Name" of the displayed "Parameter list" screen and change a
“Setting value”.
Parameter Name
NETIP
9-50
Setting value
xxx.xxx.xxx.xxx
Explanation
IP address of robot controller
NETTERM(Element 9)
Initial value
Q type:192.168.100.1
D type:192.168.0.20
0
1
CTERME19
0
1
The end code is added with
communication.
The end code of port 10009 is
changed to “CR+LF”.
Operation procedure
9 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
Please confirm whether the following parameters are initial values.
Parameter Name
Initial value
Explanation
NETPORT(Element 10) 10009
Port number allocated to device OPT19
CPRCE19
0
The protocol used is “Non-procedure”
NETMODE(Element 9)
1
Opens as “Server”.
In RT ToolBox2, select [Online]-[Parameter]-[Communication parameter]-[Ethernet].
“OPT12” is selected “COM2” that exists in “Device & Line” column on the displayed “Ethernet parameter”
screen. Double-click “OPT12” that exists in “Device list”.
Select “Network Vision Sensor (2D)” from “Autoconfigration”, input IP address of the vision sensor to “IP
address” and select “COM2” from “Allocation” column. Click [OK] button. And, click [Write] button on
“Ethernet parameter” screen.
Double click
Turn on robot controller's power supply again to make the set parameter effective.
(1) Open “B1” program using T/B.
Set the controller mode to "MANUAL". Set the T/B to "ENABLE".
O/P
T/B
Up :DISABLE
Down:ENABLE
★
Lamp lighting
T/B rear
Operation procedure
9-51
9 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
(2) Press one of the keys (example, [EXE] key) while the <TITLE> screen is displayed. The <MENU> screen
will appear.
MELFA CR75x-D
RH-3FH5515-D
Ver. S6
<MENU>
1.FILE/EDIT
3.PARAM
5.SET/INIT
COPYRIGHT (C) 2015 MITSUBISHI
ELECTRIC CORPORATION ALL RIGHTS
RESERVED
○
2.RUN
4.ORIGIN/BRK
○
123
○
CLOSE
(3) Select "1. FILE /EDIT" screen on the <MENU > screen.
<MENU>
<FILE/EDIT>
1.FILE/EDIT
3.PARAM
5.SET/INIT
2.RUN
4.ORIGIN/BRK
○
○
○
123
A1
B1
C1
CLOSE
EDIT
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
POSI
123
NEW
COPY
(4) Press the arrow key, combine the cursor with the program name "B1" and press the [EXE] key. Display the
<program edit> screen.
<FILE/EDIT>
A1
B1
C1
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
EDIT
POSI
123
NEW
COPY
<PROGRAM> B1
1 '### Ver.B1#####################
2 '# Network vision tracking, calib
3 '# Program type : B1.prg
4 '# Date of creation : 2015.02.17
EDIT
POSI
123
NEW
COPY
(5) Press the [FUNCTION] key, and change the function display
<PROGRAM> B1
1 '### Ver.B1#####################
2 '# Network vision tracking, calib
3 '# Program type : B1.prg
4 '# Date of creation : 2015.02.17
<PROGRAM> B1
1 '### Ver.B1#####################
2 '# Network vision tracking, calib
3 '# Program type : B1.prg
4 '# Date of creation : 2015.02.17
EDIT
EDIT
POSI
123
NEW
COPY
DELETE 123
INSERT
TEACH
(6) Press the [F1] (FWD) key and execute step feed. “(1) Input an encoder … “is displayed. Execute work
according to the comment in the robot program.
<PROGRAM> B1
4 '# Date of creation : 2015.02.17
5 '# COPYRIGHT : MITSUBISHI ELECTR
6 '###############################
7 '(1)Input an encoder number to the
FWD
JUMP
123
BWD
Specify the encoder number.
If you want to change the encoder number, please edit the program as follows.
(a) Display the following command.
<PROGRAM> B1
5 '# COPYRIGHT : MITSUBISHI ELECTRIC
6'################################
7 '(1)Input an encoder number to th
8 MEncNo = 1
' Set an enc
EDIT
9-52
DELETE 123
Operation procedure
INSERT
TEACH
9 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
(b) Press the [F1](FWD) key and specify the encoder number in the variable “MEncNo”
Example)When “2” is specified as the encoder number.
<PROGRAM> B1
8 MEncNo = 1
EDIT
Edit
DELETE 123
INSERT
TEACH
<PROGRAM> B1
8 MEncNo = 2
EDIT
Edit
DELETE 123
INSERT
TEACH
(c) Press the [F1](FWD) key and the change is determined.
<PROGRAM> B1
5 '# COPYRIGHT : MITSUBISHI ELECTRIC
6'################################
7 '(1)Input an encoder number to th
8 MEncNo = 2
' Set an enc
EDIT
DELETE 123
INSERT
TEACH
(7) Press the [F1] (FWD) key and execute step feed. “(2)Place the calibration sheet…”is displayed.
Paste appendix calibration seat to "15.5 Calibration sheet" on the conveyer.
Robot
Robot movement of range
R
Calibration seat
Conveyer flow
Camera for vision sensor
(8) Press the [F1] (FWD) key and execute step feed. “(3)Check that the calibration…”is displayed.
Paste calibration seat within the field of vision checking the live images of In-Sight Explorer.
* With this operation, encoder data is acquired.
(9) Press the [F1] (FWD) key and execute step feed. “(4)Specify the mark in three…”is displayed.
Specify the mark in three points or more by using "Mitsubishi Robot Tool" on "In-Sight Explorer"
Operation procedure
9-53
9 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
1) End [Live Video] of In-Sight Explorer, and select [Inspect Part] button of “Application Steps”.
2) Select [Geometry Tools] - [User-Defined Point] in “Add tool”.
3) Click [Add] button. Then, the cross sign enclosed with circle on the screen is displayed.
Move it to the mark of the calibration seat, and click [OK] button.
9-54
Operation procedure
9 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
4) Specify the “User-Defined point” in three points or more repeating the above-mentioned work.
The example of specifying
these three points is shown.
5) Select [Mitsubishi Robot Tool] – [Mitsubishi N-point calibration] in “Add Tool” column of this tool.
6) Click [Add] button. Select “User-Defined point” three points specified ahead from nine displayed marks.
Then, Click [OK] button.
7) Open the [Settings] tab screen from the “Edit Tool”, and input IP address set to "Robot IP address".
(10) Press the [F1] (FWD) key and execute step feed. “(5)Move the calibration sheet…”is displayed.
Move the calibration seat by starting the conveyer within the robot movement range.
Operation procedure
9-55
9 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
(11) Press the [F1] (FWD) key and execute step feed. “(6)Move the robot hand to the…”is displayed.
Move the robot to the position right above the first mark on the conveyer.
Move the robot to first point
(12) Press the [F1] (FWD) key and execute step feed. “(7) Acquire the robot present…”is displayed.
Click [Get position] button in “Edit Tool” column of In-Sight Explorer.
Confirm the current position of the robot was displayed in [world X] and [world Y].
(13) Press the [F1] (FWD) key and execute step feed. “(8) Acquire the position of the…”is displayed.
Similarly, move the robot hand to the mark of the second point and the third point, and acquire the current
position of the robot with [Get position] button of In-Sight Explorer.
(14) Press the [F1] (FWD) key and execute step feed. “(9) Click the Export button. Then…”is displayed.
Input an arbitrary name to "File name" in the tool edit column of In-Sight Explorer, and click the export
button. (In this example, File Name is “Tracking”) And, confirm the calibration file of the specified name
was made in the vision sensor.
9-56
Operation procedure
9 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
(15) Press the [F1] (FWD) key and execute step feed. “(10) Raise the robot arm” is displayed.
Raise the robot.
* With this operation, encoder data is acquired.
9.2. Confirmation after operation
Check the value of “M_100()” using T/B.
Enter the encoder number in the array element.
Confirm that the differences between the encoder values acquired on the vision sensor side and the encoder
values acquired on the robot side are set in “M_100().”
9.3. When multiple conveyers are used
Carry out the same operations as above when multiple conveyers are used as well, but pay attention to the
following points.
Example) When using conveyer 2 (encoder number “2”),
(a) Copy the “B1” program, please create a “B2” program.
(b) Please change the encoder number for variable “MEncNo” in the “B2” program to “2”.
Confirmation after operation
9-57
10 Workpiece Recognition and Teaching (“C1” program)
10. Workpiece Recognition and Teaching (“C1” program)
This chapter explains the tasks carried out by using “C1” program.
* “C1” program contains operations required for both conveyer tracking and vision tracking, but
different operations are performed. Refers to “10.1 Conveyer Tracking” for operations in the case of
conveyer tracking and “10.2 Vision Tracking” for operations in the case of vision tracking.
Please refer to “Detailed Explanations of Functions and Operations” for the steps involved in each operation.
10.1. Conveyer Tracking
In “C1” program for conveyer tracking, encoder data at the positions where a sensor is activated and where the
robot suctions a workpiece is acquired so that the robot can recognize the workpiece coordinates when the
sensor is activated at later times.
The operation procedure and items to be confirmed after operation in “C1” program for conveyer tracking are
explained below.
10.1.1. Operation procedure
Using "C1" program, operate in the following procedures.
(1) Set the controller mode to "MANUAL". Set the T/B to "ENABLE".
O/P
T/B
↑上:DISABLE
↓下:ENABLE
★
Lamp lighting
T/B rear
(2) Press one of the keys (example, [EXE] key) while the <TITLE> screen is displayed. The <MENU> screen
will appear.
MELFA CR75x-D
RH-3FH5515-D
Ver. S6
COPYRIGHT (C) 2015 MITSUBISHI
ELECTRIC CORPORATION ALL RIGHTS
RESERVED
<MENU>
1.FILE/EDIT
3.PARAM
5.SET/INIT
○
2.RUN
4.ORIGIN/BRK
○
123
○
CLOSE
(3) Select "1. FILE /EDIT" screen on the <MENU > screen.
<MENU>
<FILE/EDIT>
1.FILE/EDIT
3.PARAM
5.SET/INIT
○
2.RUN
4.ORIGIN/BRK
○
123
○
A1
B1
C1
CLOSE
EDIT
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
POSI
123
NEW
COPY
(4) Press the arrow key, combine the cursor with the program name "C1" and press the [EXE] key. Display
the <program edit> screen.
<FILE/EDIT>
A1
B1
C1
EDIT
10-58
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
POSI
123
Conveyer Tracking
NEW
COPY
<PROGRAM> C1
1 '### Ver.B1#####################
2 '# Conveyer tracking, workpiece
3 '# Program type : C1.prg
4 '# Date of creation : 2015.02.17
EDIT
POSI
123
NEW
COPY
10 Workpiece Recognition and Teaching (“C1” program)
(5) Press the [FUNCTION] key, and change the function display
<PROGRAM> C1
1 '### Ver.B1#####################
2 '# Conveyer tracking, workpiece
3 '# Program type : C1.prg
4 '# Date of creation : 2015.02.17
<PROGRAM> C1
1 '### Ver.B1#####################
2 '# Conveyer tracking, workpiece
3 '# Program type : C1.prg
4 '# Date of creation : 2015.02.17
EDIT
EDIT
POSI
NEW
123
COPY
DELETE 123
INSERT
TEACH
(6) Press the [F1] (FWD) key and execute step feed. “(1) Input a workpiece … “is displayed. Execute work
according to the comment in the robot program.
<PROGRAM> C1
4 '# Date of creation/version : 2015
5 '# COPYRIGHT : MITSUBISHI ELECTRIC
6 '###############################
7 '(1)Input a workpiece number to the
FWD
JUMP
BWD
123
Specify the workpiece number.
If you want to change the workpiece number, please edit the program as follows.
(a) Display the following command.
<PROGRAM> C1
5 '# COPYRIGHT : MITSUBISHI ELECTRIC
6'################################
7 '(1)Input a workpiece number to the
8 MWrkNo = 1
'Set a wo
EDIT
DELETE 123
INSERT
TEACH
(b) Press the [F1](FWD) key and specify the workpiece number in the variable “MWrkNo”
Example)When “2” is specified as the workpiece number.
<PROGRAM> C1
8 MWrkNo = 1
EDIT
Edit
DELETE 123
INSERT
<PROGRAM> C1
8 MWrkNo = 2
TEACH
EDIT
DELETE 123
Edit
INSERT
TEACH
(c) Press the [F1] (FWD) key and the change is determined.
<PROGRAM> C1
5 '# COPYRIGHT : MITSUBISHI ELECTRIC
6'################################
7 '(1)Input a workpiece number to the
8 MWrkNo = 2
'Set a wo
EDIT
DELETE 123
INSERT
TEACH
(7) Press the [F1] (FWD) key and execute step feed. “(2)Input an encoder number…”is displayed.
<PROGRAM> C1
6'################################
7 '(1)Input a workpiece number to the
8 MWrkNo = 2
'Set a wo
9 ' (2)Input an encoder number to the
FWD
JUMP
123
BWD
Specify the workpiece number.
If you want to change the workpiece number, please edit the program as similar procedure (6).
Conveyer Tracking
10-59
10 Workpiece Recognition and Teaching (“C1” program)
(8) Press the [F1] (FWD) key and execute step feed. “(3)Input the number of the sensor…”is displayed.
<PROGRAM> C1
8 MWrkNo = 1
'Set a workpiece
9 '(2)Input an encoder number to the
10 MEncNo = 1
'Set an encoder
11 '(3)Input the number of the sensor
FWD
JUMP
123
BWD
Specify the number of the sensor that monitors workpiece.
If you want to change the sensor number, please edit the program as similar procedure (6).
[Q type]
Tracking enable signal number is 810.
[D type]
Input signal number is 16.
(9) Press the [F1] (FWD) key and execute step feed. “(4)Move a workpiece to the position…”is displayed.
Move a workpiece to the location where the sensor is activated.
* With this operation, encoder data is acquired.
Area recognized by
a workpiece sensor
Robot movement range
(10) Press the [F1] (FWD) key and execute step feed. “(5)Move a workpiece on the conveyer…”is displayed.
Drive the conveyer to move the workpiece within the robot movement range.
Area recognized by
a workpiece sensor
Move the
workpiece
Robot movement range
10-60
Conveyer Tracking
10 Workpiece Recognition and Teaching (“C1” program)
(11) Press the [F1] (FWD) key and execute step feed. “(6)Move the robot to the suction position…”is displayed.
Move the robot to the position where it suctions the workpiece.
*With this operation, encoder data and robot position are acquired.
Area recognized by
a workpiece sensor
Move the hand
Robot movement range
1)
Perform step operation until “End.”
* With this operation, the robot is able to calculate the position of a workpiece as soon as the
sensor is activated.
10.1.2. Confirmation after operation
Confirm the values of “M_101(),” “P_100()” and “P_102()” using T/B.
Enter encoder numbers in array elements.
 “M_101()”: Differences between the encoder values acquired at the position of the photoelectronic sensor
and the encoder values acquired on the robot side.
 “P_100()”: Position at which workpieces are suctioned
 “P_102()”: The value of the variable “MEncNo” and “MSenNo”
Check that each of the values above has been entered correctly.
10.1.3. When multiple conveyers are used
Carry out the same operations as above when multiple conveyers are used as well, but pay attention to the
following points.
Example) When using conveyer 2 (encoder number “2”), kind number “2”,
(a) Copy the “C1” program, please create a “C2” program.
(b) Please change the kind number for variable “MWrkNo” in the “C2” program to “2”.
(c) Please change the encoder number for variable “MEncNo” in the “C2” program to “2”.
Conveyer Tracking
10-61
10 Workpiece Recognition and Teaching (“C1” program)
10.2. Vision Tracking
Vision tracking “C1” program acquires encoder data at the position where the vision sensor recognizes
workpieces and where the robot suctions workpieces such that the robot can recognize the work coordinates
recognized by the vision sensor. The following explains the operation procedure and items to confirm after
operation in vision tracking “C1” program.
10.2.1. Tasks
(1) Setting of the English Symbolic tag
Set up using the English Symbolic tag.
Check the “Use English Symbolic Tags for
EasyBuilder” .
10-62
Vision Tracking
Select [System]-[Option] from the EasyBuilder
menu.
Select [User Interface] from [option], check the
“Use English Symbolic Tags for EasyBuilder”
and click the “OK” button.
10 Workpiece Recognition and Teaching (“C1” program)
(2) Setting of high speed output.
Make the vision sensor offline.
Click [Output] from “Application Steps”.
Set the trigger.
Select “Acquisition start” from [Signal type] of
[Discrete output].
Vision Tracking
10-63
10 Workpiece Recognition and Teaching (“C1” program)
Set the pulse width of trigger.
Click [Detalls] from [Discrete Outputs].
The optional value (Initial value:500)is set as a
pulse width.
Ckick [OK].
10-64
Vision Tracking
10 Workpiece Recognition and Teaching (“C1” program)
(3) Make the vision program.
Take picture of workpiece.
Select [File] – [New Job] from the menu.
Click [Set Up Image] button from “Application
Steps”.
Click [Live Video] button.
Take picture of workpiece that does the
tracking.
Again, stop a live image clicking [Live Video]
button.
Specify the trigger.
Change [Trigger]
"Manual”.
from
"Camera"
to
8640(The image trigger is abnormal) error
occurs when the robot controller outputs the
taking picture demand to the vision sensor when
you do not change.
Inport the calibration data.
In [Calibration type], select "Import".
In [File Name], select the Calibration file
(For example,“TrackingCalib.cxd") registered
when working about the B1 program.
Vision Tracking
10-65
10 Workpiece Recognition and Teaching (“C1” program)
Register workpiece (preparation)
Click [Locate Part] from “Application Steps”.
Select "PatMax Pattern(1-10)" from “Add Tool”,
and click [Add] button.
Register workpiece (Model registration).
Move the displayed "Model" frame, and enclose
workpiece.
Click [OK] button in “Directions”.
Register workpiece (Adjustment)
Click [Settings] tab from "Edit Tool", and change
the [Rotation Tolerance] value to “180".
(The vision sensor can recognize workpiece up
to ±180 degrees. )
Change the [Accept Threshold], and adjust the
recognition rate of workpiece.
The default [Accept Threshold] is “50”.
At this stage it is enough as it is.
And change [Number To Find]“1”to“4”
10-66
Vision Tracking
10 Workpiece Recognition and Teaching (“C1” program)
Register workpiece (Adjustment)
Change [Sort By] “X” or “Y”.
If you sort the recognized multiple workpieces to
the right direction of screen, select “X”.
If you sort the recognized multiple workpieces to
the left direction of screen, select “Y”.
Do the communication setting.
Click [Communication] from “Application Steps”.
Click [Add Device] from "Communications".
Select the following from "Device Setup".
[Device:]
"Robot"
[Manufacturer:] "Mitsubishi”
[Protocol:]
"Ethernet Native String"
Click [OK] button.
Set the communication format (Preparation)
Click [Add] button from "Format Output String".
-> "Select Output Data" screen opens.
Vision Tracking
10-67
10 Workpiece Recognition and Teaching (“C1” program)
Set the communication format (selection)
Click [+] sign of “Pattern_1”, and select it in the
following order while pushing the [Ctrl] key.
(1) Pattern_1.Number_Found
(2) Pattern_1.Fixture.X
(3) Pattern_1.Fixture.Y
(4) Pattern_1.Fixture.Angle
(5) Pattern_1.Fixture1.X
(6) Pattern_1.Fixture1.Y
(7) Pattern_1.Fixture1.Angle
(8) Pattern_1.Fixture2.X
(9) Pattern_1.Fixture2.Y
(10) Pattern_1.Fixture2.Angle
(11) Pattern_1.Fixture3.X
(12) Pattern_1.Fixture3.Y
(13) Pattern_1.Fixture3.Angle
Click [OK] button.
Confirmation of communication format.
Confirm the value enclosed with a square frame.
Data sent to the robot controller is shown in a
right square frame.
Change the value of [Decimal Places], and
change the number of decimal positions of
transmitted data.
10-68
Vision Tracking
10 Workpiece Recognition and Teaching (“C1” program)
Save the vision program.
Click [Save Job] from “Application Steps”.
Click [Save] from "Save Job".
Make the name of the job that saves it “TRK".
Change the line of “CPRG$=" C1 program when
not assuming “TRK".
Make it to online.
Click [Run Job] from “Application Steps”.
Click [Online] on "Job Status".
10.2.2. Operation procedure
Using "C1" program, operate in the following procedures.
(1) Set the controller mode to "MANUAL". Set the T/B to "ENABLE".
O/P
T/B
↑上:DISABLE
↓下:ENABLE
★
Lamp lighting
T/B rear
(2) Press one of the keys (example, [EXE] key) while the <TITLE> screen is displayed. The <MENU> screen
will appear.
MELFA CR75x-D
RH-3FH5515-D
Ver. S6
COPYRIGHT (C) 2015 MITSUBISHI
ELECTRIC CORPORATION ALL RIGHTS
RESERVED
<MENU>
1.FILE/EDIT
3.PARAM
5.SET/INIT
○
○
2.RUN
4.ORIGIN/BRK
123
○
CLOSE
Vision Tracking
10-69
10 Workpiece Recognition and Teaching (“C1” program)
(3) Select "1. FILE /EDIT" screen on the <MENU > screen.
<MENU>
<FILE/EDIT>
1.FILE/EDIT
3.PARAM
5.SET/INIT
2.RUN
4.ORIGIN/BRK
○
○
○
123
A1
B1
C1
CLOSE
EDIT
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
POSI
123
NEW
COPY
(4) Press the arrow key, combine the cursor with the program name "C1" and press the [EXE] key. Display
the <program edit> screen.
<FILE/EDIT>
A1
B1
C1
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
15-02-20 17:06:39 12345
EDIT
POSI
123
NEW
COPY
<PROGRAM> C1
1 '### Ver.B1#####################
2 '# Network vision tracking,
3 '# Program type : C1.prg
4 '# Date of creation : 2015.02.17
EDIT
POSI
123
NEW
COPY
(5) Press the [FUNCTION] key, and change the function display
<PROGRAM> C1
1 '### Ver.B1#####################
2 '# Network vision tracking,
3 '# Program type : C1.prg
4 '# Date of creation : 2015.02.17
<PROGRAM> C1
1 '### Ver.B1#####################
2 '# Network vision tracking,
3 '# Program type : C1.prg
4 '# Date of creation : 2015.02.17
EDIT
EDIT
POSI
123
NEW
COPY
DELETE 123
INSERT
TEACH
(6) Press the [F1] (FWD) key and execute step feed. “(1) Input a workpiece … “is displayed. Execute work
according to the comment in the robot program.
<PROGRAM> C1
4 '# Date of creation/version : 2015
5 '# COPYRIGHT : MITSUBISHI ELECTRIC
6 '###############################
7 '(1)Input a workpiece number to the
FWD
JUMP
BWD
123
Specify the workpiece number.
If you want to change the workpiece number, please edit the program as follows.
(a) Display the following command.
<PROGRAM> C1
5 '# COPYRIGHT : MITSUBISHI ELECTRIC
6'################################
7 '(1)Input a workpiece number to the
8 MWrkNo = 1
'Set a wo
EDIT
DELETE 123
INSERT
TEACH
(b) Press the [F1] (FWD) key and specify the workpiece number in the variable “MWrkNo”
Example)When “2” is specified as the workpiece number.
<PROGRAM> C1
8 MWrkNo = 1
EDIT
10-70
DELETE 123
Vision Tracking
Edit
INSERT
TEACH
<PROGRAM> C1
8 MWrkNo = 2
EDIT
DELETE 123
Edit
INSERT
TEACH
10 Workpiece Recognition and Teaching (“C1” program)
(c) Press the [F1] (FWD) key and the change is determined.
<PROGRAM> C1
5 '# COPYRIGHT : MITSUBISHI ELECTRIC
6'################################
7 '(1)Input a workpiece number to the
8 MWrkNo = 2
'Set a wo
EDIT
DELETE 123
INSERT
TEACH
(7) Press the [F1] (FWD) key and execute step feed. “(2) Input an encoder number…”is displayed.
<PROGRAM> C1
6'################################
7 '(1)Input a workpiece number to the
8 MWrkNo = 2
'Set a wo
(2)Input an encoder number to the
FWD
JUMP
123
BWD
Specify the workpiece number.
If you want to change the workpiece number, please edit the program as similar procedure (6).
(8) Press the [F1] (FWD) key and execute step feed. “(3) Input the SKIP input number…”is displayed.
<PROGRAM> C1
8 MWrkNo = 1
'Set a wo
9 '(2)Input an encoder number to the
10 MEncNo = 1
'Set an encoder
11 '(3)Input the SKIP input number to
FWD
JUMP
123
BWD
Specify the SKIP input number.
If you want to change the SKIP input number, please edit the program as similar procedure (6).
(9) Press the [F1] (FWD) key and execute step feed. “(4) Check live images and input the…”is displayed.
<PROGRAM> C1
10 MEncNo = 1
'Set an encoder
11 '(3)Input the SKIP input number to
12 MSkipNo = 2
13 '(4)Check live images and input
FWD
JUMP
123
BWD
Specify the length in the movement direction.
Start In-Sight Explorer and make the vision sensor into the off-line. Select the [Live Video] of “Set Up
Image” in “Application Steps” Menu and display the picture which the vision sensor picturized on real time.
Check the images and set the field of vision in the moving direction of the conveyer (mm) in the variable
“MVsLen” in the program, respectively.
If you want to change the length in the movement direction, please edit the program as similar procedure
(6).
(10) Press the [F1] (FWD) key and execute step feed. “(5) Input the workpiece length…”is displayed.
<PROGRAM> C1
12 MSkipNo = 2
13 '(4)Check live images and input
14 MVsLen = 300
15 '(5)Input the workpiece length to
FWD
JUMP
123
BWD
Specify the workpiece length.
If you want to change the workpiece length, please edit the program as similar procedure (6).
Vision Tracking
10-71
10 Workpiece Recognition and Teaching (“C1” program)
(11) Press the [F1] (FWD) key and execute step feed. “(6) Input the COM port number to…”is displayed.
<PROGRAM> C1
14 MVsLen = 300
15 '(5)Input the workpiece length to
16 MWrkLen = 50
17 '(6)Input the COM port number to
FWD
JUMP
123
BWD
Specify a communication line to be connected with the vision sensor.
If you want to change the communication line, please edit the program as similar procedure (6).
(12) Press the [F1] (FWD) key and execute step feed. “(7) Input the vision program name…”is displayed.
<PROGRAM> C1
16 MWrkLen = 50
17 '(6)Input the COM port number to
18 CCOM$="COM2:"
'Set the number
19 '(7)Input the vision program name
FWD
JUMP
123
BWD
Specify a vision program to be started.
If you want to change the vision program, please edit the program as similar procedure (6).
(13) Press the [F1] (FWD) key and execute step feed. “(8) Place workpieces to be tracked…”is displayed.
Place a workpiece to be recognized within the area that the vision sensor can recognize.
(14) Press the [F1] (FWD) key and execute step feed. “(9) Place the vision sensor in…”is displayed.
Using In-Sight Explorer, place the vision sensor in the online status.
(15) Press the [F1] (FWD) key and execute step feed. “(10) When the program stops…”is displayed.
Using T/B, close the opened “C1” program once and then run the modified “C1” program automatically with
the robot controller.
Note) When your controller has no operation panel, use the dedicated external signals corresponding to the
following step to operate the robot.
Although the image of the operation panel is the CRnD-700 controller, the operation method is the same
in other controllers.
Changing of mode
T/B disabled
Controller enabled
Set the T/B [ENABLE] switch
to "DISABLE".
Set the controller [MODE]
switch to "AUTOMATIC".
Selection of a program number
Display of
a program number
10-72
Vision Tracking
Press the [CHNG DISP] key
and display "PROGRAM
NO." on the STATUS
NUMBER display.
10 Workpiece Recognition and Teaching (“C1” program)
Selection of
a program number
Press the [UP] or the
[DOWN] key and display
program name"C1"
Start of automatic operation
Press the [START] key.
Start
After automatic operation, “C1” program automatically stops and the LED of the [STOP] button is turned on.
Open “C1” program again with T/B. Press the [F1] (FWD) key to display the subsequent operation
messages.
* With this operation, encoder data and workpiece position recognized by the vision sensor are
acquired.
(16) Press the [F1] (FWD) key and execute step feed. “(11) Move a workpiece on the…”is displayed.
Rotate the conveyer forward and move a workpiece within the vision sensor recognition area into the robot
movement range.
Vision sensor
recognition area
Move the
workpiece
Robot movement range
Vision Tracking
10-73
10 Workpiece Recognition and Teaching (“C1” program)
(17) Press the [F1] (FWD) key and execute step feed. “(12) Move the robot to the suction…”is displayed.
Move the robot to the position where it is able to suction the workpiece.
* With this operation, encoder data and robot position are acquired.
Vision sensor
recognition area
Move the hand
(18) Press the [F1] (FWD) key and execute step feed. “(13) Perform step operation until END”is displayed.
Perform step operation until “End.”
* With this operation, the robot becomes able to recognize the position of the workpiece
recognized by the vision sensor.
10.2.3. Confirmation after operation
Check the values of the following variables using T/B.
Enter the model number for the array number.
 Value of “M_101()”: Differences between encoder values when a workpiece is within the vision sensor
area and when the workpiece is on the robot side
 Value of “P_100()”: Position at which workpieces are suctioned
 Value of “P_101()”: Position at which workpieces are recognized by vision sensor
 Value of “P_102()”: Data in the variables “MEncNo” and “MSkipNo”(encoder number/SKIP input number)
 Value of “P_103()”: Data in the variables “MVsLen” and “MWrkLen” (recognition field of image
view/workpiece size)
 Value of “C_100$()”: COM number
 Value of “C_101$()”: Vision program name
Confirm that each of the above values is entered.
10.2.4. When multiple conveyers are used
Carry out the same operations as above when multiple conveyers are used as well, but pay attention to the
following points.
Example) When using conveyer 2 (encoder number “2”), kind number “2”,
(a) Copy the “C1” program, please create a “C2” program.
(b) Please change the kind number for variable “MWrkNo” in the “C2” program to “2”.
(c) Please change the encoder number for variable “MEncNo” in the “C2” program to “2”.
10-74
Vision Tracking
11 Teaching and Setting of Adjustment Variables (“1” program)
11. Teaching and Setting of Adjustment Variables (“1” program)
This chapter explains operations required to run “1” program.
In addition, this chapter explains a method to check the operation in the condition that it was designated, and
to coordinate again.
11.1. Teaching
The teaching of “Origin point position (position in which system is started)”, “Waiting point position
(position in which it is waited that workpiece arrives)” and “Transportation point position (position in which
the held workpiece is put)” is executed.
(PSave)
Origin point
Flow direction
(PPut)
Transportation
point
(PWait)
Waiting point
Teach the origin position, waiting position and transportation point. The following explains how to perform these
operations.
1) Open “1” program using T/B.
2) Open the [Position data Edit] screen.
3) Display “PSave” in order to set the robot origin position when the system is started.
4) Move the robot to the origin position and teach it the position.
5) Display “PWait” in order to set the waiting position in which it is waited that workpiece arrives.
6) Move the robot to the waiting position and teach it the position.
7) Display “PPut” in order to set the transportation position.
8) Move the robot to the transportation position and teach it the position.
9) Display “PSave" at the starting point position on the [Position data Edit] screen. Turn on the servo by gripping
the deadman switch.
10) Push [F1] (MOVE) and move the robot to the position of “PSave".
<POS> JNT 100% Psave
X: -100.00
A:+0000.00
Y: -300.00
B: +90.00
Z: +400.00
C: +180.00
L1:+0000.00
L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
11) Move the robot to the position of “PWait" and “PPut” pushing F1 (MOVE).
Teaching
11-75
11 Teaching and Setting of Adjustment Variables (“1” program)
11.2. Setting of adjustment variables in the program
The following section explains how to set adjustment variables, which are required at transportation, and details
about their setting.
Please refer to separate manual “Detailed Explanations of Functions and Operations” for how to set adjustment
variables.
Variable
name
PUp1
PUp2
PDly1
PDly2
PPri
POffset
PRng
11-76
Table 11-1
List of adjustment variables in the program
Explanation
When the adsorption operation of workpiece, set the
offset in the z-axis that the robot works.
Offset is the amount of elevation (mm) from the
position where workpiece is adsorbed.
[*]Since this variable shows the distance in a
tool coordinate system, the sign changes
depending on a robot model.
Setting Example
When you raise the workpiece 50mm
from the adsorption position:
(Example)RV series:
(X,Y,Z,A,B,C)=(+0,+0,-50,+0,+0,+0)
(Example)Other than RV series:
(X,Y,Z,A,B,C)=(+0,+0,+50,+0,+0,+0
)
When the desorption operation of workpiece, set the When you raise the workpiece 70mm
offset in the z-axis that the robot works.
from the desorption position:
Offset is the amount of elevation (mm) from the
(Example)RV series:
position where workpiece is desorbed.
(X,Y,Z,A,B,C)=(+0, +0,-70,+0,+0,+0)
[*]Since this variable shows the distance in a (Example)Other than RV series:
tool coordinate system, the sign changes (X,Y,Z,A,B,C)=(+0,+0,+70,+0,+0,+0)
depending on a robot model.
Set the suction time.
When you set the suction time to 0.5
X = Suction time (s).
second:
(X,Y,Z,A,B,C)=(+0.5,+0,+0,+0,+0,+0)
Set the release time.
When you set the release time to 0.3
X = Release time (s).
second:
(X,Y,Z,A,B,C)=(+0.3,+0,+0,+0,+0,+0)
“1” program and “CM1” program are run
When you set to run “1” program by
simultaneously (multitasking). “1” program moves
one line and run “CM1” program by
the robot, and “CM1” program observes the sensor.
10 lines:
It is possible to specify which program is processed
(X,Y,Z,A,B,C)=(+1,+10,+0,+0,+0,+0)
with a higher priority, rather than performing the
same amount of processing at the same time.
X = Set the line numbers of “1” program to be
performed (1 to 31).
Y = Set the line numbers of “CM1” program to be
performed (1 to 31).
When the adsorption position shifts, the gap can be
When the deviation to +X direction
corrected. Set the correction value.
in hand-coordinate system is 2mm,
[*]The direction of the correction is a direction of and deviation to -Y direction in
the hand coordinate system. Please decide the hand-coordinate system is 1mm:
correction value after changing the job mode to (X,Y,Z,A,B,C)=(+2,-1,+0,+0,+0,+0)
"Tool", pushing the [+X] key and the [+Y] key,
and confirming the operation of the robot.
Set the range of motion where the robot judges
Refer to 「Figure 11-1 Diagram of
workpiece to be able to follow, and the forced ending the adjustment variables “PRNG”
distance. (When the workpiece is in the tracking
in the Program」
possible area, the tracking is started. But if the robot
speed is low, and the conveyer speed is high, the
robot follows the workpiece to out of the robot
operation area.)
X = The start distance of the range in which the
robot can follow a workpiece :(mm)
Y = The end distance of the range in which the
robot can follow a workpiece :(mm)
Z = The distance in which follow is canceled.
Setting of adjustment variables in the program
11 Teaching and Setting of Adjustment Variables (“1” program)
800mm
Conveyer
Ending+300mm
Start-500mm
Forced ending +400mm
Workpiece movement direction
The conveyer is placed in front of the robot, and
the workpiece flows from the right to left. If you set
<Start position> to -500mm, <Ending position> to
+300mm, a width of tracking area is 800mm.
If you set <Forced ending position> to +400mm,
tracking operation is stopped and interruption
processing occurs when the workpiece goes
beyond Y=+400mm in robot coordinate system.
400mm
Conveyer
Start+300mm
Ending -100mm
Forced ending -200mm
Workpiece movement direction
The conveyer is placed in front of the robot, and
the workpiece flows from the left to right. If you set
<Start position> to +300mm, <Ending position> to
-100mm, a width of tracking area is 400mm.
If you set <Forced ending position> to -200mm,
tracking operation is stopped and interruption
processing occurs when the workpiece goes
beyond Y=-200mm in robot coordinate system.
Conveyer
Conveyer
Workpiece movement direction Workpiece movement direction
300mm
Start +500mm
Forced ending +100mm
Forced ending+400mm
Ending+200mm
Start -100mm
Ending+200mm
The conveyer is placed on a robot’s left-hand side,
and the workpiece flows from the front to rear. If
you set <Start position> to +300mm, <Ending
position> to +200mm, a width of tracking area is
300mm.
If you set <Forced ending position> to +100mm,
tracking operation is stopped and interruption
processing occurs when the workpiece goes
beyond X=+100mm in robot coordinate system.
300mm
The conveyer is placed on a robot’s right-hand
side, and the workpiece flows from the rear to
front. If you set <Start position> to -100mm,
<Ending position> to +200mm, a width of tracking
area is 300mm.
If you set <Forced ending position> to +400mm,
tracking operation is stopped and interruption
processing occurs when the workpiece goes
beyond X=+400mm in robot coordinate system.
Figure 11-1 Diagram of the adjustment variables “PRNG” in the Program
Setting of adjustment variables in the program
11-77
11 Teaching and Setting of Adjustment Variables (“1” program)
11.3. Automatic Operation
This chapter explains how to prepare the robot before starting the system.
(1) Confirm that there isn't an intervention thing in the robot movement area.
(2) Set the T/B [ENABLE] switch to "DISABLE"
(3) Set the controller mode to "AUTOMATIC".
(4) Press the controller [CHNG DISP] button twice, and display the "OVERRIDE" on the STATUS NUMBER
display panel, and specify the override to 20% - 30%.
(5) Press the [CHNG DISP] button and display "PROGRAM NO." on the STATUS NUMBER display. Then
press the [RESET] button to reset program.
(6) Press the [UP] key or the [DOWN] button and display "program 1" to the STATUS NUMBER display.
11-78
Automatic Operation
11 Teaching and Setting of Adjustment Variables (“1” program)
(7) Automatic operation will start when the controller [START] button is pressed.
*Prepare for the unexpected operation of the robot,please can press anytime emergency stop
sw itch of T/B.
(8) When the robot moves to the specified retracted position, to drive the turntable and place the workpiece.
(9) Confirm to be a work that is unloaded to the transport destination after following the workpiece.
(10)If you check the operation, press the [STOP] button and stop the robot.
Automatic Operation
11-79
11 Teaching and Setting of Adjustment Variables (“1” program)
11.4. Adjustment of operating conditions
In automatic operation, if you want to adjust the vertical movement and adsorption time of the robot arm that
was described in "11.2 Setting of adjustment variables in the program" should be changed in the following
procedure.
(1) Start the "Program monitor" of RT ToolBox2.
(2) Click the [Add] button and open the "Add display variables" screen. Enter the variables listed in the "Table
11-1 List of adjustment variables in the program", and then click the [OK] button.
Others, "PUp2", "PDly1", "PDly2" etc.
(3) Double-click the variable you want to change, and change the appropriate value for displayed in the "Edit
Position data".
For example, change to "-50" from "-30" the value of the Z-coordinate of the PUp1 :
11-80
Adjustment of operating conditions
11 Teaching and Setting of Adjustment Variables (“1” program)
(4) Click [OK] button, and confirm that was able to change the value of the variable that is specified in the
"Variable Monitor".
(5) Return to the "11.3 Automatic Operation”, and then check to see whether the can be corrected by
implementing the automatic operation.
Adjustment of operating conditions
11-81
11 Teaching and Setting of Adjustment Variables (“1” program)
11.5. Adjustment of Tracking starting possible area
In automatic operation, if you want to adjust the Tracking starting possible area that was taught in the "8
Calibration of Conveyer and Robot Coordinate Systems (“A1” program)", change the following procedure.
(1) Start the "Program monitor" of RT ToolBox2.
(2) Click the [Add] button and open the "Add display variables" screen. Enter the following three state variables,
and then click the [OK] button.
Others, “M_TrkEnd(1)”, “M_TrkStop(2)”
*In (), specify the [condition number].
(3) Double-click the variable you want to change, and change the value in the displayed "Changing Values"
screen.
Assume that the movement direction of the conveyer “plus”, input the value to which the offset was added,
and then click [OK].
11-82
Adjustment of Tracking starting possible area
11 Teaching and Setting of Adjustment Variables (“1” program)
For example, if you want the tracking started early 100mm:
Image of the tracking area is as follows.
Before tracking starting distance change
500mm
Tracking
area
After tracking starting distance change
600mm
500mm
Tracking
area
(4) Similarly, please adjust using the "M_TrkEnd" for the end position of the tracking starting possible area.
Adjustment of Tracking starting possible area
11-83
11 Teaching and Setting of Adjustment Variables (“1” program)
Also, please adjust using the "M_TrkStop" for the position to be forcibly terminated.
11.6. Occurrence of error
When an error occurred, please confirm the "14 Troubleshooting".
11-84
Occurrence of error
12 Sensor Monitoring Program (“CM1” program)
12. Sensor Monitoring Program (“CM1” program)
This chapter provides an overview of “CM1” program, which is run in parallel, when “1” program is run.
Different types of “CM1” programs are used for conveyer tracking and vision tracking, and different processing
is performed for them. These programs are explained in the following.
12.1. Conveyer Tracking
“CM1” program calculates the workpiece coordinates in the robot coordinate system at the moment where a
photoelectronic sensor is activated based on the following data acquired with “A1” program and “C1” program,
and then stores the coordinates in the tracking buffer(Storage area to preserve data temporarily).
<Acquired data>
 Amount of robot movement per encoder pulse (P_EncDlt)
 Difference between the encoder value when a photoelectronic sensor is activated and the encoder value
when teaching is performed on a robot
 Position at which the robot is taught to grab a workpiece
12.2. Vision Tracking
“CM1” program converts the workpiece position recognized by the vision sensor to the corresponding
coordinates in the robot coordinate system based on the following data acquired with “A1” program, “B1”
program and “C1” program, and then stores the coordinates in the tracking buffer.
<Acquired data>
 Amount of robot movement per encoder pulse(P_EncDlt)
 Difference between the encoder value when a marking sticker is on the vision sensor side and the encoder
value when the marking sticker is on the robot side
 Workpiece position recognized by the vision sensor
 Difference between the encoder value when the vision sensor recognizes a workpiece and the encoder
value when teaching on the workpiece position was performed on the robot
 Position at which the robot is taught to grab a workpiece
The timing at which the vision sensor acquires images is calculated such that images of the same workpiece
are taken at least once or up to twice by the following data specified in “C1” program.
<Data specified in “C1” program>
 Field of view in the conveyer movement direction
 Length of workpieces detected by a vision sensor (length in the conveyer movement direction)
Conveyer Tracking
12-85
13 Maintenance of robot program
13. Maintenance of robot program
This chapter explains information required when maintaining the sample programs (robot program language
MELFA-BASIC V and dedicated input/output signals).
13.1. MELFA-BASIC V Instructions
The lists of instructions, status variables and functions related to tracking operation are shown below.
Please refer to the separate manual “Detailed Explanations of Functions and Operations” for further information
about MELFA-BASIC V.
13.1.1. List of Instructions
Instruction
name
TrClr
TrWrt
TrRd
TrkChk
TrkWait
TrkMv
TrkFine
TrkTrg
NVOpen
NVClose
NVLoad
EBRead
Table 13-1
List of Instructions
Function
Clear the tracking data buffer.
Write workpiece data in the tracking data buffer.
Read workpiece data from the tracking data buffer.
Execute the processing depending on the state of workpiece corresponding to <Condition
number> specified.
Wait until workpiece corresponding to <Condition number> specified enters to the tracking
area.
Execute the next processing. Validate specified interruption, Start tracking, Move to the
tracking upper position by Joint interpolation movement.
The accuracy at the tracking is improved until “TrkFine Off” is executed.
Request the specified vision sensor to capture an image, and acquires encoder value after the
SKIP input receives the signal from the vision sensor.
Connects with the vision sensor and logs on to the vision sensor.
Cuts off the connection with vision sensor.
Puts the specified vision program into the state in which it can be started.
Reads the data for which the tag name of the vision sensor is specified.
13.1.2. List of Robot Status Variables
Variable name
M_Enc
M_EncL
P_EncDlt
P_TrkPAcl
P_TrkPDcl
M_TrkBuf
13-86
Number of
arrays
number of
encoders
1 to 8
Number of
encoder
1 to 8
number of
encoders
1 to 8
Condition
Number
1 to 8.
Condition
Number
1 to 8.
Condition
Number
1 to 8.
Table 13-2
List of Robot Status Variables
Function
External encoder data
External encoder data can be rewritten.
If this state variable does not set
parameter “TRMODE" to “1", the value
becomes “0".
The stored encoder data
※ Possible to use from R1 and S1
※ 0 always returns in S1.
Amount of robot movement per encoder
pulse
*This state variable is made by sample
“A1” program.
Parameter [TRPACL] value
Attribute
(*1)
R/W
Data type
Double-precisio
n real number
R/W
Double-precisio
n real number
R/W
Position
R/W
Position
Parameter [TRPDCL] value
R/W
Position
Buffer Number
R/W
Integer
MELFA-BASIC V Instructions
13 Maintenance of robot program
Variable name
M_TrkStart
M_TrkEnd
M_TrkStop
M_TrkTime
P_TrkBase
M_TrkChk
P_TrkWork
M_TrkEnc
M_TrkKind
M_TrkEncNo
P_TrkPixel
P_TrkTarget
M_Trbfct
P_CvSpd
M_Hnd
M_NvOpen
Number of
arrays
Condition
Number
1 to 8.
Condition
Number
1 to 8.
Condition
Number
1 to 8.
Condition
Number
1 to 8.
Condition
Number
1 to 8.
Condition
Number
1 to 8.
Condition
Number
1 to 8.
Condition
Number
1 to 8.
Condition
Number
1 to 8.
Condition
Number
1 to 8.
Condition
Number
1 to 8.
buffer No.
1 to The first
argument of
parameter
[TRBUF]
number of
encoders
1 to 8
Hand Number
1 to 8
Vision Sensor
Number
1 to 8
Tracking Starting Distance
Attribute
(*1)
R/W
Tracking Ending Distance
R/W
Single-precision
real number
Tracking Forced Ending Distance
R/W
Single-precision
real number
Timeout period of TrkWait command
R/W
Single-precision
real number
Tracking Base coordinates
R/W
Position
TrkChk result
R
Integer
Function
Data type
Single-precision
real number
Workpiece position when the sensor R
taken out from the tracking buffer reacts.
Position
Workpiece Encoder when the sensor R
taken out from the tracking buffer reacts.
Long-precision
real number
Model number of the workpiece taken out R
from the tracking buffer.
Integer
Encoder number taken out from the R
tracking buffer.
Integer
Workpiece pixel position when the sensor
taken out from the tracking buffer reacts.
R
Position
The workpiece coordinate where the
robot is following
Number of data items stored in the tracking
buffer
R
Position
R
Integer
Conveyer speed (mm, rad/sec)
R
Position
Hand open/close instruction and
R/W
Hand open/close states.
※Used when you open or close the hand
during “WthIf”.
Indicates the vision sensor line
R
connection status.
Integer
Integer
MELFA-BASIC V Instructions
13-87
13 Maintenance of robot program
13.1.3. Explanation of Tracking Operation instructions
The instructions related to tracking operations are explained in details below.
The explanations of instructions are given using the following format.
[Function]
: Describes the function of an instruction.
[Format]
: Describes the entry method of arguments of an instruction.
< > indicate an argument.
[ ] indicates that entry can be omitted.
 indicate that space is required.
[Term]
: Describes meaning, range and so on of an argument.
[Example]
: Presents statement examples.
[Explanation] : Provides detailed function descriptions and precautions.
13-88
MELFA-BASIC V Instructions
13 Maintenance of robot program
TrClr (Tracking data clear)
[Function]
Clear the tracking data buffer.
[Format]
TrClr  [<Buffer number>]
[Terminology]
<Buffer number [integer]> (can be omitted):
Specify the number of a general-purpose output to be output.
Setting range:1 to The first argument of parameter “TRBUF”
[Reference program]
1 TrClr 1
2 *LOOP
3 If M_In(8)=0 Then GoTo *LOOP
4 M1#=M_Enc(1)
5 TrWrt P1, M1#,MK
' Clear the tracking data buffer No. 1.
' Jump to *LOOP if input signal No. 8, to which a photoelectronic
sensor is connected, is OFF.
' Acquire the data of encoder number 1 at the time when input signal
No. 8 is turned on and store it in M1#.
' Write workpiece position data P1, encoder value M1# at the time an
image is acquired and model number MK into the buffer.
[Explanation]
(1) Clear information stored in specified tracking buffer.
(2) Execute this instruction when initializing a tracking program.
MELFA-BASIC V Instructions
13-89
13 Maintenance of robot program
TrWrt (Writing tracking data)
[Function]
Write position data for tracking operation, encoder data and so on in the data buffer.
[Format]
TrWrt  <Position data> [ , [<Encoder data>] [ , [<Model number>] [ , [<Buffer number>] [ , [<Encoder number>]
[ ,[<Pixel data> ] ] ] ] ] ]
[Terminology]
<Position data [Position]> (cannot be omitted):
Specify the workpiece position measured by a sensor.
<Encoder data [double-precision real number]> (can be omitted):
Specify the value of an encoder mounted on a conveyer at the time a workpiece is measured.
The encoder value acquired in the M_Enc() state variable and the TrOut instruction is
specified usually.
<Model number [integer]> (can be omitted):
Specify the model number of workpieces.
Setting range: 1 to 65535
<Buffer number [integer]> (can be omitted):
Specify a data buffer number.
1 is set if the argument is omitted.
Setting range: 1 to 4(The first argument of parameter [TRBUF])
<Encoder number [integer]> (can be omitted):
Specify an external encoder number.
The same number as the buffer number is set if the argument is omitted.
Setting range: 1 to 8
<Pixel data [position]> (can be omitted):
Specify the workpiece pixel position measured by a sensor.
[Reference program]
(1) Tracking operation program
1 TrBase P0
' Specify the workpiece coordinate origin at the teaching position.
2 TrRd P1, M1, MK, 1, ME, P3 ' Read the workpiece position data from the data buffer.
3 Trk On,P1,M1
' Start tracking of a workpiece whose measured position is P1 and encoder
value at the time of measurement is M1.
4 Mvs P2
' Setting the current position of P1 as P1c, make the robot operate while
following workpieces with the target position of Inv(P0) * P2.Add that to the
target location.And tracking.
5 HClose 1
' Close hand 1.
6 Trk Off
' End the tracking operation.
(2) Sensor data reception program
1 *LOOP
2 If M_In(8)=0 Then GoTo *LOOP
3 M1#=M_Enc(1)
4 TrWrt P1, M1#,MK
' Jump to +LOOP if input signal No. 8, to which a photoelectronic
sensor is connected, is OFF.
' Acquire data of encoder number 1 at the time when input signal
No. 8 is turned on and store it in M1#.
' Write workpiece position data P1, encoder value M1# at the time
an image is acquired and model number MK in the buffer.
[Explanation]
(1) This function stores the workpiece position (robot coordinates) at the time when a sensor recognizes a
workpiece, encoder value, model number, encoder number and workpiece position (pixel coordinates) in the
specified buffer.
(2) Arguments other than the workpiece position (robot coordinates) can be omitted. If any of the arguments are
omitted, the robot operates while following changes of position data.
(3) Workpieces within the same workpiece judgment distance set in the “TRCWDST” parameter are regarded
as the same workpiece. Even if the data is written twice in the buffer with the TrWrt instruction, only one data
set is stored in the buffer. For this reason, data for one workpiece only is read with the TrRd instruction even
if images of the same workpiece are acquired twice with a vision sensor.
13-90
MELFA-BASIC V Instructions
13 Maintenance of robot program
TrRd (reading tracking data)
[Function]
Read position data for tracking operation, encoder data and so on from the data buffer.
[Format]
TrRd  <Position data> [ , [<Encoder data>] [ , [<Model number>] [ , [<Buffer number>] [ , [<Encoder number>] [ ,
[Pixel data] ] ] ] ] ]
[Terminology]
<Position data [Position]> (cannot be omitted):
Specify a variable that contains workpiece positions read from the buffer.
<Encoder data [double-precision real number]> (can be omitted):
Specify a variable that contains encoder values read from the buffer.
<Model number [integer]> (can be omitted):
Specify a variable that contains model numbers read from the buffer.
<Buffer number [integer]> (can be omitted):
Specify a number of a buffer from which data is read.
1 is set if the argument is omitted.
Setting range: 1 to 4(The first argument of parameter [TRBUF])
<Encoder number [integer]> (can be omitted):
Specify a variable that contains values of external encoder numbers read from the buffer.
<Pixel data [position]> (can be omitted):
Specify a variable that contains workpiece pixel positions read from the buffer.
[Reference program]
(1) Tracking operation program
1 TrBase P0
' Specify the workpiece coordinate origin at the teaching position.
2 TrRd P1, M1, MK, 1, ME, P3 ' Read the workpiece position data from the data buffer.
3 Trk On,P1,M1
' Start tracking of a workpiece whose measured position is P1 and encoder
value at the time of measurement is M1.
4 Mvs P2
' Setting the current position of P1 as P1c, make the robot operate while
following workpieces with the target position of Inv(P0) * P2.Add that to the
target location.And tracking.
5 HClose 1
' Close hand 1.
6 Trk Off
' End the tracking operation.
(2) Sensor data reception program
1 *LOOP
2 If M_In(8)=0 Then GoTo *LOOP
3 M1#=M_Enc(1)
4 TrWrt P1, M1#,MK
' Jump to *LOOP if input signal No. 8, to which a photoelectronic
sensor is connected, is OFF.
' Acquire data of encoder number 1 at the time when input signal
No. 8 is turned on and store it in M1#.
' Write workpiece position data P1, encoder value M1# at the time
an image is acquired and model number MK in the buffer.
(3) Vision data reception program
1 NVClose
' Close communication line
2 NVOpen “COM2:” As #1
' Open communication line and log on
3 Wait M_NvOpen(1) = 1
' Wait to log on to the vision sensor
4 NVLoad #1, “test”
' Load the vision program
5 NVTrg #1, 5, MTR1”
' Imaging request + encoder value acquisition
6 EBRead #1,””,MNUM,PVS1,PVS2,PVS3,PVS4 ' Acquire data of one recognized workpiece
7 MVsX = PV1.X
' Acquire X data
8 MVsY = PVS1.Y
' Acquire Y data
9 MVsC = Deg(PVS1.C)
' Acquire the C data converted to the degree unit
10 PosVS = PVSCal(1, MVsX, MVsY, MVsC)
' Acquire the position data changed from a pixel to a
robot coordinate
11 TrWrt PosVS, MTR1#, 1, 1, 1, PVS1
' Write data in the buffer
MELFA-BASIC V Instructions
13-91
13 Maintenance of robot program
[Explanation]
(1) Read the workpiece position (robot coordinates), encoder value, model number, encoder number and
workpiece position (pixel coordinates) stored by the TrWrt instruction from the specified buffer.
(2) If the TrRd instruction is executed when no data is stored in the specified buffer, Error 2540(There is no read
data) occurs.
13-92
MELFA-BASIC V Instructions
13 Maintenance of robot program
TrkChk (Tracking check function)
[Function]
Execute the processing depending on the state of workpiece corresponding to <Condition number> specified.
[Format]
TrkChk □ <Condition number> , <Starting position> , [<Waiting position>] , <Branch destination>
[Terminology]
<Condition number [Integer]>
Specify the condition number correspond to tracking.
Setting range: 1 to 8
<Starting position [Position]>
When there is no workpiece in tracking buffer(no workpiece on the conveyor), specify the starting
position to which robot moves at the beginning of the system. Mainly, specify the starting position as the
system to which robot moves at the beginning of the system.
<Waiting position [Position]> : (can be omitted.)
Specify the waiting position until workpiece enters a tracking possible area.
In the case of vision tracking, a robot moves to the position which has grasped the position through
which workpiece flows and changed the value of X and C coordinates, or Y and C coordinates from the
value of X and Y of a state variable "P_EncDlt" to the specified <Waiting position>.
(*)It is effective for X or Y coordinates in “P_EncDlt”, it does not support Z-coordinates.
If you omit <Waiting position>, even if workpiece flows, the robot does not move.
By omitting <Waiting position>, you can move to the fixed position. And you can move to the arranged
position by using state variable “P_TrkTarget”.
Robot operating
Position by “TrkChk”
Workpiece movement direction
Tracking
area
Object
workpiece
Forced
Stop area
<Waiting position>
<Branch destination [label]>
Specify the label name that jumps when specified workpiece can be followed.
MELFA-BASIC V Instructions
13-93
13 Maintenance of robot program
[Reference program]
*LBFCHK
・・・・・
TrkChk 1, P1, PWAIT, *LTRST
’No workpiece->P1/ Wait for the workpiece->PWAIT/
Tracking possible->Jump to “LTRST”.
If M_TrkChk(1) <= 1 Then GoTo *LBFCHK ’0:No workpiece / 1: Workpiece passed over ->“LBFCHK”.
TrkWait *LBFCHK
’Wait for the workpiece / Jump to “LBFCHK” at the timeout.
[Explanation]
(1) Workpiece information is taken out of the tracking buffer of state variable "M_TrkBuf" corresponding to
<condition number >.The position of the workpiece is checked by using the range specified for robot state
variable “M_EncSensor”,”M_EncStart”,“M_EncEnd”,“M_EncStop”,“M_TrkStart”,“M_TrkEnd”,“M_TrkStop”
The checked result is stored in robot state variable “M_TrkChk”.
(2) Workpiece information which is taken out of the specified tracking buffer is in state variable “P_TrkWork”,
“M_TrkEnc”, “M_TrkKind” , “M_TrkEncNo” and “P_TrkPixel” when “TrkChk” is executed.
(3) If state variable “M_TrkBuf” is not specified when “TrkChk” is executed, buffer number is assumed to be “1”.
(4) Execute the following processings according to the execution result of this command.
M_TrkChk
value
Execution result
0
No workpiece in the tracking
buffer.
1
There is workpiece information in
the tracking buffer.
And the workpiece has passed
the tracking starting possible
area.
There is workpiece information in
the tracking buffer.
And the workpiece exists in front
of the tracking starting possible
area.
2
3
There is workpiece information in
the tracking buffer.
And the workpiece exists in the
tracking starting possible area.
Processing
Robot operation
Execute the process
that move to specified
<Starting position>.
No processing.
Robot move from
current position to
<Starting position>.
Robot does not move.
Confirm the workpiece
position.
Change the position
data of specified
<Waiting position>.
Move to the position.
Jump to the specified
<Branch destination>.
Robot moves from the
current position to the
position to which the
workpiece flows.
Robot does not move.
(5) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110_99000 (Argument value range over) error to occur.
(6) If you appoint the label which does not exist as “Branch destination”, error L3600_00000 (Jump destination
does not exist) occurs.
13-94
MELFA-BASIC V Instructions
13 Maintenance of robot program
TrkWait (Tracking wait function)
[Function]
Wait until workpiece correspond to appointed <Condition number> enters to the tracking area.
[Format]
TrkWait □ < Branch destination >
[Terminology]
<Branch destination [label]> :(can be omitted.)
Even if the time specified as the state variable "M_TrkTime" passes, when the specified work piece
does not go into tracking area, specify the label name to jump.
If < Branch destination > is omitted, the timeout does not occur, and workpiece information is written
into the tracking buffer by “TrWrt”, waits until the workpiece enters to the tracking possible area.
[Reference program]
M_TrkTime(1) = 60
・・・・・
'/// Tracking buffer check ///
*LBFCHK
TrkChk 1, PSave, PWait, *LTRST
If M_TrkChk(1) <= 1 Then GoTo *LBFCHK
TrkWait *LBFCHK
’ The timeout period is 60 seconds.
’No workpiece->PSave/ Wait for the workpiece->PWait/
Tracking possible->Jump to “LTRST”.
’ 0:No workpiece / 1: Workpiece passed over->“LBFCHK”.
’ Wait for the workpiece / Jump to “LBFCHK” at the timeout.
[Explanation]
(1) Take workpiece information out of “TrkChk”, wait until the workpiece enters to the range specified for state
variable “M_TrkStart” and “M_TrkEnd”.
(2) When work piece passes away by discontinuation etc., the following work piece information is taken out
from a tracking buffer, and it waits until the work piece goes into the range specified as a state variable
"M_TrkStart" and "M_TrkEnd."
(3) If specified workpiece does not enter to the tracking area when the time specified for state variable
"M_TrkTime" is exceeded at waiting time, jump to <Branch destination>.
(4) When robot state variable "M_TrkBuf" is not executed, the buffer number is assumed to be “1".
(5) If <Branch destination> is omitted or state “M_TrkTime” is “0.00”, the timeout does not occur, and workpiece
information is written in into the tracking buffer by “TrWrt”, waits until the workpiece enters to the tracking
possible area.
(6) If you appoint the label which does not exist as <Branch destination>, error 3600_00000 (Jump destination
does not exist) occurs.
MELFA-BASIC V Instructions
13-95
13 Maintenance of robot program
TrkMv (Tracking movement function)
[Function]
Execute the next processing. Validate specified interruption, Start tracking, Move to the tracking upper position
by Joint interpolation movement.
[Format]
TrkMv □ On , <Tracking upper position> [, <Interrupt number> , <Branch destination>]
TrkMv □ Off
[Terminology]
<Tracking upper position [position]>
Specify the tracking upper position to follow. (Example : PGT * PGUP1)
<Interrupt number [Integer]> : (can be omitted.)
Specify the interrupt number checks the following.
・When tracking, does the workpiece reach <Forced Ending Distance > specified for robot state variable
"M_TrkStop()"?
Setting range: 1 to 8
<Branch Destination [Label]> :(can be omitted.)
Specify the jumping label name when specified workpiece reach <Forced Ending Distance >.
[Reference program]
M_TrkBuf(1) = 1
P_TrkBase(1) = PTBASE
・・・・・
'/// Tracking buffer check ///
*LBFCHK
TrkChk 1, PSave, PWait, *LTRST
’ <Buffer number> is “1".
’ P_TrkBase(1) variable is PTBASE variable.
’No workpiece->PSave/ Wait for the workpiece->PWait/
Tracking possible->Jump to “LTRST”.
If M_TrkChk(1) <= 1 Then GoTo *LBFCHK ’ 0:No workpiece / 1: Workpiece passed over->“LBFCHK”.
TrkWait *LBFCHK
’ Wait for the workpiece / Jump to “LBFCHK” at the timeout.
・・・・・
'/// Start tracking operation ///
*LTRST
TrkMv On, PGTUP, 1, *S91STOP
’Start the interrupt check->Trk On->Move to the tracking upper
position / In the case of exceeding the distance specified by
“M_TrkStop”-Trk Off→Jump to ”S91STOP”
・・・・・ adsorption / Release / assembly etc. ・・・・・
TrkMv Off
’Stop the interrupt check -> Trk Off
[Explanation]
(1) In the case of “TrkMv On”, if the workpiece position exceed the distance specified by “M_TrkStop”, execute
the interrupt processing that jump to label specified for <Branch destination> by using <Interrupt number>.
(2) After the starting of the above interrupt monitoring, start tracking on upper position.
(3) In the case of “TrkMv Off”, stop the interrupt monitoring specified in “TrkMv On”, stop tracking.
(4) <Position data>, <Encoder data>, <Reference position data>, <Encoder number> which is necessary for
conventional “Trk On” uses the data in the tracking buffer correspond to <Condition number> specified by
“TrkChk” (Buffer number specified by state variable “M_Trkbuf”) and the data specified by state variable
“P_TrkBase”.
(5) The data in the tracking buffer is confirmed by state variable “P_TrkWork”,”M_TrkEnc”,”M_TrkKind”
and ”M_TrkEncNo”.
(6) When there is no work piece in back from the starting position of tracking area and this command is
executed, L2580 (Workpiece isn’t in tracking area) error occurs.
(7) If you omit <Interrupt number> and <Branch destination>, the interrupt processing does not become
effective. But you can specify another interrupt processing by using “Def MoTrg” and “Def Act”.
(8) If you appoint the label which does not exist as “Branch destination”, error L3600_00000(Jump destination
does not exist) occurs.
13-96
MELFA-BASIC V Instructions
13 Maintenance of robot program
TrkFine(Tracking follow positioning function)
[Function]
The accuracy at the tracking is improved until “TrkFine Off” is executed.
[Format]
TrkFine □ On
TrkFine □ Off
[Reference program]
M_TrkBuf(1) = 1
P_TrkBase(1) = PTBASE
・・・・・
'/// Tracking buffer check ///
*LBFCHK
TrkChk 1, PSave, PWait, *LTRST
’ <Buffer number> is “1".
’ P_TrkBase(1) variable is PTBASE variable.
’No workpiece->PSave/ Wait for the workpiece->PWait/
Tracking possible->Jump to “LTRST”.
If M_TrkChk(1) <= 1 Then GoTo *LBFCHK ’ 0:No workpiece / 1: Workpiece passed over->“LBFCHK”.
TrkWait *LBFCHK
’ Wait for the workpiece / Jump to “LBFCHK” at the timeout.
・・・・・
'/// Start tracking operation ///
*LTRST
TrkFine On
’Validate TrkFine
TrkMv On, PGTUP, 1, *S91STOP
’Start the interrupt check->Trk On->Move to the tracking upper
position / In the case of exceeding the distance specified by
“M_TrkStop”-Trk Off→Jump to ”S91STOP”
・・・・・ adsorption / Release / assembly etc. ・・・・・
TrkFine Off
’Invalidate TrkFine
TrkMv Off
’Stop the interrupt check -> Trk Off
[Explanation]
(1) The system default value is TrkFine Off.
(2) When the tracking function valid state (Trk On), the TrkFine command will be ignored even if it is valid (i.e., it
will be treated as invalid, but the status will be kept).
(3) When the follow positioning function valid state (TrkFine On), the Cnt command will be ignored even if it is
valid (i.e., it will be treated as invalid, but the status will be kept).
(4) When the follow positioning function valid state (TrkFine On), the Fine command will be ignored even if it is
valid (i.e., it will be treated as invalid, but the status will be kept).
MELFA-BASIC V Instructions
13-97
13 Maintenance of robot program
TrkTrg(Vision sensor trigger)
[Function]
Request the specified vision sensor to capture an image, and acquires encoder value after the SKIP input
receives the signal from the vision sensor.
[Format]
TrkTrg □ #<Vision sensor number>, <SKIP input number>, <Encoder 1 value read-out variable> [,
[<Encoder 2 value read-out variable >], [<Encoder 3 value read-out variable >],
[<Encoder 4 value read-out variable >], [<Encoder 5 value read-out variable >],
[<Encoder 6 value read-out variable >], [<Encoder 7 value read-out variable >],
[<Encoder 8 value read-out variable >]]
[Terminology]
<Vision sensor number>
Specify the number of the vision sensor to control.
Setting range:1-8
<SKIP input number>
Specify the number of the SKIP input to control.
Setting range:2-4
<Encoder n value read-out variable>:( Can be omitted from the second one on)
Specifies the double precision numeric variable into which the read out external encoder n value is set.
Note: n is 1-8
[Reference program]
If M_NVOpen(1)<>1 Then
‘If vision sensor number 1 logon is not complete.
NVOpen “COM2:” AS #1
‘Connects with the vision sensor connected to COM2.
EndIf
Wait M_NVOpen(1) = 1
‘Connects with vision sensor number 1 and waits for logon to
be completed.
NVRun #1, “TEST”
‘Starts the “TEST” program.
TrkTrg #1, 2, M1#, M2#
‘Requests the vision sensor to capture an image and acquires
encoders 1 and 2 after the SKIP input receives the signal.
EBRead #1,,MNUM,PVS1,PVS2
‘The data of “Job.Robot.FormatString” is stored in the read-out
variable MNUM, PVS1 and PVS2.
・・・・・・
・・・・・・
NVClose #1
‘Cuts the line with the vision sensor connected to COM2.
[Explanation]
(1) Outputs the image capture request to the specified vision sensor and acquires the encoder value after the
SKIP input receives the signal.
(2) The <SKIP input number> specify the number of the SKIP input connected.
(3) The acquired encoder value is stored in the specified numeric variable.
(4) This command moves to the next step after it has received the signal of the image processing completion
from the vision sensor.
(5) If the program is cancelled while this command is being executed, it stops immediately.
(6) For receiving data from the vision sensor, use the EBRead command.
(7) When this command is used with multi-tasking, it is necessary to execute the NVOpen command in the
task using this command. Also, use the <Vision sensor number> specified with the NVOpen command.
(8) A program start condition of “Always” and the continue function are not supported.
(9) Up to three robots can control the same vision sensor at the same time, but this command can not be used
by more than one robot at the same time. Use this command on any one of the robots.
(10) If an interrupt condition is established while this command is being executed, the interrupt processing is
executed immediately.
(11) If data type for an argument is incorrect, L.4220 (Syntax error) error occurs.
(12) If there is an abnormal number of command arguments (too many or too few), L.3120 (Illegal argument
13-98
MELFA-BASIC V Instructions
13 Maintenance of robot program
(TrkTrg)) error occurs.
(13) If the <Vision sensor number> is anything other than “1” through “8”, L.3110 (Argument value range over
(TrkTrg)) error occurs.
(14) If the NVOpen command is not opened with the number specified as the <Vision sensor number>, L.3141
(The NVOPEN is not executed) error occurs.
(15) If the <SKIP input number> is anything other than “2” through “4”, L.3110 (Argument value range over
(TrkTrg)) error occurs.
(16) If the same <SKIP input number> is specified by another task, L.8623 (SKIP input number is already used)
error occurs.
(17) If the vision program’s image capture specification is set to anything other than “Camera” (all trigger
command), “External trigger”, or “Manual trigger”, L.8640 (The image trigger is abnormal) error occurs.
(18) If the vision sensor is “Offline”, L.8640 (The image trigger is abnormal) error occurs, so put the vision
sensor “Online”.
(19) If the Communications line is cut while this command is being executed, L.8610 (The communication is
abnormal) error occurs and the robot controller side line is closed.
MELFA-BASIC V Instructions
13-99
13 Maintenance of robot program
NVOpen(Network vision sensor line open)
[Function]
Connects with the specified vision sensor and logs on to that vision sensor.
[Format]
NVOpen□”<COM number>”□As□#<Vision Sensor number>
[Term]
<Com number> (Can not be omitted):
Specify the communications line number in the same way as for the Open command.
"COM1:" can not be specified by it is monopolized by the operation panel front RS-232C.
Setting range: "COM2:" – "COM8:"
<Vision sensor number> (Can not be omitted)
Specifies a constant from 1 to 8 (the vision sensor number). Indicates the number for the vision sensor
connection to the COM specified with the <COM number>.
Be careful. This number is shared with the <file number> of the Open command.
Setting range: 1 – 8
[Sample sentence]
If M_NVOpen(1)<>1 Then 'If vision sensor number 1 log on is not complete
NVOpen “COM2:” As#1 ' Connects with the vision sensor connected to COM2 and sets its number as
number 1.
ENDIf
Wait M_NVOpen(1)=1
' Connects with vision sensor number 1 and waits for logon to be completed.
[Explanation]
(1) Connects with the vision sensor connected to the line specified with the <COM number> and logs on to
that vision sensor.
(2) It is possible to connect to a maximum of 7 vision sensors at the same time. <Vision sensor numbers> are
used in order to identify which vision sensor is being communicated with.
(3) When used together with the Open command, the Open command <COM number> and <File number>
and the <COM number> and <Vision sensor number> of this command are shared, so use numbers other
than those specified with the Open command <COM number> and <File number>.
Example: Normal example Error example
1 Open “COM1:” As #1 1 Open “COM2:” As #1
2 NVOpen “COM2:” As #2 2 NVOpen “COM2:” As #2 => <COM number> used
3 NVOpen “COM3:” As #3 3 NVOpen “COM3:” Ass#1 => <Vision sensor number>
Used
It is not possible to open more than one line in a configuration with one robot controller and one vision
sensor. If the same IP address is set as when the [NETHSTIP] parameter was set, an "Ethernet
parameter NETHSTIP setting" error occurs.
(4) Logging on to the vision sensor requires the "User name" and "Password". It is necessary to set a user
name for which full access is set in the vision sensor and the password in the robot controller [NVUSER]
and [NVPSWD] parameters.
The user name and password can each be any combination of up to 15 numbers (0-9) and letters (A-Z).
(T/B only supports uppercase letters, so when using a new user, set the password set in the vision
sensor with uppercase letters.)
The user name with full access rights when the network vision sensor is purchased is "admin". The
password is "". Therefore, the default values for the [NVUSER] and [NVPSWD] parameters are [NVUSER]
= "admin" and [NVPSWD] = "".
When the "admin" password is changed with MELFA-Vision or a new user is registered, change the
[NVUSER] and [NVPSWD] parameters. When such a change is made, when the content of the [NVPSWD]
parameter is displayed, "****" is displayed. If the vision sensor side password is changed, open the
[NVPSWD] parameter and directly change the displayed "****" value. After the making the change, reset
the robot controller power.
[Caution]
When multiple vision sensors are connected to one robot controller, set the same user name and
password for all of them.
(5) The state of communications with the network vision sensor when this command is executed can be
checked with M_NVOpen. For details, see the explanation of M_NVOpen.
13-100
MELFA-BASIC V Instructions
13 Maintenance of robot program
(6) If the program is cancelled while this command is being executed, it stops immediately. In order to log on
to the vision sensor, it is necessary to reset the robot program, then start.
(7) When this command is used with multi-tasking, there are the following restrictions.
The <COM number> and <Vision sensor number> must not be duplicated in different tasks.
(a) If the same <COM number> is used in another task, the "attempt was made to open an
already open communication file" error occurs.
【SLOT2】
10 NVOpen "COM2:" As #1
20 ・・・・・・・
【SLOT3】
10 NVOpen "COM2:" As #2
20 ・・・・・・・
"COM2:" is specified with Slot2 and
with Slot3, so an error occurs.
(b) If the same vision sensor number is used in another task, the "attempt was made to open an
already open communication file" error occurs.
【SLOT2】
10 NVOpen "COM2:" As #1
20 ・・・・・・・
【SLOT3】
10 NVOpen "COM2:" As #2
20 ・・・・・・・
"COM2:" and "COM3:" are specified with
Slot2 and with Slot3, but the <Vision
sensor number> is specified as #1, so an
error occurs
(8) A program start condition of "Always" and the continue function are not supported.
(9) Three robots can control the same vision sensor at the same time. If a fourth robot logs on, the line for the
first robot is cut off, so be careful when constructing the system.
(10) The line is not closed with an End command in a program called out with a Callp command, but the line is
closed with a main program End command. The line is also closed by a program reset.
(11) If an interrupt condition is established while this command is being executed, the interrupt processing is
executed immediately even during processing of this command.
(12) If data type for an argument is incorrect, L4220 (syntax error in input command) error is generated.
(13) If there is an abnormal number of command arguments (too many or too few), L3120 (incorrect argument
count) error occurs.
(14) If the character specified in <COM number> is anything other than "COM2:" through "COM8:", L3110
(argument out of range) error occurs.
(15) If the value specified as the <vision sensor number> is anything other than "1" through "8", L3110
(argument out of range) error occurs.
(16) If a <COM number> for which the line is already connected is specified (including the <File number> for
which the line has been opened with an Open command), L3130 (attempt was made to open an already
open communication file) error occurs.
(17) If the vision sensor is not connected before the line is opened, L8600 (vision sensor not connected) error
occurs. (The same set manufacturer parameter [COMTIMER] as in the Ethernet specifications is used.
Currently "1s")
(18) If the same <COM number> or the same <vision sensor number> is specified in another task, L3130
(attempt was made to open an already open communication file) error occurs.
(19) If the user name or password specified in the [NVUSER] parameter (user name) and [NVPSWD]
(password) is wrong, the L8602 (wrong password) error occurs.
(20) If the communications line is cut while this command is being executed, L 8610(abnormal
communications) error occurs and the robot controller side line is closed.
(21) If a program is used for which the starting condition is "Always", the L3287 (this command can not be
used if the start condition is ERR or ALW) error occurs.
MELFA-BASIC V Instructions
13-101
13 Maintenance of robot program
NVClose(Network vision sensor line close)
[Function]
Cuts the line with the specified vision sensor.
[Format]
NVClose□[[#<Vision sensor number>] [,[[#]<Vision sensor number>・・・]]]
[Term]
<Vision sensor number> (Can be omitted)
Specifies a constant from 1 to 8 (the vision sensor number). Indicates the number for the vision sensor
connection to the COM specified with the <COM number>.
When this parameter is omitted, all the lines (vision sensor lines) opened with an NVOpen command
are closed.
Also, up to 8 <vision sensor numbers> can be specified. They are delimited with commas.
Setting range: 1 - 8
[Sample sentence]
If M_NVOpen(1)<>1 Then
NVOpen “COM2:” ASs#1
EneIf
Wait M_NVOpen(1)=1
・・・・・
:
NVClose #1
' When logon has not been completed for vision sensor number 1
' Connects with the vision sensor connected to COM2 and sets its number as
number 1.
'Connects with vision sensor number 1 and waits for logon to be completed.
'Cuts the line with the vision sensor connected to COM2.
[Explanation]
(1) Cuts the line with the vision sensor connected with the NVOpen command.
(2) If the <vision sensor number> is omitted, cuts the line with all the vision sensors.
(3) If a line is already cut, execution shifts to the next step.
(4) Because up to seven vision sensors can be connected at the same time, <Vision sensor numbers> are
used in order to identify which vision sensor to close the line for.
(5) If the program is cancelled while this command is being executed, execution continues until processing of
this command is complete.
(6) When this command is used with multi-tasking, in the task using this command, it is necessary to close
only the lines opened by executing an NVOpen command. At this time, use the <Vision sensor number>
specified with the NVOpen command.
(7) A program start condition of "Always" and the continue function are not supported.
(8) If an End command is used, all the lines opened with an NVOpen command or Open command are closed.
However, lines are not closed with an End command in a program called out with a CAllp command.
Lines are also closed by a program reset, so when an End command or a program reset is executed, it is
not necessary to close lines with this command.
(9) The continue function is not supported.
(10)If an interrupt condition is established while this command is being executed, the interrupt processing is
executed after this command is completed.
(11)If the value specified as the <vision sensor number> is anything other than "1" through "8", L3110
(argument out of range) error occurs.
(12)If there are more than eight command arguments, L3120 (incorrect argument count) error occurs.
13-102
MELFA-BASIC V Instructions
13 Maintenance of robot program
NVLoad(Network vision sensor load)
[Function]
Loads the specified vision program into the vision sensor.
[Format]
NVLoad□#<Vision sensor number>,<Vision program (job) name>
[Term]
<Vision sensor number> (Can not be omitted)
This specifies the number of the vision sensor to control.
Setting range: 1 - 8
<Vision program (job) name> (Can not be omitted)
Specifies the name of the vision program to start.
The vision program extension (.job) can be omitted.
The only characters that can be used are "0" - "9", "A" - "Z", "a" - "z", "-", and "_".
[Sample sentence]
If M_NVOpen(1)<>1 Then
'If vision sensor number 1 log on is not complete
NVOpen “COM2:” As #1 'Connects with the vision sensor connected to COM2.
EndIf
Wait M_NVOpen(1)=1
' Connects with vision sensor number 1 and waits for logon to be completed.
NVLoad #1,”TEST”
'Loads the "Test".
NVPst #1, ””,”E76”,”J81”,”L84”,0,10
'Receives the recognition count recognized with the "Test" program from the E76 cell and the recognition
results from cells J81 through L84, and stores them in P_NvS1().
・・・・
:
NVClose #1 'Cuts the line with the vision sensor connected to COM2.
[Explanation]
(1) Loads the specified vision program into the specified vision sensor.
(2) This command moves to the next step at the point in time when the vision program is loaded into the
vision sensor.
(3) If the program is cancelled while this command is being executed, it stops immediately.
(4) If the specified <vision program name> is already loaded, the command ends with no processing.
(5) When this command is used with multi-tasking, it is necessary to execute the NVOpen command in the
task using this command. Also, use the <vision sensor number> specified with the NVOpen command.
(6) A program start condition of "Always" and the continue function are not supported.
(7) If an interrupt condition is established while this command is being executed, the interrupt processing is
executed immediately.
(8) If data type for an argument is incorrect, a L4220 (syntax error in input command statement) error is
generated.
(9) If there is an abnormal number of command arguments (too many or too few), L3120 (incorrect argument
count) error occurs.
(10)If the <vision sensor number> is anything other than "1" through "8", L3110 (argument out of range) error
occurs.
(11)If the NVOpen command is not opened with the number specified as the <vision sensor number>, L8620
(abnormal vision sensor number specification) error occurs.
(12)If the <vision program name> exceeds 15 characters, L8621 (abnormal vision program name) error
occurs.
(13)If a <vision program name> uses a character other than "0" – "9", "A" – "Z", "-", or "_" (including lowercase
letters), L8621 (abnormal vision program name) error occurs.
(14)If the program specified in the <vision program name> is not in the vision sensor, L8622 (vision program
does not exist) error occurs.
(15)If the vision sensor is "offline", L8650 (Put online) error occurs, so put the vision sensor "Online".
(16)If the communications line is cut while this command is being executed, an L8610 (abnormal
communications) error occurs and the robot controller side line is closed.
MELFA-BASIC V Instructions
13-103
13 Maintenance of robot program
EBRead(EasyBuilder Read)
[Function]
Reads out the data by specifying the tag name of the vision sensor.
The data read from the vision sensor is stored in the specified variable.
Please read out data specifying the tag name by using this command when the vision program (job) is made
with the vision tool EasyBuilder made by Cognex Corporation.
[Format]
EBRead□#<Vision sensor number>, [<Tag name>], <variable name 1> [, <variable name 2>]...[, <Time
out>]
[Term]
<Vision sensor number> (Can not be omitted)
This specifies the number of the vision sensor to control.
Setting range: 1 - 8
<Tag name> (Can be omitted)
Specifies the name of symbolic tag where data read out by the vision sensor is stored .
When omitting it, the value of paraemter EBRDTAG ( initial value is the custom format tag name
"Job.Robot.FormatString") is set to it.
<variable name>(Can not be omitted)
Specifies the variable where the data read from the vision sensor is stored.
It is possible to use two or more variables by delimited with commas.
It is possible to specify the Numeric value variable, Position variable or String variable.
When the Position variable is specified, the value is set to X, Y, and C element, and 0 is set to other
elements.
<Time out> (If omitted, 10)
Specifies the time-out time (in seconds).
Specification range: Integer 1-32767
[Sample sentence]
If M_NvOpen(1)<>1 Then 'If vision sensor number 1 log on is not complete
NVOpen "COM2:" As #1 'Connects with the vision sensor connected to COM2.
End If
Wait M_NvOpen(1)=1
' Connects with vision sensor number 1 and waits for logon to be completed.
NVLoad #1,"TEST"
'Loads the "Test" program.
TrkTrg #1,2,M1#,M2#
'Starts the "Test" program..
EBRead #1,,MNUM,PVS1,PVS2 ‘The data of "Job.Robot.FormatString" tag is read,
and they are preserved in the variable MNUM, PVS1, and PVS2.
-------:
NVClose #1
'Cuts the line with the vision sensor connected to COM2.
[Explanation]
(1) Gets the data by specifying the tag name from an active vision program in the specified vision sensor.
(2) The data read from the vision sensor is stored in the specified variable.
(3) When the specified variable identifier is delimited by comma and enumerated when the data of the vision
sensor is two or more values (character string) delimited by comma, data is stored in order of describing
the variable identifier. In this case, the type of the object data should be the same as the type of the
variable.
(4) When the position variable is specified, the vision data is stored in X, Y, and C element. And the value of
other elements are 0.
The value converted into the radian is set to C element.
(5) The value of receiving data are set only to the specified variables when the number of specified variables
is less than that of receive data.
(6) The variable more than the number of receiving data is not updated when the number of specified
variables is more than that of receive data.
(7) When the tag name is omitted, the value of parameter EBRDTAG is set instead of the tag name. (The
13-104
MELFA-BASIC V Instructions
13 Maintenance of robot program
factory shipment setting is " Job.Robot.FormatString".)
(8) It is possible to specify the timeout time by the numerical value. Within the timeout time, does not move to
the next step until the results are received from the vision sensor. However, if the robot program is
stopped, this command is immediately cancelled. Processing is continued with a restart.
(9) When this command is used with multi-tasking, it is necessary to execute the NVOpen command in the
task using this command. In this case, use the <vision sensor number> specified with the NVOpen
command.
(10) A program start condition of "Always" and the continue function are not supported.
(11) If an interrupt condition is established while this command is being executed, the interrupt processing is
executed immediately even during processing of this command. The processing is executed after
completing the interrupt processing.
< Value of the variable>
The variable by executing the EBRead command is as follows.
(A) Content of specified tag (Pattern_1.Number_Found) is 10
(a) The value when “EBRead #1,"Pattern_1.Number_Found",MNUM” is executed is :
-> MNUM=10
(b) The value when “EBRead #1,"Pattern_1.Number_Found",CNUM” is executed is :
-> CMNUM="10"
(B) Content of specified tag (Job.Robot.FormatString) is 2, 125.75, 130.5, -117.2, 55.1, 0, 16.2
(a) The value when “EBRead #1,,MNUM,PVS1,PVS2” is executed is :
-> MNUM=2
PVS1.X=125.75 PVS1.Y=130.5 PVS1.C=-117.2
PVS2.X=55.1
PVS2.Y=0,
PVS2.C=16.2
* The element (Excluding X and Y element) that the vision data is not set is 0.
(b) The value when “EBRead #1,,MNUM,MX1,MY1,MC1,MX2,MY2,MC2” is executed is :
-> MNUM=2
MX1=125.75 MY1=130.5 MC1=-117.2
MX2=55.1
MY2=0
MC2=16.2
(c) The value when “EBRead #1,,CNUM,CX1,CY1,CC1,CX2,CY2,CC2” is executed is :
-> CNUM="2"
CX1="125.75" CY1="130.5" CC1="-117.2"
CX2="55.1"
CY2="0"
CC2="16.2"
(C) Content of specified tag (Job.Robot.FormatString) is 2, 125.75, 130.5
(a) The value when “EBRead #1,,MNUM,PVS1” is executed is :
-> MNUM=2
PVS1.X=125.75 PVS1.Y=130.5
* The element (Excluding X and Y element) that the vision data is not set is 0.
(12) If data type for an argument is incorrect, L4220 (syntax error in input command statement) error is
generated.
(13) If there is an abnormal number of command arguments (too many or too few), L3120 (incorrect argument
count) error occurs.
(14) If the <vision sensor number> is anything other than "1" through "8", L3110 (argument out of range) error
occurs.
(15) If the NVOpen command is not opened with the number specified as the <vision sensor number>, L3141
(The NVOpen command is not executed.) error occurs.
(16) If data type of the strings data received from the vision sensor and the variable substituted for it is
difference, L3501 (Illegal Receive data(EBREAD)) error is generated.
(17) If the <Timeout> is other than "1" – "32767", L3110 (argument out of range) error occurs.
(18) If the vision sensor does not respond without the time specified as the <Timeout> or within the first 10
seconds if the <Timeout> parameter is omitted, L8632 (vision sensor response timeout) error occurs.
(19) If the communications line is cut while this command is being executed, L8610 (abnormal communications)
error occurs and the robot controller side line is closed.
(20) If the specified tag name does not exist in the active vision program, L8636 (Vision Tag name is abnormal)
error is generated.
(21) Please specify 31 variables or less
( 'number of the recognition' +' position in the coordinate (X,Y,Z)' x 10 ) .
MELFA-BASIC V Instructions
13-105
13 Maintenance of robot program
If 32 variables or more are specified, L4220 (syntax error in input command statement) error is generated.
(22) If the <vision program name> exceeds 15 characters, L8621 (abnormal vision program name) error occurs.
(23) If a <vision program name> uses a character other than "0" – "9", "A" – "Z", "-", or "_" (including lowercase
letters), L8621 (abnormal vision program name) error occurs.
(24) If the program specified in the <vision program name> is not in the vision sensor, L8622 (vision program
does not exist) error occurs.
(25) If the <Recognition count cell>, <Start cell>, or <End cell> contains a number other than "0" – "399" or a
letter other than "A – "Z", L3110 (argument out of range) error occurs.
(26) If there is no value in the cell specified in "Recognition count cell", L8630 (invalid value in specified for
recognition count cell) error occurs.
(27) If the <Start cell> and <End cell> are reversed, L8631 (specified cell value out of range) error occurs.
(28) If the number of data included in the cell which specifies it by <Start cell> and <End cell> exceeds 90,
L8631 (specified cell value out of range) error occurs.
(29) If the range specified by <Star cell> and <End cell> exceeds line 30 and row 10, L8631 (specified cell
value out of range) error occurs.
(30) If the <Type> is other than "0" - "7", L3110 (argument out of range) error occurs.
13-106
MELFA-BASIC V Instructions
13 Maintenance of robot program
M_Enc (Encoder value)
[Function]
Read the encoder value of the designated logic encoder number. It can be changed to the optional value.
[Format]
[Write]
M_Enc(<logic encoder number>) = <Fixed value>
[Read]
<Numeric value> = M_Enc(<logic encoder number>)
[Terminology]
< logic encoder number [integer]>:(can be omitted.)
Specify the logic encoder number which acquires the encoder value.
Setting range: 1 to 8
If the argument is omitted, 1 is set as the default value.
< Fixed value [double-precision real number]>
Specify the numerical value.
< Numeric value [double-precision real number]>
Specify the numeric variable in which the value.
[Reference program]
MENC1#=M_Enc(1)
MENC2#=M_Enc(M1%)
TrWrt P1, M_Enc(1), MK
M_Enc(1)=0
'Stocks the logic encoder number encoder of 1 value in MENC1#
variable.
'Stocks the encoder value of the logic encoder number designated by
M1% variable in MENC2# variable.
' This variable writes in buffer 1 that the location of the workpiece which
was kind number MK is P1 at the present encoder value M_Enc (1).
'Changes the encoder value of the logic encoder No.1 to "0".
[Explanation]
(1) Acquire the encoder value of the designated <logic encoder number>.
The acquired encoder value is written in a tracking buffer using a TrWrt command to tracking movement.
(2) The encoder value is the double-precision real number value, so please specify a variable of
double-precision real number type as<Numeric value>.
(3) It's possible to change the encoder value of the number specified as<logic encoder number> to the value
specified as<Fixed value>.
(4) You can omit the step to specify <logic encoder number>.When it is omitted, logic encoder number will be
treated as "1."
(5) Error L.3110 (value of the argument outside of the range) occurs when <Condition number> is outside a
set range.
*When inputting the numerical value including the decimal point, its value is rounded up.
MELFA-BASIC V Instructions
13-107
13 Maintenance of robot program
M_EncL (Latched Encoder value)
[Function]
At the instant of receipt of a TREN signal for Q17EDPX module, a stored encoder data is read.
Also, 0 is written to clear the stored encoder data to zero.
[Format]
[Write]
M_EncL(<logic encoder number>) = <Fixed value>
[Read]
<Numeric value> = M_EncL(<logic encoder number>)
[Terminology]
<Logic encoder number [Integer]> :(can be omitted)
Specify the value of logic encoder number
< Fixed value [double-precision real number]>
Specify the stored encoder data to initial value(zero or other).
<Numeric variable [double-precision real number]>
Specify the numerical variable to substitute.
[Reference program]
1 MENC1#=M_EncL(1)
2 MENC2#=M_EncL(M1%)
3 TrWrt P1, M_EncL(1), MK
4 M_EncL(1)=0
At logic encoder number 1, assign encoder data stored at the time of receipt
of a TREN signal to the variable MENC1#.
At a logic encoder number specified in the variable M1%, assign encoder data
stored at the time of receipt of a TREN signal to the variable MENC2#.
Write workpiece position data P1, encoder value M_EncL(1) present at the
time of receipt of a TREN signal and work category number MK onto the buffer
1 for tracking.
Use latched data to clear the encoder to zero as it is not required until next
latched data is used.
[Explanation]
(1) Stored encoder value corresponding to the encoder number specified for <logical encoder number> is
acquired.
Encoder value is stored in memory at a low-to-high or high-to-low transition of TREN signal which has
been specified with a DIP switch on Q173DPX module.
Encoder value thus acquired is written onto the buffer for tracking by using a TrWrk command so as to
perform tracking operations.
(2) As encoder value is in double-precision real number, specify <Numerical variable> with a variable which
is of double-precision real-number type.
(3) You can omit the step to specify <Logic encoder number>. When it is omitted, logic encoder number will
be treated as "1."
(4) Number which you can enter to specify <Logic encoder number> is an integer in the range of "1" to "8."
Entering anything else causes L3110 (Argument value range over) error to occur.
* If a number having a decimal part is entered, the fraction of 0.5 or over will be counted as one and the
rest will be cut away.
(5) As latched encoder data represents a value present at a low-to-high or high-to-low transition of TREN
signal, you should check input corresponding to input number in 810 to 817 range which has been
assigned to TREN signal when reading it out.
(6) You can clear the encoder to zero by typing "0" after having used latched encoder data. This step may be
performed as a precaution against using previously latched data.
13-108
MELFA-BASIC V Instructions
13 Maintenance of robot program
P_EncDlt(The encoder amount of movement)
[Function]
Set the amount of robot movement per encoder pulse.
Or, the amount of robot movement per encoder pulse is returned.
The amount of robot movement : Straight line tracking :(X, Y, Z, 0, 0, 0, L1, L2)
[Format]
[Write]
P_EncDlt(<Encoder number>) = <Position Data>
[Read]
<Position Variables> = P_EncDlt(<Encoder number>)
[Terminology]
<Encoder number [Integer]>: (can be omitted.)
Specify a logic number indicating the external encoder that performs tracking operation.
Setting range: 1 to 8
If the argument is omitted, 1 is set as the default value.
<Position Data [Position]>
Specify the amount of robot movement per encoder pulse.
<Position Variables [Position]>
Specify a position variable that stores amount of robot movement per encoder pulse.
[Reference Program]
P_EncDlt(1) = P1
P2 = P_EncDlt(2)
'Amount of robot movement per encoder pulse of encoder number 1 is
set.
'Amount of robot movement per encoder pulsee of encoder number 2 is
stored in positional variable.
[Explanation]
(1) The amount of robot movement per encoder pulse of specified <Encoder number> is set. Or, the amount of
robot movement per encoder pulse is returned.
(2) You can omit the step to specify <logic encoder number>.When it is omitted, logic encoder number will be
treated as "1."
(3) Error L.3110 (value of the argument outside of the range) occurs when <Encoder number> is outside a set
range.
MELFA-BASIC V Instructions
13-109
13 Maintenance of robot program
P_TrkPAcl
[Function]
Change the tracking acceleration coefficient of the parameter “TRPACL” temporarily.
[Format]
[Writing]
P_TrkPAcl(<Condition number>) = <Position data>
[Referencing]
<Position variable> = P_TrkPAcl(<Condition number>)
[Terminology]
< Condition number [Integer]>
Specify the condition number corresponding to the tracking.
Setting range: 1 to 8
<Position data [Position]>
Specify the tracking acceleration coefficient.
Setting area: For each component, 0.10 to 10.0
<Position variable [Position]>
Return the specified tracking acceleration coefficient.
[Reference program]
P_TrkPAcl(1) = (0.2, 0.2, 0.2, 1.0, 1.0, 1.0, 1.0, 1.0) ’Specify the tracking acceleration coefficient.
P_TrkPDcl(1) = (0.2, 0.2, 0.2, 1.0, 1.0, 1.0, 1.0, 1.0) ’ Specify the tracking deceleration coefficient.
・・・・・
*LTRST
TrkMv On, PGTUP, 1, *S91STOP ’Start the interrupt processing->Trk On-> Move to the tracking upper
position
[Explanation]
(1) Specify the tracking acceleration coefficient used in tracking command “TrkMv”.
(2) You can confirm the tracking acceleration coefficient by referencing “P_TrkPAcl”.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
13-110
MELFA-BASIC V Instructions
13 Maintenance of robot program
P_TrkPDcl
[Function]
Change the tracking deceleration coefficient of the parameter “TRPDCL” temporarily.
[Format]
[Writing]
P_TrkPDcl(<Condition number>) = <Position data>
[Referencing]
<Position variable> = P_TrkPDcl(<Condition number>)
[Terminology]
< Condition number [Integer]>
Specify the condition number corresponding to the tracking.
Setting area: 1 to 8
<Position data [Position]>
Specify the tracking deceleration coefficient.
Setting area: For each component, 0.1 to 10.0
<Position variable [Position]>
Return the specified tracking deceleration coefficient
[Reference program]
P_TrkPAcl(1) = (0.2, 0.2, 0.2, 1.0, 1.0, 1.0, 1.0, 1.0) ’ Specify the tracking acceleration coefficient.
P_TrkPDcl(1) = (0.2, 0.2, 0.2, 1.0, 1.0, 1.0, 1.0, 1.0) ’ Specify the tracking deceleration coefficient.
・・・・・
*LTRST
TrkMv On, PGTUP, 1, *S91STOP ’Start the interrupt processing->Trk On-> Move to the tracking upper
position
[Explanation]
(1) Specify the tracking deceleration coefficient used in tracking command “TrkMv”.
(2) You can confirm the tracking deceleration coefficient by referencing “P_TrkPDcl”.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
MELFA-BASIC V Instructions
13-111
13 Maintenance of robot program
M_TrkBuf
[Function]
Specify and refer to the tracking buffer number to use.
[Format]
[Writing]
M_TrkBuf(<Condition number>) = <Value>
[Referencing]
<Numeric variable> = M_TrkBuf(<Condition number>)
[Terminology]
<Condition number [Integer]>
Specify the condition number corresponding to the tracking.
Setting range: 1 to 8
<Value [Integer]>
Specify the tracking buffer number.
Setting range: 1 to the first argument of parameter “TRBUF”.
The initial value of “TRBUF” is 2, the maximum value of “TRBUF” is 8.
<Numeric variable [Integer]>
Return the specified tracking buffer number.
[Reference program]
M_TrkBuf(1) = 1
・・・・・
TrkChk 1, P1, PWAIT, *LTRST
’The tracking buffer corresponding to the condition number 1 uses number
1.
’Check the workpiece in the tracking buffer which is specified.
[Explanation]
(1) Specify the tracking buffer number used in tracking command “TrkChk”,”TrkWait”,”TrkMv”.
(2) You can confirm the specified tracking buffer number by referencing “M_TrkBuf”.
(3) If the tracking buffer number is not specified by using “M_TrkBuf”before executing “TrkChk” command,
tracking number will be treated as “1”.
(4) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(5) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
(6) Number which you can enter to specify <Value> is an integer in the range of "1" to " the first argument of
parameter “TRBUF” ". Entering anything else causes L3110 (Argument value range over) error to occur.
13-112
MELFA-BASIC V Instructions
13 Maintenance of robot program
M_TrkStart
[Function]
Specify and refer to the starting position of range in which it is possible to execute the tracking.
Starting position specifies the coordinates from the reference point (coordinate value”0.00”) in the world
coordinates system.
[Format]
[Writing]
M_TrkStart(<Condition number>) = <Value>
[Referencing]
<Numeric variable> = M_TrkStart(<Condition number>)
[Terminology]
< Condition number >
Specify the condition number corresponding to the tracking.
Setting range : 1 ~ 8
< Value >
Specify the starting position (mm) of range in which it is possible to execute the tracking.
Starting position is the coordinates from the reference point (coordinate value”0.00”) in the world
coordinates system.
Setting range : 0.00 ~ (Robot operation range)
Unit
: mm
< Numeric variable >
Return the starting position of range in which it is possible to execute the tracking..
[Reference program]
M_TrkBuf(1) = 1
M_TrkStart(1) = 300
・・・・・
TrkChk 1, P1, PWAIT, *LTRST
’ Tracking buffer corresponding to the condition number 1 uses number 1.
’ Starting position of range in which it is possible to execute the tracking
corresponding to condition number 1 is 300mm.
’ Check the workpiece of the specified tracking buffer.
[Explanation]
(1) Specify the starting position of range in which it is possible to execute the tracking used in tracking command
“TrkChk””TrkWait”.
(2) You can confirm the specified starting position of range in which it is possible to execute the tracking by
referencing “M_TrkStart”.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
MELFA-BASIC V Instructions
13-113
13 Maintenance of robot program
M_TrkEnd
[Function]
Specify and refer to the ending position of range in which it is possible to execute the tracking.
Ending position specifies the coordinates from the reference point (coordinate value”0.00”) in the world
coordinates system.
[Format]
[Writing]
Example ) M_TrkEnd(<Condition number>) = <Value>
[Referencing]
Example ) <Numeric variable> = M_TrkEnd(<Condition number>)
[Terminology]
< Condition Number >
Specify the condition number corresponding to tracking.
Setting range : 1 ~ 8
<Value>
Specify the ending position (mm) of range in which it is possible to execute the tracking.
Ending position is the coordinates from the reference point (coordinate value”0.00”)
in the world coordinates system.
Setting range : 0.00 ~ (Robot operation range)
Unit
: mm
< Numeric Variable >
Return end position of range in which it is possible to execute the tracking..
[Reference program]
M_TrkBuf(1) = 1
M_TrkStart(1) = 300
M_TrkEnd(1) = -100
・・・・・
TrkChk 1, P1, PWAIT, *LTRST
’ Tracking buffer corresponding to the condition number 1 uses number 1.
’ Starting position of range in which it is possible to execute the tracking
corresponding to the condition number 1 is 300mm.
’ End position of range in which it is possible to execute the tracking
corresponding to the condition number 1 is -100mm.
’ Check the workpiece of the specified tracking buffer
[Explanation]
(1) Specify the ending position of range in which it is possible to execute the tracking used in tracking command
“TrkChk””TrkWait”.
(2) You can confirm the specified ending position of range in which it is possible to execute the tracking by
referencing “M_TrkEnd”.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
13-114
MELFA-BASIC V Instructions
13 Maintenance of robot program
M_TrkStop
[Function]
Specify and refer to forced ending position of range in which it is possible to execute the tracking.
Forced ending position specifies the coordinates from the reference point (coordinate value”0.00”)
In the world coordinates system.
[Format]
[Writing]
Example ) M_TrkStop(<Condition number>) = <Value>
[Referencing]
Example ) <Numeric variable> = M_TrkStop(<Condition number>)
[Terminology]
< Condition Number >
Specify the condition number corresponding to tracking.
Setting range : 1 ~ 8
<Value>
Specify the forced ending position (mm) of range in which it is possible to execute the tracking.
Forced ending position is the coordinates from the reference point (coordinate value”0.00”) in the world
coordinates system.
Setting range : 0.00 ~ (Robot operation range)
Unit
: mm
< Numeric Variable >
Return forced ending position of range in which it is possible to execute the tracking..
[Reference program]
M_TrkBuf(1) = 1
M_TrkStart(1) = 300
M_TrkEnd(1) = -100
M_TrkStop(1) = -200
’ Tracking buffer corresponding to the condition number 1 uses number 1.
’ Starting position of range in which it is possible to execute the tracking
corresponding to condition number 1 is 300mm.
’ End position of range in which it is possible to execute the tracking
corresponding to condition number 1 is -100mm.
’ Forced ending position of range in which it is possible to execute the tracking
corresponding to condition number 1 is -200mm.
・・・・・
TrkChk 1, P1, PWAIT, *LTRST ’ Check the work of the specified tracking buffer
[Explanation]
(1) Specify the forced ending position of range in which it is possible to execute the tracking used in tracking
command “TrkChk””TrkWait”.
(2) You can confirm the specified forced ending position of range in which it is possible to execute the tracking
by referencing “M_TrkStop”.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
MELFA-BASIC V Instructions
13-115
13 Maintenance of robot program
M_TrkTime
[Function]
Specify and refer to the timeout value for “TrkWait” command.
[Format]
[Writing]
M_TrkTime(<Condition number>) = <Value>
[Referencing]
<Numeric variable> = M_TrkTime(<Condition number>)
[Terminology]
< Condition number [Integer]>
Specify the condition number corresponding to the tracking.
Setting range: 1 to 8
<Value [Single-precision real number]>
Specify the timeout time waits until the workpiece enters to range in which it is possible to execute the
tracking..
Setting range: 0.00 to
Unit: second
< Numeric Variable [Single-precision real number]>
Return specified tracking buffer number.
[Reference program]
M_TrkTime(1) = 60
’Set the timeout time to 60 second.
・・・・・
TrkChk 1, PSave, PWait, *LTRST ’ No workpiece->PSave/ Waits for the workpiece->PWait/Workpiece can
be followed by tracking->*LTRST
If M_TrkChk(1) <= 1 Then GoTo *LBFCHK ’0:No workpiece/1:Workpiece passed over->Jump to *LBFCHK.
TrkWait *LBFCHK
’Waits until workpiece enters to the tracking area
[Explanation]
(1) Specify the timeout time used in tracking command “TrkWait”.
(2) You can confirm the specified timeout time by referencing “M_TrkStop”.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
13-116
MELFA-BASIC V Instructions
13 Maintenance of robot program
P_TrkBase
[Function]
Specify and refer to the origin (For example, the position which a vision sensor outputs) of the workpiece to be
followed.
Specify the position data (For example, the position which a vision sensor outputs) used as the reference
point when you teach the movement path on the workpiece, as described below
The robot moves to the relative position correspond to this reference point by the movement instruction during
the tracking.
[Vision recognition position]
[Teaching position]
[Robot program]
Field of vision
P1
P_TrkBase(1)=P0
・・・・・・
Mvs P1
Mvs P2
Mvs P0
P0
P2
Workpiece
Vision
recognition point
[Robot operation]
While following…
Teach three position P0,P1,P2
TrkMv Off
[Structure]
Regard the position outputted by vision as
P0 by “P_TrkBase(1)=P”, “TrkBase P0”
Follow “Mvs P1”, “Mvs P2” as the reference
position from P0.
If the workpiece
Declines, P0
Inclines too, and
P1,P2 declines
correspond to P0.
For example, when you only absorb the workpiece (do not operate along the external form of the workpiece),
you may appoint the position specified when you teach the position which absorb the workpiece (for example,
“PTeach”)as “P_TrkBase”,and appoint the above “PTeach” as movement instruction that moves during “TrkOn
~TrkMv Off”(Mov PTeach).
[Format]
[Writing]
P_TrkBase(<Condition number>) = <Position data>
[Referencing]
<Position variable> = P_TrkBase(<Condition number>)
MELFA-BASIC V Instructions
13-117
13 Maintenance of robot program
[Terminology]
< Condition number [Integer]>
Specify the condition number corresponding to the tracking.
Setting range: 1 to 8
<Position data [Position]>
Specify the base position of the tracking.
<Position variable [Position]>
Return the base coordinates of the specified tracking.
[Reference program]
P_TrkBase(1) = PTBASE ’Specify the tracking base.
・・・・・
*LTRST
TrkMv On, PGTUP, 1, *S91STOP ’Start the interrupt processing->Trk On->Move to the tracking upper
position
[Explanation]
(1) Specify the workpiece coordinate system origin used in tracking command “TrkMv”.
(2) You can confirm the workpiece coordinate system origin by referencing “P_TrkBase”.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
13-118
MELFA-BASIC V Instructions
13 Maintenance of robot program
M_TrkChk
[Function]
Refer to the workpiece state read from the tracking buffer when “TrkChk”, “TrkWait” command is executed.
[Format]
[Referencing]
<Numeric variable> = M_TrkChk(<Condition number>)
[Terminology]
< Condition number [Integer]>
Specify the condition number corresponding to the tracking.
Setting range: 1 to 8
< Numeric variable [Integer]>
Return the workpiece state read from the tracking buffer when “TrkChk”, “TrkWait” command is executed.
0 : No workpiece in the buffer.
1 : The specified workpiece passed over.
2 : Wait for the specified workpiece.
3 : The specified workpiece can be followed by tracking.
0:No workpiece in
the buffer.
2:Wait for the specified
workpiece.
3:The specified
Workpiece can be
followed by tracking.
4 : The specified Workpiece
passed over.
Workpiece movement direction.
Tracking
area
Target
Workpiece
Start
+400mm
Ending
-100mm
Forced ending
area
Forced ending
-300mm
[Reference program]
M_TrkBuf(1) = 1
’ Tracking buffer corresponding to the condition number 1 uses number 1.
・・・・・
*LBFCHK
TrkChk 1, PSave, PWait, *LTRST ’ Check the workpiece of the specified tracking buffer.
If M_TrkChk(1) <= 1 Then GoTo *LBFCHK ’0:No Workpiece/ 1: Workpiece passed over->Jump to
“LBFCHK”.
[Explanation]
(1) You can confirm the workpiece state read from the tracking buffer when “TrkChk”, “TrkWait” command is
executed..
(2) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
MELFA-BASIC V Instructions
13-119
13 Maintenance of robot program
"1."
(3) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
(4) When you execute the writing to “M_TrkChk”, L3210 (This variable is write protected) error occurs.
13-120
MELFA-BASIC V Instructions
13 Maintenance of robot program
P_TrkWork
[Function]
Refer to the workpiece position read from the tracking buffer when “TrkChk”, “TrkWait” command is executed.
[Format]
[Referencing]
<Position type variable> = P_TrkWork(<Condition number>)
[Terminology]
< Condition Number [Integer]>
Specify the condition number corresponding to the tracking.
Setting range: 1 to 8
<Position variable [Position]>
Return the workpiece position read from the tracking buffer corresponding to the specified condition
number.
[Reference program]
M_TrkBuf(1) = 1
’ Tracking buffer corresponding to the condition number 1 uses number 1.
・・・・・
TrkChk 1, PSave, PWait, *LTRST ’Check the workpiece of the specified tracking buffer.
・・・・・
PWrk = P_TrkWork(1)
’Substitute the workpiece position read from the tracking buffer 1.
[Explanation]
(1) You can confirm the workpiece position read from the tracking buffer when “TrkChk”, “TrkWait” command is
executed.
(2) If there is no data in the tracking buffer, the data will be cleared.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
(5) If you execute the writing to “P_TrkWork”, L3210 (This variable is write protected) error occurs.
MELFA-BASIC V Instructions
13-121
13 Maintenance of robot program
M_TrkEnc
[Function]
Refer to the encoder value read from the tracking buffer when the “TrkChk”, “TrkWait” command is executed.
[Format]
[Referencing]
<Numeric variable> = M_TrkEnc(<Condition number>)
[Terminology]
< Condition number [Integer]>
Specify the condition number corresponding to the tracking.
Setting range: 1 to 8
< Numeric variable [Long-precision real number]>
Return the encoder value (pulse) read from the tracking buffer correspond to the specified condition
number.
[Reference program]
M_TrkBuf(1) = 1
’ Tracking buffer corresponding to the condition number 1 uses number 1.
・・・・・
TrkChk 1, P1, PWAIT, *LTRST ’Check the workpiece of the specified tracking buffer.
・・・・・
MEnc& = M_TrkEnc(1)
’ Substitute the workpiece position read from the tracking buffer 1.
[Explanation]
(1) You can confirm the encoder value read from the tracking buffer when the “TrkChk”, “TrkWait” command is
executed.
(2) If there is no data in the tracking buffer, the data will be cleared.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
(5) If you execute the writing to “M_TrkEnc”, L3210 (This variable is write protected) error occurs.
13-122
MELFA-BASIC V Instructions
13 Maintenance of robot program
M_TrkKind
[Function]
Refer to the model number read from the tracking buffer when “TrkChk”, “TrkWait” command is executed.
[Format]
[Referencing]
<Numeric variable> = M_TrkKind(<Condition number>)
[Terminology]
< Condition number [Integer]>
Specify the condition number corresponding to the tracking.
Setting range: 1 to 8
< Numeric variable [Long-precision real number]>
Return the model number read from the tracking buffer correspond to the specified condition number.
[Reference program]
M_TrkBuf(1) = 1
’ Tracking buffer corresponding to the condition number 1 uses number 1.
・・・・・
TrkChk 1, P1, PWAIT, *LTRST ’ Check the workpiece of the specified tracking buffer.
・・・・・
MKind = M_TrkKind(1)
’ Substitute the model number read from the tracking buffer 1.
[Explanation]
(1) You can confirm the model number read from the tracking buffer when “TrkChk”, “TrkWait” command is
executed.
(2) If there is no data in the tracking buffer, the data will be cleared.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
(5) If you execute the writing to “M_TrkKind”, L3210 (This variable is write protected) error occurs.
MELFA-BASIC V Instructions
13-123
13 Maintenance of robot program
M_TrkEncNo
[Function]
Refer to the encoder number read from the tracking buffer when “TrkChk”, “TrkWait” command is executed.
[Format]
[Referencing]
<Numeric variable> = M_TrkEncNo(<Condition number>)
[Terminology]
< Condition number [Integer]>
Specify the condition number corresponding to the tracking.
Setting range: 1 to 8
< Numeric variable [Long-precision real number]>
Return the encoder number read from the tracking buffer correspond to the specified condition number.
[Reference program]
M_TrkBuf(1) = 1
’ Tracking buffer corresponding to the condition number 1 uses number 1.
・・・・・
TrkChk 1, P1, PWAIT, *LTRST ’ Check the workpiece of the specified tracking buffer.
・・・・・
MEncNo = M_TrkEncNo(1)
’ Substitute the encoder number read from the tracking buffer 1.
[Explanation]
(1) You can confirm the encoder number read from the tracking buffer when “TrkChk”, “TrkWait” command is
executed.
(2) If there is no data in the tracking buffer, the data will be cleared.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated as
"1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
(5) If you execute the writing to “M_TrkEncNo”, L3210 (This variable is write protected) error occurs.
13-124
MELFA-BASIC V Instructions
13 Maintenance of robot program
P_TrkPixel
[Function]
Refer to the workpiece pixel position read from the tracking buffer when “TrkChk”, “TrkWait” command is
executed.
[Format]
[Referencing]
<Position type variable> = P_TrkPixel(<Condition number>)
[Terminology]
< Condition Number [Integer]>
Specify the condition number corresponding to the tracking.
Setting range: 1 to 8
<Position variable [Position]>
Return the workpiece pixel position read from the tracking buffer corresponding to the specified condition
number.
[Reference program]
M_TrkBuf(1) = 1
’ Tracking buffer corresponding to the condition number 1 uses number 1.
・・・・・
TrkChk 1, PSave, PWait, *LTRST ’Check the workpiece of the specified tracking buffer.
・・・・・
Pixel = P_TrkPixel(1)
’Substitute the workpiece pixel position read from the tracking buffer 1.
[Explanation]
(1) You can confirm the workpiece pixel position read from the tracking buffer when “TrkChk”, “TrkWait”
command is executed.
(2) If there is no data in the tracking buffer, the data will be cleared.
(3) You can omit the step to specify <Condition number>.When it is omitted, condition number will be treated
as "1."
(4) Number which you can enter to specify <Condition number> is an integer in the range of "1" to "8."
Entering anything else causes L3110 (Argument value range over) error to occur.
(5) If you execute the writing to “P_TrkPixel”, L3210 (This variable is write protected) error occurs.
MELFA-BASIC V Instructions
13-125
13 Maintenance of robot program
P_TrkTarget
[Function]
Refer to the information (“P_TrkWork”, “M_TrkEnc”) read from the tracking buffer when “TrkChk”, “TrkWait”
command is executed, and the current workpiece position calculated by the state variable “P_EncDlt”.
[Format]
[Referencing]
<Position variable> = P_TrkTarget
[Terminology]
<Position variable>
Return the information (P_TrkWork, M_TrkEnc) read from the tracking buffer when “TrkChk”, “TrkWait”
command is executed, and the current workpiece position calculated from the state variable “P_EncDlt”.
[Reference program]
M_TrkBuf(1) = 1
’ Tracking buffer corresponding to the condition number 1 uses number 1.
・・・・・
TrkChk 1, P1, PWAIT, *LTRST ’ Check the workpiece of the specified tracking buffer.
・・・・・
PWrkNow = P_TrkTarget
’ Substitute the current workpiece position.
[Explanation]
(1) You can confirm the current workpiece position by referencing the information read from the tracking
buffer when “TrkChk”, “TrkWait” command is executed.
(2) If you execute the writing to “M_TrkTarget”, L3210 (This variable is write protected) error occurs.
13-126
MELFA-BASIC V Instructions
13 Maintenance of robot program
M_Trbfct
[Function]
Refer to the number of workpieces which exists in a designated buffer.
[Format]
[Referencing]
< Numeric value > = M_Trbfct(<Buffer number>)
[Terminology]
<Buffer number [integer]> : (can be omitted.)
Specify the tracking buffer number.
Setting range : 1 to the 1st argument of a parameter "TRBUF"
If the argument is omitted, 1 is set as the default value
< Numeric value [integer]>
The number of workpieces in the designated buffer is returned to< Buffer number>.
[Reference program]
MWrk = M_Trbfct(1)
'The number of works in number 1 of tracking buffer is stocked in
variable MWrk.
[Explanation]
(1) You can confirm the number of works in the designated buffer.
(2) You can omit the step to specify <Buffer number>.When it is omitted, buffer number will be treated as "1."
(3) Error L.3110 (value of the argument outside of the range) occurs when <Buffer number> is outside a set
range.
MELFA-BASIC V Instructions
13-127
13 Maintenance of robot program
P_CvSpd
[Function]
Return the conveyer speed.
[Format]
[Referencing]
< Position variable > = P_CvSpd(<Logic encoder number >)
[Terminology]
<Logic encoder number [integer]> : (can be omitted.)
Specify the number of logic encoders which do a chase movement.
Setting range: 1 to 8
If the argument is omitted, 1 is set as the default value
<Position variable [position]>
Return the conveyer speed.
In case of the high speed and accuracy tracking function, returns the rate in each coordinate of (X, Y, Z,
0, 0, 0, L1, L2).
(When a conveyor is arranged slantingly, the value enters X,Y,Z.)
[Reference program]
PCvSpd = P_CvSpd(1)
' Stocks the speed of logic encoder No 1 in a PCvSpd variable
[Explanation]
(1) Refer to speed of the conveyer and the turntable.
(2) You can omit the step to specify <Logic encoder number>.When it is omitted, logic encoder number will be
treated as "1."
(3) Error L.3110 (value of the argument outside of the range) occurs when <Logic encoder number> is outside
a set range.
(4) This variable is read only.
13-128
MELFA-BASIC V Instructions
13 Maintenance of robot program
M_Hnd
[Function]
Set and refer to the hand open/close states corresponding to the specified <Hand number>.
The contents of processing of this variable are same as HOpen and HClose, but it's used for a<processing>
part of Wth / WthIf join mainly.
[Format]
[Writing]
M_Hnd(<Hand number>) = <Value>
[Referencing]
<Numeric variable> = M_Hnd(<Hand number>)
[Terminology]
< Hand number [Integer]>
Specify the hand number: (cannot be omitted).
Setting area: 1 to 8
<Value [Integer]>
Describe the hand open/close states by numeric variable, constants, or numeric operation expression.
0 : Hand close
1 : Hand open
< Numeric Variable [Integer]>
Specify the numeric variable which stores the hand open/close states.
-1 : Undefined hand
0 : Hand close
1 : Hand open
[Reference program]
1 Mov P1, 50
' Move 50mm to Z direction in the tool coordinates system of P1 by Joint interpolation
movement.
2 Mvs P1 WthIf M_Ratio > 50, M_Hnd(1) = 0 ' Close the hand of the hand number 1 if it comes to 50% of
distance of the purpose position during the movement to P1.
3 *Label : If M_Hnd(1) = 1 Then GoTo *Label ' Wait until the hand of the hand number 1 closes.
[Explanation]
(1) Change and refer to the hand open/close states.
(2) Writing to “M_Hnd” is treated as the processing equal to the HOpen instruction /HClose instruction.
(3) You can make a statement on <Additional condition>/<Processing> of accompanying instruction to the
operation instruction.
(4) Initial value just after the power supply obeys the setting value of the parameter “HANDTYPE” or
“HANDINIT” (Output signal number 900 to 907),or “ORS***”(General-purpose output signal).
(5) If you appoint the hand number which is not specified by the parameter “HANDTYPE”, it becomes no
processing at the time of writing, and -1 (Undefined hand) returns at the time of reading.
(6) If the hand of specified < hand number> is Double solenoid (D) setting, and output signal state is neither
hand open(&B01) nor hand close($B10), return 1(hand open).
(7) You can omit the step to specify <Hand number>.When it is omitted, L3110 (Argument value range over)
error occurs.
(8) Number which you can enter to specify <Hand number> is an integer in the range of "1" to "8." Entering
anything else causes L3110 (Argument value range over) error to occur.
(9) Number which you can enter to specify <Value> is an integer “0” or “1”. Entering anything else causes
L3110 (Argument value range over) error to occur.
(10) If you write “M_Hnd” by using the task slot which does not acquire a machine control rights, L3280 (Cannot
execute without GETM) error occurs.
(11) If you read “M_Hnd” by using the task slot which does not acquire a machine control rights, return the robot
hand open/close states of machine number 1.
(12) It is impossible to use for the electric hand with many functions made in TAIYO company.
Please refer to the explanation of “Usage of the electric hand with many functions”.
(13) “M_Hnd” does not correspond to the hand macro.
MELFA-BASIC V Instructions
13-129
13 Maintenance of robot program
M_NvOpen
[Function]
Indicates the vision sensor line connection status.
[Format]
<Numeric value> = M_NvOpen(<Vision sensor number>)
[Terminology]
<Vision sensor number>
This specifies the number of the vision sensor to control.
Setting range: 1 - 8
<Numeric value>
Indicates the vision sensor line connection status.
-1 : Not connected
0 : Line connecting (Logon not complete)
1 : Logon complete
[Sample sentence]
If M_NVOpen(1)<>1 Then ' If vision sensor number 1 is not connected
NVOpen “COM2:” As #1 ' Connects with the vision sensor connected to COM2 and sets its number as
number 1.
EndIf
Wait M_NVOpen(1)=1
' Connects with vision sensor number 1 and waits for the logon state.
・・・・・
:
NVClose #1
'Cuts the line with the vision sensor connected to COM2.
[Explanation]
(1) Indicates the status of a line connected with a network vision sensor with an NVOpen command when the
line is opened.
(2) The initial value is "-1". At the point in time that the NVOpen command is executed and the line is
connected, the value becomes "0" (line connecting). At the point in time that the network vision sensor
logon is completed, the value becomes "1" (logon complete).
(3) This variable strongly resembles the status of status variable M_OPEN, but whereas M_Open becomes
"1" when the connection is verified, M_NVOpen becomes "1" when the vision sensor logon is complete.
(4) If the type of data specified as an array element is incorrect, L4220 (syntax error in input command
statement) error occurs.
(5) If there is an abnormal number of array elements (too many or too few), L3810 (incorrect argument type)
error occurs.
(6) If an array element other than "1" through "8" is specified, L4370 (array element mistake) error occurs.
13-130
MELFA-BASIC V Instructions
13 Maintenance of robot program
13.2. Timing Diagram of Dedicated Input/Output Signals
13.2.1. Robot Program Start Processing
The signal timing when a robot program is started from an external device is shown below.
PLC
Robot
①
Turning servo ON
(SRVON)
Servo ON
(SRVON)
Program selectable
(SLOTINIT)
Program reset
(SLOTINIT)
Operating
(START)
Start
(START)
Stop
(STOP)
②
③
④
H
L
H
L
H
L
H
L
H
L
H
L
H
L
1) PLC sets “servo ON H” when it detects “turning servo ON L.” The robot turns the servo power supply on and
sets “turning servo ON H.” PLC acknowledges “turning servo ON H” and sets “servo ON L.”
2) PLC sets “program reset H” upon receiving “program selectable L.” The robot returns to the beginning of the
program and sets “program selectable H” when the program becomes ready to be started. PLC sets
“program reset L” when it detects “program selectable H.”
3) PLC acknowledges “turning servo ON H,” “program selectable H” and “operating L” and sets “start H.”
The robot sets “program selectable L” and “operating H” when it detects “start H.” PLC confirms “operating
H” and sets “start L.”
4) If a stop signal is input, the following processing is performed.
Upon receiving “stop H” from PLC, the robot sets “operating L.”
Timing Diagram of Dedicated Input/Output Signals
13-131
14 Troubleshooting
14. Troubleshooting
This section explains causes of error occurrence and actions to be taken.
14.1. Occurrence of errors of Tracking and Vision Sensor
Error
number
L2500
Table 14-1
Error description
Tracking encoder
data error
L2510
Tracking parameter
reverses
L2520
Tracking parameter is
range over
L2530
There is no area
where data is written
L2540
There is no read data
L2560
Illegal parameter of
Tracking
14-132
List of Tracking relation Errors
Causes and actions
[Causes]
The data of the tracking encoder is abnormal.
(The amount of the change is 1.9 times or more.)
[Actions]
1) Check the conveyor rotates at the fixed velocity.
2) Check the connection of the encoder.
3) Check the earth of the earth wire.
[Causes]
Tracking parameter[EXCRGMN] and [EXCRGMX] Setting value
reverses
[Actions]
1) Check the value of [ENCRGMX] and [ENCRGMN] parameters.
[Causes]
The set value is outside the range parameter [TRBUF]. The first
argument is 1 to 8, and the second argument is 1 to 64.
[Actions]
1) Check the value of [TRBUF] parameter.
[Causes]
The data of the size or more of the buffer in which the TrWrt command
was continuously set to the second argument of parameter [TRBUF]
was written.
[Actions]
1) Check the execution count of the TrWrt command is correct.
2) Check the value of the second argument of parameter [TRBUF] is
correct.
3) Check that the X and Y coordinates of the position variable ”PCHK”
in “CM1” program are not ”0.” If they are ”0,” change the difference
from the theoretical value to an allowable value.
[Causes]
The TrRd command was executed in state the data is not written in
tracking buffer.
[Actions]
1) Execute the TrRd command after confirming whether the buffer has
the data with the state variable [M_Trbfct].
2) Confirm whether the buffer number specified by the buffer number
specified in TrWrt command and the TrRd command is in
agreement.
[Causes]
The value set as the parameter [EXTENC] is outside the range. The
ranges are 1-8.
[Actions]
Please confirm the value set to Parameter [EXTENC].
Please confirm whether the Q173DPX unit is installed in the slot
specified for parameter "ENCUNITn" (n=1-3).
Please confirm whether slot 0-2 of a basic base is not specified by
setting the parameter.
Please confirm whether the setting of "Management CPU" that exists in
"I/O unit and intelligent function unit details setting" of the parameter of
the sequencer and specification of parameter "ENCUNITn" (n=1-3) are
corresponding. There is a possibility Q173DPX is not robot CPU
management.
Occurrence of errors of Tracking and Vision Sensor
14 Troubleshooting
Error
number
L2570
Error description
Causes and actions
Installation slot error.
[Causes]
Q173DPX is installed in slot 0-2 of a basic base.
[Actions]
Slot 0-2 of the basic base is basically only for CPU. Please install
Q173DPX since slot3.
[Causes]
There is no workpiece in the tracking buffer or “TrkMv On” command is
executed
Before the workpiece enters to the tracking area.
[Actions]
Execute “TrkMv On” command when the workpiece is in the tracking
area.
[Causes]
1) This robot does not correspond to the singular point function
2) Cmp command is executed
3) A synchronous addition axis control is effective
4) Tracking mode is effective
5) Pre-fetch execution is effective
6) This robot is a setting of the multi mechanism
7) ColChk On command is executed
[Actions]
1) Check the argument of Type specification
2) Invalidate a compliance mode (execute Cmp Off)
3) Invalidate a synchronous addition axis control
4) Invalidate a tracking mode (execute Trk Off)
5) Invalidate a pre-fetch execution
6) Do not use the function of passage singular point
7) Invalidate a collision detection (execute ColChk Off)
[Causes]
During the actual signal input mode, external output signal 810 to 817
(TREN signal) cannot be written.
[Actions]
1) Use an real input signal (TREN signal)
L2580
No workpiece in the
tracking area.
L3982
Cannot be used
(singular point)
L6632
Input TREN signal
cannot be written
Error
number
L3130
Table 14-2
Error description
COM file is already
opened
L3141
The NVOpen
command is not
executed.
L3142
The communication
line can not be
opened.
L3501
Illegal Receive
data(EBREAD)
List of Vision Sensor relation Errors
Causes and actions
[Causes]
The communications line that was the subject of the attempted opening
is already open.
[Actions]
Check the COM number and vision sensor number and re-execute. Or
check the communications parameters.
[Causes]
No NVOpen command was executed before execution of a command
communicating with the vision sensor.
[Actions]
Revise the robot program to execute the NVOpen command.
[Causes]
The line for communication with the vision sensor can not be opened.
[Actions]
Check the communication cable or the communications parameters.
[Causes]
The type of the data received by EBRead command and the type of
specified variable are different.
[Actions]
Revise the program.
Occurrence of errors of Tracking and Vision Sensor
14-133
14 Troubleshooting
Error
number
L7810
Error description
Abnormal Ethernet
parameter setting
L8600
Vision sensor
connected
L8601
Logon not possible
L8602
Wrong password
L8603
Parameter
abnormality
L8610
Abnormal
communications
L8620
Abnormal
vision
sensor
number
specification
L8621
Abnormal
vision
program name
L8622
Vision program not
present.
L8623
SKIP number is
already used.
L8630
Incorrect value in
recognition count cell
14-134
not
Causes and actions
[Causes]
The parameter setting is incorrect.
[Actions]
Check the NETHSTIP, NETPORT, NETMODE, and other such
parameters.
[Causes]
There is no vision sensor connected to the specified COM number.
[Actions]
Check the specified vision program number, "COMDEV" parameter, etc.
settings.
[Causes]
The communication line was opened, but there is no response from the
vision sensor.
[Actions]
Reset the program and start it again.
[Causes]
The password for the user set with the "NVUSER" password is not set
in the "NVPSWD" parameter.
[Actions]
Check the specified vision program number, "COMDEV" parameter, etc.
settings.
[Causes]
There is no vision sensor connected to the specified COM number.
[Actions]
Check the NVUSER and NVPSWD parameters.
[Causes]
Communication with the vision sensor was cut off before or during
command execution.
[Actions]
Check the communication cable between the robot and vision sensor.
[Causes]
The specified vision sensor number is not defined with an NVOpen
command.
[Actions]
Check that the specified vision sensor number is correct. Also, check
that that number is defined with an NVOpen command.
[Causes]
The specified vision program name is more than 15 characters.
[Actions]
Specify a vision program name with no more than 15 characters.
[Causes]
The specified program does not exist in the specified vision sensor.
[Actions]
Check whether the specified vision program exists in the specified
vision sensor. Also check that the vision program name specified is
correct.
[Causes]
SKIP number is already used.
[Actions]
Confirm the SKIP number.
[Causes]
The recognition count value was not in the cell specified as the
recognition count cell.
[Actions]
Check that the correct cell is specified.
Occurrence of errors of Tracking and Vision Sensor
14 Troubleshooting
Error
number
L8631
L8632
L8636
L8640
L8650
L8660
Error description
Causes and actions
Specified cell value [Causes]
out of range
Corresponding to either the following.
・The values specified for the start cell and end cell are reversed.
・The range specified by Start Cell and End Cell exceeds line 30 and
row 10.
・The number of data included in the cell which specifies it by Start Cell
and End Cell exceeds 90.
[Actions]
・Check that the correct cell is specified.
・Check the number of data acquired from the cell which specifies it by
Start Cell and End Cell.
Vision
sensor [Causes]
response timeout
There is no response from vision sensor within the specified time or
within a specific time.
[Actions]
Check that the specified time is correct. Or check that the vision sensor
settings are correct.
Vision Tag name is [Causes]
abnormal
The active specified symbolic tag does not exist in the vision program.
[Actions]
Please confirm the name of symbolic tag of Easy Builder is
corresponding to the tag name specified by the robot program, and
correct the tag name.
Abnormal
image [Causes]
capture specification
The image capture specification is other than "Network", "external", and
"manual".
[Actions]
Specify an image capture specification of "Network", "external", or
"manual".
Put online.
[Causes]
The vision sensor is offline.
[Actions]
Put the vision sensor online to enable control from the outside.
Not
permitted
to [Causes]
control vision sensor
The NVUSER and NVPSWD parameters set for logging on to the vision
sensor do not have the right to full access to the vision sensor.
[Actions]
Check the vision sensor side user list registration and specify the name
of a user with full access in NVUSER and their password in NVPSWD.
Please refer to separate manual “Troubleshooting”.
Occurrence of errors of Tracking and Vision Sensor
14-135
14 Troubleshooting
14.2. In such a case (improvement example)
Explain the improvement example, when building the tracking system using the sample robot program.
14.2.1. The adsorption position shifts (Conveyer Tracking)
When the place that shifts from the specified adsorption position has been adsorbed, the cause is
investigated according to the following procedures.
Start
Check the
position gap
The position
doesn’t shift
The position
shifts.
Adjustment
completion
【confirmation 1】
Confirm whether neither the
encoder nor the conveyer slip.
Slip
Check the slip of
encoder
Fix the encoder
Not slip
【confirmation 2】
Confirm whether the gap is
constant
The gap is
irregular
Do the work of the ‘A1’
program again
Confirm of gap
tendency
The gap is
constant
Do the work of the ‘C1’
program again
The gap is
irregular by the
timing
【confirmation 3】
Check the timing which the sensor
is ON
Start
Not correct
Check the timing
Adjust the sensitivity of the
sensor
Check the shifts
The gap is
constant
【confirmation 4】
Adjustment by parameter
“TRADJ1”
Correct
Start
The position
doesn’t shift
Check the shifts
The gap is
constant
Adjustment
completion
【confirmation 5】
Adjustment by status variables
“P_TrkPAcl” and “P_TrkPDcl”
End
14-136
In such a case (improvement example)
The position
doesn’t shift
Adjustment
completion
14 Troubleshooting
[Confirmation 1]
1) Stop the conveyer.
2) Confirm the disk installed in the rotary encoder has come in contact with the conveyer.
3) Confirm whether the disk installed in the encoder rotates when the conveyer is made to work.
[Confirmation 2]
1) Stop the conveyer.
2) Change X coordinates of PDly1 in ‘1’ program to a big value like the “10" second etc.
3) Start ‘1’ program, and start the conveyer in low-speed.
4) Stop the conveyer because it keeps following during the “10" second in the place where the robot
moved to the adsorption position. And, stop ‘1’ program.
5) Confirm whether the position in which the robot adsorbs workpiece is correct.
6) Confirm the tendency to a positional gap repeating this work several times.
[Confirmation 3]
1) Stop the conveyer.
2) Put a workpiece at the front to which a sensor reacts.
3) Move the conveyer manually and confirm whether the timing to which a sensor reacts is correct.
[Confirmation 4]
1) Change parameter "TRADJ1", and adjust a positional gap.
[Confirmation 5]
1) Change robot status variable "P_TrkPAcl" and "P_TrkPDcl" to make the follow speed of the
tracking fast.
Note it though the load factor of each axis of the robot goes up.
Confirm the state of the load of each axis by "Load factor monitor" of RT ToolBox2.
14.2.2. The adsorption position shifts (Vision Tracking)
When the place that shifts from the specified adsorption position has been adsorbed, the cause is
investigated according to the following procedures.
In such a case (improvement example)
14-137
14 Troubleshooting
Start
Check the position
gap
The position
doesn’t shift
The position
shifts
Adjustment
completion
【confirmation1】
Confirm whether neither the
encoder nor the conveyer slip
Check the slip
of encoder
Slip
Fix the encoder
Not slip
【confirmation 2】
Check whether to recognize the
image center correctly.
Check the vision
Recognition is
defective
Change the setting of the
vision sensor
Correctly
recognizes
Start
【confirmation 3】
Check whether the calibration is
correct
Check the
calibration
Correct
1
14-138
In such a case (improvement example)
Not correct
Do the work of the ‘B1’
program again
Start
14 Troubleshooting
1
【confirmation 4】
Check the case where work at the
center of view is recognized
The gap is
illegular
Do the work of the ‘A1’
program again
Confirm of gap
tendency
The position
shifts when the
speed of the
conveyer is fast
【confirmation 5】
Adjust taking picture with the
timing of the encoder input
Start
The position
doesn’t shift
Check the shifts
The gap is
constant
Adjustment
completion
The gap is
constant
Do the work of the ‘C1’
program again
Check the shifts
The position
doesn’t shift
The gap is
constant
【confirmation 6】
Adjustment by parameter
“TRADJ1”
Adjustment
completion
Start
【confirmation 7】
Adjustment by status variables
“P_TrkPAcl” and “P_TrkPDcl”
End
[Confirmation 1]
1) Stop the conveyer.
2) Confirm the disk installed in the rotary encoder has come in contact with the conveyer.
3) Confirm whether the disk installed in the encoder rotates when the conveyer is made to work.
[Confirmation 2]
1) Stop the conveyer.
2) Put workpiece on the center of the vision view.
3) In In-Sight Explorer(EasyBuilder), click the “Set Up Image” from the “Application Steps”. And, set
"Calibration Type" displayed in the lower right of the screen to "None".
4) Confirm workpiece is recognized by starting the job, and the recognition result (pixel level) is
correct.
(example)
When the center of view is recognized, the result of (320,240) is displayed when pixels are
640×480 vision sensors.
5) Arrange workpieces on four corners.
6) Confirm whether the workpieces put on four corners of the image is recognized similar and
correctly.
[Confirmation 3]
1) Stop the conveyer.
2) Put workpiece on the center of the vision view.
3) In In-Sight Explorer(EasyBuilder), click the “Set Up Image” from the “Application Steps”.
Set "Calibration Type" displayed in the lower right of the screen to "Import".
Specify the file that exported when the calibration is done to "File Name".
4) Confirm workpiece is recognized by starting the job, and the recognition result (robot coordinate) is
correct.
In such a case (improvement example)
14-139
14 Troubleshooting
(example)
(+0, +0) is displayed as a recognition result when assuming that the robot coordinates are set as
follows when the calibration is done by using the calibration seat, and using a ○ sign in four
corners.
(the first point xy) (the second point xy)(the third point xy)(the fourth point xy)
= (+100,+100), (+100,-100), (-100,+100), and (-100,-100)
5) Arrange workpieces on four corners.
6) Confirm whether the workpieces put on four corners of the image is recognized similar and
correctly.
The recognition result becomes (+100,+100), (+100,-100), (-100,+100), and (-100,-100).
[Confirmation 4]
1) Stop the conveyer.
2) Put workpiece on the center of the vision view.
3) Change X coordinates of PDly1 in ‘1’ program to a big value like the “10" second etc.
4) Start ‘1’ program, and start the conveyer in low-speed.
5) Stop the conveyer because it keeps following during the “10" second in the place where the robot
moved to the adsorption position. And, stop ‘1’ program.
6) Confirm whether the position in which the robot adsorbs workpiece is correct.
7) Confirm the tendency to a positional gap repeating this work several times.
[Confirmation 5]
1) Stop the conveyer.
2) Start the ‘1’ program, and start the conveyer in the speed that you want.
3) Flow workpiece.
4) Stop the conveyer because it keeps following during the “10" second in the place where the robot
moved to the adsorption position. And, stop ‘1’ program.
5) Confirm the position in which the robot adsorbs workpiece.
<The position shifts in shape to adsorb the rear side of work >
Please adjust the encoder value specified by the TrWrt command as < delay time > “0".
For instance, the 'CM1' program is changed as follows and the numerical value (for instance,
following “500") is adjusted.
MENCDATA#=MTR1#+500
TrWrt PRW, MENCDATA#, MWKNO,1,MENCNO
[Confirmation 6]
1) Change parameter "TRADJ1", and adjust a positional gap.
[Confirmation 7]
1) Change robot status variable "P_TrkPAcl" and "P_TrkPDcl" to make the follow speed of the
tracking fast.
Note it though the load factor of each axis of the robot goes up.
Confirm the state of the load of each axis by "Load factor monitor" of RT ToolBox2.
14.2.3. Make adsorption and release of the work speedy
Adjust the adjustment variable "PDly1", and the value of X coordinates of "PDly2" of the program 1. Refer to
"Table 11-1 List of adjustment variables in the program" for the adjustment method.
14.2.4. Make movement of the robot speedy
Adjust the following setting to make movement of the robot speedy.
1) Adjustment of the optimal acceleration-and-deceleration setting
Set mass, size, and center of gravity of the hand installed in the robot as the parameter "HNDDAT1."
And, set mass, size, and center of gravity of the work as the parameter "WRKDAT1."
14-140
In such a case (improvement example)
14 Troubleshooting
By this setting, the robot can move with the optimal acceleration and deceleration and speed.
Refer to "Table 6-2 List of Operation Parameter" for setting method.
2) Adjustment of carrying height
By making low distance at adsorption and release of robot, the moving distance decreases and motion
time can be shortened as a result. Refer to the adjustment variable of "Pup1"and "Pup2" in the "Table
11-1 List of adjustment variables in the program" for change of rise distance.
14.2.5. Restore backup data to another controller
The status variable "P_EncDlt" is not saved in the backup data from tracking system robot controller.
To generate the value of "P_EncDlt", execute the "P_EncDlt(MENCNO) =PY10ENC" command of
"Program A" by step forward. (Moving distance per one pulse)
14.2.6. Circular arc movement in Tracking
Screw fastening and decoration on the work, etc are available in the tracking system. Here, explain
the example which draws the circle on the basis of the adsorption position.
<Conditions>
*The adsorption position taught by Program C is the starting point of the circle.
*The offset from the adsorption position of pass and end position of circle decided as follows.
*Create PS1 (pass point) and PS2 (end point) from the relative distance.
*Use the Mvr command (circle command) and move on the circle of PGet->PS1 ->PS2.
The example of program change of the above <conditions> is shown in the following.
Before sample program change
TrkMv On, PGetUp, 1, *S91STOP
Mov PGet Type 0,0
Dly PDly1.x
Mov PGetUp Type 0,0
TrkMv Off
・・・・・
P_TrkBase(MWrkNo) = P_107(MWrkNo)
PGet = P_TrkBase(MWrkNo)
After sample program change
TrkMv On, PGetUp, 1, *S91STOP
Mov PGet Type 0,0
Dly PDly1.x
'<Add>->
Mvr PGet,PS1,PS2
Mvs PGet
Dly PDly1.X
'<-<Add>
Mov PGetUp Type 0,0
TrkMv Off
・・・・・
P_TrkBase(MWrkNo) = P_107(MWrkNo)
PGet = P_TrkBase(MWrkNo)
'<Add>->
PS1 = PGet * (+5.00,+5.00,+0.00,+0.00,+0.00,+0.00,+0.00)
PS2 = PGet * (+0.00,+10.00,+0.00,+0.00,+0.00,+0.00,+0.00)
'<-<Add>
In such a case (improvement example)
14-141
14 Troubleshooting
14.2.7. Draw the square while doing the Tracking
Here, explain the example which draws the outline of the following square workpiece on the basis of
the adsorption position.
Position of TrBase(P0)
Position to follow(PB)
Before sample program change
TrkMv On, PGetUp, 1, *S91STOP
Mov PGet Type 0,0
Dly PDly1.x
Mov PGetUp Type 0,0
TrkMv Off
・・・・・
P_TrkBase(MWrkNo) = P_107(MWrkNo)
PGet = P_TrkBase(MWrkNo)
Position to follow(PA)
Position to follow(PC)
After sample program change
TrkMv On, PGetUp, 1, *S91STOP
Mov PGet Type 0,0
Dly PDly1.x
'<Add>->
Mvs PA
Mvs PC
Mvs PB
Mvs PGet
Dly PDly1.X
'Adsorption confirmation
'<-<Add>
Mov PGetUp Type 0,0
TrkMv Off
・・・・・
P_TrkBase(MWrkNo) = P_107(MWrkNo)
PGet = P_TrkBase(MWrkNo)
'<Add>->
PA = PGet * (+0.00,-50.00,+0.00,+0.00,+0.00,+0.00,+0.00)
PC = PGet * (-20.00,-50.00,+0.00,+0.00,+0.00,+0.00,+0.00)
PB = PGet * (-20.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)
'<-<Add>
14-142
In such a case (improvement example)
15 Appendix
15. Appendix
This appendix provides a list of parameters related to tracking and describes Expansion serial interface
connector pin assignment as well as sample programs for conveyer tracking and vision tracking.
15.1. List of Parameters Related to Tracking
Table 15-1
Parameter
Tracking buffer
Parameter
name
TRBUF
List of Parameters Related to Tracking
Number
of
elements
2 integers
Description
Number of tracking buffers and their sizes (KB)
<Buffer number>
Specify the number of buffers where the tracking
data is stored.
Mainly the tracking data for each conveyors is
saved at the buffer. Change the set value, when
the conveyor for tracking is increased.
However, if the value is enlarged, the memory
area where the tracking data is saved will be
secured. Be careful because the program number
which can be saved decreases.
Setting range: 1 to 8
Setting value
at factory
shipment
2 , 64
<Buffer size>
Specify the size in which the tracking data is
preserved.
Change this element when there is larger tracking
data saved by TrWrt command than reading by
TrRd command.
Be careful because the memory is secured like
the above-mentioned [Buffer number].
Minimum
external
encoder value
ENCRGMN
Maximum
external
encoder value
ENCRGMX
8 integers
Setting range: 1 to 200
The minimum external encoder data value (pulse)
0,0,0,0,0,0,0,0
The range of the encoder value which can be
acquired in state variable “M_Enc"
(minimum value side)
8 integers
The maximum external encoder data value (pulse)
The range of the encoder value which can be
acquired in state variable “M_Enc"
(maximum value side)
1000000000,
1000000000,
1000000000,
1000000000,
1000000000,
1000000000,
1000000000,
1000000000
List of Parameters Related to Tracking
15-143
15 Appendix
Parameter
Parameter
name
Tracking
adjustment
coefficient 1
TRADJ1
Tracking
acceleration
TRPACL
Tracking
deceleration
TRPDCL
15-144
Number
of
elements
8 real
numbers
(X,Y,Z,
A,B,C,
L1,L2)
8 real
numbers
(X,Y,Z,
A,B,C,
L1,L2)
8 real
numbers
(X,Y,Z,
A,B,C,
L1,L2)
Description
Setting value
at factory
shipment
Tracking adjustment coefficient 1
Set the amount of delay converted to the conveyer
speed. Convert to 100 mm/s.
Example)
 If the delay is 2 mm when the conveyer speed
is 50 mm/s:
Setting value = 4.0 (2 / 50 * 100)
 If the advance is 1 mm when the conveyer
speed is 50 mm/s:
Setting value = -2.0 (-1 / 50 * 100)
Tracking acceleration.
Acceleration during execution of tracking
movement.
0.00, 0.00, 0.00,
0.00, 0.00, 0.00,
0.00, 0.00
Tracking deceleration.
Deceleration during execution of tracking
movement.
1.0, 1.0, 1.0, 1.0,
1.0, 1.0, 1.0, 1.0
List of Parameters Related to Tracking
1.0, 1.0, 1.0, 1.0,
1.0, 1.0, 1.0, 1.0
15 Appendix
15.2. List of Parameters Related to Vision Sensor
Table 15-2
Parameter
Parameter
name
User name
NVUSER
Password
NVPSWD
Network Vision
NVJBTOUT
Job load timeout
[sec]
Initial value of EBRDTAG
tag
name
specified
by
EBRead
command
TimeOut for
OPEN
Command(sec)
OPNTOUT
List of Parameters Related to Vision Sensor
Number of
elements
Character
string 1
Character
string 1
integer 1
Character
string 1
real
number 1
Description
The user name to log on the vision sensor is
set. (no more than 15 characters)
The password to log on the vision sensor is
set.(no more than 15 characters)
Set up a timeout time of network vision
sensor used with NVLoad command and
TrkTrg command.
Sets up an initial value of the "symbolic tag
name" used with EBRead command (it is 128
characters or less)
When the tag name of EBRead command is
omitted, the value of this parameter is
specified.
Set up a timeout time used with NVOpen
command.
Setting value
at factory
shipment
"admin"
""
90
"Job.Robot.
FormatString"
3.00
List of Parameters Related to Vision Sensor
15-145
15 Appendix
15.3. Scene of changing parameter
When the tracking function is used, the parameter need to be changed depends on operation phase. List of the
parameter is shown as follow.
Table 15-3
No.
1
Operation phase
Power on
Setting origin
JOG operation
Attach option
Connection with
peripherals
List of the user scene of changing parameter
Model
CR750-Q
CR751-Q
CR750-D
CR751-D
-
-
Parameter
name
Example
-
-
2
●
-
ENCUNIT1
ENCUNIT2
ENCUNIT3
0, 5
-1, 0
-1, 0
3
●
●
TRMODE
1
EXTENC
1, 2,
3, 1,
2, 3,
1, 2
In case of robot
programming
4
15-146
●
Scene of changing parameter
●
Explanation
It is set to have installed
Q173DPX unit into 5 I/O
slot of the base unit.
By setting it, incremental three
encoders connected with
Q173DPX unit are recognized
physical encoder number 1 to
3.
It makes tracking function
valid.
By being valid, incremental
encoder value can be got.
About EXTENC, because
initial value is 1,2,1,2,1,2,1,2,
physical encoder number 1
and 2 are allocated to logic
encoder(physical encoder
number3) number 1 to 8. At
this time, the encoder
connected with CH3 of
Q173DPX unit is not allocated
to logic encoder number. So by
changing this parameter to
1,2,3,1,2,3,1,2, the encoder of
CH3 is allocated to logic
encoder number 3 and 6.
Also it is possible in following
case. 3 pcs encoder are
connected with Q173DPX unit
and attach each encoder to
conveyer 1 to 3. If conveyer1
connect to encoder3, conveyer
3 connect to encoder 1, it is not
effective to change encoder, so
by changing this parameter to
3,2,1,3,2,1,1,2, encoder
attached with conveyer 1
becomes logic encoder1.
15 Appendix
No.
Operation phase
In case of system
debag
5
Model
CR750-Q
CR751-Q
CR750-D
CR751-D
●
●
Parameter
name
Example
TRCWDST
20.0
In case of system
debug
6
●
●
TRADJ1
+0.00,
+4.00,
+0.00,
+0.00,
+0.00,
+0.00,
+0.00,
+0.00,
+0.00
7
●
●
TRBUF
3, 100
Explanation
In case of vision tracking, if
there is a workpiece not
recognized well by vision
sensor, it might reply over one
recognition results to one
workpiece. In this case, it
makes possible to get only one
recognition result excluding the
results with the distance which
is shorter than the distance set
by this parameter. For
example, it is recognized that 3
vision sensors exist for 1
workpieces. This one
workpiece is got and another 2
workpieces are not got
because the distance of result
is shorter than it set 20mm.
It is possible to adjust the gap
by using this parameter when
this gap is caused every time
in the same direction when the
tracking operates.
For example, the speed of
conveyer is 50mm/s and there
is +2mm gap (+Y direction)
+2mm,
Set value = 4.0 (2 / 50 * 100 )
+4.0 is set to the second
element that shows Y
coordinates.
When three kinds of
workpieces flow respectively
on the three conveyers for one
robot controller, three tracking
buffers where workpiece
information is preserved are
needed. In this case, the first
element of this parameter is
changed to three.
Moreover, when TrWrt
command is frequently
executed and TrRd command
is slow, workpiece information
collects in the tracking buffer.
Because the error occurs when
64 workpieces information or
more on an initial value
collects, it is necessary to
increase the number in which
work information is preserved.
Then, the second element of
this parameter is changed to
100.
Scene of changing parameter
15-147
15 Appendix
No.
8
Operation phase
Others
9
15-148
Model
Parameter
name
CR750-Q
CR751-Q
CR750-D
CR751-D
●
●
ENCRGMN
●
●
ENCRGMX
Scene of changing parameter
Example
Explanation
0,0,0,0,
0,0,0,0
100000000
,
100000000
,
100000000
,
100000000
,
100000000
,
100000000
,
100000000
,
100000000
This parameter is a parameter
that sets the range of the value
of state variable M_Enc.
M_Enc becomes the range of
0-100000000, and next to
100000000, it becomes 0
encoder rotates in case of an
initial value.
Though this range is changed
by this parameter, tracking
sample program is made on
the assumption that it is used
within this range, so do not
change this parameter.
15 Appendix
15.4. Expansion serial interface Connector Pin Assignment
“Figure15-1 Connector Arrangement” shows the connector arrangement and “Table 15-4
CNENC/CNUSR Pin Assignment” shows pin assignment of each connector.
CNUSR2(CR750-D/CR751-D)
Encoder
25
1
50
Connectors:
CNENC(CRnD-700)
Encoder x 2CH
10B
10A
1B
1A
26
Connector: CNUSR2
CNUSR11/12/13(CR750-D)
Encoder
Connector: CNENC
1
16
Connector: CNUSR11/12/13
Figure15-1 Connector Arrangement
Table 15-4
Pin NO.
Connector name – Pin name
CR751-D
CR751-D
controller
controller
CNUSR1-28
CNUSR11-6
Connectors: CNENC/CNUSR Pin Assignment
Signal
name
SG
CNUSR1-21
CNUSR13-3
LAH1
CNUSR1-22
CNUSR13-5
LBH1
CNUSR1-23
CNUSR13-8
LZH1
CNUSR1-33
CNUSR12-6
SG
CNUSR2-21
CNUSR2-21
LAH2
CNUSR2-22
CNUSR2-22
LBH2
CNUSR2-23
CNUSR2-23
LZH2
CNUSR2-15
CNUSR2-15
SG
CNUSR1-46
CNUSR13-4
LAL1
CNUSR1-47
CNUSR13-6
LBL1
CNUSR1-48
CNUSR13-10
LZL1
CNUSR2-40
CNUSR2-40
SG
CNUSR2-46
CNUSR2-46
LAL2
Explanation
Input/output
Control power supply 0 V
+ terminal of differential encoder
A-phase signal
+ terminal of differential encoder
B-phase signal
+ terminal of differential encoder
Z-phase signal
Control power supply 0 V
+ terminal of differential encoder
A-phase signal
+ terminal of differential encoder
B-phase signal
+ terminal of differential encoder
Z-phase signal
Empty
Empty
Control power supply 0 V
- terminal of differential encoder
A-phase signal
- terminal of differential encoder
B-phase signal
- terminal of differential encoder
Z-phase signal
Control power supply 0 V
- terminal of differential encoder
A-phase signal
GND
Remark
Input
Input
CH1
Input
GND
Input
Input
CH2
Input
−
−
GND
Input
Input
CH1
Input
GND
Input
CH2
Expansion serial interface Connector Pin Assignment
15-149
15 Appendix
15-150
Pin NO.
Connector name – Pin name
CR751-D
CR751-D
controller
controller
Signal
name
CNUSR2-47
CNUSR2-47
LBL2
CNUSR2-48
CNUSR2-48
LZL2
-
-
-
Explanation
- terminal of differential encoder
B-phase signal
- terminal of differential encoder
Z-phase signal
Empty
Empty
Expansion serial interface Connector Pin Assignment
Input/output
Input
Input
−
−
Remark
15 Appendix
15.5. Calibration sheet
This is a calibration sheet. Please use this sheet in your calibration work.
Enlarge or reduce it as necessary to match the size of the field of vision of the image.
When changing the size of the sheet, or calibrating in more points, you can photocopy the sheet.
Calibration sheet
15-151
15 Appendix
15-152
Calibration sheet
Mar., 2014 MEE Printed in Japan on recycled paper.
Specifications are subject to change without notice.
