FWM377

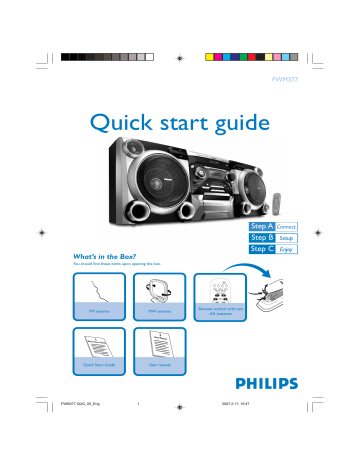

Quick start guide
What’s in the Box?
You should find these items upon opening the box.
FM antenna
MW antenna
Remote control with two
AA batteries
2
User Man
ual
1
Quick Sta
rt Guide
Quick Start Guide
FWM377 QUG_05_Eng
User manual
1
2007.2.11, 15:47
1
Connect the speaker cables.
Tip
2
See the User Manual for how to
connect other equipment to this
system.
Connect the MW and FM antennas.
3
Connect the power cable of the system.
FM antenna
MW antenna
2
AM ANTENNA
Speaker
(right)
Speaker
(left)
FM ANTENNA
AUX/CDR
R L
LOW CH
–
+
L
R
1
L
R
HIGH CH
SPEAKERS 6Ω
A
AC power cord
3
Setup
Setting the clock
IMPORTANT!
– To set clock in the Eco Power mode, press and hold STANDBY-ON/ECO
POWER 2 on the set for 3 seconds or more to switch to normal standby mode
first before proceeding with the procedures below.
1
In standby or view clock mode, press CLOCK•TIMER once. In other
source mode, press CLOCK•TIMER twice.
2
Press à or á repeatedly to set the hour.
3
Press í or ë repeatedly to set the minute.
4
Press CLOCK•TIMER again to store the setting.
FWM377 QUG_05_Eng
2
2007.2.11, 15:47
C
Enjoy
Playing a disc
2
Press OPEN•CLOSE to open the disc tray and load up to two
discs on the individual disc trays. To load the third disc, press DISC
CHANGE.
➜ Make sure the label side of each loaded disc is facing up.
1
1
2
1
2
Press OPEN•CLOSE again to close the disc tray.
3
Use DSC 1/2/3 (or CD 1/2/3 on the remote control) to select a
disc for playback and then press ÉÅ to start playback.
4
To stop playback, press STOP9 .
Programming and tuning to
radio stations
1
Press TUNER to select the tuner source.
2
Press PROG for more than two seconds to program all available
stations in order of waveband.
3
Press í or ë until the desired preset station is displayed.
FWM377 QUG_05_Eng
3
2007.2.11, 15:47
C
Enjoy
Playing a USB mass storage device
With the Hi-Fi system, you can use USB flash memory (USB 2.0 or USB1.1),
USB flash players (USB 2.0 or USB1.1), memory cards (requires an additional card reader to
work with this Hi-Fi system).
1
Insert the USB device’s USB plug into the socket
on the set.
2
Press USB to select the USB source.
3
Play the USB’s audio files as you do with the albums/tracks on a CD,
Ripping function
1
Insert a USB mass device with sufficient free space to the USB DIRECT
the set.
socket on
2
Prepare the source to record from.
3
Press USB RECORD to start ripping.
4
At any moment, simply press STOP9 to stop ripping.
Tip
Detailed playback features and additional functions are described in the
accompany owner's manual.
C Royal Philips Electronics N.V. 2007
All rights reserved.
http://www.philips.com
PDCC-JS/JW-0704
FWM377 QUG_05_Eng
4
2007.2.11, 15:47
