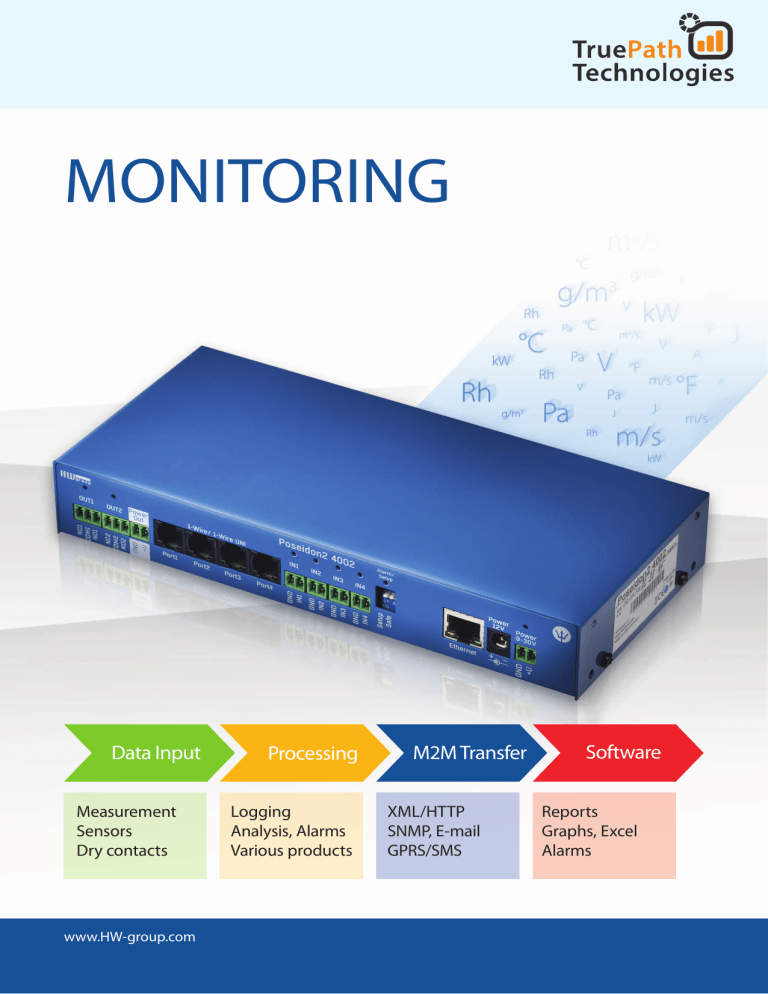

MONITORING
Data Input
Measurement
Sensors
Dry contacts
www.HW-group.com
Processing
Logging
Analysis, Alarms
Various products
M2M Transfer
XML/HTTP
SNMP, E-mail
GPRS/SMS
Software
Reports
Graphs, Excel
Alarms
Measurement, Sensors
Temperature
Humidity
Energy
Voltage
Current
Pressure
Dry Contacts
Smoke
Flooding
Power
Motion
Gas
30A Current probe 1W-UNI
Sensor 4-20mA 1W-UNI
Door contact MK4
Door contact
Flood detector
Gas Leak Detector
HTemp-1Wire-Box2
HTemp-1Wire Rack 19
HTemp-485 T3419
HTemp-485 T3411
Humid-1Wire (1m, 3m, 10m)
M-Count 2C
Meter 3f ED 310.DB HWG
Meter 1f DHZ 5/63-M-BUS
Motion PIR Detector
PHTemp-485 T7410
PowerEgg2
Temp-1W-UNI Pt100 Cable
Expander 4xDI 1W-UNI
Flood detector 1W-UNI 5m
Smoke Detector
Temp-1Wire 3m IP67 (1,3,10m)
Temp-1Wire Rack 19
Temp-1Wire-Flat
Temp-1Wire Outdoor
Probe Pt100 TR125 2m
Temp-1W-UNI Pt100 Frost
Temp-485-Pt100 Cable3
Temp-485-Pt100 Box2
1Wire-UNI-AD 230
Temp-485 Box2
Temp-485-Pt100 Frost2
Vibration detector
Voltage sensor 0 to 60V,
1W-UNI bus for monitoring
-48VDC
HWg-WLD Relay
WLD sensing cable
A - 2+2,10 & 50m
HTemp-1Wire Outdoor 3m
HTemp-1Wire 3m
Sensor Light 1W-UNI 3m
Data Input
Probe Pt100 TG8 2m
Processing
M2M Transfer
Software
Data Centers
IT
Industrial
Security
Product families
Poseidon
Poseidon2 4002
Complete rack monitoring (19") for data centers.
A single unit with a GSM modem can serve as a SMS gateway
for other Poseidon units in the same building.
Sensors:
16x 1-Wire UNI (6x RJ11), 26x RS-485 sensors
Temperature, humidity,water leaks, current
(0-30A AC , 4-20mA), voltage (0-10V, 0-60V)
E-mail, SNMP Trap,
SMS (GSM modem or HWg-SMS-GW)
4x relay
Alarms:
Output:
Poseidon2 3268
Remote monitoring and control of outputs for IT applications
(temperature, humidity, 4x dry contact input, 2x relay output).
Typical applications involve environment monitoring with the
capability to turn on A/C, fan, or perform remote restart.
Sensors:
Alarms:
Output:
Poseidon2 3468
Remote monitoring and control for industrial applications. Typical
applications involve monitoring dry contacts, controlling outputs
and measuring temperature/humidity.
Fits on a DIN rail, output relay is 110/230V rated. Can be used as a
local thermostat/hygrostat.
Sensors:
Alarms:
Output:
Data Input
2x RJ11 - 8x 1-Wire UNI
E-mail, SNMP Trap
2x relay (230V / 16A)
Processing
M2M Transfer
Poseidon2 3266
Economy model for IT SOHO applications (temperature, humidity,
4x dry contact input). Typical applications monitor the
environment, power supply, and access through doors to
cabinets or technology rooms.
Sensors:
Alarms:
Software
8x 1-Wire UNI (2x RJ11)
E-mail, SNMP Trap
2x relay
8x 1-Wire UNI (2x RJ11)
E-mail, SNMP Trap and SMS (via HWg-SMS-GW)
Data Centers
IT
Industrial
Security
Product families
Damocles
Ares
Damocles 2404i
Remote monitoring for 24 digital dry contact inputs. 4-byte pulse
counter with memory for each input (supports S0 pulse output).
Fits on a DIN rail. Sends SNMP traps to 4 destinations.
M2M protocols: Modbus/TCP, XML (HTTP), SNMP.
Inputs:
Outputs:
Alarms:
24x dry contact
4x relay (max 50V)
E-mail, SNMP Trap
HWg-Ares 14
GSM/GPRS monitoring unit for collecting data from 14 sensors and
2 dry contact inputs.
Designed for remote environment monitoring at any place with
GSM coverage. Contains a battery for several hours of backup.
Data can be read into HWg-PDMS (free software), connected to the
SensDesk Web portal, or delivered to a generic SCADA/NMS system.
We supply a Nagios plugin.
Damocles 1208
Digital inputs and outputs for industrial applications. Fits on
a DIN rail. Inputs feature protection for direct relay connection.
32-bit pulse counting for all inputs, Box-2-Box mode.
M2M protocols: Modbus/TCP, XML (HTTP), SNMP.
Inputs:
Outputs:
Alarms:
12x dry contact
8x open collector
E-mail, SNMP Trap
HWg-Ares 12
Simplified version of HWg-Ares 14. GSM thermometer with email
(GPRS) and SMS alerts. Supports 3 sensors and 2 dry contact
inputs.
Designed for remote environment monitoring at any place with
GSM coverage. Contains a battery for several hours of backup.
Damocles MINI
Digital inputs and outputs for small IT SOHO applications. Inputs
can count pulses. Outputs can be used in the Box-2-Box mode and
controlled over the network by another Poseidon or Damocles unit.
M2M protocols: Modbus/TCP, XML (HTTP), SNMP.
Inputs:
Outputs:
Alarms:
Data Input
Processing
4x dry contact
2x relay (max 50V)
E-mail, SNMP Trap
M2M Transfer
Software
Data can be read into HWg-PDMS (free software), connected to the
SensDesk Web portal, or delivered to a generic SCADA/NMS system.
We supply a Nagios plugin.
Data Centers
IT
Industrial
Security
Product families
HWg-PWR 3/12/25
HWg-STE PoE
Ethernet thermometer with WEB interface and free software.
Two temperature or humidity probes can be connected.
Sends an e-mail alert if the temperature or humidity exceeds a
specified limit.
Supports SNMP, plugin for Nagios.
Supplied with one temperature probe. Versions with PoE or
HWg-Push support are available under separate ordering codes.
HWg-PWR collects values from M-Bus meters and makes them
available over IP. Values can be accessed over the web (charts),
SNMP log, or by e-mail. Operates without a need for a PC.
The device can be used for remote monitoring and metering of
electricity, heat, water or gas consumption using electricity
meters, water meters, gas meters, heat meters and other
sensors equipped with the M-BUS interface (EN 13757).
IP WatchDog2 Lite
HWg-STE plus
Ethernet thermometer with WEB interface and free software.
Two temperature or humidity probes and two detectors can be
connected. Sends an e-mail alert if the temperature or humidity
exceeds a specified limit.
Supports SNMP, plugin for Nagios.
Supplied with one temperature probe. Versions with PoE is
available under separate ordering codes.
Monitors functionality of the network interface and restarts IP
devices (two channels). When a device fails, it is automatically
restarted using a relay. This can solve problems before your
customers even notice them.
Restart can be performed manually over the WEB.
With the PowerEgg2 unit, a 110/230V device can be power-cycled.
Inputs:
Detection:
Outputs:
PING to 10 different IP addresses
Active/passive PING, active/passive HTML
request
2 channels = relay contacts (powered, NO/NC)
HWg-WLD / HWg-WLD Relay
Water detection on a surface using sensing WLD cable. Alarm
signalisation in case that water is detected anywhere on the
whole length of the "WLD sensing cable."
"HWg-WLD” connects via Ethernet. In case it detects water, sends
an alarm email, SNMP Trap or SMS (via WHg-SMS-GW2).
PoE version can be ordered under different product ID.
“HWg-WLD Relay” is a flood detector with a relay output, which
can be connected as a sensor to Poseidon2 or Ares units.
HWg-SMS-GW3
SMS gateway is a central point that all other HW group
products in the same network can use to send alarm text
messages. It works on the hardware level and does not need
any installed software.
Central SMS gateway significantly reduces costs of external
GSM modems, and the entire installation only needs one
SIM card. This greatly simplifies control and saves costs.
Supplied with an external GSM antenna with a 3m cable.
Data Input
Processing
M2M Transfer
Software
Protocols
Software
SensDesk.com portal
WEB
embedded web server
Web service for collecting data from HW group sensors. Works with all
sensors that support the HWg-Push protocol.
Flash web GUI
Watch the readings of all your sensors on the web – with no need to install
any software. The base version of the service is free of charge.
Visit www.SensDesk.com to learn more.
Nagios (plugin)
PRTG Network Monitor
ETHERNET
SNMP
Cacti
Zenoss
HWg-PDMS
HP OpenView
IBM Tivoli
Monitoring software with chart and MS Excel output. Windows application
for collecting sensor and digital input readings over GSM and LAN from all
HW group products.
Export of data in the background, simple analysis and data processing in
MS Excel 2007 and newer.
XML Setup (configuration + readings)
XML values (readings only)
XML
Registered version is free of charge. Periodic export to MS Excel (runs
periodically in the background).
Wonderware-InTouch
Iconics-Genesis32
Modbus/TCP
Indusoft-Web Studio
HWg-Trigger
Siemens-WinCC
MII-Control Web
HWg-Trigger is an alert management software for Windows (If-Than).
Citect
HWg-Trigger alerts to a failed device (out of 10 listed), starts applications, or
redirects alarms to text messages (SMS). An action (e.g. displaying a pop-up
message) can be assigned to each condition (e.g. a sensor reading out of
safe range).
Alarm start
Alarm end
SMTP
(E-mail)
Periodical e-mail
XML values & Logfile as attachment
Paessler PRTG Monitoring
Internal or External GSM modem
SMS
"SMS GW" functionality - GSM gateway for
Robust remote monitoring application on the PRTG Network Monitor
platform with the HCVg plug-in installed. This remote monitoring system
satisfies the highest demands of medium and large scale infrastructures.
Features a unique user access with intuitive controls for creating concise
interactive maps according to individual requirements.
other devices on the LAN
GSM
Ring alert
HWg-Push protocol
GPRS
Activated by sensor, not by server
E-mail data transfer
OTHER
XML values & Logfile as attachment
WAP
HWg-SDK
HWg PUSH
HWg-SDK (Software Development Kit) is a set of application examples for
programmers. Example programs simplify the integration of HWg products
with custom software.
HWg SDK
SOAP
Data Input
OPC driver
Processing
(Software Development Kit)
M2M Transfer
Software
Supported programming languages: C/C++, Active X, VB, C#, .NET, Borland
C++, Microsoft C++, Borland Delphi, JAVA, PHP and more.
Data Input
Processing
M2M Transfer
Software
2
HWg-Ares 12
3
2
HWg-STE
2
HWg-STE plus
2
*
2
PoE version
available
14
Logger
HWg-Ares 14
Modbus / TCP
4
HWg-PUSH
8
SNMP Trap
Poseidon2 3266
SNMP
2
E-mail
4
Can use
SMS gateway
8
SMS gateway
Poseidon2 3468
Ext. GSM modem
support (SMS alerts)
2
Poseidon2 3268
IP WEB interface
Digital outputs (DO)
4
16
M-BUS meters
Digital inputs (DI)
8
Poseidon2 4002
1-Wire UNI support
4
1-Wire sensors
12
GSM-GPRS data
26
LAN interface
RS-485
(industrial sensors)
Overview
*
*
Damocles 2404i
24
4
Damocles 1208
12
8
Damocles MINI
4
2
HWg-PWR 25
8
25
HWg-PWR 12
8
12
HWg-PWR 3
8
3
HWg-SMS-GW3
HWg-WLD
*
HWg-WLD Relay
1
IP WatchDog2 Lite
2
IP WatchDog2 Industrial
2
*
* Available on request.
HW group distributor
TruePath Technologies Inc is the Premiere Americas,
Canada Reseller and Global 3rd Party Software Support
for all HW group products
http://TruePathTechnologies.com
585.672.5481
hwg@TruePathTechnologies.com
100 001-20140218
001-20150209
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
