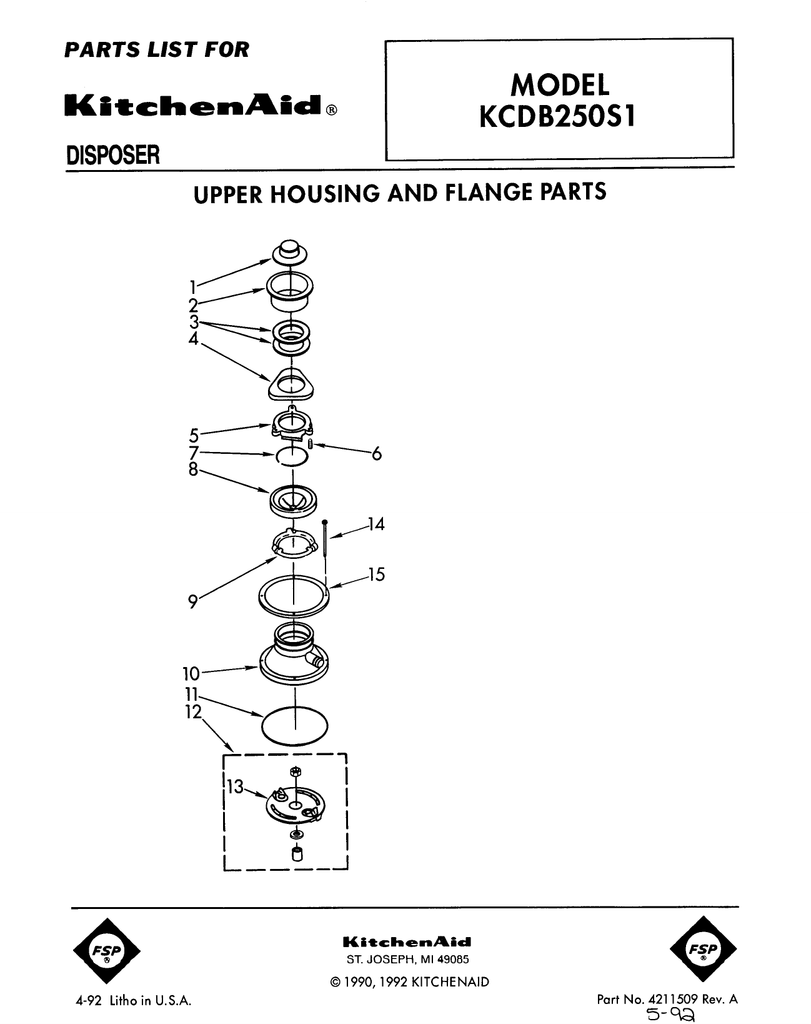

KitchenAid KCDB250S1 User's Manual

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
4211300
4211301
4211302
4211303
4211304
4211305
4211306
4211307
4211308
4211514
4211310
4211311
4211312
4211518
4211513
Stopper Assembly
Flange, Strainer
Seal, Sink Flange (2)
Flange, Backup
Flange, Mounting
Screw, Backup (3)
Ring, Retaining
Gasket, Mounting
Flange, Body
Container, Body Assembly
O-Ring
Kit, Sleeve And Seal (Includes Nut, Slinger & Sleeve)
Shredder Assembly, Rotating
Bolt, Thru (4)
Ring, Clamping
1
4211313
End Bell Assembly, Upper
2
4211314
Seal, Water & Oil
3
4211315
Washer, Thrust
4
4211320
Rotor & Shaft Assembly
5
4211321
Washer
6
4211322
Actuator Assembly, Centrifugal
7
4211323
Stator Assembly
8
4211324
Switch Assembly, Start
9
4211325
Protector, Overload
10
4211515
End Frame Assembly, Lower
11
4211516
Nut (4)
12
4211316
Gasket, Tailpipe
13
4211317
Tailpipe
14
4211318
Flange, Tailpipe
15
4211319
Screw, Tailpipe (2)
16
4211326
Shield, Wire
17
4211328
Cover, Terminal
18
4211329
Screw
19
4211330
Screw, Ground
20
4211397
Emergency, Wrench Assembly
21
4211396
Adapter, Sink Assembly
22
4211564
Kit, Installation (Includes Nos. 12, 13, 14, 15, 20,
Instructions and Use and Care Guide)
Following Parts Not Illustrated
LIT4211517 Guide, Use And Care
LIT4211452 Instructions, Installation
LIT4211509 Repair Parts List
