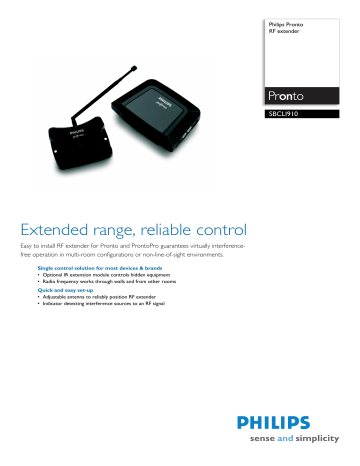

Philips Pronto
RF extender
SBCLI910
Extended range, reliable control
Easy to install RF extender for Pronto and ProntoPro guarantees virtually interferencefree operation in multi-room configurations or non-line-of-sight environments.
Single control solution for most devices & brands
• Optional IR extension module controls hidden equipment
• Radio frequency works through walls and from other rooms
Quick and easy set-up
• Adjustable antenna to reliably position RF extender
• Indicator detecting interference sources to an RF signal
SBCLI910/05
RF extender
Specifications
Product highlights
Connectivity
Power
Infrared Capabilities
Dimensions
• IR emitter connectors: 4
• Mains power: 230V (+/-10/-15%)/50Hz
• Transmitting LEDs: 4
• IR emitter connectors: 4
• Master carton quantity: 1
• Master carton weight: 0.84 kg
• Product dimensions (W x H x D):
110 x 30 x 79 mm
• Product weight: 0.060 kg
• Temperature range (operation): 0°C to 50°C
RF Capabilities
•
•
•
•
Addresses (IDs): 16
Channels: 4
Communication: 1-way
Frequency (MHz): 433
Accessories
• AC/DC Adaptor: 12V DC 400mA
• Dual IR emitter wires: 4
• Printed User Guide
Convenience
• Error indication
•
IR extension module
An infrared extension module allows you to control
traditional infrared equipment over a radio frequency
network.
Radio frequency
A radio technology that allows you to control components
not in direct line-of-sight, such as through walls or other
obstacles. There are two types of RF used in remote
controls: RF to component, and RF to infrared.
Adjustable antenna
A separate adjustable antenna determines the most
reliable position of an RF extender and therefore enables
virtually interference-free operation of multi-room
systems or devices in concealed environments. The
antenna has a built-in interference indicator that blinks
when detecting an other RF device or other interference
source (e.g. microwave oven). The harder the indicator
blinks, the less reliable the position of the antenna.
RF interference indicator
An interference indicator is a red blinking light that
indicates the presence of interference sources in the
home, that can interfere with the operation of an RF
extender. The indicator is built into an antenna, and
starts blinking as soon as the antenna picks up
interference from RF devices, besides the RF extender, or
other sources e.g microwave oven. The harder the light
blinks, the less reliable the antenna is positioned,
therefore, the less reliable the RF extender will work.
Issue date 2007-12-12
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 9082 100 80127
EAN: 87 10895 90918 1
