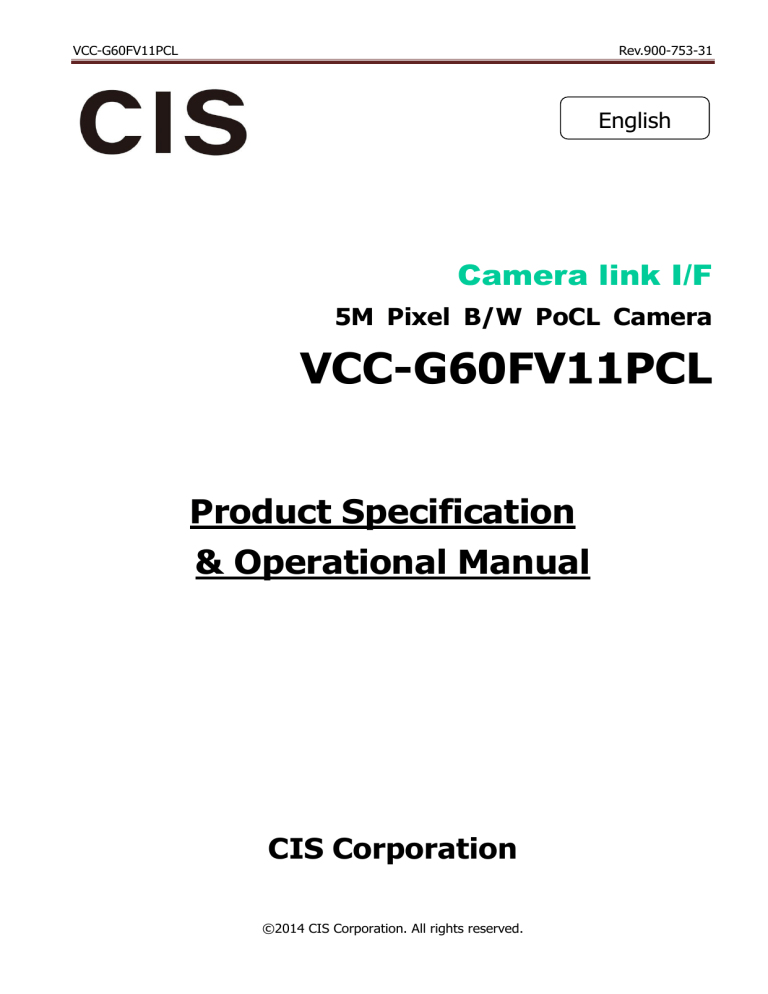

VCC-G60FV11PCL
VCC-G60FV11PCL
Rev.900-753-31
English
Camera link I/F
5M Pixel B/W PoCL Camera
VCC-G60FV11PCL
Product Specification
& Operational Manual
CIS Corporation
©2014 CIS Corporation. All rights reserved.
VCC-G60FV11PCL
Rev.900-753-31
Table of Contents
1. Scope of Application.......................................................................................................................... 3
2. Handling Precautions ........................................................................................................................ 3
3. Product Outline................................................................................................................................. 4
4. Specification ..................................................................................................................................... 5
4.1. General Specification .................................................................................................................. 5
4.2. Camera Output Signal Specification.............................................................................................. 7
4.3. CCD Spectral Response (Representative Value) ............................................................................. 9
5. Function Settings .............................................................................................................................10
6. External Connector Pin Assignment ...................................................................................................12
6.1. 12 pins Circular Connector HR10-10R-12PA (HIROSE) ..................................................................12
6.2. 26 pins Camera Link Connector 12226-1100-00 PL (SUMITOMO 3M) .............................................12
7. Timing Chart....................................................................................................................................13
7.1. Horizontal Synchronous Signals Timing ........................................................................................13
7.2. Full Frame Scan Mode Timing .....................................................................................................13
7.3. Standard Trigger Mode Timing ....................................................................................................14
7.4. Pulse Width Trigger Timing .........................................................................................................14
8. Partial Scan Mode Details .................................................................................................................15
9. Remote Interface Function ...............................................................................................................16
10. Initial Settings ...............................................................................................................................17
11. CCD Optical Axis Accuracy ..............................................................................................................18
12. Dimensions....................................................................................................................................19
13. Cases for Indemnity (Limited Warranty) ...........................................................................................20
14. CCD Pixel Defect ............................................................................................................................20
15. Product Support .............................................................................................................................20
©2014 CIS Corporation. All rights reserved.
2
VCC-G60FV11PCL
1.
Rev.900-753-31
Scope of Application
This is to describe VCC-G60FV11PCL, Power over Camera Link B/W CCD Camera.
All specifications
contained herein are subject to change without prior notice. Reproduction in whole or in part is prohibited.
2.
Handling Precautions
The camera must not be used for any nuclear equipments or aerospace equipments with which mechanical
failure or malfunction could result in serious bodily injury or loss of human life.
Our warranty does not apply
to damages or defects caused by irregular and/or abnormal use of the product.
Please observe all warnings and cautions stated below.
Our warranty does not apply to damages or malfunctions caused by neglecting these precautions.

Do not use or store the camera in the following extreme conditions:
 Extremely dusty or humid places.
 Extremely hot or cold places (operating temperature –5℃ to +40℃)
 Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.
 Places subject to fluorescent light reflections.
 Places subject to unstable (flickering, etc.) lighting conditions.
 Places subject to strong vibration.

Remove dust or dirt on the surface of the lens with a blower.

Do not apply excessive force or static electricity that could damage the camera.

Do not shoot direct images that are extremely bright (e.g., light source, sun, etc.), and when camera
is not in use, put the lens cap on.

Follow the instructions in Chapter 6, “External connector pin assignment” for connecting the camera.
Improper connection may cause damages not only to the camera but also to the connected devices.
 Confirm the mutual ground potential carefully and then connect the camera to monitors or computers.
AC leaks from the connected devices may cause damages or destroy the camera.
 Do not apply excessive voltage. (Use only the specified voltage.)
Unstable or improper power supply
voltage may cause damages or malfunction of the camera.
©2014 CIS Corporation. All rights reserved.
3
VCC-G60FV11PCL
Rev.900-753-31
 The voltage ripple of camera power DC +12V±10% shall be within ±50mV.
Improper power
supply voltage may cause noises on the video signals.

The rising time of camera power supply voltage shall be less than +10V, Max 60ms.
Please
avoide noises like chattering when rising.

2ch output CCD, separated into right and left, is utilized for VCC-G60FV11PCL.
right half screen and left half screen are output via each independent circuit.
Image signals for
Therefore, differences
between right screen and left screen could be seen depending on the usage conditions (shooting
conditions /temeperature conditions and so on). CIS trys its best to adjust this differences but please
be noted it would not be perfect.
12
Power Supply Voltage [V]
11
10
9
8
7
10
20
30
40
50
60
70
Voltage Rising Time [ ms ]
3.
Product Outline
VCC-G60FV11PCL is a Power over Camera Link interfaced, high-resolution industrial black and white video
camera module utilizing a 2/3 type PS IT CCD.
realizes high sensitivity and high resolution.
5M pixels CCD image sensor with on-chip micro-lenses
At Full Frame Scan Mode, entire pixels can be read out within
approx. 1/16s.
Features
□
Camera settings can be changed via serial communications.
□
Shutter speed can be set from 1/16sec ~ 1/100,000sec by 1H.
□
At partial scan mode, both capturing start position and capturing width can be set by 3H.
©2014 CIS Corporation. All rights reserved.
4
VCC-G60FV11PCL
4.
Rev.900-753-31
Specification
4.1.
General Specification
Item
Specification
Device Type
Pickup device
Effective Pixel Number 2456 (H) x 2058 (V)
Unit Cell Size
3.45μm (H) x 3.45μm (V)
Chip Size
9.93mm (H) x 8.70mm (V)
Pixel Clock
64 MHz
Videooutput frequency Horizontal Frequency
Vertical Frequency
Sync. system
2/3 type Interline Transfer B/W CCD, Sony ICX625AL
33.264 KHz
Pixel Clock: 1924CLK
Full Frame Scan Mode: 2079 lines, approx 16.000Hz
Internal Sync. System
Video output standard Power over Camera Link 2Tap output (Base Configuration)
Resolution
2058 TV lines
Resolving power
8bit / 10bit
Sensitivity
F 5.6 400 lx (Shutter speed 1/16s, Gain 0dB)
Minimum illumination
F 1.4 1.5 lx (Shutter speed 1/16s, Gain +21dB)
Dust or stains in
No dust or stain shall be detected on the testing screen with setting the camera
optical system
aperture at F16.
Power requirements
DC +12V ± 10% (Max voltage not to exceed +15V)
Power consumption
Dimension
Approx. 3.6 W (At DC +12V IN, normal mode, and full frame scan mode)
Approx. 4.0 W (At DC +12V IN, normal mode, and partial scan mode)
Refer to overall dimension drawing (Clause 12)
55mm x 55mm x 45mm (excluding projection)
Mass
Approx. 155 g
Lens mount
C mount (Refer to overall dimension drawing )
Optical axis accuracy
Refer to drawing for CCD Optical Axis Accuracy (Clause 11)
Gain variable range
0~21dB (Analog Gain; 0dB~+15 dB, Digital Gain; 15 dB~+21dB)
Shutter speed
1/16~1/100,000s
variable range
Trigger shutter mode
・Standard Trigger Mode ・Pulse Width Trigger Mode
©2014 CIS Corporation. All rights reserved.
5
VCC-G60FV11PCL
Rev.900-753-31
Item
Specification
UL:
Conform to UL Standard including materials and others.
RoHS: Conform to RoHS
CE:
Safety/Quality
standards
EN55022:2010 Class A for Emission
EN61000-6-2:2005 for Immunity
FCC: To be applied to FCC Class A digital Device
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Vibration
Durability
Shock
Acceleration
98 m/s2 (10.0G)
Frequency
20~200 Hz
Direction
XYZ 3 directions
Testing time
120 min for each direction
No mulfunction shall be occurred with 980m/s2 (100G) for X, Y, Z
direction.
Temperature
(without package)
Performance guaranteed temperature: 0℃~+40℃
Camera operation guaranteed temeprature: -5℃~+45℃
※ All the specifications specified in this manual is guaranteed
under performance guaranteed temperature.
Operation environment
※All the camera functions operate normally under operation
guaranteed temperature
Storage environment
Humidity
RH 20~80% with no condensation
Temperature
-25℃ ~ +60℃
Humidity
RH 20~80% with no condensation
©2014 CIS Corporation. All rights reserved.
6
VCC-G60FV11PCL
4.2.
Rev.900-753-31
Camera Output Signal Specification
Item
Video output
data
Sync. Signal
I/O
Specification
At Full Frame Scan Mode
2448 (H) x 2058 (V)
(1224(H) x 2058(V) x 2TAP)
Video out
64MHz 2Tap output
LVAL output
LVTTL (3.3V Output)
HR10-10R-12PA
FVAL output
LVTTL (3.3V Output)
DVAL output
LVTTL (3.3V Output)
Polarity
POSI/NEGA
Trigger Pulse width
Camera Link Input
TTL Input
Over 2 H(min.) ~Less than 4158 H(max.)
LVDS:CC1 input
Camera Link Connector
Refer to the below.
HR10-10R-12PA
Selectable
100 Ω
Trigger input
470p
1k Ω
p
Input
Trigger
VIH Min 2.0V
VIL Max 0.8V
White Clip Level
At Digital 8bit
: FFh
Setup Level
At Digital 8bit
: 08h
Video Signals Dark Shading
At Digital 8bit
Leval differences
between right and left
At Digital 8bit
: Under 08h for both horizontal and
vertical. (Conditions: Gain 0dB)
: Under 03h (Conditions: Gain 0dB)
Video Output AXY: Left half image data, Yth line, Xth pixel from the left.
Data Sequence
BXY: Right half image data, Yth line, Xth pixel from the right.
X: 1~1224
Y: 1~2058
©2014 CIS Corporation. All rights reserved.
7
VCC-G60FV11PCL
Rev.900-753-31
Data Bit of Camera Link Port (Base Configuration)
At 8bit output setting
Port/bit
※
At 10bit output setting
Port A0
A0:Left half image data:bit0[LSB]
A0: Left half image data:bit0[LSB]
Port A1
A1: Left half image data:bit1
A1: Left half image data:bit1
Port A2
A2: Left half image data:bit2
A2: Left half image data:bit2
Port A3
A3: Left half image data:bit3
A3: Left half image data:bit3
Port A4
A4: Left half image data:bit4
A4: Left half image data:bit4
Port A5
A5: Left half image data:bit5
A5: Left half image data:bit5
Port A6
A6: Left half image data:bit6
A6: Left half image data:bit6
Port A7
A7: Left half image data:bit7[MSB]
A7: Left half image data:bit7
Port B0
B0: Right half image data:bit0[LSB]
A8: Left half image data:bit8
Port B1
B1: Right half image data:bit1
A9: Left half image data:bit9[MSB]
Port B2
B2: Right half image data:bit2
(-)
Port B3
B3: Right half image data:bit3
(-)
Port B4
B4: Right half image data:bit4
B8: Right half image data:bit8
Port B5
B5: Right half image data:bit5
B9: Right half image data:bit9[MSB]
Port B6
B6: Right half image data:bit6
(-)
Port B7
B7: Right half image data:bit7[MSB] (-)
Port C0
(-)
B0: Right half image data:bit0[LSB]
Port C1
(-)
B1: Right half image data:bit1
Port C2
(-)
B2: Right half image data:bit2
Port C3
(-)
B3: Right half image data:bit3
Port C4
(-)
B4: Right half image data:bit4
Port C5
(-)
B5: Right half image data:bit5
Port C6
(-)
B6: Right half image data:bit6
Port C7
(-)
B7: Right half image data:bit7
5 secounds shall be waited after turning on power to get proper camera operation.
©2014 CIS Corporation. All rights reserved.
8
VCC-G60FV11PCL
4.3.
Rev.900-753-31
CCD Spectral Response (Representative Value)
※ Lens charcteristics and luminous source charcteristics are not considered.
©2014 CIS Corporation. All rights reserved.
9
VCC-G60FV11PCL
Rev.900-753-31
5. Function Settings
Camera functions can be set with serial communications.
Function
Gain
Address
001
Data
0:
0 dB: Analog Fixed Gain
1:
+6 dB: Analog Fixed Gain
2:
+12 dB: Analog Fixed Gain
3:
+15 dB: Analog Fixed Gain
4:
+21 dB: Analog Gain (+15 dB) + Digital Gain (+6 dB)
5:
Manual Gain Interlocked right and left (Refer to Address 006)
6:
Manual Gain Independent right and left
(Refer to Address 006 for the right. Refer to Address 008 for the left.)
E-Shutter
Trigger Mode
Manual Gain
(Total & Right)
Manual Gain (Left)
002
004
0:
1/16s(Off)
1:
1/30s
2:
1/60s
3:
1/90s
4:
1/120s
5:
1/150s
6:
1/200s
7:
1/250s
8:
1/500s
9:
1/750s
10:
1/1000s
11:
1/2000s
12:
1/5000s
13:
1/10000s
14:
1/15000s
15:
1/100000s
16:
Manual Shutter (Refer to Address 009 & 010)
0:
Normal Mode (Trigger Mode Off)
1:
Standard Trigger Mode (Shutter speed can be set with address 002.)
2:
Pulse Width Trigger Mode (Shutter speed can be set with trigger pulse width.)
006
0~255:
008
0~255:
※ When the data of address 001 is 005, Total Gain (Interlocked R and L.)
※ When the data of address 001 is 006, Right Gain (Independent R and L.)
※ When the data of address 001 is 005/006, Left Gain (Independent R and L)
1/16s (Off)~1/100,000s
Manual Shutter Control
009&010 0~2078:
※ Set the address 002 data to 016.
Address 009 MSB and address 010 LSB makes total 16 bit.
Shutter speed = (2078-(009&010)) x30.0625μs +10.00μs
Note: shutter speed will be 10μs at 2078s (1/100,000)
Trigger Polarity
011
Trigger Input Select
012
Output Data Select
013
Partial Scan Mode
015
0:
Positive Input
1:
Negative Input
0:
Camera Link Connector 12226-1100-00-PL
1:
Circular Connector
0:
8bit Output Data
1:
10bit Output Data
0:
Full Frame Scan Mode
1:
Partial Scan Mode
HR10-7R-6PA
©2014 CIS Corporation. All rights reserved.
10
Max Data=2078
VCC-G60FV11PCL
Function
Rev.900-753-31
Address
Data
Set the address 015 data to 001.
Address 016 MSB and address 017 LSB makes total 16 bit.
Partial Scan Start Position
016&017 0~685:
Start Position: 3 Lines/step
Min Data: 0 (0 Line)/Max Data : 685 (2055 Lines)
Start Position (016&017)+ Effective Lines (019&020) <= 685
Set the address 015 data to 001.
Address 019 MSB and address 020 LSB makes total 16 bit.
Partial Scan Effective Lines
019&020 0~684:
Effective Lines: 3 Lines/step
Min Data: 0 (3 Lines)/Max Data : 685 (2058 Lines)
Start Position (016&017)+ Effective Lines (019&020) <= 685
Partial Scan Total Lines
021&022 0~2078:
Manual Digital Gain (Right)
126&127
Manual Digital Gain (Left)
128&129
Data Save
255
256~
512:
256~
512:
Read Only
Total line number at Partial Scan Mode or Full Frame Scan Mode minus 1 is set
※ Set address 001 data to 005/006.
※ Set address 001 data to 005/006.
Input 083 to save the data in EEP-ROM.
Note: The data set with 2 Byte with Manual Analog/Digital Gain control, Manual Shutter Control, Partial Scan
Start Position, and Partial Scan Effective Line shall be set with High Byte first, then set with Low Byte.
camera rewrites the internal resister when receiving Low Byte.
©2014 CIS Corporation. All rights reserved.
11
The
VCC-G60FV11PCL
6.
Rev.900-753-31
External Connector Pin Assignment
6.1. 12 pins Circular Connector HR10-10R-12PA (HIROSE)
Pin No.
1
GND
2
N/A
3
GND
4
NC
5
GND
6
LVAL/OUT
7
FVAL/OUT
8
GND
9
NC
10
DVAL/OUT
11
Trigger IN
12
GND
6.2. 26 pins Camera Link Connector 12226-1100-00 PL (SUMITOMO 3M)
Pin No.
Pin No.
1
DC +12V
14
GND
2
X0-
15
X0+
3
X1-
16
X1+
4
X2-
17
X2+
5
Xclk-
18
Xclk+
6
X3-
19
X3+
7
SerTC+
20
SerTC-
8
SerTFG-
21
SerTFG+
9
CC1-
22
CC1+
10
CC2+
23
CC2-
11
CC3-
24
CC3+
12
CC4+
25
CC4-
13
GND
26
DC +12V
(Trigger IN-)
(Trigger IN+)
©2014 CIS Corporation. All rights reserved.
12
VCC-G60FV11PCL
7.
Rev.900-753-31
Timing Chart
7.1.
Horizontal Synchronous Signals Timing
1924 CLK
Video Output
1224 CLK
LVAL Output
700 CLK
DVAL Output
700 CLK
FVAL Output
1 CLK
Pixel CLK = 64MHz
2Tap Output
7.2.
Full Frame Scan Mode Timing
Video Output
2058H
21H
2058H
(CCD Read Out Signal)
2075 2076 2077 2078 2079
1
2
3
4
5
6
7
8
9
10
11
12
21
22
23
LVAL Output
DVAL Output
FVAL Output
9H
12H
Total = 2079H
©2014 CIS Corporation. All rights reserved.
13
24
VCC-G60FV11PCL
7.3.
Rev.900-753-31
Standard Trigger Mode Timing
TTL INx
(Trigger Input )
12H
2058 H
Video Output
1
9
LVAL Output
( CCD Read
Out Signal)
22
DVAL Output
2079
FVAL Output
2070 H
TTL INx
(Trigger Input)
(Sub Pulse)
(CCD Read Out Signal)
1.328μ s Delay (Fixd)
(Exposure Signal)
Exposure Time
( nHD×30.0625μ s+10.00μ s)
7.4. Pulse Width Trigger Timing
TTL INx
(Trigger Input)
12 H
2058 H
Video Output
1
9
LVAL Output
( CCD Read
Out Signal )
22
DVAL Output
2079
FVAL Output
2070 H
TTL INx
(Trigger Input)
(Sub Pulse)
(CCD Read Out Signal)
1.328μ s Delay ( Fixd)
SP Output
(Exposure Signal)
10.00μ s Delay (Fixd) Exposure Time
※Note to the startup in Standard Trigger Mode and Pulse Width Mode
If you turn on your camera in Trigger Mode, enter the dummy trigger signal three or more times in order
to stabilize the CCD operation
©2014 CIS Corporation. All rights reserved.
14
VCC-G60FV11PCL
Rev.900-753-31
8. Partial Scan Mode Details
2079 H
2058 H
Video Output
(Normal Scan)
12 H
FVAL Output
(Normal Scan)
9H
Video Output
(Partial Scan)
High Speed
Transmit Term
High Speed
Transmit Term
Y Offset
12H + Starting Position
(Address016&017)
FVAL Output
(Partial Scan)
Effective Line
(Address 019&020)×3+3H
9H
Total Line(Address 021&022) + 1H
Reading out position register (Address 016 & 017): 0 (0Line) ~ 685 (2055Lines) 3Lines/step
Effective line register (Address 019 & 020): 0 (3Lines) ~ 685 (2058Lines) 3Lines/step
Total line register (Address 021 & 022): 706Lines + (Effective line register × 2) + 2 (Read Only)
Note: Reading out position and effective lines shall meet the following conditions.
Reading out position register + Effective line register = < 685
Otherwise, the value, 685 – reading out position register, will be set to the effective line register.
<Example 1>
Conditions: Reading out position register (Address 016 & 017) = 000
Effective line register
Effective lines
Total line register
(Address 019 & 020)
Frame Rate
+1 Line
0
3 Lines
709 Lines
46.92 fps
・
・
・
・
226
681 Lines
1161 Lines
28.65 fps
・
・
・
・
426
1281 Lines
1561 Lines
21.31 fps
・
・
・
・
685
2058 Lines
2079 Lines
16.00 fps
※ In Partial Scan Mode, the border between 2 readout taps corresponding to right and left portions in a
monitor might be noticeable.
In that case, set the data of address“001” (Gain) to“006” (Manual Gain - Independent control of 2 taps).
And set the data of address 006 to the right and the data of address 008 to the left, then adjust the
brightness difference between the right and left
©2014 CIS Corporation. All rights reserved.
15
VCC-G60FV11PCL
Rev.900-753-31
9. Remote Interface Function
Through serial port of 12pin connector at rear, the camera can be controlled.
(1)
The settings for RS-232C
Baud rate
Data
Stop bit
Parity
XOn/XOff
(2)
:
:
:
:
:
9600bps
8bit
1bit
None
Not controlled
Control code
・ The total control code is 14 bits, which conforms to ASCII code.
・ The control code consists of camera No. process code, remote controller address, remote
controller data, and CR. Execute Read/Write through PC, and the camera will reply the data.
1
2
3
4
Camera No.
5
6
7th Byte
Process code
8
9
10
Remote controller
11
12
13
14
Remote controller data
CR
000~255
0 Dh
address
000000: fixed
“R” Read mode
Please refer to the
“W” Write mode
address table of
“C” Camera mode
Section 5. Function
Settings.
Camera No. is fixed with 6 bite numerical strings, “000000”.
Process code
Input any one of R, W, or C to the process code.
R (read mode) is to read the data of remote controller address.
Please be noted to set any dummy data (000~255) to 11th ~13th, since a command shall
consists of 14 bytes.
W (write mode) is to write the data to the remote controller address.
Please be noted that the data cannot be saved into EEPROM of the camera.
(Reboot the camera, and the data is reset to the initial setting.)
To save the data into EEPROM, please refer to Section 5. Function Settings.
C is the code to send the data back from the camera.
Note: Do not set code C when sending the data from PC side.
©2014 CIS Corporation. All rights reserved.
16
VCC-G60FV11PCL
Rev.900-753-31
Remote controller address
Note: Do not write the data into the address other than specified, since it may cause
the damages or malfunction of the camera.
Remote controller data
Set the decimal number (000~255) for the remote controller data. Please be noted to set any
dummy data at read control mode.
CR
Be sure to input “CR” to confirm the end of the command.
※ Note: The data set with 2 Byte with Manual Analog/Digital Gain control, Manual Shutter Control,
Partial Scan Start Position, and Partial Scan Effective Line shall be set with High Byte first, then set with
Low Byte. The camera rewrites the internal resister when receiving Low Byte.
10. Initial Settings
Function
Address
Data
Gain
001
0: 0dB
E-Shutter
002
0: 1/16s (Off)
Trigger Mode
004
0: Normal Mode
Trigger Polarity
011
0: Positive Input
Output Data Select
013
0: 8 bit Output Data
Partial Scan Mode
015
0: Full Frame Scan Mode
Partial Scan Total Lines
021 & 022
(Trigger Mode Off)
2078: Read Only
©2014 CIS Corporation. All rights reserved.
17
VCC-G60FV11PCL
Rev.900-753-31
11. CCD Optical Axis Accuracy
55
11.1
45
27.5
±0.3
(*)
Under ±0.5°
55
90
°±
0
.2
°
Inclination of optical axis
to datum plane B
Inclination of optical axis
to datum plane A
Datum Plane A
Datum Plane B
The center of effective pixels shall be
within 0.6 phai to the center
of lens mount
T het
a ±0
.5 °
Incliation of effective pixels theta to datum plane A
Theta shall be under ±0.5°
Datum Plane
A
*)Dimensions from datum plane A to the center of the lens mount
910-004-00-00
(Unit: mm)
©2014 CIS Corporation. All rights reserved.
18
6.3
VCC-G60FV11PCL
Rev.900-753-31
12. Dimensions
55
28±0.1
4-M3
Depth 4
11.1
45
6.3
CL
0
F 29 -0.05
ou
nt
(
M
C
28±0.1
Under R1
37
4.5±0.1
4-M3
Depth 4
Product Name Label Position
35±0.1
55
*)
5M PIXEL
*) C Mount screws comply with ANSI/ASME B1.1, 1-32UN(2B).
*) Screw length from C mount lens surface shall be under 6mm. And, protruding portion shall be less than 10mm.
999-501-00-00
(Unit: mm)
©2014 CIS Corporation. All rights reserved.
19
DC IN
VCC-G60FV11PCL
Rev.900-753-31
13. Cases for Indemnity (Limited Warranty)
We shall be exempted from taking responsibility and held harmless for damage or losses incurred by the user
in the following cases.
 In case damage or losses are caused by fire, earthquake, or other acts of God, acts by third party,
deliberate or accidental misuse by the user, or use under extreme operating conditions.
 In case indirect, additional, consequential damages (loss of business interests, suspension of
business activities) are incurred as result of malfunction or non-function of the equipment,
we shall be exempted from responsibility for such damages.
 In case damage or losses are caused by failure to observe the information contained in the
instructions in this product specification & operation manual.
 In case damage or losses are caused by use contrary to the instructions in this product specification
& operation manual.
 In case damage or losses are caused by malfunction or other problems resulting from use of
equipment or software that is not specified.
 In case damage or losses are caused by repair or modification conducted by the customer or any
unauthorized third party (such as an unauthorized service representative).
 Expenses we bear on this product shall be limited to the individual price of the product.
14. CCD Pixel Defect
CIS compensates the noticeable CCD pixel defects found at the shipping inspection prior to our shipment.
On very rare occasions, however, CCD pixel defects might be noted with time of usage of the products.
Cause of the CCD pixel defects is the characteristic phenomenon of CCD itself and CIS is exempted from
taking any responsibilities for them.
Should you have any questions on CCD pixel defects compensation, please contact us.
15. Product Support
When defects or malfunction of our products occur, and if you would like us to investigate on the cause
and repair, please contact your distributors you purchased from to consult and coordinate.
©2014 CIS Corporation. All rights reserved.
20
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
