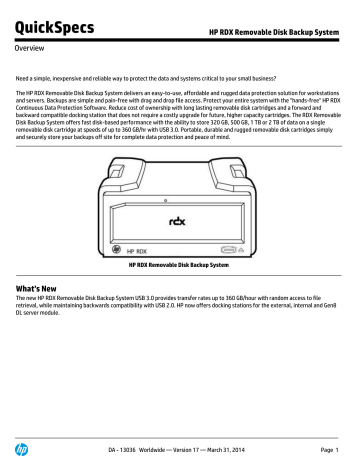

HP RDX Removable Disk Backup System

HP RDX Removable Disk Backup System

QuickSpecs

Overview

HP RDX Removable Disk Backup System

Need a simple, inexpensive and reliable way to protect the data and systems critical to your small business?

The HP RDX Removable Disk Backup System delivers an easy-to-use, affordable and rugged data protection solution for workstations and servers. Backups are simple and pain-free with drag and drop file access. Protect your entire system with the "hands-free" HP RDX

Continuous Data Protection Software. Reduce cost of ownership with long lasting removable disk cartridges and a forward and backward compatible docking station that does not require a costly upgrade for future, higher capacity cartridges. The RDX Removable

Disk Backup System offers fast disk-based performance with the ability to store 320 GB, 500 GB, 1 TB or 2 TB of data on a single removable disk cartridge at speeds of up to 360 GB/hr with USB 3.0. Portable, durable and rugged removable disk cartridges simply and securely store your backups off site for complete data protection and peace of mind.

HP RDX Removable Disk Backup System

What's New

The new HP RDX Removable Disk Backup System USB 3.0 provides transfer rates up to 360 GB/hour with random access to file retrieval, while maintaining backwards compatibility with USB 2.0. HP now offers docking stations for the external, internal and Gen8

DL server module.

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 1

QuickSpecs

Features

HP RDX Removable Disk Backup System

Key Features

Drag and drop file backup and restore

"Hands free" HP RDX Continuous Data Protection Software

Up to 360 GB/hour* transfer rate (uncompressed data) - * Where 1KB = 1,000 Bytes

Fast disk based random access file retrieval

Choice of 320 GB, 500 GB, 1 TB or 2 TB capacity removable disk cartridges (interchangeable in any HP RDX docking station)

Compatibility with leading ISV backup software applications

Disk cartridges designed for long usage life - over 5,000 load/unload insertions

Compatible with future higher capacity cartridges and mobile 2.5 inch Hard Disk Drive technology roadmap

Portable, durable and shock proof cartridges

Easy to install (USB 3.0 plug and play) and compact (Half-height 5.25-inch form-factor) internal or external docking station for removable cartridges

Choice of half-height external, internal or rack-mount models to fit both servers and workstations

HP RDX docking stations easily connect internally to a server or rack-mount kit or externally as a tabletop. By inserting a removable disk cartridge into the docking station, the cartridge automatically appears as a letter drive in Windows Explorer with no extra steps or formatting.

Broad compatibility with a wide range of servers and operating systems

Supporting tools -- HP LT&T available as a download with the drive to make installation, performance tuning and troubleshooting even easier

Customer Benefits

The simple way to protect your business data

Drag and drop file access makes backup as easy and convenient as the click of a mouse

Protect your entire system with "hands free" HP RDX Continuous Data Protection Software

Less time spent on backups with fast disk based file transfer/retrieval performance

Flexibility to meet budget and capacity requirements with choice of cartridge capacities

Usage model fits traditional backup architecture (e.g. ISV software) if required

Reduces total cost of protecting your business data

Simply and securely store backups off-site for complete data protection

Long usage life span of cartridges lowers media replacement costs

No need to replace docking station when future higher capacity cartridges are available

Portable/durable disk cartridges enable easy off site archiving and disaster recovery

Rugged cartridge protects data from drops, ESD and harsh environmental conditions for secure archiving/transportation/archiving

Plug and play USB dock allows flexible media rotation and easy future scalability

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 2

QuickSpecs

Product Highlights

HP RDX Removable Disk Backup System

Product Highlights

Combines the best of tape and disk

The HP RDX Removable Disk Backup System is based on removable disk technology that handles and operates like a traditional tape drive and media, yet has all of the advantages of disk-to-disk backup. The

HP RDX Removable Disk Backup System allows backups to be accomplished with "hands free" HP RDX

Continuous Data Protection Software, standard ISV backup applications or data can be dragged and dropped directly to the rugged removable storage media. To the host computer, the HP RDX Removable

Disk Cartridge appears as a Windows drive letter with the high performance benefits of a disk based backup system.

Easy to implement and use

Many small business customers have limited time, knowledge, experience or desire to dedicate to backup and therefore currently have no or very rudimentary backup processes in place. The HP RDX Removable

Disk Backup System offers these customers a complete backup solution that is simple to implement and easy to use.

Installation is an easy and quick process of connecting the industry standard form factor HP RDX

Removable Disk Backup System USB docking station either internally to a server or rack-mount kit or externally as a tabletop. The new HP RDX Removable Disk Backup System DL Server Module provides integrated data protection for HP ProLiant DL380/385 G6/G7 servers. The HP RDX USB 3.0 Gen8 DL Server

Module provides integrated data protection for the HP ProLiant DL380p/DL385p Gen8 rack-optimized servers. The RDX USB 3.0 Gen8 DL Server Module is the only RDX DL server module that integrates with the

HP ProLiant DL380p/DL385p Gen8 rack optimized servers.

Backing up is a simple matter of inserting a removable disk cartridge into the docking station. The cartridge will automatically show up as a letter drive in Windows explorer with no extra formatting or extra steps required. Simply select the files that need to be protected and drag them into the removable drive folder. To restore files, just reverse the process.

For a hands free backup experience use the HP RDX Continuous Data Protection Software designed for ease of use and complete workstation and server backup protection. Key features of the HP RDX

Continuous Data Protection Software include continuous data protection, file deduplication, bare metal restore, seamless cartridge rotation and archiving support, simple file recovery, complete backup coverage (unlimited file versions, open files, application data user settings and the complete operating system are all automatically backed up), and comprehensive backup status updates. Scheduled backups can be performed through support for standard ISV backup applications.

Fast backup and restore

Staff productivity and thus customer service can be negatively impacted by the lengthening backup window and restore/recovery times associated with optical backup solutions. The HP RDX Removable Disk

Backup System provides a backup solution that backs up and retrieves data quickly and reliably thus optimizing application availability and staff productivity.

Data can be backed up to HP RDX Removable Disk Cartridges at hard drive speeds (up to 360 GB/hour). HP

RDX Removable Disk Cartridges are randomly accessed and read so critical single files and selected file stores can be restored in seconds instead of hours.

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 3

QuickSpecs

Product Highlights

Affordable cost of ownership

HP RDX Removable Disk Backup System

Many small business customers have limited IT budget available for data protection with business owners wanting to reduce IT capital and operational expenditure and protect IT investments to optimize business profitability. The HP RDX Removable Disk Backup System provides a complete backup solution that has low initial acquisition costs and low on-going media and upgrade costs.

Total cost of ownership is lowered by the fact that HP RDX Removable Disk Cartridges are specified for

5,000 insertion/removal cycles, so HP RDX Removable Disk Cartridges will not wear out (and therefore need to be replaced) over the typical life cycle of the solution. Upgrade and obsolescence costs are also reduced and investment protection guaranteed by the fact that HP RDX Removable Disk Backup System docking stations are compatible with all current and future higher capacity HP RDX Removable Disk

Cartridges. Customers will not need to purchase a new docking station when next generation higher capacity HP RDX Removable Disk Cartridges are released. Similarly, today's HP RDX Removable Disk

Cartridges are compatible with all current and future HP RDX docking stations. Customer's existing HP RDX

Removable Disk Cartridges will work with next generation HP RDX docking stations when they are released.

Removability and portability

Reliability

Easy scalability and expandability

To ensure complete data protection against all types of data loss - including on-site system/site destruction or natural disaster - small businesses need the ability to remove their backup and archive data off-site. The HP RDX Removable Disk Backup System provides a backup solution that enables on-site backup data to be removed, stored and rotated off-site in an easy, safe and secure way.

HP RDX Removable Disk Cartridges are portable (palm size), durable (2.5 inch disk drive features include ramp loading heads, fluid dynamic bearings, inactive state spin down) and rugged. The robust HP RDX

Removable Disk Cartridge is also designed to protect data from potentially damaging Electrostatic

Discharge (ESD) and as well as prolonged exposure to heat, dust and other environmental contaminants.

The HP RDX Removable Disk Backup System provides a docking station specified for more than 10,000 loads and unloads and an HP RDX cartridge specified for over 5,000 load and unloads and long life expectancy.

Many growing small businesses are experiencing storage capacity growth that is outstripping the capacity/performance of current optical backup solutions. The HP RDX Removable Disk Backup System provides a backup solution that scales easily as capacity needs grow. Adding capacity is a simple matter of adding cartridges to an existing HP RDX Removable Disk Backup System USB docking station. The HP RDX

Removable Disk Backup System docking Station will work with all current as well future higher capacity cartridges as they are introduced. The product's roadmap leverages the industry standard mobile 2.5" hard disk drive roadmaps with new higher capacity cartridges expected to be introduced regularly.

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 4

QuickSpecs

Compatibility

Compatibility

HP RDX Removable Disk Backup System

The HP extensive compatibility testing program assures that your HP RDX Removable Disk Backup System works with leading servers, operating systems, and backup applications. For the latest list of servers, workstations, operating systems, and backup software that support the HP RDX Removable Disk Backup

System, check the HP RDX Removable Disk Backup System compatibility pages on our web site at: http://www.hp.com/go/connect or www.hp.com/storage/spock .

HP Server and

Workstation

Compatibility

USB 3.0 is backwards compatible with USB 2.0; however if the host device does not have a USB 3.0 port, the user will not be able to experience the full transfer rate performance that their RDX USB 3.0 system offers.

HP recommends the following controller for a user who currently only has USB 2.0: Startech 2 port PCI

Express SuperSpeed USB 3.0 card. HP USB 3.0 controllers do not support this product.

The HP RDX Removable Disk Backup System is compatible with HP ProLiant servers and HP workstations.

HP RDX Removable Disk Backup System is supported on the following classes of HP systems:

HP ProLiant DL servers

Including the HP ProLiant DL380/385 G6/G7 servers for all HP RDX Disk Systems with the exception of the HP RDX USB 3.0 Gen8 DL Server Module (B7B70A and C8S08A) which integrates only with the HP ProLiant DL380p/DL385p Gen8 rack-optimized Servers.

HP ProLiant ML servers

HP Personal Workstations

For details of which HP RDX Removable Disk Backup System models work with which systems, including third-party systems, visit: http://www.hp.com/go/connect or www.hp.com/storage/spock for the latest hardware compatibility information.

NOTE: HP recommends that no more than one HP RDX Removable Disk Backup System be connected to a system at a time.

OS Support

Microsoft® Windows®, Linux (various distributions)

NOTE: Please visit: http://www.hp.com/go/connect or www.hp.com/storage/spock for the latest compatibility information.

Backup Software Support HP RDX Continuous Data Protection Software, HP Data Protector Express, CA BrightStor ARCServe Backup,

Symantec Backup Exec, and other backup applications that support removable disk media

NOTE: Please visit: http://www.hp.com/go/connect or www.hp.com/storage/spock for the latest compatibility information.

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 5

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

HP RDX Removable Disk Backup System

Warranty and Services

Included with the Product

Hewlett-Packard provides a 1-year, next-day, parts exchange, limited warranty for the HP RDX Removable

Disk Backup System, plus 9x5 phone support for the duration of the warranty.

HP warrants only that the Storage software media will be free of physical defects for a period of ninety

(90) days from delivery.

For more information about HP's Global Limited Warranty and Technical Support, visit: www.hp.com/storage/warranty

HP Care Pack Information For increased uptime, productivity and ROI -HP Care Pack packaged services for Storage

These days, you need to get the most out of your storage investment-you can't afford not to. When you buy HP storage products and solutions, it's also a good time to think about what levels of service and support you may need. To help take the worry out of deploying, designing, maintaining, and managing your environment, we've designed a portfolio of service options that are as flexible, reliable and scalable as your storage. Unlike storage-only vendors, we take a holistic approach to your entire environment, bridging storage, servers, blades, software and network infrastructures with our HP Care Pack packaged services for Storage.

Protect your business beyond the warranty

When it comes to robustness and reliability, standard warranties on today's computing equipment have matured just as the technologies have matured. Good news on some fronts-but also a source of potential problems and subsequent consequences that come from depending on standard warranties alone.

Standard warranty protects against product defects and some causes of downtime- but not the business.

By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can reduce downtime risks and be more certain of operational consistency for both mission-critical and standard business computing. Simply put, HP Care Pack Services normalize the warranty of combined products - helping you proactively guard against unplanned downtime.

Extending warranties with HP Care Pack Services

For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of standard reactive hardware and software support services that are sold separately, or combined as with our Support Plus and Support Plus 24 services. The portfolio also provides a combination of proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition, with HP Proactive Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the specific proactive services you need today, then add services as your needs evolve. HP Proactive Select offers a broad set of technical or per-event type service options - including server, storage, and network, SAN device, and software, environment, installation and education services. Services that you can mix and match depending on your specific requirements, from preliminary planning and equipment delivery to installation, configuration, integration, and testing, through every level of ongoing support. Our HP Care

Pack packaged services for Storage assures help when you need it most. And for many products, postwarranty HP Care Pack Services are available when your original warranty has expired.

HP Storage Services: Offering reliability, flexibility and value-just like your storage

HP Storage Services offers a full spectrum of customer care, from technology support to complex migrations to complete completely managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP Education offers flexible, comprehensive training on storage networking, disk storage systems, and storage software to help your IT staff get the most out of your investments. And HP Financial solutions extend innovative financing and asset

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 6

QuickSpecs

HP RDX Removable Disk Backup System

Service and Support, HP Care Pack, and Warranty Information management programs to cost-effective buy, manage and eventually retire your older equipment.

HP Storage Services, the trusted business technology experts who manage your technology in action, because when technology works, business works. http://www.hp.com/services/storage

NOTE: Care Pack Services availability may vary by product and country.

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.

Customers purchasing from a commercial reseller can find HP Care Pack Services at http://www.hp.com/go/lookuptool

Recommended Support

For a higher return on your storage investment, HP Support Plus 24 provides integrated hardware and software support services designed specifically for your technology. Available 24x7, this 3-year combined reactive support option delivers onsite hardware support and over-the-phone software support aroundthe-clock. Leverage the full strength of HP Technology Services - customers can trust the services professionals at HP to work collaboratively with them, putting our strategic and technical know-how to work across their entire infrastructure.

Improve uptime with responsive hardware and software services

Enjoy consistent service coverage across geographically dispersed sites

Update HP party software at a predictable cost

Increase customer satisfaction-with no interoperability gaps http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EN.pdf

Recommended

Deployment

HP Installation Service.

For smooth startup and better business outcomes, HP Hardware Installation - this service provides initial hardware installation of your product into your technology environment (system configuration is not included).

Service Features:

Installation in accordance with your business's configuration requirements

The ability to achieve more effective data management http://h71028.www7.hp.com/ERC/downloads/5981-9356EN.pdf

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 7

QuickSpecs

HP RDX Removable Disk Backup System

Service and Support, HP Care Pack, and Warranty Information

Related HP Care Pack Services that will enhance your HP product experience

Related Services

For customers who need to improve IT performance and manageability through the use of cost effective flexible proactive services:

Proactive Select - increased flexibility, minimal complexity -- Select what works for you - your package

Delivery planning + Proactive Service Credits

Credits are used to redeem proactive services

Three 'predefined' service credit levels - 30, 60,180 credits

Additional credits available

Available in 1,3, 4 & 5 year packages

Reactive

Utilize existing reactive services products - ranging from Next Day, through 24x7, to 6 Hour Call to

Repair http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf

eSupport

Customer Technical

Training

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal

The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

Access to self-solve tools (including search technical knowledge base)

Efficient logging and tracking of support cases

Collaboration with other business and IT professionals

Download of patches and drivers

Access to diagnostic tools

Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: http://www.hp.com/support

Consider education as an integral part of your strategy to get the best return on investment for your HP storage solution. HP offers a variety of training courses on storage software, networking, archiving and disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led courses at one of our 80 training centers worldwide to on-site training customized to your needs or online.

www.hp.com/learn/storage

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 8

QuickSpecs

HP RDX Removable Disk Backup System

Service and Support, HP Care Pack, and Warranty Information

HP Services Awards

HP Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction. For a list of all our awards, please visit http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.html

Additional Services

Information

For more information about HP Care Pack Services for Storage, please visit: http://www.hp.com/services/storage

If you have specific questions, contact your local HP representative. Contact information for a representative in your area can be found at "Contact HP" http://www.hp.com

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 9

QuickSpecs

Kit Contents

Kit Contents

HP RDX Removable Disk Backup System

Model Name

HP RDX320 USB3.0 Internal Disk Backup System

RDX Internal Docking Station, installation poster, HP RDX Utility CD (containing electronic user's guide and drivers), internal USB cable, HP RDX 320 GB Removable Disk

Cartridge, HP RDX Continuous Data Protection Software CD

NOTE: 0D1 will appear after this part number on your sales order if factory integration is indicated.

HP RDX320 USB3.0 External Disk Backup System

RDX External Docking Station, installation poster, HP RDX Utility CD (containing electronic user's guide and drivers), external USB cable, power cord/supply, HP RDX 320

GB Removable Disk Cartridge, HP RDX Continuous Data Protection Software CD

HP RDX500 USB3.0 Internal Disk Backup System

RDX Internal Docking Station, installation poster, HP RDX Utility CD (containing electronic user's guide and drivers), internal USB cable, HP RDX 500 GB Removable Disk

Cartridge, HP RDX Continuous Data Protection Software CD

NOTE: 0D1 will appear after this part number on your sales order if factory integration is indicated.

HP RDX500 USB3.0 External Disk Backup System

RDX External Docking Station, installation poster, HP RDX Utility CD (containing electronic user's guide and drivers), external USB cable, power cord/supply, HP RDX 500

GB Removable Disk Cartridge, HP RDX Continuous Data Protection Software CD

HP RDX1000 USB3.0 Internal Disk Backup System

RDX Internal Docking Station, installation poster, HP RDX Utility CD (containing electronic user's guide and drivers), internal USB cable, HP RDX 1 TB Removable Disk

Cartridge, HP RDX Continuous Data Protection Software CD

NOTE: 0D1 will appear after this part number on your sales order if factory integration is indicated.

HP RDX1000 USB3.0 DL Server Backup Module

RDX Removable Disk Backup System DL Server Module, installation poster/flyer, HP

RDX Utility CD (containing electronic user's guide and drivers), internal USB cable, power cable, HP RDX 1TB Removable Disk Cartridge, HP RDX Continuous Data Protection

Software CD

NOTE: 0D1 will appear after this part number on your sales order if factory integration is indicated.

HP RDX1000 USB3.0 External Disk Backup System

Part Number

B7B62A

B7B63A

B7B64A

B7B66A

B7B67A

B7B68A

B7B69A

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 10

QuickSpecs

Kit Contents

HP RDX Removable Disk Backup System

RDX External Docking Station, installation poster, HP RDX Utility CD (containing electronic user's guide and drivers), external USB cable, power cord/supply, HP RDX 1

TB Removable Disk Cartridge, HP RDX Continuous Data Protection Software CD

HP RDX 2TB USB3.0 Internal Disk Backup Systems

RDX Internal Docking Station, installation poster, HP RDX Utility CD (containing electronic user's guide and drivers), internal USB cable, HP RDX 2 TB Removable Disk

Cartridge, HP RDX Continuous Data Protection Software CD

NOTE: 0D1 will appear after this part number on your sales order if factory integration is indicated.

HP RDX 2TB USB3.0 External Disk Backup Systems

RDX External Docking Station, installation poster, HP RDX Utility CD (containing electronic user's guide and drivers), external USB cable, power cord/supply, HP RDX 2

TB Removable Disk Cartridge, HP RDX Continuous Data Protection Software CD

HP RDX500 USB3.0 DL Server Backup Module

RDX Removable Disk Backup System DL Server Module, installation poster/flyer, HP

RDX Utility CD (containing electronic user's guide and drivers), internal USB cable, power cable, HP RDX 500 GB Removable Disk Cartridge, HP RDX Continuous Data Protection

Software CD

NOTE: 0D1 will appear after this part number on your sales order if factory integration is indicated.

HP RDX1000 USB3.0 Gen8 DL Server Module

RDX Removable Disk Backup System DL Server Module, installation poster/flyer, HP

RDX Utility CD (containing electronic user's guide and drivers), internal USB cable, power cable, HP RDX 1TB GB Removable Disk Cartridge, HP RDX Continuous Data Protection

Software CD

NOTE: 0D1 will appear after this part number on your sales order if factory integration is indicated.

HP RDX USB 3.0 Gen8 DL Server Module Docking Station

RDX Removable Disk Backup System DL Server Module, installation poster/flyer, HP

RDX Utility CD (containing electronic user's guide and drivers), internal USB cable, power cable, HP RDX Continuous Data Protection Software CD. Is backwards and forwards compatible with any RDX capacity media.

HP RDX USB 3.0 Internal Docking Station

RDX Removable Disk Backup System Internal Docking Station installation poster/flyer,

HP RDX Utility CD (containing electronic user's guide and drivers), internal USB cable, power cable, HP RDX Continuous Data Protection Software CD. Is backwards and forwards compatible with any RDX capacity media.

HP RDX USB 3.0 External Docking Station

E7X52A

E7X53A

B7B65A

B7B70A

C8S08A

C8S06A

C8S07A

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 11

QuickSpecs

Kit Contents

Media

Rack-Mount Options

HP RDX Removable Disk Backup System

RDX Removable Disk Backup System External Docking Station installation poster/flyer,

HP RDX Utility CD (containing electronic user's guide and drivers), external USB cable, power cable, HP RDX Continuous Data Protection Software CD. Is backwards and forwards compatible with any RDX capacity media.

HP RDX 320GB Removable Disk Cartridge

HP RDX 500GB Removable Disk Cartridge

HP RDX 1TB Removable Disk Cartridge

HP RDX 2TB Removable Disk Cartridge

HP StoreEver 1U USB Rack-mount Kit

NOTE: 1U USB Rack-Mount Kit holds up to two internal HP RDX Removable Disk Backup

Systems

NOTE: Please refer to the following web page for further information: http://h18006.www1.hp.com/products/storageworks/1urackmount/index.html

Q2041A

Q2042A

Q2044A

Q2046A

A8007B

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 12

QuickSpecs

Technical Specifications

Dimensions

HP RDX Removable Disk Backup System

Form Factor

Physical (HxWxD)

Internal Dock

HP RDX 320

Half-height,

5¼ in

(internal module)

1.63 x 5.78 x

6.72 in

(4.14 x 14.68

x 17.07 cm)

HP RDX 500

Half-height,

5¼ in

(internal module)

1.63 x 5.78 x

6.72 in

(4.14 x 14.68

x 17.07 cm)

HP RDX 1TB

Half-height,

5¼ in

(internal module)

1.63 x 5.78 x

6.72 in

(4.14 x 14.68

x 17.07 cm)

HP RDX 2TB

Half-height,

5¼ in

(internal module)

1.63 x 5.78 x

6.72 in

(4.14 x 14.68

x 17.07 cm)

HP RDX

DL380/385

G6/G7 server module

Module with

Half-height,

5¼ inch internal RDX drive

3.36 x 7.00 x

6.72 in

(8.535 x

17.791 x

17.072 cm)

HP RDX1TB

USB3.0 Gen8

DL Server

Module

Module with

Half-height,

5¼ inch internal RDX drive

3.36 x 7.00 x

6.72 in

(8.535 x

17.791 x

17.072 cm)

Physical (HxWxD)

External Dock

2.04 x 4.32 x

7.00 in

(including bezel)

(5.18 x 10.98

x 17.75 cm

(including bezel))

Physical (HxWxD)

Removable Disk

Cartridge

Shipping (HxWxD)

Internal/External

0.92 x 3.39 x

4.68 in

(2.34 x 8.66 x

11.9 cm)

8.07 x 7.87 x

15.75 in

(20.5 x 20.0 x

40 cm)

Shipping (HxWxD)

Removable Disk

Cartridge

3.35 x 5.32 x

7.99 in

(8.50 x 13.5 x

20.3 cm)

2.04 x 4.32 x

7.00 in

(including bezel)

(5.18 x 10.98

x 17.75 cm

(including bezel))

0.92 x 3.39 x

4.68 in

(2.34 x 8.66 x

11.9 cm)

8.07 x 7.87 x

15.75 in

(20.5 x 20.0 x

40 cm)

3.35 x 5.32 x

7.99 in

(8.50 x 13.5 x

20.3 cm)

2.04 x 4.32 x

7.00 in

(including bezel)

(5.18 x 10.98

x 17.75 cm

(including bezel))

0.92 x 3.39 x

4.68 in

(2.34 x 8.66 x

11.9 cm)

8.07 x 7.87 x

15.75 in

(20.5 x 20.0 x

40 cm)

3.35 x 5.32 x

7.99 in

(8.50 x 13.5 x

20.3 cm)

2.04 x 4.32 x

7.00 in

(including bezel)

(5.18 x 10.98

x 17.75 cm

(including bezel))

0.92 x 3.39 x

4.68 in

(2.34 x 8.66 x

11.9 cm)

8.07 x 7.87 x

15.75 in

(20.5 x 20.0 x

40 cm)

3.35 x 5.32 x

7.99 in

(8.50 x 13.5 x

20.3 cm)

N/A

0.92 x 3.39 x

4.68 in

(2.34 x 8.66 x

11.9 cm)

8.07 x 7.87 x

15.75 in

(20.5 x 20.0 x

40 cm)

3.35 x 5.32 x

7.99 in

(8.50 x 13.5 x

20.3 cm)

N/A

0.92 x 3.39 x

4.68 in

(2.34 x 8.66 x

11.9 cm)

8.07 x 7.87 x

15.75 in

(20.5 x 20.0 x

40 cm)

3.35 x 5.32 x

7.99 in

(8.50 x 13.5 x

20.3 cm)

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 13

QuickSpecs

HP RDX Removable Disk Backup System

Technical Specifications

Weight

Orientation

Capacity

Out of box, Internal

Dock

1.40 lb (635 g) 1.40 lb (635 g) 1.40 lb (635 g) 1.40 lb (635 g) 3.29 lb (1494 g)

Out of box, External

Dock

1.19 Ib (540 g) 1.19 Ib (540 g) 1.19 Ib (540 g) 1.19 Ib (540 g) N/A

Out of box,

Removable Disk

Cartridge

0.38 lb (173 g) 0.41 lb (188 g) 0.41 lb (188g) 0.56 lb (255g) 0.38 lb (173 g)/ 0.41 lb

(188 g)

Shipping, Internal

Dock Shipping

External Dock

3.37 lb (1.53

kg

3.45 lb (1.57

kg)

3.45 lb (1.57

kg)

4.94 lb

(2.24Kg)

3.45 lb (1.57

kg)

N/A 3.5 lb (1.59

kg)

3.58 lb (1.63

kg)

3.58 lb (1.63

kg)

5.07 lB

(2.30Kg)

0.77 lb (349 g) 0.81 lb (367 g) 0.81 lb (367 g) 0.96 lb (435g) N/A

Shipping,

Removable Disk

Cartridge

Internal Dock

External Dock

Native

Horizontal +/-

90 degrees

Horizontal +/-

90 degrees

320 GB

Horizontal +/-

90 degrees

Horizontal +/-

90 degrees

500 GB

Horizontal +/-

90 degrees

Horizontal +/-

90 degrees

1 TB

N/A

N/A

2 TB

3.29 lb (1494 g)

N/A

0.38 lb (173 g)/ 0.41 lb

(188 g)

3.45 lb (1.57

kg)

N/A

N/A

N/A

N/A

Performance

Reliability

Compressed

(assumes 2:1 application based data compression)

Average sustained transfer rate, native

Average sustained transfer rate, compressed

(assumes 2:1 application based data compression)

Burst transfer rate(USB)

Data access time

Supported file systems

MTBF (Dock)

MTBF (cartridge)

Uncorrected Error

Rate

640 GB

100MBs

200MBs

600MBs

1 TB

100MBs

200MBs

600MBs

2 TB

100MBs

200MBs

600MBs

4 TB

100MBs

200MBs

600MBs

12 milliseconds 12 milliseconds 12 milliseconds 12 milliseconds

FAT32, NTFS, ext2, ext3

FAT32, NTFS, ext2, ext3

FAT32, NTFS, ext2, ext3

FAT32, NTFS, ext2, ext3

550,000 hours

@100% duty cycle

550,000 hours

@100% duty cycle

550,000 hours

@100% duty cycle

550,000 hours

@100% duty cycle

500,000 hours 500,000 hours 500,000 hours 500,000 hours

1 error per 10

14 bits read

1 error per 10 bits read

14

1 error per 10 bits read

14

1 error per 1014 bits read

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 14

QuickSpecs

HP RDX Removable Disk Backup System

Technical Specifications

Media

Compatibility

Docking Station

Load/Unload cycles

Cartridge Load/Unload cycles

Interface type

10,000

(minimum)

5,000

(minimum)

Backwards and forwards compatibility to any current/future

RDX removable disk cartridge

USB 3.0

10,000

(minimum)

5,000

(minimum)

10,000

(minimum)

5,000

(minimum)

10,000

(minimum)

5,000

(minimum)

Backwards and forwards compatibility to any current/future

RDX removable disk cartridge

USB 3.0

Backwards and forwards compatibility to any current/future

RDX removable disk cartridge

USB 3.0

Backwards and forwards compatibility to any current/future

RDX removable disk cartridge

USB 3.0

Interface

Power Specifications Power requirements,

Environmental

Specifications (all models)

USB connector

Internal

Power requirements,

External

Power consumption

6.6W/20 W

(typical)/ (peak)

6.6W/20 W

(typical)/ (peak)

6.6W/20 W

(typical)/ (peak)

Temperature range

5 to 45º C; 41 to 113º F (operating)-

-40 to 65º C; -40 to 149º F (non operating)

Relative humidity

Altitude

USB standard series B receptacle

+5V ± 5%

(100mV Max ripple) @1.1A

+12V ± 10%

(150mV Max ripple) @0.4A

100 to 240 VAC,

50-60 Hz, autoranging

USB standard series B receptacle

+5V ± 5% (100 mV Max ripple)

@ 1.1 A

+12V ± 10%

(150 mV Max ripple) @ 0.4 A

100 to 240 VAC,

50-60 Hz, autoranging

USB standard series B receptacle

+5V ± 5% (100 mV Max ripple)

@ 1.1 A

+12V ± 10%

(150 mV Max ripple) @ 0.4 A

100 to 240 VAC,

50-60 Hz, autoranging

USB standard series B receptacle

+5V ± 5% (100 mV Max ripple)

@ 1.1 A

+12V ± 10%

(150 mV Max ripple) @ 0.4 A

100 to 240 VAC,

50-60 Hz, autoranging

6.6W/20 W

(typical)/ (peak)

20 to 80%, non condensing (operating), 10 to 90%, non-condensing (non operating)

-50 ft to 10,000 ft (operational), -50 ft to 35,000 ft (non operational)

Vibration

Shock: Cartridge non operating drop shock

random vib(operational): 0.30Grms 5Hz to 500Hz, sine vib(non-op): 0.75g (0-peak)

5Hz to 500Hz, random(non-op): 2.41Grms 5Hz to 500Hz half sine 31G @2.6ms (operational), half sine 71G @ 2m (non operational)

1 m (39.4 in) drop to tile over concrete floor

Standards Compliance (all models)

cURus Recognized (UL60950), TÜV EN60950 (IEC 60950), FCC and CE Declaration of Conformity, C-TICK

Approved (AS/NZS CISPR22), VCCI Approved, RRL Approved, BSMI Approved, GOSH Approved

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 15

QuickSpecs

HP RDX Removable Disk Backup System

Technical Specifications

Front Panel LED

Indicators and buttons

(all models)

Eject Button/Power LED

(on docking station)

Activity LED (on cartridge)

Emergency Eject Hole

Off

Green

Blinking Green

Amber

Blinking Amber

No Power

Power is on and unit is working correctly

Unit is ejecting the cartridge

Unit has detected a fault. For more information run a diagnostic application

Host computer is accessing the media, and the user has pressed the eject button. The unit will eject the cartridge after the host access completes

Green

Blinking Green

Cartridge is ready

Activity (Reading, writing, seeking)

Amber Unit has detected a fault. For more information run a diagnostic application

Emergency Eject Hole to eject the cartridge

© Copyright 2014 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel

Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For RDX drives and media, 1 GB = 1 billion bytes. Actual formatted capacity is less.

DA - 13036 Worldwide — Version 17 — March 31, 2014 Page 16

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
