CV_KH202_33213_LB6.qxd
22.05.2009
11:29 Uhr
Seite 1
6

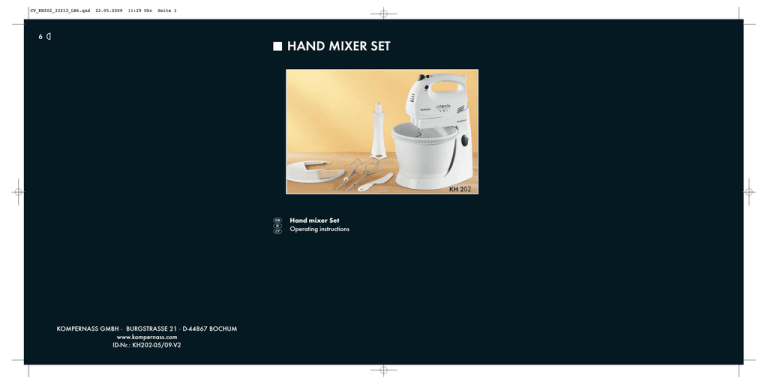

HAND MIXER SET
KH 202
Hand mixer Set
Operating instructions
KOMPERNASS GMBH · BURGSTRASSE 21 · D-44867 BOCHUM
www.kompernass.com
ID-Nr.: KH202-05/09-V2
CV_KH202_33213_LB6.qxd
22.05.2009
11:29 Uhr
Seite 4
KH 202
q
s
a
o
w
e
r
i
t
u
y
d
f
g
h
IB_KH202_33213_LB6
22.05.2009
9:54 Uhr
Seite 1
CONTENT
PAGE
Intended Use
2
Technical data
2
Important safety instructions
2
Items supplied
3
Description of Components
3
Unpacking
3
Placing
3
Speed levels
4
Operation
4
Kneading and Whisking ..................................................................................................................4
Blending.............................................................................................................................................5
Cleaning
6
Disposal
6
Warranty and Service
7
Importer
7
Read these operating instructions carefully before using the appliance for the first time and preserve this
maual for later reference. Pass this manual on to whoever might acquire the appliance at a future date.
-1-
IB_KH202_33213_LB6
22.05.2009
9:54 Uhr
Seite 2
HAND MIXER SET
KH 202
Important safety instructions
Warning:
Intended Use
• This appliance is not intended for use by individuals
(including children) with restricted physical, physiological or intellectual abilities or deficiences in
experience and/or knowledge unless they are
supervised by a person responsible for their safety
or receive from this person instruction in how the
appliance is to be used.
• Children should be supervised to ensure that
they do not play with the appliance.
• Do not use the hand mixer outdoors. The appliance
is intended exclusively for domestic use indoors.
• Unplug the power cable after every use and
before cleaning, so as to prevent the appliance
from switching itself on inadvertently.
• Before exchanging accessories, ALWAYS remove
the plug from the mains power socket.
• Do not leave the appliance unsupervised.
Should you need to leave the workplace, remove
the plug from the mains power socket.
• When removing the plug from the mains power
socket, always pull the plug itself, never the power
cable.
• Never touch any parts of the appliance that are
in motion, always wait for them to come to a
complete stop.
• Check the appliance and all parts for visible
damages. The safety concept can work only if
the appliance is in a faultless condition.
• Under NO circumstances should you use the appliance if parts are damaged or missing. If you
do, there will be an increased risk of accidents.
• Arrange for all repairs to be carried out only by
specialists. If need be, approach our Service
Partner responsible for your country.
This Hand mixer set is suitable for kneading dough,
mixing liquids (e.g. fruit juices), whipping cream and
pureeing fruit. It is only suitable for foodstuffs. All other
usages or modifications are regarded as contrary to
the operating instructions and contain a great risk of
accidents. The manufacturer refuses to accept liability
for damage(s) resulting from usage that is contrary
to these instructions. Not for commercial use.
Technical data
Power rating:
Rated output:
Protection class:
Continuous
operating time:
230-240V~ 50Hz
300W
II /
Mixer:
Blender:
10 min.
1 min.
CO Time
The C.O. Time (Continuous Operation) details how
long an appliance may be used without the motor
overheating and being damaged. When the given
C.O. Time has lapsed, the appliance must be switched
off until the motor has cooled itself down.
-2-
IB_KH202_33213_LB6
22.05.2009
9:54 Uhr
Seite 3
Description of Components
Do not submerge the blender or the hand mixer
in water. If necessary, clean the lower part of
the blender with the blade under running water. The ap-pliance could become irreparably
damaged if it is submerged.
1 Speed switch
2 Fixture for the blender, with safety cover
3 Power cable with power plug
4 Unlocking button for the handmixer
5 Unlocking button
6 Mixing stand
7 Mixing bowl
8 Filler opening
9 Lid
0 Turbo button
q Ejection button
w Blender
e Whisk made of stainless steel
r Kneading hooks made of stainless steel
t Dough scraper
• Arrange for defective power plugs and/or cables
to be replaced at once by qualified technicians
or our Customer Service Department.
Risk of Injuries:
• During use, do not come into contact with the
whisk, the kneading hooks or the knife on the
blender. The blade of the blender is sharp.
Therefore, ALWAYS handle the blender with
care. Do not allow long hair, scarves and such
like to hang over the mixing attachments.
• NEVER attempt to assemble ancillaries with
differing functions at the same time.
Unpacking
Risk of electrical shocks.
• The power cable must never come into close
contact with hot parts of the appliance or other
sources of heat. Do not allow the power cable
to lie on sharp rims or edges.
• Do not fold or crush the power cable.
• Take all components out the packaging.
• Remove all packaging materials and transport
restraints.
• Check that all of the items listed are present and
that they do not show signs of damage.
Items supplied
Placing
1 Hand mixer
1 Mixing stand
1 Mixing bowl with lid
2 Kneading hooks
2 Whisks
1 Blender
1 Dough scraper
Operating instructions
• Place the mixer stand 6 onto a level surface.
Three suction discs have been fixed to the base
of the mixer stand 6 to prevent it sliding during
operation.
• Ensure that the mains power socket is easily
accessible in the event of a risk situation.
-3-
IB_KH202_33213_LB6
22.05.2009
9:54 Uhr
Seite 4
Speed levels
2. Insert the whisk e or the kneading hooks r
into the appliance until they securely and audibly
engage.
Always insert the kneading hook r or the whisk e
with the cogged wheel into the predetermined
opening (marked with a cog wheel) on the
handmixer.
3. Release the mixer holder by pressing the release
button for tilting 5 and lift the mixer holder upwards.
4. Remove the mixing bowl 7 and fill it with the
quantities of ingredients to be prepared.
0 Appliance is switched off
1 Good starting speed for mixing "soft" ingredients
such as flour, butter, etc.
2 Best speed for blending liquid ingredients
3 Optimum speed for mixing cake and bread
dough
4 For whipping butter to form a fine foam, sugar,
for desserts etc.
5 For whipping egg whites, cake, decorative jelly,
pureeing of boiled potatoes, whipping cream,
etc.
Warning:
NEVER fill the mixing bowl 7 beyond the Max
marking (approx 2.5 l) with ingredients. If you do,
there is a risk they could spill over the edge during
operation.
For operating the blender:
Only usable in combination with the turbo button.
Turbo:
• this button allows you to have the full power of
your appliance immediately at your disposal.
• for operating the blender
5. Replace the mixing bowl 7 onto the mixing
stand 6.
6. Press the release button for tilting 5 and lower
the holder downwards.
7. Place the hand mixer on the holder so that it
firmly engages.
8. Slide the lid 9 into the guiderails on the mixing
bowl 6 so that it is firmly seated.
Operation
Kneading and Whisking
Warning:
Note:
Do not operate the mixer for longer than 10 minutes
in one session. After 10 minutes, allow the appliance
to rest until it has cooled itself down.
Should you wish to add ingredients whilst mixing,
open the filler opening 8 and insert them through
it. To avoid a splattering of the ingredients, be sure
to reclose the filler opening 8!
1. Before the first usage, clean the attachments
(w,e,r), the mixing bowl 7 and the lid 9.
You can also use the hand mixer without the mixing
stand 6. Especially with minor amounts of liquids
you are advised to use the hand mixer without the
mixing stand 6. Otherwise, the liquid may not be
completely captured and thus not mixed thoroughly.
-4-
IB_KH202_33213_LB6
22.05.2009
9:54 Uhr
Seite 5
Warning:
12. Press the release button 4 to remove the hand
mixer and the ejection button q to release the
whisks e or the kneading hooks r.
Under no circumstance should you use receptacles
made of glass or other very fragile/easily breakable
materials. These containers can be damaged and
then cause potentially serious injuries.
Blending
Warning:
9. Insert the plug 3 into a mains power socket.
10. To set the mixer into motion, push the speed
switch 1 to the desired speed setting. You
can select between 5 speed settings or the
turbo button 0 (see section "Speed levels").
Never use the blender w for hard foodstuffs such as:
coffee beans, ice cubes, sugar, cereals, chocolate,
raw/hard vegetables etc. They could cause serious
damage to the appliance.
Warning:
Warning:
Do not operate the mixer for longer than 10 minutes
in one session. After 10 minutes, allow the appliance
to rest until it has cooled itself down.
Under no circumstance should you use receptacles
made of glass or other very fragile/easily breakable
materials. These containers can be damaged and
then cause potentially serious injuries.
Note:
If ingredients become stuck to the side of the mixing
bowl 7 and they cannot be captured with the
kneading hooks r/ whisks e, switch the hand mixer
off. Remove the lid 9. Use the dough scraper t to
push them back into the middle of the mixing bowl 7.
Replace the lid 9. Switch the hand mixer back on.
1. Open the fixture for the blender 2 and hold the
safety cover 2 firmly.
11. To remove the bowl contents, switch the appliance off. Pull the lid 9 to the side and remove
it. Press the release button for tilting 5, lift the
holder upwards and remove the mixing bowl 7
from the mixing stand 6.
2. Insert the blender w until it engages and then
twist it firmly tight.
3. To avoid overflows, the container used for blending
should only be filled to 2/3rds of its capacity.
Select a sufficiently large container.
Note:
The blender w can only be utilised when the whisks
e or the kneading hooks r are not installed.
Note:
Tips:
In the case of larger amounts in the mixing bowl 7,
it is to be recommended that you first remove the
mixer from the holder.
• To ensure an effective blending of the ingredients,
the foodstuffs to be processed should cover at
least the lower section of the blender w.
• First switch the hand mixer on when the blender w
has been inserted into the ingredients to be
blended.
-5-
IB_KH202_33213_LB6
22.05.2009
9:54 Uhr
Seite 6
4. Push the speed switch 1 into the position "Blender"
(s. section " Speed levels“) and press the Turbo
button 0. Keep the Turbo button 0 pressed down
during the whole procedure. The appliance stops
as soon as it is released.
• Clean the mixing stand 6 only with a moist
cloth and, if required, with a mild cleaning detergent.
• The whisks e and the kneading hooks r can
be cleaned under running water or in the dishwashing machine.
Warning:
Warning:
Do not operate the blender w for longer than 1
minute in one session. After one minute, allow the
appliance to rest until it has cooled itself down.
Clean only the lower part of the blender w under
running water. Under no circumstances may water
permeate into the blender w. These could result in
damage to the appliance.
5. When you have finished working with the blender w, place the speed switch 1 back into the
position "0" and remove the plug from the mains
power socket.
6. To clean the blender w twist and remove it from
the retaining mechanism 2.
• We recommend cleaning the ancillaries directly
after use. Food remnants are then immediately
removed, greatly reducing the risks of bacterial
contamination.
• Clean the mixing bowl 7, the lid 9 and the
dough scraper t in warm water with washingup liquid.
Warning:
Clean only the lower part of the blender w under
running water. Under no circumstances may water
permeate into the blender w. This could result in
damage to the appliance.
Disposal
Do not dispose of the appliance in your
normal domestic waste. This product is
subject to the provisions of European
Directive 2002/96/EC.
Cleaning
Warning:
Dispose of the appliance through an approved waste
disposal centre or at your community waste facility.
Observe the currently applicable regulations.
In case of doubt, please contact your waste disposal
centre.
Always remove the power plug before cleaning the
appliance. There is a risk of receiving an electric
shock!
UNDER NO CIRCUMSTANCES may the
hand element be submersed in water or other
liquids! ! This would increase the risk of a
potentially fatal electric shock should liquids
come into contact with powered components.
Dispose of all packaging materials in an
environmentally friendly manner.
• Clean the hand element with the electric motor
only with a damp cloth and, if necessary, with
a mild detergent.
-6-
IB_KH202_33213_LB6
22.05.2009
9:54 Uhr
Seite 7
Warranty and Service
Importer
The warranty for this appliance is for 3 years from the
date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of
purchase. In the case of a warranty claim, please
make contact by telephone with our service department. Only in this way can a post-free despatch for
your goods be assured.
The warranty covers only claims for material and
manufacturing defects, not for wearing parts or for
damage to fragile components, e.g. buttons or batteries. The appliance is intended for domestic use
only, NOT for commercial purposes.
If this product has been subjected to improper or inappropriate handling, abuse, or modifications not
carried out by one of our authorised sales and service
outlets, the warranty will be considered void. Your
statutory rights are not restricted in any way by this
warranty.
KOMPERNASS GMBH
BURGSTRASSE 21
44867 BOCHUM, GERMANY
www.kompernass.com
DES Ltd
Units 14-15
Bilston Industrial Estate
Oxford Street
Bilston
WV14 7EG
Tel.: 0870/787-6177
Fax: 0870/787-6168
e-mail: [email protected]
Kompernass Service Ireland
Tel: 1850 930 412 (0,082 EUR/Min.)
Standard call rates apply. Mobile operators may vary.
e-mail: [email protected]
-7-
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
