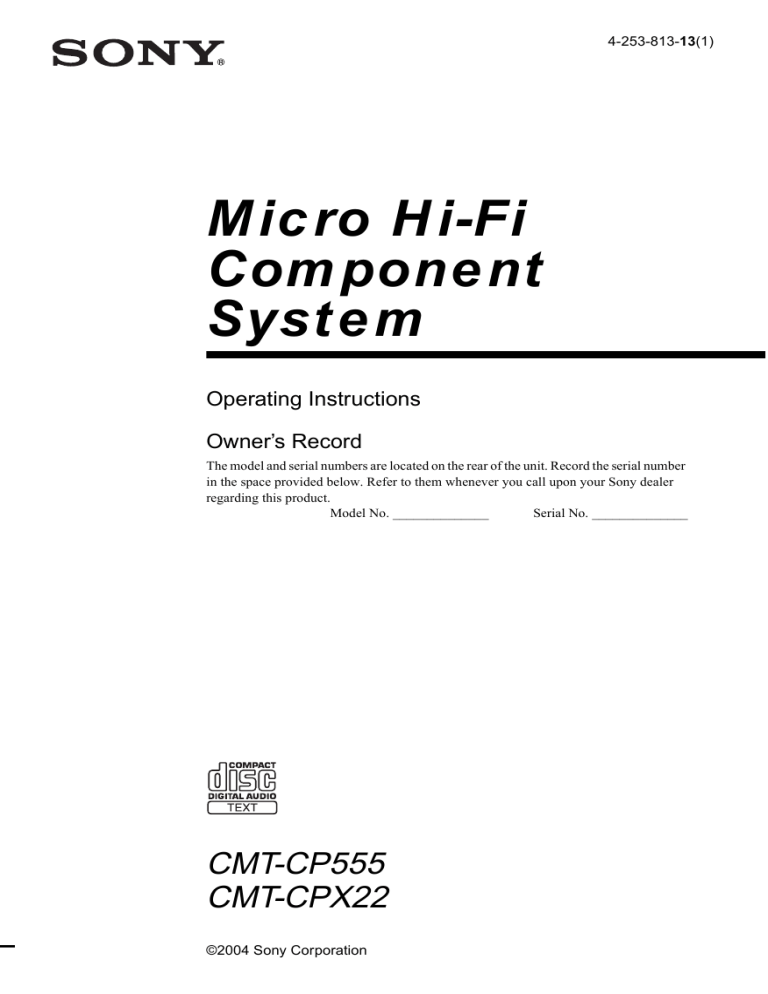

Operating Instructions
4-253-813-13(1)
Micro Hi-Fi
Component
System
Operating Instructions
Owner’s Record
The model and serial numbers are located on the rear of the unit. Record the serial number
in the space provided below. Refer to them whenever you call upon your Sony dealer
regarding this product.
Model No. ______________
Serial No. ______________
CMT-CP555
CMT-CPX22
©2004 Sony Corporation
CAUTION
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To prevent fire, do not cover the ventilation of the
apparatus with news papers, table-cloths, curtains, etc.
And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space,
such as a bookcase or built-in cabinet.
This appliance is
classified as a CLASS 1
LASER product. This
marking is located on the
rear exterior.
Don’t throw away the battery with
general house waste, dispose of it
correctly as chemical waste.
NOTICE FOR THE CUSTOMERS IN THE
U.S.A.
The use of optical instruments with this product will
increase eye hazard.
As the laser beam used in this CD player is harmful to
eyes, do not attempt to disassemble the cabinet. Refer
servicing to qualified personnel only.
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
Note to CATV system installer:
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
CAUTION
The use of optical instruments with this product will
increase eye hazard.
Except for European model
ENERGY STAR® is a U.S.
registered mark. As an ENERGY
STAR® partner, Sony Corporation
has determined that this product
meets the ENERGY STAR®
guidelines for energy efficiency.
2GB
Table of Contents
How to use this manual........................... 4
Playable discs.......................................... 4
Getting Started
Hooking up the system............................ 6
Setting the clock...................................... 8
CD/MP3 – Play
Loading a disc ......................................... 9
Playing a disc .......................................... 9
— Normal Play/Shuffle Play
Playing repeatedly................................. 11
— Repeat Play
Creating your own program .................. 11
— Program Play
Tuner
Presetting radio stations ........................ 12
Listening to the radio ............................ 14
— Preset Tuning
— Manual Tuning
Using the Radio Data System (RDS).... 15
(European model only)
Tape – Play
Loading a tape....................................... 16
Playing a tape ........................................ 16
Tape – Recording
Recording your favorite CD tracks on a
tape.................................................. 17
— CD-TAPE Synchro Recording
Recording on a tape manually............... 18
— Manual Recording
Timer
Falling asleep to music ......................... 20
— Sleep Timer
Waking up to music.............................. 21
— Play Timer
Timer recording radio programs........... 22
— Rec Timer
Display
Turning off the display ......................... 23
— Power Saving Mode
Adjusting the brightness of the display
back light ........................................ 23
Viewing information about the disc in the
display ............................................ 24
Optional Components
Hooking up optional components......... 25
Listening to audio from a connected
component ...................................... 26
Recording on a connected
component ...................................... 26
Troubleshooting
Problems and remedies......................... 27
Messages............................................... 30
Additional Information
Precautions............................................ 31
Specifications........................................ 32
List of button locations and reference
pages............................................... 35
Sound Adjustment
Adjusting the sound ..............................19
3GB
How to use this manual
This manual mainly explains operations using
the remote, but the same operations can also be
performed using the buttons on the unit having
the same or similar names.
Playable discs
You can play back the following discs on this
system. Other discs cannot be played back.
List of playable discs
Format of discs
Disc logo
Discs that this system cannot
play
• CD-ROMs
• CD-Rs/CD-RWs other than those recorded in
the following formats:
– music CD format
– MP3 format that conforms to ISO96601)
Level 1/Level 2, Joliet or Multi Session2)
• A disc that has a non-standard shape (e.g.,
card, heart).
• A disc with paper or stickers on it.
• A disc that has the adhesive, cellophane tape,
or a sticker still left on it.
• Data part of CD-Extras3)
• Data track of Mixed CDs4)
1)
ISO9660 Format
The most common international standard for the
logical format of files and folders on a CD-ROM.
There are several specification levels. In Level 1,
file names must be in the 8.3 format (no more than
eight characters in the name, no more than three
characters in the extension “.MP3”) and in capital
letters. Folder names can be no longer than eight
characters. There can be no more than eight nested
folder levels. Level 2 specifications allow file
names and folder names up to 31 characters long.
Each folder can have up to 8 trees.
For Joliet in the expansion format (file and folder
names can have up to 64 characters) make sure of
the contents of the writing software, etc.
2)
Multi Session
This is a recording method that enables adding of
data using the Track-At-Once method.
Conventional CDs begin at a CD control area called
the Lead-in and end at an area called Lead-out. A
Multi Session CD is a CD having multiple sessions,
with each segment from Lead-in to Lead-out
regarded as a single session.
3)
CD-Extra: This format records audio (audio CD
data) on the tracks in session 1 and data on the tracks
in session 2.
4)
Mixed CD: This format records data on the first
track and audio (audio CD data) on the second and
subsequent tracks of a session.
Audio CDs
CD-R/CD-RW
(audio data/MP3 files)
4GB
Notes on CD-R and CD-RW
• Some CD-Rs or CD-RWs cannot be played
on this system depending upon the recording
quality or physical condition of the disc, or
the characteristics of the recording device.
Furthermore, the disc will not play if it has not
been correctly finalized. For more
information, see the operating instructions for
the recording device.
• Discs recorded on CD-R/CD-RW drives may
not be played back because of scratches, dirt,
recording condition or the driver’s
characteristics.
• CD-R and CD-RW discs recorded in multisession that have not ended by “closing the
session” are not supported.
• The system may be unable to play MP3
format files that do not have the “.MP3”
extension.
• Attempting to play non-MP3 format files that
have the “.MP3” extension may result in noise
or malfunction.
• With formats other than ISO9660 level 1 and
2, folder names or file names may not be
displayed correctly.
• The following discs take a longer time to start
playback.
– a disc recorded with complicated tree
structure.
– a disc recorded in Multi Session.
– a disc to which data can be added (nonfinalized disc).
Music discs encoded with
copyright protection
technologies
This product is designed to playback discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with
copyright protection technologies are marketed
by some record companies. Please be aware that
among those discs, there are some that do not
conform to the CD standard and may not be
playable by this product.
Cautions when playing a disc
that is recorded in Multi
Session
• If the disc begins with a CD-DA session, it is
recognized as a CD-DA (audio) disc, and
playback continues until an MP3 session is
encountered.
• If the disc begins with an MP3 session, it is
recognized as an MP3 disc, and playback
continues until a CD-DA (audio) session is
encountered.
• The playback range of an MP3 disc is
determined by the tree structure of files
produced by analyzing of the disc.
• A disc with a mixed CD format will be
recognized as a CD-DA (audio) disc.
5GB
Getting Started
Hooking up the system
Perform the following procedures 1 to 4 to hook up your system using the supplied cords and
accessories. CMT-CPX22 is used for illustration purpose.
AM loop antenna
FM lead antenna
Right speaker
1 Connect the speakers.
Left speaker
Speakers (CMT-CPX22 only)
Connect the right and left speaker cords to
the SPEAKER terminals on the unit and to
the terminals on the speakers (CMT-CPX22
only) as shown below.
Main Unit
Black (#)
R
AKE
SPE
L
R
2 Connect the FM and AM antennas.
Set up the AM loop antenna, then connect
it.
6GB
Inserting two R6 (size AA)
batteries into the remote
Getting Started
AM
75Ω
FM IAL
X
COA
AM loop antenna
Extend the FM lead antenna horizontally
Note
Keep the antennas away from the speaker cords.
3 For models with a voltage selector, set
VOLTAGE SELECTOR to the local
power line voltage.
Refer to the print on your system’s
VOLTAGE SELECTOR for available
settings.
Note
If you do not use the remote for a long period of time,
remove the batteries to avoid possible damage from
battery leakage and corrosion.
Tip
With normal use, the batteries should last for about six
months. When the remote no longer operates the
system, replace both batteries with new ones.
Attaching the speaker pads
Attach the supplied speaker pads to the bottom
of the speakers to stabilize the speakers and
prevent them from slipping.
* Saudi Arabian model: 120 – 127 V
4 Connect the power cord to a wall
outlet.
The demonstration appears in the display.
When you press ?/1, the system turns on
and the demonstration automatically ends.
If the plug does not fit the wall socket,
detach the supplied plug adaptor (only for
models equipped with an adaptor).
When carrying this system
Perform the following procedure to protect
the CD mechanism.
Use buttons on the unit for the operation.
1
Make sure that all discs are removed
from the system.
2
3
Press CD.
4
Unplug the power cord.
Hold down x and then press CD until
“LOCK” appears.
7GB
Setting the clock
Use buttons on the remote for the operation.
1
2
3
4
5
6
Press ?/1 to turn on the unit.
Press CLOCK/TIMER SET.
Press . or > repeatedly to set the
hour.
Press ENTER.
Press . or > repeatedly to set the
minute.
Press ENTER.
The clock starts working.
To adjust the clock
1
2
Press CLOCK/TIMER SET.
3
Do the same procedures as step 3 to 6
above.
Press . or > repeatedly to select
“CLOCK SET?”, then press ENTER.
Note
The clock is not displayed in Power Saving Mode.
8GB
CD/MP3 – Play
Loading a disc
Playing a disc
— Normal Play/Shuffle Play
This system lets you play audio CDs and discs
with MP3 audio tracks.
1
Example: When a disc is loaded
Press DISC 1 – 5 to select the disc tray.
Track number
When no disc is in the disc tray you
selected, “No Disc” appears. Perform step 2
while “DISC-1” (eg., 2 – 5) flashes.
2
3
DISC
Press CD Z.
1
Disc tray
number
1
2
4
Press CD Z again to close the disc
tray.
Notes
• Do not use a disc with tape, seals or paste on it as this
may cause malfunction.
• Do not forcibly press the disc tray closed with your
finger, as this may cause malfunction.
2
3
4
5
A
Place a disc with the label side up on
the disc tray.
When you play
a 8 cm disc,
place it on the
inner circle of
the tray.
Playing time
CD/MP3 – Play
Use buttons on the unit for the operation.
B
Disc presence indicator
Press CD (or FUNCTION repeatedly) to
switch the function to CD.
Press PLAY MODE repeatedly in stop
mode until the mode you want appears
in the display.
Select
To play
ALL DISCS
(Normal Play)
All discs in the disc tray
continuously.
1DISC
(Normal Play)
The tracks on the disc you
have selected in original
order.
ALBM
(Normal Play)
All MP3 audio tracks in the
album on the disc you have
selected in original order.
When playing a non-MP3
disc, Album Play performs
the same operation as 1DISC
Play.
ALL DISCS
SHUF (Shuffle
Play)
The tracks on all discs in
random order.
1DISC SHUF
(Shuffle Play)
The tracks on the disc you
have selected in random
order.
ALBM SHUF
(Shuffle Play)
The MP3 audio tracks in the
album on the disc you have
selected in random order.
When playing a non-MP3
disc, Album Shuffle Play
performs the same operation
as 1DISC SHUF Play.
PGM
(Program Play)
The tracks on the disc in the
order you want them to be
played (see “Creating your
own program” on page 11).
continued
9GB
3
Press N (or nN on the unit).
Other operations
To
Do this
Stop play
Press x.
Pause
Press X. Press again to resume
play.
Select a track
Press . or > repeatedly.
Select an album
of MP3*
Press ALBUM – or + repeatedly
after step 2.
Find a point in a Keep pressing m or M during
track
playback and release it at the
desired point.
Select a disc in
stop mode
Press DISC SKIP (or DISC 1 – 5
on the unit).
Switch to CD
function from
another source
Press DISC 1 – 5 on the unit
(Automatic Source Selection).
Remove a disc
Press DISC 1 – 5 on the unit, then
press CD Z on the unit.
* You may not be able to search between multiple files.
Also, the time may not be displayed correctly for
some files.
Notes
• You cannot change the play mode during playback.
• Some time may be needed to start playback of discs
recorded in complex configurations such as many
layers.
• When the disc is inserted, the player reads all the
tracks on that disc. If there are many albums or nonMP3 audio tracks on the disc, it may take a long time
for play to begin or for the next MP3 audio track to
start play.
• Do not save unnecessary albums or tracks other than
MP3 ones in the disc to be used for MP3 listening.
We recommend that you do not save other types of
tracks or unnecessary albums on a disc that has MP3
audio tracks.
• An album that does not include an MP3 audio track
is skipped.
• Maximum album number: 150 (including root
folder)
• The maximum number of MP3 audio tracks and
albums that can be contained on a single disc is 300.
• Playback is possible up to 8 levels.
• MP3 audio tracks are played back in the order that
they are recorded on the disc.
• Depending on the encoding/writing software,
recording device, or the recording media used at the
time an MP3 audio track is recorded, you may
encounter such problems as disabled playback,
sound interruptions, and noise.
Tip
When disc access takes a long time, set “CD POWER
ON” by CD power manage function (page 13).
10GB
Playing repeatedly
— Repeat Play
Press REPEAT repeatedly during playback
until “REP” or “REP1” appears.
REP: For all the tracks on a disc, or all the MP3
audio tracks in an album up to five times.
REP1: For a single track only.
To cancel Repeat Play
Press REPEAT repeatedly until both “REP” and
“REP1” disappear.
— Program Play
You can make a program of up to 25 steps from
all the discs in the order you want to play them.
You can synchro record the programmed tracks
onto a cassette tape (page 17).
1
2
3
Notes
• You cannot select “REP” and “ALL DISCS SHUF”
at the same time.
• When you select “REP1”, that track is repeated
endlessly until “REP1” is canceled.
Press CD (or FUNCTION repeatedly) to
switch the function to CD.
CD/MP3 – Play
You can play all the tracks or a single track on a
disc repeatedly.
Creating your own
program
Press PLAY MODE in stop mode
repeatedly until “PGM” appears.
Press DISC SKIP (or DISC 1 – 5 on the
unit) to select a disc.
To program all the tracks on a disc at once,
proceed to step 5 with “AL” displayed.
4
Press . or > repeatedly until the
desired track number appears.
When programming the MP3 audio tracks,
press ALBUM – or + to select album, then
press . or > repeatedly until the
desired track number appears.
Selected track
number
Total playing time
(including selected track)
DISC
1
2
3
4
5
PGM
A
B
Disc tray number
5
Press ENTER.
The track is programmed.
The program step number appears,
followed by the total playing time.
6
7
Program additional discs or tracks.
To program
Repeat steps
Other discs
3 and 5
Other tracks on the
same disc
4 and 5
Other tracks on
other discs
3 to 5
Press N (or nN on the unit).
Program Play starts.
continued
11GB
Other operations
To
Do this
Cancel Program Play
Press PLAY MODE
repeatedly in stop mode
until “PGM” disappears.
Clear a track from
the end
Press CLEAR in stop
mode.
Tips
• The program you made remains after Program Play
finishes. To play the same program again, press CD
(or FUNCTION repeatedly) to switch the function to
CD, then press N (or nN on the unit). However,
the program is cleared when you open the disc tray.
• “– –.– –” appears when the total CD program time
exceeds 100 minutes, or when you select a CD track
whose number is 21 or over, or when you select an
MP3 audio track.
Tuner
Presetting radio stations
You can preset up to 20 FM stations and 10 AM
stations. You can then tune in any of those
stations simply by selecting the corresponding
preset number.
Automatic tuning preset
You can automatically tune in all of the stations
that can be received in your area and then store
the radio frequency of the desired stations.
1
2
3
4
Press TUNER BAND (or FUNCTION
repeatedly) to switch the function to
tuner.
Press TUNER BAND repeatedly to
select “FM” or “AM”.
Press TUNING MODE repeatedly until
“AUTO” appears in the display.
Press – or + (or TUNING – or + on the
unit).
The frequency changes as the system scans
for a station. Scanning stops automatically
when a station is tuned in. At that time,
“TUNED” and “ST” (for stereo program
only) appear.
If “TUNED” does not appear and the
scanning does not stop
Set the frequency of the desired radio
station as described in “Manual tuning
preset” (page 13).
5
Press TUNER MEMORY.
The preset number flashes. Perform steps 6
and 7 while the preset number flashes.
Preset number
ST
TUNED
MHz
1
2
3
4
5
A
12GB
B
6
7
8
Press – or + (or TUNING – or + on the
unit) repeatedly to select the desired
preset number.
Press ENTER.
Repeat steps 2 through 7 to store other
stations.
To improve tuner reception
When tuner reception is poor, set CD player
power off by CD power manage function.
CD power is factory set to on. Use buttons on the
unit for the operation.
Press TUNING MODE to stop scanning.
1
2
3
Manual tuning preset
To set CD power on
You can manually tune in and store the radio
frequency of the desired stations.
Repeat the procedure above and “CD POWER
ON” appears.
1
Notes
Tip
3
4
5
6
7
8
Press TUNER BAND repeatedly to
select “FM” or “AM”.
Press TUNING MODE repeatedly until
“AUTO” and “PRESET” disappear from
the display.
Press – or + (or TUNING – or + on the
unit) repeatedly to tune in the desired
station.
Press TUNER MEMORY.
Press – or + (or TUNING – or + on the
unit) repeatedly to select the desired
preset number.
Press ENTER.
Repeat steps 2 through 7 to store other
stations.
Other operations
To
Do this
Tune in a station
with a weak signal
Follow the procedure described
in “Manual tuning preset”
(page 13).
Set another station
to the existing
preset number
After step 5, press – or + (or
TUNING – or + on the unit)
repeatedly to select the preset
number you want to store the
station.
Press ?/1 to turn off the system.
Press ?/1 while holding x.
“CD POWER OFF” appears.
Tuner
2
Press TUNER BAND (or FUNCTION
repeatedly) to switch the function to
tuner.
Press CD.
• When “CD POWER OFF” is selected, disc access
time is increased.
• You cannot change the setting in Power Saving
Mode (page 23).
To change the AM tuning interval
(except for European, Russian
and Saudi Arabian models)
The AM tuning interval is factory-preset to
9 kHz (or 10 kHz for some areas). To change the
AM tuning interval, tune in any AM station first,
then turn off the system. While holding x, press
?/1 on the unit. When you change the interval,
all the AM preset stations are erased. To reset
the interval, repeat the same procedure.
Note
You cannot change the AM tuning interval in Power
Saving Mode (page 23).
Tips
• The preset stations are retained for about half a day
even if you disconnect the power cord or if a power
failure occurs.
• To improve broadcast reception, adjust the supplied
antennas, or connect a commercially available
external antenna.
13GB
Listening to the radio
You can listen to a radio station either by
selecting a preset station, or by manually tuning
in the station.
Listening to a preset station
— Preset Tuning
Preset radio stations in the tuner’s memory first
(see “Presetting radio stations” on page 12).
1
2
3
4
14GB
Press TUNER BAND (or FUNCTION
repeatedly) to switch the function to
tuner.
Listening to non-preset radio
station
— Manual Tuning
1
2
3
4
Press TUNER BAND (or FUNCTION
repeatedly) to switch the function to
tuner.
Press TUNER BAND repeatedly to
select “FM” or “AM”.
Press TUNING MODE repeatedly until
“AUTO” and “PRESET” disappear from
the display.
Press – or + (or TUNING – or + on the
unit) repeatedly to tune in the desired
station.
Press TUNER BAND repeatedly to
select “FM” or “AM”.
Note
Press TUNING MODE repeatedly until
“PRESET” appears in the display.
When switching to CD function from tuner, a longer
time may be required to access the disc. In this case, set
“CD POWER ON” by CD power manage function
(page 13).
Press – or + (or TUNING – or + on the
unit) repeatedly to select the desired
preset station.
Tips
• To improve broadcast reception, adjust the supplied
antennas, or connect a commercially available
external antenna.
• When an FM stereo program has static noise, press
FM MODE repeatedly until “MONO” appears.
There will be no stereo effect, but the reception will
improve.
• Press TUNING MODE repeatedly until “AUTO”
appears in step 3 above, then press – or + (or
TUNING – or + on the unit). The frequency
indication changes and scanning stops when the
system tunes in a station (Automatic Tuning).
• To record the radio programs, use manual recording
(page 18).
Using the Radio Data
System (RDS)
(European model only)
Radio Data System (RDS) is a broadcasting
service that allows radio stations to send
additional information along with the regular
program signal. RDS is available only on FM
stations.*
Tuner
What is the Radio Data
System?
Note
RDS may not work properly if the station you are tuned
in is not transmitting the RDS signal properly or if the
signal is weak.
* Not all FM stations provide RDS service, nor do they
provide the same types of services. If you are not
familiar with the RDS system, check with your local
radio stations for details on RDS services in your
area.
Receiving RDS broadcasts
Simply select a station from the FM band.
When you tune in a station that provides RDS
services, the station name appears in the display.
To check the RDS information
Each time you press DISPLAY, the display
changes cyclically as follows:
Station name* t Frequency t Program type*
t Clock display t Bass level t Treble level
* If the RDS broadcast is not properly received, the
station name or the program type may not appear in
the display.
15GB
Tape – Play
Loading a tape
1
2
Press A TAPE Z or TAPE Z B on the
unit.
Load a recorded/recordable tape into
the cassette holder.
With the side you
want to play/record
facing towards you.
Playing a tape
You can use TYPE I (normal) tape.
1
2
3
4
5
Load a tape.
Press TAPE (or FUNCTION repeatedly)
or TAPE A/B on the unit to switch the
function to TAPE.
Press TAPE (or TAPE A/B on the unit)
repeatedly to select deck A or B.
Press PLAY MODE repeatedly to select
“g” to play one side. Select “j”* to
play both sides. Select “RELAY” (Relay
Play)* to play both decks in
succession.
Press N (or nN on the unit).
The tape starts playing. Press the button
again to play the reverse side.
Playing direction
1
2
3
4
5
RELAY
A
B
* Relay play always follow this cyclic sequence:
Deck A (front side) t Deck A (reverse side)
t Deck B (front side) t Deck B (reverse
side)
For CMT-CP555, deck A does not play the
reverse side.
Other operations
To
Do this
Play the reverse
side*
Press N (or nN on the unit)
again during play.
Stop play
Press x.
Pause
Press X. Press again to resume
play.
Fast-forward or
rewind
Press m or M in stop mode.
Remove a tape
Press A TAPE Z or TAPE Z B
on the unit.
* For CMT-CP555, deck A does not play the reverse
side.
16GB
Searching for the beginning of
the current or the previous or the
next track (AMS)*
To go forward
Press > during play.
Each time you press the button, the search
direction, + (forward), and number of tracks
being skipped (1 to 9) appear.
To go back
* AMS (Automatic Music Sensor)
Recording your favorite
CD tracks on a tape
— CD-TAPE Synchro Recording
You can record a whole CD on a tape.
You can use TYPE I (normal) tape. The
recording level is adjusted automatically.
Use buttons on the unit for the operation.
1
2
Note
The AMS function may not operate correctly under the
following circumstances:
– When the unrecorded space between songs is less
than 4 seconds long.
– When the system is placed near a television.
Tips
• If you select “j” or “RELAY”*, the deck stops
automatically after repeating the sequence five times.
• When a tape is inserted, corresponding forward
(N)/reverse (n) indicators light.
3
4
Load a recordable tape into deck B.
Press TAPE A/B to select deck B, then
press nN repeatedly to select
recording side. And press x to stop
playback.
Press PLAY MODE on the remote
repeatedly to select “g” to record on
one side. Select “j” (or “RELAY”) to
record on both sides.
Tape – Play/Tape – Recording
Press . during playback.
Each time you press the button, the search
direction, – (back), and number of tracks being
skipped (1 to 9) appear.
Tape – Recording
Press CD and load a disc you want to
record.
When you want to record an album from an
MP3 disc, be sure to press ALBUM – or +
to select the desired album before
proceeding.
* For CMT-CP555, deck A does not play the reverse
side.
5
Press CD SYNC.
Deck B stands by for recording.
“REC” flashes.
6
Press z START.
Recording starts.
To stop recording
Press x.
To record a disc by specifying
track order
You can record only your favorite CD tracks
using Program Play. Between steps 4 and 5,
perform steps 2 to 6 of “Creating your own
program” (page 11).
continued
17GB
Tips
• When you record on both sides, be sure to start from
the front side. If you start from the reverse side,
recording stops at the end of the reverse side.
• If you select both sides recording and the tape
reaches the end of the front side part-way through a
track, the entire track is recorded again from the
beginning of the reverse side.
Recording on a tape
manually
— Manual Recording
You can record just the portions you like from a
CD, tape or radio program on a tape.
You can also record from connected
components (see “Hooking up optional
components” on page 25).
Use buttons on the unit for the operation.
1
2
3
4
Load a recordable tape into deck B.
Press TAPE A/B to select deck B, then
press nN repeatedly to select
recording side. And press x to stop
playback.
Press PLAY MODE on the remote
repeatedly to select “g” to record on
one side. Select “j” (or “RELAY”) to
record on both sides.
Press one of the following buttons to
select the desired source to record.
• CD: To record from this system’s CD
player.
• TAPE A/B: To record from this system’s
tape deck A.
• TUNER/BAND: To record from this
system’s tuner.
• VIDEO/MD: To record from the optional
component connected to the VIDEO/MD
IN jacks.
5
Press z START.
Deck B stands by for recording.
“REC” flashes.
6
Press z START, then start playing the
desired source to record.
Recording starts.
Other operations
To
18GB
Do this
Stop recording
Press x.
Pause recording
Press z START on the unit.
Notes
• You cannot listen to other sources while recording.
• If TAPE B is selected in step 4, silence is recorded.
Tips
• For recording from the tuner:
If noise is heard while recording from the tuner,
move the respective antenna to reduce the noise.
• When you record on both sides, be sure to start from
the front side. If you start from the reverse side,
recording stops at the end of the reverse side.
Sound Adjustment
Adjusting the sound
Generating a more dynamic
sound (Dynamic Sound
Generator X-tra)
Press DSGX on the unit.
Generating a more attractive
sound (MP3 BOOSTER)
You can enjoy a more attractive sound when
playing MP3 audio tracks.
1
2
Sound Adjustment
Each time you press the button, the display
changes as follows:
DSGX ON y DSGX OFF
Press CD (or FUNCTION repeatedly) to
switch the function to CD.
Hold DSGX on the unit for 2 seconds.
Each time you hold the button for 2
seconds, the display changes as follows:
BOOSTER ON y BOOSTER OFF
Adjusting the bass and treble
You can adjust the bass and treble to enjoy more
powerful sound.
1
Press EQ repeatedly to select “BASS”
or “TREBLE”.
Each time you press the button, the display
changes as follows:
BASS y TREBLE
2
Press . or > repeatedly to adjust
the level while “BASS” or “TREBLE”
appears.
To adjust the bass on the unit
Turn BASS control.
To adjust the treble on the unit
Turn TREBLE control.
continued
19GB
To exit the bass and treble
settings
If you do not perform any operations for
4 seconds, the display automatically returns to
the original display.
Timer
Falling asleep to music
— Sleep Timer
You can set the system to turn off after a certain
time, so that you can fall asleep to music.
Press SLEEP.
Each time you press the button, the minute
display (the turn-off time) changes cyclically as
follows:
AUTO* t 90min t 80min t … t 10min
t OFF
* The system automatically turns off in 100 minutes or
after the current disc or tape finishes playing.
Other operations
To
Press
Check the
SLEEP once.
remaining time*
Change the time
to turn off
SLEEP repeatedly to select the
time you want.
Cancel the Sleep SLEEP repeatedly until “OFF”
Timer Function appears.
* You cannot check the remaining time if you select
“AUTO”.
Tip
You can use the Sleep Timer, even if you have not set
the clock.
20GB
Waking up to music
— Play Timer
You can wake up to music at a preset time. Make
sure you have set the clock (see “Setting the
clock” on page 8).
Use buttons on the remote for the operation.
1
Prepare the sound source you want to
play.
2
3
4
Press VOLUME +/– to adjust the
volume.
Press CLOCK/TIMER SET.
Press . or > repeatedly to select
“PLAY SET?”, then press ENTER.
“ON” appears and the hour indication
flashes.
5
Set the time to start playing.
To
Do this
Check the setting
1 Press CLOCK/TIMER
SELECT.
2 Press . or >
repeatedly until “PLAY
SELECT?” appears, then
press ENTER.
Change the setting
Start over from step 1.
Cancel the timer
1 Press CLOCK/TIMER
SELECT.
2 Press . or >
repeatedly until “TIMER
OFF?” appears, then press
ENTER.
Notes
• You cannot activate the Play Timer and the Rec
Timer at the same time.
• If you use the Play Timer and the Sleep Timer at the
same time, the Sleep Timer has priority.
• Do not operate the system from the time the system
turns on until the play starts (about 15 seconds before
the preset time).
• If the system is on about 15 seconds before the preset
time, the Play Timer will not be activated.
• You cannot use the optional component connected to
VIDEO/MD IN jacks as the sound source for Play
Timer.
Timer
• CD: Load a disc. To start from a specific
track, make a program (see “Creating
your own program” on page 11).
• Tape: Load a tape (see “Playing a tape”
on page 16).
• Tuner: Tune in the preset radio station
(see “Listening to the radio” on page 14).
Other operations
Press . or > repeatedly to set the
hour, then press ENTER.
The minute indication flashes.
Press . or > repeatedly to set the
minute, then press ENTER.
6
7
Set the time to stop playing following
the same procedure as step 5.
Press . or > repeatedly until the
desired sound source appears.
Each time you press the button, the display
changes cyclically as follows:
t TUNER y CD PLAY T
t TAPE PLAY T
8
Press ENTER.
The start time, the stop time and the sound
source appear in turn, then the original
display returns.
9
Press ?/1 to turn off the system.
21GB
Timer recording radio
programs
9
If you select both sides recording or front
side recording, press nN to light up the
>>> indicator. If you record on the reverse
side, press nN again to light up the <<<
indicator.
— Rec Timer
You can record a preset radio station from a
specified time.
To timer record, you must first preset the radio
station (see “Presetting radio stations” on
page 12) and set the clock (see “Setting the
clock” on page 8).
Use buttons on the remote for the operation.
1
2
3
Press nN on the unit repeatedly to
select recording side.
10 Press ?/1 to turn off the system.
Other operations
To
Do this
Check the setting
1 Press CLOCK/TIMER
SELECT.
2 Press . or >
Tune in the preset radio station (see
“Listening to a preset station” on
page 14).
repeatedly until “REC
SELECT?” appears, then
press ENTER.
Press CLOCK/TIMER SET.
Change the setting
Start over from step 1.
“PLAY SET?” appears.
Cancel the timer
1 Press CLOCK/TIMER
SELECT.
Press . or > repeatedly to select
“REC SET?”, then press ENTER.
2 Press . or >
repeatedly until “TIMER
OFF?” appears, then press
ENTER.
“ON” appears and the hour indication
flashes.
4
Set the time to start recording.
Press . or > repeatedly to set the
hour, then press ENTER.
The minute indication flashes.
Press . or > repeatedly to set the
minute, then press ENTER.
5
Set the time to stop recording following
the same procedure as step 4.
The start time, the stop time, and the preset
radio station to be recorded (e.g., “TUNER
FM 5”) appear in turn, before the original
display returns.
6
7
8
22GB
Load a recordable tape into deck B.
Press TAPE to switch the function to
TAPE.
Press PLAY MODE repeatedly until g
appears to record on one side or h (or
j) to record on both sides.
Notes
• You cannot activate the Play Timer and the Rec
Timer at the same time.
• If you use the the Rec Timer and the Sleep Timer at
the same time, the Sleep Timer has priority.
• Do not operate the system from the time the system
turns on until the recording starts (about 15 seconds
before the preset time).
• If the system is on about 15 seconds before the preset
time, the Rec Timer will not be activated.
• The volume is reduced to minimum during
recording.
Display
Turning off the display
— Power Saving Mode
The demonstration display (display window and
buttons lighting and flashing even when the
system power is off) and the clock display can
be turned off to minimize the amount of power
consumed during standby (Power Saving
Mode).
Adjusting the brightness
of the display back light
Press DIMMER on the unit repeatedly to
select the desired setting while the system
is on.
The display changes cyclically as follows:
DIMMER OFF t DIMMER 1 t DIMMER 2
t DIMMER 3*
* DIMMER 3 is the darkest.
Press DISPLAY repeatedly while the
system is off until the demonstration
display or the clock display disappears.
To cancel Power Saving Mode
Display
Press DISPLAY while the system is off. Each
time you press the button, the display switches
cyclically as follows:
Demonstration display t Clock display* t
No display (Power Saving Mode)
* “– –:– –” appears if you have not set the clock.
Note
You cannot perform the following operations in Power
Saving Mode.
– setting the clock
– changing the AM tuning interval (except for
European, Russian and Saudi Arabian models)
– turning on the system by pressing the function
buttons
– changing the CD power manage function
Tips
• ?/1 indicator lights up even in Power Saving Mode.
• The timer continues to operate in Power Saving
Mode.
23GB
Viewing information
about the disc in the
display
You can check the playing time and remaining
time of the current track or that of the disc.
When a CD-TEXT disc or a disc with MP3
audio tracks is loaded, you can also check the
information recorded on disc, such as the titles.
When the unit detects CD-TEXT discs, the “CD
TEXT” indication appears in the display.
When the unit detects MP3 discs, the “MP3”
indication appears in the display.
Checking the remaining time
and titles (CD/MP3)
Press DISPLAY during Normal Play.
Each time you press the button, the display
changes cyclically as follows:
Current track number and elapsed playing time
t Current track number and remaining time or
“– –.– –”1) t Remaining time of the disc or
“– –.– –”1) t Track title (CD-TEXT disc or disc
with MP3 audio tracks2) only) t Album name
(disc with MP3 audio tracks only) t Clock
display (for eight seconds) t
Bass level (for eight seconds) t Treble level
(for eight seconds)
1)
2)
For discs with MP3 audio tracks
When you play back a track with an ID3 tag ver. 1
or ver. 2, the ID3 tag appears. The ID3 tag displays
only the track title information.
Checking the total playing
time and titles (CD/MP3)
Press DISPLAY in stop mode.
Each time you press the button, the display
changes cyclically as follows:
x When a CD/MP3 is in Normal Play mode
TOC display1) or total album number of the
disc2) or total track number of the current
album3) t Disc title4) or volume label5) or
album name5) t Clock display (for eight
seconds) t Bass level (for eight seconds) t
Treble level (for eight seconds)
1)
TOC = Table of Contents; displays total number of
tracks on the disc, and total playing time of the disc
2)
For discs with MP3 audio tracks in Normal play or
SHUF mode
3) For discs with MP3 audio tracks in ALBM or
ALBM SHUF mode
4) For discs with CD-TEXT
5) For discs with MP3 audio tracks, album titles or
volume label may not be displayed depending on the
play mode
Depending on the disc, some CD-TEXT information
may not appear.
x When a CD/MP3 is in Program Play mode
The last track number of the program and the
total playing time t Total track number of the
program (for eight seconds) t Disc title1) or
volume label2) t Clock display (for eight
seconds) t Bass level (for eight seconds) t
Treble level (for eight seconds)
1)
2)
For discs with CD-TEXT
For discs with MP3 audio tracks
Checking the station name
(TUNER)
Press DISPLAY while listening to the radio.
Each time you press the button, the display
changes cyclically as follows:
Station name t Frequency t Clock display
(for eight seconds) t Bass level (for eight
seconds) t Treble level (for eight seconds)
24GB
Optional Components
Hooking up optional components
To enhance your system, you can connect optional components. Refer to the operating instructions
provided with each component.
Optional digital component
To the digital input jack of an
optional digital component
Optional Components
From the audio output jacks of an
optional analog component
Optional analog component
A DIGITAL (OPTICAL) OUT jack
B VIDEO/MD IN jacks
Use a digital optical cable (square, not supplied)
to connect an optional component (such as an
MD deck) to this jack. You can then record
digital audio from this system.
Use audio cords (not supplied) to connect an
optional analog component (MD deck or VCR,
etc.) to these jacks. You can then listen to the
sound from the component.
Note
There is no digital audio output from this jack during
playback of MP3 audio tracks.
25GB
Listening to audio from a
connected component
1
2
Connect the audio cords.
Making a digital recording
See “Hooking up optional components” on
page 25.
1
2
Press VIDEO/MD on the unit to switch
the function to VIDEO or MD.
Start playing the connected component.
Note
If the sound is distorted or too loud when “VIDEO” is
selected or you want to switch back to “MD”, repeat
the operation described above to switch to “MD”.
Tip
If you cannot select “MD” by pressing VIDEO/MD
repeatedly, hold down VIDEO/MD and then press ?/1
while the power is on. The function will change from
“VIDEO” to “MD”, and “MD” will appear in the
display. To change back to “VIDEO”, repeat the same
procedure.
26GB
Recording on a connected
component
Connect the digital optical cord.
Start recording.
Refer to the operating instructions of
the connected component.
Note
You can digitally record from the discs only. However,
you cannot record from copy prohibited discs and MP3
audio tracks.
General
Troubleshooting
Problems and remedies
Should you encounter a problem with your
system, do the following:
1
Make sure the power cord and speaker
cords are correctly and firmly connected.
2
Find your problem in the troubleshooting
checklist below and take the indicated
corrective action.
If the problem persists after doing all of the
above, consult your nearest Sony dealer.
When the ?/1 indicator flashes
“– –:– –” appears in the display.
• A power interruption has occurred. Set the clock
(page 8) and timer settings (pages 21 and 22)
again.
The clock setting/radio presetting/timer is
canceled.
• Redo the following:
– “Setting the clock” (page 8)
– “Presetting radio stations” (page 12)
– “Check the setting” (pages 21 and 22)
– “Timer recording radio programs” (page 22)
There is no sound.
• If your system has a voltage selector, make sure
the voltage selector is set to the correct voltage.
• Press VOLUME + or turn VOLUME control on
the unit clockwise.
• Make sure the headphones are not connected.
• Check the speaker connections (page 6).
• There is no audio output during Rec Timer.
Sound comes from one channel, or
unbalanced left and right volume.
• Place the speakers as symmetrically as possible.
• Connect the supplied speakers.
Troubleshooting
Immediately unplug the power cord and
check the following items.
• If your system has a voltage selector, is the
voltage selector set to the correct voltage?
Check the voltage for your region, then
make sure the voltage selector is set
correctly.
• Are the + and – speaker cords shortcircuited?
• Are you using the supplied speakers?
• Is anything blocking the ventilation holes
on the rear of the system?
Check all the above items and fix any
problems found. After ?/1 indicator
stops flashing, reconnect the power cord
and turn on the system. If the indicator still
flashes, or if the cause of the problem cannot
be found even after checking all the above
items, consult your nearest Sony dealer.
The display starts flashing as soon as you
plug in the power cord even though you have
not turned on the system (see step 4 of
“Hooking up the system” (page 6)).
• Press ?/1 while the system is off. The
demonstration disappears.
There is severe hum or noise.
• Move the system away from the source of noise.
• Connect the system to a different wall outlet.
• Install a noise filter (commercially available) to
the power cord.
The timer cannot be set.
• Set the clock again (page 8).
The timer does not function.
• Check the timer setting and set the correct time
(pages 21 and 22).
• Cancel the Sleep Timer Function (page 20).
continued
27GB
The remote does not function.
• Remove the obstacle.
• Move the remote closer to the system.
• Point the remote at the system’s sensor.
• Replace the batteries (R6/size AA).
• Locate the system away from the fluorescent light.
The system can not be turned on even though
you have pressed ?/1.
• Make sure the power cord is connected to wall
outlet.
The color irregularity on a TV screen persists.
• Turn off the TV set once, then turn it on after 15
to 30 minutes. If the color irregularity still
persists, place the speakers farther away from the
TV set.
CD/MP3 player
The disc tray does not open and “LOCKED”
appears.
• Contact your Sony dealer or local authorized Sony
service facility.
The disc tray does not close.
• Place the disc correctly in the center of the tray.
• Always close the tray by pressing CD Z on the
unit. Trying to press the tray closed with your
fingers may cause problems with the player.
The disc does not eject.
• You cannot eject the disc during CD Synchro
Recording. Press x to cancel the CD Synchro
Recording, then press CD Z on the unit to eject
the disc.
• Consult your nearest Sony dealer.
Play does not start.
• Check whether a disc is loaded. The disc indicator
lights up when a disc is loaded.
• Wipe the disc clean (page 31).
• Replace the disc.
• Place the disc that this system can play.
• Place the disc correctly in the center of the tray.
• Place the disc in the tray with the label side up.
• Remove the disc and wipe away the moisture on
the disc, then leave the system turned on for a few
hours until the moisture evaporates.
• Press N to start play.
28GB
Disc access takes a long time.
• Set “CD POWER ON” by CD power manage
function (page 13).
The sound skips.
• Wipe the disc clean (page 31).
• Replace the disc.
• Try moving the system to a place without
vibration (e.g., on top of a stable stand).
• Try moving the speakers away from the system, or
placing them on separate stands. When you listen
to a track with bass sounds at high volume, the
speaker vibration may cause the sound to skip.
Play does not start from the first track.
• Press PLAY MODE repeatedly until both “PGM”
and “SHUF” disappear to return to Normal Play.
MP3 audio track cannot be played back.
• Recording was not performed according to the
ISO9660 level 1 or level 2 format, or Joliet in the
expansion format.
• The MP3 audio track does not have the extension
“.MP3”.
• The data is not stored in MP3 format.
• Discs containing files other than MPEG 1, 2, 2.5
Audio Layer-3 files cannot be played.
MP3 audio tracks take longer to play back than
others.
• After the system reads all tracks on the discs,
playback may take more time than usual if:
– the number of albums or tracks on the disc is
very large.
– the album and track organization structure is
very complex.
The album title, track title and ID3 tag do not
appear correctly.
• Use a disc that conforms with ISO9660 level 1,
level 2, or Joliet in the expansion format.
• The disc ID3 tag is not ver. 1 or ver. 2.
Tuner
Severe hum or noise/stations cannot be
received.
• Set the proper band and frequency (page 12).
• Connect the antenna properly (page 6).
• Find a place and an orientation that provide good
reception, then set up the antenna again. If you
cannot obtain good reception, we recommend you
connect a commercially available external
antenna.
• The supplied FM lead antenna receives signals
along its entire length, so make sure you extend it
fully.
• Locate the antennas as far away from the speaker
cords as possible.
• Consult your nearest Sony dealer if the supplied
AM antenna has come off the plastic stand.
• Try turning off surrounding electrical equipment.
• Set “CD POWER OFF” by CD power manage
function (page 13).
A stereo FM program cannot be received in
stereo.
• Press FM MODE until “MONO” disappears.
After pressing nN, there is a mechanical
noise, “Eject” appears in the display, and the
unit enters standby mode automatically.
• Insert the cassette correctly.
The tape does not record or play, or there is a
decrease in sound level.
• The heads are dirty. Clean them (page 32).
• The record/playback heads are magnetized.
Demagnetize them (page 32).
The tape does not erase completely.
• The record/playback heads are magnetized.
Demagnetize them (page 32).
There is excessive wow or flutter, or the sound
drops out.
• The capstans in the tape deck are dirty. Clean
them (page 32).
Optional components
There is no sound.
• Refer to General item “The clock setting/radio
presetting/timer is canceled.” (page 27) and check
the condition of the system.
• Connect the component properly (page 25) while
checking:
– if the cords are connected properly.
– if the cord plugs are firmly inserted all the way.
• Turn on the connected component.
• Refer to the operating instructions supplied with
the connected component and start playing.
• Press FUNCTION repeatedly to select “MD” or
“VIDEO” (page 26).
The sound is distorted.
• Set the volume of the connected component
lower.
If the system still does not
operate properly after performing
the above measures, reset the
system as follows:
1
2
3
4
Troubleshooting
Tape deck
The tape does not record.
• No cassette is loaded. Load a cassette.
• The tab has been removed from the cassette.
Cover the broken tab with adhesive tape
(page 32).
• The tape has wound to the end.
Disconnect the power cord.
Reconnect the power cord.
Press ?/1 to turn on the system.
Press x, DIMMER and ?/1 on the unit.
The system is reset to the factory settings. You
should set the settings you made, such as the
preset stations, clock, and timer.
Noise increases or the high frequencies are
erased.
• The record/playback heads are magnetized.
Demagnetize them (page 32).
29GB
Messages
One of the following messages may appear or
flash in the display during operation.
CD/MP3
No Disc
There is no disc in the player.
OVER
You have reached the end of the disc while pressing
M during playback or pause.
Push STOP!
You pressed PLAY MODE during playback.
Step Full!
You tried to program 25 or more tracks (steps).
TAPE
No Tab
You cannot record the tape because the tab has been
removed from the cassette.
No Tape
There is no tape in the tape deck.
Timer
OFF TIME NG!
The Play Timer or Rec Timer start and end times are
set to the same time.
PUSH SELECT!
You tried to set the clock or timer during timer
operation.
SET CLOCK!
You tried to select the timer with the clock not set.
SET TIMER!
You tried to select the timer with the timer not set.
30GB
On the speaker system
Additional Information
Precautions
On operating voltage
Before operating the system, check that the operating
voltage of your system is identical with the voltage of
your local power supply.
On safety
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet, even if the unit itself has been turned off.
• Unplug the system from the wall outlet (mains) if it
is not to be used for an extended period of time. To
disconnect the power cord (mains lead), pull it out by
the plug. Never pull the cord itself.
• Should any solid object or liquid fall into the system,
unplug the system and have it checked by qualified
personnel before operating it any further.
• AC power cord must be changed only at the qualified
service shop.
On placement
On heat buildup
• Although the system heats up during operation, this
is not a malfunction.
• Place the system in a location with adequate
ventilation to prevent heat build-up in the system.
• If you continuously use this system at a high volume,
the cabinet temperature of the top, side and bottom
rises considerably. To avoid burning yourself, do not
touch the cabinet.
• To prevent a malfunction, do not cover the
ventilation hole.
On operation
• If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens inside the CD
player. Should this occur, the system will not operate
properly. Remove the disc and leave the system
turned on for about an hour until the moisture
evaporates.
• When you move the system, take out any disc.
If you have any questions or problems concerning your
system, please consult your nearest Sony dealer.
Notes on discs
• Before playing, clean the disc with a cleaning cloth.
Wipe the disc from the center out.
• Do not use solvents such as benzene, thinner,
commercially available cleaners or anti-static spray
intended for vinyl LPs.
• Do not expose the disc to direct sunlight or heat
sources such as hot air ducts, nor leave it in a car
parked in direct sunlight.
• Do not use discs encircled with a protection ring.
This may cause a malfunction to the system.
• When using discs that have glue or similar tacky
substance on the label side of the disc or that used a
special ink when the label was printed, there is a
chance that the disc or label may become attached to
parts inside this unit. When this occurs, it may not be
possible to remove the disc, and may also cause this
unit to malfunction. Be sure to check that the label
side of the disc is not sticky before using.
The following types of disc should not be used:
– Rental or used discs with attached seals where the
glue extends beyond the seal. The perimeter of the
seal on the disc is tacky.
– Discs that have labels printed using a special ink
that feels tacky when touched.
• Discs with non-standard shapes (e.g., heart, square,
star) cannot be played on this unit. Attempting to do
so may damage the unit. Do not use such discs.
Additional Information
• Do not place the system in an inclined position.
• Do not place the system in locations where it is;
– Extremely hot or cold
– Dusty or dirty
– Very humid
– Subject to vibrations
– Subject to direct sunlight.
• Use caution when placing the unit or speakers on
surfaces that have been specially treated (with wax,
oil, polish, etc.) as staining or discoloration of the
surface may result.
This speaker system is not magnetically shielded and
the picture on TV sets may become magnetically
distorted. In such a case, turn off the power of the TV
set once, and after 15 to 30 minutes turn it on again.
If there seems to be no improvement, locate the
speaker system further away from the TV set.
Cleaning the cabinet
Clean the cabinet, panel and controls with a soft cloth
slightly moistened with mild detergent solution. Do not
use any type of abrasive pad, scouring powder or
solvent such as thinner, benzine or alcohol.
continued
31GB
To save a tape permanently
To prevent a tape from being accidentally recorded
over, break off the cassette tab from side A or B as
illustrated.
Break off the
cassette tab
Specifications
Main unit
Amplifier section
For the U.S.A. model
AUDIO POWER SPECIFICATIONS
CMT-CPX22
If you later want to reuse the tape for recording, cover
the broken tab with adhesive tape.
Before placing a cassette in the tape
deck
Take up any slack in the tape. Otherwise, the tape may
get entangled in the parts of the tape deck and become
damaged.
When using a tape longer than
90 minutes
The tape is very elastic. Do not change the tape
operations such as play, stop, and fast-winding
frequently. The tape may get entangled in the tape
deck.
Cleaning the tape heads
Clean the tape heads after every 10 hours of use.
Be sure to clean the tape heads before you start an
important recording or after playing an old tape.
Use a separately sold dry-type or wet-type cleaning
cassette. For details, refer to the instructions of the
cleaning cassette.
Demagnetizing the tape heads
Demagnetize the tape heads and the metal parts that
have contact with the tape after every 20 to 30 hours of
use with a separately sold demagnetizing cassette. For
details, refer to the instructions of the demagnetizing
cassette.
32GB
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 4-ohm loads, both channels driven, from
120 – 10,000 Hz; rated 100 watts per channel
minimum RMS power, with no more than 10%
total harmonic distortion from 250 milliwatts to
rated output.
Other models:
The following measured at AC 120 – 127/220 – 240 V,
50/60 Hz (Saudi Arabian model only)
The following measured at AC 230 V, 50/60 Hz
(European and Russian models only)
The following measured at AC 120/220 – 240 V,
50/60 Hz (except for European, Russian and Saudi
Arabian models)
The following measured at AC 220 V, 60 Hz
(Korean model only)
CMT-CP555
DIN power output (rated): 55 + 55 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference):
75 + 75 watts
(6 ohms at 1 kHz, 10%
THD)
CMT-CPX22
DIN power output (rated): 75 + 75 watts
(4 ohms at 1 kHz, DIN)
Continuous RMS power output (reference):
100 + 100 watts
(4 ohms at 1 kHz, 10%
THD)
Inputs
VIDEO/MD IN (phono jacks):
Sensitivity 250/450 mV,
impedance 47 kilohms
Outputs
DIGITAL (OPTICAL) OUT:
Optical Wavelength:
660 nm
PHONES (mini jack):
accepts headphones with
an impedance of 8 ohms or
more
SPEAKER:
Use only the supplied
speakers
SS-CP555S
(CMT-CP555)
SS-CPX22
(CMT-CPX22)
CD player section
System
Laser
Frequency response
Compact disc and digital
audio system
Semiconductor laser
(λ=770 – 810 nm)
Emission duration:
continuous
2 Hz – 20 kHz (±0.5 dB)
Tape deck section
Wow and flutter
4-track 2-channel stereo
50 – 13,000 Hz (±3 dB),
using Sony TYPE I
cassettes
±0.15% W. Peak (IEC)
0.1% W. RMS (NAB)
±0.2% W. Peak (DIN)
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range
U.S.A. model:
Russian model:
Other models:
Antenna
Antenna terminals
Intermediate frequency
87.5 – 108.0 MHz
(100-kHz step)
65.0 – 74.0 MHz
(10-kHz step)
(There is no stereo effect)
87.5 – 108.0 MHz
(50-kHz step)
87.5 – 108.0 MHz
(50-kHz step)
FM lead antenna
75 ohms unbalanced
10.7 MHz
530 – 1,710 kHz
(with the tuning interval
set at 10 kHz)
531 – 1,710 kHz
(with the tuning interval
set at 9 kHz)
European, Russian and Saudi Arabian models:
531 – 1,602 kHz
(with the tuning interval
set at 9 kHz)
Other models:
531 – 1,602 kHz
(with the tuning interval
set at 9 kHz)
530 – 1,710 kHz
(with the tuning interval
set at 10 kHz)
Antenna
AM loop antenna
Antenna terminals
External antenna terminal
Intermediate frequency
450 kHz
Speaker
Front speaker SS-CP555S for CMT-CP555
Speaker system
2-way, bass-reflex type
Speaker units
Woofer:
15 cm dia., cone type
Tweeter:
2.5 cm dia., balanceddome-type
Nominal impedance
6 ohms
Dimensions (w/h/d)
Approx. 173 × 275 ×
265 mm
Mass
Approx. 3.0 kg net per
speaker
Front speaker SS-CPX22 for CMT-CPX22
Speaker system
2-way, bass-reflex type
Speaker units
Woofer:
15 cm dia., cone type
Tweeter:
2.5 cm dia., soft-dometype
Nominal impedance
4 ohms
Dimensions (w/h/d)
Approx. 173 × 275 ×
265 mm
Mass
Approx. 3.9 kg net per
speaker
Additional Information
Recording system
Frequency response
AM tuner section
Tuning range
Pan-American model:
continued
33GB
General
Power requirements
U.S.A. model:
120 V AC, 60 Hz
European and Russian models:
230 V AC, 50/60 Hz
Korean model:
220 V AC, 60 Hz
Saudi Arabian model:
120 – 127 V or
220 – 240 V AC, 50/60 Hz
Adjustable with voltage
selector
Other models:
120 V, 220 – 240 V AC,
50/60 Hz
Adjustable with voltage
selector
Power consumption
U.S.A. model:
CMT-CPX22
65 watts
European and Russian models:
CMT-CP555
110 watts
0.3 watts (in Power Saving
mode)
CMT-CPX22
65 watts
0.3 watts (in Power Saving
mode)
Other models:
CMT-CP555
115 watts
CMT-CPX22
65 watts
Dimensions (w/h/d) incl. projecting parts and controls
Amplifier/Tuner/Tape/CD section:
Approx. 230 × 292 ×
355 mm
Mass
Amplifier/Tuner/Tape/CD section:
CMT-CP555
Approx. 6.5 kg
CMT-CPX22
Approx. 6.1 kg
Supplied accessories
Remote Commander (1)
Size AA (R6) batteries (2)
AM loop antenna (1)
FM lead antenna (1)
Speaker pads (8)
Speaker cords
(CMT-CPX22 only) (2)
Design and specifications are subject to change
without notice.
34GB
List of button locations and reference pages
How to use this page
Use this page to find the location of buttons and other
parts of the system that are mentioned in the text.
Illustration number
r
TAPE A/B wh (16, 17, 18)
R
Name of button/part
R
Reference page
Main unit
BUTTON DESCRIPTIONS
ALPHABETICAL ORDER
A–O
P–Z
ALBUM +/– qa (10, 11, 17)
BASS control w; (19)
CD wk (7, 9, 11, 13, 17, 18, 19)
CD SYNC ws (17)
Deck A qj (16)
Deck B qg (16, 17, 18)
DIMMER wd (23, 29)
DISC 1 – 5 3 (9, 10, 11)
Disc tray 9 (9)
DISPLAY wf (15, 23, 24)
Display window 4
DSGX qs (19)
PHONES jack qh
Remote sensor 2
TAPE A/B wh (16, 17, 18)
TREBLE control ql (19)
TUNER/BAND wj (12, 14, 18)
TUNING +/– 0 (12, 14)
VIDEO/MD wg (18, 26)
VOLUME control qd
wk
wj
wh
wg
wf
wd
ws
wa
w;
ql
qk
qj
3
Additional Information
1 2
?/1 (power) 1 (7, 13, 26, 29)
nN (play) 5 (10, 16, 17, 22)
X (pause) 6 (10, 16)
x (stop) 7 (7, 10, 13, 16, 17, 29)
CD Z (eject) 8 (9)
.m/M> (rewind/fast
forward, go back/go forward)
0 (10, 16)
TAPE Z B(eject) qf (16)
A TAPE Z (eject) qk (16)
z START wa (17)
4
5
6
7
8
9
0
qa
qs
qd
qf
qg
qh
continued
35GB
Remote control
ALPHABETICAL ORDER
BUTTON DESCRIPTIONS
A–E
F–Z
ALBUM – qd (10, 11, 17)
ALBUM + qa (10, 11, 17)
CD qk (9, 11, 19)
CLEAR qg (12)
CLOCK/TIMER SELECT 2
(21, 22)
CLOCK/TIMER SET 3 (8, 21,
22)
DISC SKIP 0 (10, 11)
DISPLAY wa (15, 23, 24)
ENTER 9 (8, 11, 13, 21, 22)
EQ qf (19)
FM MODE 4 (14)
FUNCTION 6 (9, 11, 12, 14, 16,
19)
PLAY MODE w; (9, 11, 16, 17,
18, 22)
REPEAT 4 (11)
SLEEP ws (20)
TAPE qj (16)
TUNER BAND 5 (12, 14)
TUNER MEMORY ql (12)
TUNING MODE w; (12, 14)
VOLUME +/– qs (21)
ws
wa
w;
ql
qk
qj
qh
?/1 (power) 1 (7, 21)
m/M (rewind/fast forward)
7 (10, 16)
N (play) 8 (10, 16)
X (pause) 8 (10, 16)
x (stop) 8 (10, 16)
./> (go back/go forward)
qh (8, 10, 17, 19, 21)
–/+ (tuning) qh (12)
1
2
3
4
5
6
7
8
qg
9
qf
q;
qd
qa
qs
Sony Corporation Printed in Malaysia
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
