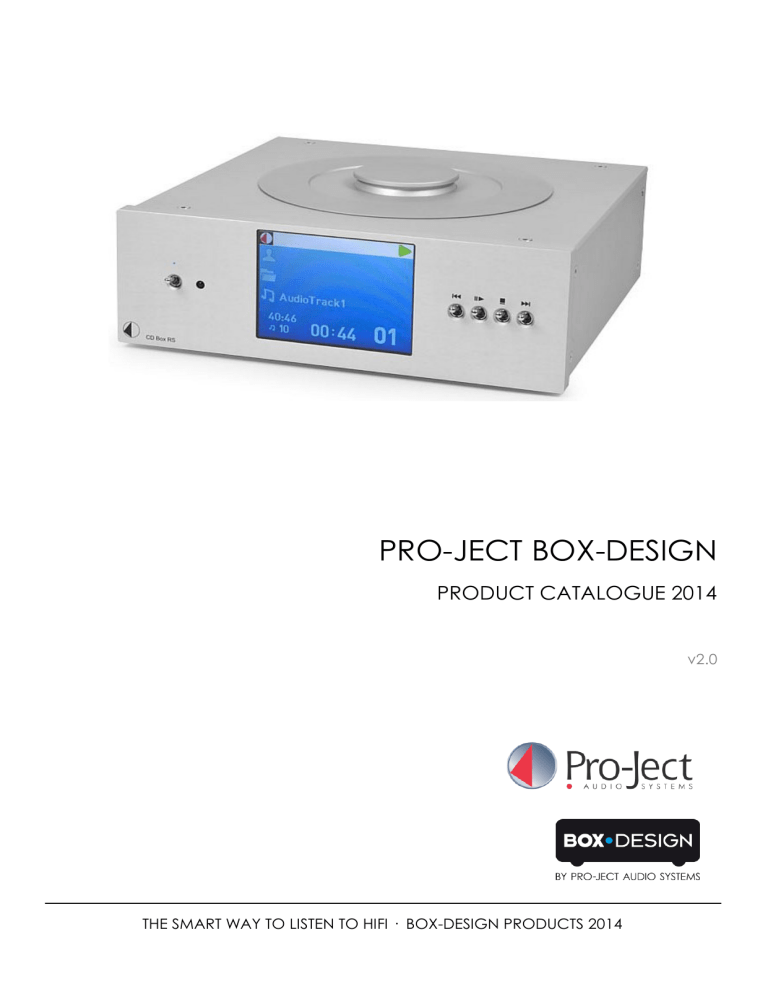

PRO-JECT BOX-DESIGN
PRODUCT CATALOGUE 2014
v2.0
THE SMART WAY TO LISTEN TO HIFI · BOX-DESIGN PRODUCTS 2014
PRODUCT CATALOGUE 2014
CONTENTS
page
page
 Elemental Line
3
 Loudspeakers
15
 Classic Line
4
 Multimedia control
16
 S Line
5-8
 Accessories
16
 DS Line
9 - 12
 Combinations
17
 RS Line
13 - 14
 Design Boxes & Power 18
 Headphones
15
 Cables
19
ABOUT PRO-JECT AUDIO SYSTEMS AND BOX DESIGN
Pro-Ject Audio Systems was founded by Heinz Lichtenegger 1990 in
Vienna, with the idea that analogue playback is the most costeffective way to listen to music of audiophile quality.
Inspired by the concept of supporting analogue in the face of the
digital onslaught, Pro-Ject Audio Systems became one of the most
powerful driving forces in reinventing analogue turntables for the hi-fi
market. Today, Pro-Ject Audio Systems is the world leader in the
manufacture of quality hi-fi turntables, as turntables are once again
accepted as a must-have for every concerned music lover. Pro-Ject
Audio Systems' products are exported to almost 80 countries worldwide and is the recipient of nearly every award in the audio industry.
Since 2006, Pro-Ject Audio Systems has been bringing its idea “less is more” mission
to the digital world. Inspired by the new possibilities of the iPod and high-quality
music reproduction from a PC or laptop, Pro-Ject Audio Systems has designed a
complete new and revolutionary range of micro high-end Hi-fi components under
the family name BOX DESIGN. Starting with the smallest audiophile amp in the
world, with open and euphonic sound, Pro-Ject Audio Systems now produces all of the components of
traditional hi-fi systems including CD players, tuners, phono amps, headphone amps and switching modules,
as well as digital products such as docking stations, D/A converters and streamers to connect with the PC
wired or wireless.
BOX DESIGN regards itself as the ‘next generation of hi-fi’ – the link between the micro-sized hardware of the
IT world and the big boxes of the audiophile world. All products, except for speakers and headphones, are
designed and produced in Europe.
Pro-Ject: Simple-to-use, high quality sound, astonishing value, long-term stability and good service.
2
CATALOGUE 2014 · BOX DESIGN Electronics
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
Elemental Line
ELEMENTAL
OM 5e SRP € 199,00
Audiophile „Best Buy“ turntable
• Connection to phono preamp or amplifier with phono preamp required • Pre-mounted interconnect cable with gold-plated RCA plugs
ELEMENTAL PHONO USB
OM 5e SRP € 249,00
Turntable for Hifi & audio transfer to PC/Mac
• Integrated Phono-MM preamplifier • Connections: line-level RCA to amp & USB to PC/Mac
(simultaneously)
Both models: • Ultra rigid simplified design • Central Gravity point minimizing motor and chassis resonances • Unique OM5 optimized tonearm • Super easy plug and play without any need of counterweight and antiskating adjustment • Colour options: White/Black, Red/Black, Silver/Black
DAC BOX E
SRP € 99,00
NEW Digital to analogue converter
• Audio-upgrade for TV, Sat, Computer, etc • 24bit/192kHz Cirrus Logic DAC chip • Supports 24bit
audio data • Up to 192kHz sampling rates • Automatic signal sensing technology • Low clock jitter
sensitivity • RCA connectors gold plated (in & out) • Stylish casing protects against vibration and interference • Colour options: white or black
PRELIMINARY
RECORD BOX E
(available Q2/2014) estimated SRP € 99,00
NEW MM Phono preamplifier with A/D converter and USB output.
• Optimal channel separation through dual-mono circuitry • Special low-noise ICs used • Gold plated
RCA connection sockets • Outboard power supply included • Digitalisation of analogue signals for
recording direct to disk via USB with suitable recording programs • Automatic recognition, without
additional driver, by standard PC • Runs on Windows® and Mac OS® operating systems • Small size
allows installation close to record player • Stylish casing protects against vibration and interference •
Colour options: white or black
PHONO BOX E
SRP € 69,00
NEW MM Phono preamplifier
• Optimal channel separation through dual-mono circuitry • Special low-noise ICs used • Gold plated
RCA connection sockets • Outboard power supply included • Amplification and RIAA equalisation for
MM cartridges • Small size allows installation close to record player • Stylish casing protects against
vibration and interference • Colour options: white or black
PRELIMINARY
BLUETOOTH BOX E
PRELIMINARY
STEREO BOX E
(available Q2/2014) estimated SRP € 79,00
NEW High fidelity aptX Bluetooth audio receiver
• Wireless music streaming with almost CD-quality • Compatible with all smartphones and tablet PCs,
that support aptX & SBC Bluetooth codecs • Easy to install and use • Fast auto pairing (3 to 5 seconds) • Up to 8 different Bluetooth sources are memorized • Works within a range of approximately
10 meters • 3,5mm stereo analogue and Toslink digital outputs • Colour options: white or black
(available Q3/2014)
SRP € 199,00
NEW High fidelity integrated audio amplifier with analogue & USB
• Audiophile quality amplifier for desktop audio usage • selection between analogue & USB input •
Easy to install and use • Analogue volume control avoids sound degradation • 3,5mm stereo analogue and USB „B“ digital inputs • Colour options: white or black
PRELIMINARY
HEAD BOX E
(available Qx/201x)
SRP € xxx,00
NEW High fidelity headphone amplifier
• Audiophile quality headphone amplifier • Colour options: white or black
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
BOX DESIGN Electronics · CATALOGUE 2014
3
Classic Line
PHONO BOX
SRP € 99,00
MM/MC Phono preamp with line output
• Preamplifier for MM or MC with switch on rear panel • „Green“ DC power supply (< 1 watt standby
power) • Precise RIAA equalisation • Low noise ICs • Output stage with ultra-low impedance • Goldplated RCA sockets • Small size for installation near record player • Metal casing protects against
vibration and interference • Colour options: silver or black
PHONO BOX USB
SRP € 139,00
MM/MC Phono preamp with line & USB outputs
• Preamplifier for MM or MC with switch on rear panel • „Green“ DC power supply (< 1 watt standby
power) • Precise RIAA equalisation • High quality A/D conversion with USB out to PC/Mac • Compatible with Windows®, MacOS® • SMD technology for shortest signal paths • Gold-plated RCA sockets • Output stage with ultra-low impedance • Metal casing protects against vibration and interference • Colour options: silver or black
PHONO BOX USB V
SRP € 159,00
MM/MC Phono/line preamp with line & USB outputs
• Preamplifier for MM or MC with switch on rear panel • „Green“ DC power supply (< 1 watt standby
power) • Precise RIAA equalisation • Phono/line selector on front • Record level adjustment • High
quality A/D conversion with USB out to PC/Mac • Compatible with Windows®, MacOS® • SMD technology for shortest signal paths • Output stage with ultra-low impedance • Metal casing protects
against vibration and interference • Colour options: silver or black
USB BOX
SRP € 99,00
D/A converter with USB input for PC audio
• High quality D/A conversion with USB • Compatible with Windows®, MacOS® • Automatic detection
without the need of additional software, when used with conventional computer systems • Powered
via USB • SMD technology for shortest signal paths • Gold-plated RCA sockets • Output stage with
ultra-low impedance • Metal casing protects against vibration and interference • Colour options:
silver or black
CD BOX
SRP € 249,00
Ultra-compact audio CD player
• 16bit/44.1kHz CD Audio playback • CD, CD-R, CD-RW, Hybrid SACD playback • Robust and reliable
all-metal CD transport • Slot-in mechanism • Servo board optimised for 1:1 playback of CDs • Direct
I²S digital-interface to DAC • DAC from Texas Instruments (BurrBrown) • Remote control with
volume level adjustment of Pro-Ject Audio Systems' amplifiers • Metal casing protects against vibration and inter-ference • Colour options: silver or black
4
CATALOGUE 2014 · BOX DESIGN Electronics
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
S Line
PRE BOX S
SRP € 249,00
Stereo Line preamplifier
• Advanced circuitry with premium components • Neutral sound with superior low noise floor • 2
Stereo Line-in & Pre-out • Motorised volume control • SMD for short signal paths • Low output impedance for low loss with long cables • Gold-plated connections • Remote control for on/off, input select, volume • Trigger outputs for Amp Box and Switch Box • Metal casing protects against vibration
and interference • Colour options: silver or black
AMP BOX S
SRP € 249,00
Stereo power amplifier
• Ultra compact & audiophile • Advanced amplifier module • More power and further improved performance • Stereo input (RCA) • Gold plated speaker sockets • Suitable for Banana/Spade/Pin/bare
wire • Trigger input • Trigger output for further Amp Box S • Metal casing protects against vibration
and interference • Colour options: silver or black
AMP BOX S MONO
SRP € 249,00
Mono power amplifier
• Ultra compact & audiophile • Advanced amplifier modules • 2 ohms drive capability • More power
and further improved performance • Mono input with loop-out (RCA) • Gold-plated speaker sockets •
Suitable for Banana/Spade/Pin/bare wire • Trigger input with output for further Amp Box S Mono •
Metal casing protects against vibration and interference • Colour options: silver or black
HEAD BOX S
SRP € 119,00
Headphone amplifier
• Audiophile headphone amplifier • 6,3mm jack input on front • Suitable for headphones with low or
high impedance • RCA stereo input • RCA stereo loop-out • Sound upgrade compared to standard
headphone outputs from integrated amplifiers • Best-buy award winner • Metal casing protects
against vibration and interference • Colour options: Silver or Black
HEAD BOX S USB
SRP € 169,00
Headphone amplifier with D/A converter with USB input for PC audio
• Audiophile headphone amplifier • High quality D/A conversion with USB • 6,3mm jack input on
front • Suitable for headphones with low or high impedance • RCA stereo input • RCA stereo loopout • Significantly better sound than standard headphone outputs from integrated amplifiers • Metal
casing protects against vibration and interference • Colour options: silver or black
RECEIVER BOX S
SRP € 349,00
Ultra compact integrated stereo amp including FM tuner
• 2x 30W @ 4 ohms / 2x 25W @ 8 ohms • 2 stereo line inputs • Improved FM tuner with higher sensitivity • 99 presets and auto store and search function • High-resolution dot-matrix display (blue) •
Indication of signal strenght, precise center of station, stereo/mono reception • Easy control via IR
remote or 3 buttons on faceplate • Metal casing protects against vibration and interference • Colour
options: silver or black
STEREO BOX S
SRP € 259,00
Stereo integrated amplifier
• High End integrated amplifier with 2 line inputs • 2x 30 watts @ 4 ohms • Gold plated connectors
for line (RCA) & speakers • IR remote control for volume, input, power • Record out with fixed level,
can be used for Head Box etc • Metal casing protects against vibration and interference • Colour
options: silver or black
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
BOX DESIGN Electronics · CATALOGUE 2014
5
STEREO BOX S Phono
SRP € 359,00
NEW Stereo integrated amplifier with analogue & phono inputs
• High End integrated amplifier with 3 line & 1 phono input (MM) • 2x 30 watts @ 4 ohms • Gold
plated connectors for line (RCA) & speakers • IR remote control for volume, input, power • Record
out with fixed level, can be used for Head Box etc • Metal casing protects against vibration and interference • Colour options: silver or black
PRELIMINARY
STEREO BOX S Digital BT
PRELIMINARY
STREAM BOX S
PRELIMINARY
(available Q2/2014) estimated SRP € 499,00
NEW Stereo integrated amplifier with analogue, digital, Bluetooth inputs & headphone out
• High End integrated amplifier with 3 line, 1 phono (MM), 2 digital coax, 2 digital optic & 1 wireless
high definition aptX Bluetooth input • 2x 30 watts @ 4 ohms • XMOS asynchronous USB
(24bit /192kHz) • 24bit / 192kHz D/A converter • Headphone output • Gold plated connectors for
line (RCA) & speakers • IR remote control for volume, input, power • Record out with fixed level •
Metal casing protects against vibration and interference • Colour options: silver or black
(available Q2/2014) estimated SRP € 399,00 - € 499,00
NEW Highend audio with Wi-Fi, LAN, USB sources
• Audiophile grade 24bit/192 kHz highend audio streaming client • Ethernet & WLAN • Meets the
Standards UPnP & DLNA 1.0/1.5 • USB input for flash memory and hard disk drives • Internetradio
with automatic detection of local stations • “Gapless“ playback for all formats • Gold plated RCA
connectors • Control via dedicated Box Control (free of charge) for Apple and Android smartphones &
tablet PC's • Internetradio platform: vTuner built-in • Using streaming services, like Spotify, Deezer,
Grooveshark, Simfy via direct streaming from portable devices using Flipps (iMediaShare) etc • all
codecs including AIFF & AAC supported • Metal casing protects against vibration and interference •
Colour options: silver or black
BLUETOOTH BOX S
(available Q1/2014) estimated SRP € 149,00
NEW High fidelity aptX Bluetooth audio receiver
• Wireless music streaming with almost CD-quality • Pro-Ject Audio Systems' own conversion technology • Compatible with all smartphones and tablets, that support aptX & SBC Bluetooth codecs • Easy
to install and use • Fast auto pairing (3 to 5 seconds) • Up to 8 different Bluetooth sources are memorized • Works within a range of approximately 10 meters • 3,5mm stereo analogue and Toslink digital
outputs • Metal casing protects against vibration and interference • Colour options: silver or black
CD BOX S
SRP € 349,00
Ultra compact CD player
• Smallest Hifi CD player on the market • 24bit/96kHz DAC for precise playback of Audio-CDs • Coaxial S/PDIF digital output • Robust and reliable all-metal CD transport • Slot-in mechanism • Servo
board optimized for 1:1 playback of CDs • Direct I²S digital-interface to DAC • Remote control with
volume level adjustment of Pro-Ject amplifiers • Metal casing protects against vibration and interference • Colour options: silver or black
MEDIA BOX S
SRP € 259,00
Digital audio player
• Easy to use high quality audio reproduction from SD cards, USB sticks and USB hard drives • “Plug
and Play” without PC or Mac • New wall plug power supply also gives power to USB hard drives •
High contrast 1,0” LCD display • Album/Title/Playlist read-out from display • Random/Shuffle Play •
IR remote • Excellent sound quality from digitally stored media • High quality DA-conversion on
board • Digital coax out (RCA) for usage with even better DACs • Perfect to be combined with other
Box Design components • Metal casing protects against vibration and interference • Colour options:
silver or black
6
CATALOGUE 2014 · BOX DESIGN Electronics
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
DAC BOX S USB
SRP € 159,00
Digital to analogue converter with line & USB outputs
• Audiophile 24bit/96kHz D/A-conversion • Precision D/A chip from Texas Instruments • 8 times oversampling • 3 Inputs; 1x USB, 1x optical (Toslink), 1 x coax (SPDIF) • Gold-plated RCA line level output
sockets • To take full advantage of the DAC Box USB features, please install software package (see
manual, website) • Input selector on front • Metal casing protects against vibration and interference • Colour options: silver or black
DAC BOX S FL
SRP € 199,00
Filterless non-oversampling digital to analogue converter
• Audiophile 16bit linear D/A-conversion • Non-Oversampling • Without digital filter • 4 x TDA1543
parallel operation mode • "Analogue" full bodied sound • Input selector on front • Metal casing protects against vibration and interference • Colour options: silver or black
USB BOX S
SRP € 99,00
D/A converter with USB input for PC audio
• High quality D/A conversion with USB • Compatible with Windows®, MacOS® • Automatic detection
without the need of additional software, when used with conventional computer systems • Powered
via USB • SMD technology for shortest signal paths • Gold-plated RCA sockets • Output stage with
ultra-low impedance • Metal casing protects against vibration and interference • Colour options:
silver or black
USB BOX S+
SRP € 199,00
High-End USB streamer & D/A converter
• Asynchronous data transfer from USB with 32 bits/384 kHz BurrBrown DAC chip • based on XMOS
technology • USB Receiver and Converter are 32 bit ready • Class A-output stage • Analogue output
RCA connectors gold plated • Metal casing protects against vibration and interference • Colour options: silver or black
DOCK BOX S DIGITAL
SRP € 199,00
Highend Apple-Dock with internal D/A conversion
• Pure digital audio transmission • 24bit/192kHz D/A converter • Additional SPDIF output (RCA) •
APPLE certified • Audio playback from iPod, iPhone, iPad • iPod/iPhone/iPad charging capability • SVideo output • Power button on remote (= standby with charging) • Remote control included •
Colour options: silver or black
DOCK BOX S FI
SRP € 149,00
Audiophile dockingstation
• Compatble with all current models: iPod, iPhone, iPad • Fi version with constant volume level - ideal
when combined with existing hifi audio system • Perfect signal transfer from 30-pin analogue-out •
RCA stereo output • S-video output for on-screen monitoring • USB port for data transfer from PC/
Mac • Remote control included • Metal casing protects against vibration and interference • Colour
options: silver or black
TUNER BOX S
SRP € 159,00
Micro-sized FM-Tuner
• 99 presets • Manual or automatic tuning • Adaptive noise reduction • High-contrast dot-matrix
display • Display of frequency, preset number, centre of station, stereo or mono reception, signal
strength, etc • Trigger switching (on/off) • Full function IR remote control • Metal casing protects
against vibration and interference • Colour options: silver or black
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
BOX DESIGN Electronics · CATALOGUE 2014
7
PRELIMINARY
A/D BOX S Phono
(available 2014)
NEW Analogue to digital converter with USB out
• Analogue to digital conversion with built-in high quality phono preamp • converts vinyl phono
signals into digital audio • multiple use of digital files in all digital devices including portable • Suitable
for MM and MC phono cartridges • Metal case shields electronics from vibration and electromagnetic
interference • Small size allows installation close to record player • Available in silver or black finish
PHONO BOX S
SRP € 149,00
„Best Buy“ MM/MC phono preamplifier
• Audiophile Performance • Dual mono configuration • Audiophile-grade amplification modules •
Audiophile-grade polypropylene WIMA capacitors • Precise RIAA equalisation • Switchable Subsonic
filter –12dB @ 20Hz • Switchable input impedance/capacitance • 4 adjustable gain levels • Outstanding sound quality • Metal casing protects against vibration and interference • Colour options:
silver or black
TUBE BOX S
SRP € 349,00
MM/MC phono preamplifier with tube output stage
• Audiophile Performance • Audiophile-grade ECC83 (12AX7) • Dual mono configuration • Audiophile
-grade polypropylene WIMA capacitors • Precise RIAA equalisation • Switchable input impedance/
capacitance • 3 adjustable gain levels • Subsonic filter • Metal casing protects against vibration and
interference • Colour options: silver or black
SPEED BOX S
SRP € 129,00
Electronic motor control and speed change
• Quartz-generated high precision electronic speed regulation with microprocessor control • Sound
improvement through motor running smoothness • Clean power decoupled from mains interference • Allows electronic speed change 33 & 45 rpm • 78 rpm possible with optional accessory pulley • Suitable for all turntables with 16 volt AC motor, up to 3 watt max. power consumption • Small
size allows installation close to record player • Outboard power supply included • Metal casing protects against vibration and interference • Colour options: silver or black
SWITCH BOX S
SRP € 119,00
Input expansion for amplifiers/preamplifiers
• 4 inputs • 2 line outputs for separate usage • Suitable for amplifiers (Pro-Ject Audio Systems or
other brands) • 3-input expansion for Pre Box S • Ultra-low crosstalk • Automatic synchronisation
with trigger cable of Pre Box S • Metal casing protects against vibration and interference • Colour
options: silver or black
PRELIMINARY
shown with Design Box Acryl 2
(not included)
PRELIMINARY
shown with Design Box Acryl 4
(not included)
8
POWER BOX S 4 WAY
(available Q2/2014) estimated SRP € 129,00
One power cable solution
• Improves sonic performance of S-Line products by delivering of clean energy for powering with very
good filtration and voltage regulation • Fitting in rear side of Design Box 2 • Gives a neat finish of the
Design Box • Suits: Stereo Box S, Amp Box S, Pre Box S, Receiver Box S, DAC Box S FL, DAC Box S USB,
Dock Box S Fi, Dock Box Digital S, Head Box S, Phono Box S, Media Box S, etc • Outputs: 1x 20V / 3A,
2x 9V / up to 3A, 3x 18V / 500mA up to 1A • Colour options: silver or black
POWER BOX S 6 WAY
(available Q2/2014) estimated SRP € 149,00
One power cable solution
• Improves sonic performance of S-Line products by delivering of clean energy for powering with very
good filtration and voltage regulation • Fitting in rear side of Design Box 4 • Gives a neat finish of the
Design Box • Suits: Stereo Box S, Amp Box S, Pre Box S, Receiver Box S, DAC Box S FL, DAC Box S USB,
Dock Box S Fi, Dock Box Digital S, Head Box S, Phono Box S, Media Box S, CD Box S, etc • Outputs: 1x
20V / 3A, 2x 9V / up to 3A, 3x 18V / 500mA up to 1A • Colour options: silver or black
CATALOGUE 2014 · BOX DESIGN Electronics
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
DS Line
PRE BOX DS
SRP € 359,00
Stereo Line preamplifier
• Improved circuitry with even less noise • Volume control through relais (64 steps, 1 dB) • 4 line
level inputs • Relais switching of inputs • 1x Pre-Out, 1x Subwoofer-Out, 1x Record-Out • Extremely
low output impedance for low loss with long cables • IR remote control • Trigger switching of power
amplifiers • Big elegant control display • Metal casing protects against vibration and interference •
Colour options: silver or black
AMP BOX DS
SRP € 399,00
Stereo power amplifier
• Improved PWM-circuitry (Pulse Wave Modulation) • 2x 125 / 80 watts @ 4 / 8 ohms • Improved
signal spectrum and lower distortion • 2 ohms drive capability • High efficiency from mains to audio
power (92%) • Low heat emission • Stereo line level input (RCA) • Gold-plated 5-way speaker binding
posts • Suitable for banana/spade/pin/bare wire • Trigger input & loop out • Metal casing protects
against vibration and interference • Colour options: silver or black
AMP BOX DS MONO
SRP € 379,00
Mono power amplifier
• Improved PWM-circuitry (Pulse Wave Modulation) • 1x 190 / 110 watts @ 4 / 8 ohms • Improved
signal spectrum and lower distortion • 2 ohms drive capability • High efficiency from mains to audio
power (92%) • SMD design for shortest signal path • Low heat emission • Line level input & loop-out
(RCA) • Gold-plated 5-way speaker binding posts • Suitable for banana/spade/pin/bare wire • Trigger
input & loop out • Metal casing protects against vibration and interference • Colour options: silver or
black
STEREO BOX DS
SRP € 399,00
Stereo integrated amplifier
• Dual mono design • 2 power modules for each channel • 2x 70 / 50 watts @ 4 / 8 ohms • 2 ohms
drive capability • 4 stereo line inputs (RCA) • Digital input: USB • Big elegant control display • Familiar
sound with Stereo Box S with higher power output • Metal casing protects against vibration and interference • Colour options: silver or black
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
BOX DESIGN Electronics · CATALOGUE 2014
9
PHONO BOX DS
SRP € 249,00
Phono preamplifier
• MM & MC capable • Linear RIAA equalisation • Ultimate circuit technology from Dr. Sykora, slimplified version of Phono Box DS+ without display & relais switching • Ultra low noise & low distortion
levels • SMD circuitry • Subsonic filter (switchable on rear panel) • Substantial setup options • Comfortable switching via buttons on front • Metal casing protects against vibration and interference •
Colour options: silver or black
PHONO BOX DS +
SRP € 399,00
Phono preamplifier
• MM & MC capable • Linear RIAA equalisation • Ultimate circuit technology from Dr. Sykora • Ultra
low noise & low distortion levels • Double mono SMD circuitry • Low loss polypropylen capacitors •
Substantial setup options • Classy & elegant display shows setup parameters • Relay switching • Metal casing protects against vibration and interference • Colour options: silver or black
TUBE BOX DS
SRP € 499,00
MM/MC tube phono preamplifier
• MM & MC support • Precise RIAA equalisation • Ultra low noise circuitry • 12AX7 tube output stage
with pre-mounted cool dampers • Input impedance adjustment for low output MC on front • Input
capacitance adjustment in 4 steps (MM & Hi-output MC) • Switchable subsonic filter • Gold plated
RCA sockets • Metal casing protects against vibration and interference • Front-sided On/Off switch •
Colour options: silver or black
SPEED BOX DS
SRP € 399,00
Quartz controlled speed control for turntable for assuring ultimate speed consistency
• Speed change between 33 and 45rpm • Speed can be altered in graduated steps on either setting •
Voltage regulation function • Generated sinus wave voltage decoupled from mains interference •
Outputs: 16V AV and 230V AV (available also in 120V / 60 Hz version) • Only for AC turntables •
Colour options: silver or black
CD BOX DS
SRP € 499,00
High-End Audio CD player
• 24bit/192kHz BurrBrown DAC (PCM1796) • 4-layer suspended CD drive • Excellent only-CD transport • „Blue tiger“ servo board for 1:1 CD playback • Luxurious slot-in mechanism • High contrast dotmatrix display • IR remote control with volume level adjustment of Pro-Ject Audio Systems amplifiers • Metal casing protects against vibration and interference • Colour options: silver or black
10
CATALOGUE 2014 · BOX DESIGN Electronics
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
DAC BOX DS
SRP € 399,00
High-End Digital/Analogue Converter with USB 2.0 & DSD capability
• Top grade PCM-1792 D/A chip from Texas Instruments • 3 Inputs: 1x USB, 1x optical (Toslink), 1 x
coax (S/PDIF) • 24bit/192kHz asynchronous USB streaming • 8 times oversampling • 2 selectable filter
settings • Ultra linear circuitry • Extremely low impedance output stage • Gold-plated RCA line level
output sockets • Metal casing protects against vibration and interference • Colour options: silver or
black
HEAD BOX DS
SRP € 349,00
D/A converter & headphone amplifier
• Audiophile grade headphone amp & 24bit D/A conversion • 3 digital inputs: Asynchronous USB 2.0,
S/PDIF, Toslink • Special USB-2.0 driver für 24/192 (24/96 with USB1.1) • Ultra low-noise semiconductors from BurrBrown • SMD technology for short signal paths • Analogue output (RCA) for use as D/A
converter • Analogue input (RCA) • Headphone socket (6,3mm jack plug) • Metal casing protects
against vibration and interference • Colour options: silver or black
PRELIMINARY
POWER BOX DS 4 WAY
(available Q2/2014) estimated
SRP € 249,00
NEW Linear power supply and mains conditioner
• Improves sonic performance of DS-Line products by delivering of clean energy for powering with
very good filtration and voltage regulation • Suits source equipment: Pre Box DS, DAC Box DS, DAC
Box DS+, Head Box DS, Phono Box DS, Phono Box DS+, Tube Box DS, Stream Box DS, Stream Box
DSnet, Stream Box DS+, CD Box DS • Outputs: 2x 9V / up to 2A, 2x 18V / 500mA up to 1A • Metal
casing protects against vibration and interference • Colour options: silver or black
PRELIMINARY
POWER BOX DS+ 6 WAY
(available Q2/2014) estimated
SRP € 299,00
NEW Linear power supply and mains conditioner
• Improves sonic performance of DS-Line products by delivering of clean energy for powering with
very good filtration and voltage regulation • Increases amplifier power • Suits: Amp Box DS, Amp Box
DS Mono, Pre Box DS, DAC Box DS, DAC Box DS+, Head Box DS, Phono Box DS, Phono Box DS+, Tube
Box DS, Stream Box DS, Stream Box DSnet, Stream Box DS+, CD Box DS • Outputs: 1x 48V / 2,5A, 2x
9V / up to 2A, 3x 18V / 500mA up to 1A • Metal casing protects against vibration and interference •
Colour options: silver or black
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
BOX DESIGN Electronics · CATALOGUE 2014
11
STREAM BOX DS
SRP € 699,00
Highend audio with Wi-Fi, LAN, USB sources
• Award winning audiophile grade 24bit/192 kHz highend audio streaming client • Ethernet &
WLAN • Meets the Standards UPnP & DLNA 1.0/1.5 • USB input for flash memory and hard disk
drives • USB input for Apple devices using digital out • Internetradio with automatic detection of
local stations • “Gapless“ playback for all formats • Luxury 3,5” TFT colour display that shows album
cover art • Gold plated RCA connectors • Control via IR remote (included) or Plug-Player, SongBook,
Chorus DS, etc • Internetradio platform: vTuner built-in • Using streaming services, like Spotify, Deezer, Grooveshark, Simfy, etc with Jamcast software • Direct streaming from portable devices using
Flipps (iMediaShare) • AIFF & AAC cover art supported • Metal casing protects against vibration and
interference • Colour options: silver or black
STREAM BOX DS NET
SRP € 799,00
24bit/192kHz Highend audio with Wi-Fi, LAN, USB with control App for iOS & Android smartphones
Same features as Stream Box DS,
but additionally:
+ ALAC playback & cover art support
+ NetAPI implemented, a unique & proprietary development, that allows use of
→ Free Box Control APP, for ultra-fast access of your favourite music via smartphone
→ Unique prospective features, that only will be possible through NetAPI platform
→ Remote Box will enable your smartphone to act as universal IR remote, pre-programmed for all
Box Design components & suitable for 3rd party devices, like TV, etc
(Upgrade your Stream Box DS to Stream Box DS net, total retail cost only € 100,00)
STREAM BOX DS+
SRP € 1.099,00
24bit/192kHz Highend audio with Wi-Fi, LAN, USB sources
Same features as audiophile Highend streamer Stream Box DS net but additionally:
+ Fixed & variable analogue audio outputs (RCA) + volume control using IR remote, front buttons
+ 2x analogue inputs (RCA)
+ 2x digital inputs (coax & optical Toslink input)
+ Top-grade Highend PCM 1796 DAC + ALAC & AIFF support
+ Search functionality fast forward and back
+ Alphanumeric search
+ Wifi 802.11/b/g/n allowing real 24/192 with Wifi
STREAM BOX DSA
SRP € 1.299,00
All-in-one 24bit/192kHz Highend solution
Same features as audiophile Highend streamer Stream Box DS+ but additionally:
+ Built-in audiophile amplifier 2x 60 watts (4 ohms)
12
CATALOGUE 2014 · BOX DESIGN Electronics
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
RS Line
PRE BOX RS
SRP € 799,00
High-end stereo line tube-preamplifier
• Fully balanced double mono design • Ultra-linear and ultra low noise • Pure Class A circuitry • Input
switching via relais • Low ESR capacitors • Blue Alps volume control • 3 XLR & 3 RCA inputs • 1 Pre–
out XLR & 1 Record-out RCA • Standby power consumption < 1W • IR remote control included • Metal casing protects against vibration and interference • Colour options: silver or black • Optional Upgrade: Linear power supply Power Box RS Universal for further improved sound quality
AMP BOX RS
SRP € 899,00
Highend Stereo power amplifier
• Fully balanced double mono design (Pulse Wave Modulation) • 2x 120 / 90 watts @ 4 / 8 ohms •
Highly efficient conversion from mains to output power (92%) • 2 ohms drive capability • Tube buffer
stage with reference quality • SMD construction for shortest signal paths • Low heat emission • Line
level preamp inputs (RCA & XLR) • Top-quality speaker terminals • Metal casing protects against vibration and interference • Colour options: silver or black • Optional Upgrade: Linear power supply
Power Box RS Amp for higher power otput and further improved sound quality, connection for 1 stereo
or 2 mono amps provided
AMP BOX RS Mono
SRP € 799,00
Highend power amplifier
• Fully balanced design (Pulse Wave Modulation) • 1x 195 / 125 watts @ 4 / 8 ohms • Highly efficient
conversion from mains to output power (92%) • 2 ohms drive capability • Tube buffer stage with
reference quality • SMD construction for shortest signal paths • Low heat emission • Line level
preamp inputs (RCA & XLR) • Top-quality speaker terminal • Metal casing protects against vibration
and interference • Colour options: silver or black • Optional Upgrade: Linear power supply Power Box
RS Amp for higher power output and further improved sound quality, connection for 1 stereo or 2
mono amps provided
STEREO BOX RS
SRP € 999,00
NEW Integrated stereo amplifier
• Power output 2x 120W / 4 ohms • Class-D output stage • Tube preamplifier • Remote control •
Inputs: 1x XLR, 5x RCA • Outputs: Fixed Pre-Out for headphone amplifier, variable output, Subwoofer
Out • Metal casing protects against vibration and interference • Colour options: silver or black
PRE BOX RS DIGITAL
SRP € 1.199,00
NEW Class-A preamplifier with headphone output & built-in D/A converter (DSD capable)
• Double 24/192 BurrBrown DAC chip (1792) for highest performance from one DAC • additional
second switchable 32/384 BurrBrown DAC chip for true 32/384 conversion • Pre Output XLR & RCA •
Headphone amplifier can switch impedance and damping factor from front panel • Unique feature
allows it to continuously change sonic character between Push-Pull (PP) to Single Ended (SE) • Dynamic range 132 dB • Asynchronous data transfer from USB 32 bits/384 kHz • Based on XMOS technology • Precision masterclock • Inputs: Asynchronous USB (max. 32 bits/384 kHz), 3x optical S/PDIF, 2x
coaxial S/PDIF, AES/EBU digital, RJ45 I2S discrete differential digital input for CD BOX RS, RCA analogue, XLR analogue • Outputs: Headphone (6,3mm), Pre-Out, RCA, XLR, variable and fixed • Metal
casing protects against vibration and interference • Colour options: silver or black
DAC BOX RS
SRP € 899,00
NEW Ultimate Class-A tube balanced output D/A converter (DSD capable)
• Double output stage allows selection between tube and solid state • Possibility to disconnect heating and anode voltage including their power supplies in order to expand tube lifespan and save energy • Double 24/192 BurrBrown DAC chip (1792) for highest performance • Precision masterclock •
Inputs: Asynchronous USB, 4x optical S/PDIF, 2x coaxial S/PDIF, AES/EBU digital input, RJ45 I2S discrete differential digital input for CD BOX RS • Outputs: RCA and XLR • Metal casing protects against
vibration and interference • Colour options: silver or black
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
BOX DESIGN Electronics · CATALOGUE 2014
13
CD BOX RS
SRP € 999,00
NEW Ultimate CD drive for CD/MP3/WMA/FLAC
• Top loader CD transport • CD mechanism with magnetic clamp • Blue Tiger CD-100 servo system
supporting 24/96 FLAC playback • Gravity design with metal block on bottom of player in order to
increase the weight of the case by energy sink system • Special suspension system • External masterclock module • Data buffer for reduced jitter • Outputs: S/PDIF coax + opt., AES/EBU, RJ45 I2S discrete
differential digital output • Metal casing protects against vibration and interference • Colour options:
silver or black
STREAM BOX RS
SRP € 1.499,00
24bit/192kHz highend audio with Wi-Fi, LAN, USB with free Boxcontrol Apps for iOS & Android
devices
Same features as audiophile Highend streamer Stream Box DS net but additionally:
PRELIMINARY
+ XLR output
+ Volume control via analogue Alps potentiometer
+ Fully balanced double mono triode tube Output stage (ECC 6922)
+ 1x digital coax input
+ 1x digital optic input
+ Top of the notch highend PCM 1792A DAC
+ ALAC & AIFF support
+ Wifi 802.11/b/g/n allows real 24/192 with Wifi
+ Superlative rigid luxury alu cabinet
HEAD BOX RS
(available Q2/2014)
SRP € 799,00
NEW Highend headphone amplifier
• Fully balanced double mono design • Class A circuit • Tube output stage • Superior low distortion •
Low noise components for ultimate sound performance • Output: 6,3mm socket • Metal casing protects against vibration and interference • Colour options: silver or black
PHONO BOX RS
SRP € 799,00
Highend phono preamplifier
• MM & MC capable • Fully balanced double mono design • Fully passive RIAA & DECCA equalisation • Unique continously variable input impedance loading, matches every cartridge (adjustment even
while playing) • RCA & XLR In & Out • Superior low noise / low distortion • Classy & elegant dip switches • Metal casing protects against vibration and interference • Colour options: silver or black •
Optional Upgrade: Linear power supply Power Box RS Phono for further improved sound quality
POWER BOX RS PHONO
(available Q2/2014)
SRP € 399,00
NEW Linear power supply for Phono Box RS with battery power output
• High filtration capacity • Precise voltage regulation • Surge protection • Low noise components for
ultimate sound performance • Power Box RS Phono offers virtual battery power to Phono RS • Metal
casing protects against vibration and interference • Colour options: silver or black
POWER BOX RS AMP
(available Q1/2014)
SRP € 499,00
NEW Linear power supply for Amp Box RS
• Useable for 1 Amp Box RS (Stereo) or 2 Amp Box RS Mono • High filtration capacity • Precise voltage regulation • Surge protection • Low noise components for ultimate sound performance • Power
Box RS Amp increases power of Amp Box RS • Metal casing protects against vibration and interference • Colour options: silver or black
POWER BOX RS UNI 1-WAY
(available Q1/2014)
SRP € 399,00
NEW Universal linear power supply for 1 component of RS-Line
• High filtration capacity • Precise voltage regulation • Surge protection • Low noise components for
ultimate sound performance • Output: 1x 20V / 3A • Colour options: silver or black
POWER BOX RS UNI 4-WAY
(available Q1/2014)
SRP € 599,00
NEW Universal linear power supply for 4 components of RS-Line
• High filtration capacity • Precise voltage regulation • Surge protection • Low noise components for
ultimate sound performance • Output: 4x 20V / 3A • Colour options: silver or black
14
CATALOGUE 2014 · BOX DESIGN Electronics
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
Headphones
HEAR IT ONE
SRP € 99,90
Audiophile stereo headphone
• Smart, audiophile & comfortable • Classic design • Adjustable leather-coated headband • Soft leather ear cushions (memory foam) • Textile coated cable made from oxygen-free copper (HP-OFC) •
Gold plated 3,5mm jack plug • High gloss & metal finish
HEAR IT TWO
SRP € 59,90
Trendy headphone for iPod & Co
• Super loud – super light – super cool • More SPL with iPod & Co (107dB) • Lightweight design 77 g •
Adjustable ear-cushion position • Flat transport possible • High wear comfort • 3,5mm jack plug • 3
colour options: red, white, black
Loudspeakers
SPEAKER BOX 4
SRP € 199,00
2-way monitor speaker
• 2-way sealed box, for clear bass • 100mm bass/midrange (aluminium die-cast) • 25mm silk-dome
weeter • High-quality crossover (second order) • Anti-vibration sealant • Magnetic screening • Goldplated 5-way binding posts • Impedance: 4 ohms > suitable for amplifiers from 4 – 8 ohms • Power
handling : > best for amplifiers 10 - 100 Watt RMS • Magnetically attached speaker-grille • Wallmount included • Ideal for combination with Box-Design components • Dimensions 140 x 228 x
150mm without grille (WxHxD) 140 x 228 x 160mm with grille • Weight 2.55 kg each • High-gloss
piano-lacquer finish: white, red, black
SPEAKER BOX 5
SRP € 249,00
Compact 2-way monitor speaker
• Audiophile bass-reflex design • Recommended amplifier power 10 to 150 watts• Magnetically
shielded • Front cover with magnetic attachment • Frequency response 55Hz - 20kHz • Gild-plated
speaker terminal (single-wired) • Wall-mount included • Speaker-Box Wall Bracket optionally available • High-gloss piano-lacquer finish: white, red, black
SPEAKER BOX 10
SRP € 599,00
NEW Audiophile floorstand speaker
• 2,5-way design for clean and defined bass • Perfect in combination with Box-Design components • •
Front grilles with magnetic fittings included • Gold plated speaker binding posts, also suitable for
banana plugs • 3x 100mm bass/mid speaker - aluminium die-cast • 25mm tweeter - coated silk dome • Special anti-vibration sealing and damping compound • Small & slim • Elegant tower design •
No subwoofer needed • Internal bracing to reduce vibration • Steel baseplate works as resonance
gravitation point • High-gloss piano-lacquer finish: white, red, black
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
BOX DESIGN Electronics · CATALOGUE 2014
15
Multimedia control
REMOTE BOX S
SRP € 359,00
Lifestyle solution for audio control
• Works with Box Control App • Controls all Box-Design units (pre-programmed) + 6 IR controlled
units • Receives Wifi commands from the Box Control App • Converts Wifi commands to IR and transfers to Standard Hifi Components (IR Receiver) • IR commands of Box design components are stored
in the Box Control App • Perfect solution for complete remote control • Colour options: silver or black
BOX CONTROL
FREE FOR IOS & ANDROID
Software for Remote Box S and Stream Boxes
Box Control is a special development for Pro-Ject Audio Systems, that will revolutionise the way of
controlling your highend audio eqipment. This App offers full control of Stream Box DSnet and onwards plus additionally the ability to operate all other IR controllable Box design components
CONTROL IT
SRP € 29,90
All-in-one IR remote for Box Design
• Manage all components with a single remote: preamplifiers, Integrated amplifiers, Receiver, FMTuner, Dockingstations, CD-Players, Stream Box DS, Media Box S • Pre-programmed - no setup necessary • Simple and easy to use • Widespread IR emission up to 135° • Rugged design
Accessories
SPEAKER BOX Stand 70
SRP € 229,00
Audiophile speaker stand
• Ideal for Speaker Box 4 and 5 • Low resonance design • Metal/wood composite material • Cable
break-through within pillar • Heavy construction with 6mm steel base • Adjustable spikes, mountable
in base • Upper platform 140 x 150mm (WxD) • Overall height 725mm • High gloss piano lacquer
black or white • Packed in pairs
SPEAKER BOX DESKTOPSTAND
SRP € 99,00
NEW Bookshelf speaker platform
• Perfect placement for near-field speakers • Damping feet prevent unwanted vibration • Perfectly
suits Speaker Box 4 or 5 • Each stand also provides additional space for 1 Box Design S component •
Crystal clear acrylic • Stereo set includes 2 stands and 8 vibration dampers
DAMP IT
1 pc
NEW Highend damping feet
4 pcs SRP € 29,90
SRP € 7,99
• Special absorber feet made from hightech TPE • Prevents transmission of unwanted mechanical
vibration • Especially for CD and other disc players, tube amplifiers, speakers, turntables • Single or
set of 4
ABSORB IT
4 pcs SRP € 129,00
NEW Highend damping feet
• Special absorber feet made from hightech synthetic material enclosed by metal ring • Prevents
transmission of unwanted mechanical vibration • Especially designed for CD players and turntables
GRILLES SB-5
SRP € 29,90
• Acoustic transparent loudspeaker front cover • Fabric front with wood-frame and magnet holder •
Exclusive Colour-Design for more Lifestyle • Suitable for Speaker Box 5
WB-SB-4/5
SRP € 39,00
Speaker wall mount
• Available in black and white • suitable for Speaker Box 4 and Speaker Box 5 • Packed in pairs
SPIN-CLEAN® OPTICAL DISC CLEANER
SPIN-CLEAN DISCMIST OPTICAL DISC CLEANER 2 OZ (59 ML)
SPIN-CLEAN DISCMIST OPTICAL DISC CLEANER 4 OZ (118 ML)
SPIN-CLEAN DISCMIST OPTICAL DISC CLEANER 8 OZ (237 ML)
16
CATALOGUE 2014 · BOX DESIGN Electronics
SRP € 20,00
SRP € 25,00
SRP € 30,00
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
Combinations
PRELIMINARY
Set "Stereo-Hifi-System"
(available Q1/2014) estimated SRP € 1.499,00
NEW • Micro-sized stereo Hifi-system with turntable • Audiophile receiver with built-in FM-tuner •
Slim-line CD player • turntable with built-in phono stage and pre-mounted cartridge • IR remote control • Audiophile grade compact speakers • High quality interconnects and speaker cables included •
Faceplate of components available in silver or black • Speakers available in red, white or black •
Instead of Design Box 2iP: alternative rack "the butler 2.2" is also available (upcharge)
Set "Micro-Hifi-System"
Set „Micro-Hifi-System“ with
original rack Design Box 4iP
Set "iPod® goes Hifi"
Set „iPod® goes Hifi“ with
original rack Design Box 2iP
SRP € 750,00
• Micro-sized stereo Hifi-system for digital music playback • MP3, WMA, AAC music with no need for
PC, Mac • 2 digital inputs on Media Box S - USB 2.0 Hi-speed (hard disk drive or stick) - SD (Secure
Digital up to 32Gb) • 1 additional analogue input (use with FM-tuner, CD, etc) • Audiophile grade
amplification • Audiophile grade compact speakers • Faceplate of components in silver or black •
Speakers available in red, white or black • Instead of Design Box 2: alternative rack "the butler 2.1" is
also available (upcharge)
Set "Hifi-Airplay"
Set „Hifi-Airplay“ with
optional rack the butler 2.1
SRP € 699,00
• Micro-sized stereo Hifi-system with Apple docking station • Audiophile Dock Box S digital provides 2
outputs (RCA) * Analogue * S/PDIF (use with external D/A converters) • Pure digital output from iPod,
iPhone, iPad • Audiophile Integrated Stereo amplifier with additional analogue input (use with FMtuner, CD, etc) • Audiophile grade compact speakers • Highend interconnects and speaker cables
included • Faceplate of components available in silver or black • Speakers available in red, white or
black • Instead of Design Box 2iP: alternative rack "the butler 2.1" is also available (upcharge)
Set "Mediaplayer"
Set „Mediaplayer“ with
optional rack the butler 2.1
SRP € 599,00
• Micro-sized stereo Hifi-system with Apple docking station • Audiophile Dock Box S Fi with fixed
audio output level • 30-pin connection for iPod, iPhone, iPad • Audiophile Integrated Stereo amplifier
with additional analogue input (use with FM-tuner, CD, etc) • IR control for both components • Audiophile grade compact speakers • High quality interconnects and speaker cables included • Faceplate
of components available in silver or black • Speakers available in red, white or black • Instead of Design Box 2iP: alternative rack "the butler 2.1" is also available (upcharge)
Set "iPod® goes digital"
Set „iPod® goes digital“ with
original rack Design Box 2iP
SRP € 1.099,00
• Micro-sized stereo Hifi-system with Apple docking station • Audiophile Dock Box S Fi with fixed
audio output level • 30-pin connection for iPod, iPhone, iPad• Audiophile receiver with built-in FMtuner • Slim-line CD player • IR remote control • Audiophile grade compact speakers • High quality
interconnects and speaker cables included • Faceplate of components in silver or black • Speakers
available in red, white or black • System remote control included • Instead of Design Box 4iP: alternative rack "the butler 2.2" is also available (upcharge)
SRP € 850,00
• Micro-sized stereo Hifi-system with "Airplay"-ability • Wireless playback of digital music from PC,
Mac, iPhone • 2 additional digital inputs on DAC Box S USB - USB (PC or Mac connection) - SPDIF RCAcoax (use with satellite radio, etc) • 1 additional analogue input (use with FM-tuner, CD, etc) • Audiophile grade amplification and speakers • Faceplate of components in silver or black • Speakers
available in red, white or black • Instead of Design Box 2iP: alternative rack "the butler 2.1" is also
available (upcharge)
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
BOX DESIGN Electronics · CATALOGUE 2014
17
Design Boxes
Design Box Acryl 2
SRP € 69,00
Stylish frame system for Box Design components
• New Clicking System • PET clips position and secure components • High gloss finish • Classy - suits
all living room styles and furniture • Design frame fits 2 Box Design S (Slim-Line) components or 1 Box
Design SE component
Design Box Acryl 2 iP
SRP € 75,00
Stylish frame system for Box Design components
• New Clicking System • PET clips position and secure components • High gloss finish • Classy - suits
all living room styles and furniture • Design frame fits 2 Box Design S (Slim-Line) components or 1 Box
Design SE component • System frame with cutout for iPod®, iPhone® etc • Holds 1 Dock Box S + 1
additional Box Design S (Slim-Line) component
Design Box Acryl 4
SRP € 79,00
Stylish frame system for Box Design components
• New Clicking System • PET clips position and secure components • High gloss finish • Classy - suits
all living room styles and furniture • Design frame fits 2 Box Design S (Slim-Line) components or 1 Box
Design SE component • System frame fits a) 4 Box Design S components b) CD Box DS c) Stream Box
DS and onward d) CD Box + 2 Box Design S components e) 2 Box Design DS components f) 1 Box Design DS component + 2 Box Design S components
Design Box Acryl 4 iP
SRP € 85,00
Stylish frame system for Box Design components
• New Clicking System • PET clips position and secure components • High gloss finish • Classy - suits
all living room styles and furniture • Design frame fits 2 Box Design S (Slim-Line) components or 1 Box
Design SE component • System frame with cutout for for iPod®, iPhone® etc • Holds a) 1 Dock Box S +
3 additional Box Design S components b) 1 Dock Box S + 1 additional Box Design S component + 1 Box
Design DS component c) 1 Dock Box S + 1 Box Design S CD Box + 1 additional Box Design S component
Micro Racks
starting from SRP € 69,00
„the butler“ series
„the professional“ series
The beautiful Design Box Acryl Micro Racks are made of satin acrylic are easily used in combinations.
Three different types are offered in a variety of colours and three different heights (2, 3, 4 units
stacked) with standard or double widths. LED lights can be added on demand.
Power Distribution
Connect it Power
4WAY (10A) SRP € 99,00
6WAY (10A) SRP € 149,00
4WAY (16A) SRP € 149,00
6WAY (16A) SRP € 199,00
Audiophile power strip
• Especially for use with audio equipment • No sound degradation through filters or overload protection • Magnetically shielding • Available with 4 or 6 mains outlets (EU, France-CZ, UK, US) • Maximum
continuous current 10 or 16 ampere • High quality inner cabling (alternatively with Furutech or Van
den Hul inner cabling) • Improved resistance against overheating and fire • 1,5m power cord included • Handmade in EC
18
CATALOGUE 2014 · BOX DESIGN Electronics
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
Cables
Connect it Power Cable
1,0 m (10A) SRP € 79,00
1,5 m (10A) SRP € 89,00
2,0 m (10A) SRP € 99,00
3,0 m (10A) SRP € 109,00
1,0 m 16A)
1,5 m (16A)
2,0 m (16A)
3,0 m (16A)
SRP € 149,00
SRP € 169,00
SRP € 189,00
SRP € 209,00
audiophile power cord
• Especially for use with Audio equipment • Magnetic shielding • IEC C13 connector • Superior
connectivity • 10 Ampere maximum continuous power surge • Perfect in combination with Connect-it
Power strps 10A • Handmade in EC
Connect it
Length
0,205 m
0,41 m
0,82 m
1,23 m
1,85 m
2,46 m
4,92 m
RCA C
SRP € 49,00
SRP € 55,00
SRP € 59,00
SRP € 69,00
SRP € 89,00
SRP € 99,00
SRP € 159,00
RCA CC / XLR CC
SRP € 69,00
SRP € 79,00
SRP € 89,00
SRP € 99,00
SRP € 129,00
SRP € 149,00
SRP € 259,00
RCA SI / XLR SI
SRP € 139,00
SRP € 199,00
SRP € 299,00
SRP € 399,00
SRP € 599,00
SRP € 799,00
SRP € 1.299,00
RCA C - Electrically shielded with conductors made of OFC (oxygen free copper)
Interconnect cable, 2x RCA phono plugs > 2x RCA phono plugs.
RCA CC / XLR CC - Electrically shielded with conductors made of OFC (oxygen free copper) and
an additional layer of carbon fibre
Interconnect cable, 2x RCA phono plugs > 2x RCA phono plugs.
RCA SI / XLR SI - Electrically shielded with conductors made of pure silver and RCA phono plugs with
locking function
Interconnect cable, 2x RCA phono plugs > 2x RCA phono plugs.
Connect it Y-Cable
Length
0,205 m
0,41 m
0,82 m
Y-Cable RCA C
SRP € 69,00
SRP € 79,00
SRP € 89,00
RCA-3,5-C
SRP € 49,00
SRP € 59,00
SRP € 69,00
Y-Cable RCA C - Electrically shielded with conductors made of OFC (oxygen free copper)
Y-Interconnect cable, 1x RCA phono plug > 2x RCA phono plugs.
RCA-3,5-C - Electrically shielded with conductors made of OFC (oxygen free copper)
Interconnect cable, 1x 3 pole mini-jack (3,5mm Ø) > 2x RCA phono plugs.
Connect it D
Length
0,41 m
0,82 m
BNC-BNC
SRP € 49,00
SRP € 69,00
RCA-RCA
SRP € 49,00
SRP € 69,00
Digital interconnect cable - Electrically shielded with conductors made of OFC (oxygen free copper)
1x BNC plug > 1x BNC plug or 1x RCA plug > 1x RCA plug
Connect it LS
1 m Stereo set (2x banana plugs > 2x banana plugs)
2 m Stereo set (2x banana plugs > 2x banana plugs)
3 m Stereo set (2x banana plugs > 2x banana plugs)
4 m Stereo set (2x banana plugs > 2x banana plugs)
Bulk
SRP € 5,90/m
SRP € 34,90
SRP € 39,90
SRP € 49,90
SRP € 59,90
Audiophile „best-buy“ speaker wire
• 4 wire speaker cable • Solid core technology • High purity oxygen-free copper (HP-OFC) • Circular
array geometry • Low distortion level, neutral sound • Suitable for Fullrange and Bi-wiring • Ideal in
combination with Box Design components • Made in Austria
SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
BOX DESIGN Electronics · CATALOGUE 2014
19
THE NEXT GENERATION OF HIFI
PRO-JECT AUDIO SYSTEMS a division of Audio Tuning Vertriebs GmbH · Margaretenstraße 98 · A-1050 Wien, AUSTRIA
Phone: +43 1 5448580 · Fax: +43 1 5448580-33 · e-mail: [email protected] · www.project-audio.com
© Pro-Ject Audio Systems 2014, English version
Technical data without engagement
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
