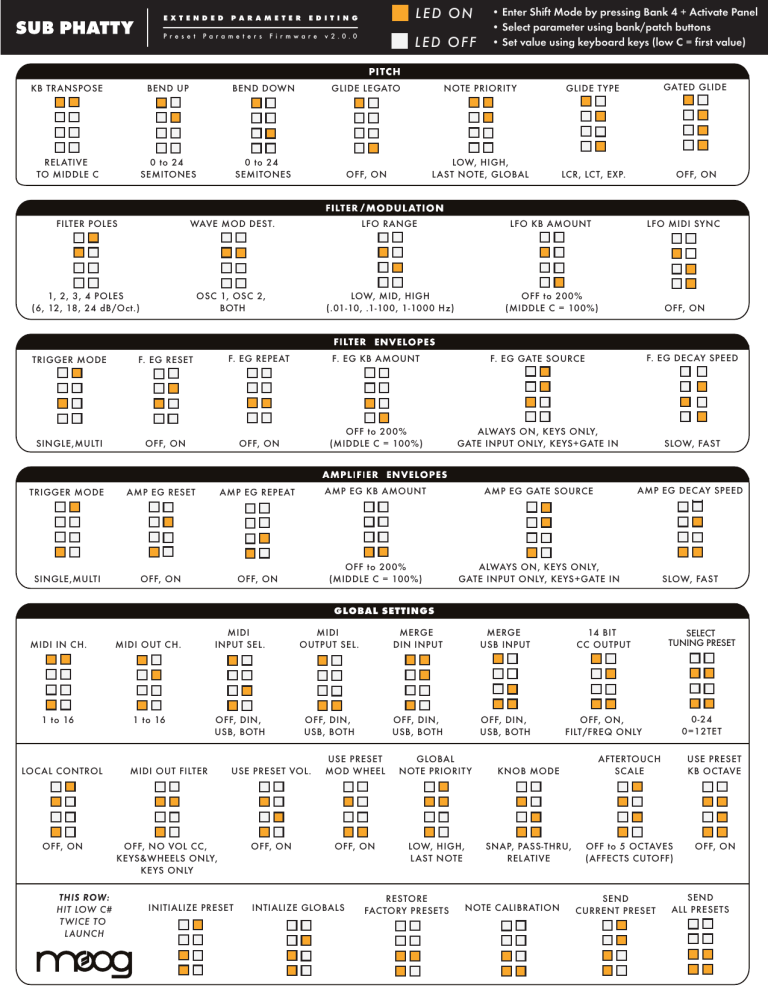

EXTENDED
Preset
PARAMETER
Parameters
LED ON
EDITING
Firmware
v2.0.0
LED OFF
• Enter Shift Mode by pressing Bank 4 + Activate Panel
• Select parameter using bank/patch buttons
• Set value using keyboard keys (low C = first value)
KB TRANSPOSE
BEND UP
BEND DOWN
GLIDE LEGATO
NOTE PRIORIT Y
GLIDE T YPE
GATED GLIDE
RELATIVE
TO MIDDLE C
0 to 24
SEMITONES
0 to 24
SEMITONES
OFF, ON
LOW, HIGH,
LAST NOTE, GLOBAL
LCR, LCT, EXP.
OFF, ON
/
FILTER POLES
WAVE MOD DEST.
LFO RANGE
LFO KB AMOUNT
LFO MIDI SYNC
1, 2, 3, 4 POLES
(6, 12, 18, 24 dB/Oct.)
OSC 1, OSC 2,
BOTH
LOW, MID, HIGH
(.01-10, .1-100, 1-1000 Hz)
OFF to 200%
(MIDDLE C = 100%)
OFF, ON
TRIGGER MODE
F. EG RESET
F. EG REPEAT
F. EG KB AMOUNT
F. EG GATE SOURCE
F. EG DECAY SPEED
SINGLE,MULTI
OFF, ON
OFF, ON
OFF to 200%
(MIDDLE C = 100%)
ALWAYS ON, KEYS ONLY,
GATE INPUT ONLY, KEYS+GATE IN
SLOW, FAST
TRIGGER MODE
AMP EG RESET
AMP EG REPEAT
AMP EG KB AMOUNT
AMP EG GATE SOURCE
AMP EG DECAY SPEED
SINGLE,MULTI
OFF, ON
OFF, ON
OFF to 200%
(MIDDLE C = 100%)
ALWAYS ON, KEYS ONLY,
GATE INPUT ONLY, KEYS+GATE IN
SLOW, FAST
GLOBAL SETTINGS
MIDI IN CH.
MIDI OUT CH.
1 to 16
1 to 16
MIDI
INPUT SEL.
MIDI
OUTPUT SEL.
MERGE
DIN INPUT
MERGE
USB INPUT
14 BIT
CC OUTPUT
SELECT
TUNING PRESET
OFF, DIN,
USB, BOTH
OFF, DIN,
USB, BOTH
OFF, DIN,
USB, BOTH
OFF, DIN,
USB, BOTH
OFF, ON,
FILT/FREQ ONLY
0-24
0=12TET
LOCAL CONTROL
MIDI OUT FILTER
USE PRESET VOL.
USE PRESET
MOD WHEEL
GLOBAL
NOTE PRIORIT Y
KNOB MODE
AFTERTOUCH
SCALE
USE PRESET
KB OCTAVE
OFF, ON
OFF, NO VOL CC,
KEYS&WHEELS ONLY,
KEYS ONLY
OFF, ON
OFF, ON
LOW, HIGH,
LAST NOTE
SNAP, PASS-THRU,
RELATIVE
OFF to 5 OCTAVES
(AFFECTS CUTOFF)
OFF, ON
THIS ROW:
HIT LOW C#
T WICE TO
LAUNCH
INITIALIZE PRESET
INTIALIZE GLOBALS
RESTORE
FACTORY PRESETS
NOTE CALIBRATION
SEND
CURRENT PRESET
SEND
ALL PRESETS
