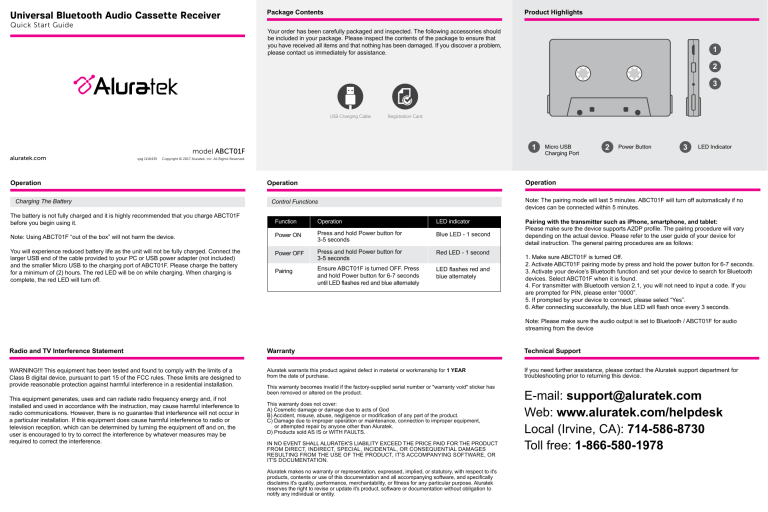

ABCT01F Quick Start Guide (English)

ABCT01F Quick Start Guide (English)
Universal Bluetooth Audio Cassette Receiver
Quick Start Guide
Package Contents
Product Highlights
Your order has been carefully packaged and inspected. The following accessories should
be included in your package. Please inspect the contents of the package to ensure that
you have received all items and that nothing has been damaged. If you discover a problem,
please contact us immediately for assistance.
1
2
3
USB Charging Cable
aluratek.com
Registration Card
1
model ABCT01F
qsg Q10435
Micro USB
Charging Port
2
Power Button
3
LED Indicator
Copyright © 2017 Aluratek, Inc. All Rights Reserved.
Operation
Charging The Battery
Operation
Operation
Note: The pairing mode will last 5 minutes. ABCT01F will turn off automatically if no
devices can be connected within 5 minutes.
Control Functions
The battery is not fully charged and it is highly recommended that you charge ABCT01F
before you begin using it.
Function
Operation
LED indicator
Note: Using ABCT01F “out of the box” will not harm the device.
Power ON
Press and hold Power button for
3-5 seconds
Blue LED - 1 second
You will experience reduced battery life as the unit will not be fully charged. Connect the
larger USB end of the cable provided to your PC or USB power adapter (not included)
and the smaller Micro USB to the charging port of ABCT01F. Please charge the battery
for a minimum of (2) hours. The red LED will be on while charging. When charging is
complete, the red LED will turn off.
Power OFF
Press and hold Power button for
3-5 seconds
Red LED - 1 second
Pairing
Ensure ABCT01F is turned OFF. Press
and hold Power button for 6-7 seconds
until LED flashes red and blue alternately
LED flashes red and
blue alternately
Pairing with the transmitter such as iPhone, smartphone, and tablet:
Please make sure the device supports A2DP profile. The pairing procedure will vary
depending on the actual device. Please refer to the user guide of your device for
detail instruction. The general pairing procedures are as follows:
1. Make sure ABCT01F is turned Off.
2. Activate ABCT01F pairing mode by press and hold the power button for 6-7 seconds.
3. Activate your device’s Bluetooth function and set your device to search for Bluetooth
devices. Select ABCT01F when it is found.
4. For transmitter with Bluetooth version 2.1, you will not need to input a code. If you
are prompted for PIN, please enter “0000”.
5. If prompted by your device to connect, please select “Yes”.
6. After connecting successfully, the blue LED will flash once every 3 seconds.
Note: Please make sure the audio output is set to Bluetooth / ABCT01F for audio
streaming from the device
Radio and TV Interference Statement
Warranty
Technical Support
WARNING!!! This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
Aluratek warrants this product against defect in material or workmanship for 1 YEAR
from the date of purchase.
If you need further assistance, please contact the Aluratek support department for
troubleshooting prior to returning this device.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by whatever measures may be
required to correct the interference.
This warranty becomes invalid if the factory-supplied serial number or "warranty void" sticker has
been removed or altered on the product.
This warranty does not cover:
A) Cosmetic damage or damage due to acts of God
B) Accident, misuse, abuse, negligence or modification of any part of the product.
C) Damage due to improper operation or maintenance, connection to improper equipment,
or attempted repair by anyone other than Aluratek.
D) Products sold AS IS or WITH FAULTS.
IN NO EVENT SHALL ALURATEK'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT
FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THE PRODUCT, IT'S ACCOMPANYING SOFTWARE, OR
IT'S DOCUMENTATION.
Aluratek makes no warranty or representation, expressed, implied, or statutory, with respect to it's
products, contents or use of this documentation and all accompanying software, and specifically
disclaims it's quality, performance, merchantability, or fitness for any particular purpose. Aluratek
reserves the right to revise or update it's product, software or documentation without obligation to
notify any individual or entity.
E-mail: [email protected]atek.com
Web: www.aluratek.com/helpdesk
Local (Irvine, CA): 714-586-8730
Toll free: 1-866-580-1978
