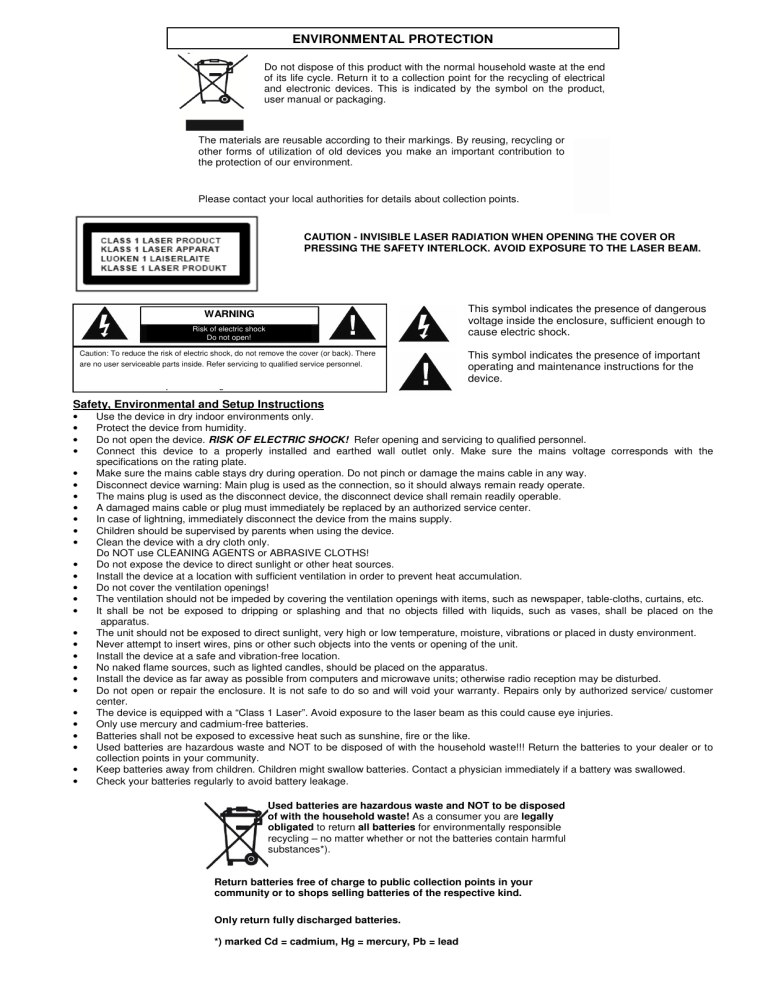

Do not dispose of this product with the normal household waste at the end
of its life cycle. Return it to a collection point for the recycling of electrical
and electronic devices. This is indicated by the symbol on the product,
user manual or packaging.
The materials are reusable according to their markings. By reusing, recycling or
other forms of utilization of old devices you make an important contribution to
the protection of our environment.
Please contact your local authorities for details about collection points.
CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR
PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.
This symbol indicates the presence of dangerous
voltage inside the enclosure, sufficient enough to
cause electric shock.
WARNING
Risk of electric shock
Do not open!
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There
are no user serviceable parts inside. Refer servicing to qualified service personnel.
This symbol indicates the presence of important
operating and maintenance instructions for the
device.
Safety, Environmental and Setup Instructions
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Use the device in dry indoor environments only.
Protect the device from humidity.
Do not open the device. RISK OF ELECTRIC SHOCK! Refer opening and servicing to qualified personnel.
Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the
specifications on the rating plate.
Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
Disconnect device warning: Main plug is used as the connection, so it should always remain ready operate.
The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
A damaged mains cable or plug must immediately be replaced by an authorized service center.
In case of lightning, immediately disconnect the device from the mains supply.
Children should be supervised by parents when using the device.
Clean the device with a dry cloth only.
Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
Do not expose the device to direct sunlight or other heat sources.
Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
Do not cover the ventilation openings!
The ventilation should not be impeded by covering the ventilation openings with items, such as newspaper, table-cloths, curtains, etc.
It shall be not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the
apparatus.
The unit should not be exposed to direct sunlight, very high or low temperature, moisture, vibrations or placed in dusty environment.
Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.
Install the device at a safe and vibration-free location.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer
center.
The device is equipped with a “Class 1 Laser”. Avoid exposure to the laser beam as this could cause eye injuries.
Only use mercury and cadmium-free batteries.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Used batteries are hazardous waste and NOT to be disposed of with the household waste!!! Return the batteries to your dealer or to
collection points in your community.
Keep batteries away from children. Children might swallow batteries. Contact a physician immediately if a battery was swallowed.
Check your batteries regularly to avoid battery leakage.
Used batteries are hazardous waste and NOT to be disposed
of with the household waste! As a consumer you are legally
obligated to return all batteries for environmentally responsible
recycling – no matter whether or not the batteries contain harmful
substances*).
Return batteries free of charge to public collection points in your
community or to shops selling batteries of the respective kind.
Only return fully discharged batteries.
*) marked Cd = cadmium, Hg = mercury, Pb = lead
ATTENTION!!!!
ESSENTIAL READING –
IMPORTANT!
SWITCH ON THE DEVICE
This device was develop with the newest energy saving
technique which was published by European directive law. This
device has an built-in automatic which puts the device into a
special „standby“ mode.
This mode disables the function switch for Tape / CD / Radio.
For reactivating you have to press the”PLAY”-button and the
device switches to “Active” – mode afterwards.
This „standby“ – mode was given when there isn’t any usage of
the device for about 15 minutes.
That means that device change generally into „standby“ – mode
over night. So you have to reactivate the device on the next day
by pressing the “PLAY”-button. This reactivation has to be done
for radio-, tape- and CD-function.
PRESS THIS BUTTON
FOR RE-ACTIVATING
THE DEVICE
more information here: www.woerlein.com/en/
ENGLISH
9
14
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
17
16
18
19
15
1,5V x 8 batterie R14 UM2
C size (not include)
Volume
0LFURphone jack
Function selector
'%%6
CD Program
CD Repeat
CD SKIP backwards |<<
CD SKIP forward >>|
CD STOP
CD PLAY/Pause ► ||
11.
12.
13.
14.
15.
16.
17.
18.
19.
CD compartment
Switch FM/FM-ST
Tuning control
Cassette recorder keys
LCD display
Microphone
FM telescopic antenna
Battery compartment
AC mains
Power Supply
Check if the power voltage, as shown on the type plate located on the bottom of the set, corresponds to your local AC power supply.
Connect the power cord to the AC MAINS inlet and the wall outlet. The power supply is QRZFRQQHFWHGDQGUHDG\IRUXVH
Batteries (not incl.)
Open the battery compartment and insert 8x 1,5V UM-2/C Batteries with the correct polarity as indicated by the + and – symbols inside
the compartment.
Do not mix battery types: e.g. alkaline with carbon zing. Only use batteries of the same type for the set. When inserting new batteries,
do not try to mix old batteries with the new ones. Remove the batteries if the set is not to be used for a long time.
Economic Saving power mode
If the unit is idle for 1 minutes, it will
automatically switch to Saving power mode. Press
the >/II PLAY/PAUSE button to resume.
.
Volume
Adjust the sound with the Volume switch
Microphone
1. Slide the FUNCTION selector to (CDMIC, TAPE(OFF) , RADIO) position. Note: In TAPE(OFF) mode, the mic function operate
with playing tape.
2. Insert the microphone plugs into Mic jack, and then the microphones can be connecting.
3. Rotate the VOLUME button to adjust sound
ENG 1
ENGLISH
Radio
1.
2.
3.
-
Slide the FUNCTION selector to RADIO
Slide the BAND selector to FM STEREO; FM
Rotate the TUNING control to find the desired stations
For FM: pull out the telescopic antenna. Incline and turn the antenna. Reduce its length if the signal is too strong (very close to a
transmitter)
Cassette
1.
2.
3.
4.
5.
6.
7.
Select Tape source
Press STOP EJECT to open the cassette door
Insert a recorded cassette and close the cassette door
Press PLAY to start playback
To interrupt playback, press PAUSE. To resume, press the key again
By pressing |<< or >>| on the set, fast winding of the tape is possible in both directions#
To Stop the tape, press STOP EJECT
Recording from the radio
1.
Tune to the desired radio station (see TUNING TO RADIO STATIONS)
2.
Press STOP EJECT to open the cassette door
3.
Insert a suitable cassette into the cassette deck and close the cassette door.
4.
Press RECORD to start recording
5.
For brief interruptions, press PAUSE. To resume recording, press PAUSE again.
6.
To Stop recording, press STOP EJECT
Maintenance
To ensure quality recording and playback of the tape deck, clean record- and audio head after approx. 50 hours of operation, or on
average once a month. Use a cotton bud slightly moistened with alcohol or a special head cleaning fluid to clean the deck. Note: Before
clean the parts must be sure that no power supply is available.
CD Player
1.
2.
3.
4.
5.
6.
Adjust the source selector to CD
To open the CD door, press the CD door at the edge marked open
Insert a CD, CD-R/RW with the printed side facing up and press the CD door gently close
Press PLAY/PAUSE on the set to start playback.
To pause playback press PLAY/PAUSE, to resume press PLAY/PAUSE again.
To stop CD playback, press STOP
Recording from CD
1.
Press STOP/EFECT button to open the door, insert a cassette and close it.
2.
Press RECORD button and CD PLAY/PAUSE button to start the recording
3.
To stop the recording, press STOP/EJECT
CD Repeat
Press 1 x repeat button:
Press 2 x repeat button:
Press 3 x repeat button:
Current track will be repeat
Complete CD will be repeat
Will be in normal playback mode
CD Program (max. 20 Title)
1.
In the STOP mode, press |<< or >>| for your desired track
2.
When your chosen track number appears, press PROG once to store the track. The display shows prog and prog briefly
followed by your selected track number
3.
Repeat steps 1 to 2 to select and store all desired tracks in this way
4.
To play your program, press PLAY
5.
Erasing a program: Press STOP button twice
Specifications
FM Frequency:
87.5 – 108 MHz
Power consumption: 15 Watt
AC Power Supply: AC 230V~240V, 50Hz
DC Power Supply: 8 x 1.5V Type UM-2/C
Copyright by Woerlein GmbH, 90556 Cadolzburg, www.woerlein.com
ENG 2
