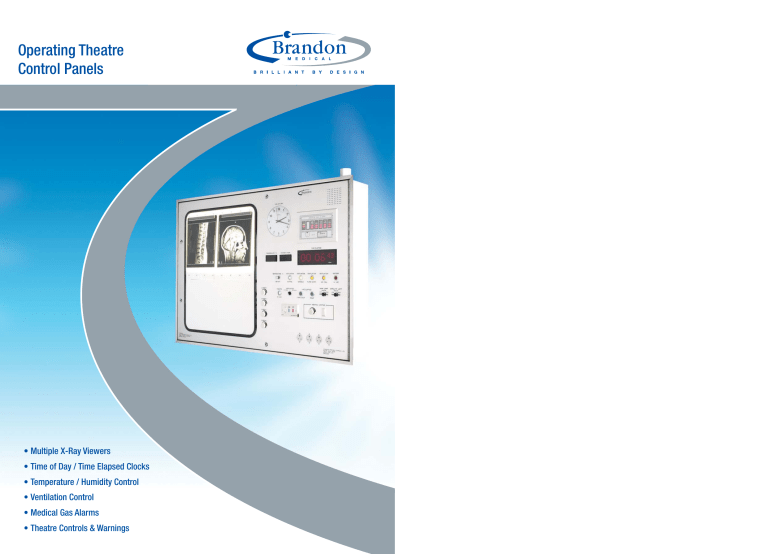

Operating Theatre
Control Panels
• Multiple X-Ray Viewers
• Time of Day / Time Elapsed Clocks
• Temperature / Humidity Control
• Ventilation Control
• Medical Gas Alarms
• Theatre Controls & Warnings
Flexible Design
Every control panel Brandon manufacture is bespoke. A wide range of over 60 different
accessories and options are available. Options not shown here include:
Brandon Medical specialise
in the design and manufacture of
theatre control panels.
• UCV Controls
• Telephone Socket
• Data Points
• IPS Controls
• Video Camera Controls
• UPS Controls
• Fire Alarm
• Integral Emergency
Power Units for
Operating Lamps
• CD Player
• Mains Indicator
Multiple X-Ray Viewers which can be
independently controlled from each other.
Choose from 1 viewer panel upwards.
Heating & Ventilation Indicators
Time of day and time elapsed clocks available
• Nurse Alarm
Brandon will manufacture a panel to any size requirement.
Short Lead Time
New manufacturing processes have allowed Brandon to drastically reduce lead times.
Medical Gas
Alarms
Easy Installation
Removable gland plate and unique “picture frame” overhang
allow easy installation & maintenance. All units are finished
complete & fully tested before shipping.
Heating & Ventilation
Controls
Easy Access
Operating Theatre
Lamp Controls
Front or rear access to the interior is available.
The example show has front access.
Project Management
Power sockets
as required
X-Ray Viewer Intensity Controls
AGSS Controls
Construction
General Lighting Controls
Standard facias are 2mm thick, satin finished stainless steel to BS1449, Part 2, 1983 grade
304S15. The rest of the units are 2mm thick steel to BS10130: 1991, epoxy powder coated
in brilliant white (50-60 microns). All types of special construction are available on request.
Brandon Medical – Brilliant by Design
It is the company’s aim to deliver the best possible customer service, excellent
quality and the most advanced products. Brandon Medical’s policy is simply to be
“Brilliant by Design”.
IEC
EN 60601
IS
O9
08
001 20
SO
I
Brandon Medical are experts in the field of medical lighting design with over 40
years of healthcare experience. The company manufactures and markets a wide
range of medical lighting products, from major operating theatre lights through to
bed head lights. Brandon has a strong reputation for research and innovation,
having won numerous international awards for design. Brandon products are in
use throughout the world and are supported by an extensive distributor network.
3
Designed for High
Ingress Protection
Brandon Medical offer a full control panel project management
and installation service incorporating 3D design modelling.
13485 200
In line with the Brandon policy of progressive improvement, the right is reserved to alter specifications and/or prices without notice.
Polygiene is a registered trademark of Perstorp AB.
Brandon Medical, Astramax, Copax, Coolview, Quasar, Galaxy Ultra, Symposia, Atlas Pendants and HD-LED are registered trademarks of Brandon Medical Co Ltd.
April 2011
Brandon Medical, Holme Well Road, Leeds LS10 4TQ
Tel: +44 (0)845 1243 666 Fax: +44 (0)845 1243 667
Tel: +44 (0)113 2777 393 Fax: +44 (0)113 2728 844 Email: [email protected]
www.brandon-medical.com
