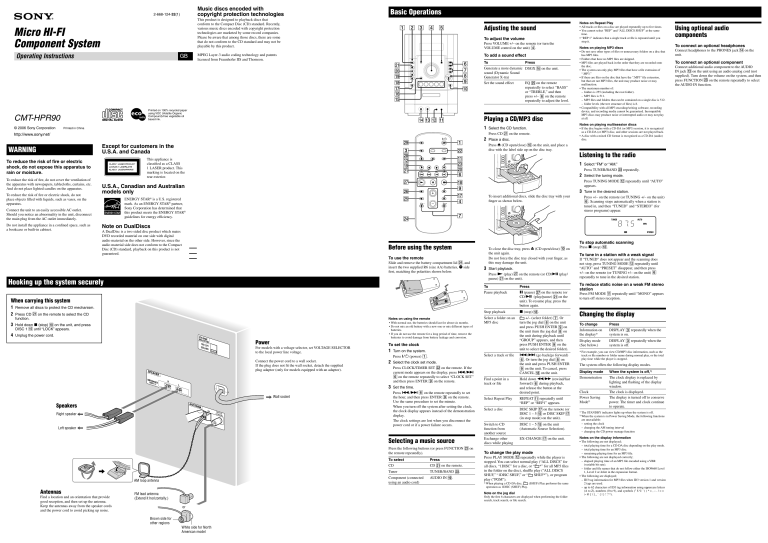

Micro HI-FI Component System

Micro HI-FI Component System
Music discs encoded with
copyright protection technologies
Basic Operations
This product is designed to playback discs that
conform to the Compact Disc (CD) standard. Recently,
various music discs encoded with copyright protection
technologies are marketed by some record companies.
Please be aware that among those discs, there are some
that do not conform to the CD standard and may not be
playable by this product.
Micro HI-FI
Component System
Operating Instructions
� � �
Adjusting the sound
To adjust the volume
Press VOLUME +/– on the remote (or turn the
VOLUME control on the unit) .
MPEG Layer-3 audio coding technology and patents
licensed from Fraunhofer IIS and Thomson.
To add a sound effect
© 2006 Sony Corporation
Generate a more dynamic DSGX  on the unit.
sound (Dynamic Sound
Generator X-tra)
Set the sound effect
Printed on 100% recycled paper
using VOC (Volatile Organic
Compound)-free vegetable oil
based ink.
EQ  on the remote
repeatedly to select “BASS”
or “TREBLE,” and then
press +/–  on the remote
repeatedly to adjust the level.
Playing a CD/MP3 disc
�� �� �� ��
1 Select the CD function.
Printed in China
Press CD  on the remote.
Except for customers in the
U.S.A. and Canada
This appliance is
classified as a CLASS
1 LASER product. This
marking is located on the
rear exterior.
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To reduce the risk of fire, do not cover the ventilation of
the apparatus with newspapers, tablecloths, curtains, etc.
And do not place lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do not
place objects filled with liquids, such as vases, on the
Do not install the appliance in a confined space, such as
a bookcase or built-in cabinet.
Press  (CD open/close)  on the unit, and place a
disc with the label side up on the disc tray.
• Do not save other types of files or unnecessary folders on a disc that
has MP3 files.
• Folders that have no MP3 files are skipped.
• MP3 files are played back in the order that they are recorded onto
the disc.
• The system can only play MP3 files that have a file extension of
• If there are files on the disc that have the “.MP3” file extension,
but that are not MP3 files, the unit may produce noise or may
• The maximum number of:
– folders is 255 (including the root folder).
– MP3 files is 511.
– MP3 files and folders that can be contained on a single disc is 512.
– folder levels (the tree structure of files) is 8.
• Compatibility with all MP3 encoding/writing software, recording
device, and recording media cannot be guaranteed. Incompatible
MP3 discs may produce noise or interrupted audio or may not play
at all.
Notes on playing multisession discs
• If the disc begins with a CD-DA (or MP3) session, it is recognized
as a CD-DA (or MP3) disc, and other sessions are not played back.
• A disc with a mixed CD format is recognized as a CD-DA (audio)
Listening to the radio
2 Select the tuning mode.
Press TUNING MODE  repeatedly until “AUTO”
3 Tune in the desired station.
To insert additional discs, slide the disc tray with your
finger as shown below.
Press +/– on the remote (or TUNING +/– on the unit)
. Scanning stops automatically when a station is
tuned in, and then “TUNED” and “STEREO” (for
stereo programs) appear.
Note on DualDiscs
A DualDisc is a two sided disc product which mates
DVD recorded material on one side with digital
audio material on the other side. However, since the
audio material side does not conform to the Compact
Disc (CD) standard, playback on this product is not
To stop automatic scanning
Before using the system
To use the remote
Slide and remove the battery compartment lid , and
insert the two supplied R6 (size AA) batteries,  side
first, matching the polarities shown below.
Hooking up the system securely
To close the disc tray, press  (CD open/close)  on
Press  (stop) .
the unit again.
Do not force the disc tray closed with your finger, as
this may damage the unit.
To tune in a station with a weak signal
3 Start playback.
Press  (play)  on the remote (or CD/ (play/
pause)  on the unit).
Pause playback
 (pause)  on the remote (or
CD/ (play/pause)  on the
unit). To resume play, press the
button again.
Stop playback
 (stop) .
Select a folder on an
MP3 disc
+/– (select folder) . Or
turn the jog dial  on the unit
and press PUSH ENTER  on
the unit (turn the jog dial  on
the unit during playback until
“GROUP” appears, and then
press PUSH ENTER  on the
unit to select the desired folder).
When carrying this system
1 Remove all discs to protect the CD mechanism.
2 Press CD  on the remote to select the CD
Notes on using the remote
• With normal use, the batteries should last for about six months.
• Do not mix an old battery with a new one or mix different types of
• If you do not use the remote for a long period of time, remove the
batteries to avoid damage from battery leakage and corrosion.
3 Hold down  (stop)  on the unit, and press
DISC 1  until “LOCK” appears.
4 Unplug the power cord.
����� �
For models with a voltage selector, set VOLTAGE SELECTOR
to the local power line voltage.
Connect the power cord to a wall socket.
If the plug does not fit the wall socket, detach the supplied
plug adaptor (only for models equipped with an adaptor).
To set the clock
1 Turn on the system.
Select a track or file
Press  (power) .
2 Select the clock set mode.
Press CLOCK/TIMER SET  on the remote. If the
current mode appears on the display, press /
 on the remote repeatedly to select “CLOCK SET”
and then press ENTER  on the remote.
3 Set the time.
Wall socket
Right speaker
Left speaker
AM loop antenna
Notes on playing MP3 discs
Press TUNER/BAND  repeatedly.
• All tracks or files on a disc are played repeatedly up to five times.
• You cannot select “REP” and “ALL DISCS SHUF” at the same
• “REP 1” indicates that a single track or file is repeated until you
stop it.
1 Select “FM” or “AM.”
ENERGY STAR® is a U.S. registered
mark. As an ENERGY STAR® partner,
Sony Corporation has determined that
this product meets the ENERGY STAR®
guidelines for energy efficiency.
2 Place a disc.
U.S.A., Canadian and Australian
models only
Connect the unit to an easily accessible AC outlet.
Should you notice an abnormality in the unit, disconnect
the main plug from the AC outlet immediately.
Notes on Repeat Play
Find a location and an orientation that provide
good reception, and then set up the antenna.
Keep the antennas away from the speaker cords
and the power cord to avoid picking up noise.
Hold down / (rewind/fast
forward)  during playback,
and release the button at the
desired point.
Select Repeat Play
REPEAT  repeatedly until
“REP” or “REP1” appears.
Select a disc
DISC SKIP  on the remote (or
DISC 1 – 5  or DISC SKIP 
(in stop mode) on the unit).
DISC 1 – 5  on the unit
(Automatic Source Selection).
Selecting a music source
Switch to CD
function from
another source
Exchange other
discs while playing
Press the following buttons (or press FUNCTION  on
the remote repeatedly).
To change the play mode
To select
CD  on the remote.
Component (connected
using an audio cord)
EX-CHANGE  on the unit.
Press PLAY MODE  repeatedly while the player is
stopped. You can select normal play (“ALL DISCS” for
all discs, “1DISC” for a disc, or “ *” for all MP3 files
in the folder on the disc), shuffle play (“ALL DISCS
SHUF,” “1DISC SHUF,” or “
SHUF*”), or program
play (“PGM”).
* When playing a CD-DA disc,
(SHUF) Play performs the same
operation as 1DISC (SHUF) Play.
Note on the jog dial
FM lead antenna
(Extend it horizontally.)
Only the first 6 characters are displayed when performing the folder
search, track search, or file search.
Brown side for
other regions
Press /  on the remote repeatedly to set
the hour, and then press ENTER  on the remote.
Use the same procedure to set the minute.
When you turn off the system after setting the clock,
the clock display appears instead of the demonstration
The clock settings are lost when you disconnect the
power cord or if a power failure occurs.
Find a point in a
track or file
/ (go back/go forward)
. Or turn the jog dial  on
the unit and press PUSH ENTER
 on the unit. To cancel, press
CANCEL  on the unit.
White side for North
American model
If “TUNED” does not appear and the scanning does
not stop, press TUNING MODE  repeatedly until
“AUTO” and “PRESET” disappear, and then press
+/– on the remote (or TUNING +/– on the unit) 
repeatedly to tune in the desired station.
To reduce static noise on a weak FM stereo
Press FM MODE  repeatedly until “MONO” appears
to turn off stereo reception.
Changing the display
To change
Information on
the display*
DISPLAY  repeatedly when the
system is on.
Display mode
(See below.)
DISPLAY  repeatedly when the
system is off.
* For example, you can view CD/MP3 disc information, such as the
track or file number or folder name during normal play, or the total
play time while the player is stopped.
The system offers the following display modes.
Display mode
When the system is off,1)
The clock display is replaced by
lighting and flashing of the display
The clock is displayed.
The display is turned off to conserve
power. The timer and clock continue
to operate.
Power Saving
The STANDBY indicator lights up when the system is off.
When the system is in Power Saving Mode, the following functions
are unavailable:
– setting the clock
– changing the AM tuning interval
– changing the CD power manage function
Notes on the display information
• The following are not displayed;
– total playing time for a CD-DA disc depending on the play mode.
– total playing time for an MP3 disc.
– remaining playing time for an MP3 file.
• The following are not displayed correctly;
– elapsed playing time of an MP3 file encoded using a VBR
(variable bit rate).
– folder and file names that do not follow either the ISO9660 Level
1, Level 2 or Joliet in the expansion format.
• The following are displayed;
– ID3 tag information for MP3 files when ID3 version 1 and version
2 tags are used.
– up to 62 characters of ID3 tag information using uppercase letters
(A to Z), numbers (0 to 9), and symbols (" $ % ’ ( ) * + , – . / < =
> @ [ \ ] _ ` { | } ! ? ^).
Using optional audio
To connect an optional headphones
Connect headphones to the PHONES jack  on the
To connect an optional component
Connect additional audio component to the AUDIO
IN jack  on the unit using an audio analog cord (not
supplied). Turn down the volume on the system, and then
press FUNCTION  on the remote repeatedly to select
the AUDIO IN function.
Other Operations
Creating your own CD program
Using the Timers
(Program Play)
The system offers two timer functions. If you use Play
Timer with the Sleep Timer, the Sleep Timer has priority.
Use buttons on the remote to create your own program.
1 Press CD  to select the CD function.
2 Press PLAY MODE  repeatedly until “PGM”
appears while the player is stopped.
3 Press DISC SKIP  to select a disc.
4 Press /  repeatedly or turn the jog
dial  on the unit until the desired track number
When programming MP3 files, press
+/– (select
folder)  repeatedly or turn the jog dial  on the
unit to select the desired folder, and then select the
desired file.
Current disc
Selected track
or file number
Total playing time of program
(including selected track or file)
Sleep Timer:
You can fall asleep to music. This function works even if
the clock is not set.
Press SLEEP  on the remote repeatedly. If you select
“AUTO,” the system automatically turns off after the
current disc stops or in 100 minutes.
Play Timer:
You can wake up to CD or tuner at a preset time.
Use buttons on the remote to control the Play Timer.
Make sure you have set the clock.
1 Prepare the sound source.
Prepare the sound source, and then press VOLUME
+/–  to adjust the volume.
To start from a specific CD track or MP3 file, create
your own CD program.
3 Press /  repeatedly to select “PLAY
SET” then press ENTER .
“ON” appears, and the hour indication flashes.
Loaded disc
5 Press ENTER  to add the track or file to the
“– –.– –” appears when the total time exceeds 100
minutes for a CD, or when you select a CD track
whose number is 21 or over, or when you select an
MP3 file.
6 Repeat steps 4 through 5 to program additional
tracks or files, up to a total of 25 tracks or files.
7 To play your program of tracks or files, press 
(play) .
The program remains available until you open the disc
tray. To play the same program again, select the CD
function, and press  (play) .
To cancel Program Play
Press PLAY MODE  repeatedly until “PGM”
disappears while the player is stopped.
4 Set the time to start playing.
Press /  repeatedly to set the hour,
and then press ENTER .
The minute indication flashes. Use the procedure
above to set the minute.
5 Use the same procedure as in step 4 to set the
time to stop playing.
6 Select the sound source.
Press /  repeatedly until the desired
sound source appears, and then press ENTER . The
display shows the timer settings.
7 Press  (power)  to turn off the system.
The system turns on 15 seconds before the preset
If the system is on at the preset time, the Play Timer
will not play.
To activate or check the timer again
1 Make sure the power cord and speaker cords are
correctly and firmly connected.
2 Find your problem in the checklist below, and
take the indicated corrective action.
If the issue persists, contact your nearest Sony dealer.
If the STANDBY indicator flashes
Immediately unplug the power cord, and check the
following item.
• If your system has a voltage selector, is the voltage
selector set to the correct voltage?
• Are you using only the supplied speakers?
• Is anything blocking the ventilation holes on the rear
of the system?
After the STANDBY indicator  stops flashing,
reconnect the power cord, and turn on the system. If
the issue persists, contact your nearest Sony dealer.
The display starts flashing as soon as you
plug in the power cord even though you
have not turned on the system.
• Press DISPLAY  twice while the system is off. The
demonstration disappears.
Sound comes from one channel, or the left
and right volumes are unbalanced.
• Place the speakers as symmetrically as possible.
• Connect only the supplied speakers.
Severe hum or noise.
• Move the system away from sources of noise.
• Connect the system to a different wall socket.
• Install a noise filter (available separately) to the power
The remote does not function.
• Remove any obstacles between the remote and the
remote sensor  on the unit, and position the unit
away from fluorescent lights.
• Point the remote at the system’s sensor.
• Move the remote closer to the system.
The STANDBY indicator  remains lit after
unplugging the power cord.
Press CLEAR  while the player is stopped.
Press CLOCK/TIMER SELECT , press /
 repeatedly until “PLAY SEL” appears, and then press
• The STANDBY indicator  may not turn off
immediately after unplugging the power cord. This
is not a malfunction. The indicator will turn off after
about 40 seconds.
To view program information, such as total
track number of the program
To cancel the timer
CD/MP3 player
To delete the last track or file of the program
Press DISPLAY  repeatedly.
You can program additional tracks or files during playback by using
the jog dial.
Repeat the same procedure as above until “TIMER OFF”
appears, and then press ENTER .
To change the setting
Start over from step 1.
Presetting radio stations
The Play Timer setting remains as long as the setting is not canceled
The sound skips, or the disc will not play.
• Wipe the disc clean, and replace it.
• Move the system to a location away from vibration (for
example, on top of a stable stand).
• Move the speakers away from the system, or place
them on separate stands. At high volume, speaker
vibration may cause the sound to skip.
You can preset your favorite radio stations and tune
them in instantly by selecting the corresponding preset
Use buttons on the remote to preset stations.
Play does not start from the first track.
1 Tune in the desired station (see “Listening to the
Starting playback takes more time than usual.
Preset number
3 Press +/–  repeatedly to select your desired
preset number.
If another station is already assigned to the selected
preset number, the station is replaced by the new
4 Press ENTER .
5 Repeat steps 1 through 4 to store other stations.
You can preset up to 20 FM and 10 AM stations. The
preset stations are retained for about half a day even
if you disconnect the power cord or if a power failure
6 To call up a preset radio station, press TUNING
MODE  repeatedly until “PRESET” appears,
and then press +/–  repeatedly to select the
desired preset number.
• Return to Normal Play by pressing PLAY MODE 
repeatedly until both “PGM” and “SHUF” disappear.
• The following discs take a longer time to start playback.
– a disc recorded with a complicated tree structure.
– a disc recorded in multisession mode.
– a disc that has not been finalized (a disc to which data
can be added).
– a disc that has many folders.
To improve tuner reception
Turn off CD player power by using the CD power
management function. By default, CD power is turned on.
You cannot change the setting in Power Saving Mode.
Use buttons on the unit to turn off CD player power.
1 Press CD/ (play/pause)  to select the CD
2 Press  (power)  to turn off the system.
3 After “STANDBY” stops flashing, press 
(power)  while holding ENTER .
“CD POWER” and “OFF” appear. With CD player
power turned off, disc access time is increased. To
turn on CD player power, repeat the procedure until
“CD POWER” and “ON” appear.
To reset the system to factory settings
If the system still does not operate properly, reset the
system to factory settings. You cannot reset the system to
factory settings in Power Saving Mode.
Use buttons on the unit to reset the unit to its factory
default settings.
1 Disconnect and reconnect the power cord, and
then turn on the system.
DISPLAY  and  (power)  at the same
All user-configured settings, such as preset radio
stations, timer, and the clock, are deleted.
CANT LOCK : The system cannot be locked after
you have done the procedure of “When carrying this
system.” Turn the power off and then on again by
pressing  (power)  on the unit, then perform the
CD OVER : You have reached the end of the disc while
pressing  (fast forward)  during playback or
COMPLETE : The preset operation ended normally.
LOCKED : The disc tray does not open. Contact your
nearest Sony dealer.
NO DISC : There is no disc in the player, or you have
loaded a disc that cannot be played.
NOT IN USE : You pressed an invalid button.
PUSH SELECT : You tried to set the clock or timer
during timer operation.
PUSH STOP : You pressed PLAY MODE  during
SET CLOCK : You tried to select the timer when the
clock is not set.
SET TIMER : You tried to select the timer when the
Play Timer is not set.
STEP FULL : You tried to program more than 26 tracks
or files (steps).
TIME NG : The Play Timer start and end times are set to
the same time.
Display examples
2 (two)
5 (five)
Discs that this system CAN play
• Audio CD
• CD-R/CD-RW (audio data/MP3 files)
Discs that this system CANNOT play
• CD-R/CD-RW other than those recorded in music CD
format or MP3 format conforming to ISO9660 Level
1/Level 2, Joliet or multisession
• CD-R/CD-RW recorded in multisession that have not
ended by “closing the session”
• CD-R/CD-RW of poor recording quality, CD-R/CDRW that have scratches or are dirty, or CD-R/CD-RW
recorded with an incompatible recording device
• CD-R/CD-RW which is finalized incorrectly
• Discs containing files other than MPEG 1 Audio Layer3 (MP3) files
• Discs of non-standard shape (for example, heart,
square, star)
• Discs that have adhesive tape, paper, or sticker attached
to them
• Rental or used discs with attached seals where the glue
extends beyond the seal
• Discs that have labels printed using ink that feels tacky
when touched
Notes on discs
• Before playing, wipe the disc with a cleaning cloth
from the center out to the edge.
• Do not clean discs with solvents, such as benzine
thinner, or commercially available cleaners or antistatic spray intended for vinyl LPs.
• Do not expose discs to direct sunlight or heat sources
such as hot air ducts, nor leave it in a car parked in
direct sunlight.
On safety
• The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall socket,
even if the unit itself has been turned off.
• Completely disconnect the power cord (mains lead)
from the wall socket (mains) if it is not going to be
used for an extended period of time. When unplugging
the unit, always grip the plug. Never pull the cord
• Should any solid object or liquid get into the system,
unplug the system, and have it checked by qualified
personnel before operating it again.
• The AC power cord can be changed only by a qualified
service facility.
On placement
• Do not place the system in an inclined position or in
locations that are extremely hot, cold, dusty, dirty, or
humid or lacking adequate ventilation, or subject to
vibration, direct sunlight or a bright light.
• Be careful when placing the unit or speakers on
surfaces that have been specially treated (for example,
with wax, oil, polish) as staining or discoloration of the
surface may result.
• If the system is brought directly from a cold to a warm
location or is placed in a very damp room, moisture
may condense on the lens inside the CD player, and
cause the system to malfunction. In this situation,
remove the disc, and leave the system turned on for
about a few hours until the moisture evaporates.
6 (six)
On heat buildup
8 (eight)
• Heat buildup on the unit during operation is normal and
is not cause for alarm.
• Do not touch the cabinet if it has been used
continuously at a high volume because the cabinet may
have become hot.
• Do not obstruct the ventilation holes.
0 (zero)
On the speaker system
Severe hum or noise, or stations cannot be
This speaker system is not magnetically shielded, and
the picture on nearby TV sets may become magnetically
distorted. In this situation, turn off the TV, wait 15 to 30
minutes, and turn it back on.
If there is no improvement, move the speakers far away
from the TV.
Cleaning the cabinet
Clean this system with a soft cloth slightly moistened
with a mild detergent solution. Do not use any type
of abrasive pad, scouring powder, or solvent, such as
thinner, benzine, or alcohol.
• Connect the antenna properly.
• Find a location and an orientation that provide good
reception, and then set up the antenna again.
• Keep the antennas away from the speaker cords and the
power cord to avoid picking up noise.
• Connect a commercially available external antenna.
• Consult your nearest Sony dealer if the supplied AM
antenna has come off the plastic stand.
• Turn off nearby electrical equipment.
To change the AM tuning interval
The AM tuning interval is factory-preset to 9 kHz.
Use buttons on the unit to change the AM tuning interval.
! or |
1 Tune in any AM station, and then turn off the
2 While holding down  , press 
(power) .
All the AM preset stations are erased. To reset the
interval to the factory preset, repeat the procedure.
You cannot change the AM tuning interval in Power
Saving Mode.
Amplifier section
The following measured at AC 220 – 240 V, 50/60 Hz (Australian model),
AC 220 – 240 V, 50/60 Hz (Korean model), AC 120 – 127 V or 220 – 240 V,
50/60 Hz (Latin American models), AC 220 – 240 V, 50/60 Hz (Other models)
DIN power output (rated): 56 + 56 W (4 ohms at 1 kHz, DIN)
Continuous RMS power output (reference): 70 + 70 W (4 ohms at 1 kHz,
10% THD)
AUDIO IN: Sensitivity 250 mV, impedance of 47 kilohms
PHONES (stereo mini jack): accepts headphones with an impedance of 8
ohms or more
SPEAKER: accepts impedance of 4 ohms
CD player section
System: Compact disc and digital audio system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 µW
* This output is the value measurement at a distance of 200 mm from the
objective lens surface on the Optical Pick-up Block with 7 mm aperture.
Frequency response: 20 Hz – 20 kHz (±2 dB)
Wavelength: 780 – 790 nm
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section:
Tuning range: 87.5 – 108.0 MHz
Antenna: FM lead antenna
Antenna terminals: 75 ohms unbalanced
Intermediate frequency: 10.7 MHz
AM tuner section:
Tuning range
Latin American model: 530 – 1,710 kHz (with 10 kHz tuning interval)
531 – 1,710 kHz (with 9 kHz tuning interval)
Other models: 530 – 1,710 kHz (with 10 kHz tuning interval)
531 – 1,602 kHz (with 9 kHz tuning interval)
Antenna: AM loop antenna
Antenna terminals: External antenna terminal
Intermediate frequency: 450 kHz
Speaker system: 2-way, bass-reflex type
Speaker units
Woofer: 13 cm dia., cone type
Tweeter: 4 cm dia., cone type
Nominal impedance: 4 ohms
Dimensions (w/h/d): Approx. 174 × 280 × 258 mm
Mass: Approx. 2.6 kg net per speaker
Power requirements
Latin American model: 120 – 127 V or 220 – 240 V AC, 50/60 Hz
Korean model: 220 – 240 V AC, 50/60 Hz
Mexican model: 127 V AC, 60 Hz
Other models: 220 – 240 V AC, 50/60 Hz
Adjustable with voltage selector
Power consumption: 45 watts
Dimensions (w/h/d) (excl. speakers): Approx. 180 × 280 × 360 mm
Mass (excl. speakers): 3.9 kg
Supplied accessories: Remote Commander (1)/R6 (Size AA) batteries (2)/AM
loop antenna (1)/FM lead antenna (1)
U.S. and foreign patents licensed from Dolby Laboratories.
Design and specifications are subject to change without notice.
• Standby power consumption: 0.5 W
• Halogenated flame retardants are not used in the
certain printed wiring boards.
• Lead-free solder is used for soldering certain parts.
• Halogenated flame retardants are not used in cabinets.
(Except for the United States model)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
