QuickSpecs

Overview

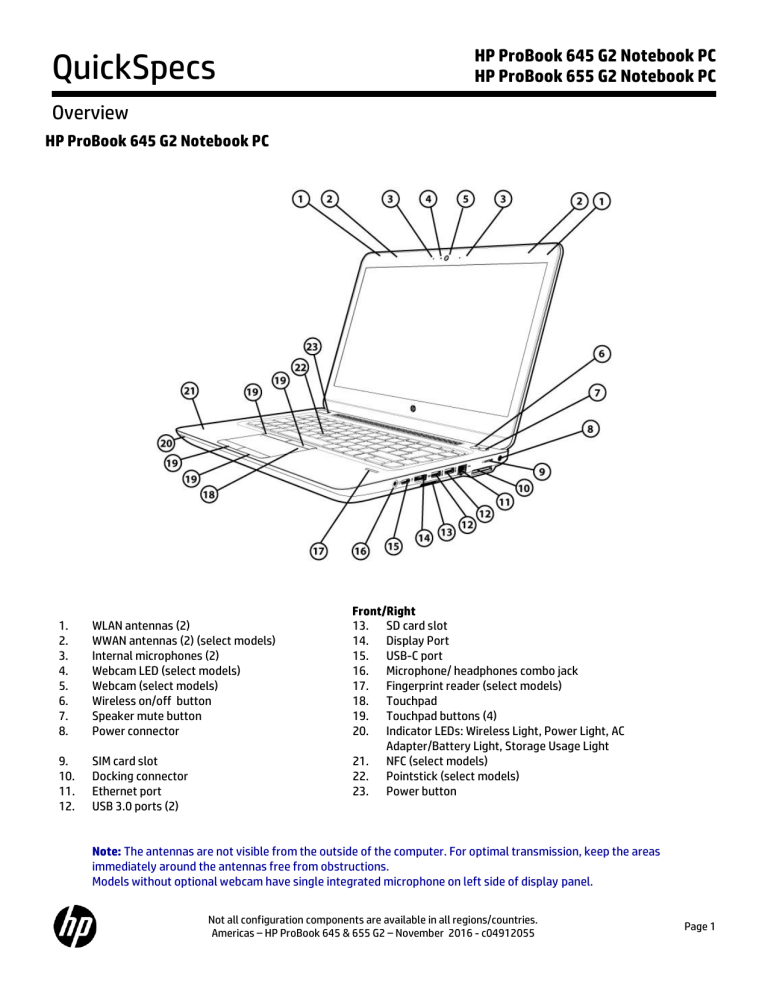

HP ProBook 645 G2 Notebook PC

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Front/Right

1. WLAN antennas (2)

2. WWAN antennas (2) (select models)

3. Internal microphones (2)

4. Webcam LED (select models)

5. Webcam (select models)

6. Wireless on/off button

7. Speaker mute button

8. Power connector

13. SD card slot

14. Display Port

15. USB-C port

16. Microphone/ headphones combo jack

17. Fingerprint reader (select models)

18. Touchpad

19. Touchpad buttons (4)

20. Indicator LEDs: Wireless Light, Power Light, AC

9. SIM card slot

10. Docking connector

11. Ethernet port

12. USB 3.0 ports (2)

21.

22.

23.

Adapter/Battery Light, Storage Usage Light

NFC (select models)

Pointstick (select models)

Power button

Note: The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennas free from obstructions.

Models without optional webcam have single integrated microphone on left side of display panel.

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 1

QuickSpecs

Overview

1. Security lock slot

2. Optical drive

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Left

3. Smart Card Reader

1.

VGA port

Back

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 2

QuickSpecs

Overview

HP ProBook 655 G2 Notebook PC

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

1. WLAN antennas (2)

2. WWAN antennas (2) (select models)

3. Internal microphones (2)

4. Webcam LED (select models)

Front/Right

13.

14.

15.

SD card slot

Display Port

USB-C port

5. Webcam (select models)

6. Wireless on/off button

7. Speaker mute button

8. Power

16. Microphone/ headphones combo jack

17.

18.

19.

Fingerprint reader (select models)

Touchpad

Touchpad buttons (4) connector

9. SIM card slot

10. Docking connector

11. Ethernet port

20. Indicator LEDs: Wireless Light, Power Light, AC

21.

22.

Adapter/Battery Light, Storage Usage Light

NFC (select models)

Pointstick (select models)

23. Power button

12. USB 3.0 ports (2)

Note: The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennas free from obstructions.

Models without optional webcam have single integrated microphone on left side of display panel.

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 3

QuickSpecs

Overview

1. Security lock slot

2. Optical drive

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Left

3. Smart card reader

Back

2. Serial port optional (655 only) 1. VGA port

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 4

QuickSpecs

Overview

A

T A

G

LANCE

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

 Windows 10 versions, Windows 8.1 versions, Windows 7 versions, Ubuntu Linux , Ubuntu Kylin Linux or FreeDOS 2.0

 Thin and light design– PC-ABS (Polycarbonate–Acrylnitrile/Butadiene/Styrene) durable material is nearly 20% thinner; soft-touch, more durable 4-step paint process; larger buttons (power), revamped keyboard (arrow keys); latch/hook removal for clean palmrest design; top mounted speakers for optimized audio experience (compared to previous generation)

 The HP Premium keyboard is spill-resistant and offered with optional backlit design.

 Large Touchpad with gestures support, on/off button with LED indicator

 Enhanced security features including HP Fingerprint Reader and TPM 1.2 Embedded Security Chip

 Accelerated Processing Unit and graphics from AMD

 LED-backlit display o HP ProBook 645: 14.0” diagonal HD or FHD or Touch FHD with camera and with WWAN o HP ProBook 655: 15.6” diagonal HD or FHD or Touch FHD with camera and with WWAN

 Optional HD webcam with dual-microphone array for video conferencing

 DisplayPort 1.2 now native with integrated graphics

 One USB-C

TM Charging Port, two USB 3.0 ports for fast data transfer from devices (1 charging)

 HD Audio with DTS Sound+

TM optimized for high fidelity audio

 Wireless and speaker mute button to conveniently manage the connectivity and speaker.

 Flexible wireless connectivity options:

- Broadband Wireless (WWAN)

- Wireless LAN (WLAN)

- Personal area network (WPAN Bluetooth®)

- Near Field Communication (NFC)

 Choice of hard drives up to 1 TB or solid state drives up to 512 GB

 Passed MIL STD testing

1

1. MIL STD 810G testing is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for military use. Test results are not a guarantee of future performance under these test conditions. Damage under the MIL STD test conditions or any accidental damage requires an optional HP Accidental Damage Protection Care Pack.

NOTE: See important legal disclosures for all listed specs in their respective features sections.

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 5

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

PRODUCT NAMES

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

OPERATING SYSTEM

Preinstalled

Web-only Support

Windows 10 Pro 64 1

Windows 10 Home 64 1

Windows 10 Home Single Language 64

Windows 8.1 Pro 64 3

1

Windows 8.1 64 3

Windows 7 Professional 32 (available through downgrade rights from Windows 10 Pro 64) 2

Windows 7 Professional 32 (Available through downgrade rights from Windows 10 Pro 64)

(National Academic only) 2

Windows 7 Professional 64 3

Windows 7 Professional 32 3

Windows 7 Professional 32 (National Academic only)

3

FreeDOS 2.0

Windows 10 Enterprise 64 1

Windows 8.1 Enterprise 64 3

Windows 7 Enterprise 64

Windows 7 Enterprise 32

3

3

1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.microsoft.com.

2. This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows

10 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data

3. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. See http://www.microsoft.com.

ACCELERATED PROCESSING UNIT

AMD PRO A10-8700B APU with Radeon™ R6 Graphics (1.8 GHz, up to 3.2 GHz, 2 MB cache, 4 cores)

AMD PRO A8-8600B APU with Radeon™ R6 Graphics (1.6 GHz, up to 3 GHz, 2 MB cache, 4 cores) 1

AMD PRO A6-8500B APU with Radeon™ R5 Graphics (1.6 GHz, up to 3 GHz, 2 MB cache, 2 cores)

1

1

1. Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.

FUSION CONTROLLER HUB (FCH)

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 6

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

Chipset is integrated with processor

GRAPHICS

Radeon™ R5 Graphics

Radeon™ R6 Graphics

NOTE: Integrated with processors. Please see processor section for details.

DISPLAY

HP ProBook 645

Internal

Non-Touch

14.0" diagonal LED backlight HD 1 Anti-glare 45% CG 220 nits (1366x768)

14.0" diagonal LED backlight HD

1

Anti-glare 45% CG 220 nits (1366x768) with camera

14.0" diagonal LED backlight HD

14.0" diagonal LED backlight HD

1

1

Anti-glare 45% CG 220 nits (1366x768) with WWAN

Anti-glare 45% CG 220 nits (1366x768) with camera and with WWAN

14.0" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080)

14.0" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with camera

14.0" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with WWAN

14.0" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with camera & WWAN

Touch

14.0" diagonal LED backlight FHD 60% CG 300 nits (1920x1080) with camera and with WWAN

External

Up to 32-bit per pixel color depth

VGA

Port supports resolutions up to 1920 x 1200 external resolution @60 Hz

DisplayPort 1.2

Supports resolutions up to 2560 x 1600, 30-bit color depth @60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth

@ 120 Hz

Number of Displays Supported

HP Ultra Slim Docking

ProBook 645 with A10

UMA Graphics

3

HP ProBook 655

Internal

Non-Touch

15.6" diagonal LED backlight HD

1

Anti-glare 45% CG 220 nits (1366x768)

15.6" diagonal LED backlight HD

15.6" diagonal LED backlight HD

1

1

Anti-glare 45% CG 220 nits (1366x768) with camera

Anti-glare 45% CG 220 nits (1366x768) with WWAN

15.6" diagonal LED backlight HD

1

Anti-glare 45% CG 220 nits (1366x768) with camera and with WWAN

15.6" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080)

15.6" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with camera

15.6" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with WWAN

15.6" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with camera & WWAN

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 7

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

Touch

15.6" diagonal LED backlight FHD 60% CG 300 nits (1920 x 1080) with camera with WWAN

External

Up to 32-bit per pixel color depth

VGA

Port supports resolutions up to 1920 x 1200 external resolution @60 Hz

DisplayPort 1.2

Supports resolutions up to 2560 x 1600, 30-bit color depth at 60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120 Hz

Number of Displays Supported

HP Ultra Slim Docking

ProBook 655 with A10

UMA

3

1. HD content required to view HD images.

NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.

STORAGE AND DRIVES

500 GB 7200rpm Self

Encrypting Drive (FIPS-

140-2) (Opal 2)

Drive Weight

Capacity

Height

Width

0.21 lbs (95 g)

500 GB

0.28 in (7 mm)

2.75 in (69.85 mm)

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

Cache

Rotational Speed

ATA-8, SATA 3.0

Synchronous (maximum) 600 MB/s

Single Track

1.5 ms

Average

12ms

Maximum

18mm-22ms

32GB

7200 rpm

Logical Blocks

976,773,168

Operating Temperature 32° to 140° F (0° to 60° C) [top cover temp]

Features

ATA Security; TCG Opal 2.x, FIPS, S.M.A.R.T., NCQ, Ultra DMA ,

500 GB 7200rpm

Hard Drive

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

0.20 lbs (92 g)-0.21 lbs (95 g)

500 GB

0.28 in (7 mm)

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Synchronous (maximum) 600 MB/s

Single Track

1.5ms-2.0ms

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 8

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

500 GB Hybrid,

8 GB cache

Seek Time

(typical reads, including settling)

Cache

Rotational Speed

Average

Maximum

32GB

7200 rpm

11ms-13ms

18ms-22ms

Logical Blocks

976,773,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

500 GB 7200rpm Self-

Encrypting Drive (Opal 2)

Drive Weight

Capacity

0.21 lbs (95 g)

500GB

Height

Width

Interface

0.28 in (7 mm)

2.75 in (69.85 mm)

Transfer Rate

Seek Time

(typical reads, including settling)

ATA-8, SATA 3.0

Synchronous (maximum) 600 MB/s

Single Track

Average

1.5ms

12ms

Cache

Rotational Speed

Logical Blocks

Maximum

32GB

7200rpm

976,773,168

18ms- 22ms

Operating Temperature 32° to 140° F (0° to 60° C) [top cover temp]

Features

ATA Security; TCG Opal 2.x, S.M.A.R.T., NCQ, Ultra DMA

1 TB 5400rpm Hard Drive Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

0.21 lbs (94 g)- 0.21 lbs (99 g)

1TB

0.28 in (7.2 mm)

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Synchronous (maximum) 600 MB/s

Single Track

Average

2ms

12ms-13ms

18ms-23ms

Cache

Rotational Speed

Features

Maximum

Up to 32GB

5400rpm

Logical Blocks

1,953,525,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

S.M.A.R.T., NCQ, Ultra DMA

Drive Weight

Capacity

Height

0.21 lb (95 g)

500 GB

0.276 in (7 mm)

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 9

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

Width

Interface

2.76 in (70.1 mm)

ATA-8, SATA 2.6, 6.0 Gb/s, NCQ

Synchronous (maximum) 600 MB/s (Drive Capability)

Transfer Rate

Seek Time

(typical reads, including settling)

Single Track

Average

2 ms

12 ms

Maximum

NIL ms

Cache

64GB

Rotational Speed

5400 rpm

Logical Blocks

976,773,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

128 GB M2 2280 SATA-3

TLC

Solid State Drive

Drive Weight

Capacity

Height

Width

0.019 lb (8.5 g)-0.022 lb (10 g)

128 GB

0.09 in (2.23 mm)- 0.14 in (3.58 mm)

0.87 in (22 mm)

Interface

Performance

Logical Blocks

ATA-8, SATA 3.0

Maximum Sequential Read

Up to 540 MB/s

250,069,680

Maximum Sequential Write

Up to 300 MB/s

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security, DIPM; TRIM; DEVSLP

180 GB M2 2280 SATA-3

MLC

Solid State Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

0.022 lb (<10 g)

180 GB

0.09 in (2.23 mm)

0.87 in (22 mm)

ATA-8, SATA 3.0

Maximum Sequential Read Maximum Sequential Write

Up to 540 MB/s (Compressible

Performance)

UP to 490 MB/s (Compressible

Performance)

Logical Blocks

351,651,888

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security, DIPM; TRIM; DEVSLP

180 GB M2 2280 SATA-3

Self-Encrypting Drive

(Opal 2) MLC Solid State

Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

0.022 lb (<10 g)

180GB

0.09 in (2.23 mm)

0.87 in (22 mm)

ATA-8, SATA 3.0

Maximum Sequential

Read

Maximum Sequential Write

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 10

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

Up to 540 MB/s

(Compressible

Performance)

UP to 490 MB/s (Compressible Performance)

Logical Blocks

351,651,888

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security, TCG OPAL 2.x, DIPM; TRIM; DEVSLP

240 GB SATA-3 MLC Solid

State Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

0.02 lb (10 g)

240 GB

0.14 in (3.58 mm)

0.87 in (22 mm)

ACS-3, SATA 3.2

Maximum Sequential

Read

Maximum Sequential Write

Up to 540 MB/s UP to 490 MB/s

Logical Blocks

468,862,128

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security, DIPM; TRIM; DEVSLP

256 GB 2280 SATA-3 TLC

Solid State Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

0.019 lb (8.5 g)- 0.022 lb (10 g)

256GB

0.09 in (2.3 mm)- 0.14 in (3.58 mm)

0.87 in (22 mm)

ATA-8, SATA 3.0

Maximum Sequential

Read

Maximum Sequential Write

Up to 540 MB/s Up to 455 MB/s

Logical Blocks

500,118,192

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security, DIPM; TRIM; DEVSLP

256 GB PCIe-3x4 NVMe

Solid State Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

0.02 lb (10 g)

256 GB

0.09 in (2.3 mm)

0.87 in (22 mm)

PCIe NVMe Gen3X4

Maximum Sequential

Read

Maximum Sequential Write

Up to 2,260 MB/s UP to 1,260 MB/s

Logical Blocks

500,118,192

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security, TRIM; L1.2

256 GB M2 2280 SATA-3

Self-Encrypting Drive

Drive Weight

Capacity

Height

Width

0.02 lb (10 g)

256 GB

0.14 in (3.58 mm)- 0.09 in (2.23 mm)

0.87 in (22 mm)

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 11

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

(Opal 2) MLC Solid

State Drive

Interface

Performance

ATA-8, SATA 3.0

Maximum Sequential

Read

Maximum Sequential Write

Features

Up to 540 MB/s UP to 460 MB/s

Logical Blocks

500,118,192

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

ATA Security; TCG Opal 2.0, DIPM; TRIM; DEVSLP

512 GB M2 2280 TLC

Solid State Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

0.019 lb (8.5 g)- 0.02 lb (10 g)

512 GB

0.09 in (2.3 mm)

0.87 in (22 mm)

ATA-8, SATA 3.0

Maximum Sequential

Read

Maximum Sequential Write

Features

Up to 540 MB/s UP to 500 MB/s

Logical Blocks

1,000,215,216

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

ATA Security, DIPM; TRIM; DEVSLP

512 GB M2 2280 SATA-3

Self-Encrypting Drive

(Opal 2) MLC Solid

State Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

0.019 lb (8.5 g)- 0.02 lb (10 g)

512 GB

0.09 in (2.3 mm)

0.87 in (22 mm)

ATA-8, SATA 3.0

Maximum Sequential

Read

Maximum Sequential Write

Features

Up to 540 MB/s UP to 460 MB/s

Logical Blocks

1,000,215,216

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

ATA Security, DIPM; TRIM; DEVSLP; TCG Opal 2.0

OPTICAL DRIVES

Fixed 9.5 mm SATA

DVD-ROM Drive

DVD+/-RW SuperMulti DL 1

Blu-ray ROM DVD+/-RW SuperMulti DL

1

Weight saver 2

1. For Blu-ray drives, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to play, they may require an HDMI digital connection and your display may require HDCP support. HD-DVD disks cannot be played on this drive. Note that DVD-RAM cannot read or write to 2.6 GB Single Sided/5.2 GB Double Sided – Version 1.0 media. Actual speeds may vary. Don’t copy copyright-protected materials. Double Layer discs can store more data than single layer discs; discs burned with this drive may not be compatible with many existing single-layer DVD drives and

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 12

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes players.

2. Not available on with Touch panel.

MEMORY

Standard

DDR3L PC3-12800 (Transfer rates up to 1600 MT/s)

Two SODIMM slots supporting dual-channel memory

4096 MB Total System Memory (4096 MB x 1)

8192 MB Total System Memory (4096 MB x 2)

8192 MB Total System Memory (8192 MB x 1)

16384 MB Total System Memory (8192 MB x 2)

Maximum

Up to 16384 MB with optional 8192 MB SODIMMs in slots 1 and 2

Dual-channel

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

NETWORKING/COMMUNICATIONS

Broadband Wireless (WWAN)

2,3

HP lt4120 Qualcomm® Snapdragon™ X5 LTE Mobile Broadband Module

HP hs3110 HSPA+ Mobile Broadband Module

Wireless LAN (WLAN) 1,2

Options via Minicard

Intel® 802.11a/b/g/n/ac (2x2) and Bluetooth® 4.0 Combo

Intel® 802.11a/b/g/n (2x2) and Bluetooth® 4.0 Combo

Broadcom 802.11a/b/g/n (2x2) and Bluetooth® 4.0 Combo

Realtek 802.11b/g/n (1x1) Wi-Fi

Personal area network (WPAN Bluetooth)

1,2

Bluetooth® 4.0 supported via all combo cards (Except for Intel® 802.11 ac and Intel® 802.11 a/b/g/Non-vPro)

Bluetooth® 4.1 supported via Intel® 802.11 ac and Intel® 802.11 a/b/g/n Non-vPro only

Near Field Communication (NFC) Optional 2

HP Module with NXP NFC Controller NPC100

Support for Miracast (Windows 8.1 and Windows 10)

1. Wireless access point and Internet service is required and is not included. Availability of public wireless access points limited.

2. Sold separately or as an optional feature.

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 13

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

3. WWAN module is optional and requires separately purchased service contract. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products, in all regions.

Communications

500 GB 7200 rpm Self Encrypting Drive (Opal 2) (FIPS)

1. The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

AUDIO/MULTIMEDIA

Audio

HD Audio with DTS Sound+ TM

(2) Integrated stereo speakers

Integrated digital microphone (Dual-microphone array when equipped with optional webcam)

Function keys for microphone mute, volume up, volume down

Stereo headphone/line out

Stereo microphone in

Webcam

Optional 720p HD webcam 1,2

 HD format (widescreen)

 Supports videoconferencing (non-HD) and still image capture

 High quality fixed focus lens

 Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps

 M-JPEG compression supports higher frame rates for video capture and videoconferencing

 Improved low light sensitivity

 Improved dynamic range

 Skype-ready

1. Sold separately or as an optional feature.

2. HD content required to view HD images.

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS

HP Advanced Keyboard

The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and alt keys, and function keys. DuraKeys only available with Backlit option.

Touchpad

On/Off button

Enabled by default

2F Scrolling - On

2F Zoom ( Pinch ) - On

OSD ( enable / disable ) - On

Win 8 2F tap = right click - On

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 14

QuickSpecs

Summary of Changes

Win 8 Edge Swipes – On

Buttons and Function Keys

F1 - Sleep

F2 - Blank

F3 - Backlit

F4 - Display Switch

F5 - Brightness down

F6 - Brightness up

F7 - Blank

F8 - Volume down

F9 - Volume up

F10 - Mic Mute

F11 - Bank

F12 - Num lock

SOFTWARE AND SECURITY

Preinstalled Software with Windows Operating System

BIOS

HP DriveLock | HP Automatic Drive Lock

HP BIOS Protection

HP Disk Sanitizer

2

1

HP SpareKey 3

Update via Network

Master Record Security

Power On Authentication

Pre-Boot Security

Secure Erase 4

Hybrid Boot

Measured Boot

Secure Boot

Absolute Persistence Module

5

MultiMedia

CyberLink PowerDVD

CyberLink Power2Go (Optical drives)

CyberLink YouCam BE (Windows 7 only)

Communication

HP Connection Manager (Windows 7 only)

HP GPS and Location 6 (Windows 7 only)

HP Mobile Connect

7

(Windows 8 only)

HP Wireless Hotspot

Intel WiDi Software 9

8 (Windows 8 only)

HP Roaming Alert (Windows 8 only)

Intel My WiFi and Wireless Drivers

HP Value Add Software

HP 3D DriveGuard (requires Windows)

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 15

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

HP ePrint Driver

10

(HP Exclusive)

HP PageLift (HP Exclusive)

HP Support Assistant

11

HP Recovery Manager (Windows 7 only)

HP Recovery Disc Creator (Windows 7 only)

UEFI System Diagnostics W8

3 rd

Party

Adobe Flash Player

Skype 12 (subscription required and sold separately)

Buy Office

Security Hardware

HP Client Security

13

HP Credential Manager

HP Password Manager

HP Drive Encryption (FIPS 140-2)

HP File Sanitizer

15

14

HP Device Access Manager with Just In Time Authentication

HP Spare Key

Integrated Smart Card Reader (FIPS 201)

Security screw for bottom access door

Microsoft Security Essentials (Windows 7) 16

Microsoft Defender (Windows 8)

TPM 1.2/2.0

17

HP Fingerprint reader

Security lock slot

Integrated Smart Card Reader

1. HP Tools partition with an HP BIOS required for automatic recovery.

2. For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs). Initial setup required. Web history deleted only in Internet Explorer and Firefox browsers and must be user enabled.

3. Requires initial user set up.

4. For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88.

5. The Absolute Persistence agent is shipped turned off, and will be activated when customers activate a purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with

Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/computrace-agreement. Data

Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either obtain a

PIN or purchase one or more RSA SecurID tokens from Absolute Software.

6. GPS access requires an unobstructed path to multiple satellites. Performance may be affected if/when used inside of buildings, bridges or heavily congested metropolitan areas. Requires separately purchased GPS navigation software available from multiple GPS applications.

7. Internet access required.

8. The wireless hotspot application requires an active internet connection and separately purchased data plan. While

HP wireless hotspot is active, on-device applications will continue to work and will use the same data plan as the wireless hotspot. Wireless hotspot data usage may incur additional charges. Check with your service provider for plan details. Requires Windows 8.1 or HP Connection Manager for Windows 7.

9. Integrated Intel Wi-Di feature is available on select configurations only and requires separately purchased projector, tv or computer monitor with an integrated or external Wi-Di receiver. External Wi-Di receivers connect to the projector, tv or computer monitor via a standard HDMI cable, also sold separately.

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 16

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

10. Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter).Requires optional broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.

11. HP PageLift requires Windows 7 or higher edition.

12. Skype is not offered in China.

13. Not all features are remotely manageable.

14.Requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out of Drive Encryption and prevents data access. Drive encryption planned to be available in October 2013.

15. For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs). Initial setup required. Web history deleted only in Internet Explorer and Firefox browsers and must be user enabled.

16. Opt in and internet connection required for updates.

For more information on HP security solutions refer to: http://www.hp.com/go/security.

17.

This product ships with TPM 1.2 with option to upgrade to TPM 2.0. Upgrade utility is expected to be available by the end of 2015 via HP Customer Support.

POWER

Power Supply

HP 45W Smart AC Adapter (UMA only)

HP 65W Smart AC Adapter

Power cord included is 1.8 m (+/- 0.1 m) or 1.0 m (+/- 0.1 m).

Primary Battery

HP 3-cell Long Life Prismatic (48 WHr)

Battery Life 1

HP ProBook 645 Notebook PC

UMA Graphics Discrete Graphics

3-cell (48 Whr) with SSD

3-cell (48 Whr) with HDD

HP ProBook 655 Notebook PC

3-cell (48 Whr) with SSD

Up to 8 hrs 15 mins

Up to 7 hrs 15 mins

UMA Graphics

Up to 8 hrs

Up to 7 hrs 15 mins

N/A

N/A

Discrete Graphics

N/A

N/A

3-cell (48 Whr) with HDD

System Standby Time 2

HP ProBook 640 Notebook PC

HP ProBook 650 Notebook PC

UMA Graphics

Up to 186 hrs

Up to 186 hrs

Discrete Graphics

N/A

N/A

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 17

QuickSpecs

Summary of Changes

Battery recharge times

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

ProBook 645 G2 ProBook 655 G2

Time to 90% Charge 3 (minutes)

Time to 100% Charge

4

(minutes)

109

167

109

167

1. Windows 10 MM14 battery life will vary depending on various factors including product model, configuration, loaded applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See www.bapco.com for additional details.

2. Standby life will vary depending on various factors including battery, Memory, CPU, EC and LAN chip. The maximum capacity of the battery will naturally decrease with time and usage.

3. Recharges your battery up to 90% within 109 minutes when the system is off. Applies to 3-cell 48Whr battery only. When the PC is powered on, charge time may increase and will vary based on the workload of the notebook PC.

4. Recharges your battery up to 100% within 167 minutes when the system is off. Applies to 3-cell 48Whr battery only. When the PC is powered on, charge time may increase and will vary based on the workload of the notebook PC.

WEIGHTS & DIMENSIONS

HP ProBook 645 Notebook PC

Weight

Starting at 4.30 lbs (1.95 kg)

1

(3-cell battery, ODD weight saver, UMA, no FPR, 1 SODIMM, WLAN only, SSD, touchpad only, no camera, no WWAN)

Dimensions (w x d x h)

13.39 x 9.33 x 1.06 in (Front and rear)

2

34.0 x 23.7 x 2.70 cm (Front and rear)

HP ProBook 655 Notebook PC

Weight

Starting at 5.1 lbs (2.31 kg) 1

(3-cell battery, ODD weight saver, UMA, no FPR, 1 SODIMM, WLAN only, SSD, touchpad only, no camera, no WWAN)

Dimensions (w x d x h)

14.88 x 10.11 x 1.07 in (Front and rear)

2

37.8 x 25.7 x 2.74 cm (Front and rear)

1. Weight varies by configuration and components.

2. Height varies depending upon where on the notebook the measurement is made.

PORTS/SLOTS

Ports

USB TypeC

TM

- One

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 18

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

USB 3.0 port – One

USB 3.0 port Charging – One

RJ-45 / Ethernet - One

Docking connector – One

Headphone / Microphone (Combo jack ) – One

AC port ( 4.5mm ) – One

DisplayPort -One

VGA port – One

Serial port optional – One (HP ProBook 655 Notebook PC only)

1

SD Media Reader Slot

Supports SD, SDHC, SDXC

1. Sold separately or as an optional feature.

SERVICE AND SUPPORT

Limited 3-year, 1-year or 90-day limited warranty options available, depending on country. Batteries have a default one year limited warranty except for Long Life batteries which will have same 1-year or 3-year limited warranty as the platform.Optional

1 HP Care Pack Services http://www.hp.com/gp/cpc .

2 are extended service contracts which go beyond your standard limited warranties.

To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at

1. Sold separately or as an optional feature.

2. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. Consult the HP Customer Support Center for details. http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 19

QuickSpecs

Summary of Changes

S

YSTEM

U

NIT

TBD

DISPLAYS*

14.0 FHD AG WLED SVA 60%cg 300nits eDP Slim

Panel

Active Area (W x H)

Dimensions (W x H)

Diagonal Size

Thickness

Weight

Interface

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution - Format

PPI

Pixel Resolution - Configuration

Backlight

Color Gamut Coverage

Color Depth

Viewing Angle

14.0 HD AG WLED SVA 45%cg 220nits eDP Flat

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

309.40 x 173.95 (mm)

320.9 x 205.6 (mm) max

14 (inch)

3.0 (mm) max

270 g max eDP 1.2

Anti-Glare (AG)

300:1 (typical)

60 Hz

300 nits

1920 x 1080 (FHD)

157

RGB

LED

60%

6 bits

SVA 45/45/25/35

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 20

QuickSpecs

Summary of Changes

Panel

Active Area (W x H)

Dimensions (W x H)

Diagonal Size

Thickness

Weight

Interface

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution - Format

PPI

Pixel Resolution - Configuration

Backlight

Color Gamut Coverage

Color Depth

Viewing Angle

14.0 FHD WLED SVA 60%cg 300nits eDP Slim touch

Panel

Active Area (W x H)

Dimensions (W x H)

Diagonal Size

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

309.40 x 173.95 (mm)

320.9 x 205.6 (mm) max

14 (inch)

3.6 (mm) max

320 g max eDP 1.2

112

RGB

LED

45%

Anti-Glare (AG)

300:1 (typical)

60 Hz

220 nits

1280 x 768 (HD)

6 bits + Hi FRC

SVA 45/45/25/35

309.40 x 173.95 (mm)

320.9 x 205.6 (mm) max

14 (inch)

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 21

QuickSpecs

Summary of Changes

Thickness

Weight

Interface

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution - Format

PPI

Pixel Resolution - Configuration

Backlight

Color Gamut Coverage

Color Depth

Viewing Angle

Touch Enabled

Touch Point Supported

Other Features

Pen Enabled

15.6 FHD AG WLED SVA 60%cg 300nits eDP Slim 3.2mm

Panel

Active Area (W x H)

Dimensions (W x H)

Diagonal Size

Thickness

3.0 (mm) max

270 g max eDP 1.2

300:1 (typical)

60 Hz

300 nits

1920 x 1080 (FHD)

157

RGB

LED

60%

6 bits

SVA 45/45/25/35

Optional

10-point multi-touch

AS

No

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

344.2 x 193.5 (mm)

360 x 224.3 (mm) max

15.6 (inch)

3.2 (mm) max

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 22

QuickSpecs

Summary of Changes

Weight

Interface

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution - Format

PPI

Pixel Resolution - Configuration

Backlight

Color Gamut Coverage

Color Depth

Viewing Angle

15.6 HD AG WLED SVA 45%cg 220nits eDP Flat

Panel

Active Area (W x H)

Dimensions (W x H)

Diagonal Size

Thickness

Weight

Interface

Surface Treatment

Contrast Ratio

360 g max eDP 1.2

Anti-Glare (AG)

400:1 (typical)

60 Hz

300 nits

1920 x 1080 (FHD)

142

RGB

LED

60%

6 bits

SVA 45/45/25/35

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

344.2 x 193.5 (mm)

360 x 224.3 (mm) max

15.6 (inch)

3.8 (mm) max

420 g max eDP 1.2

Anti-Glare (AG)

300:1 (typical)

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 23

QuickSpecs

Summary of Changes

Refresh Rate

Brightness

Pixel Resolution - Format

PPI

Pixel Resolution - Configuration

Backlight

Color Gamut Coverage

Color Depth

Viewing Angle

15.6 FHD WLED SVA 60%cg 300nits eDP Slim 3.2mm touch

Panel

Active Area (W x H)

Dimensions (W x H)

Diagonal Size

Thickness

Weight

Interface

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution - Format

PPI

Pixel Resolution - Configuration

60 Hz

220 nits

1280 x 768 (HD)

101

RGB

LED

45%

6 bits + Hi FRC

SVA 45/45/25/35

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

344.2 x 193.5 (mm)

360 x 224.3 (mm) max

15.6 (inch)

3.2 (mm) max

360 g max eDP 1.2

400:1 (typical)

60 Hz

300 nits

1920 x 1080 (FHD)

142

RGB

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 24

QuickSpecs

Summary of Changes

Backlight

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Color Gamut Coverage

Color Depth

Viewing Angle

Touch Enabled

Touch Point Supported

LED

60%

6 bits

SVA 45/45/25/35

Optional

10-point multi-touch

Other Features

AS

Pen Enabled

No

* All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

N

ETWORKING

/

COMMUNICATIONS

Maximum output power

HP lt4120 Qualcomm® Snapdragon™ X5 LTE Mobile Broadband Module*

Technology/Operating bands LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3),

1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8),

700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 17 lower),

800 (Band 20), 700 (Band 28).

HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4),

850 (Band 5), 900 (Band 8) MHz

EV-DO: 850 (BC0), 1900 (BC1) MHz (Only work with Verizon network)

E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8)

MHz

Wireless protocol standards

3GPP Release 10 LTE Specification CAT.4, 20MHz BW

WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification

1xEVDO Release 0, A and B.

E-GPRS: Class B, Multi-slot class 12, coding schemes CS1 - CS4 and MSC1 - MSC9

GPS

Standalone, A-GPS (MS-A, MS-B and XTRA)

GPS bands

1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz

Maximum data rates

LTE: 150 Mbps (Download), 50 Mbps (Upload)

DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)

HSPA+: 21Mbps (Download), 5.76 Mbps (Upload)

CDMA 1xRTT: 153.6 kbps (Download), 153.6 kbps (Upload)

EVDO Rel.A: 3.1 Mbps (Download), 1.8 Mbps (Upload)

EVDO Rel.B: 14.7 Mbps (Download), 5.4Mbps (Upload)

EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)

GPRS: 85.6 kbps(Download), 85.6 kbps (Upload

)

LTE: 23 dBm

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 25

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

HSPA+: 23.5 dBm

1xRTT/EVDO: 24dBm

E-GPRS 1900/1800: 26 dBm

E-GPRS 900/850: 27 dBm

GPRS 1900/1800: 29.5 dBm

GPRS 900/850: 32.5 dBm

Maximum power consumption LTE: 1,200 mA (peak); 900 mA (average)

HSPA+: 1,100 mA (peak); 800 mA (average)

1xRTT/EVDO: 1,000 mA (peak); 700 mA (average)

E-GPRS: 2,800 mA (peak); 500 mA (average)

Form Factor

Weight

M.2, 3042-S3 Key B

6.2 g

Dimensions

(Length x Width x Thickness)

42 x 30 x 2.3 mm

* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products or in all countries.

Technology/Operating bands

Wireless protocol standards

HP hs3110 HSPA+ Intel® Mobile Broadband Module*

HSPA+: 2100 (Band1), 1900 (Band 2), 1700 (Band 4), 850 (Band 5), 900 (Band 8) MHz

E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 MHz (Band 5), 900 (Band 8) MHz

WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification

E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 - MSC9

Standalone, A-GPS

1575.42 MHz ± 1.023 MHz

GPS

GPS bands

Maximum data rates

Maximum output power

Maximum power consumption

HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)

E-GPRS: 296 kbps (Download), 236.8 kbps (Upload)

GPRS: 107 kbps (Download), 85.6 kbps (Upload)

HSPA+: 24 dBm

E-GPRS 1800/1900: 26 dBm

E-GPRS 850/900: 27 dBm

GPRS 1800/1900: 30 dBm

GPRS 850/900: 33 dBm

HSPA+: 1,100 mA (peak); 800 mA (average)

E-GPRS: 2,800 mA (peak); 700 mA (average)

Form Factor

Weight

M.2, 3042-S3 Key B

6 g

Dimensions

(Length x Width x Thickness)

1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)

* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors.

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 26

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

Intel® 802.11a/b/g/n/ac (2x2) and Bluetooth® 4.1 Combo

Wireless LAN Standards IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

Interoperability

Frequency Band

Wi-Fi certified

802.11b/g/n

 2.402 – 2.482 GHz

Note:

The FCC has declared as of January 1, 2015 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.

802.11a/n

Data Rates

Modulation

Security 1

 4.9 – 4.95 GHz (Japan)

 5.15 – 5.25 GHz

 5.25 – 5.35 GHz

 5.47 – 5.725 GHz

 5.825 – 5.850 GHz

Note: Indonesia no support this band)

 802.11b: 1, 2, 5.5, 11 Mbps

 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)

Direct Sequence Spread Spectrum

BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

 IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

 AES-CCMP: 128 bit in hardware

 802.1x authentication

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 27

QuickSpecs

Summary of Changes

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Network Architecture

Models

Roaming

Output Power

2

Power Consumption

Power Management

Receiver Sensitivity 3

 WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

 WPA2 certification

 IEEE 802.11i

 Cisco Certified Extensions, all versions through CCX4 and CCX

Lite

 WAPI

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

 802.11b : +16dBm minimum

 802.11g : +14dBm minimum

 802.11a : +14dBm minimum

 802.11n HT20(2.4GHz) : +14dBm minimum

 802.11n HT40(2.4GHz) : +12dBm minimum

 802.11n HT20(5GHz) : +14dBm minimum

 802.11n HT40(5GHz) : +12dBm minimum

Transmit: 2.0 W (max)

Receive: 1.6 W (max)

Idle mode (PSP): 180 mW (WLAN Associated)

Idle mode: 50 mW (WLAN unassociated)

Connect Standby: 10 mW (WLAN+BT)

Radio disabled: 5 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

802.11g, 6Mbps : -88dBm maximum

802.11g, 54Mbps : -74dBm maximum

802.11a, 6Mbps : -88dBm maximum

802.11a, 54Mbps : -74dBm maximum

802.11n, MCS07 : -69dBm maximum

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 28

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

802.11n, MCS15 : -66dBm maximum

802.11ac, 1SS, MCS-0 : -86dBm maximum

802.11ac, 1SS, MCS-9 : -61dBm maximum

Antenna type

Form Factor

Dimensions

802.11ac, 2SS, MCS-0 : -83dBm maximum

802.11ac, 2SS, MCS-9 : -58dBm maximum

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

PCI-Express M.2 MiniCard

Type 2230 : 2.3 x 22.0 x 30.0 mm

Or

Type 1630 : 2.3 x 16.0 x 30.0 mm

Weight

Operating Voltage

Temperature

Humidity

Type 2230 : 2.8g

Or

Type 1630 : 2g

3.3v +/- 9%

Operating

Non-operating

Operating

Non-operating

14° to 158° F (–10° to 70° C)

–40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Altitude Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Activity LED Amber – Radio OFF; LED White – Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 29

QuickSpecs

Summary of Changes

Bluetooth Specification

Frequency Band

Number of Available Channels

Data Rates and Throughput

Transmit Power

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

4.0/4.1/4.2 Compliant

2402 to 2480 MHz

Legacy : 0~79 (1 MHz/CH)

BLE : 0~39 (2 MHz/CH)

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps

BLE : 1 Mbps data rate; throughput up to 0.2 Mbps

Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 4 dBm for BR and EDR.

Receiver Sensitivity

Legacy

Power Consumption

Range

Modulation

GFSK

π/4-DQPSK

8DPSK

Peak (Tx) 330 mW

Peak (Rx) 230 mW

Selective Suspend 17 mW

Legacy Up to 33 ft (10 m)

BLE Up to 99 ft (30 m)

0.01% BER

-80 dBm

-80 dBm

-80 dBm

USB 2.0 compliant

Microsoft Windows Bluetooth Software

0.001% BER

-70 dBm

-70 dBm

-70 dBm

Electrical Interface

Bluetooth Software Supported

Link Topology

Electrical Interface

Bluetooth Software Supported

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 30

QuickSpecs

Summary of Changes

Security

Power Management

Certifications

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Security

Certifications

Bluetooth Profiles Supported

Power Management

Certifications

Certifications

Bluetooth Profiles Supported

Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Serial Port Profile (SPP) 1

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN) 1,2

Generic Object Exchange Profile (GOEP) 1,2

Object Push Profile (OPP) 1,2

Hard Copy Cable Replacement (HCRP) 1,2

Personal Area Networking Profile (PAN) 1,2

Human Interface Device Profile (HID) 1,2

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

Audio Video Remote Control Profile (AVRCP)

V4.1: ESR5/6/7 compliant

Bluetooth V4.1/V4.2 support feature

Intel® 802.11a/b/g/n (2x2) and Bluetooth® 4.0 Combo

V4.2: ESR8 compliant, LE Secure Connection – Basic.

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 31

QuickSpecs

Summary of Changes

Wireless LAN

Standards

Interoperability

Frequency Band

Antenna Structure

Data Rates

Modulation

Security 1

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Wi-Fi certified

802.11b/g/n

 2.402 – 2.482 GHz

Note:

The FCC has declared as of January 1, 2015 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.

802.11a

 4.9 – 4.95 GHz (Japan)

 5.15 – 5.25 GHz

 5.25 – 5.35 GHz

 5.47 – 5.725 GHz

 5.825 – 5.850 GHz

Note:

Indonesia only supports 5.725 - 5.825 GHz (CH149 - CH161)

2 transmit; 2 receive (2x2)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

Direct Sequence Spread Spectrum

CCK, BPSK, QPSK, 16-QAM, 64-QAM

 IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

 AES-CCMP: 128 bit in hardware

 802.1x authentication

 WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 32

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

QuickSpecs

Summary of Changes

Sub-channels

Network Architecture

Models

Roaming

Output Power

2

Power Consumption

Power Management

 WPA2 certification

 IEEE 802.11i

 Cisco Certified Extensions, all versions through CCX4 and CCX

Lite

 WAPI

Multinational support with frequency bands and channels compliant to local regulations.

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between band Access Points

 802.11b : +16dBm minimum

 802.11g : +14dBm minimum

 802.11a : +14dBm minimum

 802.11n HT20(2.4GHz) : +13dBm minimum

 802.11n HT40(2.4GHz) : +13dBm minimum

 802.11n HT20(5GHz) : +12dBm minimum

 802.11n HT40(5GHz) : +12dBm minimum

Transmit: 2.0 W (max)

Receive: 1.6 W (max)

Idle mode (PSP): 180 mW (WLAN Associated)

Idle mode: 60 mW (WLAN unassociated)

Radio disabled: 30 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

Antenna type

3 802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

802.11g, 6Mbps : -88dBm maximum

802.11g, 54Mbps : -74dBm maximum

802.11a, 6Mbps : -86dBm maximum

802.11a, 54Mbps : -72dBm maximum

802.11n, MCS07 : -69dBm maximum

802.11n, MCS15 : -66dBm maximum

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO and Bluetooth communications

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 33

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

QuickSpecs

Summary of Changes

Form Factor

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Dimensions

PCI-Express M.2 MiniCard

Type 2230 : 2.3 x 22.0 x 30.0 mm

Or

Type 1630 : 2.3 x 16.0 x 30.0 mm

Weight

Type 2230 : 2.8g

Or

Type 1630 : 2g

3.3v +/- 9%

Operating Voltage

Temperature

Humidity

Operating

Non-operating

Operating

Non-operating

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

10% to 90% (noncondensing)

5% to 95% (non-condensing)

Altitude

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Amber - Radio OFF; LED White - Radio ON

LED Activity

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology

Bluetooth Specification

Frequency Band

Number of Available Channels

Data Rates and Throughput

4.0+EDR Compliant

2402 to 2480 MHz

79 (1 MHz) available channels

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 34

QuickSpecs

Summary of Changes

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Transmit Power

Receiver Sensitivity

Power Consumption

Range

Electrical Interface

Bluetooth Software Supported

Link Topology

Electrical Interface

Bluetooth Software Supported

Security

Power Management

Power Management

Certifications

Security

Certifications

Bluetooth Profiles Supported

Power Management

Certifications

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of +4 dBm for BR and EDR.

Modulation

GFSK

π/4-DQPSK

8DPSK

0.01% BER

-80 dBm

-80 dBm

-80 dBm

0.001% BER

-70 dBm

-70 dBm

-70 dBm

Peak (Tx) 330 mW

Peak (Rx) 230 mW

Selective Suspend 17 mW

Up to 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 35

QuickSpecs

Summary of Changes

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Certifications

Bluetooth Profiles Supported

UL, CSA, and CE Mark

Serial Port Profile (SPP) 1

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN) 1,2

Generic Object Exchange Profile (GOEP) 1,2

Object Push Profile (OPP) 1,2

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP) 1,2

Personal Area Networking Profile (PAN) 1,2

Human Interface Device Profile (HID) 1,2

FAX Profile (FAX)

Basic Imaging Profile (BIP) 2

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

Bluetooth V4.1/V4.2 support feature

V4.2: ESR8 compliant, LE Secure Connection – Basic.

Broadcom 802.11a/b/g/n (2x2) and Bluetooth® 4.0 Combo

Wireless LAN

Standards

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Interoperability

Frequency Band

V4.1: ESR5/6/7 compliant

Wi-Fi certified

802.11b/g/n

 2.402 – 2.482 GHz

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 36

QuickSpecs

Summary of Changes

Antenna Structure

Data Rates

Modulation

Security

1

Sub-channels

Network Architecture

Models

Note:

The FCC has declared as of January 1, 2015 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.

802.11a

 4.9 – 4.95 GHz (Japan)

 5.15 – 5.25 GHz

 5.25 – 5.35 GHz

 5.47 – 5.725 GHz

 5.825 – 5.850 GHz

Note:

Indonesia only supports 5.725 - 5.825 GHz (CH149 - CH161)

2 transmit; 2 receive (2x2)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

Direct Sequence Spread Spectrum

CCK, BPSK, QPSK, 16-QAM, 64-QAM

 IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

 AES-CCMP: 128 bit in hardware

 802.1x authentication

 WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

 WPA2 certification

 IEEE 802.11i

 Cisco Certified Extensions, all versions through CCX4 and CCX

Lite

 WAPI

Multinational support with frequency bands and channels compliant to local regulations.

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 37

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

QuickSpecs

Summary of Changes

Roaming

Output Power

2

Power Consumption

Power Management

IEEE 802.11 compliant roaming between band Access Points

 802.11b : +16dBm minimum

 802.11g : +14dBm minimum

 802.11a : +14dBm minimum

 802.11n HT20(2.4GHz) : +13dBm minimum

 802.11n HT40(2.4GHz) : +13dBm minimum

 802.11n HT20(5GHz) : +12dBm minimum

 802.11n HT40(5GHz) : +12dBm minimum

Transmit: 2.0 W (max)

Receive: 1.6 W (max)

Idle mode (PSP): 180 mW (WLAN Associated)

Idle mode: 60 mW (WLAN unassociated)

Radio disabled: 30 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

Antenna type

Form Factor

Dimensions

Weight

3 802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

802.11g, 6Mbps : -88dBm maximum

802.11g, 54Mbps : -74dBm maximum

802.11a, 6Mbps : -86dBm maximum

802.11a, 54Mbps : -72dBm maximum

802.11n, MCS07 : -69dBm maximum

802.11n, MCS15 : -66dBm maximum

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO and Bluetooth communications

PCI-Express M.2 MiniCard

Type 2230 : 2.3 x 22.0 x 30.0 mm

Or

Type 1630 : 2.3 x 16.0 x 30.0 mm

Type 2230 : 2.8g

Or

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 38

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

QuickSpecs

Summary of Changes

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Operating Voltage

Temperature

Humidity

Type 1630 : 2g

3.3v +/- 9%

Operating

Non-operating

Operating

Non-operating

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

10% to 90% (noncondensing)

5% to 95% (non-condensing)

Altitude

LED Activity

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Amber - Radio OFF; LED White - Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology

Bluetooth Specification

4.0+EDR Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Data Rates and Throughput

79 (1 MHz) available channels

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Transmit Power

Receiver Sensitivity

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of +4 dBm for BR and EDR.

Modulation

GFSK

π/4-DQPSK

0.01% BER

-80 dBm

-80 dBm

0.001% BER

-70 dBm

-70 dBm

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 39

QuickSpecs

Summary of Changes

Power Consumption

8DPSK -80 dBm

Peak (Tx) 330 mW

Peak (Rx) 230 mW

Selective Suspend 17 mW

Up to 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Bluetooth Software

-70 dBm

Range

Electrical Interface

Bluetooth Software Supported

Link Topology

Electrical Interface

Bluetooth Software Supported

Security

Power Management

Power Management

Certifications

Security

Certifications

Bluetooth Profiles Supported

Power Management

Certifications

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Certifications

Bluetooth Profiles Supported

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Serial Port Profile (SPP) 1

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN)

1,2

Generic Object Exchange Profile (GOEP)

1,2

Object Push Profile (OPP)

1,2

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP) 1,2

Personal Area Networking Profile (PAN) 1,2

Human Interface Device Profile (HID) 1,2

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 40

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

Broadcom 802.11b/g/n (1x1) WiFi and Bluetooth® 4.0 Combo

FAX Profile (FAX)

Basic Imaging Profile (BIP) 2

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

Wireless LAN Standards

Interoperability

Frequency Band

Data Rates

Modulation

Security

1

Network Architecture

Models

Roaming

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Wi-Fi certified

802.11b/g/n

 2.402 – 2.482 GHz

Note:

The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 07, (20MHz)

Direct Sequence Spread Spectrum

BPSK, QPSK, CCK, 16-QAM, 64-QAM,

 IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

 AES-CCMP: 128 bit in hardware

 802.1x authentication

 WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

 WPA2 certification

 IEEE 802.11i

 Cisco Certified Extensions, all versions through CCX4 and CCX Lite

 WAPI

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 41

QuickSpecs

Summary of Changes

Output Power

2

Power Consumption

Power Management

Receiver Sensitivity

Antenna type

Form Factor

Dimensions

Weight

3

 802.11b : +16dBm minimum

 802.11g : +14dBm minimum

 802.11n HT20(2.4GHz) : +13dBm minimum

 802.11n HT40(2.4GHz) : +13dBm minimum

 802.11n HT20(5GHz) : +12dBm minimum

 802.11n HT40(5GHz) : +12dBm minimum

Transmit: 2.0 W (max)

Receive: 1.6 W (max)

Idle mode (PSP): 180 mW (WLAN Associated)

Idle mode: 60 mW (WLAN unassociated)

Radio disabled: 30 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

802.11g, 6Mbps : -88dBm maximum

802.11g, 54Mbps : -74dBm maximum

802.11n, MCS07 : -69dBm maximum

802.11n, MCS15 : -66dBm maximum

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded antennas for 2.4GHz are provided to the card to support

WLAN and Bluetooth communications.

(Support Dual antenna or Single antenna, depend on platform requirement)

PCI-Express M.2 MiniCard

Type 2230 : 2.3 x 22.0 x 30.0 mm

Or

Type 1630 : 2.3 x 16.0 x 30.0 mm

Type 2230 : 2.8g

Or

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 42

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

Operating Voltage

Temperature

Humidity

Type 1630 : 2g

3.3v +/- 9%

Operating

Non-operating

Operating

Non-operating

14° to 158° F (–10° to 70° C)

–40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Altitude Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED White – Radio ON

4. Check latest software/driver release for updates on supported security features.

5. Maximum output power may vary by country according to local regulations.

6. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology

4.0+EDR Compliant

Bluetooth Specification

Frequency Band

Number of Available Channels

Data Rates and Throughput

2402 to 2480 MHz

79 (1 MHz) available channels

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Transmit Power

Receiver Sensitivity

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of +4 dBm for BR and EDR.

Modulation 0.01% BER 0.001% BER

GFSK

π/4-DQPSK

8DPSK

-80 dBm

-80 dBm

-80 dBm

-70 dBm

-70 dBm

-70 dBm

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 43

QuickSpecs

Summary of Changes

Power Consumption

Range

Electrical Interface

Bluetooth Software Supported

Link Topology

Electrical Interface

Bluetooth Software Supported

Security

Power Management

Power Management

Certifications

Security

Certifications

Bluetooth Profiles Supported

Power Management

Certifications

Peak (Tx) 330 mW

Peak (Rx) 230 mW

Selective Suspend 17 mW

Up to 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Certifications

Bluetooth Profiles Supported

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Serial Port Profile (SPP)

1

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN)

1,2

Generic Object Exchange Profile (GOEP)

1,2

Object Push Profile (OPP)

1,2

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)

1,2

Personal Area Networking Profile (PAN)

1,2

Human Interface Device Profile (HID)

1,2

FAX Profile (FAX)

Basic Imaging Profile (BIP)

2

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 44

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

QuickSpecs

Summary of Changes

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

Realtek 802.11b/g/n (1x1) Wi-Fi

Wireless LAN Standards

Interoperability

Frequency Band

Data Rates

Modulation

Security 1

Network Architecture

Models

Roaming

Output Power

2

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Wi-Fi certified

802.11b/g/n

 2.402 – 2.482 GHz

Note:

The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 07, (20MHz)

Direct Sequence Spread Spectrum

BPSK, QPSK, CCK, 16-QAM, 64-QAM,

 IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

 AES-CCMP: 128 bit in hardware

 802.1x authentication

 WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

 WPA2 certification

 IEEE 802.11i

 Cisco Certified Extensions, all versions through CCX4 and CCX Lite

 WAPI

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

 802.11b : +16dBm minimum

 802.11g : +14dBm minimum

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 45

QuickSpecs

Summary of Changes

Power Consumption

Power Management

Receiver Sensitivity

Antenna type

Form Factor

Dimensions

Weight

3

 802.11n HT20(2.4GHz) : +13dBm minimum

 802.11n HT40(2.4GHz) : +13dBm minimum

 802.11n HT20(5GHz) : +12dBm minimum

 802.11n HT40(5GHz) : +12dBm minimum

Transmit: 2.0 W (max)

Receive: 1.6 W (max)

Idle mode (PSP): 180 mW (WLAN Associated)

Idle mode: 60 mW (WLAN unassociated)

Radio disabled: 30 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

802.11g, 6Mbps : -88dBm maximum

802.11g, 54Mbps : -74dBm maximum

802.11n, MCS07 : -69dBm maximum

802.11n, MCS15 : -66dBm maximum

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded antennas for 2.4GHz are provided to the card to support

WLAN and Bluetooth communications.

(Support Dual antenna or Single antenna, depend on platform requirement)

PCI-Express M.2 MiniCard

Type 2230 : 2.3 x 22.0 x 30.0 mm

Or

Type 1630 : 2.3 x 16.0 x 30.0 mm

Type 2230 : 2.8g

Or

Type 1630 : 2g

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 46

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

QuickSpecs

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Summary of Changes

Operating Voltage

Temperature

Humidity

Altitude

3.3v +/- 9%

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

14° to 158° F (–10° to 70° C)

–40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Activity LED Amber – Radio OFF; LED White – Radio ON

7. Check latest software/driver release for updates on supported security features.

8. Maximum output power may vary by country according to local regulations.

9. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology

Bluetooth Specification

Frequency Band

4.0+EDR Compliant

Number of Available Channels

Data Rates and Throughput

2402 to 2480 MHz

79 (1 MHz) available channels

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Transmit Power

Receiver Sensitivity

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of +4 dBm for BR and EDR.

Modulation

GFSK

π/4-DQPSK

8DPSK

0.01% BER

-80 dBm

-80 dBm

-80 dBm

0.001% BER

-70 dBm

-70 dBm

-70 dBm

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 47

QuickSpecs

Summary of Changes

Power Consumption

Range

Electrical Interface

Bluetooth Software Supported

Link Topology

Electrical Interface

Bluetooth Software Supported

Security

Power Management

Power Management

Certifications

Security

Certifications

Bluetooth Profiles Supported

Power Management

Certifications

Peak (Tx) 330 mW

Peak (Rx) 230 mW

Selective Suspend 17 mW

Up to 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Certifications

Bluetooth Profiles Supported

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Serial Port Profile (SPP)

1

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN)

1,2

Generic Object Exchange Profile (GOEP)

1,2

Object Push Profile (OPP)

1,2

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)

1,2

Personal Area Networking Profile (PAN)

1,2

Human Interface Device Profile (HID)

1,2

FAX Profile (FAX)

Basic Imaging Profile (BIP)

2

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 48

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

QuickSpecs

Summary of Changes

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

ENVIRONMENTAL

TBD

C

OUNTRY OF

O

RIGIN

China

Type

Docking

Input/Output/Audio

Power

Storage - External Storage

Security

Description

HP 3001pr USB 3.0 Port Replicator

HP 3005pr USB 3.0 Port Replicator

HP Display and Notebook Stand II

Universal Port Replicator

HP UltraSlim Docking Station

HP USB Travel Mouse

HP Ultrathin Wireless Mouse SE

HP Ultrathin Wireless Mouse

HP Stereo USB Headset

DisplayPort to HDMI Adapter

DisplayPort to DVI Adapter

HP 45W Smart AC Adapter (4.5mm)

HP 65W Smart AC Adapter

HP USB External DVDRW Drive

HP UltraSlim Keyed Cable Lock

HP USB Smart Card Reader

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Part Number

F3S42AA

H1L08AA#xxx

E8G00AA#xxx

E6D70AA#xxx

D9Y32AA#xxx

G1K28AA#xxx

L9V77AA

L9V78AA

T1A67AA

F3W43AA

F7W96AA

H6Y88AA#xxx

H6Y89AA#xxx

F2B56AA

H4D73AA

F6V67AA

Page 49

Summary of Changes

QuickSpecs

Display

HP Docking Station Cable Lock

HP ProDisplay P232

HP ProDisplay P222va

HP ProDisplay P222c

HP ProBook 645 G2 Notebook PC

HP ProBook 655 G2 Notebook PC

AU656AA#XXX

K7X31AA

K7X30AA

L4J08AA

Copyright © 2016 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Radeon and Athlon are registered trademarks or trademarks of AMD Corporation in the U.S. and/or other countries. Bluetooth is a trademark owned by its proprietor and used by

Hewlett-Packard Company under license. Microsoft and Windows are either trademarks or registered trademarks of Microsoft

Corporation in the U.S. and other countries. Adobe is a trademark of Adobe Systems Incorporated. ENERGY STAR is a registered mark owned by the U.S. Environmental Protection Agency. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Sound+ is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Not all configuration components are available in all regions/countries.

Americas – HP ProBook 645 & 655 G2 – November 2016 - c04912055

Page 50

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
