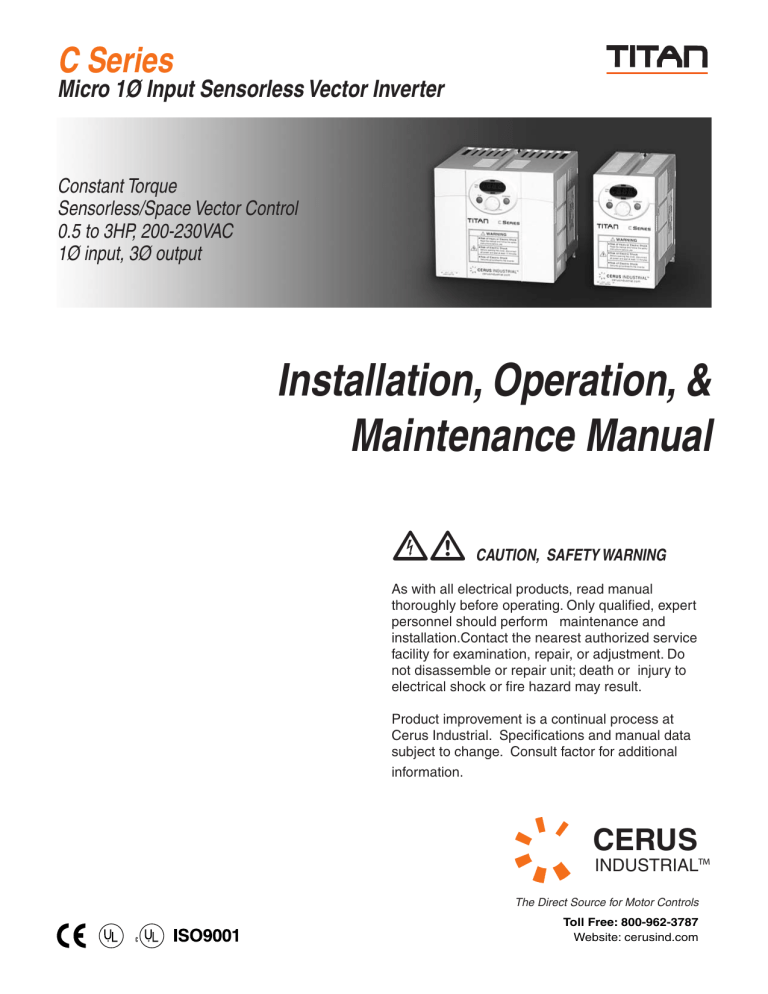

C Series
Micro 1Ø Input Sensorless Vector Inverter
Constant Torque
Sensorless/Space Vector Control
0.5 to 3HP, 200-230VAC
1Ø input, 3Ø output
Installation, Operation, &
Maintenance Manual
 CAUTION, SAFETY WARNING
As with all electrical products, read manual
thoroughly before operating. Only qualified, expert
personnel should perform maintenance and
installation.Contact the nearest authorized service
facility for examination, repair, or adjustment. Do
not disassemble or repair unit; death or injury to
electrical shock or fire hazard may result.
Product improvement is a continual process at
Cerus Industrial. Specifications and manual data
subject to change. Consult factor for additional
information.
�����
�����������
��� ������ ������ ��� ����� ��������
���� ����� ������������
�������� ������������
SAFETY INSTRUCTIONS
„
Always follow safety instructions to prevent accidents and potential hazards from occurring.
„
In this manual, safety messages are classified as follows:
WARNING
CAUTION
„
Improper operation may result in serious personal injury or death.
Improper operation may result in personal injury or property
damage.
Throughout this manual we use the following two illustrations to make you aware of safety considerations:
Identifies potential hazards under certain conditions.
Read the message and follow the instructions carefully.
Identifies shock hazards under certain conditions.
Particular attention should be directed because dangerous voltage may be present.
„
Keep operating instructions handy for quick reference.
„
Read this manual carefully to maximize the performance of C series inverter and ensure its safe use.
WARNING
„
Do not remove the cover while power is applied or the unit is in operation.
Otherwise, electric shock could occur.
„
Do not run the inverter with the front cover removed.
Otherwise, you may get an electric shock due to high voltage terminals or charged capacitor
exposure.
„
Wait at least 10 minutes after disconnecting the input power prior to wiring
and periodic inspection practices. Measure the DC link voltage with a meter
to verify complete discharge (below DC 30V).
Otherwise, you may get an electric shock.
„
Do not touch the drive with wet hands.
Otherwise, you may get an electric shock.
„
Do not use the cables with damaged insulation or the shield.
Otherwise, you may get an electric shock.
„
Do not subject the cables to scratches, excessive stress, heavy loads or
pinching.
Otherwise, you may get an electric shock.
2
5
CAUTION
„
Do not install the drive on a flammable surface. Do not place flammable
material nearby the drive.
Otherwise, fire could occur.
„
Remove the input power from the drive if a hardware failure occurs.
Otherwise, it could result in a secondary accident and fire.
„
The drive surface can emit high temperature. Be cautioned when touching.
Otherwise, you may get a skin-burn.
„
Do not apply power to a damaged inverter or to an inverter with parts
missing even if the installation is complete.
Otherwise, electric shock could occur.
„
Do not allow paper, wood chips, dust, metallic chips or other foreign matter
into the inverter.
Otherwise, fire or accident could occur.
OPERATING PRECAUTIONS
(1) Handling and installation
…
…
…
…
…
…
…
…
…
…
Handle according to the weight of the product.
Do not stack the inverter boxes higher than the number recommended.
Install according to instructions specified in this manual.
Do not open the cover during delivery.
Do not place heavy items on the inverter.
Check the inverter mounting orientation.
Do not drop the inverter, or subject it to impact.
Use the Type 3 grounding method for 200 V Class (Ground impedance: Below 100 ohm).
Take protective measures against ESD (Electrostatic Discharge) before touching the PCB for
inspection or installation.
Use the inverter under the following environmental conditions:
Environment
Surrounding
temperature
Relative
humidity
Storage
temperature
Location
Altitude,
Vibration
-10 ~ 50
(14 ~ 122 ), non-freezing
90% RH or less (non-condensing)
- 20 ~ 65
(-4 ~ 149 )
Protected from corrosive gas, combustible gas, oil mist or
dust
Max. 1,000m (3000 ft) above sea level, Max. 5.9m/sec2
(0.6G) or less
3
(2) Wiring
…
…
…
…
…
…
Do not connect a power factor correction capacitor, surge suppressor, or RFI filter to the output of
the inverter.
The connection orientation of the output cables U, V, W to the motor will affect the direction of
rotation of the motor.
Incorrect terminal wiring could result in the equipment damage.
Reversing the polarity (+/-) of the terminals could damage the inverter.
Only authorized personnel familiar with Cerus inverter should perform wiring and inspections.
Always install the inverter before wiring. Otherwise, you may get an electric shock or have bodily
injury.
(3) Test run
…
…
Check all parameters prior to operation. Changing parameter values might be required depending
on the load.
Always apply permissible range of voltage to the each terminal as indicated in this manual.
Otherwise, it could lead to inverter damage.
(4) Operation precautions
…
…
…
…
…
…
…
…
…
…
…
When the Auto restart function is selected, stay away from the equipment as a motor will restart
suddenly after a fault stop.
The Stop key on the keypad is valid only when the appropriate function setting has been made.
Prepare an emergency stop switch separately.
If a fault reset is made with the reference signal present, a sudden start will occur. Check that the
reference signal is turned off in advance. Otherwise an accident could occur.
Do not modify or alter anything inside the inverter.
Motor might not be protected by electronic thermal function of inverter.
Do not use a magnetic contactor on the inverter input for frequent starting/stopping of the inverter.
Use a noise filter to reduce the effect of electromagnetic interference. Otherwise nearby electronic
equipment may be affected.
In case of input voltage unbalance, install AC reactor. Power Factor capacitors and generators may
become overheated and damaged due to potential high frequency noise transmitted from inverter.
Before operating unit and prior to user programming, reset user parameters to default settings.
Inverter can easily be set to high-speed operations. Verify capability of motor or machinery prior to
operating unit.
Stopping torque is not produced when using the DC-Brake function. Install separate equipment
when stopping torque is needed.
(5) Fault prevention precautions
…
Provide a safety backup such as an emergency brake, which will prevent the machine and
equipment from hazardous conditions if the inverter fails.
(6) Maintenance, inspection and parts replacement
…
…
Do not conduct a megger (insulation resistance) test on the inverter.
Refer to Chapter 13 for periodic inspection (parts replacement).
(7) Disposal
…
Handle the inverter as an industrial waste when disposing of it.
(8) General instructions
…
Many of the diagrams and drawings in this instruction manual show the inverter without a circuit
breaker, a cover or partially open for instructional purpose only. Please place the cover with circuit
breakers and follow this instruction manual when operating the inverter for the safety.
4
Important User Information
The purpose of this manual is to provide the user with the necessary information to install,
program, start up and to maintain the C series inverter.
To assure successful installation and operation, the material presented on this manual must be
thoroughly read and understood before proceeding.
This manual contains…
Chapter
Title
1
2
Basic information
& precautions
Installation
Provides general information and precautions for safe and
optimum use of the C series inverter.
Provides instructions on how to install C series inverter.
3
Wiring
Provides instructions on how to wire the C series inverter.
4
Describes how to connect the optional peripheral devices to
the inverter.
Illustrates keypad features and display.
6
Basic
configuration
Programming
keypad
Basic operation
7
Function list
8
Control block
diagram
Basic functions
Outlines the parameter information of the C series such as
description, type, units, factory defaults, minimum/maximum
setting.
Shows control flow to help users easily understand operation
mode.
Provides information for basic functions in the C series.
5
9
10
11
12
13
14
Advanced
functions
Monitoring
Protective
functions
Troubleshooting
& maintenance
Specifications
Description
Provides instructions for quick start of the inverter.
Indicates advanced functions used for system application.
Gives information on the operating status and fault
information.
Outlines protective functions of the C series.
Defines the various inverter faults and the appropriate action
to take as well as general troubleshooting information.
Gives information on Input/Output rating, control type and
more details of the C series inverter.
5
Table of Contents
Table of Contents
i
Safety Instructions
5
1.
Basic information and precautions
9
1.1
1.2
1.3
9
10
11
2.
3.
4.
Installation
12
2.1
2.2
12
15
Installation precautions
Dimensions
Wiring
17
3.1
3.2
3.3
3.4
17
18
20
Terminal wiring
Specifications for power terminal block wiring
I/O terminal block specification
PNP/NPN selection and connector for
communication option
21
Basic configuration
23
4.1
4.2
23
4.3
5.
Important precautions
Product Details
Removal and reinstallation
Connection of peripheral devices to the inverter
Recommended MCCB, Earth leakage circuit breaker
(ELB) and Magnetic contactor specification
Recommendable AC/DC Reactor
24
24
Programming Keypad
25
5.1
5.2
5.3
5.4
5.5
5.6
25
26
27
29
31
34
Keypad features
Alpha-numeric view on the LED keypad
Moving to other groups
How to change the codes in a group
Parameter setting method
Monitoring of operation status
6
Table of Contents
6.
7.
8.
9.
Basic operation
39
6.1
39
Frequency Setting and Basic Operation
Function list
43
7.1
7.2
7.3
7.4
Drive Group
Function Group 2
Function Group 2
I/O Group
43
44
48
53
Control block diagram
57
8.1
8.2
58
59
Frequency and Drive mode setting
Accel/Decel setting and V/F control
Basic Functions
60
9.1
9.2
9.3
9.4
9.5
9.6
9.7
60
65
66
70
75
76
77
Frequency mode
Multi-Step frequency setting
Run Command setting
Accel/Decel time and unit setting
V/F control
Stop mode select
Frequency limit setting
10. Advanced functions
79
10.1 DC brake
10.2 Jog operation
10.3 Up-Down operation
10.4 3-Wire Operation
10.5 Dwell operation
10.6 Slip compensation
10.7 PID Control
10.8 Auto tuning
10.9 Sensorless vector control
10.10 Energy-saving operation
10.11 Speed Search
10.12 Auto restart try
10.13 Carrier frequency select
10.14 Second motor operation
10.15 Parameter initialize & Lock
7
79
81
82
83
84
85
87
89
90
91
92
94
95
95
96
Table of Contents
11. Monitoring
11.1
11.2
11.3
11.4
11.5
100
Operating status monitoring
Monitoring the I/O terminal
Monitoring fault condition
Analog Output
Multi-function output terminal (MO)
and Relay (30AC)
12. Protective functions
12.1
12.2
12.3
12.4
12.5
12.6
12.7
105
110
Electronic Thermal
Overload Warning and trip
Stall prevention
Output phase loss protection
External trip signal
Inverter Overload
Frequency command loss
13. Troubleshooting & Maintenance
13.1
13.2
13.3
13.4
13.5
100
102
103
104
Protective functions
Fault Remedy
Precautions for maintenance and inspection
Check points
Part replacements
14. Specifications
110
111
112
114
114
115
115
117
117
119
121
121
121
122
14.1 Technical data
14.2 Temperature Derating Information
DECLARATION OF CONFORMITY
8
122
123
124
Chapter 1. Basic information & precautions
1. Basic information and precautions
1.1 Important precautions
Unpacking
and inspection
Inspect the inverter for any damage that may have occurred during shipping. To verify
the inverter unit is the correct one for the application you need, check the inverter
type, output ratings on the nameplate and the inverter is intact.
Inverter Type
Input power Rating
Output Power Rating
Inverter Capacity (HP)
Bar Code
Serial Number
Type of the inverter
CI
001
-
Motor rating
CERUS
Inverter
Preparations
of instruments
and
parts
required
for
operation
Installation
Wiring
-
001
0.4 [kW]
002
0.75 [kW]
003
1.5 [kW]
004
2.2 [kW]
C2
-
1P
Series Name
-
C series inverter
(200V)
-
Single Phase
Accessories
If you have found any discrepancy, damage, etc., contact your sales representative.
Instruments and parts to be prepared depend on how the inverter is operated. Prepare
equipment and parts as necessary.
To operate the inverter with high performance for a long time, install the inverter in a
proper place in the correct direction and with proper clearances (Refer to Installation
section 2-1).
Connect the power supply, motor and operation signals (control signals) to the
terminal block. Note that incorrect connection may damage the inverter and peripheral
devices (Refer to Wiring section 3-1).
9
Chapter 1. Basic information & precautions
1.2 Product Details
1.2.1 Appearance
Keypad
Status LED
Potentiometer
Display Window
STOP/RST
Front Cover:
Remove
it
Button
when
wiring and changing
Body slot: When front
parameter setting.
cover is pulled back till
this line and lifted up, it
Bottom
Cover:
Remove
wiring
it
when
input
power
can be removed from
main body. See Page 1-3
and motor.
Inverter Nameplate
1.2.2 View without the front cover
Refer to section 1-3 for front cover removal.
RUN Button
4-Way button for
parameter setting
(Up/Down/Left/Right key)
NPN/PNP
Select Switch
Analog
Input/Output
Terminal
Inverter Ground Terminal
Caution: Remove the
bottom cover to access
the terminal.
10
Chapter 1. Basic information & precautions
1.3 Removal and reinstallation
1.3.1 Removal of the front cover
z
To change parameter setting: Press the pattern with a finger slightly as 1) and
push it downward as 2). Then 4-way button will appear. Use this button for
parameter setting and changing the value.
1)
2)
Side slot
1. Press here gently
4-Way Button
2. Push it down
z
Removal for wiring: The method is the same as shown in 1. Hold both sides of the
cover and lift upward to completely remove from the main body.
1)
2)
Parallel!
2. Hold both
sides of this
part
1. Push down the
cover until cover
top matches the
side slot.
11
3. Lift it up to
remove.
Chapter 1. Basic information & precautions
z
Removal for wiring input power and terminals: After removing the front cover, lift
the bottom cover up to disconnect.
Note: Input
Power Terminals
name is labeled
here.
z
To access control terminals: after finishing power terminal wiring, reinstall the
bottom cover and then start wiring control terminals.
z
Note : Use the recommended size of the cable as indicated in this manual ONLY.
Using larger size cable may lead to mis-wiring or damage the insulation.
Note: Control
Terminals name
is labeled here.
12
Chapter 2. Installation
2.1 Installation precautions
CAUTION
z
Handle the inverter with care to prevent damage to the plastic components. Do not hold the inverter by
the front cover. It may fall off.
z Install the inverter in a place where it is immune to vibration (5.9 m/s2 or less).
The inverter is under great influence of ambient temperature
z Install in a location where temperature is within the permissible range (14~122°F/-10~50°C).
Maximum Surrounding Air Temperature is 50°C (122°F) without de-rating.
5cm
5cm
1.97 in
1.97 in
1.97 in
5cm
<Ambient Temp Checking Location>
z
z
The inverter will be very hot during operation. Install it on a non-combustible surface.
Mount the inverter on a flat, vertical and level surface. Inverter orientation must be vertical (top up) for
proper heat dissipation. Also leave sufficient clearances around the inverter.
3.94 in
1.97 in
5cm
3.94 in
Min
10cm Min
1.97 in
Leave space enough to
allow cooling air to flow
easily between wiring
duct and the unit
Cooling air
5cm
Min
Ventilating fan
10cm Min
z
z
Protect from moisture and direct sunlight.
Do not install the inverter in any environment where it is exposed to water drops, oil mist, dust, etc.
Install the inverter in a clean place or inside a “totally enclosed” panel, which does not accept any
suspended matter.
13
Chapter 2. Installation
z
When two or more inverters are installed or a ventilation fan is mounted in inverter panel, the inverters and
ventilation fan must be installed in proper positions with extreme care taken to keep the ambient
temperature of the inverters below the permissible value. If they are installed in improper positions, the
ambient temperature of the inverters will rise and ventilation effect will be reduced.
z
Install the inverter using screws or bolts to insure the inverter is firmly fastened.
< For installing multiple inverters in panel>
Heat
(NG)
Note : Take caution on proper heat ventillation when installing inverters and fan in a panel.
Air flow
14
Chapter 2. Installation
2.2 Dimensions
z
0.4, 0.75 kW (1/2~1 HP)
W
H
D
mm (inch)
Dimension
CI-000-C2-1P
CI-001-C2-1P
CI-002-C2-1P
CI-003-C2-1P
W
79 (3.11)
79 (3.11)
156(6.14)
156(6.14)
H
143(5.63)
143(5.63)
143(5.63)
143(5.63)
D
143(5.63)
143(5.63)
143(5.63)
143(5.63)
Weight
Kg (lbs)
0.95(2.09)
0.97(2.14)
1.94(4.28)
2(4.41)
15
Chapter 2. Installation
z
1.5, 2.2 kW (2~3HP)
W
H
D
mm (inch)
Dimension
CI-000-C2-1P
CI-001-C2-1P
CI-002-C2-1P
CI-003-C2-1P
W
79 (3.11)
79 (3.11)
156(6.14)
156(6.14)
H
143(5.63)
143(5.63)
143(5.63)
143(5.63)
D
143(5.63)
143(5.63)
143(5.63)
143(5.63)
Weight
Kg (lbs)
0.95(2.09)
0.97(2.14)
1.94(4.28)
2(4.41)
16
Chapter 3. Wiring
3. Wiring
3.1 Terminal wiring
P4 P5 VR V1 CM I AM
30A 30B 30C
Terminal
P2
P3
P4
Features
Multifunction
input
terminal
12V power supply for potentiometer
V1
0-10V Analog Input
0-20mA Analog Input
Common Terminal for P1-P5, AM, P24
CM
Multi-function Analog output terminal (0 ~ 10V)
Common terminal for AM terminal
MO
Multi-function open collector output terminal
30A
30B
Ground T/M for MO
A contact output
Multi-function relay
B contact output
output terminal
30C
30A 30B Common
AC line
voltage
input
P
P
P1
JOG: Jog operation
VR
EXTG
Common
bar
BX: Emergency stop
24V power for P1-P5
AM
L2
RX: Reverse run
P24
I
CM
L1
FX: Forward run
RST: Fault reset
P5
Single phase AC
input
200V ~ 230V
Default setting
P1
MO EXTG P24 P1 P2 CM P3
Terminal
for
Inverter
DC P/S
P1
L1
U
V
L2
W
N
U
Motor
V
N
Terminal
for
motor
CLASS B
EMI FILTER
(Option)
W
G
Earth
Ground
17
Chapter 3. Wiring
3.2 Specifications for power terminal block wiring
CI-000-C2-1P
L1
L2
CI-001-C2-1P
P
P1
CI-002-C2-1P
N
L1
U
CI-003-C2-1P
V
L2
P
P1
N
U
V
Input wire size
Output wire
2mm2
2mm2
2mm2
2mm2
3.5mm2
3.5mm2
3.5mm2
3.5mm2
Ground Wire
2mm2
2mm2
3.5mm2
3.5mm2
Terminal Lug
2mm2 ,3.5 φ
2mm2 ,3.5 φ
3.5mm2 ,3.5 φ
3.5mm2,3.5 φ
13kgf cm
13kgf cm
15kgf cm
15kgf cm
Tightening
Torque
W
W
CAUTION
z
z
z
z
z
z
z
Make sure the input power is off before wiring.
When power supply is switched off following operation, wait at least 10
minutes after LED keypad display is off before you start working on it. If
tester is available, check the voltage between P1 and N terminals. Wiring
should be performed after verifying that input voltage in inverter DC circuitry
is all exhausted.
Applying input power supply to the output terminals U, V and W causes
internal inverter damage.
Use ring terminals with insulated caps when wiring the input power and motor
wiring.
Do not leave wire fragments inside the inverter. Wire fragments can cause
faults, breakdowns and malfunctions.
Never short P1 or P and N terminals. Shorting terminals may cause internal
inverter damage.
Do not install a power factor capacitor, surge suppressor or RFI filters in the
output side of the inverter. Doing so may damage these components.
18
Chapter 3. Wiring
WARNING
z
z
Use the Type 3 grounding method (Ground impedance: Below 100ohm).
Use the dedicated ground terminal to ground the inverter. Do not use the
screw in the case or chassis, etc. for grounding.
Dedicated
Terminal
Ground
Dedicated
Terminal
Ground
Note: Remove front and bottom cover before starting grounding.
Caution: Follow the specifications below when grounding the inverter.
Model
CI-000-C2-1P, CI-001-C2-1P
CI-002-C2-1P, CI-003-C2-1P
Wire size
2mm2
2mm2
Lug
2mm2, 3φ
2mm2, 3φ
Ground
impedance
Below 100 ohm
Below 100 ohm
19
Chapter 3. Wiring
3.3 I/O terminal block specification
Terminal
P1/P2/P3
P4/P5
Terminal Description
Multi-function input T/M P1-P5
Wire size
22 AWG, 0.3 mm2
Torque (Nm)
0.4
CM
Common Terminal for P1-P5,
AM, P24
12V power supply for external
potentiometer
0-10V Analog Voltage input
22 AWG, 0.3 mm2
0.4
22 AWG, 0.3 mm2
0.4
22 AWG, 0.3 mm2
0.4
2
VR
V1
I
0-20mA Analog Current input
22 AWG, 0.3 mm
0.4
AM
Multi-function Analog output
22 AWG, 0.3 mm2
0.4
MO
Multi-function open collector
output T/M
Ground T/M for MO
20 AWG, 0.5 mm2
0.4
20 AWG, 0.5 mm2
0.4
2
EXTG
P24
24V Power Supply for P1-P5
20 AWG, 0.5 mm
0.4
30A
Multi-function relay A/B
contact output
20 AWG, 0.5 mm2
0.4
20 AWG, 0.5 mm2
0.4
20 AWG, 0.5 mm2
0.4
30B
30C
30A, B Common
Note
Note: Tie the control wires more than 15cm (6 in) away from the control terminals. Otherwise, it
interferes with front cover reinstallation.
Note: When you use external power supply for multi-function input terminal (P1~P5), apply voltage
more than 12V to activate.
20
Chapter 3. Wiring
3.4 PNP/NPN selection and connector for communication option
S4
1. When using P24
[NPN]
24X
24I
CM
Resistor
FX
Resistor
CPU
Resistor
CM
CM
S4
2. When using 24V
external power
24X
24I
CM
Resistor
supply [PNP]
FX
Resistor
CPU
Resistor
CM
CM
2. Communication Option
Card Connector: Install
Communication option card
here.
Note: MODBUS RTU option card is available for C series. Refer to C series MODBUS RTU option manual for
more details.
21
Chapter 3. Wiring
Notes:
22
Chapter 4 - Basic configuration
4.1
Connection of peripheral devices to the inverter
The following devices are required to operate the inverter. Proper peripheral devices must be selected and
correct connections made to ensure proper operation. An incorrectly applied or installed inverter can result
in system malfunction or reduction in product life as well as component damage. You must read and
understand this manual thoroughly before proceeding.
AC Supply Source
MCCB
or
leakage
breaker (ELB)
Use the power supply within the
permissible range of inverter input power
rating. (See Error! Reference source
not found.. Specifications)
Earth Select circuit breakers with care. A large
circuit inrush current may flow in the inverter at
power on.
Magnetic Contactor
Install it if necessary. When installed, do
not use it for the purpose of starting or
stopping. Otherwise, it could lead to
reduction in product life.
AC/DC Reactors
The reactors must be used when the
power factor is to be improved or the
inverter is installed near a large power
supply system (1000kVA or more and
wiring distance within 10m)
Installation and wiring
To operate the inverter with high
performance for a long time, install the
inverter in a proper place in the correct
direction and with proper clearances.
Incorrect terminal wiring could result in
the equipment damage.
To motor
Do not connect a power factor capacitor,
surge suppressor or radio noise filter to
the output side of the inverter.
23
Chapter 4 - Basic configuration
4.2
4.3
Recommended MCCB, Earth leakage circuit breaker (ELB) and Magnetic contactor
specification
Model
MCCB/
ELB(LG)
Magnetic
Contactor
CI-000-C2-1P
CRS33b, EBS333
CRC-12
CI-001-C2-1P
CRS33b, EBS333
CRC-18
CI-002-C2-1P
CRS33b, EBS333
CRC-25
CI-003-C2-1P
CRS33b, EBS333
CRC-32
Note
Recommendable AC/DC Reactor
Model
AC input fuse
AC reactor
DC reactor
CI-000-C2-1P
10A
2.13mH, 5.7A
7.00mH, 5.4A
CI-001-C2-1P
20A
1.20mH, 10A
4.05mH, 9.2A
CI-002-C2-1P
30A
0.88mH, 14A
2.92mH, 13 A
CI-003-C2-1P
40A
0.56mH, 20A
1.98mH, 19 A
24
Chapter 5. Programming keypad
5. Programming Keypad
5.1 Keypad features
Display
z
FWD/REV LED
z
7 Segment LED
Buttons
z
RUN
z
STOP/RST
z
4-WAY BUTTON
z
Potentiometer
Display
Blinks when a fault occurs
FWD
Lit steadily during forward run
REV
Lit steadily during reverse run
7-Segment
(LED Display)
Displays operation status and parameter information
Keys
RUN
Used to give a run command
STOP/RST
STOP: Stop the operation RST: Reset faults
4-WAY BUTTON
Programming keys (UP/Down/Left/Right arrow and Prog/Ent keys)
S
UP
Used to scroll through codes or increase parameter value
T
Down
Used to scroll through codes or decrease parameter value
W
Left
X
Right
Used to jump to other parameter groups or move a cursor to the left to change
the parameter value
Used to jump to other parameter groups or move cursor to the right to change
the parameter value
Used to set the parameter value or save the changed parameter value
z
Prog/Ent
key
Potentiometer
Used to change the value of run frequency
25
Chapter 5. Programming keypad
5.2 Alpha-numeric view on the LED keypad
0
A
K
U
1
B
L
V
2
C
M
W
3
D
N
X
4
E
O
Y
5
F
P
Z
6
G
Q
7
H
R
8
I
S
9
J
T
26
Chapter 5. Programming keypad
5.3 Moving to other groups
z
There are 4 different parameter groups as shown below.
Drive group
Function
group 1
Function
group 2
I/O group
Drive group
Function group 1
Function group 2
I/O (Input/Output)
group
z
Basic parameters necessary for the inverter to run. Parameters such
as Target frequency and Accel/Decel time are settable.
Basic function parameters to adjust output frequency and voltage.
Advanced function parameters to set parameters for such as PID
Operation and second motor operation.
Parameters necessary to make up a sequence using Multi-function
input/output terminal.
Moving to other parameter groups is only available in the first code of each group as
the figure shown below.
Moving to other groups using the Right (X) key
Moving to other groups using the Left (W) key
*
*
Drive group
Drive group
Function
group 1
I/O group
Function
group 1
I/O group
Function
group 2
Function
group 2
* Target frequency can be set at 0.0 (the 1
st
code of drive group). Even though the preset value is 0.0, it is user-settable.
The changed frequency will be displayed after it is changed.
27
Chapter 5. Programming keypad
z
How to move to other groups at the 1st code of each group.
1
-. The 1st code in Drive group “0.0” will be displayed when AC input power is
applied.
-. Press the right arrow (X) key once to go to Function group 1.
2
-. The 1st code in Function group 1 “F 0” will be displayed.
-. Press the right arrow (X) key once to go to Function group 2.
3
-. The 1st code in Function group 2 “H 0” will be displayed.
-. Press the right arrow (X) key once to go to I/O group.
4
-. The 1st code in I/O group “I 0” will be displayed.
-. Press the right arrow (X) key once again to return to Drive group.
5
-. Return to the 1st code in Drive group “0.0”.
♣ If the left arrow key (W) is used, the above will be executed in the reverse order.
z
How to move to other groups from any codes other than the 1st code
Pressing
left
or
right arrow key in
any code will return
to
first
code
of
each group.
Drive group
Function
group 2
Function
group 1
When you would like to move from the F 15 to function group 2
1
-. In F 15, press the Left (W) or Right arrow (X) key. Pressing the key goes to the
first code of the group.
2
-. The 1st code in function group 1 “F 0” is displayed.
-. Press the right arrow (X) key.
3
-. The 1st code in function group 2 “H 0” will be displayed.
28
Chapter 5. Programming keypad
5.4 How to change the codes in a group
z
Code change in Drive group
-. In the 1st code in Drive group “0.0”,
press the Up (S) key once.
1
-. The 2nd code in Drive group “ACC” is
displayed.
-. Press the Up (S) key once.
-. The 3rd code “dEC” in Drive group is
displayed.
-. Keep pressing the Up (S) key until the
last code appears.
2
3
Drive group
4
-. The last code in Drive group “drC” is
displayed.
-. Press the Up (S) key again.
5
-. Return to the first code of Drive group.
♣ Use Down (T) key for the opposite order.
z
Code change in Function group 1
When moving from the “F 0” to the “F 15” directly
Function
group 1
1
-. Press the Prog/Ent (z) key in “F 0”.
2
-. 1 (the code number of F1) is displayed. Use
the Up (S) key to set to 5.
3
-. “05” is displayed by pressing the Left (W)
key once to move the cursor to the left. The
numeral having a cursor is displayed brighter.
In this case, 0 is active.
-. Use the Up (S) key to set to 1.
4
-. 15 is set.
-. Press the Prog/Ent (z) key once.
5
-. Moving to F 15 has been complete.
♣ Function group 2 and I/O group are settable with the same
setting.
29
Chapter 5. Programming keypad
z
For changing code from any codes other than F 0
When moving from F 1 to F 15 in Function group 1.
1
-. In F 1, continue pressing the Up (S) key
until F15 is displayed.
2
-. Moving to F15 has been complete.
♣ The same rule applies to Function group 2 and I/O group.
♣ Note: Some codes will be skipped in the middle of increment (S)/decrement (T) for code change.
That is because it is programmed that some codes are intentionally left blank for future use or the
codes user does not use are invisible. For example, when F23 [High/low frequency limit select] is set to
“O (No) ”, F24 [High frequency limit] and F23 [Low frequency limit] are not displayed during code
change. But When F23 is set to “1(Yes)”, F23 and F24 will appear on the display.
30
Chapter 5. Programming keypad
5.5 Parameter setting method
z
Changing parameter value in Drive group
When changing ACC time from 5.0 sec to 16.0
Drive group
1
-. In the first code “0.0”, press the Up (S) key once to go to the second code.
2
-. ACC [Accel time] is displayed.
-. Press the Prog/Ent key (z) once.
3
-. Preset value is 5.0, and the cursor is in the digit 0.
-. Press the Left (W) key once to move the cursor to the left.
4
-. The digit 5 in 5.0 is active. Then press the Up (S) key once.
5
-. The value is increased to 6.0
-. Press the Left (W) key to move the cursor to the left.
6
-. 0.60 is displayed. The first 0 in 0.60 is active.
-. Press the Up (S) key once.
7
-. 16.0 is set.
-. Press the Prog/Ent (z) key once.
-. 16.0 is blinking.
-. Press the Prog/Ent (z) key once again to return to the parameter name.
8
-. ACC is displayed. Accel time is changed from 5.0 to 16.0 sec.
♣ In step 7, pressing the Left (W) or Right (X) key while 16.0 is blinking will disable the
setting.
Note) Pressing the Left (W)/ Right (X) /Up (S) /Down (T) key while cursor is blinking will cancel the parameter
value change.
31
Chapter 5. Programming keypad
When changing run frequency to 30.05 Hz in Drive group
Drive group
1
-. In “0.0”, press the Prog/Ent (z) key once.
2
-. The second 0 in 0.0 is active.
-. Press the Right (X) key once to move the cursor to the right.
3
-. 0.00 is displayed
-. Press the Up (S) key until 5 is displayed.
4
-. Press the Left (W) key once.
5
-. The middle digit in 0.05 is active.
-. Press the Left (W) key once.
6
-. Press the Left (W) key once.
7
8
9
-. 00.0 is displayed with the first 0 active, but the actual value 0.05 remains
unchanged.
-. Press the Up (S) key to set to 3.
-. Press the Prog/Ent (z) key once.
-. 30.0 is blinking.
-. Press the Prog/Ent (z) key once.
-. Run frequency is set to 30.0 when the blinking stops.
♣ Three digit LED display is provided. However, digit expansion is available using the
Left(W)/Right(X) key for parameter setting and monitoring.
♣ In step 8, pressing the Left (W) or Right (X) key while 30.0 is blinking will disable the
setting.
32
Chapter 5. Programming keypad
z
Changing parameter values in Function 1, 2 and I/O group
When changing the parameter value of F 27 from 2 to 5
Function
group 1
1
-. In F0, press the Prog/Ent (z) key once.
2
-. Check the present code number.
-. Increase the value to 7 by pressing the Up (S) key.
3
-. When 7 is set, press the Left (W) key once.
4
-. 0 in 07 is active.
-. Increase the value to 2 by pressing the Up (S) key.
5
-. 27 is displayed
-. Press the Prog/Ent (z) key once.
6
-. The parameter number F27 is displayed.
-. Press the Prog/Ent (z) key once to check the set value.
7
-. The set value is 0.
-. Increase the value to 1 by pressing the Up (S) key.
8
-. Press the Prog/Ent (z) key once.
9
-. F27 is displayed after 5 stops blinking. Changing parameter value has been
complete.
-. Press the either Left (W) or Right (X) key once to go to the first code.
10
-. Return to F0.
♣ The above setting is also applied to change parameter values in function group 2 and I/O
group.
33
Chapter 5. Programming keypad
5.6 Monitoring of operation status
Monitoring output current in Drive group
Drive group
1
-. In [0.0], continue pressing the Up (S) or Down (T) key until [Cur] is displayed.
2
-. Monitoring output current is provided in this parameter.
-. Press the Prog/Ent (z) key once to check the current.
3
-. Present output current is 5.0 A.
-. Press the Prog/Ent (z) key once to return to the parameter name.
4
-. Return to the output current monitoring code.
♣ Other parameters in Drive group such as dCL (Inverter DC link current) or vOL (Inverter output
voltage) can be monitored via the same method.
34
Chapter 5. Programming keypad
How to monitor Motor rpm in Drive group when the motor is rotating in 1730 rpm.
Drive group
1
-. Present run frequency can be monitored in the first code of Function group 1.
The preset frequency is 57.6Hz.
-. Continue pressing the Up (S) /Down (T) key until rPM is displayed.
2
-. Motor rpm can be monitored in this code.
-. Press the Prog/Ent (z) key once.
3
-. Last three digits 730 in 1730 rpm is shown on the LED.
-. Press the Left (W) key once.
4
-. First three digits 173 in 1730 rpm are shown on the LED.
-. Press the Prog/Ent (z) key once.
5
-. Return to the rPM code.
35
Chapter 5. Programming keypad
How to monitor fault condition in Drive group
During
Accel
Overcurrent
trip
Current
Frequency
Drive group
STOP/RST
1
-. This message appears when an Overcurrent fault occurs.
-. Press the Prog/Ent (z) key once.
2
-. The run frequency at the time of fault (30.0) is displayed.
-. Press the Up (S) key once.
3
-. The output current at the time of fault is displayed.
-. Press the Up (S) key once.
4
-. Operating status is displayed. A fault occurred during acceleration.
-. Press the STOP/RST key once.
5
-. A fault condition is cleared and “nOn” is displayed.
When more than one fault occur at the same time,
-. Maximum three faults information is displayed
as shown left.
Motor
overheating
Over
voltage
Over
current
Drive group
36
Chapter 5. Programming keypad
Parameter initialize
z
How to initialize parameters of all four groups in H93
Function
group 2
1
-. In H0, press the Prog/Ent (z) key once.
2
-. Code number of H0 is displayed.
-. Increase the value to 3 by pressing the Up (S) key.
3
-. In 3, press the Left (W) key once to move the cursor to the left.
4
-. 03 is displayed. 0 in 03 is active.
-. Increase the value to 9 by pressing the Up (S) key.
5
-. 93 is set.
-. Press the Prog/Ent (z) key once.
6
-. The parameter number is displayed.
-. Press the Prog/Ent (z) key once.
7
-. Present setting is 0.
-. Press the Up (S) key once to set to 1 to activate parameter initialize.
8
-. Press the Prog/Ent (z) key once.
9
-. Return to the parameter number after blinking. Parameter initialize has been
complete.
-. Press the either Left (W) or Right (X) key.
10
-. Return to H0.
37
Chapter 5. Programming keypad
Note:
38
Chapter 6. Basic operation
CHAPTER 6 6.1
Basic operation
Frequency Setting and Basic Operation
Caution : The following instructions are given based on the fact that all parameters are set to factory
defaults. Results could be different if parameter values are changed. In this case, initialize parameter values
(see page 10-17) back to factory defaults and follow the instructions below.
Frequency Setting via keypad & operating via terminals
1
-. Apply AC input power to the inverter.
2
-. When 0.0 appears, press the Prog/Ent (z) key once.
-. The second digit in 0.0 is lit as shown left.
-. Press the Left (W) key twice.
-. 00.0 is displayed and the first 0 is lit.
-. Press the Up (S) key.
-. 10.0 is set. Press the Prog/Ent (z) key once.
-. 10.0 is blinking. Press the Prog/Ent (z) key once.
-. Run frequency is set to 10.0 Hz when the blinking stops.
-. Turn on the switch between P1 (FX) and CM terminals.
-. FWD (Forward run) lamp begins to blink and accelerating frequency is displayed on the
LED.
-. When target run frequency 10Hz is reached, 10.0 is displayed.
-. Turn off the switch between P1 (FX) and CM terminals.
-. FWD lamp begins to blink and decelerating frequency is displayed on the LED.
-. When run frequency is reached to 0Hz, FWD lamp is turned off and 10.0 is displayed.
3
4
5
6
7
8
L1(R)
U
L2(S)
V
W
220VAC
10 Hz
Motor
P
Freq.
P1
N
P1(FX)
G
CM
P1(FX)-CM
Wiring
ON
Operating pattern
39
OFF
Chapter 6. Basic operation
Frequency Setting via potentiometer & operating via terminals
1
-. Apply AC input power to the inverter.
2
-. When 0.0 appears Press the Up (S) key four times.
-. Frq is displayed. Frequency setting mode is selectable.
-. Press the Prog/Ent (z) key once.
-. Present setting method is set to 0 (frequency setting via keypad).
-. Press the Up (S) key twice.
3
4
-. After 2 (Frequency setting via potentiometer) is set, press the Prog/Ent (z) key once.
5
-. Frq is redisplayed after 2 stops blinking.
-. Turn the potentiometer to set to 10.0 Hz in either Max or Min direction.
-. Turn on the switch between P1 (FX) and CM (See Wiring below).
-. FWD lamp begins to blink and the accelerating frequency is displayed on the LED.
-. When run frequency 10Hz is reached, the value is displayed as shown left.
-. Turn off the switch between P1 (FX) and CM terminals.
-. FWD lamp begins to blink and the decelerating frequency is displayed on the LED.
-. When the run frequency is reached to 0 Hz, FWD lamp is turned off and 10.0 is
displayed as shown left.
6
7
8
MIN
L1(R)
220VAC
L2(S)
MAX
10 Hz
U
V
Àüµ¿±â
W
Freq.
P
P1
P1(FX)-CM
N
P1(FX)
G
CM
Wiring
ON
Operating pattern
40
OFF
Chapter 6. Basic operation
Frequency setting via potentiometer & operating via the Run key
1
-. Apply AC input power to the inverter.
2
-. When 0.0 is displayed, press the Up (S) key three times.
-. drv is displayed. Operating method is selectable.
-. Press the Prog/Ent (z) key.
-. Check the present operating method (“1” is run via control terminal)
-. Press the Prog/Ent (z) key and then Down (T) key once.
3
4
5
-. After setting “0”, press the Prog/Ent (z) key.
-. “drv” is displayed after “0” is blinking. Operation method is set via the Run key on the
keypad.
-. Press the Up (S) key once.
-. Different frequency setting method is selectable in this code.
-. Press the Prog/Ent (z) key.
-. Check the present frequency setting method (“0” is run via keypad).
-. Press the Up (S) key twice.
6
7
8
-. After checking “2” (frequency setting via potentiometer), press the Prog/Ent (z) key.
9
-. “Frq” is displayed after “2” is blinking. Frequency setting is set via the potentiometer on
the keypad.
-. Turn the potentiometer to set to 10.0 Hz in either Max or Min direction.
-. Press the Run key on the keypad.
-. FWD lamp begins to blink and accelerating frequency is displayed on the LED.
-. When run frequency 10Hz is reached, 10.0 is displayed as shown left.
-. Press the STOP/RST key.
-. FWD lamp begins to blink and decelerating frequency is displayed on the LED.
-. When run frequency is reached to 0Hz, FWD lamp is turned off and 10.0 is displayed as
shown left.
10
11
12
L1(R)
220VAC
L2(S)
10 Hz
U
V
Motor
W
P
RUN
P1
STOP/RST
Freq.
Run key
N
G
MIN
MAX
Wiring
STOP/RST key
Operating pattern
41
Chapter 6. Basic operation
Notes:
42
Chapter 7. Function list
CHAPTER 7 -
Function list
Drive Group
LED
display
0.0
Parameter
name
[Frequency
command]
Min/Max
range
0/400
[Hz]
ACC
dEC
Drv
[Accel time]
[Decel time]
[Drive mode]
(Run/Stop
mode)
0/6000
[sec]
[Frequency
mode]
0/8
Frq
St1
St2
St3
CUr
rPM
dCL
vOL
[Multi-Step
frequency 1]
[Multi-Step
frequency 2]
[Multi-Step
frequency 3]
[Output
current]
[Motor RPM]
0/3
0/400
[Hz]
[Inverter DC
link voltage]
[User display
select]
nOn
[Fault Display]
drC
[Direction
of
motor rotation
select]
F/r
Description
ƒ
This parameter sets the frequency that
the inverter is commanded to output.
ƒ
During Stop: Frequency Command
ƒ
During Run: Output Frequency
ƒ
During Multi-step operation: Multi-step
frequency 0.
ƒ
It cannot be set greater than F21- [Max
frequency].
ƒ
During Multi-Accel/Decel operation, this
parameter serves as Accel/Decel time 0.
Run/Stop via Run/Stop key on the
keypad
Run/Stop
FX: Motor forward run
1
via control RX: Motor reverse run
terminal
FX: Run/Stop enable
2
RX: Reverse rotation select
3
Operation via Communication Option
Digital
0
Setting via Keypad 1
Setting via Keypad 2
1
Setting via potentiometer on
Analog
2
the keypad (V0)
3
Setting via V1 terminal
4
Setting via I terminal
Setting via potentiometer on
5
the keypad + I terminal
6
Setting via V1 + I terminal
Setting via potentiometer on
7
the keypad + V1 terminal
Modbus-RTU
8
Communication
This parameter sets Multi-Step frequency 1
during Multi-step operation.
This parameter sets Multi-Step frequency 2
during Multi-step operation.
This parameter sets Multi-Step frequency 3
during Multi-step operation.
This parameter displays the output current to
the motor.
This parameter displays the number of Motor
RPM.
This parameter displays DC link voltage inside
the inverter.
This parameter displays the item selected at
H73- [Monitoring item select].
vOL Output voltage
POr Output power
tOr
Torque
This parameter displays the types of faults,
frequency and operating status at the time of
the fault
This parameter sets the direction of motor
rotation when drv - [Drive mode] is set to
either 0 or 1.
F
Forward
r
Reverse
0
43
Factory
defaults
0.0
5.0
10.0
1
Adjustable
during run
O
9-1
O
O
X
9-10
9-10
9-7
Page
9-7
0
X
9-1
9-1
9-2
9-3
9-3
9-4
9-4
9-5
10.0
O
9-6
20.0
O
9-6
30.0
O
9-6
-
-
11-1
-
-
11-1
-
-
11-1
vOL
-
11-2
-
-
11-2
F
O
9-7
Chapter 7. Function list
Function group 1
LED
display
F0
Parameter
name
[Jump code]
Min/Max
range
0/60
F1
[Forward/
Reverse run
disable]
[Accel pattern]
[Decel pattern]
[Stop mode
select]
0/2
F2
F3
F4
0/1
0/2
Description
This parameter sets the parameter code
number to jump.
0
Fwd and rev run enable
1
Forward run disable
2
Reverse run disable
0
Linear
1
S-curve
Decelerate
to stop
0
1
2
ƒ
Stop via DC brake
Free run to stop
F8
[DC Brake
0/60 [Hz]
This parameter sets DC brake start
1)
start
frequency.
frequency]
ƒ
It cannot be set below F23 - [Start
frequency].
F9
[DC Brake
0/60
ƒ
When DC brake frequency is reached,
[sec]
the inverter holds the output for the setting
wait time]
time before starting DC brake.
F10
[DC Brake
0/200
ƒ
This parameter sets the amount of DC
[%]
voltage]
voltage applied to a motor.
ƒ
It is set in percent of H33 – [Motor rated
current].
F11
[DC Brake
0/60
ƒ
This parameter sets the time taken to
time]
[sec]
apply DC current to a motor while motor is
at a stop.
F12
[DC Brake
0/200
ƒ
This parameter sets the amount of DC
[%]
start voltage]
voltage before a motor starts to run.
ƒ
It is set in percent of H33 – [Motor rated
current].
F13
[DC Brake
0/60
ƒ
DC voltage is applied to the motor for
start time]
[sec]
DC Brake start time before motor
accelerates.
F14
[Time for
0/60
ƒ
This parameter applies the current to a
magnetizing a
[sec]
motor for the set time before motor
motor]
accelerates during Sensorless vector
control.
1): Set F4 to 1 (Stop via DC brake) to view this function
F20
[Jog
frequency]
0/400
[Hz]
F21
[Max
frequency]
40/400 *
[Hz]
ƒ
This parameter sets the frequency for
Jog operation.
ƒ
It cannot be set above F21 – [Max
frequency].
ƒ
This parameter sets the highest
frequency the inverter can output.
ƒ
It is frequency reference for Accel/Decel
(See H70)
ƒ
If H40 is set to 3 (Sensorless vector), it
can be settable up to 300Hz *.
Factory
defaults
1
Adjustable
during run
O
0
X
9-8
0
X
9-13
0
X
9-18
5.0
X
10-1
0.1
X
10-1
50
X
10-1
1.0
X
10-1
50
X
10-2
0
X
10-2
1.0
X
10-11
10.0
O
10-3
Page
5-5
60.0
X
9-19
60.0
X
9-15
0.5
X
9-19
Caution : Any frequency cannot be set
above Max frequency.
F22
[Base
frequency]
30/400
[Hz]
F23
[Start
frequency]
0/10
[Hz]
ƒ
The inverter outputs its rated voltage to
the motor at this frequency (see motor
nameplate). In case of using a 50Hz motor,
set this to 50Hz.
ƒ
The inverter starts to output its voltage at
this frequency.
ƒ
It is the frequency low limit.
44
Chapter 7. Function list
Function group 1
LED
display
F24
Parameter
name
[Frequency
high/low limit
select]
[Frequency
high limit]
0/1
F26
[Frequency low
limit]
0/400
[Hz]
F27
[Torque Boost
select]
[Torque boost
in forward
direction]
[Torque boost
in reverse
direction]
0/1
F30
[V/F pattern]
0/2
F31
3)
F32
[User V/F
frequency 1]
[User V/F
voltage 1]
[User V/F
frequency 2]
[User V/F
voltage 2]
[User V/F
frequency 3]
[User V/F
voltage 3]
[User V/F
frequency 4]
[User V/F
voltage 4]
[Output voltage
adjustment]
0/400
[Hz]
0/100 [%]
F25
2)
F28
F29
F33
F34
F35
F36
F37
F38
F39
Min/Max
range
Description
ƒ
0/400
[Hz]
0/15 [%]
0/400
[Hz]
0/100 [%]
0/400
[Hz]
0/100 [%]
This parameter sets high and low limit of
run frequency.
ƒ
This parameter sets high limit of the run
frequency.
ƒ
It cannot be set above F21 – [Max
frequency].
ƒ
This parameter sets low limit of the run
frequency.
ƒ
It cannot be set above F25 - [Frequency
high limit] and below F23 – [Start frequency].
0
Manual torque boost
1
Auto torque boost
ƒ
This parameter sets the amount of torque
boost applied to a motor during forward run.
ƒ
It is set in percent of Max output voltage.
ƒ
This parameter sets the amount of torque
boost applied to a motor during reverse run.
ƒ
It is set as a percent of Max output
voltage
0
{Linear}
1
{Square}
2
{User V/F}
ƒ
This parameter is active when F30 – [V/F
pattern] is set to 2 {User V/F}.
ƒ
It cannot be set above F21 – [Max
frequency].
ƒ
The value of voltage is set in percent of
H70 – [Motor rated voltage].
ƒ
The values of the lower-numbered
parameters cannot be set above those of
higher-numbered.
0/400
[Hz]
0/100 [%]
40/110
[%]
F40
ƒ
This parameter adjusts the amount of
output voltage.
ƒ
The set value is the percentage of input
voltage.
ƒ
This parameter decreases output voltage
according to load status.
ƒ
This parameter is activated when the
motor is overheated (time-inverse).
[Energy-saving 0/30 [%]
level]
F50
[Electronic
0/1
thermal
select]
2) Only displayed when F24 (Freq High/Low limit select) is set to 1.
Factory
defaults
0
Adjustable
during run
X
Page
9-19
9-19
60.0
X
0.5
X
0
X
9-17
5
X
9-17
5
X
9-17
0
X
15.0
X
9-15
9-15
9-16
9-16
25
X
30.0
X
50
X
45.0
X
75
X
60.0
X
100
X
100
X
9-16
0
0
0
0
1012
12-1
150
0
12-1
3): Set F30 to 2 (User V/F) to display this parameter.
F51
4)
[Electronic
thermal level
for 1 minute]
50/200
[%]
ƒ
This parameter sets max current capable
of flowing to the motor continuously for 1
minute.
ƒ
The set value is the percentage of H33 –
[Motor rated current].
ƒ
It cannot be set below F52 –[Electronic
thermal level for continuous].
45
Chapter 7. Function list
Function group 1
LED
display
F52
Parameter
name
[Electronic
thermal level
for continuous]
Min/Max
range
50/150
[%]
F53
[Motor cooling
method]
0/1
F54
[Overload
warning level]
30/150
[%]
F55
[Overload
warning time]
0/30 [sec]
F56
[Overload trip
select]
[Overload trip
level]
0/1
F58
[Overload trip
time]
0/60 [sec]
F59
[Stall
prevention
select]
0/7
F60
[Stall
prevention
level]
30/150
[%]
F57
30/200
[%]
Factory
Description
defaults
ƒ
This parameter sets the amount of
100
current to keep the motor running
continuously.
ƒ
It cannot be set higher than F51 –
[Electronic thermal level for 1 minute].
0
Standard motor having cooling fan
0
directly connected to the shaft
1
A motor using a separate motor to
power a cooling fan.
ƒ
This parameter sets the amount of
150
current to issue an alarm signal at a relay or
multi-function output terminal (see I54, I55).
ƒ
The set value is the percentage of H33[Motor rated current].
ƒ
This parameter issues an alarm signal
10
when the current greater than F54[Overload warning level] flows to the motor
for F55- [Overload warning time].
ƒ
This parameter turns off the inverter
1
output when motor is overloaded.
ƒ
This parameter sets the amount of
180
overload current.
ƒ
The value is the percentage of H33[Motor rated current].
ƒ
This parameter turns off the inverter
60
output when the F57- [Overload trip level] of
current flows to the motor for F58- [Overload
trip time].
ƒ
This parameter stops accelerating during
0
acceleration, decelerating during constant
speed run and stops decelerating during
deceleration.
During
During
During
Deceleration constant
Acceleration
speed
Bit 2
Bit 1
Bit 0
0
3
1
3
2
3
3
3
3
4
3
3
5
3
3
6
7
3
3
3
ƒ
This parameter sets the amount of
150
current to activate stall prevention function
during Accel, constant or Decel run.
ƒ
The set value is the percentage of the
H33- [Motor rated current].
4): Set F50 to 1 to display this parameter
46
Adjustable
during run
0
Page
0
0
12-2
0
0
12-3
0
0
X
12-3
X
12-3
Chapter 7. Function list
Function group 2
LED
display
H0
Parameter
name
[Jump code]
Min/Max
range
1/95
H1
[Fault history
1]
[Fault history
2]
[Fault history
3]
[Fault history
4]
[Fault history
5]
[Reset fault
history]
[Dwell
frequency]
-
H8
[Dwell time]
0/10 [sec]
H10
[Skip
frequency
select]
0/1
H11
1)
[Skip
frequency low
limit 1]
[Skip
frequency high
limit 1]
[Skip
frequency low
limit 2]
[Skip
frequency high
limit 2]
[Skip
frequency low
limit 3]
[Skip
frequency high
limit 3]
S-Curve
accel/decel
start side
S-Curve
accel/decel
end side
[Output phase
loss protection
select]
[Power On
Start select]
0/400
[Hz]
[Restart after
fault reset]
0/1
H2
H3
H4
H5
H6
H7
H12
H13
H14
H15
H16
H17
H18
H19
H20
H21
Factory
defaults
1
Adjustable
during run
O
nOn
-
nOn
-
nOn
-
-
nOn
-
-
nOn
-
0
O
5.0
X
0.0
X
0
X
10.0
X
15.0
X
20.0
X
25.0
X
30.0
X
35.0
X
40
X
40
X
0
O
12-5
0
O
9-9
0
O
-
0/1
F23/400
[Hz]
1/100 [%]
1/100 [%]
0/1
0/1
Description
This parameter sets the code number to
jump.
ƒ
This parameter stores information on the
types of faults, the frequency, the current
and the Accel/Decel condition at the time of
fault.
ƒ
The last fault is automatically stored in
the H 1- [Fault history 1].
ƒ
This parameter clears the fault history
saved in H 1-5.
ƒ
When run frequency is issued, motor
starts to accelerate after dwell frequency is
applied to the motor during H8- [Dwell time].
ƒ
[Dwell frequency] can be set within the
range of F21- [Max frequency] and F23[Start frequency].
ƒ
This parameter sets the time for dwell
operation.
ƒ
This parameter sets the frequency range
to skip to prevent undesirable resonance
and vibration on the structure of the
machine.
ƒ
Run frequency cannot be set within the
range of H11 thru H16.
ƒ
The frequency values of the low
numbered parameters cannot be set above
those of the high numbered ones.
Set the speed reference value to form a curve
at the start during accel/decel. If it is set
higher, linear zone gets smaller.
Set the speed reference value to form a curve
at the end during accel/decel. If it is set
higher, linear zone gets smaller.
ƒ
Inverter turns off the output when the
phase of the inverter output (U, V, W) is not
properly connected.
ƒ
This parameter is activated when drv is
set to 1 or 2 (Run/Stop via Control terminal).
ƒ
Motor starts acceleration after AC power
is applied while FX or RX terminal is ON.
ƒ
This parameter is active when drv is set
to 1 or 2 (Run/Stop via Control terminal).
ƒ
Motor accelerates after the fault condition
is reset while the FX or RX terminal is ON.
47
Page
5-5
11-4
10-5
9-20
9-13
Chapter 7. Function list
1) Set H10 to 1 to be displayed.
# H17, 18 is used when F2, F3 is set to 1 S-Curve.
Function group 2
LED
display
H22
2)
Parameter
name
[Speed
Search
Select]
Min/Max
range
0/15
Description
ƒ
This parameter is active to prevent any
possible fault when the inverter outputs its
voltage to the running motor.
Factory
defaults
0
Adjustable
during run
O
100
O
100
O
1000
O
Page
1012
1. H20- 2.Restart 3.Operation 4.Normal
[Power
after
after fault
accelerOn start]
instant
occurred
ation
power
failure
H23
[Current level
during Speed
search]
80/200
[%]
H24
[P gain during
Speed
search]
[I gain during
speed
search]
0/9999
H25
0/9999
Bit 3
Bit 2
Bit 1
Bit 0
0
3
1
3
2
3
3
3
3
4
3
3
5
3
3
6
3
3
3
7
3
8
3
3
9
3
3
10
3
3
3
11
3
3
12
3
3
3
13
3
3
3
14
3
3
3
3
15
ƒ
This parameter limits the amount of
current during speed search.
ƒ
The set value is the percentage of the
H33- [Motor rated current].
ƒ
It is the Proportional gain used for Speed
Search PI controller.
ƒ
It is the Integral gain used for Speed
search PI controller.
1012
2) #4.Normal acceleration has first priority. Even though #4 is selected along with other bits, Inverter starts Speed search #4.
Function group 2
LED
display
H26
Parameter
Name
[Number of
Auto Restart
try]
Min/Max
Range
0/10
H27
[Auto Restart
time]
[Motor type
select]
0/60 [sec]
H30
0.2/2.2
Description
ƒ
This parameter sets the number of
restart tries after a fault occurs.
ƒ
Auto Restart is deactivated if the fault
outnumbers the restart tries.
ƒ
This function is active when [drv] is
set to 1 or 2 {Run/Stop via control
terminal}.
ƒ
Deactivated during active protection
function (OHT, LVT, EXT, HWT etc.)
ƒ
This parameter sets the time between
restart tries.
0.2
0.2 kW
0.4
0.75
1.5
2.2
0.4 kW
0.75 kW
1.5 kW
2.2 kW
48
Factory
defaults
0
Adjustable
during run
O
1.0
O
X
1)
Automatically
set
Page
1015
10-6
Chapter 7. Function list
Function group 2
LED
display
H31
H32
Parameter
Name
[Number of
motor poles]
[Rated slip
frequency]
Min/Max
Range
2/12
0/10
[Hz]
Description
ƒ
This setting is displayed via rPM in
drive group.
⎛ rpm × P ⎞
fs = fr − ⎜
⎟
⎝ 120 ⎠
ƒ
Where, f s = Rated slip frequency
Factory
defaults
-
Adjustable
during run
X
Page
X
2)
Automatically
set
f r = Rated frequency
rpm = Motor nameplate RPM
H33
H34
H36
H37
[Motor rated
current]
[No Load
Motor
Current]
1.0/20
[A]
0.1/12
[A]
[Motor
efficiency]
[Load inertia
rate]
50/100
[%]
0/2
P = Number of Motor poles
Enter motor rated current on the
nameplate.
ƒ
Enter the current value detected
when the motor is rotating in rated rpm
after the load connected to the motor
shaft is removed.
ƒ
Enter the 50% of the rated current
value when it is difficult to measure H34
- [No Load Motor Current].
ƒ
Enter the motor efficiency (see motor
nameplate).
ƒ
Select one of the following according
to motor inertia.
ƒ
X
-
X
-
X
0
X
10-6
3
O
1016
0
X
0
X
9-15
10-6
10-8
10-11
1010
10-6
0
H39
[Carrier
frequency
select]
1/15
[kHz]
H40
[Control
mode select]
0/3
H41
[Auto tuning]
0/1
H42
Less than 10 times that of
motor inertia
1
About 10 times that of motor
inertia
2
More than 10 times that of
motor inertia
ƒ
This parameter affects the audible
sound of the motor, noise emission from
the inverter, inverter temp, and leakage
current. If the value is set higher, the
inverter sound is quieter but the noise
from the inverter and leakage current will
become greater.
0
{Volts/frequency Control}
1
{Slip compensation control}
2
{PID Feedback control}
3
{Sensorless vector control}
ƒ
If this parameter is set to 1, it
automatically measures parameters of
the H42 and H43.
ƒ
This is the value of the motor stator
resistance.
-
[Stator
0/5.0[Ω]
resistance
(Rs)]
H44
[Leakage
0/300.0
ƒ
This is leakage inductance of the
inductance
[mH]
stator and rotor of the motor.
(Lσ)]
H45
Sensorless P 0/32767
ƒ
P gain for Sensorless control
1000
1)
gain
H46
Sensorless I
ƒ
I gain for Sensorless control
100
gain
[PID
0/1
0
H50
0
Terminal I input (0 ~ 20 mA)
Feedback
1
Terminal V1 input (0 ~ 10 V)
select]
1): Set H40 to 2 (PID control) or 3(Sensorless vector control) to display these parameters.
49
X
X
O
O
X
10-8
Chapter 7. Function list
Function group 2
LED
display
H51
Parameter
Name
[P gain for
PID controller]
[Integral time
for PID
controller
(I gain)]
Differential
time for PID
controller
(D gain)
F gain for PID
controller
[PID output
frequency
limit]
Min/Max
Range
0/999.9
[%]
0.1/32.0
[sec]
H70
[Frequency
Reference for
Accel/Decel]
0/1
H71
[Accel/Decel
time scale]
0/2
H72
[Power on
display]
0/13
H73
[Monitoring
item select]
0/2
H74
[Gain for
Motor rpm
display]
1/1000
[%]
H52
H53
H54
H55
Description
ƒ
This parameter sets the gains for the
PID controller.
0.0 /30.0
[sec]
0/999.9
[%]
0/400
[Hz]
ƒ
This is the Feed forward gain for the PID
controller.
ƒ
This parameter limits the amount of the
output frequency thru the PID control.
ƒ
The value is settable within the range of
F21 – [Max frequency] and H23 – [Start
frequency].
0
The Accel/Decel time is the time that
takes to reach the F21 – [Max
frequency] from 0 Hz.
1
The Accel/Decel time is the time that
takes to reach a target frequency
from the run frequency.
0
Unit: 0.01 second.
1
Unit: 0.1 second.
2
Unit: 1 second.
ƒ
This parameter selects the parameter to
be displayed on the keypad when the input
power is first applied.
0
Frequency command
1
Accel time
2
Decel time
3
Drive mode
4
Frequency mode
5
Multi-Step frequency 1
6
Multi-Step frequency 2
7
Multi-Step frequency 3
8
Output current
9
Motor rpm
10
Inverter DC link voltage
11
User display select
12
Fault display
13
Direction of motor rotation select
ƒ
One of the following can be monitored
via vOL - [User display select].
0
Output voltage [V]
1
Output power [kW]
2
Torque [kgf ⋅ m]
ƒ
This parameter is used to change the
motor speed display to rotating speed
(r/min) or mechanical speed (m/mi).
Factory
defaults
300.0
Adjustable
during run
O
1.0
O
10-8
0.0
O
10-8
0.0
O
10-8
60.0
O
10-8
0
X
9-10
1
O
9-11
0
O
11-2
0
O
11-2
100
O
11-1
X.X
X
5.0
O
Page
10-8
⎛ 120 × f ⎞ H 74
RPM = ⎜
⎟×
⎝ H 31 ⎠ 100
H79
H81
[Software
version]
[2nd motor
Accel time]
0/10.0
0/6000
[sec]
ƒ
This parameter displays the inverter
software version.
ƒ
This parameter is active when the
selected terminal is ON after I20-I24 is set
d
50
1016
Chapter 7. Function list
Function group 2
LED
display
H82
H83
H84
H85
H86
H87
H88
H89
H90
H93
H94
H95
Parameter
Name
[2nd motor
Decel time]
[2nd motor
base
frequency]
[2nd motor V/F
pattern]
[2nd motor
forward torque
boost]
[2nd motor
reverse torque
boost]
[2nd motor
stall
prevention
level]
[2nd motor
Electronic
thermal level
for 1 min]
[2nd motor
Electronic
thermal level
for
continuous]
[2nd motor
rated current]
[Parameter
initialize]
[Password
register]
[Parameter
lock]
Min/Max
Range
Factory
defaults
10.0
Adjustable
during run
O
60.0
X
0/2
0
X
0/15 [%]
5
X
5
X
30/150
[%]
150
X
50/200
[%]
150
O
100
O
1.8
X
This parameter is used to initialize
parameters back to the factory default
values.
0
1
All parameter groups are initialized
to factory default value.
2
Only Drive group is initialized.
3
Only Function group 1 is initialized.
4
Only Function group 2 is initialized.
5
Only I/O group is initialized.
Password for H95-[Parameter lock].
0
X
1017
0
O
This parameter is able to lock or unlock
parameters by typing password registered in
H94.
0
O
1018
1019
Description
30/400
[Hz]
0.1/20
[A]
0/5
0/FFF
0/FFF
ƒ
UL (Unlock)
L (Lock)
Parameter change enable
Parameter change disable
51
Page
1016
Chapter 7. Function list
I/O group
LED
display
I0
Parameter
name
[Jump code]
Min/Max
range
0/63
I1
[Filter time
constant for
V0 input]
[V0 input Min
voltage]
[Frequency
corresponding
to I 2 ]
[V0 input Max
voltage]
[Frequency
corresponding
to I 4]
[Filter time
constant for
V1 input]
[V1 input Min
voltage]
[Frequency
corresponding
to I 7]
[V1 input max
voltage]
[Frequency
corresponding
to I 9]
[Filter time
constant for I
input]
[I input
minimum
current]
[Frequency
corresponding
to I 12]
[I input max
current]
[Frequency
corresponding
to I 14]
[Criteria for
Analog Input
Signal loss]
0/9999
I2
I3
I4
I5
I6
I7
I8
I9
I10
I11
I12
I13
I14
I15
I16
I20
I21
I22
I23
[Multi-function
input terminal
P1 define]
[Multi-function
input terminal
P2 define]
[Multi-function
input terminal
P3 define]
[Multi-function
input terminal
P4 define]
Factory
defaults
1
Adjustable
during run
O
This is used to adjust the analog voltage input
signal via keypad potentiometer.
10
O
0/10
[V]
0/400
[Hz]
Set the minimum voltage of the V0 input.
0
O
Set the inverter output minimum frequency at
minimum voltage of the V0 input.
0.0
O
0/10
[V]
0/400
[Hz]
Set the maximum voltage of the V0 input.
10
O
60.0
O
0/9999
Set the input section’s internal filter constant
for V1 input.
10
O
0/10
[V]
0/400
[Hz]
Set the minimum voltage of the V1 input.
0
O
Set the inverter output minimum frequency at
minimum voltage of the V1 input.
0.0
O
0/10
[V]
0/400
[Hz]
Set the maximum voltage of the V1 input.
10
O
60.0
O
0/9999
Set the input section’s internal filter constant
for I input.
10
O
0/20
[mA]
Set the Minimum Current of I input.
4
O
0/400
[Hz]
Set the inverter output minimum frequency at
minimum current of I input.
0.0
O
0/20
[mA]
0/400
[Hz]
Set the Maximum Current of I input.
20
O
60.0
O
0/2
0
Disabled
0
O
12-7
1
2
Less than half the value set in I 2/7/12
entered
Below the value set in I 2/7/12 entered
0
Forward run command {FX}
0
O
9-7
1
Reverse run command {RX}
2
Emergency Stop Trip {EST}
1
O
3
Reset when a fault occurs {RST}.
4
Jog operation command {JOG}
2
O
5
Multi-Step frequency – Low
6
Multi-Step frequency – Mid
7
Multi-Step frequency – High
0/24
Description
This parameter sets the code number to jump.
Set the inverter output maximum frequency at
maximum voltage of the V0 input.
Set the inverter output maximum frequency at
maximum voltage of the V1 input.
Set the inverter output maximum frequency at
maximum current of I input.
52
Page
5-5
9-2
9-3
9-4
10-3
9-6
3
O
Chapter 7. Function list
I/O group
LED
display
I24
Parameter
name
[Multi-function
input terminal
P5 define]
Min/Max
range
Description
8
Multi Accel/Decel – Low
9
Multi Accel/Decel – Mid
10
11
12
Multi Accel/Decel – High
DC brake during stop
2nd motor select
13
14
15
Up-down
operation
17
18
19
20
21
I26
I27
I30
I31
I32
I33
I34
I35
I36
I37
I38
I39
I40
I41
22
23
24
BIT4
[Input terminal
status display]
P5
P4
P3
9-12
10-4
P2
P1
BIT1
BIT0
30AC
MO
10-4
12-5
10-8
11-3
-
11-3
2/50
ƒ
If the value is set higher, the response of
the Input terminal is getting slower.
15
O
0/400
[Hz]
ƒ
It cannot be set greater than F21 – [Max
frequency].
30.0
O
25.0
O
20.0
O
15.0
O
3.0
O
0/6000
[sec]
Page
10-2
1016
3-wire operation
External trip: A Contact (EtA)
External trip: B Contact (EtB)
Exchange between PID operation and
V/F operation
Exchange between option and Inverter
Analog Hold
Accel/Decel Disable
BIT3
BIT2
BIT1
BIT0
[Output
terminal status
display]
[Filtering time
constant
for
Multi-function
Input terminal]
[Multi-Step
frequency 4]
[Multi-Step
frequency 5]
[Multi-Step
frequency 6]
[Multi-Step
frequency 7]
[Multi-Accel
time 1]
[Multi-Decel
time 1]
[Multi-Accel
time 2]
[Multi-Decel
time 2]
[Multi-Accel
time 3]
[Multi-Decel
time 3]
[Multi-Accel
time 4]
[Multi-Decel
time 4]
Adjustable
during run
O
Frequency
increase
command (UP)
Frequency
decrease
command
(DOWN)
16
I25
Factory
defaults
4
9-6
9-12
3.0
4.0
4.0
5.0
5.0
6.0
6.0
53
9-12
Chapter 7. Function list
I/O group
LED
display
I42
I43
I44
I45
I46
I47
I50
Parameter
name
[Multi-Accel
time 5]
[Multi-Decel
time 5]
[Multi-Accel
time 6]
[Multi-Decel
time 6]
[Multi-Accel
time 7]
[Multi-Decel
time 7]
[Analog output
item select]
Min/Max
range
Description
I52
I53
I54
I55
I56
[Analog output
level
adjustment]
[Frequency
detection
level]
[Frequency
detection
bandwidth]
[Multi-function
output
terminal
select]
[Multi-function
relay select]
[Fault
output]
relay
Adjustable
during run
Page
0
O
11-5
100
O
30.0
O
10.0
O
12
O
7.0
8.0
8.0
9.0
9.0
0/3
Output item
0
I51
Factory
defaults
7.0
10[V] Output
200V 400V
Max frequency
1
2
Output
frequency
Output current
Output voltage
150 %
282 V
3
DC link voltage
DC 400V
10/200
[%]
0/400
[Hz]
ƒ
This parameter is used when I54 – [Multifunction output terminal select] or I55 –
[Multi-function relay select] are set to 0-4.
ƒ
It cannot be set greater than F21 – [Max
frequency].
0/17
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
0/7
0
1
2
3
4
5
FDT-1
FDT-2
11-6
11-6
11-6
FDT-3
FDT-4
FDT-5
Overload {OL}
Inverter Overload {IOL}
Motor stall {STALL}
Over voltage trip {OV}
Low voltage trip {LV}
Inverter heatsink overheat {OH}
Command loss
During run
During stop
During constant run
During speed searching
Wait time for run signal input
Fault relay output
When
When the
When the
setting the
trip other
low voltage
H26–
than low
trip occurs
[Number of voltage trip
auto
occurs
restart try]
Bit 2
Bit 1
Bit 0
3
3
3
3
3
3
3
-
54
17
11-8
11-8
11-9
11-9
1110
2
O
11-6
Chapter 7. Function list
I/O group
LED
display
Parameter
name
Min/Max
range
Factory
defaults
Adjustable
during run
This parameter is set when the inverter
uses RS485 communication.
1
O
Select the Baud rate of the RS485
1200 bps
2400 bps
4800 bps
9600 bps
19200 bps
It is used when frequency command is
given via V1 and I terminal or communication
option.
0
Continuous operation
1
Free Run stop (Coast to stop)
2
Decel to stop
ƒ
This is the time inverter determines
whether there is the input frequency
command or not. If there is no frequency
command input during this time, inverter
starts operation via the mode selected at I62.
3
O
0
O
Description
6
7
[Inverter
station
number]
[Baud rate]
1/32
ƒ
0/4
I62
[Drive mode
select
after
loss
of
frequency
command]
0/2
ƒ
0
1
2
3
4
ƒ
I63
[Wait
time
after loss of
frequency
command]
0.1/12
[sec]
I60
I61
3
3
3
3
55
Page
3
1.0
-
12.7
Chapter 7. Function list
Notes:
56
Chapter 8. Control block diagram
Drive mode
Accel/Decel
V/F
control
PWM
Motor
Control block diagram
Frequency
setting
CHAPTER 8 -
57
58
P5
P4
P3
P2
P1
I
V1
VR : Potentiometer
Digital
input filter
I/O group
I27
Analog
input filter
I/O group
I 1, 6, 11
0,1
17
I20 ~ I24
I20 ~ I24
Step 0-7
3-Wire
operation
I/O group
Max/Min
frequency
Functi
group
on
1
F21
F23
I30
I31
I32
I33
I/O group
St1
St2
St3
I/O group
Step freq.setting
+
I/O input
override
FX/RX run command
setting via Multi-function
terminal
I/O group
5,6,7
I/O group
I20 ~ I24
Multi-step operation via
Multi-function terminal
Analog
input scale
I/O group
I 2 ~ I15
15, 16
LED
I/O group
I20 ~ I24
7
0
1,2
0
1
2
drv
Drive group
Run command
setting
VR:potentiometer
V1 : 0 ~ 10V
I : 0 ~ 20mA
VR + I
V1 + I
VR + V1
Keypad setting 2
Keypad setting 1
6
2 1
Up/Down operation
0
1
2
3
4
5
6
7
5
4
3
Drive group
Frq
Freq. setting
Step 0
0
1
2
FX/RX run enable
Forward run disable
Reverse run enable
Func.group1
F1
FX/RX Run Disable
Func.group1
F20
Jog frequency
P1 ~ P5
4
I20 ~ I24
I/O group
Jog operation
Run
command
Frequency
setting
8.1
LED
Chapter 8. Control block diagram
Frequency and Drive mode setting
P5
P4
P3
P2
P1
I/O group
5,6,7
I20 ~ I24
I/O group
Digital input filter
I27
Multi-Accel/Decel
time select
59
F29
F28
Torque
boost value
Func. group
F31~F38
Func. group
User V/F
Freq., Voltage
I34 ~ I47
1st-7th Accel/
Decel time
I/O group
ACC
DEC
0
1~7
Max freq.
Automatic
Manual
User V/F
Square
Linear
P1 ~ P5
1
0
F27
Func. group
Torque boost
select
2
1
0
F2, F3
Func. group
V/F pattern
Frequency
setting
1
0
H70
Reference freq. for
Accel/Decel
Func. group1
F21
Func. group1
+
F2, F3
Linear
1 S-curve
0
Accel/Decel
pattern
Func. group1
Run
command
F39
I/O group
Output voltage
adjustment
F8 ~ F11
Func. group1
DC brake freq.
voltage, time
Stop
2
1
0
F23
F22
I/O group
Base/start freq.
FreeRun Stop
DC brake
F4
Func. group1
Stop method select
Dwell operation
PWM
F25
F26
I/O group
H7
H8
DC brake start freq.
Operation
F8 ~ F11
Freq. high/low limit
Func. group1
8.2
Accel/Decel
time
Drive group
DC brake voltage
& time
Func. group1
Dwell freq. & time
Chapter 8. Control block diagram
Accel/Decel setting and V/F control
Chapter 9. Basic functions
CHAPTER 9 9.1
z
Frequency mode
Digital Frequency setting via Keypad 1
Group
Drive
group
ƒ
ƒ
ƒ
ƒ
z
Basic Functions
LED Display
Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Unit
Hz
0.0
[Frequency Command]
-
0/400
0.0
Frq
[Frequency mode]
0
0/8
0
Run frequency is settable in 0.0 - [Frequency Command].
Set Frq – [Frequency mode] to 0 {Frequency setting via Keypad 1}.
Set the desired frequency in 0.0 and press the Prog/Ent (z) key to enter the value into memory.
The value is settable not greater than F21 – [Max frequency].
Digital Frequency setting via Keypad 2
Group
Drive
group
ƒ
ƒ
ƒ
ƒ
LED Display
Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Unit
Hz
0.0
[Frequency Command]
-
0/400
0.0
Frq
[Frequency mode]
1
0/8
0
Run frequency is settable in 0.0 - [Frequency Command].
Set Frq – [Frequency mode] to 1{Frequency setting via Keypad 2}.
In 0.0, frequency is changed upon pressing the Up (S)/Down (T) key. It is selected to use the
Up/Down key as potentiometer on keypad.
The value is settable not greater than F21 – [Max frequency].
60
Chapter 9. Basic functions
z
Analog Frequency setting via Potentiometer (V0) on the Keypad
Used to prevent fluctuations in analog input signals caused by noise.
Group
Drive
group
I/O
group
LED Display
Set
Value
Min/Max
Range
Factory
Defaults
Unit
Hz
0.0
[Frequency Command]
-
-
-
Frq
[Frequency Mode]
[Filter time constant for V0
input]
[V0 input minimum voltage]
[Frequency corresponding to
I2]
[V0 input max voltage]
[Frequency corresponding to
I4]
2
0/8
0
10
0/9999
10
-
0/10
0
V
-
0/400
0.0
Hz
-
0/10
10
V
-
0/400
60.0
Hz
I1
I2
I3
I4
I5
ƒ
ƒ
Parameter Name
Set Frq – [Frequency Mode] to 2.
The set frequency can be monitored in 0.0- [Frequency Command].
I 1: [Filtering time constant for V0 input]
Effective for eliminating noise in the frequency setting circuit.
Increase the filter time constant if steady operation cannot be performed due to noise. A larger
setting results in slower response (t gets longer).
V0 input
Set freq
t
I 2 - I 5: [Min/Max input voltage and corresponding frequency setting]
The corresponding frequency to V0 input voltage is settable.
Example: When setting I 2 - [V0 input minimum voltage] = 2V, I 3- [Frequency corresponding
to I 2] = 10Hz, I 4 - [V0 input max voltage] = 8V and I 5 - [Frequency corresponding to I 4] =
50Hz, the following figure is shown.
Freq.
setting
I5
I3
50Hz
10Hz
2V
8V
I2
I4
61
V0 input
Chapter 9. Basic functions
z
Analog Frequency setting via Voltage analog input (0-10V) or potentiometer on the VR terminal
Group
Drive
group
I/O
group
LED Display
Set
Value
Min/Max
Range
Factory
Defaults
Unit
Hz
0.0
[Frequency command]
-
-
-
Frq
3
0/8
0
10
0/9999
10
-
0/10
0
V
I8
[Frequency mode]
[Filtering time constant for V1
input]
[V1 input minimum voltage]
[Frequency corresponding to I 7]
-
0/400
0.0
Hz
I9
[V1 input max voltage]
-
0/10
10
V
I10
[Frequency corresponding to I 9]
-
0/400
60.0
Hz
I6
I7
ƒ
ƒ
Parameter Name
Select Frq -[Frequency Mode] to 3 {Frequency setting via V1 terminal}.
The 0-10V input can be directly applied from an external controller or a potentiometer (between VR
and CM terminals).
Wire the terminal as shown below and refer to page 9-2 for I 6 - I10.
VR
V1
V1
CM
CM
Analog Voltage Input (0-10V)
When connecting potentiometer to
terminals VR and CM
z
Frequency Setting via Analog Current Input (0-20mA)
Set
Value
Min/Max
Range
Factory
Defaults
Unit
[Frequency Command]
-
-
-
Hz
4
0/8
0
I11
[Frequency Mode]
[Filtering time constant for I input]
10
0/9999
10
I12
[I input minimum current]
-
0/20
4
mA
I13
[Frequency corresponding to I 12]
-
0/400
0.0
Hz
I14
[I input max current]
-
0/20
20
mA
I15
[Frequency corresponding to I 14]
-
0/400
60.0
Hz
Group
LED Display
Drive
group
0.0
Frq
I/O
group
ƒ
ƒ
Parameter Name
Select Frq – [Frequency Mode] to 4 {Current Analog Input (0-20mA)}.
Frequency is set via 0-20mA input between I and CM terminals.
62
Chapter 9. Basic functions
z
Frequency setting via Potentiometer on the keypad + Current Analog input (0-20mA)
Group
Drive
group
ƒ
LED Display
Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Unit
Hz
0.0
[Frequency Command]
-
-
-
Frq
[Frequency Mode]
5
0/8
0
Select Frq – [Frequency Mode] to 5 {Potentiometer on the keypad and Current Analog input (020mA)}.
Override function is provided via Main speed and Auxiliary speed adjustment.
Related code: I 1 - I 5, I 11- I 15
ƒ
ƒ
When main speed is set via potentiometer and Auxiliary speed via 0-20mA analog input, the
override function is set as below.
Group
Code
I/O group
I2
I3
I4
I5
I 12
I 13
I 14
I 15
Set
value
0
0
10
60.0
4
0
20
5.0
Parameter Name
[V0 input minimum voltage]
[Frequency corresponding to I 2]
[V0 input max voltage]
[Frequency corresponding to I 4]
[I input minimum current]
[Frequency corresponding to I 12]
[I input max current]
[Frequency corresponding to I 14]
Units
V
Hz
V
Hz
mA
Hz
mA
Hz
After the above setting is made, if 5V is set via potentiometer and 10mA is applied via I terminal, 32.5Hz is
output
z
Frequency setting via 0-10V + 0-20mA input
Group
Drive
group
ƒ
ƒ
ƒ
z
LED Display
Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Unit
Hz
0.0
[Frequency Command]
-
-
-
Frq
[Frequency Mode]
6
0/8
0
Set Frq – [Frequency Mode] to 6 {V1 + I terminal input}.
Related code: I 6 - I 10, I 11 - I 15
Refer to the Frequency setting via Potentiometer on the keypad + Current Analog input (0-20mA)
for the setting.
Frequency setting via Potentiometer on the keypad + 0-10V input
Group
Drive
group
ƒ
ƒ
ƒ
LED Display
Parameter Name
0.0
[Frequency Command]
Frq
[Frequency Mode]
Set
Value
-
Min/Max
Range
-
Factory
Defaults
-
7
0/8
0
Unit
Hz
Set Frq – [Frequency Mode] to 7 {Potentiometer on the keypad + 0-10V input}.
Relative code: I 1 - I 5, I6 - I10
Refer to P 9-4 Frequency setting via potentiometer on the Keypad + 0-20mA input for the setting.
63
Chapter 9. Basic functions
z
Analog Hold
Group
Drive
group
I/O
group
ƒ
ƒ
LED Display
Parameter Name
Frq
[Frequency Mode]
I20
[Multi-function
terminal P1 define]
input
~
~
I24
[Multi-function
input
Terminal P5 Define]
Set
Value
Min/Max
Range
Factory
Defaults
2/7
0/8
0
-
0/24
23
0
4
This setting becomes activated when Frq – [Frequency Mode] is set to 2-7.
Set one of the Multi-function input terminals to 23 to activate Analog Hold operation.
When I24 –[Multi-function input terminal P5 define] is set to 23,
Freq. setting
Freq.
P5
Run
command
64
Unit
Chapter 9. Basic functions
9.2
Multi-Step frequency setting
Group
Drive
group
I/O
group
LED Display
Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Unit
5.0
0/400
0.0
Hz
0/8
0
-
0.0
[Frequency command]
Frq
[Frq mode]
0
St1
[Multi-Step frequency 1]
-
St2
[Multi-Step frequency 2]
-
St3
[Multi-Step frequency 3]
-
30.0
I22
[Multi-function
input
terminal P3 define]
5
2
-
I23
[Multi-function
input
terminal P4 define]
6
3
-
I24
[Multi-function
input
terminal P5 define]
7
4
-
I30
[Multi-Step frequency 4]
-
30.0
I31
[Multi-Step frequency 5]
-
10.0
0/400
Hz
20.0
0/24
25.0
0/400
Hz
I32
[Multi-Step frequency 6]
-
20.0
I33
[Multi-Step frequency 7]
-
15.0
ƒ
ƒ
Select a terminal to give Multi-step frequency command among P1-P5 terminals.
If terminals P3-P5 are selected for this setting, set I22-I24 to 5-7 to give Multi-step frequency
command.
ƒ Multi-step frequency 0 is settable using Frq – [Frequency mode] and 0.0 – [Frequency command].
ƒ Multi-step frequency 1-3 are set at St1-St3 in Drive group, while Step frequency 4-7 are set at I30I33 in I/O group.
Step
freq
FX or RX
P5
P4
P3
0
9
-
-
-
1
9
-
-
9
2
9
-
9
-
3
9
-
9
9
4
9
9
-
-
5
6
7
9
9
9
9
9
9
9
9
9
9
Step 2
Step 1
Step 0
Step 3
Step 0
Frequency
Step 4
Step 5
Step 7
Step 6
P3
P4
P5
FX
RX
65
Chapter 9. Basic functions
9.3
z
Run Command setting
Run via the Run and STOP/RST key
Group
LED Display
Drive
group
ƒ
ƒ
ƒ
Parameter Name
drv
[Drive mode]
(Run/Stop mode)
drC
[Direction
of
rotation select]
motor
Set
Value
Min/Max
Range
Factory
Defaults
0
0/3
1
-
F/r
F
Unit
Set drv – [Drive mode] to 0.
Motor starts to accelerate by pressing the Run key while run frequency is set. Motor decelerates to
stop by pressing the STOP/RST key.
Selecting rotation direction is available at drC - [Direction of motor rotation select] when run
command is issued via Run key on keypad.
drC
[Direction of motor
rotation select]
F
Forward
R
Reverse
FX : Counter clockwise
z
Run command setting 1 via FX and RX terminals
Group
LED Display
Parameter Name
Drive
group
drv
[Drive mode]
(Run/Stop mode)
I/O
group
I20
[Multi-function
terminal P1 define]
input
I21
[Multi-function
terminal P2 define]
input
ƒ
ƒ
ƒ
Set
Value
Min/Max
Range
Factory
Defaults
1
0/3
1
0
0/24
0
1
0/24
1
Set drv – [Drive mode] to 1.
Set I20 and I21 to 0 and 1 to use P1 and P2 as FX and RX terminals.
“FX” is Forward run command and “RX” Reverse run.
Operation will stop when both FX and RX terminals are turned ON or OFF.
Frequency
FX
RX
66
Unit
Chapter 9. Basic functions
z
Run command setting 2 at FX and RX terminals
Group
Drive
group
I/O
group
LED Display
drv
I20
I21
ƒ
ƒ
ƒ
ƒ
Parameter Name
[Drive mode]
(Run/Stop mode)
[Multi-function
terminal P1 define]
[Multi-function
terminal P2 define]
input
input
Set
Value
Min/Max
Range
Factory
Defaults
2
0/3
1
0
0/24
0
1
0/24
1
Unit
Set the drv to 2.
Set I20 and I21 to 0 and 1 to use P1 and P2 as FX and RX terminals.
FX: Run command setting. Motor runs in forward direction when RX terminal (P2) is OFF.
RX: Direction of motor rotation select. Motor runs in reverse direction when RX terminal (P2) is ON.
Frequency
FX
RX
z
FX/RX Run Disable
Group
Drive
group
Function
group 1
LED Display
drC
F1
Parameter Name
[Direction
of
motor
rotation select]
[Forward/Reverse run
disable]
Select the direction of motor rotation.
ƒ 0: Forward and Reverse run enable
ƒ 1: Forward run disable
ƒ 2: Reverse run disable
67
Set
Value
Min/Max
Range
Factory
Defaults
-
F/r
F
-
0/2
0
Unit
Chapter 9. Basic functions
z
Power On Start select
Group
LED Display
Parameter Name
Drive
group
drv
[Drive mode]
(Run/Stop mode)
Function
group 2
H20
[Power On Start select]
ƒ
ƒ
ƒ
Set
Value
Min/Max
Range
Factory
Defaults
1, 2
0/3
1
1
0/1
0
Unit
Set H20 to 1.
When AC input power is applied to the inverter with drv set to 1 or 2 {Run via control terminal} ON,
motor starts acceleration.
This parameter is inactive when the drv is set to 0 {Run via keypad}.
CAUTION
Particular attention must be directed to this function due to potential hazard as motor
starts to run suddenly upon applying AC input power.
Input voltage
Frequency
Run
command
When H20 is 0
When H20 is 1
68
Chapter 9. Basic functions
z
Restart after fault reset
Group
LED display
Parameter name
Drive
group
Drv
[Drive mode]
(Run/Stop mode)
Function
group 2
H21
[Restart after fault reset]
ƒ
ƒ
ƒ
Set
value
Min/Max
range
Factory
defaults
1, 2
0/3
1
1
0/1
0
Unit
Set H21 to 1.
Motor starts acceleration if drv is set to 1 or 2 and the selected terminal is ON when a fault is
cleared.
This function is inactive when the drv is set to 0 {Run via the Keypad}.
CAUTION
Particular attention must be directed to this function due to potential hazard as motor
starts to run suddenly after the fault is cleared.
Frequency
Reset
Run
command
When H21 is 0
When H21 is 1
69
Chapter 9. Basic functions
9.4
z
Accel/Decel time and unit setting
Accel/Decel time setting based on Max frequency
Group
LED Display
Drive
group
Function
group 1
Function
group 2
Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Unit
ACC
[Accel time]
-
0/6000
5.0
sec
dEC
[Decel time]
-
0/6000
10.0
sec
F21
[Max frequency]
-
0/400
60.0
Hz
0
0/1
0
-
0/2
1
H70
H71
[Frequency Reference
for Accel/Decel]
[Accel/Decel Time setting
unit]
ƒ
ƒ
Set the desired Accel/Decel time at ACC/dEC in Drive group.
If H70 is set to 0 {Max frequency}, Accel/Decel time is the time that takes to reach the max freq
from 0 Hz.
ƒ Desired Accel/Decel time unit is settable at the H71.
Accel/Decel time is set based on F21 – [Max frequency]. For instance, if F21 is set to 60Hz,
Accel/Decel time 5 sec, and run frequency 30Hz, time to reach 30Hz would be 2.5 sec.
Max. freq.
60Hz
Run Freq.
30Hz
Run
command
Accel time
Decel time
More precise time unit can be set corresponding to load characteristics as shown below.
Code
Parameter Name
H71
[Accel/Decel Time
setting unit]
Setting
range
Set
value
0.01~600.00
0
Unit: 0.01 sec.
0.1~6000.0
1
Unit: 0.1 sec.
1~60000
2
Unit: 1 sec.
70
Description
Chapter 9. Basic functions
z
Accel/Decel time based on Run frequency
Group
Drive
group
Function
group 2
ƒ
ƒ
LED display
Parameter name
Set
value
Min/Max
range
Factory
defaults
Unit
ACC
[Accel time]
-
0/6000
5.0
sec
dEC
[Decel time]
-
0/6000
10.0
sec
H70
[Frequency
reference
for Accel/Decel]
1
0/1
0
Accel/Decel time is set at the ACC/dEC.
If you set H70 to 1 {Delta frequency}, Accel/Decel time is the time that takes to reach a target freq
from run freq (Currently operating freq.).
When H70 and Accel time are set to 1 {Delta frequency} and 5 sec, respectively,
(A zone: run freq 10 Hz applied first, B zone: Operating via 10 Hz, different run freq is not issued
C: 30Hz Run freq (in this case, Target freq) issued while 10 Hz run freq is applied. But the preset
accel time 5 sec is maintained. )
30Hz
Freq.
command
(Target freq.)
(Run freq.)
10Hz
A
B
5
(Delta freq.)
C
7
12
Run
command
5 sec
5 sec
71
Time
[sec]
Chapter 9. Basic functions
z
Multi-Accel/Decel time setting via Multi-function terminals
Group
LED Display
Drive
group
I/O group
Parameter Name
Min/Max
Range
Factory
Defaults
Unit
ACC
[Accel time]
-
0/6000
5.0
Sec
dEC
[Decel time]
-
0/6000
10.0
Sec
I20
I21
I22
I23
I24
I34
[Multi-function
input
terminal P1 define]
[Multi-function
input
terminal P2 define]
[Multi-function
input
terminal P3 define]
[Multi-function
input
terminal P4 define]
[Multi-function
input
terminal P5 define]
[Multi-Accel time 1]
~
I47
ƒ
ƒ
ƒ
Set
Value
0
0/24
0
1
1
8
2
9
3
10
4
-
0/6000
Sec
3.0
~
[Multi-Decel time 7]
-
9.0
Set I22, I23, I24 to 8, 9, 10 if you want to set Multi - Accel/Decel time via P3-P5 terminals.
Multi-Accel/Decel time 0 is settable at ACC and dEC.
Multi-Accel/Decel time 1-7 is settable at I34-I47.
Accel
time 2
Accel
time 1
Accel
Time 0
Frequency
Accel
time 3
Decel
time 4
Decel
time 5
Decel
time 6
Decel
time 7
P3
P4
P5
FX
72
MultiAccel/Decel
time
0
P5
P4
P3
-
-
-
1
-
-
9
2
-
9
-
3
-
9
9
4
9
-
-
5
6
7
9
9
9
9
9
9
9
Chapter 9. Basic functions
z
Accel/Decel pattern setting
Group
LED display
Function
group 1
F2
[Accel pattern]
F3
[Decel pattern]
ƒ
ƒ
ƒ
[S-Curve
start side]
[S-Curve
end side]
H17
Function
group 2
H18
Min/Max
range
Set value
0
Linear
0
1
S-curve
Parameter name
accel/decel
accel/decel
Unit
40
%
40
%
1~100
Accel/Decel pattern is settable at F2 and F3.
Linear: This is a general pattern for constant torque applications
S-curve: This curve allows the motor to accelerate and decelerate smoothly.
Appropriate applications: Elevator door, lifts
Caution :
ƒ For S-curve, the actual Accel/Decel time takes longer than the time set by user.
Freq.
Run
command
Accel time
Decel time
Accel/Decel
1/2 of Accel/Decel Ref. Freq
Ref. Freq.
Freq
H17
H18
H17
H18
Accel Starting
Decel Starting
Accel Starting
Decel Ending
73
Chapter 9. Basic functions
z Note that setting Frequency Ref. for Accel/decel (H70) is set to Max Freq and target freq is set below
Max freq. the shape of S-curve may be distorted.
Accel/decel Ref Freq (H70)
Note: If set target freq is
below Max freq, the
Target Freq
curve will not be shown
completely.
Freq
z
H17
H17
H18
H18
Accel/Decel Disable
Group
I/O group
LED display
Parameter name
[Multi-function
terminal P1 define]
I20
~
-
Min/Max
range
0/24
Factory
defaults
0
~
[Multi-function input
terminal P5 define]
I24
ƒ
ƒ
input
Set
value
4
24
Select one terminal of I20-24 to define Accel/Decel disable.
For example, if P5 is selected, set I24 to 24 to activate this function.
Freq.
P5
Run
command
ON
ON
ON
74
Unit
Chapter 9. Basic functions
9.5
z
V/F control
Linear V/F operation
Group
LED Display
Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Unit
Function
group 1
F22
[Base frequency]
-
30/400
60.0
Hz
F23
[Start frequency]
-
0/10.0
0.5
Hz
F30
[V/F pattern]
0
0/2
0
ƒ
ƒ
Set F30 to 0 {Linear}.
This pattern maintains a linear Volts/frequency ratio from F23 - [Start frequency] to F22- [Base
frequency]. This is appropriate for constant torque applications.
F22 – [Base frequency]: Inverter outputs its rated voltage at this level. Enter the motor
nameplate frequency.
F23 – [Start frequency]: Inverter starts to output its voltage at this level.
Base freq.
Start freq.
Freq.
Inverter rated
voltage
Voltage
Run
command
z
Square V/F operation
Group
LED Display
Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Function
group 1
F30
[V/F pattern]
1
0/2
0
ƒ
ƒ
Set F30 to 1{Square}.
This pattern maintains squared volts/hertz ratio. Appropriate applications are fans, pumps, etc.
Voltage
100%
Freq.
Base freq.
75
Unit
Chapter 9. Basic functions
9.6
z
Stop mode select
Decel to stop
Group
Function
group 1
ƒ
ƒ
LED Display
F4
Parameter Name
[Stop mode select]
Set
Value
Min/Max
Range
Factory
Defaults
0
0/2
0
Set
Value
Min/Max
Range
Factory
Defaults
1
0/2
0
Set
Value
Min/Max
Range
Factory
Defaults
2
0/2
0
Unit
Set F30 to 0 {Decel to stop}.
The inverter decelerates to 0Hz for the preset time.
Freq.
Run
command
Decel time
z
DC brake to stop
Group
Function
group 1
ƒ
z
LED Display
F4
Parameter Name
[Stop mode select]
Unit
Set F30 to 1 {DC brake to stop} (See page 10-1 for more).
Free run to stop
Group
Function
group 1
ƒ
ƒ
LED Display
F4
Parameter Name
[Stop mode select]
Set F30 to 2 {Free run to stop}.
The inverter turns off the output frequency and voltage when the run command is OFF.
Freq, Voltage
Run
command
76
Unit
Chapter 9. Basic functions
9.7
z
Frequency limit setting
Frequency limit setting based on Max and start frequency
Set
Group
LED display
Parameter name
value
Function
F21
[Max frequency]
group 1
F23
[Start frequency]
Min/Max
range
Factory
defaults
Unit
0/400
60.0
Hz
0/10
0.5
Hz
ƒ
Max frequency: Frequency high limit except for F22 [Base frequency]. Any frequency cannot be set
above [Max frequency].
ƒ Start frequency: Frequency low limit. If a frequency is set lower than this, 0.00 is automatically set.
z
Run frequency limit based on frequency High/Low limit
Group
Function
group 1
ƒ
ƒ
LED Display
Parameter Name
High/Low
Set
Value
Min/Max
Range
Factory
Defaults
1
0/1
0
Unit
F24
[Frequency
limit select]
F25
[Frequency high limit]
-
0/400
60.0
Hz
F26
[Frequency low limit]
-
0/400
0.5
Hz
Set F24 to 1.
Active run frequency can be set within the range set in F25 and F26.
When frequency setting is done via Analog input (voltage or current input), the inverter
operates within the range of high and low limit frequency as shown below.
This setting is also valid when frequency setting is done via keypad.
When freq. limit is not
selected
Freq.
Max freq.
High limit
freq.
Low limit
freq.
10V
0
V1(Voltage input)
20mA I (Current input)
77
Chapter 9. Basic functions
z
Skip frequency
Group
Function
group 2
ƒ
ƒ
ƒ
LED display
Parameter name
Set
value
Min/Max
range
Factory
defaults
Unit
H10
[Skip frequency select]
1
0/1
0
H11
[Skip frequency low limit 1]
-
0/400
10.0
Hz
~
~
H16
[Skip frequency high limit
3]
-
0/400
35.0
Hz
Set H10 to 1.
Run frequency setting is not available within the skip frequency range of H11-H16.
Skip frequency is settable within the range of F21 – [Max frequency] and F23 – [Start frequency].
Freq.
H16
H15
H14
H13
H12
H11
10V V1(Voltage input)
20mA I (Current input)
0
Run
command
Freq. Up setting
Freq. Down
setting
When it is desired to avoid resonance attributable to the natural frequency of a
mechanical system, these parameters allow resonant frequencies to be skipped. Three
different areas of [Skip frequency High/Low limit] can be set with the skip frequencies set
to either the top or bottom point of each area. However, during acceleration or
deceleration, the run frequency within the set area is valid.
In the case of increasing frequency setting as shown above, if frequency set value
(Analog setting via voltage, current or digital setting via keypad) is within the range of
Skip frequency, it maintains Skip frequency low limit value. If the set value is outside the
range, it increases the frequency.
In the case of decreasing frequency setting, if frequency set value (Analog setting via
voltage, current or Digital setting via keypad) is within the range of Skip frequency, it
maintains Skip frequency high limit value. If the set value is outside the range, it
decreases the frequency.
78
Chapter 10. Advanced functions
10.
Advanced functions
10.1 DC brake
z
Stop mode via DC brake
Set
value
Min/Max
Range
Factory
Defaults
1
0/2
0
-
0/60
5.0
Hz
[DC Brake wait time]
-
0/60
0.1
sec
F10
[DC Brake voltage]
-
0/200
50
%
F11
[DC Brake time]
-
0/60
1.0
sec
Group
LED Display
Function
group 1
F4
[Stop mode select]
F8
[DC
Brake
frequency]
F9
ƒ
ƒ
ƒ
ƒ
ƒ
Parameter Name
start
Unit
Set F4 - [Stop mode select] to 1.
F 8: The frequency at which the DC brake will become active.
F 9: Inverter will wait for this time after F8 - [DC Brake start frequency] before applying F10 - [DC
Brake voltage].
F10: It sets the level as a percent of H33 – [Motor rated current].
F11: It sets the time that F10 - [DC Brake voltage] is applied to the motor after F 9 - [DC Brake wait
time].
CAUTION:
If excessive DC Brake voltage is set or DC Brake time is set too long, it may cause motor
overheating and damage to the motor.
F9
Freq.
F11
F8
Voltage
Current
F10
Run
command
Setting F10 or F11 to 0 will disable DC brake.
F 9 – [DC Brake Wait time]: When load inertia is great or F 8 – [DC Brake Start
Frequency] is high, Overcurrent trip may occur. It can be prevented via F9.
79
Chapter 10. Advanced functions
z
Starting DC brake
Group
LED Display
Parameter Name
Set
value
Min/Max
Range
Factory
Defaults
Unit
Function
group 1
F12
[DC Brake start voltage]
-
0/200
50
%
F13
[DC Brake start time]
-
0/60
0
sec
ƒ
ƒ
F12: It sets the level as a percent of H33 – [Motor rated current].
F13: Motor accelerates after DC voltage is applied for the set time.
CAUTION:
If excessive DC Brake voltage is set or DC Brake time is set too long, it may cause motor
overheating and damage to the motor.
Freq.
F13
t
F12
Voltage
Run
command
Setting F12 or F13 to 0 will disable Starting DC brake.
t: After F13 - [DC Brake start time], the frequency is increasing after DC voltage is
applied until the time t. In this case, DC Brake start time may be longer than the set
value.
z
DC brake at a stop
Group
Function
group 1
I/O
group
ƒ
ƒ
ƒ
LED Display
Parameter Name
Set
value
Min/Max
Range
Factory
Defaults
Unit
F12
[DC Brake start voltage]
-
0/200
50
%
I22
[Multi-function
input
terminal P3 define]
11
0/24
2
F12: Set as a percent of H33 – [Motor rated current].
Select a terminal to issue a command of DC brake during stop among P1 thru P5.
If P3 terminal is set for this function, set 22 to 11 {DC brake during stop}.
Caution:
If excessive DC Brake voltage is set or DC Brake time is set too long, it may cause motor
overheating and damage to the motor.
Voltage
F12
P3
Run
command
80
Chapter 10. Advanced functions
10.2 Jog operation
Group
Function
group 1
I/O group
ƒ
ƒ
ƒ
ƒ
LED display
Parameter name
Set
value
Min/Max
range
Factory
defaults
Unit
Hz
F20
Jog frequency
-
0/400
10.0
I22
[Multi-function
input
terminal P3 define]
4
0/24
2
Set the desired jog frequency in F20.
Select the terminal among the Multi-function input terminal P1 thru P5 to use for this setting.
If P3 is set for Jog operation, set I22 to 4 {Jog}.
Jog frequency can be set within the range of F21 - [Max frequency] and F22 – [Start frequency].
P1
FX : I20 = 0
P3
JOG : I22=4
CM
F20
Frequency
P3 (JOG)
Run
command(FX)
Jog operation overrides all other operations except Dwell operation. Therefore, if Jog
frequency command is entered in the middle of Multi-Step, Up-Down or 3-wire
operation, operation is executed at Jog frequency.
81
Chapter 10. Advanced functions
10.3 Up-Down operation
Group
I/O group
LED display
I20
~
I23
I24
ƒ
ƒ
Set
value
Parameter name
[Multi-function
terminal P1 define]
input
Min/Max
range
0
Factory
defaults
2
~
[Multi-function
input
terminal P4 define]
[Multi-function
input
terminal P5 define]
0/24
15
3
16
4
Select terminals for Up-Down operation among P1 thru P5.
If P4 and P5 are selected, set I23 and I24 to 15 {Frequency Up command} and 16 {Frequency
Down command}, respectively.
P1
FX : I20 = 0
P4
UP : I23 = 15
P5
DOWN : I24 = 16
CM
Frequency
P4 (UP)
P5(DOWN)
Run
command(FX)
82
Unit
Chapter 10. Advanced functions
10.4 3-Wire Operation
Group
LED display
I/O group
ƒ
ƒ
I20
Set
value
Parameter name
[Multi-function
terminal P1 define]
input
Min/Max
range
0
Factory
defaults
Unit
2
0/24
~
~
I24
[Multi-function
input
terminal P5 define]
17
4
Select the terminal among P1 thru P5 for use as 3-Wire operation.
If P5 is selected, set I24 to 17 {3-Wire operation}.
P1
FX : I20 = 0
P2
RX : I21 = 1
P5
3-Wire : I24 = 17
CM
Frequency
t
FX
RX
P5 (3-Wire)
If both 3-Wire and Up-Down operation are selected, the former will be ignored.
The bandwidth of pulse (t) should be above 50msec.
Speed search operation is valid even in the case of LVT (low voltage trip) following instant power
failure.
83
Chapter 10. Advanced functions
10.5 Dwell operation
Group
LED Display
Function
group 2
Parameter Name
Set
value
Min/Max
Range
Factory
Defaults
Unit
H7
[Dwell frequency]
-
0/400
5.0
Hz
H8
[Dwell time]
-
0/10
0.0
sec
ƒ
In this setting, motor begins to accelerate after dwell operation is executed for dwell time at the
dwell frequency.
ƒ It is mainly used to release mechanical brake in elevators after operating at dwell frequency.
Dwell frequency: This function is used to output torque in an intended direction. It is
useful in hoisting applications to get enough torque before releasing a mechanical brake.
Rated Slip frequency is calculated by the formula shown below.
⎛ rpm × P ⎞
fs = fr − ⎜
⎟
⎝ 120 ⎠
Where, f s = Rated slip frequency
f r = Rated frequency
rpm = Motor nameplate RPM
P = Number of Motor poles
Example
Rated frequency = 60Hz
Rated RPM = 1740rpm
Number of motor poles= 4
⎛ 1740 × 4 ⎞
f s = 60 − ⎜
⎟ = 2 Hz
⎝ 120 ⎠
Dwell freq.
Start freq.
Dwell time
Frequency
Run
command
84
Chapter 10. Advanced functions
10.6 Slip compensation
Set
value
Min/Max
Range
Factory
Defaults
[Motor type select]
-
0.2/2.2
-
H31
[Number of motor poles]
-
2/12
4
H32
[Rated slip frequency]
-
0/10
-
Hz
H33
[Motor rated current]
-
1.0/12
-
A
H34
[Motor No Load Current]
-
0.1/12
-
A
H36
[Motor efficiency]
-
50/100
-
%
H37
[Load inertia rate]
-
0/2
0
H40
[Control mode select]
1
0/3
0
Group
LED Display
Function
group 2
H30
ƒ
ƒ
Parameter Name
Unit
Set H40 – [Control mode select] to 1 {Slip compensation}.
This function enables the motor to run in constant speed by compensating inherent slip in an
induction motor. If motor shaft speed decreases significantly under heavy loads then this value
should be increased.
H30: Set the motor type connected to the inverter.
H30
[Motor type
select]
0.2
0.2kW
0.4
0.4kW
0.75 0.75kW
1.5
1.5kW
2.2
2.2kW
H31: Enter the pole number on the Motor nameplate.
H32: Enter the slip frequency based on the following formula and motor nameplate.
⎛ rpm × P ⎞
fs = fr − ⎜
⎟
⎝ 120 ⎠
Where, f s = Rated slip frequency
f r = Rated frequency
rpm = Motor nameplate RPM
P = Number of Motor poles
85
Chapter 10. Advanced functions
Example
Rated frequency= 60Hz
Rated motor RPM= 1740rpm
Motor pole number= 4
⎛ 1740 × 4 ⎞
f s = 60 − ⎜
⎟ = 2 Hz
⎝ 120 ⎠
H32- [Rated slip frequency] is 2Hz. Set H32- [Rated slip frequency] to 2.
H33: Enter the motor nameplate rated current
H34: Enter the measured current when the motor is running at rated frequency after
the load is removed. Enter 50% of the rated motor current when it is difficult to
measure the motor no load current.
H36: Enter motor efficiency on the nameplate.
H37: Select load inertia based on motor inertia as shown below.
H37
[Load inertia rate]
0
Less than 10 times motor inertia
1
About 10 times motor inertia
2
Greater than 10 times motor
inertia
As the loads are heavier, the speed gap between rated RPM and synchronous speed
is widening (see the figure below). This function compensates for this inherent slip.
Set the Torque boost value within 2%. Setting it too high may cause motor overenergizing and lead to error in calculating slip speed.
RPM
Synchronous
speed
Slip
compensation
Motor rated
RPM
Load
86
Chapter 10. Advanced functions
10.7 PID Control
Set
value
Min/Max
Range
Factory
Defaults
Unit
[Control mode select]
2
0/3
0
-
H50
[PID Feedback select]
-
0/1
0
-
H51
[P gain for PID controller]
-
0/999.9
300.0
%
-
0.1/32.0
300
Sec
-
0.0/30.0
0
Sec
0/999.9
0
%
-
0/400
60.0
Hz
21
0/24
-
-
Group
LED Display
Function
group 2
H40
H52
H53
H54
H55
I20~24
ƒ
ƒ
Parameter Name
[Integral time for PID
controller (I gain)]
[Differential time for PID
controller (D gain)]
[F gain for PID controller]
[PID output frequency
limit]
[Multi-function
input
terminal P1-P5 define]
Set H40 to 2 {PID Feedback control}.
Output frequency of the inverter is controlled by PID control for use as constant control of flow,
pressure or temperature.
H50: Select the feedback type of PID controller.
H50
[PID feedback
select]
0
{Terminal I input (0 ~ 20 mA)}
1
{Terminal V1 input (0 ~ 10 V)}
H51: Set the percentage of output to error. If P Gain is set to 50%, 50% of the error
value will be output.
H52: Set the time needed to output the accumulated error value. Set the time required
to output 100% when the error value is 100%. If H52 - [Integral time for PID controller (I
gain)] is set to 1 sec, 100% is output in 1 sec.
H53: Set the output value corresponding to the variation of the error. The error is
detected by 0.01 sec in C series. If differential time is set to 0.01 sec and the
percentage variation of error is 100 per 1 sec, 1% in 100% is output per 10msec.
H54: PID Feed Forward Gain. Set the gain to add the target value to the PID controller
output.
H55: It limits the output of the PID controller.
I20~I24: To exchange PID, set one of P1-P5 terminal to 21 and turn ON.
87
88
2
I 2 ~ I15
I 1, 6, 11
I : 0 ~ 20mA
4
1
I 7 ~ I15
I 1, 6, 11
V
1
H50
I/O group
I/O group
0
Func. group2
Analog input scale
Analog input filter
Feedback select
V1 : 0 ~ 10V
3
2 V0:Potentiometer
1 Keypad setting 2
0 Keypad setting 1
4
3
1
I/O group
I/O group
0
Analog input scale
Analog input filter
Frq
DRV group
Ref. freq setting
I
I
V0 :
Potentiometer
V
1
Keypa
settin
d
g
+
H53 : D time
H51 : P Gain
H52 :I time
Func. group2
PID Control
H54
Func. group2
Feed Forward Gain
+
+
H55
Func. group2
PID output freq limit
P1 ~ P5
2
H40
0, 1,
3
Func. group2
I20 ~ I24
Control
mode select
I/O group
PID to Commercial
Bypass
Accel/
Decel
Chapter 10. Advanced functions
PID control block diagram
10. Advanced functions
10.8 Auto tuning
Set
value
Min/Max
Range
Factory
Defaults
Unit
[Auto tuning]
1
0/1
0
-
H42
[Stator resistance (Rs)]
-
0/14.0
-
Ω
H44
[Leakage
(Lσ)]
-
0/300.00
-
mH
Group
LED Display
Function
group 2
H41
ƒ
ƒ
Parameter Name
inductance
Automatic measuring of the motor parameters is provided.
The measured motor parameters in H41 can be used in Auto Torque Boost and Sensorless Vector
Control.
CAUTION:
Auto tuning should be executed after stopping the motor. Motor shaft must not run by the load during
H41 – [Auto tuning].
H41: When H41 is set to 1 and press the Prog/Ent (•) key, Auto tuning is activated and
“TUn” will appear on the LED keypad. When finished, “H41” will be displayed.
H42, H44: The values of motor stator resistance and leakage inductance detected in
H41 are displayed, respectively. When H93 – [Parameter initialize] is done, the preset
value corresponding to motor type (H30) will be displayed.
Press the STOP/RST key on the keypad or turn on the BX terminal to stop the Auto
Tuning.
If Auto tuning of H42 and H44 is interrupted, the preset value will be used.
See page 10-12 for motor preset parameter values.
CAUTION:
Do not enter any incorrect value as stator resistance and leakage inductance. Otherwise, the
function of Sensorless vector control and Auto torque boost could be deteriorated.
89
10. Advanced functions
10.9 Sensorless vector control
Group
LED Display
Function
group 2
H40
H30
Min/Max
Range
Factory
Defaults
Unit
[Control mode select]
3
0/3
0
-
[Motor type select]
-
0.2/2.2
-
kW
-
0/10
-
Hz
-
1.0/12
-
A
H33
[Rated
slip frequency]
[Motor rated current]
H34
[Motor No Load Current]
-
0.1/12
-
A
H42
[Stator resistance (Rs)]
-
0/14.0
-
Ω
-
0/300.00
-
mH
-
0.0/60.0
1.0
Sec
H32
H44
F14
ƒ
Set
value
Parameter Name
[Leakage inductance
(Lσ)]
[Time for energizing a
motor]
If H40 – [Control mode select] is set to 3, Sensorless vector control will become active.
Caution :
Motor parameters should be measured for high performance. It is highly recommended H41 –
[Auto tuning] be done prior to proceeding operation via Sensorless vector control.
Ensure that the following parameters are entered correctly for high performance in
Sensorless vector control.
H30: Select motor type connected to inverter output.
H32: Enter rated slip frequency based on motor nameplate RPM and rated frequency.
H33: Enter motor nameplate rated current.
H34: After removing the motor load, select H40 – [Control mode select] to 0 {V/F
control} and run the motor at 60Hz. Enter the current displayed in Cur-[Output current]
as motor no load current. If it is difficult to remove the load from the motor shaft, enter
the value either 40 to 50% of the H33 – [Motor rated current] or the factory default.
H42, H44: Enter the value of the parameter measured during H41 – [Auto tuning] or the
factory default.
F14: This parameter accelerates the motor after pre-excitating the motor for the set time.
The amount of the excitating current is set in H34- [Motor no load current].
90
10. Advanced functions
Factory default of motor parameters (Function group 2)
„
H30-Motor
rating
[kW]
H32-Rated slip
freq
[Hz]
H33-Current
rating
[A]
H34-No-load
current
[A]
H42-Stator
resistance [Ω]
H44-Leakage
inductance
[mH]
0.2
0.9
0.5
3.0
14.0
122.0
0.4
1.8
1.1
3.0
6.7
61.58.893
0.75
3.5
2.1
2.33
2.46
28.14
1.5
6.5
3.5
2.33
1.13
14.75
2.2
8.8
4.4
2.0
0.869
11.31
10.10 Energy-saving operation
Group
Function
group 1
ƒ
ƒ
ƒ
LED Display
Parameter Name
Set
value
Min/Max
Range
Factory
Defaults
Unit
F40
[Energy-saving level]
-
0/30
0
%
Set the amount of output voltage to be reduced in F40.
Set as the percent of Max output voltage.
For fan or pump applications, energy consumption can be dramatically reduced by decreasing the
output voltage when light or no load is connected.
Current
F40
Output
voltage
91
10. Advanced functions
10.11 Speed Search
Group
Function
group 2
I/O group
LED Display
ƒ
Set
value
Min/Max
Range
Factory
Defaults
H22
[Speed Search Select]
-
0/15
0
H23
[Current
level
Speed search]
during
-
80/200
100
H24
[P gain
search]
during
Speed
H25
[I gain
search]
during
speed
I54
[Multi-function
terminal select]
I55
ƒ
Parameter Name
-
Unit
%
100
0/9999
output
-
1000
15
12
0/20
[Multi-function
select]
relay
15
17
This is used to prevent possible fault from occurring if the inverter outputs the output voltage during
operation after the load is removed.
The inverter estimates the motor rpm based on output current, so detecting exact speed is difficult.
The following table shows 4 types of Speed search selection.
H22
[Speed search
select]
Speed search
during H20 –
[Power ON
start]
Bit 3
Speed search
during Instant
Power Failure
restart
Bit 2
Speed search
during H21[Restart after
fault reset]
Bit 1
0
-
-
-
-
1
-
-
-
9
2
-
-
9
-
3
-
-
9
9
4
-
9
-
-
5
-
9
-
9
6
-
9
9
-
7
-
9
9
9
8
9
-
-
-
9
9
-
-
9
10
9
-
9
-
11
9
-
9
9
12
9
9
-
-
13
9
9
-
9
14
9
9
9
-
15
9
9
9
9
92
Speed search
during
Acceleration
Bit 0
10. Advanced functions
H23: It limits the current during Speed search. Set as the percent of H33 – [Motor rated
current].
H24, H25: Speed search is activated via PI control. Adjust P gain and I gain corresponding
to the load characteristics.
I54, I55: Signal of active Speed search is given to external sequence via Multi-function
output terminal (MO) and Multi-function relay output (30AC).
EX) Speed search during Instant Power Failure restart
Input
voltage
Frequency
t1
t2
Voltage
H23
Current
Multi-function
output or
Relay
ƒ
ƒ
ƒ
ƒ
ƒ
When the input power is cut off due to instant power failure, the inverter
outputs Low voltage trip (LV) to hold the output.
When the power is restored, the inverter outputs the frequency before the
low voltage trip and the voltage is increased due to PI control.
t1: If the rise in current is greater than the preset level in H23, the rise in
voltage will stop and the frequency is decreased.
t2: If the opposite of t1 occurs, the increase in voltage starts again and the
decrease in frequency stops.
When the frequency and voltage are restored back to the nominal level,
acceleration will continue at the frequency before trip.
Speed search is suitable operation when load inertia is large. It is highly
recommended to restart after stopping the motor when the load inertia is great.
93
10. Advanced functions
10.12 Auto restart try
Group
LED Display
Function
group 2
H26
H27
ƒ
ƒ
Parameter Name
Set
value
Min/Max
Range
Factory
Defaults
-
0/10
0
-
0/60
1.0
[Number of Auto Restart
try]
[Auto Restart time]
Unit
Sec
This parameter sets the number of times auto restart is activated in H26.
It is used to prevent the system down caused by internal protection function activated by the
causes such as noise.
H26: Auto restart will become active after the H27. H26 – [Number of Auto restart try] is
reduced by 1 when it is active. If the trip outnumbers the preset restart try, auto restart
function is deactivated. If the setting is reset via the control terminal or the STOP/RST
key on the keypad, the number of auto restart try set by user is automatically entered.
If the trip does not occur for 30 sec after Auto restart operation, the H26 is restored to
the preset value.
When operation is stopped due to Low voltage {Lvt} or Emergency stop {EST}, Auto
restart will be deactivated.
After the H27- [Auto Restart time], the motor starts acceleration automatically via speed
search (H22-25).
The following pattern is shown when the H26 – [Number of auto restart try] is set to 2.
Trip o ccurred
C o nstant
R un
F req
V o ltag e
S p eed S earch
o p eratio n
H 27
R eset
R un
C o m m and
30S ec
N um b er o f A uto
restart try
2
1
2
94
1
0
2
10. Advanced functions
10.13 Carrier frequency select
Group
LED Display
Function
group 2
H39
ƒ
Parameter Name
[Carrier
select]
Set
value
Min/Max
Range
Factory
Defaults
-
0/15
10
frequency
Unit
This parameter affects the sound of the inverter during operation.
H39
If carrier frequency set
higher
Motor noise
v
Heat loss of the inverter
u
Inverter noise
u
Leakage current
u
10.14 Second motor operation
Group
LED Display
Function
group 2
H81
H82
H83
H84
Factory
Defaults
Unit
[2nd motor Accel time]
-
0/6000
5.0
Sec
[2nd motor Decel time]
-
10.0
Sec
Hz
[2nd
motor
frequency]
base
[2nd motor V/F pattern]
-
30/400
60.0
-
0/2
0
0/15
5
%
5
%
[2nd motor forward torque
boost]
-
H86
[2nd motor reverse torque
boost]
-
H87
[2nd motor stall prevention
level]
-
30/200
150
%
H88
[2nd
motor
Electronic
thermal level for 1 min]
-
50/200
150
%
H89
[2nd
motor
Electronic
thermal
level
for
continuous]
-
100
%
1.8
A
I20
~
I24
ƒ
ƒ
Min/Max
Range
H85
H90
I/O group
Set
value
Parameter Name
[2nd motor rated current]
[Multi-function
terminal P1 define]
input
-
0.1/20
-
0
0/24
~
[Multi-function
input
terminal P5 define]
12
4
Select the terminal among Multi-function input P1 thru P5 for second motor operation.
If using the terminal P5 for second motor operation, set I24 to 12.
Used when an inverter operates 2 motors connected to two different types of the loads.
95
10. Advanced functions
2nd motor operation does not run 2 motors at the same time. As the figure below,
when using two motors with an inverter by exchanging them, different values can be
set for the 2nd motor via the Multi-function input terminal and parameters set in H81H90.
Turn the I24 (setting: 12) On after motor is stopped.
Parameters from H81 to H90 are applied to the 1st motor as well as the 2nd motor.
Motor
1
SV-iC5
C
series
Motor
2
P5
10.15 Parameter initialize & Lock
z
Parameter initialize
Group
Function
group 2
LED
Display
H93
Min/Max
Range
Parameter Name
[Parameter initialize]
0
-
1
Initialize all 4 parameter
groups
2
Initialize Drive group Only
3
4
5
ƒ
Factory
Default
0
Initialize Function group 1
Only
Initialize Function group 2
Only
Initialize I/O group Only
Select the group to be initialized and initialize the parameters in H93.
Press the Prog/Ent (z) key after selecting the desired number in H93. H93 will reappear
after the setting.
96
10. Advanced functions
z
Password Register
Group
LED Display
Function
group 2
ƒ
ƒ
Parameter Name
Set
value
Min/Max
Range
Factory
Defaults
H94
[Password Register]
-
0/FFF
0
H95
[Parameter lock]
-
0/FFF
0
Unit
This parameter creates password for H95 – [Parameter lock].
Valid password is Hex decimal value (0-9, A, B, C, D, E, F).
CAUTION:
Do not forget the registered password. It is also used when unlocking the parameters.
Factory default password is 0. Enter the new password except 0.
Follow the table below to register password for Parameter lock.
Step
Description
LED Display
1
Jump to H94 – [Password Register].
H94
2
Press the Prog/Ent (z) key twice.
3
Enter the password you wish (e.g.: 123).
123
4
“123” is blinking by pressing the Prog/Ent (z) key.
123
4
Press the Prog/Ent (z) key once to enter the value into memory.
H94
0
Follow the table below to change the password. (Current PW: 123 -> New PW: 456)
Step
Description
LED Display
1
Jump to H94 – [Password Register].
H94
2
Press the Prog/Ent (z) key once.
3
Enter any number (e.g.: 122)
4
Press the Prog/Ent (z) key. 0 is displayed because wrong value
was entered. Password cannot be changed in this status.
5
Enter the right password.
123
6
Press the Prog/Ent (z) key once.
123
7
Enter a new password.
456
8
Press the Prog/Ent (z) key. Then “456” will blink.
456
9
Enter the Prog/Ent (z) key to finish.
H94
0
122
97
0
10. Advanced functions
z
Parameter Lock
Group
Function
group 2
ƒ
LED
Display
H95
[Parameter lock]
-
Min/Max
Range
0/FFF
H94
[Password Register]
-
0/FFF
Parameter Name
Set
value
Factory
Defaults
Unit
0
0
This parameter is used to lock the user-set parameters using the password.
See the table below to lock the user-set parameter via the H94 – [Password Register].
Step
Description
LED Display
1
Go to H95 – [Parameter lock]
H95
2
Enter the Prog/Ent (z) key
UL
3
Parameter value can be changed in UL (Unlock) status.
While seeing this message…
UL
4
Enter the Prog/Ent (z) key.
5
Enter the password created in H94 (e.g.: 123).
6
Enter the Prog/Ent (z) key
L
7
Parameter value cannot be changed in L (Lock) status.
L
8
Press either the left (W) or right (X) key.
0
123
H95
See the table below to unlock the user-set parameter via password.
Step
Description
LED Display
1
Go to H94 – [Password register]
H94
2
Press the Prog/Ent (z) key
L
3
Parameter value cannot be changed in L(Lock) status.
L
4
Press the Prog/Ent (z) key
0
5
Enter the password created in H94 (e.g.: 123).
123
6
Press the Prog/Ent (z) key
UL
7
Parameter value can be changed in UL (Unlock) status.
While seeing this message…
UL
8
Press the Prog/Ent (z) key
H95
98
10. Advanced functions
Notes:
99
Chapter 11. Monitoring
11.
Monitoring
11.1 Operating status monitoring
z
Output current
Group
LED
Display
Set
value
Description
Drive
CUr
Output current
group
ƒ Inverter output current can be monitored in Cur.
z
Min/Max
range
Factory
default
Unit
Min/Max
range
Factory
default
Unit
-
Motor RPM
Group
Drive
group
Function
group 2
LED
Display
rPM
[Motor RPM]
-
H31
[Number of motor poles]
-
2/12
4
H40
[Control mode select]
-
0/2
0
-
1/1000
100
[Gain for Motor
display]
Motor rpm can be monitored in rPM.
H74
ƒ
Set
value
Description
rpm
%
When H40 is set to 0 {V/F control} or 1 {PID control}, the Inverter output frequency (f) is
displayed in RPM using the formula below. Motor slip is not considered.
⎛ 120 × f ⎞ H 74
RPM = ⎜
⎟×
⎝ H 31 ⎠ 100
H31: Enter the number of rated motor poles on the nameplate.
H74: This parameter is used to change the motor speed display to rotating speed
(r/min) or mechanical speed (m/mi).
z
Inverter DC Link Voltage
Group
LED
Display
Set
value
Parameter Name
Drive
[Inverter
DC
Link
dCL
group
Voltage]
ƒ Inverter DC link voltage can be monitored in dCL.
Min/Max
range
Factory
default
-
2 times the value of input voltage is displayed while motor is at a stop.
It is the voltage detected between P1 and N terminal of power terminal.
100
Unit
Chapter 11. Monitoring
z
User display select
LED
Display
Group
Drive
group
Function
group 2
ƒ
vOL
H73
Set
value
Parameter Name
[User display select]
Min/Max
range
Factory
default
0/2
0
Unit
-
[Monitoring item select]
-
The selected item in H73- [Monitoring item select] can be monitored in vOL- [User display select].
H73: Select one of the desired item numbers.
H73
[Monitoring
item select]
0
Output voltage [V]
1
Output power [kW]
2
Torque
Enter motor efficiency indicated on motor nameplate to H36 to display correct torque
z
Power on display
Group
Function
group 2
LED
display
H72
Parameter Name
Setting
[Power on display]
`
ƒ
0
Frequency command (0.0)
1
Accel time (ACC)
2
Decel time (DEC)
3
Drive mode (drv)
4
Frequency mode (Frq)
5
Multi-step frequency 1
6
Multi-step frequency 2
7
Multi-step frequency 3
8
Output current (CUr)
9
Motor rpm (rPM)
10
Inverter
(dCL)
11
User display select (vOL)
12
Fault display 1
13
Fault display 2
DC
link
voltage
Select the parameter to be displayed on the keypad when the input power is first applied.
101
Factory
default
0
Chapter 11. Monitoring
11.2 Monitoring the I/O terminal
z
Input terminal status monitoring
Group
I/O group
ƒ
LED
Display
I25
Set
value
Parameter Name
[Input terminal
display]
status
Min/Max
range
Factory
default
Unit
-
Active input terminal status (ON/OFF) can be monitored in I25.
The following is displayed when P1, P3, P4 are ON and P2, P5 are OFF.
ON
OFF
P5
z
P4
P3
P2
P1
Output terminal status monitoring
Group
I/O group
ƒ
LED
Display
Parameter Name
Set
value
I26
[Output terminal status
display]
-
Min/Max
range
Factory
default
Unit
Current status (ON/OFF) of the Multi-function output terminal (MO) and Multi-function relay can be
monitored in I26.
The following is displayed when Multi-function output terminal (MO) is ON and Multifunction relay (30AC) is OFF.
ON
OFF
30AC
102
MO
Chapter 11. Monitoring
11.3 Monitoring fault condition
z
Monitoring fault display
Group
Drive
group
ƒ
ƒ
LED
Display
nOn
Set
value
Parameter Name
[Fault Display]
Min/Max
range
Factory
default
Unit
-
The kind of fault occurred during operation is displayed in nOn.
Up to 3 kinds of faults can be monitored.
This parameter gives information on fault types and the operating status at the time of
the fault. Refer to 1.6 How to monitor operation.
Refer to Page 13-1 for various fault types.
Fault types
Frequency
Current
Accel/Decel
Information
Fault during Accel
Fault during Decel
Fault during constant run
z
Fault History Monitoring
Group
I/O group
LED
Display
H1
[Fault history 1]
~
ƒ
ƒ
Set
value
Parameter Name
Min/Max
range
Factory
default
0/1
0
Unit
-
~
H5
[Fault history 5]
H6
[Reset fault history]
-
H 1 ~ H 5: Up to 5 faults information is stored.
H 6: Previous fault information stored in the code H1 thru H5 is all cleared.
When a fault occurs during operation, it can be monitored in the nOn.
When the fault condition is reset via the STOP/RST key on the keypad or multifunction terminal, information displayed in the nOn will be moved to the H1. In
addition, the previous fault info stored in H1 will be automatically moved to H2.
Therefore, the updated fault info will be stored in the H1.
When more than 1 fault occurred at the same time, up to 3 types of faults will be
stored in one code.
103
Chapter 11. Monitoring
Fault type
Operating status
when a fault
occurs
11.4 Analog Output
LED
Display
Group
I/O group
I50
I51
ƒ
Parameter Name
[Analog output
select]
[Analog
output
adjustment]
item
level
Set
value
Min/Max
range
Factory
default
-
0/3
0
-
10/200
100
Unit
%
Output item and the level from the AM terminal are selectable and adjustable.
I50: The selected item will be output to Analog output terminal (AM).
I50
Analog output
item select
10V
0
Output
frequency.
Max Frequency (F21)
1
Output current
150% of Inverter rated current
2
Output voltage
282 Vac
3
Inverter DC link
400 Vdc
voltage
I51: If you want to use Analog output value as a gauge input, the value can be
adjustable corresponding to various gauge specifications.
AM
0 ~ 10Vdc
CM
104
Chapter 11. Monitoring
11.5 Multi-function output terminal (MO) and Relay (30AC)
Group
LED
display
Parameter Name
[Multi-function
output terminal
select]
0
FDT-1
I54
1
FDT-2
[Multi-function
relay select]
2
FDT-3
3
FDT-4
4
FDT-5
5
Overload {OL}
6
Inverter Overload {IOL}
7
Motor stall {STALL}
8
Over voltage trip {OV}
9
Low voltage trip {LV}
10
Inverter heatsink overheat {OH}
11
Command loss
12
During run
13
During stop
14
During constant run
15
During speed searching
16
Wait time for run signal input
17
Fault output
I55
Factory
default
Setting
12
I/O group
I56
ƒ
When
setting the
H26–
[Number
of
auto
restart
tries]
When the
trip other
than low
voltage
trip occurs
When the
low
voltage
trip occurs
Bit 2
Bit 1
Bit 0
0
-
-
-
1
-
-
9
2
-
9
-
3
-
9
9
4
9
-
-
5
9
-
9
6
9
9
-
7
9
9
9
[Fault relay
output]
2
Select the desired item to be output via MO terminal and relay (30AC).
105
Chapter 11. Monitoring
I56: When 17 {Fault display} is selected in I54 and I55, Multi-function output terminal
and relay will be activated with the value set in I56.
0: FDT-1
Check whether the output frequency of the inverter matches the user-setting frequency.
Active condition: Absolute value (preset frequency - output frequency) <= Frequency
Detection Bandwidth/2
Group
I/O group
ƒ
LED
Display
[Frequency
Bandwidth]
I53
Set
value
Parameter Name
Detection
Min/Max
range
0/400
-
Factory
default
Unit
10.0
Hz
Cannot be set above Max frequency (F21).
40Hz
When setting I53 to 10.0
20Hz
Freq.
setting
40Hz
35Hz
15Hz
20Hz
Freq.
MO
Run
command
1: FDT-2
It activates when the preset frequency matches frequency detection level (I52) and
FDT-1 condition is met.
Active condition: (Preset frequency = FDT level) & FDT-1
Group
I/O group
LED
Display
[Frequency
Level]
[Frequency
bandwidth]
I52
I53
ƒ
Set
value
Parameter Name
Detection
detection
Min/Max
range
0/400
50Hz
25Hz
Freq.
MO
Run
command
106
Hz
10.0
-
When setting I52 and I53 to 30.0 Hz and 10.0 Hz, respectively
Freq.
setting
Unit
30.0
-
It cannot be set above F21- [Max frequency].
30Hz
Factory
default
Chapter 11. Monitoring
2: FDT-3
It activates when run frequency meets the following condition.
Active condition: Absolute value (FDT level - run frequency) <= FDT Bandwidth/2
Group
I/O group
LED
Display
I52
I53
ƒ
Set
value
Parameter Name
[Frequency
level]
[Frequency
Bandwidth]
Detection
Min/Max
range
Factory
default
30.0
0/400
Detection
Unit
Hz
10.0
-
It cannot be set above F21- [Max frequency].
When setting I52 and I53 to 30.0Hz and 10.0 Hz, respectively
35Hz
30Hz
25Hz
Freq.
MO
Run
command
3: FDT-4
Become active when run frequency meets the following condition.
Active condition
Accel time: Run Frequency >= FDT Level
Decel time: Run Frequency > (FDT Level – FDT Bandwidth/2)
Group
I/O group
LED
Display
I52
I53
ƒ
Set
value
Description
[Frequency
level]
[Frequency
Bandwidth]
Detection
Detection
Min/Max
range
0/400
When setting I52, I53 to 30.0 Hz and 10.0Hz, respectively.
30Hz
25Hz
MO
Run
command
4: FDT-5
Activated as B contact contrast to FDT-4.
Active condition
Accel time: Run Frequency >= FDT Level
Hz
10.0
-
Freq.
Unit
30.0
-
Cannot be set above F21- [Max Frequency].
107
Factory
default
Chapter 11. Monitoring
Decel time: Run Frequency > (FDT Level – FDT Bandwidth/2)
LED
Display
Group
I/O group
I52
I53
ƒ
Set
value
Parameter Name
[Frequency
Level]
[Frequency
Bandwidth]
Detection
Detection
Min/Max
range
Factory
default
Unit
30.0
0/400
Hz
10.0
-
It cannot be set above F21- [Max Frequency].
When setting I52, I53 to 30.0 Hz and 10.0Hz, respectively
30Hz
25Hz
Freq.
MO
Run
command
5: Overload {OL}
Refer to Page 12-2 Overload Warning and trip
6: Inverter Overload {IOL}
Refer to Page 12-6 Inverter Overload
7: Motor Stall {STALL}
Refer to Page 12-3 Stall prevention
8: Over voltage Trip {Ovt}
Become active when DC link voltage exceeded 400V and led to Over voltage trip.
9: Low voltage Trip {Lvt}
Become active when DC link voltage decreased to 200V and led to Low voltage trip.
10: Inverter heatsink overheating {OHt}
Become active when overheated inverter heatsink triggers protection function.
11: Command Loss
Become active when frequency command is lost.
108
Chapter 11. Monitoring
12: During run
Become active when run command is given and the inverter generates output voltage.
Freq.
MO
Run
command
13: During stop
Activated during stop.
Freq.
MO
Run
command
14: During constant run
Activated during nominal operation.
Freq.
MO
Run
command
15: During speed searching
Refer to Page 10-12 Speed search operation.
16: Wait time for run signal input
This function becomes active during normal operation and that the inverter waits for
active run command from external sequence.
17: Fault relay output
The parameter set in I56 is activated.
For example, if setting I55, I56 to 17 and 2, respectively, Multi-function output relay
will become active when trip other than “Low voltage trip” occurred.
109
Chapter 12. Protective functions
12.1 Electronic Thermal
Group
LED
display
Function
group 1
F50
F51
F52
F53
Parameter Name
[Electronic thermal
select]
[Electronic thermal level for
1 minute]
[Electronic thermal level for
continuous]
[Motor type]
Set
value
Min/Max
setting
Factory
default
1
0/1
0
-
Unit
150
%
100
%
50/150
-
0/1
0
ƒ
Select F50 – [Electronic thermal select] to 1.
ƒ
It activates when the motor is overheated (time-inverse). If current greater than set in F51 flows,
inverter output is turned off for the preset time in F51- [Electronic thermal level for 1 minute].
F51: Enter the value of max current that is capable of flowing to the motor continuously
for one minute. It is set in percent of motor rated current. The value cannot be set
lower than F52.
F52: Enter the amount of current for continuous operation. Normally motor rated
current is used. It cannot be set greater than F51.
F53: For an inductance motor, cooling effects decrease when a motor is running at low
speed. A special motor is a motor that uses a separately powered cooling fan
maximize cooling effect even in low speed. Therefore, as the motor speed changes,
the cooling does not change.
F53
[Motor type]
0
1
Standard motors having a cooling fan directly
connected to the shaft
Special motor that uses a separately powered
cooling fan.
Current for
continuous [%]
100
H53 = 1
95
H53 = 2
65
Freq [Hz]
20
60
Current [%]
F51
F52
60
ETH trip time [sec]
110
Chapter 12. Protective functions
12.2 Overload Warning and trip
z
Overload warning
LED
Group
Display
Function
F54
group 1
F55
I/O group
I54
I55
ƒ
ƒ
Parameter Name
[Overload warning
level]
[Overload warning time]
[Multi-function output
terminal select]
[Multi-function relay
select]
Set
value
Min/Max
setting
Factory
default
Unit
-
30/150
150
%
-
0/30
10
Sec
5
0/17
12
5
17
Select one output terminal for this function between MO and 30AC.
If selecting MO as output terminal, set I54 to 5 {Overload: OL}.
F54: Set the value as a percent of motor rated current.
t
t : Overload
warning time
t
F54
Current
Multi-function
output
z
Overload trip
Group
LED
Display
Parameter Name
Set
value
Min/Max
setting
Factory
default
Function
group 1
F56
[Overload trip select]
1
0/1
0
F57
[Overload trip level]
-
30/200
180
%
F58
[Overload trip time]
-
0/60
60
sec
ƒ
ƒ
ƒ
Unit
Set F56 to 1.
Inverter output is turned off when motor is overloaded.
Inverter output is turned off when excessive current flows to the motor for F58 – [Overload trip
time].
111
Chapter 12. Protective functions
12.3 Stall prevention
Group
LED
Display
Parameter Name
Set
value
Min/Max
setting
Factory
default
Function
group 1
F59
[Stall prevention select]
-
0/7
3
F60
[Stall prevention level]
-
30/150
150
I54
[Multi-function output
terminal select]
7
I55
[Multi-function relay
select]
7
I/O group
ƒ
ƒ
ƒ
ƒ
ƒ
0/17
Unit
%
12
17
During acceleration: Motor acceleration is stopped when current exceeding the value set in F60
flows.
During constant run: Motor decelerates when current exceeding the value set in F60 flows.
During deceleration: Motor deceleration is stopped when inverter DC link voltage rises above a
certain voltage level.
F60: The value is set as the percent of motor rated current (H33).
I54, I55: Inverter outputs signals through multi-function output terminal (MO) or relay output (30AC)
when stall prevention function is activated. Stall prevention operation can be monitored by external
sequence.
F59: Stall prevention can be set as the table below.
F59
[Stall
prevention
select]
During
Acceleration
Bit 2
During
constant
speed
Bit 1
0
-
-
-
1
-
-
9
2
-
9
-
3
-
9
9
4
9
-
-
5
9
-
9
6
9
9
-
7
9
9
9
Setting
During
Deceleration
Bit 0
For example, set F59 to 3 to make stall prevention active during Acceleration
and constant run.
When stall prevention is executed during acceleration or deceleration,
Accel/Decel time may take longer than the user-setting time.
When stall prevention is activated during constant run, t1, t2 executed in
accordance with the value set in ACC - [Accel time] and dEC - [Decel time].
112
Chapter 12. Protective functions
F60
Current
Freq.
Multi-functi
on output
or relay
t1
During
acceleration
t2
During
constant run
DC
voltage
Freq.
Multi-function
output or relay
During
deceleration
12.4 Output phase loss protection
Group
LED
display
Parameter Name
Set
value
Min/Max
setting
Factory
default
Function
group 2
H19
[Output phase loss
protection select]
1
0/1
0
ƒ
ƒ
Unit
Set H19 value to 1.
This function turns off the inverter output in the event of more than one phase loss among U, V and
W output.
CAUTION :
Set H33- [Motor rated current] correctly. If the actual motor rated current and the value of H33
are different, this function could not be activated.
113
Chapter 12. Protective functions
12.5 External trip signal
Group
I/O group
LED
display
Description
I20
[Multi-function input
terminal P1 define]
~
~
I23
I24
ƒ
ƒ
Set
Value
Min/Max
setting
Factory
default
Unit
0
0/24
[Multi-function input
terminal P4 define]
[Multi-function input
terminal P5 define]
18
3
19
4
Select a terminal among P1 thru P5 to output external trip signal.
Set I23 and I24 to 18 and 19 to define P4 and P5 as External A contact and B contact.
External trip signal input A contact (N.O): This is a normally open contact input. When
a P4 terminal set to “Ext trip-A” is ON, inverter displays the fault and turns off its output.
External trip signal input B contact (N.C): This is a normally closed contact input. When
a terminal set to “Ext trip-B” is OFF, inverter displays the fault and turns off its output.
P1
FX : I20 = 0
P4
N.O.
: I23 = 18
P5
N.C.
: I24 = 19
CM
Frequency
P4(A contact)
P5(B contact)
Run
command
114
Chapter 12. Protective functions
12.6 Inverter Overload
Inverter overload prevention function is activated when the current above inverter rated
current flows.
Multi-function output terminal (MO) or Multi-function relay (30AC) is used as the alarm
signal output during inverter overload trip.
Group
I/O group
LED
display
I54
I55
Set
value
Parameter Name
[Multi-function output
terminal select]
[Multi-function relay
select]
Min/Max
Range
7
Factory
default
Unit
12
0/17
7
17
12.7 Frequency command loss
Group
I/O group
LED
display
I16
I62
I63
I54
I55
ƒ
Parameter Name
[Criteria for analog
input signal loss]
[Drive mode select after
loss of frequency
command]
[Wait time after loss of
frequency command]
[Multi-function output
terminal select]
[Multi-function relay
select]
Set
value
Min/Max
setting
Factory
default
0
0/2
0
-
0/2
0
11
11
1/12
0/17
1.0
Unit
Sec
12
17
Select the Drive mode when frequency reference set via V1 and I or (V1+I) input terminal or
communication option is lost.
I16: This is to set the criteria for analog input signal loss when frequency reference is given by V1,
I, V 1+I or Communication option.
I16
[Criteria for analog
input signal loss]
0
Disabled (Does not check the analog input signal loss)
1
When less than the value set in I 2, I 7, I 12 is entered
2
When below the value set in I 2, I 7, I 12 is entered
EX 1) The inverter determines that the freq reference is lost when DRV- Frq is set to 3 (Analog V1
input), I 16 to 1 and analog input signal is less than half of the minimum value set in I 7.
EX 2) The inverter determines that the freq reference is lost when DRV- Frq is set to 6 (V1+I), I 16
to 2 and V1 input signal is either below the minimum value set in I 7 or I input value is less than the
I 12 value.
115
Chapter 12. Protective functions
I62: When no frequency command is given for the time set in I63, set the drive mode as the table
below.
I62
[Drive mode
0
select after loss of
frequency
1
command]
2
Continuous operation with the
frequency before command loss occurs
Free run stop (output cut off)
Decel to stop
I54, I55: Multi-function output terminal (MO) or Multi-function relay output (30AC) is used to output
information on loss of frequency command to external sequence.
For example, when I62 is set to 2, I63 to 5.0 sec and I54 to 11, respectively,
Set
freq
5 sec
Freq
MO
Run
command
116
Chapter 13. Troubleshooting & Maintenance
13.
Troubleshooting & Maintenance
13.1 Protective functions
WARNING
When a fault occurs, the cause must be corrected before the fault can be cleared. If protective
function keeps active, it could lead to reduction in product life and damage to the equipment.
Fault Display and information
Keypad
display
Protective
functions
Over current
The inverter turns off its output when the output current of the inverter flows more
than 200% of the inverter rated current.
Ground
current
The inverter turns off its output when a ground fault occurs and the ground fault
current is more than the internal setting value of the inverter.
fault
Inverter
Overload
The inverter turns off its output when the output current of the inverter flows more
than the rated level (150% for 1 minute).
Overload trip
The inverter turns off its output if the output current of the inverter flows at 150% of
the inverter rated current for more than the current limit time (1 min).
Heat
overheat
sink
DC
link
capacitor
overload
Output Phase
loss
Over voltage
Low voltage
Electronic
Thermal
Parameter
save error
Keypad
display
Descriptions
The inverter turns off its output if the heat sink overheats due to a damaged cooling
fan or an alien substance in the cooling fan by detecting the temperature of the heat
sink.
The inverter turns off its output when it is time to replace the old DC link capacitor to a
new one.
The inverter turns off its output when the one or more of the output (U, V, W) phase is
open. The inverter detects the output current to check the phase loss of the output.
The inverter turns off its output if the DC voltage of the main circuit increases higher
than 400 V when the motor decelerates. This fault can also occur due to a surge
voltage generated at the power supply system.
The inverter turns off its output if the DC voltage is below 180V because insufficient
torque or overheating of the motor can occur when the input voltage of the inverter
drops.
The internal electronic thermal of the inverter determines the overheating of the
motor. If the motor is overloaded the inverter turns off the output. The inverter cannot
protect the motor when driving a motor having more than 4 poles or multi motors.
This fault message is displayed when user-setting parameters fails to be entered into
memory.
Protective
functions
Descriptions
Inverter
hardware fault
This fault message is displayed when an error occurs in the control circuitry of the
inverter.
Communication
Error
This fault message is displayed when the inverter cannot communicate with the
keypad.
Cooling
fault
This fault message is displayed when a fault condition occurs in the inverter cooling
fan.
fan
Instant cut off
Used for the emergency stop of the inverter. The inverter instantly turns off the output
when the EST terminal is turned on.
117
Chapter 13. Troubleshooting & Maintenance
Used for the emergency stop of the inverter. The inverter instantly turns off the output
when the EST terminal is turned on.
Instant cut off
External fault A
contact input
External fault B
contact input
Operating
method when
the frequency
command
is
lost
CAUTION:
The inverter starts to regular operation when turning off the Est terminal while
FX or RX terminal is ON.
When multi-function input terminal (I20-I24) is set to 19 {External fault signal input: A
(Normal Open Contact)}, the inverter turns off the output.
When multi-function input terminal (I20-I24) is set to 19 {External fault signal input: B
(Normal Close Contact)}, the inverter turns off the output.
When inverter operation is set via Analog input (0-10V or 0-20mA input) or option
(RS485) and no signal is applied, operation is done according to the method set in
I62 (Operating method when the frequency reference is lost).
118
Chapter 13. Troubleshooting & Maintenance
13.2 Fault Remedy
Protective
functions
Cause
Remedy
CAUTION:
Overcurrent
When an overcurrent fault occurs, operation must be started after the cause is removed to
avoid damage to IGBT inside the inverter.
z Accel/Decel time is too short compared to ) Increase the Accel/Decel time.
2
the GD of the load.
) Replace the inverter with appropriate
z Load is greater than the inverter rating
capacity.
z Inverter output is issued when the motor is ) Resume operation after stopping the motor
or use H22 (Speed search) in Function group
free running.
z Output short circuit or ground fault has 2.
occurred.
) Check output wiring.
z Mechanical brake of the motor is operating
too fast.
) Check the mechanical brake.
Ground fault has occurred at the output
wiring of the inverter
z The insulation of the motor is damaged due
to heat.
) Check the wiring of the output terminal.
z
Load is greater than the inverter rating.
)
z
Inverter capacity is incorrectly selected.
z
Torque boost scale is set too large.
) Reduce torque boost scale.
z
Cooling system has faults.
)
z
Ground fault
current
Inverter
overload
) Replace the motor.
Upgrade the capacity of motor and inverter
or reduce the load weight.
) Select correct inverter capacity.
Overload trip
z
Heat sink
overheat
An old cooling fan is not replaced with a
new one.
z Ambient temperature is too high.
z
z
Faulty contact of magnetic switch at output
Faulty output wiring
Output Phase
loss
Cooling fan
fault
Over voltage
) Keep ambient temperature under 40°C.
) Make connection of magnetic switch
An alien substance is clogged in a
ventilating slot.
z Inverter has been in use without changing a
cooling fan.
)
z
) Increase the Decel time.
Decel time is too short compared to the
2
GD of the load.
z Regenerative load is at the inverter output.
z Line voltage is too high.
z
Low voltage
z
z
z
z
z
z
Line voltage is low.
Load larger than line capacity is connected
to line (ex: welding machine, motor with high
starting current connected to the commercial
line).
Faulty magnetic switch at the input side of
the inverter.
Motor has overheated.
Load is greater than inverter rating.
ETH level is set too low.
Inverter capacity is incorrectly selected.
Inverter has been operated at low speed for
too long.
Check the ventilating slot and remove the
clogged substances.
) Replace the cooling fan.
) Use Dynamic Brake Unit.
) Check whether line voltage
exceeds its
rating.
) Check whether line voltage is below its
rating.
) Check the incoming AC line. Adjust the line
capacity corresponding to the load.
) Change a magnetic switch.
) Reduce load weight and operating duty.
) Change inverter with higher capacity.
) Adjust ETH level to an appropriate level.
) Select correct inverter capacity.
) Install a cooling fan with a separate power
supply.
119
at
output of the inverter securely.
) Check output wiring.
z
z
Electronic
thermal
Check for alien substances clogged in the
heat sink.
) Replace the old cooling fan with a new one.
Chapter 13. Troubleshooting & Maintenance
Protective
functions
Cause
Remedy
z
The terminal which is set to “18 (External
fault-A)” or “19 (External fault-B)” in I20-I24
in I/O group is ON.
)
z
No frequency command is applied to V1
and I.
) Check the wiring of V1 and I and frequency
External fault A
contact input
Eliminate the cause of fault at circuit
connected to external fault terminal or cause of
external fault input.
External fault B
contact input
reference level.
Operating
method when
the frequency
command is
lost
)
Contact your
representative.
Parameter save error
Hardware fault
Communication Error
120
local
CERUS
sales
Chapter 13. Troubleshooting & Maintenance
13.3 Precautions for maintenance and inspection
CAUTION
z
z
z
z
Make sure to remove the input power while performing maintenance.
Make sure to perform maintenance after checking the DC link capacitor has
discharged. The bus capacitors in the inverter main circuit can still be
charged even after the power is turned off. Check the voltage between
terminal P or P1 and N using a tester before proceeding.
C series inverter has ESD (Electrostatic Discharge) sensitive components.
Take protective measures against ESD before touching them for inspection or
installation.
Do not change any inner parts and connectors. Never modify the inverter.
13.4 Check points
z
z
Daily inspections
9 Proper installation environment
9 Cooling system fault
9 Unusual vibration and noise
9 Unusual overheating and discoloration
Periodic inspection
9 Screws and bolts may become loose due to vibration, temperature changes, etc.
) Check that they are tightened securely and retighten as necessary.
9 Alien substances are clogged in the cooling system.
) Clean it using the air.
9 Check the rotating condition of the cooling fan, the condition of capacitors and the connections
with the magnetic contactor.
) Replace them if there are any abnormalities.
13.5 Part replacements
The inverter consists of many electronic parts such as semiconductor devices. The following parts may
deteriorate with age because of their structures or physical characteristics, leading to reduced performance or
failure of the inverter. For preventive maintenance, the parts must be changed periodically. The parts replacement
guidelines are indicated in the following table. Lamps and other short-life parts must also be changed during
periodic inspection.
Part name
Cooling fan
Smoothing capacitor in main
circuit
Smoothing capacitor on control
board
Relays
Change period (unit: Year)
3
Description
Exchange (as required)
4
Exchange (as required)
4
Exchange (as required)
-
Exchange (as required)
121
Chapter 14. Specifications
14. Specifications
14.1 Technical data
z
Input & output ratings
Model: CI – xxx – C2 – 1P
001
002
003
004
[HP]
0.5
1
2
3
[kW]
0.4
0.75
1.5
2.2
Capacity [kVA]
0.95
1.9
3.0
4.5
FLA [A]
2.5
5
8
12
16
21.6
Max motor
capacity1
2
Output
ratings
Input
ratings
Frequency
0 ~ 400 [Hz]
Voltage
Three Phase 200 ~ 230V4
Voltage
Single Phase 200 ~ 230V (±10%)
Frequency
50 ~ 60 [Hz] (±5%)
5.5
Current
z
3
9.2
Control
Control mode
V/F control, Sensorless vector control
Digital: 0.01Hz
Frequency setting resolution
Analog: 0.06Hz (Max. frequency: 60Hz)
Accuracy
of
Frequency Digital: 0.01% of Max. output frequency
Analog: 0.1% of Max. output frequency
command
V/F Ratio
Linear, Squared Pattern, User V/F
Overload capacity
Software: 150% for 60 s
Torque boost
Auto/Manual torque boost
z
Operation
Operation mode
Frequency setting
Operation features
Input
Multi-function terminal
Keypad/ Terminal/ Communication option selectable
Analog: 0 ~ 10[V], 0 ~ 20[mA], Keypad Potentiometer
Digital : Keypad
PID control, Up-Down operation, 3-wire operation
NPN/ PNP selectable
Function: (refer to page 3-5)
Multi-function
open
Operating status
collector terminal
Function: (Refer to page 11-6)
Output Multi-function
relay
Fault output (N.O., N.C.)
terminal
Analog output
0 ~ 10 Vdc: Frequency, Current, Voltage, DC link voltage selectable
z
Protective functions
Inverter
Trip
Over-voltage, Under-voltage, Over-current, Ground fault current detection, Over-temperature
of inverter and motor, Output phase open, Overload, Communication error, Loss of frequency
1
Indicates the maximum applicable motor capacity when using a 4-pole Standard motor.
Rated capacity is based on 220V.
3
Max settable freq is 300Hz when H30 is set to 3 “Sensorless Vector Control”.
4
Max output voltage will not be greater than the input voltage. Output voltage less than the input voltage can be
programmed.
2
122
14. Specifications
command, H/W fault
Alarm
Conditions
Momentary
power loss
z
Stall prevention, Overload
Less than 15 msec: Continuous operation
More than 15 msec: Auto Restart enable
Environment
Cooling
method
Degree of
protection
Ambient
temperature
Storage
temperature
Relative
humidity
Altitude,
Vibration
Application
site
Forced air cooling
Open, Pollution degree 2
-10 ~ 50°C (14 ~ 122°C)
- 20 ~ 65°C (-4 ~ 149°C)
Less than 90% (no condensation)
1,000m (3000 ft) above sea level, Max. 5.9m/sec2 (0.6G)
Protected from corrosive gas, combustible gas, oil mist or dust
14.2 Temperature Derating Information
z
Load current VS Carrier frequency
For 0.4kW, 0.8kW, 1.5kW inverter
For 2.2kW inverter
Load
Current
Load
Current
100%
100%
80%
1kHz
15kHz
1kHz
Carrier freq.
8kHz
15kHz
Carrier freq.
Note:
1. The above graph is applied when inverter is in use within the permissible ambient
temp. If the unit is installed in a panel, install it where heat dissipation is properly done
to keep the panel ambient temp within permissible range.
2.
This de-rating curve is based on inverter current rating when rated motor is connected.
123
DECLARATION OF CONFORMITY
Council Directive(s) to which conformity is declared:
CD 73/23/EEC and CD 89/336/EEC
Units are certified for compliance with:
EN 50178:1998
EN 50081-2:1993
EN 55011:1998+A1:1999
EN 50082-2:1995
EN 61000-4-2:1995+A1:1998
EVN 50140:1993(EN 61000-4-3:1995)
EVN 50204:1995
EN 61000-4-4:1995
EN 61000-4-5:1995
ENV 50141:1993(EN 61000-4-6:1996)
EN 61000-4-8:1993
EN 61000-4-11:1994
Type of Equipment:
Inverter (Power Conversion Equipment)
Model Name:
C Series
Trade Mark:
Cerus Industrial
Representative:
LG International (Deutschland) GmbH
Address:
Lyoner Strasse 15,
60528, Frankfurt am Main,
Germany
Manufacturer:
LG Industrial Systems Co., Ltd.
Address:
181, Samsung-Ri, Mokchon-Eup,
Chonan, Chungnam, 330-845,
Korea
We, the undersigned, hereby declare that equipment specified above conforms to the
Directives and Standards mentioned.
Place:
Frankfurt am Main
Chonan, Chungnam,
Germany
Korea
(signature/date)
Mr. Ik-Seong Yang / Dept. Manager
(signature/date)
Mr. Jin-Gu Song / General Manager
(Full name / Position)
(Full name / Position)
124
TECHNICAL STANDARDS APPLIED
The standards applied in order to comply with the essential requirements of the Directives 73/23/EEC
"Electrical material intended to be used with certain limits of voltage" and 89/336/EEC "Electromagnetic
Compatibility" are the following ones:
• EN 50178:1998
• EN 50081-2:1993
“Electronic equipment for use in power installations”.
“Electromagnetic compatibility-Generic emission standard. Part 2: Industrial
environment.”
• EN 55011:1998+A1: 1999
“Industrial, scientific and medical (ISM) radio-frequency equipment Radio disturbance
characteristics-Limits and methods of measurement.”
• EN 50082-2:1995
“Electromagnetic compatibility-Generic immunity standard. Part 2: Industrial
environment.”
• EN 61000-4-2:1995+A1: 1998 “Electromagnetic compatibility (EMC). Part 4-2: Testing and measurement techniques.
Electrostatic discharge immunity test.”
• EN 61000-4-3:1995
“Electromagnetic compatibility (EMC). Part 4-3: Testing and measurement techniques.
Radiated, radio-frequency,electromagnetic field immunity test.”
• EN 61000-4-4:1995
“Electromagnetic compatibility (EMC). Part 4-4: Testing and measurement techniques.
Electrical fast transients / burst immunity test.”
• EN 61000-4-5:1995
“Electromagnetic compatibility (EMC). Part 4-5: Testing and measurement techniques.
Surge immunity test.”
• EN 61000-4-6:1996
“Electromagnetic compatibility (EMC). Part 4-6: Testing and measurement techniques.
Immunity to conducted disturbances, induced by radio-frequency
fields.”
“Electromagnetic compatibility (EMC). Part 4-8: Testing and measurement techniques.
Power frequency magnetic field immunity test.”
• EN 61000-4-8:1993
• EN 61000-4-11:1994
“Electromagnetic compatibility (EMC). Part 4-11: Testing and measurement techniques.
Voltage dips, short interruptions and voltage variations
immunity test.”
• ENV 50140:1993
“Electromagnetic compatibility - Basic immunity standard - Radiated radio- frequency
electro magnetic field - Immunity test.”
“Electromagnetic compatibility. Basic immunity standard. Conducted disturbances
induced by radio-frequency fields.”
“Radio electromagnetic field from digital radio telephones.”
• ENV 50141:1993
• ENV 50204:1995
125
EMC INSTALLATION GUIDE
Cerus inverters are tested to meet Electromagnetic Compatibility (EMC) Directive 89/336/EEC and Low Voltage (LV)
Directive 73/23/EEC using a technical construction file. However, Conformity of the inverter with CE EMC requirements
does not guarantee an entire machine installation complies with CE EMC requirements. Many factors can influence total
machine installation compliance.
Essential Requirements for CE Compliance
Following conditions must be satisfied for the inverters to meet the CE EMC requirements.
1. CE compatible to this inverter
2. Installing inverter in an EMC enclosure
3. Grounding enclosure and shielded parts of wire
4. Using shielded cable
5. Use it under industrial environment.
6. It is important that all lead lengths are kept as short as possible and that incoming mains and outgoing motor cables are
kept well separated.
INVERTER
No
Models
1
CI-000-C2-1P
2
CI-001-C2-1P
3
CI-002-C2-1P
4
CI-003-C2-1P
¾
SHIELDED CABLE
Description
MOTOR
CE Mark
EMC
LVD
Interface Module1*
Interface Module 2**
-
-
Yes
1
-
-
Yes
2
-
-
Yes
3
-
-
Yes
4
AC Drive, 0.5HP, 220V,
1 phase
AC Drive, 1HP, 220V,
1 phase
AC Drive, 2HP, 220V,
1 phase
AC Drive, 3HP, 220V,
1 phase
Models No. 1, 2, 3 and 4 are EMC Filters integrated and compliant with CE.
* Module 1: Non-Filter Type PCB Assembly
** Module 2: Filter Type PCB Assembly
126
CERUS
Get all the latest in
motor controls...
����������������
Cerus Industrial Corporation
3101 SW 153rd Drive Suite 318
Beaverton OR, 97006
1-800-962-3787
11/7/03
Document #0003M-00-03
Product improvement is a continual process; pricing and specifications subject to change without notice. Cerus, Orion, Titan and associated logos are trademarks of Cerus Industrial, Inc.
All sales subject to Cerus Terms and Conditions. Consult Factory for manual addendums. © 2003 Cerus Industrial.
Download PDF

advertising
