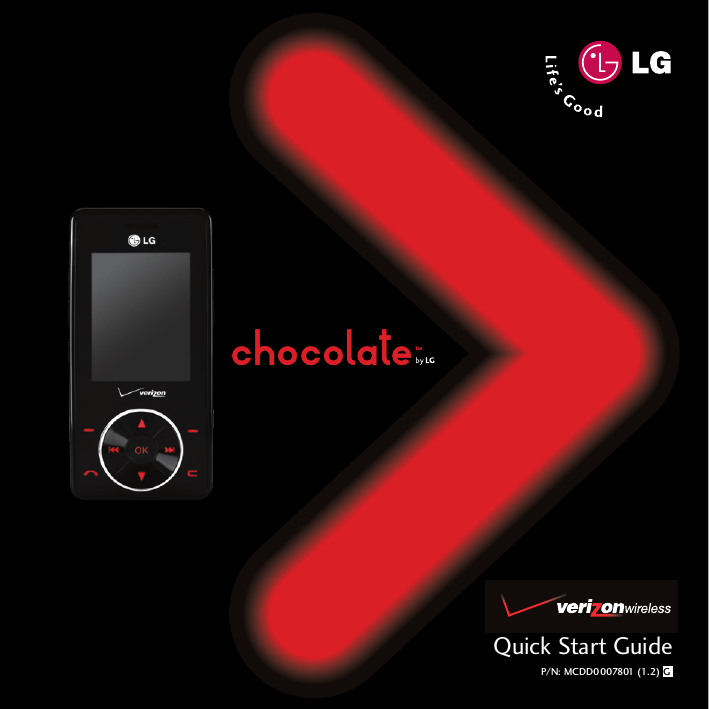

Quick Start Guide

P/N: MCDD0007801 (1.2) G

Getting to Know Your Phone

Camera Mirror

Earpiece

Customizable Display

To change wallpaper or display themes, go to:

Settings & Tools

menu

>

Display Settings (4)

Volume

Up/Down**

Voice

Command/

Memo Key**

Left

Soft Key

Get Pix

& Flix

Send/

Answer Key

Charging/

Headset Port

Voicemail

Key

Vibrate

Mode Key

Web

Right

Soft Key

Get It Now

OK Key

Clear &

Back Key

Calendar

Camera/

Video/

Speaker*

Key**

Music/

Playlist

Key**

End

Key microSD ™

Port

Speaker

RIGHT VIEW FRONT & LEFT VIEWS REAR VIEW

*Speakerphone can only be activated during a call. **Key unlocks the touch keypad in the closed position.

Using the Touch Keypad

TOUCH KEYPAD

• Touch the exact key with your fingertip.

• It is not necessary to press hard. A light tap will do.

• To navigate, tap the

up

,

down

,

left

or

right

key.

TOUCH SENSOR LEVEL

The touch keypad’s sensitivity level is set at

medium

by default and can be adjusted by going to:

Settings & Tools

menu >

Touch Keypad (7)

>

Sensor Level (1)

.

TOUCH PROTECTION

The touch keypad is automatically locked when:

• The slide is closed.

• The touch keypad is inactive for a set time (3 sec. when slide is closed; 20 sec. after the LCD backlight has turned off when slide is open).

To unlock the touch keypad:

• Slide Closed: open the slide or press any side key

(other than End Key).

• Slide Open: press any key.

How to Get Music

1. Shop the Catalog Using V CAST Music

Tap twice, select

Get V CAST Music (7)

to download new music. Choose from over

1,000,000 songs!

2. Sync Music from Your PC to Your Phone

Whether you’re purchasing music from the online

V CAST Music Store or copying music from your personal library, it’s easy to sync from your PC.

Connect your phone to your PC with an optional

USB cable*. Tap twice, select

Sync Music (8)

to sync music from PC to phone. USB cable and

Windows Media Player 10 are required.

*Refer to the Music Essentials Kit (sold separately) and Quick

Reference Guide (pages 22-28) for more details.

Playing Music

Transform your wireless phone into a portable music player.

Expand your collection with the Verizon Wireless music catalog. Even set a music alarm using your favorite song.

1. Tap twice, select

All Songs (1)

and tap to play.

2. Use the side

Volume Keys

to adjust volume when a song is playing. Tap the

Right Soft Key

for

Options

to try different music effects.

3. Press the

End Key

twice to exit the music player.

Shortcut:

To quickly access your music playlists, press the side

Music Key

. If music has been played at least once, press and

hold

the side

Music Key

to launch the music player.

Note:

You can play music in the background in

Standby

,

Music Only

, and

Standalone

modes.

In some cases, the music will pause and then resume when you finish the activity.

Creating Playlists

1. Tap twice, select

Playlists (2)

.

2. Tap the

Right Soft Key

to create a playlist.

3. Enter a playlist name and tap .

4. Tap the

Right Soft Key

, and select

Add Songs to Playlist (4)

5. Tap to mark all the songs you want to add to the playlist.

6. Tap the

Left Soft Key

for

Done

.

Optional Accessories

Bluetooth

Stereo Headset

Portable

Stereo Speakers

Headset Adapter with Charging Port

• Bluetooth Style-i

• microSD Card

(256MB/512MB/1GB/2GB)

• Vehicle Power Charger

• Carrying Case

Music Essentials Kit Extended Li-Ion Battery

(1,200 mAh)

©2006 LG Electronics, Inc. All rights reserved. All other trademarks are property of their respective owners. All phone images are simulated.

The Bluetooth ® trademark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license.

Making & Answering Calls

MAKING CALLS

1. Press and

hold

the side

End Key

for 3 seconds to turn the phone on.

2. Slide phone open to reveal keypad, then enter phone number and tap

Send

.

3. Press the side

End Key

to end the call or close the slide.*

ANSWERING CALLS

• Slide Closed: open the slide or press the

Voice

Command/Memo Key

or

Music Key

, then tap

Send*

.

• Slide Open and with Touch Keypad Lit: Tap

Send

*Default settings. You can change your

Answer/End Call

Options

by going to:

Settings & Tools

menu

> Call Settings (6)

, then

Answer Options (1)

or

End Call Options (2)

.

.

Note:

If the phone is ringing or vibrating, tap

Left Soft Key

to mute the ringing/vibration or tap the

Right Soft Key

to ignore the call.

Bluetooth

®

Pairing

Enjoy hands-free entertainment and communication in the car, office, or at home with Bluetooth accessories, like a Bluetooth stereo headset* for listening to music.

Get wire-free convenience up to 30 feet away.

1. Set your Bluetooth accessory into pairing mode.

2. Tap

,

tap

left

on the Navigation Key, then tap to access the

SETTINGS & TOOLS

menu.

3. Select

Bluetooth

(

8

), then

Add New Device

(

1

).

4. If Bluetooth is set to off, you will be prompted to turn power on. Select

Yes

(

1

) and tap .

5. The phone will now search for the accessory. Once found, highlight it and tap for

Pair

.

6. Enter the passcode (typically “0000” - 4 zeroes) and tap . If you don’t know the passcode, please consult the user manual of the device you are trying to pair.

7. Tap to connect with the device.

*Streaming audio not supported.

Note:

You can save up to 20 Bluetooth pairings

Bluetooth accessories sold separately. Phone does not support all Bluetooth OBEX profiles.

For vehicle/accessory compatibility, go to www.verizonwireless.com/bluetoothchart.

Taking a PIX / Recording a FLIX

Shooting photos on-the-fly has never been easier with the slide out 1.3 megapixel camera. When you need to capture all the action, get it with live video and share it all instantly with PIX-FLIX Messaging.

1. To activate camera mode: With the slide open, press the side

Camera/Video Key

.

2. To activate video mode: With the slide open, press and

hold

the side

Camera/Video Key

for 2 seconds.

3. Tap

left

or

right

on the Navigation Key to zoom.

Tap

up

(or

down

) to adjust brightness. Tap the

Right Soft Key

to adjust camera/video options.

4. Tap or press to take a photo or record a video. Tap or press to stop recording.

5. Tap the

Left Soft Key

for

Save

or for

SEND

.

Note:

To take a self-portrait, use the mirror on the back of the phone and press .

You can record up to 1 hour of video using available memory.

Customizable Features

CHANGING THE DISPLAY THEME

1. Tap , tap

left

on the

Navigation Key, then tap to access the

SETTINGS &

TOOLS

menu.

2. Select

Display Settings (4)

, then

Display Themes (4)

.

3. Select

VZW (1)

,

Rock’n Roll

(2)

,

Jazz (3)

,

Business (4)

,

Tropical (5)

, or

Blue (6)

.

CHANGING THE MUSIC

PLAYER THEME

1. Tap twice.

2. Select

Settings (6)

, then

Player Theme (1)

.

3. Select

Rock’n Roll

or

Jazz

.

Jazz

Rock’n Roll

Tropical

Jazz
