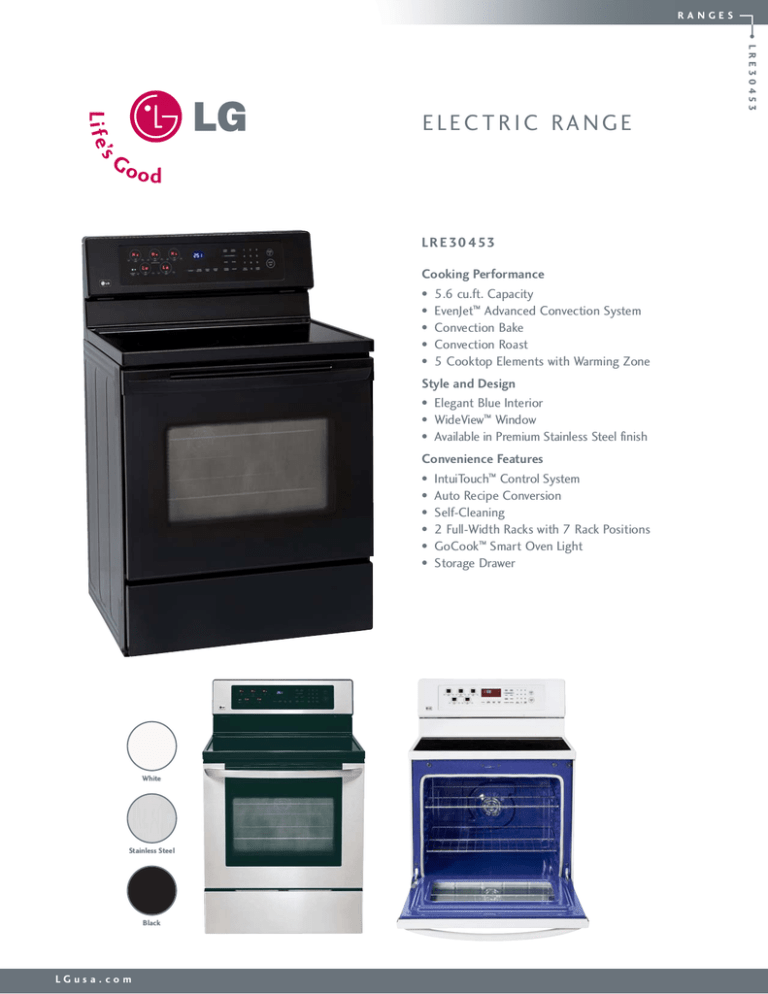

RANGES
L R E 30 453
ELECTRIC RANGE
L R E 30 453
Cooking Performance
• 5.6 cu.ft. Capacity
• EvenJet™ Advanced Convection System
• Convection Bake
• Convection Roast
• 5 Cooktop Elements with Warming Zone
Style and Design
• Elegant Blue Interior
• WideView™ Window
• Available in Premium Stainless Steel finish
Convenience Features
• IntuiTouch™ Control System
• Auto Recipe Conversion
• Self-Cleaning
• 2 Full-Width Racks with 7 Rack Positions
• GoCook™ Smart Oven Light
• Storage Drawer
White
Stainless Steel
Black
LGusa.com
ELECTRIC RANGE
L R E 30 453
Spacious 5.6 cu.ft. Capacity
Cooking for a full house is no longer a tight squeeze with
LG's 5.6 cu.ft. electric range. Not only can you cook a large
turkey, but you'll have room for biscuits and a casserole too.
The elegant blue interior complements the exterior styling
and gives your range a more premium look.
Type
Capacity (cu.ft.)
C O N T RO L S
Oven / Cooktop
Layout
Display
Electronic Clock & Timer
Control Lock Function
Audible Preheat Signal
Special Functions (6 Options)
EvenJet Advanced
Convection System
™
Ensure that all of your
food is evenly cooked with
the EvenJet™ Advanced
Convection System. The
S-Shaped fan circulates hot
air throughout the cavity,
and that means fewer cold
spots inside the oven.
IntuiTouch™ Control System
Easy to use and easy to clean, the IntuiTouch™ Control
System makes operating your range a snap. The left side
of the panel mirrors the cooktop elements, while the right
side controls the oven functions.
Installation Reference
(see chart at right for measurements)
A
C O O K TO P
Ceramic
No. of Radiant Elements
No. of Radiant Heat Settings
Warming Zone
E L E M E N T S I Z E A N D WAT TAG E
Left Rear and Right Rear
Center Rear (Warming Zone)
Left Front
Right Front
OV E N
Self-Cleaning
Variable Cleaning Time (2 hr, 3 hr & 4 hr)
Variable Broil (High, Low)
Broil Element
Bake Element
Convection Conversion
Convection System
Convection Bake
Convection Roast
No. of Rack Positions
No. of Racks
WideView™ Window
Automatic Shut-Off
Interior Oven Light (Auto/Manual adjustment)
GoCook™ Smart Oven Light
Delay Bake / Delay Clean
Proofing
Cook & Warm
D R AW E R
Type
Capacity
Dimensions (WxHxD)
SA F E T Y F E AT U R E S
Door Lock
M AT E R I A L S / F I N I S H E S
Available Colors
Handles
C
B
D
P OW E R S O U RC E
Requirements
DIMENSIONS
A: Width
B: Height (to top of cooktop)
C: Height (to top of backguard)
D: Depth (including door)
Depth (including handle)
Oven Cavity (WxHxD)
WideView™ Window (WxH)
Net Weight / Shipping Weight
Package Dimensions (WxHxD)
Stuffing Quantity (53 ft. High)
WA R R A N T Y
Freestanding Electric
5.6
Keypad
IntuiTouch™ Control System
LED
(Except Kitchen Timer, Clock Set, Oven Light)
Clock (12 hr, 24 hr),
Temperature Unit of Measure (F/C),
Beeper Volume (High, Low, Mute),
GoCook™ Smart Oven Light On/Off,
Convection Conversion On/Off,
Thermostat Adjustment
5
25
6"/ 1200W
7"/ 100W
6"/9" / 1200W/2500W
12"/ 2700W
6 Pass / 4000W
Hidden Bake (6 Pass / 3400W)
EvenJet™ Advanced Convection System
7
2 Full-Width
After 12 Hours
1 Incandescent
Storage
1.19 (cu.ft.)
23" x 5" x 17 3/4"
White (SW), Black (SB), Stainless Steel (ST)
SW (White Finish), SB (Black Finish),
ST (Stainless Steel)
120/240 VAC, 120/208 VAC
29 7/8"
36"
47 5/8"
25 11/16"
28"
24 1/2" x 20 1/4" x 19 3/8"
20 1/4" x 12 1/4"
181 lbs / 205 lbs
33" x 30" x 51"
108 units
1 Year Parts and Labor (In Home Service)
5 Years Limited on Cooktop
and Radiant Surface Units
UPC CODE
LRE30453SW
LRE30453SB
LRE30453ST
LG ELECTRONICS INC.
1000 Sylvan Ave., Englewood Cliffs, NJ 07632
800.243.0000
LGusa.com
048231 316088
048231 316095
048231 316071
Design and specifications are subject to change without notice.
©2008 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ
All Rights Reserved. LG Design and Life's Good are trademarks of LG Electronics Inc.
All other trademarks are property of their respective owners.
Printed in July 2008
CK-3001-1
