Internal Use Only
Website: http://biz.lgservice.com

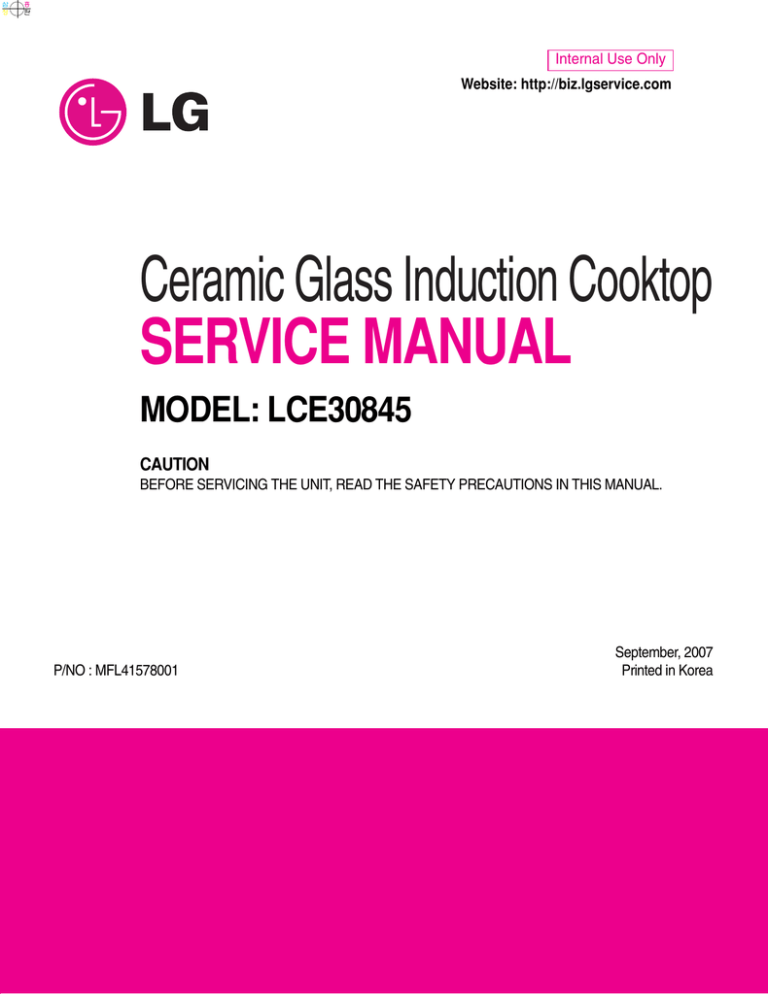

Ceramic Glass Induction Cooktop
SERVICE MANUAL
MODEL: LCE30845
CAUTION
BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL41578001
September, 2007
Printed in Korea
SAFETY PRECAUTIONS
FORWARD
This LG Service Manual, “30” Ceramic Glass Induction Cooktop,” provides the technician
with information on the operation and service of the Ceramic Glass Induction Cooktop. It is to
be used as a training Service Manual. For specific information on the model being serviced,
refer to the “Owner’s Manual” or “Tech Sheet” provided with the Induction Cooktop.
SAFETY PRECAUTIONS
• Repairs of the appliance should be carried out by a licensed technician only. Incorrect
repairs may result in dangerous situations. If you need repairs, contact an LG Service
Center or your dealer.
• If the power cord is defective, it must be replaced by a qualified service agent with a UL
listed range cord.
• Electrical leads and cables should not be allowed to touch the cooktop.
• Rating plate is located on the bottom side of cooktop.
• The power supply of the appliance should be turned off when it is being repaired.
WARNING: To avoid risk of severe personal injury or death, disconnect power before
working/servicing on appliance to avoid electrical shock.
When the cooktop operates, the ceramic glass.
LG Electronics assumes no responsibility for any repairs made on our products by anyone
other than Authorized Service Technicians.
WARNING: For your safety, the information in this manual must be followed to minimize
the risk of fire, electric shock, or to prevent property damage, personal injury,
or death.
IMPORTANT NOTICE: RADIO INTERFERENCE
This unit has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 18 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This unit generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference will not occur in a
particular installation. If this unit does cause harmful interference to radio or television
reception, which can be determined by turning the unit off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the radio and/or television receiving antennae.
• Increase the distance between the cooktop unit and radio or television receiver.
• Connect the cooktop unit into an outlet or a circuit different from that to which the radio or
television receiver is connected.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
-2-
LGE Internal Use Only
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of
California to publish a list of substances known to the state to cause birth defects or other
reproductive harm and requires businesses to warn customers of potential exposure to such
substances.
SAFETY PRECAUTIONS
• Proper Installation: Be sure your appliance is properly installed and grounded by a
qualified technician in accordance with the National Electrical Code ANSI/NFPA No. 70,
latest edition in the United States, and all local code requirements. Install only per
installation instructions.
• Do not attempt to repair or replace any part of your cooktop unless it is specifically
recommended in this manual. All other service should be referred to a qualified technician.
• Remove all tape and packaging wrap before using the appliance. Destroy the carton and
plastic bags after unpacking the appliance. Never allow children to play with packaging
material.
• The safety aspects of this appliance comply with accepted technical standards.
• Know how to disconnect the electrical power to the appliance at the circuit breaker
or fuse box in case of an emergency. Mark the breaker or fuse for ease of identification
and swift action if necessary.
• Do not repair or replace any part of the appliance. All servicing should be done only by a
qualified technician to avoid the risk of personal injury and damage to the appliance.
• Never modify or alter the construction of an appliance such as removal of panels,
wire covers or any other permanent part of the product.
• Storage on appliance: Flammable materials should not be stored near or on the
cooking surface. This includes paper, plastic and cloth items, such as cookbooks,
plasticware and towels, as well as flammable liquids. Do not store explosives, such as
aerosol cans, on or near the appliance. Flammable materials may explode and result in fire
or property damage.
• Do not leave children alone. Children should not be left alone or unattended in the
area where an appliance is in use. They should never be allowed to sit or stand on any
part of the appliance.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
CAUTION: Items of interest to children should not be stored in cabinets above a cooktop
or on the backsplash of a cooktop—children climbing on the cooktop to reach
items could be seriously injured.
WARNING: Never use your appliance for warming or heating a room.
LGE Internal Use Only
-3-
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
SAFETY PRECAUTIONS
WARNING: Persons with a pacemaker or similar medical device should exercise caution
using or standing near an induction unit while it is in operation, as the
electromagnetic field may affect the working of the pacemaker or similar
medical device. It would be advisable to consult your doctor or the
pacemaker or similar medical device manufacturer about your particular
situation.
CAUTION: DO NOT touch Cooking Zones or areas near these surfaces. Cooking Zones
may be hot from residual heat even though they are dark in color. Areas near
the Cooking Zones may become hot enough to cause burns. During and after
use, do not touch or let clothing or other flammable materials touch these
areas until they have had sufficient time to cool.
SAFETY PRECAUTIONS (cont.)
• Wear proper apparel. Loose-fitting or hanging garments should never be worn while
using the appliance. Do not let clothing or other flammable materials contact hot surfaces.
• Do not use water or flour on grease fires. Smother the fire with a pan lid, or use baking
soda, a dry chemical or foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to
become too hot.
• Use only dry pot holders. Moist or damp pot holders on hot surfaces may result in burns
from steam. Do not let the pot holders touch hot surface units. Do not use a towel or other
bulky cloth instead of a pot holder.
• Do not heat unopened food containers. Buildup of pressure may cause the container to
burst and result in injury.
ELECTRICAL SAFETY
WARNING: • If the surface is cracked, switch off the appliance to avoid the possibility of
electric shock. Do not reuse your COOKTOP until the glass surface has
been changed.
• When using the COOKTOP, never use aluminum foil, products wrapped in
aluminum foil, or deep-frozen food in aluminum cookware.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
• The installation and connection of the new appliance must only be carried out by qualified
personnel.
• Flush-mounted appliances may only be operated following installation in suitable cabinets
and workplaces which conform to the relevant standards. This ensures sufficient protection
against electric shock as required by certification agencies.
• If your appliance malfunctions or fractures, switch off all cooking zones, and contact Service
Center.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
-4-
LGE Internal Use Only
SAFETY PRECAUTIONS
CHILD SAFETY
WARNING: • This appliance is not intended for use by young children or infirm persons
unless they have been adequately supervised by a responsible person to
ensure that they can use the appliance safely.
• Young children should be supervised to ensure that they do not play with
the appliance.
• Accessible parts may become hot during use. Young children should be
kept away.
SAFETY DURING USE
• This appliance may only be used for normal cooking and frying in the home. It is not
designed for commercial or industrial purposes.
• Do not use the cooktop to heat the room.
• Take care when plugging in electric appliances near the cooktop. Cords must not
come into contact with the hot surface. This could cause damage to the cooktop and cable
insulation.
• Overheated fats and oils catch fire quickly. You should supervise cooking when
preparing foods in fat or oil.
• Switch off the Cooking Zones after use.
• Always keep the control panels clean and dry. Do not let liquids or grease remain on the
cooktop controls area. Spilled or burnt-on foods can activate or deactivate the appliance.
Clean the controls area thoroughly to resume normal operation of the appliance.
• Never place combustible items on the cooktop.
• Never keep any combustible items or aerosol cans in a drawer located under the
cooktop.
• Avoid placing metal cooking utensils on the cooking surface areas. Metal objects can
become hot and cause burns.
• Know which touch keypad controls each surface of the cooking zones.
• Clean the appliance regularly to keep all parts free of grease that could catch fire.
Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allow grease
to accumulate on hood or filter. Greasy deposits in the fan could catch fire. Refer to hood
manufacturer's instructions for cleaning.
• Use proper pan size. This appliance is equipped with one or more Cooking Zones of
different sizes.
• Select utensils having flat bottoms large enough to cover the Cooking Zones. The
pan detection sensors will not allow the affected cooking zones to operate without a pan
present.
• Do not place any object on or near the control keypad area in order to prevent
accidental activation of the cooktop controls.
LGE Internal Use Only
-5-
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
SAFETY PRECAUTIONS
• Utensil handles should be turned inward and should not extend over adjacent
cooking zones to reduce the risk of burns, ignition of flammable materials, and spillage
due to unintentional contact with the utensil.
• Never leave prepared food on the Cooking Zones. Boilovers cause smoking and greasy
spillovers that may ignite, or a pan that has boiled dry may melt or become damaged.
• Protective liners: Do not use aluminum foil to line any part of the cooktop. Only use
aluminum foil as recommended after the cooking process, if used as a cover to be placed
over the food. Any other use of aluminum foil may result in the risk of electric shock, fire or
short circuit.
• Glazed cooking utensils: Only certain types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils are suitable for rangetop service without
breaking due to the sudden change in temperature. Check the manufacturer’s
recommendations for cooktop use.
• Ventilating hood: The ventilating hood above your cooking surface should be
cleaned frequently, so the grease from cooking vapors does not accumulate on the
hood or filter.
• Do not clean or operate a broken cooktop. If cooktop should break, cleaning solutions
and spillovers may penetrate the broken cooktop and create a risk of electric shock.
Contact a qualified technician immediately.
• Clean cooktop with caution. If a wet sponge or cloth is used to wipe spills on a hot
cooking area, be careful to avoid a steam burn. Some cleaners can produce harmful fumes
if applied to a hot surface.
SAFETY DURING USE (cont.)
• Do not place hot cookware on cold cooktop glass. This could cause glass to break.
• Do not slide pans across the cooktop surface. They may scratch the cooktop surface.
• Do not let pans boil dry. This may cause permanent damage in the form of breakage,
fusion, or marking that can affect the ceramic-glass cooktop. (This type of damage is not
covered by your warranty.)
• Never leave surface units unattended at high heat settings. Boilover causes smoking
and greasy spillovers that may ignite.
CAUTION: DO NOT pick up the supplied bridge pan handles after cooking. They might
be hot and there is a risk of burning yourself.
SAFETY WHEN CLEANING
• Always switch off the appliance before cleaning.
• For safety reasons, do not clean the appliance with a steam jet or high-pressure
cleaner.
• Clean the cooktop in accordance with the maintenance and cleaning instructions in
this manual.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
-6-
LGE Internal Use Only
SAFETY PRECAUTIONS
• Do not use harsh abrasive cleaners or rough metal scrapers to clean the cooktop
glass since they can scratch the surface, which may result in shattering of the glass.
COOK MEAT AND POULTRY THOROUGHLY
Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and
poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures
usually protects against foodborne illness.
HOW TO AVOID DAMAGE TO THE APPLIANCE
• Prior to using your cooktop for the first time, apply the recommended cooktop cleaning
creme to the ceramic surface. Buff with a non-abrasive cloth or pad. This will make cleaning
easier when soiled from cooking. The special cooktop cleaning cream leaves a protective
finish on the glass to help prevent scratches and abrasions.
• Do not use the cooktop as a work surface or storage space.
• Please be careful at the edges when moving pots and pans around.
• Do not have the cooking zones on with empty pans, or with no pots or pans on them.
• Ceramic glass is very tough, and impervious to sharp temperature changes but is not
unbreakable. It can be damaged if particularly hard or sharp objects fall onto it.
• Be very cautious if using pots made of cast iron, or other pots with rough edges or burrs.
Moving these can cause scratches on glass.
• If sugar or a mixture containing sugar falls onto a hot cooking zone and melts, remove
immediately, while still hot. If left to cool down, it may damage the surface when removed.
NOTE: There is a risk of burning yourself when the glass scraper is used on a hot
cooking zone!
• Keep meltable objects or materials away from the ceramic glass surface, for example,
plastic utensils, aluminum foil, or cooking wraps. If any materials or foodstuffs melt on the
ceramic-glass surface, these should be cleaned up immediately.
DISPOSAL OF OLD APPLIANCES
To protect the environment, it is important that worn-out appliances are disposed of in the
correct manner.
• The appliance must not be disposed of with household rubbish.
• You can obtain information about collection dates or public refuse disposal sites from your
local health council or environmental health office.
CAUTION: Before disposing of old appliances please make them inoperable so they
cannot be a source of danger. To do this, have a qualified person disconnect
the appliance from the house circuitry.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
LGE Internal Use Only
-7-
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
CONTENTS
SAFETY PRECAUTIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-7
CONTENTS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
SPECIFICATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
INSTALLATION INSTRUCTIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-16
INDUCTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17-19
CLEANING AND CARE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
DESCRIPTION OF THE FEATURE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21-22
THE KEY FEATURES OF HOB APPLIANCE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
OPERATING INSTRUCTIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23-28
ELECTRIC CIRCUIT DRAWING - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29
DISASSEMBLY THE COOKTOP - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30-42
TROUBLE SHOOTING - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43-45
EXPLODED VIEW - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46-47
REPLACEMENT PARTS LIST - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 48
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
-8-
LGE Internal Use Only
SPECIFICATIONS
ITEM
MODEL
DESCRIPTION
LCE30845
Power Requirement
240/208 VAC, 60 Hz.
Max power
7.4 kW/6.8 kW
INDUCTION
LEFT FRONT
1800W (2400W Boost)
RIGHT FRONT
1400W (1800W Boost)
LEFT REAR
1800W (2400W Boost)
RIGHT REAR
2400W (3300W Boost)
Cooling Fan motor
(12 V DC, 5.5W) X 2EA
Control
GLASS TOUCH CONTROL
(CAPACITANCE METHOD)
Timer
1~99 minute
Cook top Dimensions
3013⁄16 (783 mm) (W) x 23⁄16 (56 mm) (H) x 211⁄2 (546 mm) (D)
Countertop Cutout Dimensions
Min 293⁄8 (746 mm) (W) x 201⁄4 (515 mm) (D)
Max 291⁄2 (749 mm) (W) x 203⁄8 (518 mm) (D)
Shipping Weight
About 52.3lb(23.7kg)
* The rated power consumption may vary according to pan size and type.
LGE Internal Use Only
-9-
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE THESE INSTRUCTIONS FOR LOCAL ELECTRICAL
INSPECTOR’S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
NOTES TO INSTALLER:
• Read all instructions contained in these installation instructions before installing the cooktop.
• Remove all packing material before connecting the electrical supply to the cooktop.
• Observe all governing codes and ordinances.
• Only certain cooktop models may be installed over certain built-in electric oven models.
• Be sure to leave these instructions with the consumer.
NOTE TO CONSUMER:
Keep this User’s Guide and Installation Instructions for future reference.
NOTE: This appliance must be properly grounded.
Damage caused by failure to follow these instructions is not covered by the cooktop
warranty.
UNPACKING THE COOKTOP
Unpack and visually inspect the cooktop for any damage or missing components.
Be sure the bottle of cleaner and conditioner packed in the literature bag is left where the
user can find it easily. It is important that the ceramic-glass cooktop be pretreated before
use. See CARE AND CLEANING.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 10 -
LGE Internal Use Only
INSTALLATION INSTRUCTIONS
PREPARING THE INSTALLATION LOCATION
IMPORTANT INSTALLATION INFORMATION
• All electric cooktops run off a single phase, three-wire or four-wire cable, 240/208 volt, 60
hertz, AC-only electrical supply with ground.
• Minimum distance between cooktop and overhead cabinetry is 30 (76.2 cm).
** Do not obstruct these areas!
30” Min.
(76.2 cm)
4" X 8" (10.2 cm x 20.3 cm)
opening to route armored
cable if panel is present.
All dimensions are stated in inches and millimeters (mm).
Allow 2 (5 cm) space below the armored cable opening to clear the electric cable and
allow space for installation of the junction box on the wall at the back of the cooktop.
LGE Internal Use Only
- 11 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
INSTALLATION INSTRUCTIONS
DIMENSIONS AND CLEARANCES
Overhead cabinet should not exceed a maximum
depth of 13” (33 cm).
Min. recommended
distance between rear
edge of cutout and
nearest combustible
surface.
30” (76.2 cm) min. clearance
between the top of the
cooktop and the bottom of
an unprotected wood or
metal cabinet.
24” (61 cm) min. when bottom of
wood or metal cabinet is protected by
not less than 1/8” flame-retardant
millboard covered with no less than
No. 28 MGS sheet steel, 0.015” (0.4
mm) stainless steel, 0.024” (0.6 mm)
aluminum, or 0.020” (0.5 mm) copper.
Min. from edge of
cooktop to nearest
combustible wall
(either side of unit).
Empty space is needed underneath
the cooktop for installation purposes.
Approximate location of junction box.
Model
30”
71/2”
H
(191mm)
11/2”
L
(38mm)
CAUTION: To eliminate the risk of burns or fire by reaching over heated surfaces, cabinet
storage space located above the cooktop should be avoided. If cabinet storage
is provided, risk can be reduced by installing a range hood that projects
horizontally a minimum of 5” (12.7 cm) beyond the face of the cabinets.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 12 -
LGE Internal Use Only
INSTALLATION INSTRUCTIONS
ELECTRICAL CONNECTIONS
IMPORTANT SAFETY INSTRUCTIONS
• Be sure your cooktop is installed and grounded properly by a qualified installer or service
technician.
• This cooktop must be electrically grounded in accordance with local codes or, in their
absence, with the National Electrical Code ANSI/NFPA No. 70, latest edition in the United
States.
PROVIDING THE ELECTRICAL CONNECTION
Install the junction box under the cabinet and run 120/240 or 120/208 volt, AC wire from the
main circuit panel.
NOTE: DO NOT connect the wire to the circuit panel at this time.
WARNING: The electrical power to the cooktop must be shut off while line connections are
being made. Failure to do so could result in serious injury or death.
ELECTRICAL REQUIREMENTS
Observe all governing codes and local ordinances.
A 3-wire or 4-wire single-phase 120/240 or 120/208 volt, 60 Hz AC-only electrical supply is
required on a separate circuit fused on both sides of the line (time-delay fuse or circuit
breaker is recommended). DO NOT fuse neutral. The fuse size must not exceed the circuit
rating of the appliance specified on the nameplate.
This unit can consume up to 7,400W at 240 VAC. A 40 Amp circuit breaker with wire gauge
#8 AWG must be used.
NOTE: Wire sizes and connections must conform with the fuse size and rating of the
appliance in accordance with the National Electrical Code ANSI/NFPA No. 70, latest edition,
and local codes and ordinances.
The appliance should be connected to the fused disconnect (or circuit breaker) box through
flexible armored or nonmetallic sheathed cable. The flexible armored cable extending from
this appliance should be connected directly to the grounded junction box. The junction box
should be located as shown on page 22 with as much slack as possible remaining in the
cable between the box and the appliance, so it can be moved if servicing is ever necessary.
A suitable strain relief must be provided to attach the flexible armored cable to the junction
box.
WARNING: An extension cord must not be used with this appliance. Such use may result
in a fire, electrical shock, or other personal injury.
ELECTRICAL CONNECTIONS (cont.)
ELECTRICAL CONNECTION
Connect the flexible armored cable that extends from the surface unit to the junction box using
a suitable strain relief at the point the armored cable enters the junction box. Then make the
electrical connection as follows.
LGE Internal Use Only
- 13 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
INSTALLATION INSTRUCTIONS
Electrical ground is required on this appliance.
This appliance is manufactured with a supply wire and a frame connected green or bare copper
grounding wire.
NOTE TO ELECTRICIAN: The armored cable leads supplied with the appliance are UL-listed
for connection to larger gauge household wiring. The insulation of the leads is rated at
temperatures much higher than the temperature rating of household wiring. The currentcarrying capacity of the conductor wire is governed by the temperature rating of the insulation
around the wire, rather than the wire gauge alone.
WARNING: DO NOT ground to a gas supply pipe. DO NOT connect to electrical power
supply until appliance is permanently grounded. Connect the ground wire
before turning on the power.
WARNING: This appliance is equipped with a copper conductor flexible cable. If
connection is made to aluminum house wiring, use only special connectors
which are approved for joining copper and aluminum wires in accordance with
the National Electrical Code and local codes and ordinances. Improper
connection of aluminum house wiring to copper leads can result in a short
circuit or fire. Follow the connector manufacturer’s recommended procedure
closely.
WHERE LOCAL CODES PERMIT CONNECTING THE APPLIANCE-GROUNDING
CONDUCTOR TO THE NEUTRAL (WHITE) WIRE
Observe all governing codes and local
3-WIRE GROUNDED JUNCTION BOX
ordinances.
Cable from power supply
Disconnect the power supply.
At the circuit breaker box, fuse box or junction
White wire
(neutral)
box, connect appliance and power supply cable
Red
wires as shown.
wires
Black
wires
WARNING: You may not ground the cooktop
through the neutral (white) wire if
cooktop is used in a new branch
Junction box
circuit installation (1996 NEC),
mobile home, recreational vehicle,
UL-listed conduit
Green wire (ground)
or where local codes do not permit
connector
grounding to the neutral (white)
Cable from cooktop
wire. When grounding to the neutral
(white) wire is prohibited, you must use a 4-wire power supply cable. Failure to
heed this warning may result in electrocution or other serious personal injury.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 14 -
LGE Internal Use Only
INSTALLATION INSTRUCTIONS
ELECTRICAL CONNECTIONS (cont.)
IF COOKTOP IS USED IN A NEW BRANCH CIRCUIT INSTALLATION (1996 NEC), MOBILE
HOME, RECREATIONAL VEHICLE, OR WHERE LOCAL CODES DO NOT PERMIT
GROUNDING TO THE NEUTRAL (WHITE) WIRE
Observe all governing codes and local
4-WIRE GROUNDED JUNCTION BOX
ordinances.
Cable from power supply
Disconnect the power supply.
White wire
At the circuit breaker box, fuse box or junction
Ground
(no connection)
wire
box, connect appliance and power supply cable
Red
wires
Black
wires as shown.
wires
WARNING: If connecting to a 4-wire power
supply cable electrical system, the
appliance frame connected ground
Junction box
wire MUST NOT be connected to
the neutral wire of the 4-wire
UL-listed conduit
Green wir
e(ground)
connector
electrical system.
Cable from cooktop
COOKTOP INSTALLATION
Visually inspect the cooktop for damage.
Make sure all cooktop screws are tight
(see below for locations).
Screws
Carefully lower the cooktop into the counter-top
cutout, making sure not to trap any wires.
NOTE: Do not use caulking compound. The
cooktop must be removable, should service be
required.
WARNING: Do not remove the nylon spacers
on the edges of the cooktop. These
spacers center the cooktop in the
space provided. The cooktop must
be centered to allow proper venting
and to prevent excess heat buildup
that may result in heat damage or
fire.
LGE Internal Use Only
- 15 -
Nylon spacers
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
INSTALLATION INSTRUCTIONS
Install the retainer brackets to the bottom of the
cooktop; then snug the bolts against the bottom
of the countertop as shown.
NOTE: The retainer brackets MUST be installed
to meet local codes or, in their absence, with the
National Electrical Code ANSI/NFPA No. 70,
latest edition.
Preferred
installation
Alternative
installation
FINAL CHECK
Perform a final operational check of the cooktop, making sure the cooktop powers on properly
and that each Cooking Zone operates correctly. Refer to the Operating Instructions in this guide
for details.
MODEL AND SERIAL NUMBER LOCATION
The model and serial numbers are located on a plate on the bottom of the cooktop. Please
record them in this guide; you will need them for warranty registration.
CAUTION: Do not touch cooktop glass or Cooking Zones. They may be hot enough to
cause burns.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 16 -
LGE Internal Use Only
INDUCTION
INDUCTION COOKING
HOW INDUCTION COOKING WORKS
An induction coil is beneath the ceramic glass cooking surface. This
generates magnetic fields, which act directly on the base of the pots and
pans as compared to methods that first heat the ceramic glass. This
means that the base of the pan is immediately heated up, saving time
and energy.
Since the heat required for cooking is generated directly in the base of the
pan, the Cooking Zone itself warms up only slightly. The cooktop becomes hot from the heat
from the base of the pan.
NOTE: If there is no pot or pan on the cooking zone, there is no energy transfer (heating up).
This prevents the Cooking Zones being switched on and becoming hot accidentally.
IMPORTANT:
• Remove all tape and packaging wrap before using the appliance. Destroy the carton and
plastic bags after unpacking the appliance. Never allow children to play with packaging
materials.
• Electromagnetic fields can affect electronic circuits and interfere with portable radios and
phones.
• Do not put magnetically active objects (e.g., credit cards, computer diskettes, cassettes) on or
near the ceramic glass surface while one or more induction cooking zones are in use!
• Do not put any metallic objects (e.g., spoons, pan lids) on the Cooking Zones as they can
become hot when the Cooking Zones are in use.
SELECTING COOKWARE
The magnetic Cooking Zone sensors located below the cooktop surface require the use of
cookware made with magnetic material in order to start the heating process on any of the
Cooking Zones. When purchasing pans, look for cookware specifically labeled by the
manufacturer for use with induction cooktops.
POTS AND PANS
• In principle, all pots and pans with magnetic bases are suitable. These include steel, steelenamel, as well as cast-iron pots and pans.
• High grade steel pans with a mixed metal base (sandwich base, e.g. Tefal ® with an
aluminum/copper base) are suitable for induction only if the manufacturer has expressly
marked them as such. In that case they have a magnetic material in the base.
• If you wish to use a special type of pan (e.g., a pressure cooker, simmering pan, wok), please
follow the manufacturer’s instructions and do not use a very thin pan.
NOTE: Some cookware can produce noises when used on induction cooking zones. This is not
a fault in the cooktop, and its function will not be impaired in any way as a result.
SUITABILITY TEST:
If you are not sure if a pot or pan is suitable for use with your induction cooktop, you can find
out with a few simple tests:
LGE Internal Use Only
- 17 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
INDUCTION
• Place a pot filled with a little water (1/8 1/4 ) on the Cooking Zone. Set the Cooking Zone to
full power (power level 9).
CAUTION: The pan base of suitable kitchenware heats up within a
few seconds! Water should boil rapidly.
• You can also check cookware suitability with a magnet. If the magnet
remains fixed to the base of the pan, the pan is suitable for induction
cooking.
SELECTING COOKWARE (continued)
AVOIDING SCRATCHES
It is recommended to always use heavier gauge stainless steel cookware on your induction
cooktop surface. This will help reduce the possibility of developing scratches on the ceramic
surface. Low-quality cookware can scratch the cooktop surface.
Cookware should always be lifted over the ceramic cooktop surface to prevent scratching.
Sliding any type of cookware over the ceramic cooktop can affect the overall appearance of the
cooktop. Over time, sliding ANY type of cookware over the ceramic cooktop may alter the
overall appearance of the cooktop. Eventually, the buildup of scratches can make cleaning the
surface difficult and degrade the overall appearance of the cooktop.
Scratches can also result from grains of sand (e.g., after washing vegetables) which are
dragged with the pot across the cooking surface.
USE FLAT-BOTTOMED COOKWARE
Cookware must fully contact the surface of the cooking element. Use flatbottomed pans sized to fit the cooking element and amount of food being
prepared. Check for flatness by rotating a ruler across the bottom of the
cookware.
FOR BEST RESULTS:
Always follow the recommendations for proper cookware type and size. In addition:
• Do not use dirty pans with grease buildup. Always use pans that are easy to clean after
cooking, and make sure that the bottoms of the pans are clean and dry.
• When cooking with large amounts of liquid, use large pots so that nothing can boil over.
• Do not let pans boil dry. This may cause permanent damage in the form of breakage, fusion,
or marring that can affect the ceramic cooktop. (This type of damage is not covered by your
warranty.)
• Match the pan size and Cooking Zone to the amount of food being prepared.
TIPS FOR SAVING ENERGY:
• Always position pots and pans before you switch on the
Cooking Zone.
• Dirty cooking zones and cookware use more electricity.
• Whenever possible, always have the lid firmly placed on
the pots and pans so that they are completely covered.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 18 -
LGE Internal Use Only
INDUCTION
SELECTING COOKWARE
SELECTING THE PROPER PAN SIZE
• There are 4 Cooking Zones on the induction
cooktop. Each element requires a minimum pan
size to be used effectively. The inner ring of each
cooking zone is a guide to correctly match the
minimum pan size. The bottom of the pan must
fully cover the inner ring for proper cooking to
occur.
• The thicker outer ring at each Cooking Zone is
helpful to determine the pan MAXIMUM size.
After centering the cookware on the Cooking
Zone, make sure the cookware does not extend
more than 1/2 beyond the thicker line on the
Cooking Zone. The pan must make FULL
contact on the glass surface without the bottom
of the pan touching the metal cooktop trim.
Minimum pan size =
71⁄4 (180 mm)
Minimum pan size =
5 (125 mm)
Minimum
pan size =
53⁄4
(145 mm)
Only use the supplied pan on
the bridge element.
If a pan made of the correct material is centered
properly on any of the active Cooking Zones but is
TOO SMALL, the affected Cooking Zone LED will
blink and the pan will not heat.
COOKWARE SELECTION AND PLACEMENT
It is important that the proper cookware be used and placed correctly on the cooktop. ANY one
of the incorrect conditions shown below may be detected by the sensors located below the
ceramic cooktop surface. If this happens, one or more of the Cooking Zones will not heat, and
an F will appear in the affected Cooking Zone display. Correct the problem before attempting to
use the cooktop.
CORRECT
Cookware centered
correctly on Cooking
Zone surface.
INCORRECT
Flat pan bottom &
straight sides.
Pan rests completely
on the cooktop
surface.
LGE Internal Use Only
Pan size meets or
exceeds the
recommended
minimum size for
the Cooking Zone.
Cookware not
centered on Cooking
Zone surface.
Pan is properly
balanced.
Curved or warped
pan bottoms or
sides.
Pan bottom rests on
cooktop trim or does
not rest completely
on the cooktop
surface.
- 19 -
Pan does not meet
the minimum size
required for the
Cooking Zone used.
Heavy handle
tilts pan.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
CLEANING AND CARE
CLEANING THE COOKTOP
General cleaning for induction ceramic glass cooking surfaces is considerably easier than for
cooking surfaces with radiant heating.
NOTE: To prevent accidental activation of the controls, it is recommended that you set the
CHILD LOCK feature before cleaning.
IMPORTANT:
• Cleaning agents must not come in contact with the hot ceramic-glass surface. All cleaning
agents must be rinsed off thoroughly with clean water.
• Do not use any aggressive cleaners such as grill or oven sprays, coarse scouring cleansers,
or abrasive pan cleaners.
• Clean the ceramic-glass surface after each use when it is warm to the touch or cold. This will
prevent spills from becoming burnt on. Remove water marks, grease and discoloration with a
glass scraper and ceramic-glass cleaner.
NOTE: You can obtain glass scrapers and ceramic-glass cleaners from your local hardware
store.
GENERAL CLEANING
When it is cool, wipe the ceramic-glass surface with a damp cloth and a small amount of
ceramic glass cleaner.
Wipe dry with a clean cloth.
Once a week, thoroughly clean the entire ceramic-glass cooking surface with a commercially
available ceramic-glass cleaner.
Then, wipe the ceramic-glass surface using a clean, soft cloth dampened with clean water,
and polish dry with a clean lint-free cloth.
REMOVING HEAVY SOIL
To remove food that has boiled over or stubborn spills, use a
glass scraper.
Hold the glass scraper at an angle of about 45° to the
ceramic-glass surface.
Remove soiling by sliding the blade across the area.
Use a ceramic glass cleaner as described in GENERAL CLEANING.
PROBLEM SOILS
Remove sugar, melted plastic, aluminum foil, or other meltable materials with a glass scraper
immediately and while still hot. Failure to do so can cause permanent damage to the cooktop
surface. If the Cooking Zone has already cooled down, warm it up again.
IMPORTANT: There is a risk of burning yourself when the glass scraper is used on a hot
Cooking Zone. Use care and wear an oven mitt.
Then clean the cooktop normally when it has cooled down.
NOTE: Scratches or dark marks on the ceramic-glass surface
caused by a pan base with sharp edges cannot be removed.
However, they do not impair the function of the cooktop.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 20 -
LGE Internal Use Only
DESCRIPTION OF FEATURE
PARTS AND FEATURES OF YOUR COOKTOP
Throughout this manual, features and appearance may vary from your model.
2400W (Normal)
3300W (Boost)
1400W (Normal)
1800W (Boost)
1800W (Normal)
2400W (Boost)
Electronic touch controls
Ceramic Cooktop: LG’s new induction cooktop features a ceramic cooktop surface that remains
cooler than conventional ceramic cooktops, regardless of whether it is ON or OFF.
CAUTION: Burn Hazard: The Cooking Zones may appear cool when turned ON and after
they have been turned OFF. The ceramic surface may be HOT from residual
heat transferred from cookware.
Magnetic Detector: The coil sensor automatically detects suitable cookware and prevents
accidental activation.
Pan Size Detection: The pan recognition sensor automatically detects and adapts the Cooking
Zones to the pan size being used.
Improved Efficiency: Induction cooking heats faster while using less energy. Induction cooking
brings liquids to a boil quickly yet allows even, steady simmering.
Induction Cooking Zones: Induction Cooking Zones under the ceramic cooktop heat the base
of the pan immediately without heating the ceramic-glass cooktop first. The two medium-sized
zones can be used together for larger oblong pans.
Touch Controls: Easy-to-use touch controls provide precise operation.
Easy Cleaning: The ceramic-glass cooking surface and touch control make for easy clean-up
and eliminate crevices and gaps where grease can accumulate.
Control and Function Displays: Digital displays show current settings and warn you of hot
surfaces from any residual heat of the corresponding cooking zone.
Safety Shutoff: All Cooking Zones feature a safety shut off that turns off the Cooking Zone if
ON/OFF is pressed but no power level is selected within 10 seconds.
LGE Internal Use Only
- 21 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
DESCRIPTION OF FEATURE
TOUCH CONTROL FEATURES
BRIDGE: Activates the two left Cooking Zones together as a single large Cooking Zone.
For bridge operation, touch this pad to activate and adjust the power level with the
or
pads for either left Cooking Zone.
TIMER: When activated, the time remaining is shown in the display. Use the
or
pads to adjust the timer.
CHILD LOCK: Press and hold for 3 seconds to activate and deactivate the child lockout
function.
WARM: This pad automatically lowers the last selected active element to the lowest setting.
POWER: Press the POWER pad to turn the entire cooktop ON and OFF. When it is ON, the
cooktop is in standby mode until a Cooking Zone is activated.
COOKING ZONE CONTROLS: Each Cooking Zone features its own control, and can be
activated individually.
The ON/OFF pad activates the desired Cooking Zone.
Use the
or
pads for the active Cooking Zone to adjust the power level
to
and (Boost).
The display in the Cooking Zone control will show the power level
:
to
from
or
Hot Surface Indicator: After use, an
will appear in the Cooking Zone power level
display until the cooking surface has cooled down.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 22 -
LGE Internal Use Only
OPERATING INSTRUCTIONS
BEFORE USING THE COOKTOP
Before using the cooktop for the first time, clean it thoroughly with the included cleaner or
ceramic cooktop cleaner according to the Care and Cleaning instructions in this guide. This will
remove any help protect the ceramic surface and make future cleanup easier.
CAUTION: Never use scrub pads or abrasive cleaners. They can cause permanent
damage to the cooktop surface.
SETTING THE CONTROLS
To operate the touch control pads, touch the pad firmly with the flat part of your fingertip.
FIRST OPERATION
The first time that power is supplied to the cooktop,
will flash in the display for each cooking zone
for 60 seconds or until the POWER pad is touched
for approximately 2 seconds.
NOTE:
will also flash when power is restored
after a power outage.
ACTIVATING THE COOKTOP
To turn on the cooktop, touch the POWER pad for approximately 2 seconds. The
indicator above the pad will light.
NOTE: After turning on the cooktop with the POWER pad, you must select one of the Cooking
Zones within 20 seconds using the Cooking Zone ON/OFF pad(s). If no selection is made, the
cooktop will turn off for safety reasons.
SELECTING THE COOKING ZONE
To select the desired Cooking Zone, press
the ON/OFF pad. The display for the
selected Cooking Zone will show
and
and an indicator will light to indicate that the
Cooking Zone is on but no power level is set.
NOTE: Once the Cooking Zone has been selected
with the ON/OFF pad, the power level must be
selected within 5 seconds with the
or
pad. Otherwise, the Cooking
Zone will turn off for safety reasons.
LGE Internal Use Only
- 23 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
OPERATING INSTRUCTIONS
SETTING THE CONTROLS
SETTING THE POWER LEVEL
The power level for the selected Cooking Zone can be set from
To adjust the power level:
to
and
(Boost).
Touch the
or
pad for the selected Cooking Zone.
Touching
will set the power level to
.
Touching
will set the power level to
.
Touch the
or
pad of the selected Cooking Zone to increase or decrease the power
level.
If power level
is selected, the Cooking Zone will turn off after 5
seconds.
For faster power level adjustments, touch and hold the
or
pads
until the desired setting is reached.
NOTE: Normal power settings range in 1/2 step increments for power
levels from 2 to 6 to allow precision cooking. A dot will appear next to the
number to indicate a 1/2 power level step.
If the Cooking Zone
or
pads are held for more 10 seconds, the timer display will show
the error message
. To clear this error message, press the ON/OFF pad for the Cooking
Zone you were setting. This message does NOT relate to the timer pad.
To turn off the cooking zone:
Once cooking is complete, touch the ON/OFF pad to turn the cooking zone OFF.
The corresponding cooking zone display will turn off.
If the POWER pad is touched instead of ON/OFF, the entire cooktop will turn off.
NOTE:
• If the cookware or pan is moved from the center of any active Cooking Zone for any reason, a
sensor will detect this and the Cooking Zone will no longer heat. The display for that Cooking
Zone will flash the last power level setting for the Cooking Zone.
• The Cooking Zone will remember the power level setting for up to 90 seconds before the
Cooking Zone will automatically shut off.
WARNING: Your cooktop has a residual heat indicator
for each Cooking Zone. This
indicator will warn that this area has been used and is still giving off enough
heat to cause burns.
Avoid touching the burner when this indicator is shown. Although the
cooktop is OFF, the
will stay lit until the cooktop has cooled down.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 24 -
LGE Internal Use Only
OPERATING INSTRUCTIONS
SETTING THE CONTROLS (cont.)
POWER BOOST
Boost is the highest power level, designed for quickly heating or boiling larger quantities. Boost
will operate for a maximum of 12 minutes. After 12 minutes, it will automatically revert to power
level 9.
ACTIVATING POWER BOOST
Turn on the desired Cooking Zone with the ON/OFF pad for that Cooking Zone.
Touch the
pad and
will be displayed.
Touch the
pad again and
will be displayed.
NOTE: The power boost function will be activated for a maximum of 12 minutes. At the end
of the power boost cycle, the Cooking Zone will automatically default to the back to the
power level
. The power boost function CANNOT be used with the front and rear Cooking
Zones on the same side at the same time.
To deactivate the power boost function and revert to normal power levels, touch the
pad.
NOTE: To protect the internal electronic components of the cooktop, the cooktop may
automatically deactivate the power boost function and return to a normal power level before
12 minutes have passed. This is normal.
NOTE: The electronic processes involved with induction cooking create some unusual
background noises. These noises are normal and part of the induction cooking process.
Please note that these noises are more noticeable while cooking with power boost.
WARM
The cooktop features a WARM setting that operates the last Cooking Zone used at the LOW
power level.
To activate:
Touch the WARM pad and the last Cooking Zone used will be set to the LOW setting.
will
appear in the display.
To deactivate:
To turn off the WARM function and return to normal power levels, touch the
pad and
will
be displayed.
LGE Internal Use Only
- 25 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
OPERATING INSTRUCTIONS
POWER LEVEL GUIDE
Setting
Function
Used for
9 or Boost
Fast heating
Bringing liquids to a boil.
7–9
Heaving browning, deep
fat frying
Browning meats, heating oil for deep-fat
frying, sautéing, maintaining a fast boil for
large amounts of liquids.
6–7
Roasting, frying
Frying meats, chops, pancakes, sausages,
eggs.
4–5
Boiling, general cooking
Cooking larger quantities, soups and
stews, steaming potatoes, cooking meat
stock or bouillon.
3–4
Steaming
Steaming vegetables, braising meats.
2–3
Simmering
Simmering rice or milk-based dishes,
steaming smaller quantities of potatoes
and vegetables, heating ready-to-serve
meals.
1–2, L
Melting
Fluffy omelettes, keeping dishes warm,
melting butter or chocolate.
0
OFF
Off setting.
NOTE: These settings are recommended guidelines for cooking. You may need to adjust the
power level for the type of food and pan.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 26 -
LGE Internal Use Only
OPERATING INSTRUCTIONS
USING THE BRIDGE COOKING ZONES
BRIDGE COOKING ZONES
The two left Cooking Zones can be used together as
a single Cooking Zone using the Bridge function.
This allows you to cook with larger, oblong pans.
NOTE: When using the supplied bridge pan, it is
important to rub it with oil to prevent burning and
sticking.
ACTIVATING THE BRIDGE COOKING ZONE
Touch the BRIDGE pad. The indicator above
the pad will light.
Touch the
or
pad for either left Cooking Zone
to adjust the power level for both Cooking Zones.
NOTE:
• Use the supplied bridge pan ONLY on the bridge
cooking zone.
• To purchase a replacement or additional bridge
pans, call 1-800-243-0000 and choose the
appropriate prompt from the menu. Or, visit our
Web site at http://us.lgservice.com.
USING THE TIMER
The timer feature may be helpful if a recipe calls for cooking for a set time. The timer can be set
from 1 to 99 minutes. Once set, the digital display between the timer
or
pads will begin
to count down the remaining time in minutes.
NOTE: The timer function is a minute timer only. It does NOT turn the cooktop ON or OFF.
SETTING THE TIMER
Touch the
or
pads under the word TIMER. Each touch will increase or decrease the
time by one minute, from 1 to 99 minutes. You may also touch and hold
or
to scroll up
or down. The timer display will flash.
Once the desired time is set, the display will stop flashing and the timer will start counting
down after no pad has been touched for 5 seconds. Once the timer reaches
, a long
beep will sound to indicate the time is up.
CANCELING THE TIMER
To cancel the timer, touch the TIMER
Touch and hold the
or
pad until
The timer display will turn off.
LGE Internal Use Only
and
pads at the same time, OR
appears in the display.
- 27 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
OPERATING INSTRUCTIONS
USING CHILD LOCK
You can lock the entire cooktop at any time when it is not in use. Locking the cooktop will
prevent Cooking Zones from being turned on accidentally.
SETTING CHILD LOCK
The cooktop must be OFF to set the CHILD LOCK function. If it is not OFF, touch and
hold the POWER pad for approximately 2 seconds. The indicator above the POWER pad
will turn OFF.
Touch and hold the CHILD LOCK pad for 3 seconds. The indicator light above the CHILD
LOCK pad will turn on to indicate that the cooktop is locked.
CANCELING CHILD LOCK
To turn off CHILD LOCK, touch and hold the CHILD LOCK pad for 3 seconds. The
indicator light above the pad will go off and the cooktop can now be used normally.
OTHER FUNCTIONS
POWER SHARING
Your cooktop is equipped with four induction Cooking
Zones within two heating sections. The right and left
Cooking Zones are powered by two independent induction
inverters—one inverter for each of the two heating
sections. Two Cooking Zones in a heating section share
the power of one inverter. This is called power sharing.
For example, if you are cooking on both right Cooking
Zones, the last power level set will be maintained, while
the first Cooking Zone may experience a slight reduction
in the power level.
POWER SHARING TIPS:
Remember to set the power level for the food item you wish to keep constant last. When using
two Cooking Zones, you can maintain a constant power level for two pans on separate heating
sections. Place one pan on one of the Cooking Zones of the left heating section and the other
pan on one of the Cooking Zones of the right heating section.
AUTOMATIC SHUTOFF
If a Cooking Zone is in constant use for more than 17 hours and the control setting is not
changed, the Cooking Zone will shut off automatically.
AUTOMATIC POWER LEVEL CONTROL
The power level displayed may be different from the actual power level at the high temperature
range. To prevent the cooktop from overheating, the power level is controlled automatically.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 28 -
LGE Internal Use Only
ELECTRIC CIRCUIT DRAWING
LGE Internal Use Only
- 29 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
DISASSEMBLY
Unit must be disconnected from electrical outlet when making repairs, RePlacements, adjustments and continuity cheeks. wait at least one minute,
until the high voltage capacitor has fully discharged.
Ceramic Glass Part
Disassembly
1. Disconnect the power cord from the main source line.
2. Take the hob out from the structure.
3. Unfasten 10 screws from the side section.
4. Remove the ceramic glass part.
please carefully treat 2 hooks front and back side.
The hook should be inserted initially when the HOB is
assembled
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 30 -
LGE Internal Use Only
DISASSEMBLY
Burner assembly
1. Disconnect Top temp. sensor.
2. Loose coil assembly.
3. Lift the front side of burner assembly and pull
out burner assembly.
4. Both left and right burner assembly can be
disassembled with the same way.
LGE Internal Use Only
- 31 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
DISASSEMBLY
Controller assembly
1. Disconnect the three of the connects.
2. Loose earth wire of left and right side.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 32 -
LGE Internal Use Only
DISASSEMBLY
IH module assembly
1. Disconnect power harness with long nose.
2. Loose earth wire of left and right side.
3. Loose the four screws fixed to.
4. Lift the front side of burner assembly and take out
IH module assembly.
5. Both left and right IH module assembly can be
disassembled with the same way.
LGE Internal Use Only
- 33 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
DISASSEMBLY
Power harness assembly
1. Loose the two screws in terminal block.
2. Take out the harness assembly.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 34 -
LGE Internal Use Only
DISASSEMBLY
Terminal block and power cord assembly
1. Loose the two screws on the bottom plate
2. Loose the earth screw on the bottom plate
3. Loose the ring of conduit bracket with a hand to
remove the power cord assembly.
LGE Internal Use Only
- 35 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
DISASSEMBLY
Burner assembly (left)
1. Cut out the staple with nipper
2 .After pull over the temp. sensor enough, remove
the sensor holder with care
3. Take out the black insulator
4. Loose the three screws around working coil base.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 36 -
LGE Internal Use Only
DISASSEMBLY
Burner assembly (right)
1. Cut out the staple with nipper.
2. After pull over the temp. sensor enough, remove
the sensor holder with care.
3. Take out the black insulator.
4. Loose the two screws on the center of working coil.
5. Push the working coil base forward and lift the front
of that. (this working coil base is hooked onto
aluminum plate.
LGE Internal Use Only
- 37 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
DISASSEMBLY
Controller assembly (key PCB)
1. Take out the key supporter hooked as pushing
and pulling with hands.
2. Take out the key PCB hooked by key supporter.
3. It is separate as key PCB and key supporter.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 38 -
LGE Internal Use Only
DISASSEMBLY
Controller assembly (main PCB)
1. Take out the key supporter hooked as pushing
and pulling with hands.
2 .Disconnect the three of connector.
3. Cut out the hook as below. (This is not a problem
when reassembling. It can be fixed without that.)
4. Lift the side of PCB under the cut place as below.
LGE Internal Use Only
- 39 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
DISASSEMBLY
IH module assembly (Induction board) - (1)
1. Loose a screw and push and lift the cover.
2. Loose two screws on the side of IH module as below.
3. Pick up with a long nose and get rid of two terminals.
Remove two connectors as well.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 40 -
LGE Internal Use Only
DISASSEMBLY
IH module assembly (Induction board) - (2)
4. Loose the four screws that fix the PCB to base.
5. Heatsink Sensor wire is hooked. Unhook the wire before taking out the Induction board.
LGE Internal Use Only
- 41 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
DISASSEMBLY
IH module assembly (filter board)
1. Loose the three screws that fix the PCB to base.
IH module assembly (fan)
1. Unhook the fan wire.
2. Loose the two screws that fix the fan.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 42 -
LGE Internal Use Only
TROUBLE SHOOTING
The procedure of main functions
* Ceramic Glass
Broken
* Before check the HOB all connection should be checked.
Clean HOB inner
Change Ceramic Glass
Check the sealing tape
* No Power / No
Operation of key
Normal
Lead Wire Connection
Normal
Power Cord
Connection
Correct the lead
wire connection
Filter PCB
Fuse1
Abnormal
Normal
Change
Fuse 1
Change Relay PCB
Normal
Abnormal
Abnormal
Change
Inverter PCB
Change
Relay PCB
Correct the power Cord connection
* When the overvoltage is inputed, the overvoltage protection circuit turns of the
power.
LGE Internal Use Only
- 43 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
TROUBLE SHOOTING
The procedure of main functions
* IH(Induction
heating) is not
working
The Suitable
pot or pan
Normal
Change IH Module
Normal
(refer page 10~11)
Abnormal
Change
Key PCB
Abnormal
Change pot or pan
Normal
Abnormal
* E1 display
Check the undesired thing is on the Control key part
Check too long time (more than 9 Seconds)
Continually Sensored one key
For releasing E1 display, just press on/off key
time and then operate the key
* F1~FA display
Check the connector
Change the IH Module or Key PCB
Message
Case
Check
F1
F2
F3
F4
F5
F6
F7
F8
F9
FA
Front Left Top thermistor
Inverter Heat sink thermistor
Front Left No feedback
Front Right Top thermistor
Front Right No feedback
Real Left Top thermistor
Rear Inverter Heat sink thermistor
Rear Left No feedback
Rear Right Top thermistor
Rear Right No feedback
CN04 (Front Module)
CN02 (Front Module)
CN01 (Front Module)
CN03 (Front Module)
CN01 (Front Module)
CN04 (Rear Module)
CN02(Rear Module)
CN01 (Rear Module)
CN03 (Rear Module)
CN01 (Rear Module)
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 44 -
LGE Internal Use Only
TROUBLE SHOOTING
The procedure of main functions
* Flashing H
It’s normal alarm message for initially Power up or after Power outage
For Releasing E1 display, just press On/Off Key one time
and then operate the desired Key
* Hob does not work
properly in
Induction
* Improper working
of control
LGE Internal Use Only
Check the pot or pan size refer to the cooking zone
Check the Installation state especially 5 mm Gap of Fig.5
Check unwanted thing is on the control part
- 45 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
#EV#
EXPLODED VIEW (I)
MODEL: LCE30845
33463A
35311L
35311R
24781A
24781L
568771
24781R
64970A
36640B
34810Q
WTT028
WTT024
63303A
56411A
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 46 -
LGE Internal Use Only
#EV#
EXPLODED VIEW (II)
WTT024
WTT024
33463A
WSZ002
WTT024
WTT024
350122
350121
WSZ002
WSZ002
WSZ002
350123
WSZ002
34930W
330402
330401
WTT021
268774
23550C
23550C
268712
WTP002
268711
268772
WTP002
WTP002
WSZ002
WTT021
WTT021
268773
268771
23040K
23040H
WTT021
EALHF1
EALHF1
23040H
WSZ002
WTP019
568771
WTP002
WTT021
24970A
WSZ002
26871P
WSZ002
24980P
268713
268714
WTT021
WTT021
WTT053
WTT053
36640B
268775
64970A
WTT021
268777
WNZ026
WTT024
268776
34810Q
63302A
64974A
95306A
WTT028
WTT024
56411A
34810Q
34810Q
WTT024
WSZ220
34810D
WMP023
LGE Internal Use Only
34810D
WTT024
WMP023
WTT024
- 47 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
