LG D3744 User manual

LG D3744 User manual

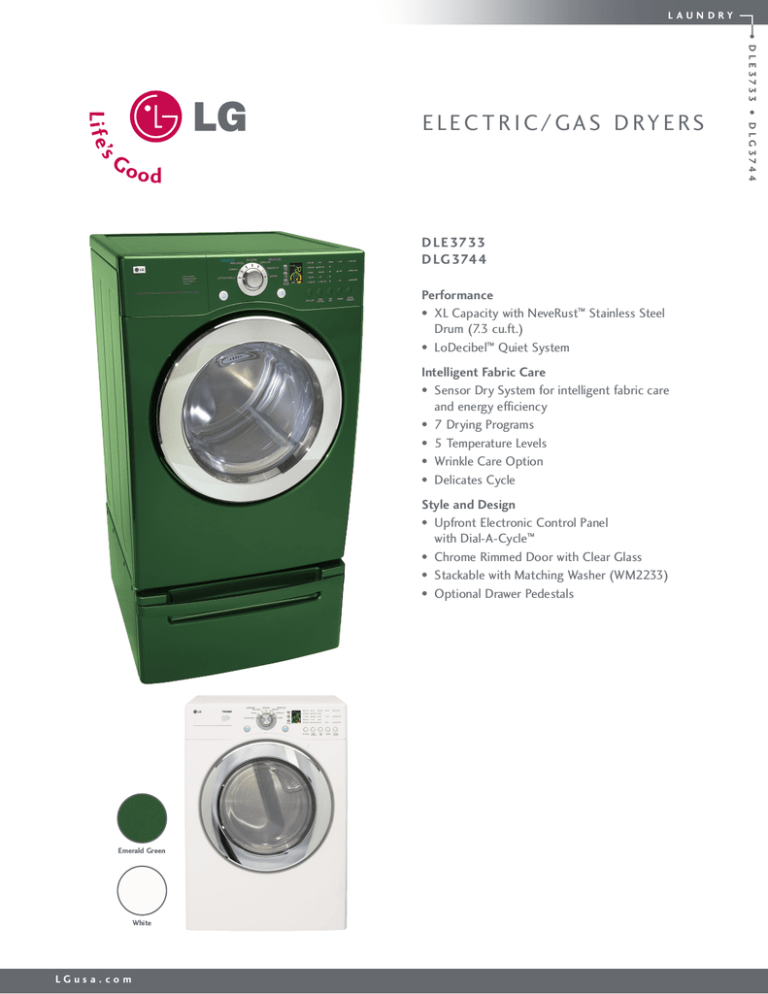

LAUNDRY
D L E 3733
D L E 3733
D LG 374 4
Performance
• XL Capacity with NeveRust™ Stainless Steel
Drum (7.3 cu.ft.)
• LoDecibel™ Quiet System
Intelligent Fabric Care
• Sensor Dry System for intelligent fabric care
and energy efficiency
• 7 Drying Programs
• 5 Temperature Levels
• Wrinkle Care Option
• Delicates Cycle
Style and Design
• Upfront Electronic Control Panel
with Dial-A-Cycle™
• Chrome Rimmed Door with Clear Glass
• Stackable with Matching Washer (WM2233)
• Optional Drawer Pedestals
Emerald Green
White
LGusa.com
D L G 374 4
E L E C T R I C / G A S D RY E R S
E L E C T R I C / G A S D RY E R S
DLE3733
DLG3744
TYPE
Design Look
Intelligent Electronic Controls with Dial-A-Cycle™
Front Control
Capacity
7.3 cu.ft.
Dry Linen Capacity
>10.1kg
D RY P RO G R A M S
7 Programs
Cotton/Towels, Normal, Perm Press
Delicates, Speed Dry, Freshen Up, Air Dry
3 Options
Wrinkle Care, Damp Dry Beep,
Custom Program
5 Temperature Controls
5 Drying Levels
Dry Times
High, Medium High,
Medium, Low, Ultra Low
Very Dry, More Dry, Normal Dry,
Less Dry, Damp Dry
60 min., 50 min., 40 min., 30 min.,
20 min., More Time/Less Time
FA B R I C C A R E F E AT U R E S
Sensor Dry
C O N V E N I E N C E F E AT U R E S
End of Cycle Beeper
Venting Option
Drum Light
Heater
LoDecibel™ Quiet Operation
Reversible Door
Anti-vibration motor and one piece cabinet structure reduce
unnecessary noises.
Remaining Time Display/Status Indicator
Electronic Control Panel with Dial-A-Cycle
M AT E R I A L S A N D F I N I S H E S
™
Intuitive controls allow you to "set it and go".
You can also save your favorite dry cycle by pressing
Custom Program.
Leveling Legs
LoDecibel™ Quiet Operation
NeveRust™ Stainless Steel Drum
Cabinet Top
Transparent Glass Window Door
Door Rim
Cabinet
Sensor Dry System
Measures moisture in the drum during the cycle, then
automatically adjusts the drying time and temperature for
optimal fabric care.
Wrinkle Care Cycle
Dry clothes are periodically tumbled without heat to
reduce wrinkles.
Control Panel
Colors
4-way Venting Option (electric)
3-way Venting Option (gas)
Multi-Level Control
4 Adjustable Legs
Painted
Chrome
Painted Steel
Plastic
White (W), Emerald Green (D)
P OW E R S O U RC E
Ratings
Electrical Requirements
Type
UL Listed
Gas: 120V, 15 Amps
Electric: 120/240V, 30 Amps
Gas (DLG3744)/Electric (DLE3733)
OPTIONS
Pedestal
Pedestal (WxHxD)
Stacking Kit
WDP3W, WDP3D
27" x 13 3/5" x 28 2/5"
WSTK1, DSTK1
DIMENSIONS
Product (WxHxD)
27" x 38 3/4" x 29 15/16"
(49 3/4"D with door open)
Carton (WxHxD)
29 1/2" x 43" x 31 1/4"
Weight (lbs): Net / Shipping
126 / 144
WA R R A N T Y
1 Year Labor and Parts
UPC CODE
DLE3733W
048231 009126
DLG3744W
048231 009133
WDP3W
048231 008556
WSTK1
048231 008327
DLE3733D
048231 009751
DLG3744D
048231 009768
WDP3D
048231 009775
DSTK1
048231 009782
Design and specifications are subject to change without notice.
©2008 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ
All Rights Reserved. LG Design and Life's Good are trademarks of LG Electronics Inc.
All other trademarks are property of their respective owners.
LG ELECTRONICS INC.
1000 Sylvan Ave., Englewood Cliffs, NJ 07632
800.243.0000
LGusa.com
Printed in February 2008
SS-5017
