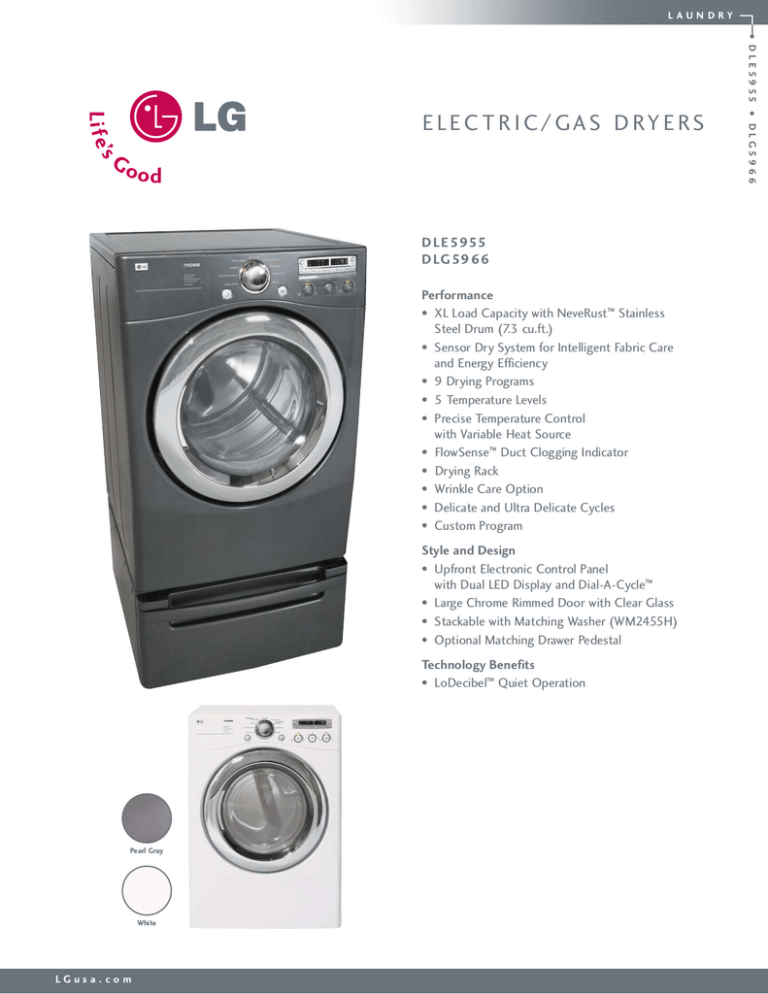

LAUNDRY
D L E 5955
D L E 5955
D LG 59 6 6
Performance
• XL Load Capacity with NeveRust™ Stainless
Steel Drum (7.3 cu.ft.)
• Sensor Dry System for Intelligent Fabric Care
and Energy Efficiency
• 9 Drying Programs
• 5 Temperature Levels
• Precise Temperature Control
with Variable Heat Source
• FlowSense™ Duct Clogging Indicator
• Drying Rack
• Wrinkle Care Option
• Delicate and Ultra Delicate Cycles
• Custom Program
Style and Design
• Upfront Electronic Control Panel
with Dual LED Display and Dial-A-Cycle™
• Large Chrome Rimmed Door with Clear Glass
• Stackable with Matching Washer (WM2455H)
• Optional Matching Drawer Pedestal
Technology Benefits
• LoDecibel™ Quiet Operation
Pearl Gray
White
LGusa.com
DLG5966
E L E C T R I C / G A S D RY E R S
E L E C T R I C / G A S D RY E R S
DLE5955
DLG5966
Intelligent Electronic Controls
with Dual LED Display and Dial-A-Cycle™
TYPE
Intuitive controls allow you to 'set it and go'. You can also
save your favorite dry cycle by pressing Custom Program.
You'll have optimized drying performance with the push
of a button.
Intelligent Electronic Controls with Dual LED Display
Dial-A-Cycle™
FlowSense™ Duct Clogging Indicator
Detects lint build-up and decreased airflow in the duct
system and signals that the duct should be cleaned.
Front Loader
Design Look
Front Control
Capacity
7.3 cu.ft.
Dry Linen Capacity
>10.1kg
D RY I N G P RO G R A M S
9 Programs
Sensor Dry: Normal, Cotton/Towels,
Delicates, Wrinkle Care,
Heavy Duty, Ultra Delicate
Manual Dry: Speed Dry,
Air Dry, Freshen Up
5 Options
Custom Program, Damp Dry Beep,
Wrinkle Care, Rack Dry, Anti Bacterial
Stackable or Side by Side?
5 Temperature Levels
Your Choice. Less space? Try stacking the washer and dryer.
More space? Place them side by side or under a counter.
Don’t want to bend down so far to load or unload clothing?
Add our tall drawer pedestals. They're also a great place to
store laundry products.
5 Drying Levels
Dry Times
High, Medium High,
Medium, Low, Ultra Low
Very Dry, More Dry, Normal Dry,
Less Dry, Damp Dry
60 min., 50 min., 40 min., 30 min.,
20 min., More Time, Less Time
FA B R I C C A R E F E AT U R E S
Sensor Dry
Precise Temperature Control with Variable Heater
C O N V E N I E N C E F E AT U R E S
End of Cycle Beeper
Venting Option
Variable
Electric: 4 Way Venting
Gas: 3 Way Venting
FlowSense™ Duct Clogging Indicator
Drum Light
Reversible Door
Remaining Time Display/Status Indicator(s)
Leveling Legs
4 Adjustable Legs
Drying Rack
LoDecibel™ Quiet Operation
M AT E R I A L S A N D F I N I S H E S
NeveRust™ Stainless Steel Drum
Top Plate
Cabinet
Control Panel
Transparent Door Glass
Door Rim
Available Colors
Painted
Painted Steel
Plastic
Chrome
White (W), Pearl Gray (G)
P OW E R S O U RC E
Ratings
Electrical Requirements
Type
UL Listed
Gas: 120V, 15 Amps
Electric: 120/240V, 30 Amps
Gas (DLG5966)/Electric (DLE5955)
OPTIONS
Pedestal
Pedestal (WxHxD)
Stacking Kit
WDP3W, WDP3G (Drawer with Handle)
27" x 13 3/5" x 28 2/5"
WSTK1, GSTK1
DIMENSIONS
Product (WxHxD)
27" x 38 11/16" x 30"
(50 1/2"D with door open)
Carton (WxHxD)
29 1/2" x 43" x 31 1/4"
Product Weight / Shipping Weight
126 lbs / 144 lbs
WA R R A N T Y
1 year (parts and labor)
UPC CODES
DLE5955W
048231 009157
DLG5966W
048231 009164
WDP3W
048231 008556
WSTK1
048231 008327
DLE5955G
048231 009188
DLG5966G
048231 009195
WDP3G
048231 009201
GSTK1
048231 009218
Design and specifications are subject to change without notice.
©2008 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ
All Rights Reserved. LG Design and Life's Good are trademarks of LG Electronics Inc.
All other trademarks are property of their respective owners.
LG ELECTRONICS INC.
1000 Sylvan Ave., Englewood Cliffs, NJ 07632
800.243.0000
LGusa.com
Printed in February 2008
SS-5009-R1
