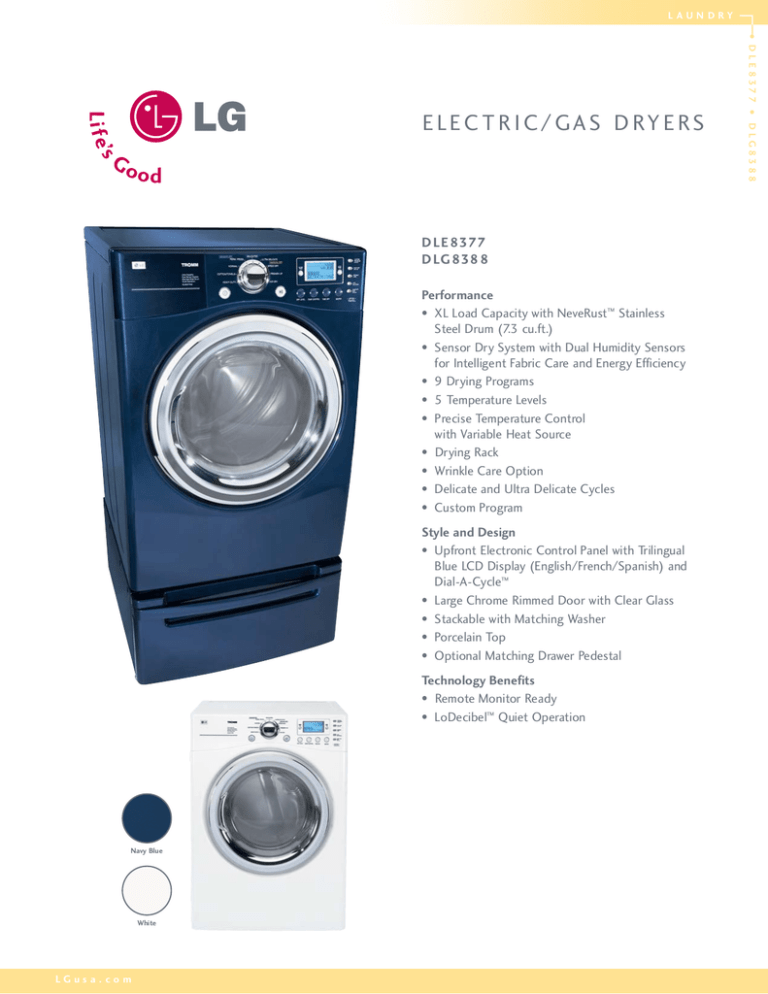

LAUNDRY
D L E 8377
D L E 8377
D LG 838 8
Performance
• XL Load Capacity with NeveRust™ Stainless
Steel Drum (7.3 cu.ft.)
• Sensor Dry System with Dual Humidity Sensors
for Intelligent Fabric Care and Energy Efficiency
• 9 Drying Programs
• 5 Temperature Levels
• Precise Temperature Control
with Variable Heat Source
• Drying Rack
• Wrinkle Care Option
• Delicate and Ultra Delicate Cycles
• Custom Program
Style and Design
• Upfront Electronic Control Panel with Trilingual
Blue LCD Display (English/French/Spanish) and
Dial-A-Cycle™
• Large Chrome Rimmed Door with Clear Glass
• Stackable with Matching Washer
• Porcelain Top
• Optional Matching Drawer Pedestal
Technology Benefits
• Remote Monitor Ready
• LoDecibel™ Quiet Operation
Navy Blue
White
LGusa.com
DLG8388
E L E C T R I C / G A S D RY E R S
E L E C T R I C / G A S D RY E R S
DLE8377
DLG8388
TYPE
Front Loader
Design Look
Front Control
Intelligent Electronic Controls w/LCD Display
Dial-A-Cycle™
Capacity
7.3 cu.ft. (DOE)
Dry Linen Capacity
>10.1kg
D RY I N G P RO G R A M S
Intelligent Electronic Controls
with Blue LCD Display
9 Programs
Sensor Dry: Normal, Cotton/Towels,
Delicates, Wrinkle Care, Heavy Duty,
Ultra Delicate Manual Dry:
Speed Dry, Air Dry, Freshen Up
Intuitive controls allow you to 'set it and go'. The large LCD
display provides instructions and diagnostics while keeping
you updated on the cycle status and time remaining. You
can also save your favorite dry cycle by pressing Custom
Program. You'll have optimized drying performance with the
push of a button.
7 Options
More Time, Less Time, Custom Program,
Damp Dry Beep, Wrinkle Care,
Rack Dry, Anti Bacterial
Remote Monitor Ready
LG's Remote Monitoring System makes it easier to keep tabs
on your laundry. Simply plug the modem into any outlet in
your home and it communicates with the machine to display
the time remaining in the cycle. Whether you're putting
away groceries or relaxing with a good book, you'll know
how much time is left. Your repeated trips to the laundry
room are over.
Stackable or Side by Side?
Your Choice. Less space? Try stacking the washer and dryer.
More space? Place them side by side or under a counter.
Don’t want to bend down so far to load or unload clothing?
Add our 13.7" high drawer pedestals. They're also a great
place to store laundry products.
5 Temperature Levels
High, Medium High,
Medium, Low, Ultra Low
5 Drying Levels
Very Dry, More Dry, Normal Dry,
Less Dry, Damp Dry
Dry Times
AHAM 8 lb: 45 min
(IMC: 75%, AHAM Restriction),
12 lb CU Mixed: 55 min
(IMC: 70%, AHAM Restriction)
Custom Program
FA B R I C C A R E F E AT U R E S
Sensor Dry
Dual Humidity Sensors
Precise Temperature Control with Variable Heater
C O N V E N I E N C E F E AT U R E S
End of Cycle Beeper
Child Lock
Venting Option
Electric: 4 Way Venting
Gas: 3 Way Venting
Drum Light
Reversible Door
Remaining Time Display/Status Indicator(s)
Leveling Legs
4 Adjustable Legs
Drying Rack
Remote Monitor Ready
LoDecibel™ Quiet Operation
58 dB
M AT E R I A L S A N D F I N I S H E S
NeveRust™ Stainless Steel Drum
Top Plate
Porcelain
Cabinet
Painted Steel
Control Panel
Plastic
Transparent Door Glass
Door Rim
Chrome with Silver Edge
Available Colors
White (WM), Navy (NM)
P OW E R S O U RC E
Ratings
UL Listed
Electrical Requirements
Type
Gas: 120V, 15 Amps
Electric: 120/240V, 30 Amps
Gas (DLG8388)/Electric (DLE8377)
OPTIONS
Pedestal
WDP3W, WDP3N (Drawer with Handle)
Pedestal (WxHxD)
27" x 13 3/5" x 28 2/5"
Stacking Kit
WSTK1, NSTK1
Remote Monitor
RLM20K
DIMENSIONS
Product (WxHxD)
27" x 39" x 28 1/3"
(50 1/2"D with door open)
Carton (WxHxD)
29 1/2" x 43 5/16" x 31 5/16"
Product Weight / Shipping Weight
126 lbs / 144 lbs
WA R R A N T Y
1 year (parts and labor)
UPC CODES
LG ELECTRONICS INC.
1000 Sylvan Ave., Englewood Cliffs, NJ 07632
800.243.0000
LGusa.com
DLE8377WM
048231 008839
DLG8388WM
048231 008846
WDP3W
048231 008556
WSTK1
048231 008327
DLE8377NM
048231 008808
DLG8388NM
048231 008815
WDP3N
048231 008860
NSTK1
048231 008853
RLM20K
048231 008785
All trademarks are property of their respective owners.
Design and specifications are subject to change without notice.
Printed in November 2006
SS-DLE8377/DLG8388
