LAUNDRY
Technology Benefits
• Remote Monitor Ready
• LoDecibel™ Quiet Operation
Navy Blue
White
LGusa.com
DLGX8388NM
Style and Design
• Upfront Electronic Control Panel with Trilingual
Blue LCD Display (English/French/Spanish) and
Dial-A-Cycle™
• Large Chrome Rimmed Door with Clear Glass
• Stackable with Matching Washer
• Porcelain Top
• Optional Matching Drawer Pedestal
DLGX8388WM
Performance
• XL Load Capacity with NeveRust™ Stainless
Steel Drum (7.3 cu.ft.)
• Sensor Dry System for Intelligent Fabric Care
and Energy Efficiency
• SteamFresh™ Cycle for Reducing Wrinkles
and Refreshing Clothes
• ReduceStatic™
• EasyIron™
• 9 Drying Programs
• 5 Temperature Levels
• Precise Temperature Control
with Variable Heat Source
• Drying Rack
• Wrinkle Care Option
• Delicate and Ultra Delicate Cycles
• Custom Program
D L E X 8377 N M

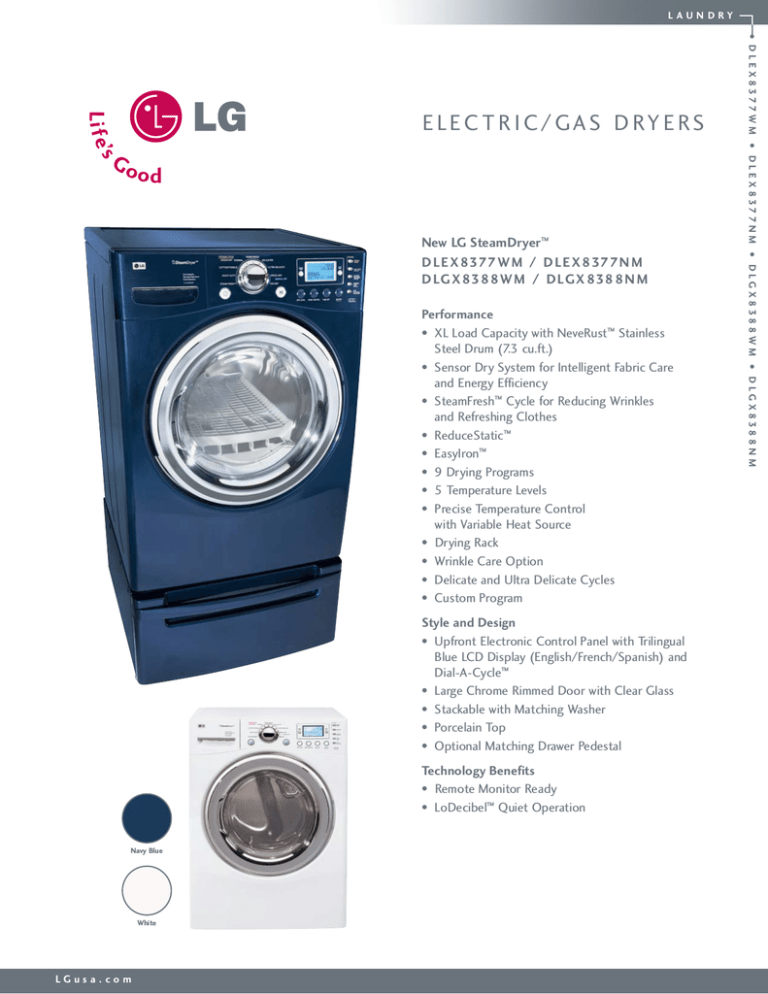

New LG SteamDryer™
D L E X 8377 W M / D L E X 8377 N M
D LG X 838 8 W M / D LG X 838 8 N M
D L E X 8377 W M
E L E C T R I C / G A S D RY E R S
E L E C T R I C / G A S D RY E R S
DLEX8377WM / DLEX8377NM
DLGX8388WM / DLGX8388NM
TYPE
Front Loader
Design Look
Front Control
Intelligent Electronic Controls w/LCD Display
Dial-A-Cycle™
Capacity
7.3 cu.ft.
Dry Linen Capacity
>10.1kg
SteamFresh™
D RY I N G P RO G R A M S
LG's innovative SteamFresh™ cycle makes it possible for
you to refresh and reduce wrinkles in up to 5 garments at
one time. Running late for work with no time to iron?
Load a cotton blend shirt and select the SteamFresh™ cycle.
You'll be ready to go in just 20 minutes.
9 Programs
Sensor Dry: SteamFresh™, Heavy Duty, Cotton/
Towels, Normal, Perm Press, Delicates, Ultra Delicates
Manual Dry: Speed Dry, Air Dry
8 Options
Custom Program, Damp Dry Beep, Wrinkle Care,
Rack Dry, Anti Bacterial, ReduceStatic™,
EasyIron™, Language
ReduceStatic
™
5 Temperature Levels
5 Drying Levels
Neutralizes static electricity in normal loads by introducing
steam during the final five minutes of the cycle.
Dry Times
EasyIron
FA B R I C C A R E F E AT U R E S
™
High, Medium High, Medium, Low, Ultra Low
Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
60 min., 50 min., 40 min., 30 min.,
20 min., More Time/Less Time
Custom Program
Evenly and lightly moistens load prior to cycle end.
Sensor Dry
Precise Temperature Control with Variable Heater
Intelligent Electronic Controls
with Blue LCD Display
C O N V E N I E N C E F E AT U R E S
End of Cycle Beeper
Intuitive controls allow you to 'set it and go'. The large LCD
display provides instructions and diagnostics while keeping
you updated on the cycle status and time remaining. You
can also save your favorite dry cycle by pressing Custom
Program. You'll have optimized drying performance with the
push of a button.
Child Lock
Drying Rack
Remote Monitor Ready
Remote Monitor Ready
LG's Remote Monitoring System makes it easier to keep tabs
on your laundry. Simply plug the modem into any outlet in
your home and it communicates with the machine to display
the time remaining in the cycle. Whether you're putting
away groceries or relaxing with a good book, you'll know
how much time is left. Your repeated trips to the laundry
room are over.
LoDecibel™ Quiet Operation
Door Rim
Chrome with Silver Edge
Stackable or Side by Side?
Available Colors
White (WM), Navy (NM)
Your Choice. Less space? Try stacking the washer and dryer.
More space? Place them side by side or under a counter.
Don’t want to bend down so far to load or unload clothing?
Add our 13.7" high drawer pedestals. They're also a great
place to store laundry products.
P OW E R S O U RC E
Venting Option
Electric: 4 Way Venting / Gas: 3 Way Venting
Drum Light
Reversible Door
Remaining Time Display/Status Indicator(s)
Leveling Legs
4 Adjustable Legs
M AT E R I A L S A N D F I N I S H E S
NeveRust™ Stainless Steel Drum
Top Plate
Cabinet
Control Panel
Transparent Door Glass
Ratings
Electrical Requirements
Type
Porcelain
Painted Steel
Plastic
UL Listed
Gas: 120V, 15 Amps
Electric: 120/240V, 30 Amps
Gas (DLG8388)/Electric (DLE8377)
OPTIONS
Pedestal
Pedestal (WxHxD)
Stacking Kit
Remote Monitor
WDP3W, WDP3N (Drawer with Handle)
27" x 13 3/5" x 28 2/5"
WSTK1, NSTK1
RLM20K
DIMENSIONS
Product (WxHxD)
27" x 38 11/16" x 30"
(50"D with door open)
Carton (WxHxD)
29 1/2" x 43" x 31 1/4"
Product Weight / Shipping Weight
131 lbs / 149 lbs
WA R R A N T Y
1 year (parts and labor)
UPC CODES
DLEX8377WM
048231 009454
DLGX8388WM
048231 009492
WDP3W
048231 008556
WSTK1
048231 008327
DLEX8377NM
048231 009447
DLGX8388NM
048231 009485
WDP3N
048231 008860
NSTK1
048231 008853
RLM20K
048231 008785
Design and specifications are subject to change without notice.
©2008 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ
All Rights Reserved. LG Design and Life's Good are trademarks of LG Electronics Inc.
All other trademarks are property of their respective owners.
LG ELECTRONICS INC.
1000 Sylvan Ave., Englewood Cliffs, NJ 07632
800.243.0000
LGusa.com
Printed in March 2008
SS-5004
