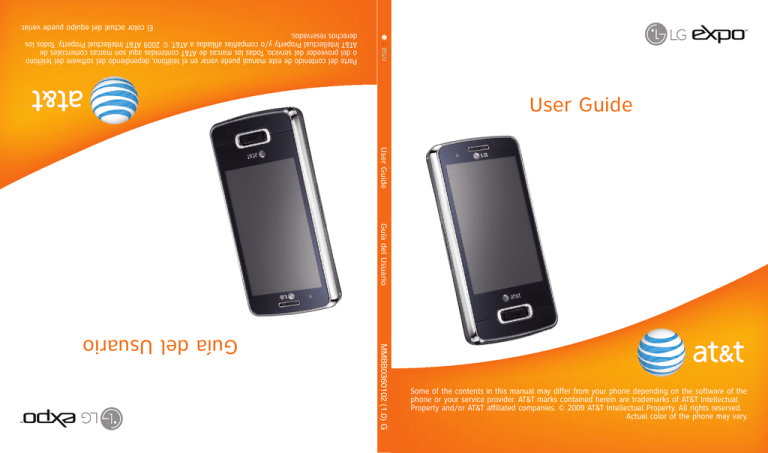

LG | eXpo | User's Manual | LG eXpo User's Manual

MMBB0360102 (1.0) G
Guía del Usuario
User Guide
Guía del Usuario
Some of the contents in this manual may differ from your phone depending on the software of the
phone or your service provider. AT&T marks contained herein are trademarks of AT&T Intellectual
Property and/or AT&T affiliated companies. © 2009 AT&T Intellectual Property. All rights reserved.
Actual color of the phone may vary.
User Guide
Parte del contenido de este manual puede variar en el teléfono, dependiendo del software del teléfono
o del proveedor del servicio. Todas las marcas de AT&T contenidas aquí son marcas comerciales de
AT&T Intellectual Property y/o compañías afiliadas a AT&T. © 2009 AT&T Intellectual Property. Todos los
derechos reservados.
El color actual del equipo puede variar.
Bluetooth QD ID B015810
Your phone is designed to make it easy for you to access a wide variety of content. For your protection, we want you to be aware that some
applications that you enable may involve the location of your phone being shared. For applications available through AT&T, we offer privacy
controls that let you decide how an application may use the location of your phone and other phones on your account. However, the AT&T
privacy tools do not apply to applications available outside of AT&T. Please review the terms and conditions and the associated privacy policy
for each location-based service to learn how location information will be used and protected. In addition, your AT&T phone may be used to
access the Internet and to download, and/or purchase goods, applications, and services from AT&T or elsewhere from third parties. AT&T
provides tools for you to control access to the Internet and certain Internet content. These controls may not be available for certain devices
which bypass AT&T controls.
LIMITED WARRANTY STATEMENT
1. WHAT THIS WARRANTY COVERS :
LG offers you a limited warranty that the
enclosed subscriber unit and its enclosed
accessories will be free from defects in
material and workmanship, according to the
following terms and conditions:
1. The limited warranty for the product extends
for TWELVE (12) MONTHS beginning on the
date of purchase of the product with valid
proof of purchase, or absent valid proof of
purchase, FIFTEEN (15) MONTHS from date
of manufacture as determined by the unit’s
manufacture date code.
2. The limited warranty extends only to the
original purchaser of the product and is not
assignable or transferable to any subsequent
purchaser/end user.
3. This warranty is good only to the original
purchaser of the product during the warranty
period as long as it is in the U.S, including
Alaska, Hawaii, U.S. Territories and Canada.
4. The external housing and cosmetic parts
shall be free of defects at the time of
shipment and, therefore, shall not be covered
under these limited warranty terms.
5. Upon request from LG, the consumer must
provide information to reasonably prove the
date of purchase.
6. The customer shall bear the cost of shipping
the product to the Customer Service
Department of LG. LG shall bear the cost of
shipping the product back to the consumer
after the completion of service under this
limited warranty.
2. WHAT THIS WARRANTY DOES NOT COVER :
1. Defects or damages resulting from use of
the product in other than its normal and
customary manner.
2. Defects or damages from abnormal use,
abnormal conditions, improper storage,
exposure to moisture or dampness,
unauthorized modifications, unauthorized
connections, unauthorized repair, misuse,
neglect, abuse, accident, alteration, improper
installation, or other acts which are not the
fault of LG, including damage caused by
shipping, blown fuses, spills of food or liquid.
3. Breakage or damage to antennas unless
caused directly by defects in material or
workmanship.
4. That the Customer Service Department at LG
was not notified by consumer of the alleged
defect or malfunction of the product during
the applicable limited warranty period.
5. Products which have had the serial number
removed or made illegible.
6. This limited warranty is in lieu of all other
warranties, express or implied either in
fact or by operations of law, statutory or
otherwise, including, but not limited to any
implied warranty of marketability or fitness
for a particular use.
7. Damage resulting from use of non-LG
approved accessories.
8. All plastic surfaces and all other externally
exposed parts that are scratched or damaged
due to normal customer use.
9. Products operated outside published
maximum ratings.
10. Products used or obtained in a rental
program.
11. Consumables (such as fuses).
3. WHAT LG WILL DO:
LG will, at its sole option, either repair, replace
or refund the purchase price of any unit that
does not conform to this limited warranty. LG
may choose at its option to use functionally
equivalent reconditioned, refurbished or new
units or parts or any units. In addition, LG will
not re-install or back-up any data, applications
or software that you have added to your phone.
It is therefore recommended that you back-up
any such data or information prior to sending
the unit to LG to avoid the permanent loss of
such information.
4. STATE LAW RIGHTS :
No other express warranty is applicable
to this product. THE DURATION OF ANY
IMPLIED WARRANTIES, INCLUDING THE
IMPLIED WARRANTY OF MARKETABILITY, IS
LIMITED TO THE DURATION OF THE EXPRESS
WARRANTY HEREIN. LG INFOCOMM INC.
SHALL NOT BE LIABLE FOR THE LOSS OF THE
USE OF THE PRODUCT, INCONVENIENCE,
LOSS OR ANY OTHER DAMAGES, DIRECT OR
CONSEQUENTIAL, ARISING OUT OF THE USE
OF, OR INABILITY TO USE, THIS PRODUCT
OR FOR ANY BREACH OF ANY EXPRESS
OR IMPLIED WARRANTY, INCLUDING THE
IMPLIED WARRANTY OF MARKETABILITY
APPLICABLE TO THIS PRODUCT.
Some states do not allow the exclusive of
limitation of incidental or consequential
damages or limitations on how long an
implied warranty lasts; so these limitations or
exclusions may not apply to you. This warranty
gives you specific legal rights and you may also
have other rights which vary from state to state.
5. HOW TO GET WARRANTY SERVICE :
To obtain warranty service, please call or fax
to the following telephone numbers from
anywhere in the continental United States:
Tel. 1-800-793-8896 or Fax. 1-800-448-4026
Or visit www.lgeservice.com.
Correspondence may also be mailed to:
LG Electronics MobileComm U.S.A., Inc.
201 James Record Road Huntsville, AL 35824
DO NOT RETURN YOUR PRODUCT TO THE
ABOVE ADDRESS.
Please call or write for the location of the LG
authorized service center nearest you and for
the procedures for obtaining warranty claims.
Introduction
Congratulations on your purchase of the advanced and compact LG eXpoTM Windows Phone Smartphone,
designed to operate with the latest digital mobile communication technology.
This user guide contains important information on the use and operation of this phone. Please read all
the information carefully for optimal performance and to prevent any damage to or misuse of the phone.
Any changes or modifications not expressly approved in this user guide could void your warranty for this
equipment.
Introduction
1
User Guide
- English
This document is the user guide for the LG eXpoTM Windows Phone
Smartphone. All rights for this document are reserved by LG Electronics.
Copying, modifying and distributing this document without the consent of
LG Electronics are prohibited.
Contents
Introduction
1
Power On the Device
25
TM
Turn on/off the eXpo
For Your Safety
9
Go to sleep mode / Wake up from sleep mode
26
Lock or unlock your phone
LG eXpoTM Features
Phone Components
17
Touchscreen Guidelines
19
Getting Started
Installing the SIM Card and Battery
Charging the Battery
Charging Mode
Disconnecting the Charger
How to Use a MicroSD Memory Card (Optional)
20
21
22
23
24
Calibrate the touch screen
Windows Default Today Screen
LG Home Screen
LG S-class UI Tutorial
Taking a look at LG home screen
Favorite Media & Contact
Indicators
27
28
29
30
31
32
33
Menu Tree
Using the Start Menu
35
37
3
Contents
Using the LG Menu
Volume keys
Using the Multitasking function
Customizing Today Screen
Using the Start Menu
40
41
42
43
Adding a new contact
To Create a Contact
44
To Find a Contact
Making a Call from your contacts
Using text input method
45
Additional Ways to Initiate a Video Share Call
Transcriber Gestures
53
54
55
Entering Text on your device using the QWERTY Keypad56
46
Initiating a Video Share Session
Receiving a Video Share Session
52
To Copy SIM Contact to Handset
Making a Call from Phone
Sharing a Video during your Phone Call
51
To Change Contact Information
In-call options
Contents
4
Searching for a contact
Sending Messages
Entering texts
Answering and rejecting the call
50
Overview of Contacts
Using the Start Menu
Call
Call History
Make a call
Contacts
48
Entering Text on your device in portrait view
57
58
Managing Messages
Entering symbols
AppCenter
Entering numbers
Ringtones
CAPS key
Games
FN key
Cool Tool/Apps
Entering the text with XT9 mode
Videos
Email
59
60
Downloading Messages
Color Graphics
Themes
Answer tones
Wireless Corporate Email
Send an Email
63
Fun Packs
About Email
Set up a Personal Email
62
Messaging
Full QWERTY
The Half QWERTY
To Reply to or Forward a Message
61
MEdia Net Home
Mobile Web
Music Player
64
Adding Music to your Handset
65
Contents
5
Contents
AT&T Music
Shop Music
Using the RSS Reader
Weather
Music ID
To Change the City and State
XM Radio
69
70
Music Videos
Music Sync
Community
Music Apps
Mobile Video
Mobi4Biz
Games
Apps
Using your Alarm
Contents
6
71
72
73
Using your Calculator
Tip calculator
Using your Stopwatch
Sprite Backup
AT&T GPS
74
AT&T Navigator Menu Overview
79
Wireless Manager
Changing your Phone Settings
Using the Screen Outputs
Displaying the Today screen
Using Bluetooth
84
85
75
76
86
Using TTY
87
Voice Command
TTY Mode (Teletypewriter)
88
Voice Command Options
100
Connecting TTY Equipment to a Terminal
89
104
Taking photos and recording
Settings - Before taking a picture
Settings - After taking a photo
Settings - Before recording
Settings - After recording
Photo Album
My Multimedia
90
91
92
93
94
95
95
Task Manager
Internet Sharing
ActiveSync
105
Setting with Windows Vista™
106
Setting up Windows XP
107
Synchronizing Information
108
Synchronizing using Bluetooth
110
Synchronizing Music, Video, and Pictures
111
To Copy a Picture or Video Clip to your device
96
Touch Feedback
112
FM Radio
To Set Sound & Notifications of Actions
Using Fingerprint Sensor
99
Screen Tab
97
98
Button Tab
Sensors
Accelerometer Sensor
Contents
7
Contents
Auto Luminous Control Sensor
113
Proximity Sensor
Mobile Zip View
To navigate menus
IM
113
To Extract ZIP Archive/Archives
Sign in
114
To Associate Mobile Zip with other files
Reset the Device
115
To perform a soft reset
Switching between Communities
Change Status
116
Accessories
IM Settings
Office Mobile
119
Word Mobile
Tools
120
Proxy Manager
Java
Mobile Zip
125
117
Excel Mobile
PowerPoint Mobile
122
123
To perform a hard reset
Contact List
Conversations
121
120
Safety Guidelines
126
TIA Safety Information
Safety Information
130
FDA Consumer Update
133
10 Driver Safety Tips
140
Consumer Information on SAR (Specific Absorption
Rate)
142
AT&T HAC Statement
144
Hearing Aid Compatibility (HAC) with Mobile
Phones
Contents
8
For Your Safety
Before You Start
Safety Instructions
WARNING! To reduce the possibility of electric shock, do not expose your phone to high humidity areas,
such as the bathroom, swimming pool, etc.
Always store your phone away from heat.
Never store your phone in settings that may expose it to temperatures less than 32°F or greater than
104°F, such as outside during extreme weather conditions or in your car on a hot day. Exposure to
excessive cold or heat will result in malfunction, damage and/or catastrophic failure.
Be careful when using your phone near other electronic devices. RF emissions from your mobile phone
may affect nearby in adequately shielded electronic equipment. You should consult with manufacturers
of any personal medical devices such as pacemakers and hearing aides to determine if they are
susceptible to interference from your mobile phone.
Turn off your phone in a medical facility or at a gas station. Never place your phone in a microwave oven
as this will cause the battery to explode.
IMPORTANT! Please read the TIA SAFETY INFORMATION on page 126 before using your phone.
For Your Safety
9
For Your Safety
Safety Information
For Your Safety
10
Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed
information is given in this user guide.
v Never use an unapproved battery since this could damage the phone and/or battery and could cause
the battery to explode.
v Never place your phone in a microwave oven as it will cause the battery to explode.
v Do not dispose of your battery by fire or with hazardous or flammable materials.
v Make sure that no sharp-edged items come into contact with the battery. There is a risk of this causing
a fire.
v Store the battery in a place out of reach of children.
v Be careful that children do not swallow any parts such as rubber plugs (earphone, connection parts of
the phone, etc.). This could cause asphyxiation or suffocation.
v Unplug the power cord and charger during lightning storms to avoid electric shock or fire.
v When riding in a car, do not leave your phone or set up the hands-free kit near to the air bag. If
wireless equipment is improperly installed and the air bag is activated, you may be seriously injured.
v Do not use a hand-held phone while driving.
v Do not use the phone in areas where its use is prohibited. (For example: aircraft).
v Do not expose the battery charger or adapter to direct sunlight or use it in places with high humidity,
such as a bathroom.
v Never store your phone in temperatures less than- 4°F or greater than 104°F.
v Do not use harsh chemicals(such as alcohol, benzene, thinners, etc.) or detergents to clean your
phone. There is a risk of this causing a fire.
v Do not drop, strike, or shake your phone severely. Such actions may harm the internal circuit boards of
the phone.
v Do not use your phone in high explosive areas as the phone may generate sparks.
v Do not damage the power cord by bending, twisting, pulling, or heating. Do not use the plug if it is
loose as it may cause a fire or electric shock.
v Do not place any heavy items on the power cord. Do not allow the power cord to be crimped as it may
cause fire or electric shock.
v Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or
seriously damage your phone.
v Do not disassemble the phone.
v Do not place or answer calls while charging the phone as it may short-circuit the phone and/or cause
electric shock or fire.
v Only use the batteries, antennas, and chargers provided by LG. The warranty will not be applied to
products provided by other suppliers.
v Only authorized personnel should service the phone and its accessories. Faulty installation or service
may result in accidents and consequently invalidate the warranty.
v Do not hold or let the antenna come in contact with your body during a call.
v An emergency call can be made only within a service area. For an emergency call, make sure that you
are within a service area and that the phone is turned on.
v Use accessories, such as earphones and headsets, with caution. Ensure that cables are tucked away
safely and do not touch the antenna unnecessarily.
Memory card information and care
For Your Safety
v If the damage cannot be fixed, format the memory card.
v The memory card cannot be used for recording copyright- protected data.
v Do not write forcefully on the memo area.
v Carry and store the memory card in its case.
v Do not allow the memory card to get wet.
v Do not leave the memory card in an extremely hot location.
v Do not disassemble or modify the memory card.
11
For Your Safety
FCC RF Exposure Information
WARNING! Read this information before operating the phone.
In August 1996, the Federal Communications Commission (FCC) of the United States, with its action
in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio
frequency (RF) electromagnetic energy emitted by FCC regulated transmitters.
Those guidelines are consistent with the safety standard previously set by both U.S. and international
standards bodies.
The design of this phone complies with the FCC guidelines and these international standards.
CAUTION!
Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could impair
call quality, damage the phone, void your warranty and/or result in violation of FCC regulations. Do not
use the phone with a damaged antenna. If a damaged antenna comes into contact with skin, a minor
burn may result. Contact your local dealer for a replacement antenna.
Body-worn Operation
This device was tested for typical body-worn operations with the back of the phone kept 0.79 inches
(2cm) between the user’s body and the back of the phone. To comply with FCC RF exposure requirements,
a minimum separation distance of 0.79 inches(2cm) must be maintained between the user s body and
the back of the phone. Third-party belt-clips, holsters, and similar accessories containing metallic
components should not be used. Bodyworn accessories that cannot maintain 0.79 inches(2cm) separation
distance between the user's body and the back of the phone, and have not been tested for typical bodyworn operations may not comply with FCC RF exposure limits and should be avoided.
For Your Safety
12
Vehicle Mounted External Antenna (optional, if available)
A minimum separation distance of 8 inches (20cm) must be maintained between the user/bystander and
the vehicle mounted external antenna to satisfy FCC RF exposure requirements. For more information
about RF exposure, visit the FCC website at www.fcc.gov
FCC Part 15 Class B Compliance
This device and its accessories comply with part 15 of FCC rules. Operation is subject to the following
two conditions: (1) This device and its accessories may not cause harmful interference, and (2) this
device and its accessories must accept any interference received, including interference that may cause
undesired operation.
Cautions for Battery
v Do not disassemble.
v Do not short-circuit.
v Do not expose to high temperature: 60°C (140°F).
v Do not incinerate.
Battery Disposal
v Please dispose of your battery properly or bring to your local wireless carrier for recycling.
v Do not dispose in fire or with hazardous or flammable materials.
Adapter (Charger) Cautions
v Using the wrong battery charger could damage your phone and void your warranty.
v The adapter or battery charger is intended for indoor use only.
For Your Safety
Do not expose the adapter or battery charger to direct sunlight or use it in places with high humidity, such
as the bathroom.
13
For Your Safety
Avoid damage to your hearing
v Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We
therefore recommend that you do not turn on or off the handset close to your ear. We also recommend
that music and call volumes are set to a reasonable level.
v If you are listening to music whilst out and about, please ensure that the volume is at a reasonable
level so that you are aware of your surroundings. This is particularly imperative when attempting to
cross the street.
Part 15.21 statement
Modifications not expressly approved by the manufacturer could void the user’s authority to operate the
equipment under FCC rules.
Part 15.105 statement
For Your Safety
14
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. if this
equipment does cause harmful interference or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
followingmeasures:
v Reorient or relocate the receiving antenna.
v Increase the separation between the equipment and receiver.
v Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
v Consult the dealer or an experienced radio/TV technician for help.
Consumer Information on SAR (Specifi c Absorption Rate)
For Your Safety
This Model Phone Meets the Government’s Requirements for Exposure to Radio Waves. Your wireless
phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC)
of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels
of RF energy for the general population. The guidelines are based on standards that were developed by
independent scientific organizations through periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure the safety of all persons, regardless of
age and health.
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted using
standard operating positions specified by the FCC with the phone transmitting at its highest certified
power level in all tested frequency bands. Although SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be well below the maximum value. Because
the phone is designed to operate at multiple power levels to use only the power required to reach the
network, in general, the closer you are to a wireless base station antenna, the lower the power output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC that
it does not exceed the limit established by the government-adopted requirement for safe exposure.
The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required
by the FCC for each model. The highest SAR value for LG eXpoTM phone when tested for use at the
ear is 0.71 W/kg and when worn on the body, as described in this user’s manual, is 0.84 W/kg. (Bodyworn measurements differ among phones models, depending upon available accessories and FCC
requirements.) While there may be differences between SAR levels of various phones and at various
positions, they all meet the government requirement for safe exposure.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model phone
is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid
after searching on FCC ID: BEJGW820.
15
For Your Safety
Additional information on Specific Absorption Rates (SAR) can be found on the Cellular
Telecommunications Industry Association (CTIA) website at http://http://www.ctia.org/ * In the United
States and Canada, the SAR
limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The
standard incorporates a substantial margin of safety to give additional protection for the public and to
account for any variations in measurements.
16
LG eXpoTM Features
Phone Components
Power/End Key
Hands-free Connector/
Charger/Cable Connector
Hold down to power the phone On or
Off.
Earpiece
Allows you to listen to the
other party/caller.
Proximity Sensor
Turns off the LCD automatically when in close proximity
to your face, during a call.
Fingerprint Navigation sensor
Scrolls right and left or up and
down to navigate menus.
Touch Screen
End Key
Ends or rejects a call.
Send Key
Opens the touchscreen
Dialpad and answers
incoming calls
Back button
Returns to the previous menu
<Left>
<Right>
Stylus Connector Slot
MicroSD Card Slot
Multitasking Key
Camera key
Activates the camera
LG eXpo TM Features
Volume Keys
v When the screen is idle:
Adjust the phone volumes
v During a call:
Adjust the in-call earpiece
volumes
17
LG eXpoTM Features
External Camera Lens
Soft Reset Key
SIM card slot
Battery Terminals
How to hold your LG eXpoTM
For better RF antenna reception, LG suggests that you hold the handset as
depicted in the figure below.
LG eXpo TM Features
18
RF antenna
Do not cover the RF antenna area with your hand during a call or when
using a Bluetooth connection. This may degrade speech quality.
Touchscreen Guidelines
This product’s keys consist of touch keys displayed on the LCD screen. Be sure to read follow these
Touchscreen Guidelines before using this product.
1. Make sure your hands are clean and dry.
v In humid environments, remove any moisture from your fingers or the touch keys.
Touchscreen
Touchscreen Guidelines
2. It is unnecessary to press the touch keys hard for them to work. Do not subject the product to
severe impact, as this may damage the touch key sensors.
3. Use the tip of your finger to press precisely on the touch key you want, being careful not to tap
any other keys.
4. Touch keys may not work properly if a mobile phone case or plastic cover is covering them.
5. Keep metallic or other conductive materials away from the surface of the touchscreen. Contact
with them may result in errors.
6. This phone allows you to use a pen or stylus to select Menus. You can also use your finger to
select Menus.
7. The touchscreen may not function properly in hot and humid environments.
19
Getting Started
Installing the SIM Card and Battery
1. Installing the SIM card
Your SIM card contains your phone number, service details and contacts and must be inserted into your
handset. If your SIM card is removed, your handset becomes unusable (except for emergency calls,
depending on which Country you are in at the time) until a valid one is inserted. Always disconnect the
charger and other accessories from your handset before inserting or removing your SIM card. Slide the
SIM card into the SIM card holder. Make sure that the SIM card is properly inserted and the gold contact
area on the card is facing downwards. To remove the SIM card, press down lightly and pull it gently
outwards.
To insert the SIM card
To remove the SIM card
Note
v The metal contact of the SIM card can easily be damaged by scratches. Pay special attention to the SIM
card while handling. Follow the instructions supplied with the SIM card.
Getting Started
20
2. Installing the battery.
Remove the battery cover (as shown below). Align the metal contacts on the bottom edge of the battery
compartment. Press the other end of the battery down until it clicks into place. Finally, place the battery
cover on the phone as shown below.
Charging the Battery
Before connecting the charger to the phone, you must first check if the battery is installed.
Getting Started
21
Getting Started
Charging Mode
1. When you charge your phone, the phone’s LED next to the earpiece of your phone turns red.
2. When the phone is fully charged, the LED turns green.
Note
v If the phone is off while charging, you can press the power key for approx. 2 seconds and it will turn on.
v When the battery is completely discharged, the red LED blinks and you can’t turn on the phone at this
moment. As soon as the charged power reaches 1%(after a few minutes), the LED stops blinking and
charging animation is displayed. Then you can power on the phone.
CAUTION!
• When you charge a fully discharged battery, it may take over a minute for the display to respond.
This is not a malfunction but completely normal. (If using a USB cable, it may take over 10 minutes.)
• Do not force the connector in, as this may damage the phone and/or the charger.
• If you use the charger out of your own country, use an attachment plug adaptor for the proper
configuration.
• Do not remove your battery or the SIM card while charging.
• There is risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries
according to the manufacturer’s instructions.
Getting Started
22
WARNING
• Unplug the charger from the power source and the phone during lightning storms to avoid electric
shock or fire.
• Make sure that no sharp-edged items such as animal teeth or nails come into contact with the
battery. It may cause a fire.
Disconnecting the Charger
Disconnect the travel adapter from the phone as shown in the diagram below. Make sure you pull the
plug, not the cord.
Getting Started
23
Getting Started
How to Use a MicroSD Memory Card (Optional)
The EXpo supports microSD™ cards of up to a 32GB capacity. For more information on microSD™, please
refer to the memory card instruction manual.
<MicroSD memory card>
How to insert a microSD™ memory card
1. Lift the plastic cover which protects the microSD™ slot.
2. Insert the memory card into the slot with the metal contacts facing down. Do not force the memory
card into the slot, if the card does not slide in easily, please check that the card is being inserted in the
correct way or if there is a foreign object in the slot.
3. Once inserted, push the memory card until it clicks, meaning that the card has been correctly engaged.
4. Close the plastic slot protection.
5. Do not remove the memory card when reading and writing the memory card.
Getting Started
24
Attention:
v Avoid using the microSD™ memory card when the battery is low.
v When you save data to the card, wait for the operation to complete and remove the card.
v The card is designed to fit easily into the slot.
v Do not bend the card or force it into the slot.
v Do not insert any memory cards other than microSD™.
WARNING
• Do not insert or remove memory card when the phone is switched on, as this may damage memory
card.
Power On the Device
<Top of Device>
Turn on/off the eXpoTM
Press and hold the power key on the top right of the phone for a few seconds to turn the eXpoTM on or off.
Getting Started
25
Getting Started
Go to sleep mode / Wake up from sleep mode
With the power on, press the power key once to go to sleep mode. To return from sleep mode, press the
power key again.
Lock or unlock your phone
Press End key for about 3 seconds to lock the device. To unlock your phone, slide the button on the screen
to left or right.
Getting Started
26
Calibrate the touch screen
When you’re turning on your phone for a first time, touch calibration screen will appear.
Calibrating the device screen involves tapping, with the stylus, the center of a cross as it moves around
the screen.
If your device does not accurately respond to screen taps, follow these steps to re-calibrate it:
1. Tap Start > Settings > System > Screen.
2. On the Alignment tab, tap Align Screen button, and follow the instructions on the screen. After
calibration is completed, Align screen reappears. Click OK on upper right corner to return to the home
screen.
Getting Started
27
Getting Started
Windows Default Today Screen
When turning on the phone, you can see ‘Windows Default’ today screen. On this screen, you can see
important and recent information. You can also move to each function by selecting items on the screen.
Start: Opens the MS Start menu.
• pictures: Shows the list of images and videos.
• music: You can play the music directly.
• getting started: Shows today’s date and current time.
• phone: You can see the missed call history.
• voicemail: You can see new voicemail.
• clock: Shows the current time and date (if highlighted).
• text: You can see the unread message from Inbox account.
• calendar: Link to Calendar
• favorites: You can go bookmark directly.
* Sliding open the qwerty keyboard will rotate the screen to landscape.
Getting Started
28
LG Home Screen
LG home screen is specially designed to provide an easy-to-use smart phone experience.
There are 3 home screens available, drag the touchscreen from side to side to view them. You can easily
control most features of LG eXpoTM using LG Home. You can add favorite contacts and media to the
corresponding screens for quick access.
There are shortcut icons for some of the menus and functions at the bottom of the home screen, allowing
you to access them directly from the home screen.
To set or change the Today screen (including the LG Home Screen and Windows Default), tap Start >
Settings > Today > Items (tab) > LGIdles / Windows Default > OK (on the top right of the screen).
Getting Started
29
Getting Started
LG S-class UI Tutorial
The LG S-class UI Tutorial will be displayed if you set the LG home screen. This is the video tutorial
showing you how to access and use the phone menus, such as Contacts and Messaging. It plays
automatically every time you turn on the device, if the LG Home screen is set. If you want to see the
movie again, tap the Quick Settings tab on the Home screen. See the next page for more information.
Getting Started
30
Taking a look at LG home screen
Tap to open the Wireless Manager
Tap to open the Alarm menu.
You can access various menus and
functions directly from the home
screen using the icons on the bottom of
the screen. Slide your finger to access
the other options. Press and hold an
icon to rearrange order.
Tap to open the
Quick Settings
menu.
Wireless Manager: Turn on/off the Wi-Fi, Bluetooth,
Phone and/or Data Connection.
Flight Mode: Set to ON to turn off the phone’s wireless
communications.
Ringtone & Alerts: Change the notification setting
right from the home screen. You can choose from
Normal, Vibrate All,Silent All, Outdoor or Automatic.
LG S-Class UI Tutorial: Launches the tutorial.
Getting Started
Theme & Wallpapers: Change the phone theme or
wallpaper.
31
Getting Started
* Sliding open the qwerty keyboard will display the options (on the left). These are
major functions that most use the slide-out keyboard.
Favorite Media & Contact
Drag the Home screen from side to side to reveal the Media and Contact Favorites screens. You can
easily access the favorite Contacts or Multimedia files from these screens.
Press and hold the Add Contacts and Add Files buttons to add/edit items for the screen.
Getting Started
32
Indicators
The following are some of the status icons that you may see on your device. It may appears right-upper
corner of the screen.
Icon
Description
Bluetooth Hands-Free connection established
Bluetooth Hands-Free channel opened
Bluetooth High Quality Audio channel opened
Remaining battery life
Battery is very low
Battery charging
Sound on
Sound off
Ringer in vibration mode
Connection is active
Connection is not active
Synchronization in progress
Synchronization error
Maximum signal strength
No signal
Bluetooth service is active
Searching for phone service
Voice call in progress
Calls are forwarded
Getting Started
No phone service
33
Getting Started
Icon
Description
Call on hold
Missed call or rejected call
Voice command
TTY
Wi-Fi status
GPRS (General Packet Radio Services) available
EDGE (Enhanced Data Rates For Global Evolution) available
WCDMA or HSDPA available
New e-mail or text messages
New voice mail
There are more notifications. Tap the icon to view all.
SIM is not inserted. You can not use Network service without SIM.
Shows the list of running Applications by tapping this indicator.
Getting Started
34
Menu Tree
Touch in the LG Idle Home screen to open the top menu. From here you can access the following
menus and categories: Communications, Multimedia, Applications and Settings
Communications
Multimedia
LG Contacts
Call History
Messaging
E-mail
Instant Messaging
Write New Message
Write New E-mail
RSS Reader
AppCenter
Mobile Web
AT&T Music
Mobile Video
Mobi4Biz
Music Player
Photo Album
My Multimedia
Podcasts
Games
Apps
FM Radio
Camera
Video
Menu Tree
35
Menu Tree
Menu Tree
36
Applications
Settings
Downloaded
AT&T Navigator
Mobile Banking
Pocket Express
Internet Explorer
Schedules
Alarm
Multitasking
Weather
Calculator
Tip calculator
Stopwatch
Sprite Backup
Tools
Phone Settings
Fingerprint Sensor
Touch Feedback
Sensors
XT9 in put
Screen Outputs
Homescreen Layout
Bluetooth
TTY
Using the Start Menu
The Start menu, located at the top left corner of the Today screen, displays a list of programs. It allows
you to open a screen and switch from one program to another. You can start a program by scrolling
through the programs list and tap a program.
Scroll down with your finger to see more programs that are installed in your device. Tap and hold an item
to move to the top.
Menu
Today
Phone
Text
E-mail
Calendar
Internet
Explorer
Contacts
AT&T Wi-Fi
Instant
Messaging
AppCenter
Description
Takes you to the Today screen.
Opens the dialing screen and keypad.
Opens the Message menu (SMS/MMS).
Opens the Email accounts screen.
Opens the MS calendar
Web Browser to access the Internet
Opens MS Contacts
Link to the AT&T Wi-Fi Client Download page.
Opens the AIM, MSN, and Yahoo Messenger client.
Link to an AT&T web site to download ring tones, graphics, and
multimedia files.
Mobile Web Opens the AT&T Web portal.
Camera
Opens the Camera (and Camcorder) function.
37
38
Menu
AT&T
Navigator
Description
The AT&T Navigator™ application on your device uses GPS
positioning technology and your carrier’s data network to provide
you with driving directions and a host of other services.
Marketplace Link to (download) the Windows® Marketplace for Mobile
application.
Settings
Opens the phone’s Settings menu.
Apps
Opens the folder containing the pre-loaded apps, like Mobile
Banking and Mobi4Biz.
Multimedia Opens the folder containing Multimedia applications, such as
FM Radio, Music Video, and Podcast.
Tools
Opens the folder that contains Tools, such as Task Manager,
Java, MobileZip and more.
Games
Opens the folder containing Games.
LG Menu
Opens the LG Menu.
AT&T Music Opens the folder containing a variety of music apps.
Windows
Lets users sync their email from Windows Live Hotmail as well
Live
as their Windows Live Contacts
Office
Opens the folder containing the MS Office Mobile applications
Mobile
Excel Mobile, PowerPoint Mobile, OneNote Mobile and Word
Mobile.
File Explorer File Explorer is a program for managing files on the phone and
memory card
Menu
Help
Getting
Started
Search
Phone
Pictures &
Videos
Windows
Media
Description
Opens up the help function, allowing you to access more
information about how to use your phone.
Allows you to easily set up the most commonly used functions
on your phone.
Search Phone widget that will search your phone and its various
apps, including e-mail, calendar, contacts, messages, tasks, and
Word documents, to find results
Allows you to browse your phone folders for Pictures and Videos.
Opens Windows Media Player.
39
Using the LG Menu
Tap Start and then LG Menu to access the LG Menu. The available functions are organized by
category. The categories are Communications, Multimedia, Applications, and Settings.
Volume keys
The side volume keys will control the System volume when the screen is idle, the Earpiece volume during
a call, and the Music/Sound volume when playing a track.
40
Using the Multitasking function
You can press the Multitasking Key to go directly to the Multitasking menu. From here you can view the
applications that are currently running and access, or close, them with one touch.
If you touch Menu, you can end all tasks at a time or activate MS task manager.
41
Customizing Today Screen
The Today screen displays important information, such as upcoming appointments and status indicators.
Go to Start > Settings > Today > Appearance (tab) to configure the overall look of your phone. Go to Start
> Settings > Today > Items (tab) to configure the Today screen.
To change to the LG Home screen (otherwise known as the LG Idle screen, see page 27 for details), select
LGIdles. To select the default MS Today screen, select Windows Default.
Check the Today timeout and select the number of hours from the drop down list. If you don’t use your
phone after the specified length of time has elapsed, the screen switches to the Today screen.
42
The Today screen, below, is available, if you choose to deselect both the Windows Default screen
and the LG Idle screen options. This screen is able to display more options and menus, making it more
customizable.
43
Call
You can call easily with the smart dial feature. If you press any one or more buttons on the dialpad, the
screen displays the phone number or the names in Contacts or Call History starting with the number(s) or
characters you enter. Then, you can select the number you want to call.
Note
v If you tap a wrong number, tap the Back arrow (
) to erase individual numbers one at a time. To
delete all the numbers, tap and hold the Back arrow.
Call History Tap the Send key
, then select Call History.
Your phone saves the most recent missed, received and dialed calls, along with the call lengths in the
Call history menu. From this menu, you can easily place a call to the most recent dialed, received or
missed calls.
Make a call
Making a Call from Phone
1. On the Home screen, press the Send key
to open the keypad.
2. Key in the number using the keypad and tap the Send key
or the Send button on the screen.
3. To end the call, press the End hard key or the End button.
Making a Call from your contacts
1. Tap Start > LG Menu > LG Contacts or tap Contacts on the bottom left of your Home screen.
2. Scroll to the contact you want to call.
3. Tap the contact to select it and press the Send key
.
44
Answering and rejecting the call
or tap the Answer button on the screen.
When your phone rings, press the Send key
To reject an incoming call, press the End key or tap the Reject button on the screen.
In-call options
Speaker - Touch
to turn the speaker phone on. Touch again to turn off.
Mute - Touch
to turn the microphone off so the person you are talking
to cannot hear you.
Hold - Touch
to put a call on hold.
Menu - Choose from a list of further in-call options.
- Ends the call.
- Search your contacts during a call.
- Invite a 3rd person into the call.
Keypad - Touch to open a numerical keypad for navigating menus with
numbered options, when dialing call centers or other automated telephone
services.
45
Sharing a Video during your Phone Call
During a call, you are able to share and/or receive video with others who have a Video Share capable
phone. During a voice call, the phone will let you know whenever you can share video by showing the
“Video Share Ready” button.
Note
This service is only available in the following conditions.
v Subscribed on the Video Share service.
v Presence of square-shaped indication such as ‘3G’ at the top of your signal strength icon.
Initiating a Video Share Session
1. Once the voice call has been established, after a few seconds you can see the Video Share Ready on
the screen, provided that the other party’s phone is also Video Share capable. Then, you are ready to
start sharing your video with the other party.
2. To suggest Live Video Share session to the other party, simply tap Video Share Ready on the screen or
the camera key on the right side.
Note
v If you set Audio Alert (Tap Start > Settings > System > Video Share) as ON (default set is OFF), you
will receive an audio alert when Video Share is ready.
Note
v If the other party is not able to hold a Video Share Call, then the call will be terminated.
46
There are options to select the type of Video Share between Live and Recorded. You can choose one of
the sharing types after selecting Video Share on the Menu.
v Live: You can share a real-time video stream with the other party while having a conversation.
v Recorded: You can share a pre-recorded video clip with the other party while having a conversation.
Note
v Only video files that recorded on resolution 176 * 144 are able to be shared.
3. If the other party accepts your request, a video share session begins.
(It can take a few seconds for the other party to accept your invitation and start the Video Share Call.)
4. Select the STOP menu item at any time when you want to quit sending video, or press the
to
finish both the voice call and the video share session.
Note
1. The Video Share Call will be terminated in the following cases:
v
v
v
v
v
When you accept a 3rd party, Conference Call, or a 2nd incoming call during a Video Sharing.
When the voice call is placed on hold.
When the voice call is disconnected.
When moving out of a AT&T 3G service area.
When the network connection is poor.
2. The Video Sharing will not be available in the following cases (“Video Share Ready” button will be
grayed out).
v When trying to make a conference call/second call during a call.
v When the voice call is placed on hold.
v When moving out of a AT&T 3G service area.
47
Receiving a Video Share Session
1. If you get the Video Share invitation pop-up, tap Accept to allow the other party to send video stream.
If you don’t want to accept the request, tap Decline.
Note
v The speakerphone will be automatically turned on when a Video Share session gets started, and
automatically back to the previous mode when a Video Share session ends.
v When a Hands-free device (Bluetooth or stereo headset) is connected, Speakerphone will not be turned
on automatically.
Additional Ways to Initiate a Video Share Call
From Contacts, Call History and the Camera preview screen, you can initiate a Video Share call.
Initiating a Video Share Call From Camera Preview
When you see scenery through the camera preview screen, you may want to share. Then you can initiate
the video share call with who has a video share capable phone.
1. Open the Camera function. The, tap the
icon on the left bottom of the camera preview screen.
2. Select a contact from the list to initiate a Video Share Call:
a. Tap the number to call. Or
b. Enter a new phone number. Tap the lower-right Menu option and select Enter New Number.
3. After a successful call setup and checking the other party’s capability of Video Share, the video share
invitation will be automatically requested.
48
Initiating a Video Share Call From Contacts
You can also initiate a Video Share Call directly from the Contacts list.
1. Select the contact and highlight the number, if it has more than one phone number.
2. Tap the Menu > Video Share and you can choose the sharing type between Live and Recorded.
3. After a successful call setup and checking the other party’s capability of Video Share, Video share
invitation will be automatically requested.
Initiating a Video Share Call From Call History
You can also initiate Video Share Call from Call History.
1. Press the Send key
and select Call History. Highlight the desired contact.
2. Tap the Menu > Video Share and you can choose the sharing type between Live and Recorded.
3. After a successful call setup and checking the other party’s capability of Video Share, Video share
invitation will be automatically requested.
Saving your Video Share
You can record a video stream as a clip during a live Video Share session. There will be a prompt
asking if you would like to save or discard the video at the end of a recording. If you choose to save the
video, it will be saved in the My Documents folder in your phone.
Note
v When you have recorded Video Share file, you can make video share call in Photo Album or My
Multimedia.
49
Contacts Tap Start > LG Menu
> LG Contacts in the Communications tab
Overview of Contacts
Contacts serves as your address book and information storage space for the people and businesses you
communicate with. You can store phone numbers, e-mail addresses, home addresses, and any other
information that relates to a contact, such as a birthday or an anniversary date. You can also add a picture
(if the contact is saved in the Phone’s memory) or assign a ring tone to a contact.
From the contact list, you can quickly communicate with people. Tap a contact in the list for a summary of
contact information. From there, you can call, send a message and so on.
Searching for a contact
1. Start > LG Menu > LG Contacts (In the Communications tab).
2. Browse the Contacts list to find the Contact you are looking for or touch on the top of the list and
enter the contact name using the keypad.
3. Select the contact you want, then the options appear on the screen. Choose what you would do from
the Send Message, Blog, Video Share, Send Vcard, Edit, Change Storage, and Delete functions.
You can also view the contacts in 4 categories such as Contacts, Groups, Favorites, and Recently Viewed
by tapping the box on top of the screen (Contacts is set to default).
Adding a new contact
Select LG Contacts to open the address book. Tap New Contacts and enter the new contact information
such as Name, Company, Displayed Name Type and so on. You can also choose whether to save the
contact to Handset or USIM and Add Picture.
50
To Create a Contact
1. Tap Start > LG Menu > LG Contacts in the Communications tab.
2. Tap New Contacts and enter the contact information.
3. Tap Save To and choose from Handset or USIM.
4. Enter contact details.
5. When finished, tap OK.
Tip
v If someone who is not in your list of contacts calls you or sends you a message, you can create a
contact from Call History by tapping Menu > Save to Contacts. If you want to save the number of the
contact who sent you a message, tap Menu and Save Number from the message.
To Change Contact Information
1. Tap Start > LG Menu > LG Contacts in the Communications tab.
2. Choose the contact from the list.
3. Tap Menu > Edit and enter the changes.
4. When finished, tap Save.
51
To Find a Contact
There are several ways to find a contact when your contact list is long.
1. Tap Start > LG Menu > LG Contacts in the Communications tab.
2. Tap the Search icon to be able to search the contact list by entering the Contact name.
3. In the contact list, do any of the following:
v In Name view, the contacts are listed in alphabetical order. If not in Name view (default), tap Menu >
View by Name in the contact menu.
v To see a summary of information about a contact, tap the contact. From there you can also make a call,
send a message, etc.
v You can also see a list of available actions for a contact by tapping the contact's name on the list.
v To see a list of contacts employed by a specific company, tap Menu > View by Company. Then, tap
the company name.
To Copy SIM Contact to Handset
If you have saved contacts on your SIM card, you can copy them to the Handset memory. They can be
copied one at a time, several at a time, or all at once.
1. Tap Start > LG Menu > LG Contacts in the Communications tab
2. Tap Menu > Change Storage > Copy to Handset. Your Contacts will appear in a list, from where they
can be selected for Copying.
3. Check the contact to copy to your handset one by one or tap Menu to Search or Select All.
Note
v You can also copy Contacts on your device to your SIM card by selecting Copy To SIM, as shown in step
2 (above).
52
Sending Messages Tap Start > LG Menu
> Messaging in the Communications tab
> Menu > New > SMS/MMS. Or, simply select text > Menu> SMS or MMS
1. Tap the To field to enter the recipient. Simply type the number, or open your contacts or favorites
by tapping . Once you check the recipients, tap Insert to return to the message screen.
You can add multiple contacts by separating each number with a semi-colon (;). When you have
finished, tap the text field below to compose the message text.
When you have finished entering the text, tap OK, and then tap Send SMS on the top of the screen
to send the message. Note that when you are entering the text, you can add text templates,
emoticons, or names and numbers by touching Menu at the lower right of the message.
Tap to send your message.
Tap to insert attachments
To CC or BCC a recipient,
tap Add.
Note
v You can add new contacts up to 10.
53
Entering texts
Using text input method
There are various input methods when using the touchscreen, including Block Recognizer, Keyboard,
Letter Recognizer, Transcriber, and XT9 Keypad. The Input icon appears on the menu bar to indicate which
input method is currently selected. The Input Selector arrow (shown at the right of the Input icon) opens a
list of available input methods.
To enter text, symbols, and
numbers, you can either type
using the QWERTY Keyboard
to type ABC characters or the
standard on-screen Keyboard.
54
Transcriber is a
handwriting recognition
program that allows you
to write in cursive, block
letters, or a combination
of both. Transcriber works
transparently in the
background of programs,
recognizing words with
its integrated dictionary.
When Transcriber is turned
on, it interprets stylus
movement anywhere on
the screen as handwriting
input.
Transcriber Gestures
Use quick strokes of the stylus to edit your text or insert returns, spaces, or tabs.
Do
To
Insert a paragraph return at the cursor.
The horizontal part of the gesture must be at least twice the length of the vertical part.
Insert a space at the cursor.
The horizontal part of the gesture must be at least twice the length of the vertical part.
Move the cursor one space back to erase any text.
Make the gesture by drawing a line from right to left.
Open the menu of alternate words if a word is selected, or open the onscreen Transcriber
keyboard if no text is selected.
Make the gesture by drawing a line straight down and back up.
Change the capitalization of a selected letter, word, or block of text.
Make the gesture by drawing a line straight up.
Undo the last action.
Make the gesture by drawing a line straight up and back down.
Copy the selected text.
Make the gesture by drawing a line from left to right and back.
Cut the selected text.
Make the gesture by drawing a line from right to left and back.
Paste copied or cut text.
Make the gesture by drawing a line from the lower left of the screen diagonally up toward the
right and back down to the right.
Insert a tab.
The horizontal part of the gesture must be at least twice the length of the vertical part.
55
Note
v You can also use the Enter, Space, and Backspace buttons on the Transcriber toolbar.
Entering Text on your device using the QWERTY Keypad
: When you press once, it
allows you to use the Upper
character, such as special
characters and numbers on
each button. Press and hold
the FN button if you want
to continue entering upper
characters.
56
: When you press this button once, it acts
as a Shift button. Press and hold this button if
you want to use the Shift function continuously.
Entering Text on your device in portrait view
<Full QWERTY(Default mode)>
<Half QWERTY>
With the XT9 keypad, you can enter text by touching the keys displayed on the screen. This is the
most common way to enter text in portrait mode.
v The XT9 Keypad is available when text entry is possible.
v Enter letters by touching the labeled keys.
Full QWERTY
In portrait mode, Full QWERTY mode lets you enter characters by touching the labeled key.
57
The Half QWERTY
In Half QWERTY mode, a single tap will display the first letter of the key you touched. Quickly
touching the key a second time results in entering the second letter on the key. If XT9 is set to On,
you can tap each key once for each letter, the phone will display the word you are typing. This
option reduces the number of key presses.
Tap the FN and DEL keys to switch between Full QWERTY and Half QWERTY.
Entering symbols
Symbol mode allows you to enter various symbols and special characters.
In full or Half QWERY mode: Tap FN, and then choose what you want to enter. Or tap FN and the
space key to enter additional symbols.
Entering numbers
Full Qwerty: Tap FN to enter just one number. Tap and hold FN to enter numbers continuously.
Half Qwerty: Tap the 123 key.
CAPS key
Tap briefly to activate Uppercase letters for just one character. Tap and hold to enter Uppercase
letters continuously.
FN key
Tap briefly to enter the Upper characters. Tap and hold to enter the Upper characters continuously.
58
Entering the text with XT9 mode
XT9 key
If you set XT9 keypad is ON, you can enter the text with XT9 mode. XT9 mode uses a built-in dictionary to
recognise your words based on the key sequences you touch. Simply touch the key associated with the
letter you want to enter, and the dictionary will predict the word you want to use.
Email Tap Start > LG Menu
> E-mail in the Communications tab
About Email
Your Windows Phone smartphone can connect to:
• Personal email accounts from Internet service providers (ISP) like Yahoo!, AOL, and Hotmail. You
can wirelessly synchronize these personal email accounts with your LG eXpoTM.
• Corporate email accounts on Microsoft® Exchange Server or IBM Lotus Domino. You can
wirelessly synchronize corporate email accounts with your LG eXpo™. To set up corporate
wireless email on your smartphone, use the Microsoft® Direct Push setup.
59
Set up a Personal Email
1. Tap Setup E-mail in the e-mail menu.
2. Enter your E-mail address, Password, and tap Next.
Auto configuration attempts to download necessary e-mail server settings so that you do not need to
enter them manually.
Note
v Select the Save Password check box if you want to save your password so that you do not
need to enter it again.
3. Once Auto configuration has finished, tap Next.
4. Enter Your name (the name you want displayed when you send e-mail) and the Account display name.
Then, tap Next.
If Auto configuration was successful, the Account display name and User name fields are automatically
populated. Tap Next, and then Finish to complete setting up your account, or tap Options to access
additional settings.
If Auto configuration is unsuccessful, contact your ISP or network administrator for the setup information
and enter it manually.
Wireless Corporate Email
• Corporate Wireless Email Setup
To set up corporate wireless email on your LG eXpo™, contact your IT administrator for setup
instructions and support for Microsoft Direct Push. Microsoft Direct Push provides wireless
access to your corporate email, contacts, calendar, and tasks for Microsoft Exchange Server.
Activate an appropriate enterprise data plan for your AT&T account before using Microsoft Direct
Push.
60
Send an Email
1. Tap Start > LG Menu > New E-mail in the Communications tab, and then select your email
provider (if applicable).
2. In the To field, do one of the following:
- Enter an email address
- Enter a contact name
3. Tap the Subject field, and then enter the subject.
4. Type the text in the message box. To edit your email, such as adding files or Message Options,
tap Menu, and then select the option you want.
5. After finishing, tap Send at the lower left of the screen.
Downloading Messages
How you download messages depends on the type of account:
• To send and receive email for an Outlook E-mail account, begin synchronization with Exchange
Server through ActiveSync.
• To send and receive email for an email account that you have with an Internet Service Provider
(ISP), download messages through a remote email server.
• You automatically receive text messages when your phone is turned on. When your phone is
turned off, your service provider stores messages until the next time your phone is turned on.
61
To Reply to or Forward a Message
1. Open the received MMS message and then tap Reply, Menu > Reply, Reply All, or Forward.
2. Enter your response. To quickly add common messages, tap Menu > Text Templates, and then
tap a message.
3. Tap Send.
Note
v You will receive an alert when you receive messages. Messages are stored in the Inbox.
v In the Inbox, you can identify each message by icons.
v If the phone notifies you that there is no more space for SIM messages, you must delete
some messages from the Inbox.
v If the phone notifies you that there is no more space for more messages, you can free space
by deleting messages, media, and applications.
Messaging
This menu includes functions related to text messaging and MMS.
Managing Messages
v Tap Start > LG Menu. From there you can select the Messaging menu in the Communications
tab to view your accounts, including Messages and email.
1. Inbox: View received messages. Select a message to view it.
2. Outbox: The Outbox is a temporary storage area for messages waiting to be sent. Failed
messages are also placed in the Outbox.
3. Sent Items: Lists the messages you sent (Messages/email).
4. Drafts: View saved messages. Select a message, and then edit it.
5. Deleted Items: View deleted items.
62
AppCenter Tap Start > LG Menu
> AppCenter in the Multimedia tab
Note
v Additional charges may apply when you download new content. Contact AT&T for more
information.
Ringtones
This menu option connects to AT&T’s ringtone download site.
Games
This menu option contains the games to enjoy.
Cool Tool/Apps
Videos
This menu option allows to download the video files from network.
Color Graphics
This menu option connects to AT&T’s graphics download site.
Fun Packs
Themes
This menu option allows to download the wallpaper themes.
Answer tones
This menu option allows to set the tone for answering a call.
MEdia Net Home
This menu option connects to AT&T’s web portal that you can customize to display your favorite
information.
63
Mobile Web Tap Start > LG Menu
> Mobile Web in the Multimedia tab
Mobile Web is AT&T’s web portal that you can customize to display your favorite information.
Note
v May require an AT&T data plan. Please contact your AT&T wireless representative for more
information.
Music Player Tap Start > LG Menu
> Music Player in the Multimedia tab
Allows you to use the music player and displays your music. You can play digital audio files stored
on your device or on a memory card.
If you tap Menu on the right side, you can check menus as below.
v New Playlist: Create personal playlists.
v Add to Playlist: Add new song to playlist.
v Delete Playlist: Delete a playlist.
64
v Send: Send the song via Message, E-mail or Bluetooth.
v Move/ Copy: Move or copy the song between folder or memory.
v Delete: Delete a song.
v Visualiser: Allows you to change the background image for the music player.
v Sort by: Sort the song or list by name or date.
Note
v Copyrights of music files may be protected by copyright and intellectual property laws.
Therefore, you may be required to obtain permissions or licenses before you can reproduce
or copy the material. In some countries, national law prohibits copying of copyrighted
content for personal archiving as well. Prior to downloading or copying files, make sure
that you adhere to applicable local laws and the laws of corresponding countries or regions
regarding the Terms of Use of content.
Adding Music to your Handset
Before You Start
To transfer music from your PC to your device, you will need the following:
• Windows Media Player 10 or later
• Windows XP Service Pack 2, Windows Vista or Windows 7
• Music on your PC in one of these formats: WMA, MP3, 3GA, AAC, AMR, MID, MIDI, WAV,
MP3D, MP3DRM, or M4A
• microSD™ card
• USB data cable
65
Transferring Music from the Digital Music Stores
Transferring Music from the Digital Music Store. To download music from your computer to your LG
eXpoTM, handset, a microSD card is required. This item is sold separately;
go to http://www.wireless.att.com/.
Steps to transfer music may vary, depending on the music store and software being used.
1. Using your computer, open your preferred PC music management software (not all music
management programs are guaranteed to work).
2. Download the song you want to your library.
3. Insert the microSD™ card into the handset.
4. Use the USB adapter cable to connect the handset to the target PC.
5. Mobile Device will display on the computer screen.
6. Highlight the song you want to download to the handset.
7. Right-click the highlighted song, and then select Transfer Track(s) to Portable Device from the
drop-down menu. This step begins the download process.
Adding Music to your Handset
Add music files to your handset using one or more of the
following methods:
• Download music and ringtones over the AT&T network directly to your device using the Shop
Music feature(Start > AT&T Music > Shop Music).
• From your existing digital media collection in Windows Media Player®.
• From music stores through the applicable music software.
Transferring Music using Windows Media Player
A USB cable, microSD™ card, and of Windows Media Player are required for this procedure.
1. Open Windows Media Player (version 10.0 or later).
2. Use the USB adapter cable to connect the handset to the target PC.
3. Mobile Device will display on the computer screen.
4. In the Windows Media Player application, click the Sync tab. Previously downloaded songs then
display (on the left side of the application if you are using Window Media Player 11).
66
5. Choose the destination location for the media files.
Note
v If there are no items in the playlist, click the Edit Playlist button to begin adding music files from the
various media categories.
6. To synchronize the songs with your handset, select the songs, and then right-click and select to
add them to the Sync List.
7. Click Start Sync in the lower-right corner of the application to download the selected songs to
your handset. Do not unplug the handset during this process.
8. It is now safe to unplug the USB connector from the handset.
Transferring a Playlist to the handset
1. Open Windows Media Player (version 10.0 or later).
2. Use the USB adapter cable to connect the handset to the target PC.
3. Mobile Device will display on the computer screen.
4. In the Windows Media Player application, click the Library tab.
5. On the left side of the Library tab, click All Music. The right side of the page then displays all the
songs the player previously found.
6. Right-click the song entry, and then select Add to > Additional Playlists.
7. In the Add to Playlist dialog, click the New button, and then enter a unique playlist name.
8. Click OK. The new Windows Media playlist is then displayed in the My Playlist section of the
Library tab (left side).
9. Drag and drop the newly created playlist from the My Playlist section to the phone's Music Sync
Player, listed just above it. Click Start Sync.
Note
v If there are no items in the playlist, click the Edit Playlist button to begin adding music files from the
various media categories.
10. It is now safe to unplug the USB connector from the handset.
67
Note
1. If you connect your handset to a USB Hub on your PC, the Music Sync service may not work.
We recommend direct USB Connection to your PC, without using a HUB.
2. Do not disconnect during transfer. Check if your PC is running Windows XP and Windows Media
Player 10 or later. If your PC is running Windows XP and Windows Media Player 9, download
Windows Media Player 10 or 11 from the Microsoft website.
3. If you have connected your handset to the PC but cannot correctly send a file using Music
Sync, please check the following:
A. The length of the file you are transmitting.
B. Whether the license of the file you are transmitting has expired.
C. Whether the file you are transmitting is the right format for your phone (MP3, WMA,
AAC).
4. If you transfer files as listed below, the transferred files will not display in third-party
applications or in Windows Media Player.
A. Transmit a file by directly inserting external memory into a PC.
5. To delete files from your phone after transferring them with Music Sync, reconnect your
phone to your PC with Music Sync. If you have deleted files transferred with Music Sync as
listed below, delete them again using Music Sync. Otherwise you will not be able to transfer
files identical to the deleted files.
A. Deletion of a file using Windows Explorer.
B. Deletion of a file by directly inserting external memory into a PC.
C. Deletion of a file using the delete function of the phone.
68
AT&T Music Tap Start > LG Menu
> AT&T Music in the Multimedia tab.
Shop Music
Selecting Shop Music from the AT&T Music submenu launches a music page in your browser
where you can purchase music from third-party stores and AT&T.
Music ID
MusicID is an application that uses the onboard microphone to analyze song samples and then
compare them to a remote database of songs. Once the application completes the analysis
of a song sample, it tells you the name of the song, the artist, and album artwork as well as
opportunities to buy related content.
69
XM Radio
Selecting XM Radio from the AT&T Music submenu launches a preinstalled application. The
application allows you to listen to dozens of channels of digital radio on your mobile phone. Get
unlimited access to commercial-free music, the latest Hip Hop, R&B, Rock, Jazz, and Country
anywhere you go.
WARNING! This product downloads a large amount of data, and you are responsible for all data
volume charges incurred.
Music Videos
Selecting Music Videos from the AT&T Music submenu launches MobiVJ. With this application,
you will have access to music videos from the most popular artists and more! With this application,
Simply click on a Channel and start watching!
Music Sync
Selecting Music Sync from AT&T Music submenu launches an application that gives you access to the
music collection on your PC.
Community
Selecting Community from the AT&T Music submenu launches your browser to visit the hot user
communities. The application allows you to interact with the community as well as artist sites.
70
Music Apps
Selecting Music Apps from the AT&T Music submenu launches the browser to visit an area where
you can purchase music-related applications for download.
Note
v Additional charges may apply when you download content. Contact AT&T for more
information.
Mobile Video Tap Start > LG Menu
> Mobile Video in the Multimedia tab
CV brings you quick, on-demand access to news, sports, weather, and entertainment video clips.
Catch up on TV’s hottest shows, funniest comedians, biggest headlines, and latest sports scores.
You can even personalize your homepage for quick access to your favorites. In addition, the CV
service streams local weather information to your personalized News & Weather page every day.
Mobi4Biz Tap Start > LG Menu
> Mobi4Biz in the Multimedia tab
Mobi4BIZ is a mobile finance application. Mobi4Biz is a fee-based, video-centric application that offers
stock data, business news and related information, including company-specific VOD content.
71
Games Tap Start > LG Menu
> Games in the Multimedia tab
In the Games submenu, Java and Windows games can be found. You can download the full
versions of these games since only Trial versions are included for some of the games.
Apps Tap Start > LG Menu
> Apps in the Applications tab
In the Apps submenu of Menu, some of the several Java apps (My-Cast Weather, Notifier for
iSkoot, and WikiMobile) can be found.
Using your Alarm Tap Start > LG Menu
> Alarm in the Applications tab
1. Choose New Alarm, and then use your fingers to set the time on the clock.
2. Select Repeat, and then choose the days on which to repeat the alarm.
3. Tap Sound/Vibration, and then choose the type of alarm: Always Sound & Vibrate, Always
Sound, Always Vibrate, and so on.
4. Tap Save or More to further customize your alarm settings.
5. You can also select Quick Alarm, to use the phone as a timer quickly and easily.
Tap this icon to toggle the
Alarm On or Off.
72
Using the RSS Reader Tap Start > LG Menu
> RSS Reader in the
Communications tab
RSS (Really Simple Syndication) is a family of Web feed formats used to publish frequently updated
content, such as blog entries, news headlines, and podcasts. An RSS document, called a feed, Web
feed, or channel, contains either a summary of content from an associated website or its full text.
Users subscribe to feeds by entering their links into the reader. Users can update the subscribed
feeds regularly for new content and downloads any updates it finds.
Weather Tap Start > LG Menu
> Weather in the Applications tab
Check today’s weather and the weather forecast in any city you choose.
To Change the City and State
1. Tap the Settings tab.
2. Scroll and select the Region, Country, State, and City where you want to get weather data.
3. Set Automatic Update to ON to receive automatic updates (Every 1hour).
Note
v This function may result in additional data transfer fees from your provider.
73
Using your Calculator Tap Start > LG Menu
> Calculator in the Applications tab
1. Tap the number keys to enter numbers.
2. For simple calculations, tap the function you want (+, –, x or ÷), followed by =.
3. For more complex calculations, tap
at the upper right of the screen, and then choose
between sin, cos, tan, log, ln, and so on.
Tip calculator Tap Start > LG Menu
> Tip Calculator in the Applications tab
This feature allows you to calculate the tip quickly and easily based on the total bill; it also lets you
calculate the split of the total bill according to the number of people.
v Bill - Type the bill amount.
v Tip (%) - Type the percentage of the Tip
v Split - Enter the number of people.
Using your Stopwatch Tap Start > LG Menu
> Stopwatch in the Applications
tab
This menu allows you to record the elapsed time of an event. You can also display an individual lap time
and the total time.
1. To start timing, tap Start. The running time is displayed as HH.MM.SS.hh (hours, minutes,
seconds, and hundredths of a second).
2. During the timing, you can record an individual lap time by tapping Lap. Up to 99 lap times can be
recorded.
3. Stop and resume timing by tapping Stop or Resume.
4. To reset the stopwatch, tap Stop and Reset.
5. You can see the recorded lap times on the lap time list.
74
Sprite Backup Tap Start > LG Menu
v
> Sprite Backup in the Applications tab
Backup
Provides a number of options to help you backup information on your phone.
v
Restore
Provides different restore options; these options are used to maximize the restore operation. In
most cases, you will get the best results using the default option. However, depending on the
complexity of the restore operation, you may need to change the options to get better results.
v
Schedule
This option allows you to set a backup schedule.
v
Options
You can view and access all Backup, Restore, Networking, Security History, and Help options.
- General Restore Options: Used for standard restore operations. (Restore to the same device or
similar device with identical hardware and OS version.)
- Upgrade Mode Options: Used when restoring between different devices (Hardware types)
or devices with different OS versions (AKU and AKU2). We continuously strive to improve our
upgrade mode restore feature, but ongoing development and changes to the Windows Phone
platform means that Upgrade Mode may not always restore your device to the state you want.
75
AT&T Navigator Tap Start > LG Menu
> AT&T Navigator in the Applications tab
The AT&T Navigator™ application on your device uses GPS positioning technology and your
carrier’s data network to provide you with driving directions and a host of other services, including:
v GPS navigation gives you turn-by-turn directions to any address in the continental United States.
If you miss a turn or get off track, AT&T Navigator will calculate a new route for you. You can
enter an address using AT&T Navigator’s automatic voice recognition system or by entering it on
the device’s keypad.
v Audio and visual traffic alerts while driving or viewing maps, as well as traffic rerouting
capabilities to minimize delays on your trip.
v A Search feature that allows you to find businesses or points of interest near your current
location, an airport, a waypoint, or any address entered. You can read ratings and reviews of
businesses and easily call the business you found to check on the availability of an item or make a
reservation. You can navigate to the business location now or save the address for later use.
v Maps of the area around your current location, around a marked waypoint, or around an address
that you previously entered. You can pan the map (adjust left, right, up, or down) and zoom in or
out.
You can also mark a point under the cursor as a waypoint.
v A compass-like indicator specifying your direction of travel, location, and speed.
v Personalization of your application preferences by selecting U.S. customary or metric distance
units, the audible guidance language, and so on.
76
Note
v To improve GPS antenna sensitivity, do not cover the GPS antenna area with your hand.
Hold the handset as shown in the figure below.
v You will not be able to obtain a GPS location if you are in a restricted GPS signal area, such as a
building, underground, or a location surrounded by metal or concrete.
v If you are indoors, use near a window for better GPS antenna sensitivity.
v It is suggested that you use the vehicle power adapter in your car.
v It may take up to two to three minutes to get your GPS position. This time depends on the
environment and network.
77
Login
After launching AT&T Navigator, the Login screen will appear. Your phone number is automatically
generated. Your phone number MUST be the same as your carrier phone number, beginning with
the area code; this way, you don't have to enter it when you call the Voice Address Input System.
Correct the number, if necessary.
Enter your first and last names, and then click Login.
If you have already signed up for the TeleNav service, then the next Login screen will ask you to
enter the 4-digit PIN you provided when registering for TeleNav at www.telenav.com.
You can also use many of AT&T Navigator’s features on the TeleNav website, such as driving
directions (Route Planning) and the Search function to find businesses, churches, schools, and
government offices. You can also use the TeleNav website to add an address to your My Favorites
list, manage your My Favorites and Recent Places lists, and shop at the TeleNav Store.
Warning Screen
This next screen presents a warning regarding safe use.
If you agree to the conditions, click Go.
78
Product Tour
If you choose to continue, a pop-up screen will offer you a brief tour
of AT&T Navigator. Choose Yes to see a tour of AT&T Navigator’s
key features. To go directly to the application, choose No.
Note
v The product tour is only displayed the first time you
log into AT&T Navigator and does not appear after
subsequent logins. You can always access the Product
Tour again in the Tools/Extras menu.
AT&T Navigator Menu Overview
This section gives you a brief overview of the AT&T Navigator menus.
Main Menu
The AT&T Navigator Main Menu options are:
• Drive To
• Directory
• Maps
• Extras
79
Drive To Menu
Use Drive To to select from a variety of ways to navigate to an address. The Drive To Menu options
are:
• My Favorites - Places that you have found and saved in the past, giving you quick access to
them.
• Recent Places - AT&T Navigator automatically saves all the places that you: 1) Found in
a Directory (Business) search, 2) Viewed as a map, or 3) Located using a street address,
intersection, city, or airport.
• Business - Search the directory and find the addresses and phone numbers of businesses. Sort
businesses by average star rating, and read user reviews. Once you find what you are looking for,
you can get audible and visual driving or walking directions, place a call, view a map, or save it to
your My Favorites list.
• Address - Enter a street address by typing or speaking. You can leave the address field blank and
type in a city name to get directions to the center of the city.
• Intersection - Enter an intersection by typing or speaking.
• Airport - Quickly find airports by typing in the name or 3-letter code. For more information about
using the Drive To Menu.
80
Directory Menu
The Directory menu provides you with different ways to find the addresses and phone numbers of
businesses, such as restaurants, motels, gas stations, churches, schools, government offices, and
police and fire stations.
You have the following options in the Directory menu:
• Spell Name - Type in a keyword for the search.
• Recent Searches - Access a list of the businesses you have recently viewed.
• Food/Coffee - Search from a variety of categorized restaurants.
• Gas Stations - Search for nearby gas stations.
• Gas By Price - Find the cheapest gas in your area.
• Bank/ATM - Search for nearby banks.
• Hotels/Motels - Search for nearby hotels and motels.
• Parking - Search for nearby parking facilities.
• Other - Search the Directory by category. Press the plus (+) sign to expand a category and the
minus sign (-) to collapse it.
81
Maps Menu
Use the Maps menu to view a map and traffic information for one of the following:
• Your Current Location
• A Favorite Place
• A Recent Place
• A Business (this is the same as the Search menu option)
• An Address
• An Intersection
• An Airport
• A City
82
Extras Menu
The Extras menu allows you to set your preferences for a number of options and features.
The Extras Menu options are:
• Share Address – Share an address with friends on their mobile devices.
• Record Location – Record your current location using GPS. This option is useful when you do not
know your current address or if you want to mark an area that does not have a street address.
• My Favorites – Manage your Favorites list by renaming or deleting items.
• My Contacts – Manage your contacts by organizing them into categories or editing contact
information.
• Refer a Friend – Invite another person to try the AT&T Navigator service.
• Preferences – Set your preferences for the AT&T Navigator application.
• Compass – View a compass showing your current heading.
• About - View information such as your AT&T Navigator version number, the Customer Support
phone number, and your account information. You can also take a Product Tour.
Note
v Please press the Close button (X) or Exit menu button to shut down AT&T Navigator. If you press the End
key, AT&T Navigator disappears, but it is still running in the background, continuing to consume battery
power.
83
Wireless Manager
Wireless Manager allows you to manage Wi-Fi Internet and Bluetooth connections on your device.
It allows the phone to connect to local wireless networks, or access the Internet wirelessly.
Note
v The charges for using a data plan to access the Internet and using Wi-Fi are different. Please contact
your network operator for further information.
v Tap Start > Settings > Connections > Wireless Manager
v Tap the Wi-Fi option to turn On/Off.
A bubble window appears if a new network has been detected.
v Select the network that you are permitted to access, and then tap OK.
v Then select The Internet to get Internet service, and tap Connect.
Note
v If your Wi-Fi service provider or network administrator sets an encryption key, for network security,
you must enter the key in the pop-up window. If encryption is not set, this pop-up window will not
appear. If you don’t know the key, you must ask your Wi-Fi service provider or network administrator.
Note
v When the battery level becomes exceedingly low, the Wi-Fi connection will be disconnected.
84
Changing your Phone Settings Tap Start > LG Menu
>Phone Settings in the
Settings tab
You have the freedom to adapt the eXpoTM to your preferences.
Date & Time - Adjust your date and time settings, or choose whether to receive notification when
the time is updated.
Ringtone & Alerts - Choose your ringtone type: Normal, Vibrate All, Silent All, Outdoor, and
Automatic.
Themes & Wallpapers - Choose your phone's Theme and Wallpaper.
Power & Backlight - Set up the Power and Backlight settings for Battery and External.
Lock - Set the lock mode status.
Fonts - Adjust the text size to see more content, or increase the readability in many programs.
Memory Manager - Your eXpoTM has three possible memories: the phone itself, the SIM Card, and
an external memory card that you may need to purchase separately. You can use memory manager
to determine how each memory is used and see how much space is available.
Using the Screen Outputs Tap Start > LG Menu
> Screen Outputs in the
Settings tab
Pico Projector (sold separately) - Projects eXpoTM’s screen onto the screen or wall.
TV Out- Allows you to output to TV.
85
Displaying the Today screen Tap Start > LG Menu
> Homescreen Layout in
the Settings tab
Checked items appear on the Today screen. If you check LGIdles, or Windows Default, you will not
be able to select other items. For more information, see page 26 and 27.
Using Bluetooth Tap Start > LG Menu
> Bluetooth in the Settings tab
Bluetooth enables compatible mobile devices, peripherals, and computers that are in close
proximity to communicate directly with each other wirelessly. This handset has built-in Bluetooth
connectivity, which makes it possible to connect it with compatible Bluetooth headsets, computer
applications, and so on.
Note
v If you use PC Sync via Bluetooth, you can exchange data within the phonebook.
v When you receive data from another Bluetooth device, the phone requests confirmation. After
confirming the transfer, the data transfer will continue.
v Bluetooth must be turned on to use these features.
There are three tabs for Bluetooth: Settings, My Devices, and Accessories.
1. Settings
Go to Bluetooth > Settings > Add a device to set up a new Bluetooth device.
Go to Bluetooth > Settings > Disable Bluetooth to turn off Bluetooth.
Go to Bluetooth > Settings > Advanced to set up additional options.
2. My Devices: Allows you to see the information and properties of the paired devices.
86
3. Accessories
Go to Bluetooth > Accessories > Print Images to lay out and print pictures from your handset.
Go to Bluetooth > Accessories > PC Remote Control to remotely control a PC with your device.
Go to Bluetooth > Accessories > Networking Manager to network with other Bluetooth
devices.
Go to Bluetooth > Accessories > Business Card Exchange to send and receive business cards.
Go to Bluetooth > Accessories > BT Send Object to send objects such as Outlook E-mail,
Contacts, Tasks, Notes, Calendar Items, Audio, Ring Tones, Images, and Videos to a another
Bluetooth device.
Note
vIf you want your phone to be discovered by other Bluetooth devices, change the discoverability setting
as indicated below. Go the Settings tab and select Not Discoverable, and change to Always Visible or
Visible for 60 seconds.
Using TTY Tap Start > LG Menu
> TTY in the Settings tab
Allows you to attach a TTY device so you can communicate with other parties using TTY devices.
A phone with TTY support is able to translate typed characters into voice. Voice can also be
translated into characters and then displayed on the TTY device.
87
TTY Mode (Teletypewriter)
TTY modes are as follows:
Menu
TTY Full
TTY + Talk
TTY + Hear
User
For hearing/
speech impaired
For hearing
impaired
For speech
impaired
When communicating
with a non-TTY
terminal
Feature
Transmission/Receiving
Mode
can talk
text message transmission,
operator required
text message reception
voice transmission, text
operator required
message reception
text message transmission,
operator required
voice reception
audible
1. TTY Full:
- Users who cannot talk or hear send and receive text messages through TTY equipment.
2. TTY Talk:
- Users who can talk but cannot hear receive text messages and send voice messages through
TTY equipment.
3. TTY Hear:
- Users who can hear but cannot talk send text messages and receive voice messages through
TTY equipment.
4. TTY Off:
- Users send and receive without TTY equipment.
88
Connecting TTY Equipment to a Terminal
1. Connect a TTY cable to the TTY connector on the terminal. (The TTY connector location is the
same as a hands-free ear socket.)
2. Enter the TTY menu, and set the desired TTY mode. (For a TTY mode, see above.)
3. After setting a TTY mode, check the LCD screen of the phone for the TTY icon.
4. Connect the TTY equipment to a power source, and then turn it on.
5. Call a number.
6. When a connection is made, use the TTY equipment to enter and send text or voice messages.
7. The voice or text message from the receiver end appears on the TTY equipment display.
89
Taking photos and recording Tap Start > LG Menu
> Camera in the
Multimedia tab, or press and hold the Camera button (on the right side of the phone) for 1~2
seconds
1. Holding the phone horizontally, point the lens towards the subject you want to take a picture of.
2. Hold down the camera button on the right side of the phone for 1~2 seconds, or tap the camera
button on the screen.
90
Settings - Before taking a picture
To see the Settings menu, tap the screen once. These settings options disappear automatically if you do
not make selections.
Back
Change mode - Drag this icon to switch
to camera/ record mode.
Opens the Photo Album
Video Share Call
Brightness - Adjust the brightness.
Macro/Auto
Flashlight - Choose Auto/Always On/Always Off
Settings - Reset Settings/Image Size/Scene Mode/Colour Effect/White
Balance/Timer/Shot Mode/Preview Style/ISO/Image Quality/Memory In Use/
Hide Icons/Shutter Sound/Grid View.
91
Settings - After taking a photo
Back
Delete
Returns to the camera preview
Opens the Photo Album
Rename - Edits the filename.
Use As - Allows you to use as a Wallpaper and Contact Image.
Send - Send Via Message, Email, Bluetooth, or HP’s Snapfish .
92
Settings - Before recording
To see the Settings menu, tap the screen once.
Back
Change mode - Drag this icon to
switch to camera/ record mode.
Opens the Photo Album
Brightness - Adjust the brightness.
Recording Mode - Choose from Auto, Portrait, Landscape,
and Sports.
Flashlight - Choose Always On/Always Off
Settings - Reset Settings/Video Size/Scene Mode/Colour
Effect/White Balance/Video Quality/Duration/Memory In
Use/Voice/Hide Icons.
93
Settings - After recording
Back
Delete
Record - Return to record mode
Opens the Photo Album
Rename - Edits the filename
Send - Send Via Message, Email or
Bluetooth
Play - Replays the recorded video clip
94
Photo Album Tap Start > LG Menu
> Photo Album in the Multimedia tab
Tap to choose one from Photo Album,
Favorites, Pictures only, or Videos only.
Note
v Tap Menu to delete or sort files, or see a slideshow.
My Multimedia Tap Start > LG Menu
> My Multimedia in the Multimedia tab
You can view your files, including Audio and Pictures files, stored in the Handset and Memory Card.
You can also see how much storage space is being used. The Pictures and Videos program collects,
organizes, and sorts images and video clips in the following formats:
File Type
Video
Audio
File Extensions
BMP, JPG
WMV, MP4, 3GP
AAC ,MP4,3GP,3G2,3GA,MP3,WMA
,WMV,M4A ,AMR ,MID
You can view pictures as a slideshow, delete them, send them by email, edit them, or set them as
the background of the Today screen.
95
To Copy a Picture or Video Clip to your device
You can copy pictures from your PC and view them on your device.
v Copy the pictures from your PC or a storage card to the My Pictures folder of your device.
Note
v You can also copy pictures from your PC to your device using a memory card. Insert the memory card
into the memory card slot on your device, and then copy the pictures from your PC to the folder you
created on the memory card.
FM Radio Tap Start > LG Menu
> FM Radio in the Multimedia tab
Your LG eXpoTM has an built-in FM radio so you can listen to your favorite stations on the go.
Tune in to radio stations by searching for them manually or automatically. They will then be saved to specific
channel numbers, so you don’t have to search for them each time. To set your listening environment, tap
Menu on the FM Radio screen, and then choose an option you want to set, such as Scan and Alarm.
Note
v You must attach your headphones to listen to the radio. Insert them into the headphone jack.
v To improve radio reception, extend the headset cord, which functions as an FM antenna.
1. To save/add a station, tap the 123ch button on the FM Radio screen, tap Menu, and then tap
Add.
2. After saving the radio channels, you can listen to any preset channel by touching the left or right
arrow.
3. Access the following options menus by touching Menu:
96
v Scan: If you tap Scan, it automatically finds radio channels. If you want to save the current
channel, then tap Stop > Menu > Save preset.
v Mute: Select this option to turn off the sound.
v Preset Scan: Choose whether to erase the existing presets before scanning for new stations.
v Save preset: Allows you to set the channels you use frequently, and assign Shortcut keys. This is
found in the preset list.
v Presets: Displays the entire presets list.
v Alarm: Choose a preset as an alarm. Check the [Enable Alarm] box for setup.
v Options: Allows you to enable RDS and switch Alternative Frequency.
Note
v Enable RDS: Displays the received data message from the radio station on the screen.
To Set Sound & Notifications of Actions
1. Tap Start > Settings > Sounds & Notifications.
• In the Sounds tab, choose how you want to be notified by selecting the appropriate check boxes.
• In the Notifications tab, under Event, tap an event name, and then choose how you want to be
notified by selecting the appropriate drop-down boxes. Choose from several options, connection
event of call , active sync, or wireless network.
• In the Vibrations tab, choose how you want to be notified by vibrations when touching the
screen.
97
Using Fingerprint Sensor Tap Start > LG Menu
> Fingerprint Sensor in the
Settings tab
Allows you to adjust Motion Sensitivity and Turbo Scrolling Speed for the Fingerprint Sensor.
The Finger Sensor can be used as follows:
• In camera mode, zoom in and out by touching the fingerprint sensor.
• You can lock the eXpoTM using fingerprint recognition.
(Go to Tap Start > LG Menu > Phone Settings > Lock > Unlock device with fingerprint
sensor.)
• In the Start Menu, navigate icons by touching the fingerprint Sensor.
Note
v Register at least two fingerprints to best use this function.
v If the phone is locked and the fingerprint is not recognized, tap the Emergency Call button to enter the
PIN.
98
Voice Command
Voice command is the function whereby your phone’s voice recognition engine identifies the voice of the
user and carries out the requested commands. When the user operates the voice command function,
there are many available commands (see the following pages for more info).
Voice command is activated when you press and hold Back key
under the Fingerprint Navigation sensor. You can see the icon on
the upper side of the screen.
The eXpoTM activates as you speak and command.
Tap Start > Settings > Personal> Voice Command
Allows you to see
options for chosen item
of the list.
Allows you to choose
the Notification Options
99
Voice Command Options
• Calendar options
- Enable/ Disable: Announces to remind the calendar.
• Media options
- Enable/ Disable: Announces the album, artist, genre of music.
• Message options
- Enable/ Disable/ High priority: Announces to arrive new message.
• Phone options
- Confirm when calling by name
- Confirm when calling by number
- Announce incoming calls
100
Category
Voice Command
Step 1
Call <contact>
ex. Say “Call Frank”
Making Phone
Calls
Call <contact> at/on <location>
ex. Say “Call Frank at Home”
Dial
ex. Say “Dial 111 2222 2222”
“Dial +49 17 2233 5645”
Callback
Redial
Showing Contacts
Show/look up <Contact>
ex. Say “Show Frank”
Step 2
Nickname
First Last
First Last Suffix
First Middle Last Suffix
Company (if shown in contacts list view)
Home
Home2
Work
Work2
Mobile
Car
Pager
Assistant
Local Call
International Call
Nickname
First Last
First Last Surfix
First Middle Last Suffix
Company (only if available)
101
Category
Reading
Appointment
Playing Music
Go to Start >
Settings >
Personal > Voice
Command to
Enable the Media
Voice Commands
102
Voice Command
Step 1
What’s my next appointment?
What’s my schedule today?
What’s my schedule tomorrow?
Reminders ON
Reminders Off
What’s my next meeting?
What’s my next appointment?
What are my
appointments(today)?
What are my meetings(today)?
What’s my schedule(today)?
What’s my calendar(today)?
What’s my calendar for today?
What are my appointments
tomorrow?
What are my meetings tomorrow?
What’s my calendar for tomorrow?
What’s my schedule tomorrow?
Play anything
Play music(music)
Play album
Play artist
Play genre
Turn Shuffle On
Turn Shuffle Off
What song is this?
What track is this?
Step 2
Say Album, Artist, Genre or Anything. While the
options are being read out loud, hold down the
Back key to the say option.
Hold down the Back key to say the Album
name.
Hold down the Back key to say the Artist name.
Hold down the Back key to say the Genre name.
Category
Starting Programs
Getting Phone
Status
Getting Help
Voice Command
Step 1
Start/Open <program>
ex. Say “Open Word”
Step 2
Internet Explorer
Word
Excel
MSN
Messaging
Windows Media
MSN Messenger
What time is it?
What date is it?
What is my battery level?
Turn flight mode on
Turn flight mode off
What is my signal strength?
What calls have I missed?
What missed calls do I have?
Set Ringer High
Set Ringer Loud
Set Ringer Medium
Set Ringer Middle
Set Ringer Low
Set Ringer Soft
Set Ringer Off
Set Ringer Mute
Set Ringer Vibrate
Help
What can I say?
What are my choices?
103
Task Manager
In some cases, programs automatically close to free memory. However, you can close programs
manually.
1. Tap Start >Tools > Task Manager
2. Check the running programs list in the Application column, also included are the Memory and
CPU information for each program.
3. End the programs manually by touching End Task at the lower left of the screen. This will close
the highlighed task one at a time.
Internet Sharing
Note
v ActiveSync software version 4.5, or later, is required on your PC.
v Windows XP SP2 or later is required.
1. Connect the USB cable to the PC.
2. Tap Start > Tools > Internet Sharing.
3. Set PC Connection to USB or Bluetooth PAN.
v The data connection indicator (G/E/3G) is displayed when internet sharing is performed
successfully.
104
ActiveSync
ActiveSync synchronizes information on your device with information on your PC, such as Outlook
content. ActiveSync can also synchronize over a cellular network with Microsoft Exchange
Server, if your company or service provider is running Microsoft Exchange Server with Exchange
ActiveSync. When you synchronize, ActiveSync compares the information on your device with the
information on your PC and/or Exchange Server and updates all locations with the most recent
information. For newer versions of Windows, refer to the next page.
With ActiveSync, you can:
v Synchronize information, such as Outlook Email, Contacts, Calendar, or Tasks information on
your device with your PC, as well as pictures, video, and music.
v Synchronize Outlook Email, Contacts, Calendar appointments, and Tasks on your device directly
with Exchange Server so that you can stay up to date even when your PC is turned off.
v Exchange files between your device and your PC without synchronizing.
v Select which types of information are synchronized, and specify how much information is
synchronized. For example, you can choose how many weeks of past Calendar appointments to
synchronize.
You can synchronize your e-mail, contacts, calendar, songs, pictures and internet favorites with
your Windows-based PC. Start by visiting this Microsoft Web site - www.microsoft.com/getstarted
Once you have installed ActiveSync and set up a synchronization relationship, ActiveSync on the
PC recognizes your device when you connect it and automatically transfers the synchronization
settings you specified on your device.
You may be able to synchronize your device with Exchange Server through your company or
wireless service provider. If you plan to do so, get the email address, Exchange Server address, user
name, password, and domain name from your administrator before starting the Sync Setup Wizard.
105
Setting with Windows Vista™
Microsoft Windows Phone® Device Center is the replacement for Microsoft® ActiveSync® on
Windows Vista™.
Set up synchronization in Windows Phone Device Center
When you connect your device to your PC and start Windows Phone Device Center for the first time,
you are asked to create a Windows Phone partnership with your device. Follow the steps below to
create a partnership.
v Connect your device to your PC. Windows Phone Device Center configures itself and then opens.
v On the license agreement screen, click Accept.
v On the Windows Phone Device Center’s Home screen, click Set up your device.
Note
v Choose Connect without setting up your device if you only want to transfer media files, check for
updates, or explore your device but not sync Outlook information.
v Select the items you want to synchronize, and then click Next.
v Enter a device name, and then click Set Up. When you finish the setup wizard, Windows Phone
Device Center synchronizes your device automatically. Outlook emails and other information will
appear on your device after synchronization.
106
Use Windows Phone Device Center
To open Windows Phone Device Center, click Start > All Programs > Windows Phone Device
Center on your Windows Vista computer. In Windows Phone Device Center, you can do the
following:
v Click Mobile Device Settings to change synchronization settings.
v Click Pictures, Music, and Video > Add media to your device from Windows Media Player
to synchronize music and video files using Windows Media® Player.
v Click File Management > Browse the contents of your device to view documents and files
from your device.
Setting up Windows XP
1. Select Setup and Installation, and then follow the on-screen instructions to install ActiveSync.
2. After installation has completed, connect your device to your PC using the sync cable.
- Connect the smaller end of the USB cable into your LG eXpoTM.
- Connect the larger end of the USB cable into the USB port of your computer.
3. The Synchronization Setup Wizard automatically starts and guides you in creating a
synchronization relationship. Click Next to proceed.
4. To synchronize your device with your computer, clear the Synchronize directly with a server
running Microsoft Exchange Server check box, and then click Next.
5. Select the information types that you want to synchronize, and then click Next.
6. Click Finish.
When you finish the wizard, ActiveSync synchronizes your device automatically.
107
Synchronizing Information
When you connect your device to the PC using a USB or Bluetooth connection, ActiveSync will
immediately synchronize. While the device is connected, ActiveSync synchronizes every time you
make a change on either the PC or the device.
Synchronizing Outlook information
If you have set up a synchronization relationship between your device and the PC, synchronization
keeps Outlook information up to date on both computers. ActiveSync synchronizes a limited amount
of information by default to save storage space on your device. You can change the amount of
information synchronized for a given information type in the Settings for the information type.
You can set up your device to synchronize with more than one PC or with a combination of one or
more PCs and Exchange Server. When synchronizing with multiple computers, the items that you
synchronize will appear on all of the computers with which they are synchronized.
For example, if you have set up synchronization with two PCs (PC1 and PC2), each with different
items, and then you synchronize Contacts and Calendar on the device with both computers, the
result is as follows:
108
Location
New state
PC1
All Outlook contacts and calendar events that were on PC2 are now also on PC1.
PC2
All Outlook contacts and calendar events that were on PC1 are now also on PC2.
Device
All Outlook contacts and calendar events from both PC1 and PC2 are on the device.
To start and stop synchronization
v To synchronize Outlook information and other local information on the PC, including media files,
connect your device to the PC using Bluetooth or a cable.
v If you are synchronizing directly with Exchange Server, you can use the PC connection to a
network that is “Desktop Pass-through,” or you can synchronize over a cellular network without
connecting to the PC.
v In ActiveSync, click Sync. To end synchronization before it completes, click Stop. To change
which information is synchronized
1. In ActiveSync on the device, tap Menu > Options.
2. Do one or both of the following:
v Select the box for any items you want to synchronize. If you cannot select a box, you might have
to clear the box for the same information type elsewhere in the list.
v Clear the box for any items you want to stop synchronizing.
3. To stop synchronizing with one PC, tap the PC, and then tap Delete.
Note
v Outlook email can be synchronized with only one computer. To change the synchronization settings,
select the type of information, and then tap Settings.
109
To synchronize directly with Exchange Server
You can set up synchronization with Exchange Server, if it is available to you through your company
or wireless service provider. However, you should first ask your administrator for the following
information, and then continue the setup process: email address, Exchange Server address, user
name, password, and domain name.
1. In ActiveSync on the device, tap Menu > Configure Server. If you have not yet set up
synchronization with Exchange Server, you will see Add Server Source.
2. Enter the email address, and then tap Next.
3. In Server address, enter the address of the server running Exchange Server, select the box if this
Server requires an encrypted (SSL) connection. Tap Next.
4. Enter the user name, password, and domain, and then tap Next. To change the rules for resolving
synchronization conflicts, tap Advanced.
5. Select the boxes for the types of information items that you want to synchronize with Exchange
Server.
6. To change available synchronization settings, select the type of information, and then tap
Settings.
7. Tap Finish.
Synchronizing using Bluetooth
You can connect your device to the PC to synchronize using Bluetooth.
To synchronize with a PC using Bluetooth
1. First, check Allow connections to one of the following in the ActiveSync connections Settings
menu on your PC. (On ActiveSync on your PC, go to File > Connection Settings...).
Select the COM port.
If there are no available connections, then you should first make a Bluetooth pairing.
2. Select the ActiveSync via Bluetooth item in the Bluetooth connection wizard (Bluetooth Settings
> Bluetooth Manager > new > ActiveSync via Bluetooth).
110
Synchronizing Music, Video, and Pictures
If you want to take your music or other digital media with you when you are on the go, ActiveSync
works with Windows Media Player to synchronize music, video, and pictures.
Other than selecting the Media information type you want to synchronize in ActiveSync, you
must specify all media synchronization settings in Windows Media Player. Before media can be
synchronized, you must do the following:
v Install Windows Media Player Version 10 on the PC.
v Connect your device to the PC using a USB cable. If the device is currently connected using
Bluetooth, you must end that connection before media can be synchronized.
v Insert a storage card into your device (32 MB or more is recommended).
v Set up a sync partnership between the storage card and Windows Media Player.
Change Media synchronization settings
Once you select the Media information type you want to synchronize in ActiveSync, you can
synchronize any of your favorite music, video, or picture files in Windows Media Player playlists. All
you have to do is set up synchronization in Windows Media Player for those media files.
To set up a sync relationship with a storage card
1. Open Windows Media Player.
2. Click on the arrow on the Sync tab.
3. Select the Storage Card (or the phone, if no memory card is inserted in your phone). target device
on the right column.
4. Click Set up Sync. From this menu you will be able to configure the Sync partnership between
your phone and your PC’s Windows Media Player.
111
Touch Feedback Tap Start > LG Menu
> Touch Feedback in the Settings tab
You can set the sound and vibration feedback for when you use the touch screen and set sounds for
when you press buttons.
Screen Tab
Select whether to set Vibration mode to ON or OFF. If set to ON, the screen vibrates when tapped.
You can also choose Vibration Type and Vibration Strength. To set up Sound Type and Sound Tone,
you must set Sound to ON.
Button Tab
Select whether you want sounds for every button press. Once you set to ON, you will be able to
select the sound type and volume.
Sensors Tap Start > LG Menu
> Sensors in the Settings tab
Accelerometer Sensor
If set to On, the rotation sensor automatically detects the orientation of your device and decides the
view mode of the screen display: Portrait or Landscape. You can also set the phone to vibrate when
the screen display switches.
Note
v This function does not work when a program is launching.
112
Auto Luminous Control Sensor
If set to On, the LCD backlight brightness is automatically adjusted based on the lighting conditions.
Proximity Sensor
With this feature, the LCD will automatically turn off when in close proximity to your face, allowing
you to only adjust the volume or end the call. This function allows you to save power and prevents
you from unintentionally activating features during a call.
The LCD backlight reverts when you are far away from the sensor.
WARNING
• Be careful not to damage the proximity sensor protection material. Damage to the cover can lead the
sensor to malfunction.
IM
You can only use the Instant Messaging feature with the support of the network operator or
communities such as AIM, Windows Live, and Yahoo! Messenger.
For Instant Messaging, you need a valid User ID and Password to log in and exchange messages as
well as check online status.
The menu items below might not appear since not all IM communities support the various options.
Also, the menu strings may appear differently depending on the IM community selected. Keywords,
such as User ID, Login, and Contact, are used as general terms in IM menus based on the
community selected, such as AIM, Windows Live, and Yahoo! Messenger.
113
Sign in
1. Start > Instant Messaging.
2. Select the communities, then tap OK.
3. Type your user name and password. For Windows Live Messenger, you must also enter the
respective domain name (e.g., xyz@hotmail.com).
Note
v If you do not have a community user name, you must create one on the community website
using a personal computer Web browser.
4. Tap Sign In.
Note
v To avoid having to enter your user name and password each time you log in, select the Save
Password box. To set your device to sign in to the community automatically each time you
start the device, select Auto Sign In.
Switching between Communities
You can Sign in to all the communities at the same time.
All the enabled communities are displayed on the top as tabs.
114
Change Status
Tap Menu on the Contact List screen, choose the option My Status, and then select the desired
status Busy/Away/Offline (this can change depending on your IM provider).
Contact List
The Contact list displays your individual contacts/buddies in a tree list view. Online contacts
are displayed under their respective group names, and all offline contacts are displayed under a
separate group called Offline.
To collapse or expand a group, select the group using the navigation keys, and then press the left
softkey Collapse/Expand.
v Add a Contact: On the Contact list screen, click the right softkey Menu, Contact Options, and
then Add Contact. On the next screen, enter the User ID of the desired contact, and then click
the left softkey Add.
v Block: On the Contact list screen, highlight a contact, click the right softkey Menu, Contact
Options, and then choose Block Contact. A confirmation screen will display. Select the Yes
softkey to confirm the action. (The Block option is only available for Windows Live and AIM)
v Delete: Select the contact, click the right softkey Menu, Contact Options, and then the Delete
option.
v Refresh Contact List: To get the updated presence information, click the right softkey Menu,
Refresh, and then the preferred Refresh option.
v Contact info: Tap and hold the target contact, then select Contact Info.
115
Conversations
Conversations for each community appear under the conversation group (the first group) on the
Contact list screen.
To start a new conversation, select the desired contact on the Contact list screen, and then press
the right softkey Send IM. A conversation screen will appear. Type the message, and then press
Enter, or click the left softkey Send to send the message.
To end a conversation, press the left softkey Menu on the conversation screen, and then choose the
End Conversation option. To close a conversation without ending it, choose the Back option from
the same menu.
IM Settings
To access IM Settings, tap Menu > Settings on the Contact List screen.
v Global Settings
- Play sound on new messages: Select this box to play the community default sound
notification when a new IM arrives.
- Auto Start on PowerOn: Select this box if you want to automatically start the application when
the phone is turned on.
- New Message Notification : Select/Unselect this box to enable/disable new IM notifications
when the application is in the background.
Note
v Exiting the application will not sign you out, and you will continue to receive messages. A
pop-up message will notify you of new messages.
116
Office Mobile Tap Start > Office Mobile
Excel Mobile
Excel Mobile makes it easy for you to open and edit Excel workbooks and templates created on your
PC.
You can also create new workbooks and templates on your device.
Note
v Work in full-screen mode to see as much of your workbook as possible.
Tap View > Zoom, and then select a percentage so you can easily read the worksheet.
Unsupported features in Excel Mobile
Excel Mobile does not fully support some features, such as formulas and cell comments. Some
data and formatting may be lost when you save the workbook to your device. Note the following
regarding Excel Mobile formatting:
v Alignment: Horizontal, vertical, and wrap-text attributes remain the same, but vertical text
appears as horizontal text.
v Borders: Appear as a single line.
v Cell patterns: Patterns applied to cells are removed.
v Fonts and font sizes: Fonts not supported by your device are mapped to the most similar font
available. The original font is listed on your device. When the workbook is opened in Excel on
your PC again, the data is displayed in the original font.
v Number formats: Numbers formatted using the Microsoft Excel 2007 Version 6.1 conditional
formatting feature are displayed in Number format.
117
v Formulas and functions: If an Excel file contains a function that is not supported by Excel Mobile,
the function is removed, and only the returned value of the function appears. The following
formulas are also converted to values: formulas entered as an array or containing an array
argument, for example, =SUM({1;2;3;4}); formulas containing external link references or an
intersection range reference; and formulas containing references past row 16384 are replaced
with #REF!
v Protection settings: Most worksheet and workbook protection features are disabled but not
removed. However, support for password protection has been removed. Workbooks that are
password protected or workbooks in which one or more worksheets are password protected
cannot be opened. You must remove the password protection in Excel on the PC and then
synchronize to open the file on the device.
v Zoom settings: Are not retained. Excel supports a per worksheet zoom setting, while the Excel
Mobile zoom setting is applied to the entire workbook.
v Worksheet names: Names that reference worksheets within the same workbook are displayed
accurately, but names that refer to other workbooks, arrays (e.g., ={1;2;3;4}), array formulas, or
intersection ranges are removed from the name list. If a name is removed from the list, it is left in
formulas and functions, causing those formulas to be resolved as “#NAME?”. All hidden names
are not hidden.
v AutoFilter settings: Are removed. However, you can use the AutoFilter command in Excel Mobile
to perform similar functions.
If you have an AutoFilter applied to a worksheet that causes rows to be hidden, the rows remain
hidden when the file is opened in Excel Mobile. Use the Unhide command to display the hidden
rows.
v Chart formatting: All charts are saved the way they are shown in Excel Mobile. Unsupported chart
types are changed to one of the following supported types: Column, Bar, Line, Pie, Scatter, or
Area. Background colors, gridlines, data labels, trend lines, shadows, 3D effects, secondary axes,
and logarithmic scales are turned off.
v Worksheet features: The following features are not supported in Excel Mobile and are removed or
modified when a workbook is opened on the device: hidden sheets are not hidden; VBA modules,
macro sheets, and dialog sheets are removed and replaced with placeholder sheets; text boxes,
drawing objects, pictures, lists, conditional formats, and controls are removed; pivot table data is
converted into values.
118
PowerPoint Mobile
With PowerPoint Mobile, you can open and view slideshow presentations created on your PC in
PPT and PPS formats with PowerPoint '97 and later.
Many presentation elements built into the slideshows, such as slide transitions and animations,
will play on the device. If the presentation is set up as a timed slideshow, one slide will advance to
the next automatically. Links to URLs are also supported.
PowerPoint features not supported on the device include:
v Notes: Notes written for slides will not be visible.
v Rearranging or editing slides: PowerPoint Mobile is only a viewer.
v File formats: Files created in PPT format earlier than PowerPoint '97 and HTML files in HTM and
MHT formats are not supported.
Word Mobile
Word Mobile is a streamlined version of Microsoft Word. Word documents created on your PC
can be opened and edited on your device. You can also create and edit documents and templates in
Word Mobile and save them as DOC, RTF, TXT, and DOT files.
You can have only one document open at a time. When you open a second document, the first one
is saved and closed automatically.
When you close a newly created document, it is automatically named using the first several
words in the document and placed in the Word Mobile document list. You can easily rename the
document and move it to another folder or a storage card.
119
Tools Tap Start > LG Menu
> Applications > Tools
Proxy Manager
Proxy Manager handles proxy use for applications.
- Disable Proxy: When you use the Browser through ActiveSync or Wi-Fi, you should select
Disable Proxy and tap OK to disable proxy usage.
- Restore Proxy: When you use the Browser through GPRS, you should select Restore Proxy and
tap OK to enable proxy usage.
Note
v Restore Proxy is selected by default.
Java
LG eXpoTM supports Java so you can easily download Java games and other Java applications from
the Internet.
This menu has two subfolders: Games and Applications. Each folder has an embedded link for
downloading Games or Applications from the Internet.
Please note that additional charges may apply when using online services.
120
EnableDUN
Note
v Before activating DUN, make sure your device has a GPRS SIM card installed, and you
have set up a GPRS odem connections on your device. Also make sure you have GPRS SIM
support DUN, and connected your device to a computer via USB.
v To use DUN, you have to install the LGUSBWMLModemDriver on your computer. Refer the below site.
www.lgmobile.com
v When you activate DUN, ActiveSync will be disabled automatically.
To Set up your device as an USB modem
1. On your device, tap Start > Programs > EnableDUN.
2. Plug in the USB cable adapter between your device and the computer.
3. Tag Activate.
To add your device as a USB modem to your Computer
1. On your computer, click Start > Control Panel.
2. Double-click Phone and Modem Options.
3. Click the Modems tab. Select the new modem from the Modem list, then double click the new
Modem.
4. On the Advanced tab, add following AT command to the Extra initialization commands:
AT+CGDCONT=1, "ip", "<access point name>"
Note
v For example, at+cgdcont=1,”ip”,”isp.cingular”
121
To dial up and connect to the Internet
1. On your computer, click Start > Control Panel.
2. Double-click Network Connections.
3. Click File > Create a new Connection.
4. In the New Connection Wizard, click Next.
5. Click Connect to the Internet the click Next.
6. Select Set up my connection manually then click Next.
7. Select Connect using a dial-up modem then click Next.
8. Select the modem that you previously installed, then click Next.
9. Enter a descriptive name for this connection, then click Next.
10. Enter the telephone number as *99# or Vender support number(ex, *99***1#), then click Next.
11. Under Internet Account Information, you may not need to enter a user name and paddword
when using GPRS. Just click Next to proceed.
12. Click Finish to exit the wizard.
13. The Connect dialog box then opens, Click Properties to check again whether the LGEWML USB
Modem is selected. If it is correct, click OK, and then, return to the connect dialog box.
14. Click Dial to dial up and connect to the Internet.
Mobile Zip
Mobile Zip is an archiving tool that allows you to extract and store files in Zip format.
122
Mobile Zip View
Mobile Zip’s display consists of views, menus and dialogs. There are five views and numerous
dialogs to facilitate settings and data input. The Home View is used mainly as startup page where
you learn and set some basic features of the application. It consists of options to set default dialog
in password input dialog.
To navigate menus
• Main Menu is clearly visible throughout the application. It is accessible using the right softkey.
Main Menu is a dynamic menu. It provides commands to access views, password manager and
other dynamic commands.
• Shortcut Menu is accessible while on the screen that displays your files. Simply tap and hold for
the Shortcut menu to display.
• Toolbar Menus is clearly visible at the top bar of folder view. These menus are designed to help the
user navigate folders and sort items.
To Extract ZIP Archive/Archives
In the selected folder view, tap and hold on the selected archive/archives. On the folder shortcut context
menu, select:
• Extract... command to extract the selected archive/archives with option
to set destination folder, set password, select extraction behavior etc.
• Extract Here command to simply extract the content of the selected
archive/archives in this folder.
• Extract to ‘name folder’ command to simply extract the content
of the selected archive/archives into the named folder.
123
To Associate Mobile Zip with other files
You can select Mobile Zip to be associated with supported file extensions.
In the Options tab, select File Association. In the dialog, use the softkeys
to clear or add all supported files. You can manually delete extensions
that you do not want to be associated with Mobile Zip.
Fig.15.Search Dialog
124
Reset the Device
Occasionally, you may need to reset your device. A normal (or soft) reset of your device clears all
active program memory and shuts down all active programs. This is useful when the device is
running slower than usual, or a program is not performing properly. A soft reset is also necessary
after the installation of some programs. If you perform a soft reset when programs are running, you
will lose unsaved work.
To perform a soft reset
• Locate the Soft reset key (see page 16). You can find it if you remove the battery cover. It is
located on the upper center of the battery compartment.
A soft reset of your device clears all active program memory and shuts down all active programs.
This is useful when your device is running slower than normal, or a program is not performing
properly. A soft reset is also necessary after the installation of some programs. If you perform a
soft reset when programs are running, you will lose unsaved work.
To perform a hard reset
• You should only perform a Hard Reset after you have exhausted all other troubleshooting options.
After a hard reset, the device is restored to its default settings (the way it was when you first
purchased it and turned it on). Any programs you installed, data you entered, and settings you
customized on your device will be lost.
1. Turn on the device.
2. Tap Start > Settings > System > Clear Storage.
3. Choose whether to delete Internal Memory or External Memory (SD card) or both.
4. Press Clear.
5. Press Yes. All settings reset to their default values, and all data is deleted.
125
If your phone is locked and you forgot your password, the only way to hard reset the device is
through the hard key sequence.
1. Turn the device OFF by press the power button for a few seconds.
2. Turn on your phone.
3. When the phone begins the boot-up process, hold down the Down Volume key, Multitasking Key
and the End Key.
4. Release when the status lights change multiple colors.
of the hard key reset is successful, the Align screen will appear.
126
Accessories
There are various accessories for your mobile phone. You can select these options according to your
personal communication requirements.
Travel Adapter
Data cable
Standard Battery
Headset
Stylus
Note
v Always use genuine LG accessories. Failure to do so may invalidate your warranty.
v Accessories may vary in different regions: please check with our regional service company or agent for
further information.
Accessories
127
Safety Guidelines
TIA Safety Information
Provided herein is the complete TIA Safety Information for Wireless Handheld phones. Inclusion of the
text covering Pacemakers, Hearing Aids, and Other Medical Devices is required in the owner’s manual for
CTIA Certification. Use of the remaining TIA language is encouraged when appropriate.
Exposure to Radio Frequency Signal
Your wireless handheld portable telephone is a low power radio transmitter and receiver.
When it is ON, it receives and also sends out radio frequency (RF) signals.
In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with
safety levels for handheld wireless phones. Those guidelines are consistent with the safety standards
previously set by both U.S. and international standards bodies:
ANSI C95.1 (1992) *
NCRP Report 86 (1986)
ICNIRP (1996)
Those standards were based on comprehensive and periodic evaluations of the relevant scientific
literature. For example, over 120 scientists, engineers, and physicians from universities, government
health agencies, and industry reviewed the available body of research to develop the ANSI Standard
(C95.1).
* American National Standards Institute;
National Council on Radiation Protection and Measurements; International Commission on
Non-Ionizing Radiation Protection
The design of your phone complies with the FCC guidelines (and those standards).
128
Antenna Care
Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or
attachments could damage the phone and may violate FCC regulations.
Phone Operation
NORMAL POSITION: Hold the phone as you would any other telephone with the antenna pointed up and
over your shoulder.
Tips on Efficient Operation
For your phone to operate most efficiently:
v Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna affects call
quality and may cause the phone to operate at a higher power level than otherwise needed.
Driving
Check the laws and regulations on the use of wireless phones in the areas where you drive.
Always obey them. Also, if using your phone while driving, please:
v Give full attention to driving - driving safely is your first responsibility;
v Use hands-free operation, if available;
v Pull off the road and park before making or answering a call if driving conditions so require.
Electronic Devices
Most modern electronic equipment is shielded from RF signals. However, certain electronic equipment
may not be shielded against the RF signals from your wireless phone.
Safety Guidelines
129
Safety Guidelines
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum separation of six (6’) inches
be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with
the pacemaker.
These recommendations are consistent with the independent research by and recommendations of
Wireless Technology Research.
Persons with pacemakers:
v Should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned
ON;
v Should not carry the phone in a breast pocket.
v Should use the ear opposite the pacemaker to minimize the potential for interference.
v If you have any reason to suspect that interference is taking place, turn your phone OFF immediately.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the event of such interference,
you may want to consult your service provider.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device to determine if they
are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining
this information.
Health Care Facilities
Safety Guidelines
130
Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to
do so. Hospitals or health care facilities may use equipment that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles.
Check with the manufacturer or its representative regarding your vehicle.
You should also consult the manufacturer of any equipment that has been added to your vehicle.
Posted Facilities
Turn your phone OFF in any facility where posted notices so require.
Aircraft
FCC regulations prohibit using your phone while in the air. Turn your phone OFF before boarding an
aircraft.
Blasting Areas To avoid interfering with blasting operations, turn your phone OFF when in a ‘blasting
areas or in areas posted: ‘Turn off two-way radio’. Obey all signs and instructions.
Potentially Explosive Atmosphere
Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and
instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always, marked clearly. Potential areas
may include: fueling areas (such as gasoline stations); below deck on boats; fuel or chemical transfer or
storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the
air contains chemicals or particles (such as grain, dust, or metal powders); and any other area where you
would normally be advised to turn off your vehicle engine.
An air bag inflates with great force. DO NOT place objects, including either installed or portable wireless
equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment
is improperly installed and the air bag inflates, serious injury could result.
Safety Guidelines
For Vehicles Equipped with an Air Bag
131
Safety Guidelines
Safety Information
Please read and observe the following information for safe and proper use of your phone and to prevent
damage. Also, keep the user guide in an accessible place at all the times after reading it.
v Do not disassemble or open crush, bend or deform, puncture or shred.
v Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose
to water or other liquids, expose to fire, explosion or other hazard.
v Only use the battery for the system for which it is specified.
v Only use the battery with a charging system that has been qualified with the system per IEEE-Std1725-2006. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or
other hazard.
v Do not short circuit a battery or allow metallic conductive objects to contact battery terminals.
v Replace the battery only with another battery that has been qualified with the system per this standard,
IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or
other hazard.
v Promptly dispose of used batteries in accordance with local regulations.
v Battery usage by children should be supervised.
v Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface,
and the user suspects damage, take it to a service center for inspection.
v Improper battery use may result in a fire, explosion or other hazard.
v The phone shall only be connected to USB products that bear the USB-IF logo or have completed the
USB-IF compliance program.
Charger and Adapter Safety
Safety Guidelines
132
v The charger and adapter are intended for indoor use only.
Battery Information and Care
v Please dispose of your battery properly or take it to your local wireless carrier for recycling.
v The battery does not need to be fully discharged before recharging.
v Use only LG-approved chargers specific to your phone model since they are designed to maximize
battery life.
v Do not disassemble or impact the battery as it may cause electric shock, short-circuit, and fire. Store
the battery in a place out of reach of children.
v Keep the battery’s metal contacts clean.
v Replace the battery when it no longer provides acceptable performance. The battery can be recharged
several hundred times before replacement.
v Recharge the battery after long periods of non-use to maximize battery life.
v Battery life will vary due to usage patterns and environmental conditions.
v Use of extended backlighting, Media Net Browsing, and data connectivity kits affect battery life and
talk/home screen times.
v The self-protection function of the battery cuts the power of the phone when its operation is in an
abnormal state. In this case, remove the battery from the phone, reinstall it, and turn the phone on.
Explosion, Shock, and Fire
Hazards
v Do not put your phone in a place subject to excessive dust and keep the minimum required distance
Safety Guidelines
between the power cord and heat sources.
v Unplug the power cord prior to cleaning your phone, and clean the power plug pin when it is dirty.
v When using the power plug, ensure that it is firmly connected. If it is not, it may cause excessive heat
or fire.
133
Safety Guidelines
v If you put your phone in a pocket or bag without covering the receptacle of the phone (power plug
pin), metallic articles (such as a coin, paperclip or pen) may short-circuit the phone. Always cover the
receptacle when not in use.
v Do not short-circuit the battery. Metallic articles such as a coin, paperclip or pen in your pocket or bag
may short-circuit the + and – terminals of the battery (metal strips on the battery) upon moving. Shortcircuit of the terminal may damage the battery and cause an explosion.
General Notice
v Using a damaged battery or placing a battery in your mouth may cause serious injury.
v Do not place items containing magnetic components such as a credit card, phone card, bank book
Safety Guidelines
134
or subway ticket near your phone. The magnetism of the phone may damage the data stored in the
magnetic strip.
v Talking on your phone for a long period of time may reduce call quality due to heat generated during
use.
v When the phone is not used for a long period time, store it in a safe place with the power cord
unplugged.
v Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause interference to the
phone.
v Do not use the phone if the antenna is damaged. If a damaged antenna contacts skin, it may cause a
slight burn. Please contact an LG Authorized Service Centre to replace the damaged antenna.
v Do not immerse your phone in water. If this happens, turn it off immediately and remove the battery. If
the phone does not work, take it to an LG Authorized Service Centre.
v Do not paint your phone.
v The data saved in your phone might be deleted due to careless use, repair of the phone, or upgrade
of the software. Please backup your important phone numbers. (Ring tones, text messages, voice
messages, pictures, and videos could also be deleted.) The manufacturer is not liable for damage due
to the loss of data.
v When you use the phone in public places, set the ring tone to vibration so as not to disturb others.
v Do not turn your phone on or off when putting it in your ear.
FDA Consumer Update
The U.S. Food and Drug Administration Centre for Devices and Radiological Health Consumer Update on
Mobile Phones.
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are associated with using
wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones
emit low levels of radio frequency(RF) energy in the microwave range while being used. They also emit
very low levels of RF when in the home screen mode. Whereas high levels of RF can produce health
effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no
known adverse health effects. Many studies of low level RF exposures have not found any biological
effects. Some studies have suggested that some biological effects may occur, but such findings have
not been confirmed by additional research. In some cases, other researchers have had difficulty in
reproducing those studies, or in determining the reasons for inconsistent results.
Safety Guidelines
2. What is the FDA’s role concerning the safety of wireless phones?
Under the law, the FDA does not review the safety of radiation-emitting consumer products such as
wireless phones before they can be sold, as it does with new drugs or medical devices. However, the
agency has authority to take action if wireless phones are shown to emit radio frequency(RF) energy at
a level that is hazardous to the user. In such a case, the FDA could require the manufacturers of wireless
phones to notify users of the health hazard and to repair, replace, or recall the phones so that the hazard
no longer exists. Although the existing scientific data do not justify FDA regulatory actions, the FDA has
urged the wireless phone industry to take a number of steps, including the following:
v Support needed research into possible biological effects of RF of the type emitted by wireless phones;
v Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for
device function; and
v Cooperate in providing users of wireless phones with the best possible information on possible effects
of wireless phone use on human health.
135
Safety Guidelines
The FDA belongs to an interagency working group of the federal agencies that have responsibility for
different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies
belong to this working group:
v National Institute for Occupational Safety and Health
v Environmental Protection Agency
v Occupational Safety and Health Administration
v National Telecommunications and Information Administration
v The National Institutes of Health participates in some interagency working group activities, as well.
The FDA shares regulatory responsibilities for wireless phones with the Federal Communications
Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines
that limit RF exposure. The FCC relies on the FDA and other health agencies for safety questions about
wireless phones.
The FCC also regulates the base stations that the wireless phone networks rely upon. While these base
stations operate at higher power than do the wireless phones themselves, the RF exposures that people
get from these base stations are typically thousands of times lower than those they can get from wireless
phones. Base stations are thus not the subject of the safety questions discussed in this document.
Safety Guidelines
136
3. What kinds of phones are the subject of this update?
The term ‘wireless phone’ refers here to handheld wireless phones with built-in antennas, often called
‘cell’, ‘mobile’, or ‘PCS’ phones. These types of wireless phones can expose the user to measurable
radio frequency(RF) energy because of the short distance between the phone and the user’s head.
These RF exposures are limited by FCC safety guidelines that were developed with the advice of the
FDA and other federal health and safety agencies.
When the phone is located at greater distances from the user, the exposure to RF is drastically lower
because a person’s RF exposure decreases rapidly with increasing distance from the source. The socalled ‘cordless phones,’ which have a base unit connected to the telephone wiring in a house, typically
operate at far lower power levels, and thus produce RF exposures far below the FCC safety limits.
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many studies have suffered from
flaws in their research methods. Animal experiments investigating the effects of radio frequency(RF)
energy exposures characteristic of wireless phones have yielded conflicting results that often cannot
be repeated in other laboratories. A few animal studies, however, have suggested that low levels of
RF could accelerate the development of cancer in laboratory animals. However, many of the studies
that showed increased tumor development used animals that had been genetically engineered or
treated with cancer causing chemicals so as to be predisposed to develop cancer in the absence of RF
exposure. Other studies exposed the animals to RF for up to 22 hours per day.
These conditions are not similar to the conditions under which people use wireless phones, so we don’t
know with certainty what the results of such studies mean for human health. Three large epidemiology
studies have been published since December 2000. Between them, the studies investigated
any possible association between the use of wireless phones and primary brain cancer, glioma,
meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers.
None of the studies demonstrated the existence of any harmful health effects from wireless phone RF
exposures. However, none of the studies can answer questions about long-term exposures, since the
average period of phone use in these studies was around three years.
Safety Guidelines
5. What research is needed to decide whether RF exposure from wireless phones poses a health
risk?
A combination of laboratory studies and epidemiological studies of people actually using wireless
phones would provide some of the data that are needed. Lifetime animal exposure studies could be
completed in a few years. However, very large numbers of animals would be needed to provide reliable
proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly
applicable to human populations, but 10 or more years follow-up may be needed to provide answers
about some health effects, such as cancer. This is because the interval between the time of exposure
to a cancer-causing agent and the time tumors develop - if they do- may be many, many years. The
interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure
during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at
which the phone is held, or which model of phone is used.
137
Safety Guidelines
6. What is the FDA doing to find out more about the possible health effects of wireless phone RF?
The FDA is working with the U.S. National Toxicology Program and with groups of investigators around
the world to ensure that high priority animal studies are conducted to address important questions
about the effects of exposure to radio frequency(RF) energy. The FDA has been a leading participant in
the World Health Organization International Electromagnetic Fields (EMF) Project since its inception
in 1996. An influential result of this work has been the development of a detailed agenda of research
needs that has driven the establishment of new research programs around the world. The project
has also helped develop a series of public information documents on EMF issues. The FDA and the
Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and
Development Agreement (CRADA) to do research on wireless phone safety. The FDA provides the
scientific oversight, obtaining input from experts in government, industry, and academic organizations.
CTIA-funded research is conducted through contracts with independent investigators. The initial
research will include both laboratory studies and studies of wireless phone users. The CRADA will
also include a broad assessment of additional research needs in the context of the latest research
developments around the world.
Safety Guidelines
138
7. How can I find out how much radio frequency energy exposure I can get by using my wireless
phone?
All phones sold in the United States must comply with Federal Communications Commission (FCC)
guidelines that limit radio frequency(RF) energy exposures. The FCC established these guidelines
in consultation with the FDA and the other federal health and safety agencies. The FCC limit for RF
exposure from wireless telephones is set at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram
(1.6 W/kg). The FCC limit is consistent with the safety standards developed by the Institute of Electrical
and Electronic Engineering (IEEE) and the National Council on Radiation Protection and Measurement.
The exposure limit takes into consideration the body’s ability to remove heat from the tissues that
absorb energy from the wireless phone and is set well below levels known to have effects.
Manufacturers of wireless phones must report the RF exposure level for each model of phone to
the FCC. The FCC web site (http://www.fcc.gov/oet/rfsafety) gives directions for locating the FCC
identification number on your phone so you can find your phone’s RF exposure level in the online listing.
8. What has the FDA done to measure the radio frequency energy coming from wireless phones?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical standard for
measuring the radio frequency energy (RF) exposure from wireless phones and other wireless handsets
with the participation and leadership of FDA scientists and engineers. The standard, ‘Recommended
Practice for Determining the Spatial- Peak Specific Absorption Rate (SAR) in the Human Body Due
to Wireless Communications Devices: Experimental Techniques,’ sets forth the first consistent test
methodology for measuring the rate at which RF is deposited in the heads of wireless phone users. The
test method uses a tissue-simulating model of the human head. Standardized SAR test methodology
is expected to greatly improve the consistency of measurements made at different laboratories on
the same phone. SAR is the measurement of the amount of energy absorbed in tissue, either by the
whole body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of matter. This
measurement is used to determine whether a wireless phone complies with safety guidelines.
9. What steps can I take to reduce my exposure to radiofrequency energy from my wireless
phone?
If there is a risk from these products - and at this point we do not know that there is - it is probably very
small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to
minimize your exposure to radio frequency(RF) energy. Since time is a key factor in how much exposure
a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure. If
you must conduct extended conversations by wireless phone every day, you could place more distance
between your body and the source of the RF, since the exposure level drops off dramatically with
distance. For example, you could use a headset and carry the wireless phone away from your body or
use a wireless phone connected to a remote antenna. Again, the scientific data do not demonstrate that
wireless phones are harmful. But if you are concerned about the RF exposure from these products, you
can use measures like those described above to reduce your RF exposure from wireless phone use.
Safety Guidelines
139
Safety Guidelines
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones, including children and
teenagers. If you want to take steps to lower exposure to radio frequency(RF) energy, the measures
described above would apply to children and teenagers using wireless phones. Reducing the time
of wireless phone use and increasing the distance between the user and the RF source will reduce
RF exposure. Some groups sponsored by other national governments have advised that children be
discouraged from using wireless phones at all. For example, the government in the United Kingdom
distributed leaflets containing such a recommendation in December 2000. They noted that no evidence
exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to
limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence
that any health hazard exists.
Safety Guidelines
140
11. What about wireless phone interference with medical equipment?
Radio frequency(RF) energy from wireless phones can interact with some electronic devices. For this
reason, the FDA helped develop a detailed test method to measure electromagnetic interference (EMI)
of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now
part of a standard sponsored by the Association for the Advancement of Medical instrumentation
(AAMI). The final draft, a joint effort by the FDA, medical device manufacturers, and many other groups,
was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers
and defibrillators are safe from wireless phone EMI. The FDA has tested hearing aids for interference
from handheld wireless phones and helped develop a voluntary standard sponsored by the Institute of
Electrical and Electronic Engineers (IEEE).
This standard specifies test methods and performance requirements for hearing aids and wireless
phones so that no interference occurs when a person uses a ‘compatible’ phone and a ‘compatible’
hearing aid at the same time. This standard was approved by the IEEE in 2000. The FDA continues to
monitor the use of wireless phones for possible interactions with other medical devices. Should harmful
interference be found to occur, the FDA will conduct testing to assess the interference and work to
resolve the problem.
12. Where can I find additional information?
For additional information, please refer to the following resources:
Federal Communications Commission (FCC)
RF Safety Program (http://www.fcc.gov/oet/rfsafety)
International Commission on Non-lonizing Radiation Protection
(http://www.icnirp.de)
World Health Organization (WHO) International EMF Project
(http://www.who.int/emf)
Safety Guidelines
141
Safety Guidelines
10 Driver Safety Tips
Your wireless phone gives you the powerful ability to communicate by voice almost anywhere, anytime.
An important responsibility accompanies the benefits of wireless phones, one that every user must
uphold.
When operating a car, driving is your first responsibility.
When using your wireless phone behind the wheel of a car, practice good common sense and remember
the following tips:
1. Get to know your wireless phone and its features such as speed dial and redial. Carefully read your
instruction manual and learn to take advantage of valuable features most phones offer, including
automatic redial and memory. Also, work to memorize the phone keypad so you can use the speed dial
function without taking your attention off the road.
2. When available, use a hands-free device. A number of hands-free wireless phone accessories are
readily available today. Whether you choose an installed mounted device for your wireless phone or a
speaker phone accessory, take advantage of these devices if available to you.
3. Position your wireless phone within easy reach. Make sure you place your wireless phone within easy
reach and where you can reach it without removing your eyes from the road. If you get an incoming call
at an inconvenient time, if possible, let your voicemail answer it for you.
4. Suspend conversations during hazardous driving conditions or situations. Let the person you are
speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous
weather conditions. Rain, sleet, snow and ice can be hazardous, but so is heavy traffic. As a driver, your
first responsibility is to pay attention to the road.
Safety Guidelines
142
5. Do not take notes or look up phone numbers while driving. If you are reading an address book or
business card, or writing a “to-do” list while driving a car, you are not watching where you are going. It
is common sense. Don’t get caught in a dangerous situation because you are reading or writing and not
paying attention to the road or nearby vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling
into traffic. Try to plan your calls before you begin your trip or attempt to coincide your calls with
times you may be stopped at a stop sign, red light or otherwise stationary. But if you need to dial
while driving, follow this simple tip— dial only a few numbers, check the road and your mirrors, then
continue.
7. Do not engage in stressful or emotional conversations that may be distracting.
Stressful or emotional conversations and driving do not mix; they are distracting and even dangerous
when you are behind the wheel of a car. Make people you are talking with aware you are driving and if
necessary, suspend conversations which have the potential to divert your attention from the road.
8. Use your wireless phone to call for help. Your wireless phone is one of the greatest tools you can own
to protect yourself and your family in dangerous situations — with your phone at your side, help is only
three numbers away. Dial 911 or other local emergency number in the case of fire, traffic accident, road
hazard or medical emergency. Remember, it is a free call on your wireless phone!
9. Use your wireless phone to help others in emergencies. Your wireless phone provides you a perfect
opportunity to be a “Good Samaritan” in your community. If you see an auto accident, crime in progress
or other serious emergency where lives are in danger, call 911 or other local emergency number, as you
would want others to do for you.
Safety Guidelines
10. Call roadside assistance or a special wireless non-emergency assistance number when necessary.
Certain situations you encounter while driving may require attention, but are not urgent enough to
merit a call for emergency services. But you can still use your wireless phone to lend a hand. If you
see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident
where no one appears injured or a vehicle. you know to be stolen, call roadside assistance or other
special non-emergency wireless number.
For more information, please call to 888-901- SAFE, or visit our web site www.wow-com.com
143
Safety Guidelines
Consumer Information on SAR (Specific Absorption Rate)
Safety Guidelines
144
This Model Phone Meets the Government’s Requirements for Exposure to Radio Waves.
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government. These limits are part of comprehensive guidelines and
establish permitted levels of RF energy for the general population. The guidelines are based on standards
that were developed by independent scientific organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety margin designed to assure the safety of all
persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
* Tests for SAR are conducted using standard operating positions specified by the FCC with the phone
transmitting at its highest certified power level in all tested frequency bands.
Although SAR is determined at the highest certified power level, the actual SAR level of the phone while
operating can be well below the maximum value. Because the phone is designed to operate at multiple
power levels to use only the power required to reach the network, in general, the closer you are to a
wireless base station antenna, the lower the power output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC that
it does not exceed the limit established by the government-adopted requirement for safe exposure.
The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required
by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear
is 1.050 W/kg and when worn on the body, as described in this user’s manual, is 0.744 W/kg. (Bodyworn measurements differ among phones models, depending upon available accessories and FCC
requirements.)
While there may be differences between SAR levels of various phones and at various positions, they all
meet the government requirement for safe exposure.
The FCC has granted an Equipment
Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC
RF emission guidelines. SAR information on this model phone is on file with the FCC and can be found
under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID BEJCT810.
Additional information on Specific Absorption Rate (SAR) can be found on the Cellular
Telecommunications Industry Association (CTIA) web site at http://www.wow-com.com
* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg
(W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to
give additional protection for the public and to account for any variations in measurements.
Safety Guidelines
145
AT&T HAC Statement
According to HAC policy (KDB 285076), we state this handset has not been rated for hearing aid
compatibility with respect to the WiFi capability.
Hearing Aid Compatibility (HAC) with Mobile Phones
When some mobile phones are used near some hearing devices (hearing aids and cochlear
implants),users may detect a buzzing, humming, or whining noise. Some hearing devices are more
immune than others to this interference noise, and phones also vary in the amount of interference they
generate. The wireless telephone industry has developed ratings for some of their mobile phones, to
assist hearing device users in finding phones that may be compatible with their hearing devices. Not all
phones have been rated.
Phones that are rated have the rating on their box or a label on the box. The ratings are not guarantees.
Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens
to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the
phone with your hearing device is the best way to evaluate it for your personal needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference
to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing
device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the better/higher of the
two ratings. (Note that not all hearing devices have telecoils in them.)
Hearing devices may also be measured for immunity to this type of interference. Your hearing device
manufacturer or hearing health professional may help you find results for your hearing device. The more
immune your hearing aid is, the less likely you are to experience interference noise from mobile phones.
AT&T HAC Statement
To ensure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters
such as Bluetooth® and WLAN components must be disabled during a call.
Bluetooth QDID B015810
146
Bluetooth QD ID B015810
Your phone is designed to make it easy for you to access a wide variety of content. For your protection, we want you to be aware that some
applications that you enable may involve the location of your phone being shared. For applications available through AT&T, we offer privacy
controls that let you decide how an application may use the location of your phone and other phones on your account. However, the AT&T
privacy tools do not apply to applications available outside of AT&T. Please review the terms and conditions and the associated privacy policy
for each location-based service to learn how location information will be used and protected. In addition, your AT&T phone may be used to
access the Internet and to download, and/or purchase goods, applications, and services from AT&T or elsewhere from third parties. AT&T
provides tools for you to control access to the Internet and certain Internet content. These controls may not be available for certain devices
which bypass AT&T controls.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
