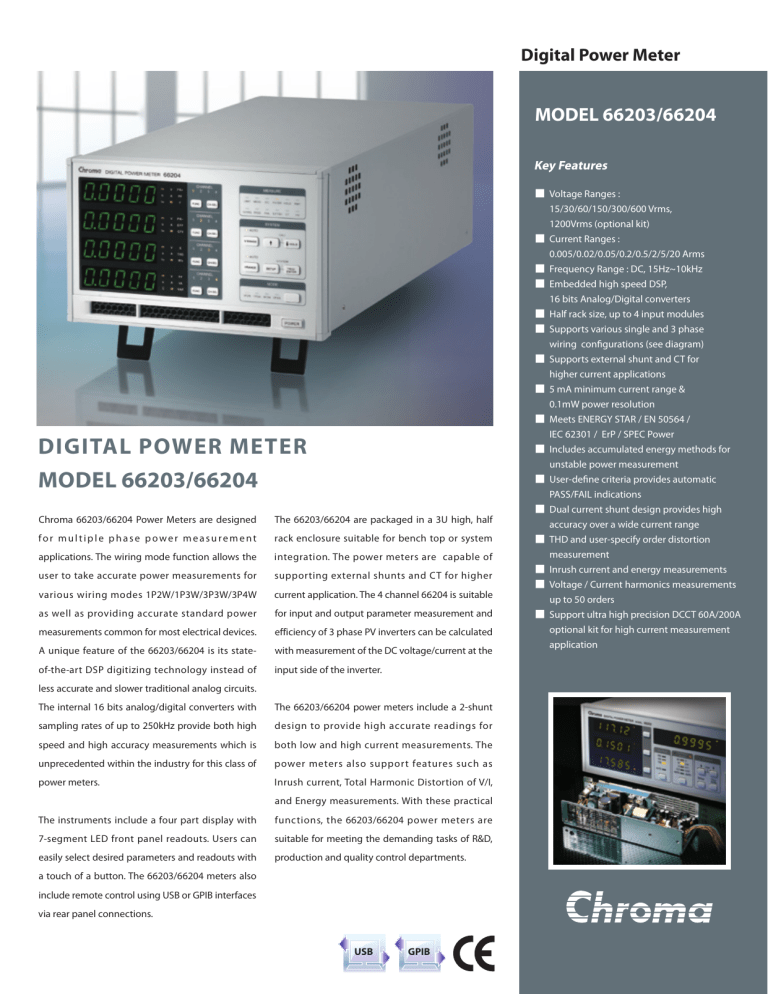

Digital Power Meter
MODEL 66203/66204
Key Features
DIGITAL POWER METER
MODEL 66203/66204
Chroma 66203/66204 Power Meters are designed
The 66203/66204 are packaged in a 3U high, half
for multiple phase power measurement
rack enclosure suitable for bench top or system
applications. The wiring mode function allows the
integration. The power meters are capable of
user to take accurate power measurements for
supporting external shunts and CT for higher
various wiring modes 1P2W/1P3W/3P3W/3P4W
current application. The 4 channel 66204 is suitable
as well as providing accurate standard power
for input and output parameter measurement and
measurements common for most electrical devices.
efficiency of 3 phase PV inverters can be calculated
A unique feature of the 66203/66204 is its state-
with measurement of the DC voltage/current at the
of-the-art DSP digitizing technology instead of
input side of the inverter.
less accurate and slower traditional analog circuits.
The internal 16 bits analog/digital converters with
The 66203/66204 power meters include a 2-shunt
sampling rates of up to 250kHz provide both high
design to provide high accurate readings for
speed and high accuracy measurements which is
both low and high current measurements. The
unprecedented within the industry for this class of
power meters also suppor t features such as
power meters.
Inrush current, Total Harmonic Distortion of V/I,
and Energy measurements. With these practical
The instruments include a four part display with
functions, the 66203/66204 power meters are
7-segment LED front panel readouts. Users can
suitable for meeting the demanding tasks of R&D,
easily select desired parameters and readouts with
production and quality control departments.
a touch of a button. The 66203/66204 meters also
include remote control using USB or GPIB interfaces
via rear panel connections.
USB
GPIB
■ Voltage Ranges :
15/30/60/150/300/600 Vrms,
1200Vrms (optional kit)
■ Current Ranges :
0.005/0.02/0.05/0.2/0.5/2/5/20 Arms
■ Frequency Range : DC, 15Hz~10kHz
■ Embedded high speed DSP,
16 bits Analog/Digital converters
■ Half rack size, up to 4 input modules
■ Supports various single and 3 phase
wiring configurations (see diagram)
■ Supports external shunt and CT for
higher current applications
■ 5 mA minimum current range &
0.1mW power resolution
■ Meets ENERGY STAR / EN 50564 /
IEC 62301 / ErP / SPEC Power
■ Includes accumulated energy methods for
unstable power measurement
■ User-define criteria provides automatic
PASS/FAIL indications
■ Dual current shunt design provides high
accuracy over a wide current range
■ THD and user-specify order distortion
measurement
■ Inrush current and energy measurements
■ Voltage / Current harmonics measurements
up to 50 orders
■ Support ultra high precision DCCT 60A/200A
optional kit for high current measurement
application
FUNC T IONS AND APP LIC AT IONS
The multi-channel of 66203/66204 Power Meters are
capable of supporting different wiring modes. As shown
the instruments can be configured for single and 3 phase
configurations by selection preset modes.
Channel 1
1P2W
1P2W (Single Phase Two Wire)
1P3W (Single Phase Three Wire)
3P3W (Three Phase Three Wire – Two Watt meter Method)
3P4W (Three Phase Four Wire)
Channel 2
1P2W
Channel 3
1P2W
1P2W
1P2W
1P3W
3P3W
3P4W
L1
L
L1
A1
A1
Channel 4
1P2W
1P2W
1P2W
1P2W
L1
A1
A1
CH1
V1 CH1
CH1
CH1
AC Source
CH1
V1
AC Source
AC Source
CH1
N
V1
L2
CH1
V1 CH1
CH2
1P2W (Single Phase Two Wire)
L3
A2
L3
1P3W (Single Phase Three Wire)
A2
CH2
V2 CH2
Three
Phase
Load
A3
CH3
V2
CH2
CH2
L2
L2
AC Source
A2
CH2
V2
N
Three
Phase
Load
V3
CH3
N
3P3W (Three Phase Three Wire)
3P4W (Three Phase Four Wire)
Each channel of 66203/66204 has the ability to provide independent measurements; hence the meters are suitable for multi-point measurement
applications such as PV inverter testing. Instruments are designed for measuring DC input parameters as well as three phase AC readings on the output
side. The overall efficiency for the PV inverter can easily be obtained by built-in functions. In order to meet high voltage applications (up to 1200Vrms)
Chroma offers an HV option kit.
CH1
CH2
CH4
CH3
UUT
UUT
Solar Panel
PV Inverter
Power Grid
User could implement 3P3W (Three Phase Three Wire) wiring mode for three phase power measurement application. Such as Power Supplies.
CH1
CH3
CH2
UUT
AC Power
Power Supply
DC Load
With the wiring mode set as 1P2W, the 66204 Power Meter
has the capability of performing up to 4 simultaneous power
measurements as shown. The meters are also designed to comply
CH1
CH2
CH3
CH4
with power measurement requirements in accordance to many
international standards such as Energy Star/EN 50564/IEC 62301/
ErP.
UUT
UUT
UUT
UUT
User-defined Criteria for GO/NG Test
The Power Meters allow users to perform GO/NG functions by
presetting pass/fail limits. If the measured values are within these
limits, the Pass indicator illuminates green. Fail results in red
illumination.
L
AC Source
N
V1
External
Shunt
Load
66203/66204 Power Meters suppor t external shunt
Compact size design allows two 66203/66204 Power Meters to be
function for high current (>20A) measurement application.
configured side-by-side in a standard 19" rack
Average Mode and Integration Mode for Power Measurement
When using a traditional power meter, unstable measurements can occur if the UUT's power consumption are unstable or operating in non-linear modes
(i.e. a power supply's hiccup mode). In these cases the load levels maybe different at different measurement aperture windows (T1, T2, T3 and T4 below).
A simple averaging calculation can only provide a visual stable value but provides inaccurate power readings.
The 66203/66204 includes a Window Mode method which calculates all data within the user-defined time window (Tw). In this manner users can obtain
a real average value without data lose. An accumulated energy approach method (i.e. integration mode) for power measurements is also provided. This
integration mode calculates active power values by integrating energy from V and I in a user-defined time period (Ti). In this way, users can achieve
accurate readings with guaranteed transient-free variations. The 66203/66204 meters provide a 5mA minimum current range with crest factor 4, and
0.1mW measurement resolution for low power application (<10W), and less than 2% uncertainty even for No-Load mode power measurements. These
functions make 66200 an ideal choice for ENERGY STAR / IEC 62301 / ErP / SPEC Power measurement.
Power
Meas.
Average
Window
Integration
T1
T2
T3
Tw
Ti
T4
THD Measurement and User Define Level of Distortion
The 66203/66204 Power Meters can measure voltage and current Total Harmonic Distortion (THD) directly which can be displayed in percentage format.
For some requirements (ENERGY STAR), users need to verify the THD of AC supply voltage when supplying the UUT in the specified mode not to exceed
2%, up to and including the 13th harmonic (as specified in IEC 62301).
The 66203/66204 also provides a function to
define a user-specify level of distortion n, (n is
from 2 to 50) for measuring harmonic distortion.
The calculation formula is listed below. Thus, the
V 22 + V 32 + V 42 + V 52 + ... V n2
THDv =
V1
instrument can easily measure distortion values
Where Vn = rms value of nth harmonic of the voltage signal.
as required by the ENERGY STAR requirements.
Inrush Current Measurement
The 66203/66204 Power Meters include built-in inrush current ( Is ) measurement functions. Users can even set a current level for triggering the starting
point of the measurement. Users also can use an external TTL signal to trigger inrush current measurements through the control I/O signal port located
at the rear side.
B
The delay parameter can help users to bypass the peak value B
after the trigger point A. The parameter, T, allows a set time period
to be established for measuring the peak value during a preset
A
C
Level
time (T). The main purpose is to avoid measuring the inrush
current value that is generally caused by X-capacitor of a power
supply.
T
Delay
Low Pass Filter
The maximum measurement bandwidth of the 66203/66204 Power Meters is 50kHz. However, the high frequency component is not desirable in all
applications. For example, the input switching noise of some power supplies may influence the power measurement. In order to achieve a proper value,
a low pass filter is necessary to reject the switching component. Users can set the parameter filter ON in the system configuration setting. The bandwidth
will be reduced to 5kHz to reject high frequency content but still meets the 3kHz requirement of ENERGY STAR test.
AC power
UUT
X-cap
Filter Off : Bandwidth = 50kHz
Filter On: Bandwidth = 5kHz
(meets the 3kHz requirement of Energy Star)
Support Ultra High Precision DCCT 60A/200A Optional Kit for High Current Measurement Application
66203/66204 Digital Power Meter
Programmable AC Source
A662020 DCCT Power Adapters
A662017/A662018 60A/200A
High Precision DCCT
Electronic Load
POW ER EFFICIE NC Y SOF TPANE LS
The 66200 Power Meters provide graphical user interface software (Softpanels) which allow users to control and read measured parameters from a
computer via USB or GPIB interface. Users can easily observe measured voltage and current waveforms and monitor the changes in parameter readings
by using the chart function. Additional features include a recording function which can record selected parameters and write data to a file for further
analysis. The 66200 Softpanels supports IEC 61000-3-2* harmonic current limit test (pre-compliance) allowing users to examine whether the UUT has met
the harmonic current requirement. The Power Efficiency Softpanel* also integrates with Chroma's electronic loads and AC Sources to provide an easy
method of power efficiency testing and recording of data using the test report function which automatically generates a report at the completion of
testing.
(*Only support by 1P2W with designated single channel)
66200 Softpanel
IEC 61000-3-2 Current Harmonics Test
(Pre-compliance)
Power Efficiency Test Softpanel
PANEL DESCRI PTI ON
1
2
3
4
1. Parameter selection key
2. Channel selection key
3. System setting and function indicator
4. System configuration setting
5. Voltage range selection key
6. Current range selection key
7. Power ON/OFF switch
5
9 10 11
6
7
12
8
8. Wiring mode selection key
9. GPIB remote interface
10. USB remote interface
11. Control I/O signals
12. Voltage measurement inputs
13. AC input power
14. External shunt input
15. Current measurement inputs
13
14
15
SPECIFICATIONS
Model
Channel
Parameters
AC/DC Voltage
66203
3
66204
4
V, Vpk, I, Ipk, Is, W, VA, VAR, PF, CFi, F, THD V, THD I, E
15V/30V/60V/150V/300V/600Vrms (CF=2 ), 6 range
HV option up to 1200Vrms
15Hz to 1kHz : 0.1% RD + 0.08% RNG
1kHz to 10kHz: (0.1+0.05*kHz)% RD + 0.05% RNG
15Hz to 1kHz : 0.1% RD + 0.08% RNG
1kHz to 10kHz: (0.1+0.05*kHz)% RD + 0.05% RNG
2MΩ
Range
Accuracy
Harmonics Accuracy
Input Resistance
AC/DC Current
*1
Range
5mA/20mA/50mA/200mA/500mA/2A/5A/20Arms (CF=4)
DC, 15Hz to 1kHz : 0.1% RD + 0.12% RNG
1kHz to 10kHz : (0.1+0.05 x kHz)% RD + 0.1% RNG
15Hz to 1kHz : 0.1% RD + 0.12% RNG
1kHz to 10kHz: (0.1+0.05 x kHz)% RD + 0.1% RNG
0.1% RD + 0.1% RNG
Accuracy
Harmonics Accuracy
DC Current Accuracy
Power
Range
75mW ~ 12kW (48 ranges)
47Hz to 63Hz : 0.1% RD + 0.1% RNG
1KHz to 10KHz : (0.1+0.1 x kHz + 0.3 / PF x kHz)% RD + 0.18% RNG
0.001+(15ppm/PF) x Hz
Accuracy
Power Factor accuracy
Frequency
Range
DC, 15Hz ~ 10kHz
Measuring Condition
Voltage (10 ~ 100% of the voltage range)
Others
Display Resolution
5 Digits
Display Update Rate
0.25sec/0.5sec/1sec/2sec
Input Voltage
100~240V±10%, 50/60Hz
Interface
USB+GPIB (Standard)
Operation Temperature
0˚C ~ 40˚C
Storage
-40˚C ~ 85˚C
Safety & EMC
CE (include EMC & LVD)
Dimension (H x W x D)
133 x 212 x 420 mm / 5.25 x 8.25 x 16.3 inch
Weight
7.5 kg / 16.5 lbs
8.5 kg / 18.7 lbs
Note *1 : Power ranges are based on multiplication of different combition of current and voltage ranges.
The specifications are valid only after the power meter is turned on more than one hour in a thermally stable environment.
O RDE RI NG INF ORMATI ON
66203 : Digital Power Meter (3 channels)
66204 : Digital Power Meter (4 channels)
A662008 : Power Efficiency Test Softpanel
A662009 : Softpanel for 66200 Series
A662010 : Rack Mount Kit for 1 unit
A662012 : 1200V HV option kit
A662013 : External CT 50Arms for Model 66203/66204
A662014 : External CT 100Arms for Model 66203/66204
A662015 : Voltage and current measurement cables for Model 66204
A662016 : Voltage and current measurement cables for Model 66203
A662017 : Ultra High Precision DCCT 60A
A662018 : Ultra High Precision DCCT 200A
A662019 : DCCT Power Adapter for single channel
A662020 : DCCT Power Adapter for multi- channels
A662019
Distributed By:
Signal Test, Inc
1529 Santiago Ridge Way
San Diego, CA 92154
Tel. 1-619-575-1577 USA
www.SignalTestInc.com
[email protected]
A662020

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
