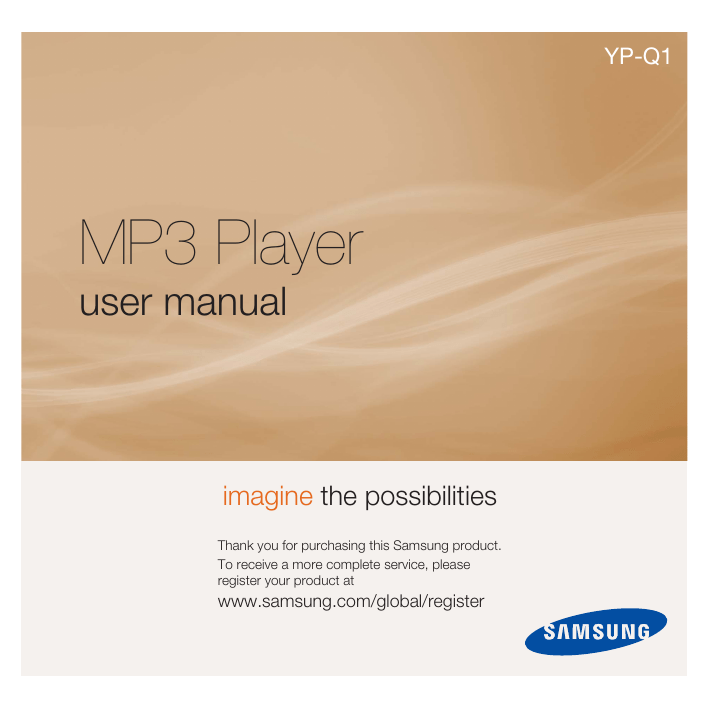

MP3 Player

MP3 Player user manual imagine the possibilities

Thank you for purchasing this Samsung product.

To receive a more complete service, please register your product at www.samsung.com/global/register

YP-Q1

features of your new MP3 Player

Good looking. Smart. Reliable. and lots of fun. Your new MP3 player is all this and more. Its state-of-the-art technology delivers rich sound, vibrant pictures, and action-packed games. You’ll love your new MP3 player, whether you’re exercising, downloading your favorite tunes, watching videos, playing games, or even listening to FM Radio.

Use it once, and you’ll wonder how you ever lived without it.

PUTTING THE “MULTI” IN MULTIMEDIA

We call it an MP3 player, but it’s much more than that. It allows you to view pictures, text, and videos and listen to FM radio and play games.

LONGER PLAY TIME AND SHORTER

DOWNLOADING!

A fully charged battery can play up to 30 hours of music, or 4 hours of video.

Download times are shorter. Because of its

USB 2.0 capability, the player is much faster than models with USB 1.1.

TOUCH NAVIGATION!

You can tap on the touch pad to navigate through the menus.

COLOR LCD SCREEN DESIGN

Vivid color and images are delivered on the

LCD screen.

ACOUSTIC WONDER

Your new MP3 player has built-in DNSe™

(Digital Natural Sound engine), Samsung’s unique sound technology created to deliver richer, deeper sound for an unbelievable listening experience.

FREEDOM OF YOUR FAVORITE

SELECTION WITH THIS MP3 PLAYER!

You can create playlists of your favorite music.

safety information

What the icons and signs in this user manual mean :

Means that death or serious personal injury is a risk.

WARNING

CAUTION

CAUTION

NOTE

Means that there is a potential risk for personal injury or material damage.

To reduce the risk of fi re, explosion, electric shock, or personal injury when using your MP3 Player, follow these basic safety precautions:

Means hints or referential pages that may be helpful to operate the player.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Call the service centre for help.

These warning signs are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

safety information

This manual describes how to properly use your new MP3 player.

Read it carefully to avoid damaging the player and injuring yourself.

Pay particular attention to the following serious warnings:

PROTECT YOURSELF

ƒ

Do not disassemble, repair, or modify this product on your own.

CAUTION

ƒ

Do not get the product wet or drop it in water. If the product gets wet, do not switch it on because you could get an electric shock. Instead, contact a Samsung Customer Service Centre near you.

ƒ

Do not use the product during a thunderstorm, as it may cause malfunction or a risk of electric shock.

CAUTION

ƒ

Do not use the earphones while you are driving a bicycle, automobile or motorcycle.

It can cause a serious accident, and furthermore, is prohibited by law in some areas.

Using the earphones while walking or jogging on a road, in particular, on a crosswalk can lead to a serious accident.

ƒ

For your safety, make sure the earphone cable does not get in the way of your arm or other surrounding objects while you are taking exercise or a walk.

WARNING

ƒ

Do not place the product in damp, dusty, or sooty areas because these environments could lead to fi re or electric shock.

PROTECT YOURSELF

WARNING

ƒ

ƒ

Using earphones or headphones for an extended time may cause serious damage to your hearing.

If you are exposed to sound louder than 85db for an extended time, you may adversely affect your hearing. The louder the sound is, the more seriously damaged your hearing may be (an ordinary conversation is between 50 to 60db and road noise is approximately 80db).

You are strongly advised to set the volume level to medium (the medium level is usually less than 2/3 of the maximum).

If you feel a ringing in the ear(s), lower the volume or stop using the earphones or headphones.

PROTECT YOUR MP3 PLAYER

ƒ

ƒ

ƒ

ƒ

ƒ

Do not leave the player in temperatures above 35°C (95°F), such as a sauna or a parked car.

Do not cause excessive impact on the player by dropping it.

Do not place heavy objects on top of the player.

Prevent any foreign particles or dust from entering into the product.

Do not place the product near magnetic objects.

ƒ

ƒ

Be sure to backup important data. Samsung is not responsible for data loss.

Use only accessories provided by or approved by Samsung.

CAUTION

ƒ

Do not spray water on the product. Never clean the product with chemical substances such as benzene or thinner, as it may cause fi re, electric shock or deteriorate the surface.

CAUTION

ƒ

Failure to follow these instructions may lead to physical injuries or damage to the player.

NOTE

ƒ

When printing this user manual, we recommend that you print in color and check “Fit to Page” in the print option for better viewing.

contents

THE BASICS

10

11 Your MP3 Player

17 Using the touch button

19 Caring for the battery

19 Turning the Power on & off

21 Disabling the buttons

21 Browsing for fi les using

“File Browser”

23 Changing the settings and

23

preferences

Menu Style Settings

24 Sound

Settings

Settings

Settings

Settings

EMODIO

33

contents

LISTENING TO MUSIC

36

36 Listening by category

38 Pausing

38 Searching within a track

38 Playing from the beginning of the current track

38 Playing the previous track

38 Playing the next track

39 Creating a playlist on your MP3 player

40 Playing a playlist

41 Deleting fi le from the playlist

42 Using the music menu

WATCHING A VIDEO

54

54 Watching a video

54 Pausing

55 To move to a specifi c frame

55 To play the previous video fi le

55 To play the next video fi le

56 Using the video menu

contents

VIEWING PICTURES

58

59 Using the picture menu

READING TEXT

64

65 Using the text menu

LISTENING TO

FM RADIO

71

71 Listening to FM radio

71 To use the mute function

72 To search for FM stations

73 Using the FM radio menu

VIEWING DATACASTS

80

80 Viewing Datacasts

contents

ENJOYING

THE PRIME PACK

81

85 Viewing the World Subway Map

TROUBLESHOOTING

86

APPENDIX

89

92 License

the basics

WHAT’S INCLUDED

Your new MP3 player comes with these accessories. If you’re missing any of these items, please contact a Samsung Customer Customer Service Centre near you.

Player Earphones

USB Cable Installation CD

The accessories in your box may look slightly different to those pictured.

10 _

the basics

YOUR MP3 PLAYER

Screen display

Power & Hold switch

Slide and hold towards the bottom of the player for power on/off.

Slide towards the top of the player to lock the button functions.

Reset hole

If a player malfunction occurs, press the reset hole with a pointed object to re-initialize the system.

Microphone

the basics _ 11

YOUR MP3 PLAYER (Continued)

These buttons are ‘Touch Sensitive’ buttons.

Menu button

Tap to display the menu.

Up volume button

Tap to increase the volume or move to an upper item/menu.

Back button

Tap to move to the previous screen.

Press and hold to move to the main menu screen.

Left fi le browser button

Tap to move to the previous track/ menu or play the current track from the beginning.

Press and hold to quickly scan tracks.

Play/Pause, Select button

Tap to select the play/pause and a function, or move to the next screen.

Down volume button

Tap to reduce the volume or move to a lower item/menu.

Right fi le browser button

Tap to move to the next track/menu.

Press and hold to quickly scan tracks.

12 _

the basics

YOUR MP3 PLAYER (Continued)

Earphone connection jack

Neck string hole

USB connection port

Earphones

Labeled “L” for the left earpiece and “R” for the right earpiece.

Also serves as an antenna for FM

Radio in the MP3 player.

Disconnecting the earphones during music playback will pause the playback.

the basics _ 13

SCREEN DISPLAYS

Music

8

9

Music

10

11

Fast1

12

13

14

15

Rising Sun

02:13 04:28

1

2

3

4

5

6

7

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

Parent Menu Indicator

Lock Indicator

Battery Status

Current track playing / Total number of tracks Indicator

Play Speed Indicator

Current Time

Total Play Time

Play/Pause/Search Indicator

Music Mode Indicator

Play Mode Indicator

DNSe Mode Indicator

Music Play Screen

Music Title

Play Status Bar

Current Play Time

NOTE

ƒ

The screen pictures are for illustration purposes only. The actual screen may differ.

ƒ

All other information than the music play screen will disappear shortly. To display it again, tap any button.

14 _

the basics

SCREEN DISPLAYS (Continued)

Video

5

6

7

8

9

Video Track 1

1

2

3

4

6

7

4

5

8

9

1

2

3

Lock Indicator

Battery Status

Current Time

Total Play Time

Play/Pause/Search Indicator

Video Mode Indicator

File Name

Play Status Bar

Current Play Time


5

6

7

Pictures

Picture Image 1.jpg

8

[Preview Screen]

1/8

1

2

3

4

1

2

6

7

4

5

8

3

Lock Indicator

Battery Status

Current fi le /

Total number of fi les Indicator

Current Time

Music Play Status

Picture Mode Indicator

Parent Menu Indicator

File Name

the basics _ 15

SCREEN DISPLAYS (Continued)

FM Radio

3

4

5

6

7

Manual

1

2

5

6

7

1

2

3

4

Current Time

Battery Status

Lock Indicator

Radio Mode Indicator

Manual/Preset Indicator

Current Frequency(MHz) Indicator

Frequency Location Indicator

16 _

the basics

USING THE TOUCH BUTTON

Tap on the touch button with your fi ngertip.

NOTE

ƒ

ƒ

ƒ

ƒ

To avoid damage to the touch button, do not use any object other than your fi ngers to operate it.

Do not tap on the touch button if your fi ngers are not clean.

Do not tap on the touch button with gloves on.

The touch button may not function if you use a fi ngernail or other instruments such as a ballpoint pen.

the basics _ 17

CHARGING THE BATTERY

Charge the player before using it for the fi rst time and when you haven’t used it for awhile.

The battery for your MP3 player will fully charge in about 3 hours, although total charging time varies depending on your PC environment.

Screen Display

ƒ

<USB connected>

ƒ

<

ƒ

<

> - Charging

> - Fully Charged

2

1

1.

Connect the larger end of the USB cable to the USB Connection Port on the bottom of the player.

2.

Connect the USB cable to the USB port ( ) on your PC.

18 _

the basics

CARING FOR THE BATTERY

Your battery will last longer if you follow these simple guidelines for caring and storing the player.

Recharge the battery within the temperature range of 5°C~35°C (40°F~95°F).

Do not overcharge (longer than 12 hours).

Excessive charging or discharging may shorten the battery’s life.

Battery life naturally shortens slowly over time.

NOTE

ƒ

If you are charging the player while it is connected to a laptop computer, make sure the laptop’s battery is also fully charged or that the laptop is plugged into its power source.

TURNING THE POWER ON & OFF

Turning the Power on

Slide and hold the [ of the player.

ƒ

Power is turned on.

] switch

towards the bottom

Turning the Power off

Slide and hold the [ of the player again.

] switch

towards the bottom

ƒ

Power is turned off.

NOTE

ƒ

Your MP3 player will be automatically turned off when none of the buttons have been pressed for a specifi c length of time in the pause mode. The factory setting for

<Auto Power Off>

is 1 minute, but you can change this length of time. See page 29 for more information.

the basics _ 19

PLAYING MUSIC

Load music fi les onto your new MP3 player using EmoDio.

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select <Music> and tap the [Select] button.

3.

Use the [Up, Down] button and the [Select] button to select a music fi le of your choice.

4.

Tap the [Select] button to play the selected music fi le.

ƒ

The music fi le will begin playing.

ƒ

Tap [ ] to move to the previous screen.

NOTE

ƒ

Press and hold [ ] to move to the main menu screen.

Music

Rising Sun

02:13 04:28

CONTROLLING THE VOLUME

Tap the [Up, Down] button.

ƒ

ƒ

You will see a volume control icon.

The volume range is 0 to 30.

ƒ

Tap the [Up] button to increase the volume and tap the [Down] button to decrease it.

Music

Rising Sun

02:13 04:28

20 _

the basics

DISABLING THE BUTTONS

The hold function disables all the other buttons on the MP3 player, so that if you accidentally bump one, while working out for example, your music won’t be interrupted.

1.

Slide the [

] switch

towards the top of the player to enable the Lock function.

2.

Slide the [

] switch

towards the bottom of the player to release the Lock function.

Music

Rising Sun

02:13 04:28

BROWSING FOR FILES USING “FILE BROWSER”

Search easily for fi les using the “File Browser” function.

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select <File

Browser>

and tap the [Select] button.

ƒ

The <File Browser> folder list containing “Music, Playlists, Video,

Pictures, Datacasts, Texts, Games, Recorded Files and My Pack” appears.

3.

Tap the [Up, Down] button to select a desired folder.

4.

Tap the [Select] button to bring up the fi le list in the selected folder.

ƒ

Tap [ ] to move to the previous screen.

5.

Tap the [Up, Down] button to select a desired fi le.

6.

Tap the [Select] button.

ƒ

The fi le will start playing.

the basics _ 21

DELETING FILES WITH “FILE BROWSER”

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select <File

Browser>

and tap the [Select] button.

ƒ

The <File Browser> folder list appears.

3.

Tap the [Up, Down] button to select a desired folder and tap the [Select] button.

4.

Tap the [Up, Down] button to select the fi le that you want to delete and tap [

]

.

5.

Tap the [Up, Down] button to select <Delete> and tap the

[Select] button

.

ƒ

The confi rmation window will appear.

File Browser

Music

Playlists

Video

Pictures

Datacasts

Texts

Games

Recorded Files

My Pack

6.

Tap the [Left, Right] button to select <Yes> and tap the [Select] button.

ƒ

The fi le will be deleted

CAUTION

ƒ

Once fi les are deleted, they cannot be recovered.

NOTE

ƒ

The currently played fi le will not be deleted.

ƒ

<My Pack> of <File Browser> is the folder storing DNSe fi les transferred by

<EmoDio>. For further information on DNSe, refer to <EmoDio>.

22 _

the basics

CHANGING THE SETTINGS AND PREFERENCES

Your MP3 player comes with settings and preferences that were set up at the factory, but you can change these pre-set values to truly customize your player.

NOTE

ƒ

Tap [ ] to move to the previous screen.

Press and hold [ ] to move to the main menu screen.

Menu Style Settings

You can change the menu design and font and delete the background image of the main menu.

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select

<Settings>

ƒ

and tap the [Select] button.

The <Settings> menu appears.

3.

Tap the [Up, Down] button to select <Menu

Style>

and tap the [Select] button.

Settings

Menu Style

Sound

Display

Language

Date&Time

System

ƒ

The <Menu Style> menu appears.

4.

Use the [Up, Down] and [Select] buttons to set functions.

ƒ

Tap the [Select] button to move to the next item/select the menu.

ƒ

Tap the [Up, Down] button to move up or down through the current menu.

Menu Style Setting Options

ƒ

ƒ

ƒ

Menu Design

: You can change the style of the main menu screen. Select from

<Matrix>, <My Skin>.

Font

: You can change the font type of the menu language. Select one from 3 font types. In some menu languages, <Font> will be disabled.

Reset My Skin

: Initializes the background image of the screen display to its default image. the basics _ 23

CHANGING THE SETTINGS AND PREFERENCES (Continued)

Sound Settings

You can set the master EQ, beep sound and volume limit.

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select

<Settings>

and tap the [Select] button.

ƒ

The <Settings> menu appears.

3.

Tap the [Up, Down] button to select <Sound> and tap the [Select] button.

ƒ

The <Sound> menu appears.

Settings

Menu Style

Sound

Display

Language

Date&Time

System

4.

Use the [Up, Down] and [Select] buttons to set functions.

Sound Setting Options

ƒ

ƒ

ƒ

Master EQ

: You can optimize sound settings. Tap the [Left, Right] button to select the frequency you want to adjust. Tap the [Up, Down] button to adjust the selected frequency’s level and then tap the [Select] button.

Beep Sound

: Sets the beep sound for button operations to on or off. Select from <Off> and <On>.

Volume Limit

: You can avoid hearing damage by setting the limit of the volume when using the earphones. <On> will limit the maximum volume level to 15.

The maximum volume level when volume limit is set to <Off> is 30. If you have selected over 15, the volume will be set back to 15 when you turn the player off to avoid hearing damage when you turn the player back on.

24 _

the basics

CHANGING THE SETTINGS AND PREFERENCES (Continued)

Display Settings

Change the display off time and brightness of your screen.

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select

<Settings>

and tap the [Select] button.

ƒ

The <Settings> menu appears.

Settings

Menu Style

Sound

Display

Language

Date&Time

System

3.

Tap the [Up, Down] button to select <Display> and tap the [Select] button.

ƒ

The <Display> menu appears.

4.

Use the [Up, Down] and [Select] buttons to set functions.

Display Setting Options

ƒ

ƒ

Display Off

: If no button is tapped within the time shown below, the screen display will automatically be turned off. Select either <15sec>, <30sec>,

<1min>, <3min>, <5min>, or <Always On>. Press any button to turn the display back on.

Brightness

: You can adjust the brightness of the display screen. Select a level from <0-10>, where 10 is the brightest.

the basics _ 25

CHANGING THE SETTINGS AND PREFERENCES (Continued)

Language Settings

The menus on your new mp3 player can be set to appear in any one of the available languages. You can change your preference language easily.

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select

<Settings>

and tap the [Select] button.

ƒ

The <Settings> menu appears.

Settings

Menu Style

Sound

Display

Language

Date&Time

System

3.

Tap the [Up, Down] button to select <Language> and tap the [Select] button.

ƒ

ƒ

The <Language> list appears.

<English>, <한국어>, <Français>, <Deutsch>, <Italiano>, <日本語>,

<ㅔԧЁ᭛>, <㐕储Ё᭛>, <Español>, <Ɋɭɫɫɤɢɣ>, <Magyar>, <Nederlands>,

<Polski>, <Português>, <Svenska>, <ѳъѕ>, <ýeština>, <ƧnjnjLjǎNJNjƽ>,

<Türkçe>, <Norsk>, <Dansk>, <Suomi>, <Español (Sudamérica)>,

<Português (Brasil)>, <Indonesia>, <TiӃng ViӋt>, <Bulgarian>, <Română>,

<ɍɤɪɚʀɧɫɶɤɚ>, <Slovenšþina>, <Slovenský>.

4.

Tap the [Up, Down] button to select a desired language and tap the

[Select] button

.

NOTE

ƒ

The supported languages can be changed or added.

26 _

the basics

CHANGING THE SETTINGS AND PREFERENCES (Continued)

Date&Time Settings

Set the current date and time.

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select

<Settings>

and tap the [Select] button.

ƒ

The <Settings> menu appears.

3.

Tap the [Up, Down] button to select <Date&Time> and tap the [Select] button.

ƒ

The Time Set screen appears.

4.

Tap the [Left, Right] button to move to <YEAR,

MONTH

, DATE, HOUR, MIN, AM/PM> and tap the

[Up, Down] button

to set each item.

Settings

Menu Style

Sound

Display

Language

Date&Time

System

5.

Tap the [Select] button.

ƒ

The save confi rmation window appears.

6.

Tap the [Left, Right] button to select <Yes> and tap the [Select]

button

.

ƒ

The date and time will be saved. the basics _ 27

CHANGING THE SETTINGS AND PREFERENCES (Continued)

System Settings

Choose the sleep timer, start mode, auto power off and default setting that’s right for you.

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select

<Settings>

and tap the [Select] button.

ƒ

The <Settings> menu appears.

3.

Tap the [Up, Down] button to select <System> and tap the [Select] button.

ƒ

The <System> menu appears.

Settings

Menu Style

Sound

Display

Language

Date&Time

System

4.

Use the [Up, Down] and [Select] buttons to set functions.

28 _

the basics

CHANGING THE SETTINGS AND PREFERENCES (Continued)

System Setting Options

ƒ

My Profi le :

You can set your name and birth date. See pages 30~31.

ƒ

ƒ

ƒ

ƒ

Sleep

: Turns off power automatically after the preset time. Select either <Off>,

<15min>, <30min>, <60min>, <90min>, or <120min>.

Start Mode

: You can set the start screen displayed when you turn on the player. Select from <Main Menu> and <Last State>. Select <Main Menu> to start the system with the main menu screen while <Last State> will use the last used screen.

Auto Power Off

: Automatically turns power off when the unit is in Pause mode and there is no button operation within the preset time. Select either <15sec>,

<30sec>, <1min>, <3min>, <5min> or <Always On>.

Default Set

: Returns all settings to the default value. Select either <Yes> or

<No>. <Yes> initializes all settings to default. <No> cancels default settings.

ƒ

ƒ

ƒ

Format

: Formats the internal memory. Select either <Yes> or <No>.

Selecting <Yes> will format the internal memory and delete all fi les on the player. Selecting <No> does not format the internal memory.

Check before formatting it.

About

: Tap the [Left, Right] button to check the fi rmware version, memory capacity and fi le number.

<Firmware Ver.> displays the current fi rmware version.

<Memory> - <Used> indicates the usage, <Available> indicates the remaining capacity and <Total> indicates the total memory capacity.

<Files> - You can check the number of music fi les, videos, pictures, texts and entire fi les.

Demo Mode

: If you set it to <On>, the player repeats playing the clip in the video folder. To return to the previous screen, tap the touch button.

NOTE

ƒ

Regarding the Built-In Memory

1GB=1,000,000,000 bytes : actual formatted capacity may be less as the internal fi rmware uses a portion of the memory.

the basics _ 29

CHANGING THE SETTINGS AND PREFERENCES (Continued)

My Name Setting

1.

Tap the [Up, Down] button to select <My Profi le> and tap the [Select] button.

_

Rename My ..

2.

Tap the [Up, Down] button to select <My Name> and the [Select] button.

ƒ

The Rename My Name window appears.

3.

Use the [Up, Down, Left, Right] and [Select]

buttons

to rename the device.

ƒ

ƒ

ƒ

ƒ

ƒ

[

[

] :

The input mode switches from uppercase

English to lowercase English and to number.

] :

You can delete the characters one at a time.

] :

You can insert ‘–‘.

[

[ ] :

Confi rm your change.

Once you completed the name setting, you will see your name when you turn on the player.

30 _

the basics

CHANGING THE SETTINGS AND PREFERENCES (Continued)

My Birthday Setting

ƒ

Before you start

- First, you should set the clock for the current time. See page 27.

1.

Tap the [Up, Down] button to select <My Profi le> and tap the [Select] button.

Edit My Birth..

2.

Tap the [Up, Down] button to select <My

Birthday>

and the [Select] button.

ƒ

The Edit My Birthday window appears.

3.

Tap the [Left, Right] button to move to <YEAR,

MONTH

, DATE> and tap the [Up, Down] button to set each item.

4.

Tap the [Select] button.

ƒ

Once you completed the birth date setting, you will be reminded of your birthday when you turn on the player.

the basics _ 31

RESETTING THE SYSTEM

If your MP3 player won’t turn on, won’t play music, or isn’t recognized by your computer when you connect it, you may have to reset the system.

Press the Reset hole at the rear of the player with a pointed object such as a safety clip.

ƒ

ƒ

The system will be initialized.

Your settings and fi les will not be affected.

CAUTION

ƒ

Do not press the Microphone hole with a pointed object, which will damage the product.

32 _

the basics

EmoDio

EmoDio is a software application provided for this MP3 player for various content-related services as well as device supports.

PC REQUIREMENTS

Your PC system must meet the following minimum specifi cations in order to install and run EmoDio:

Pentium 500MHz or higher

USB Port 2.0

Windows XP Service Pack 2 or higher

DirectX 9.0 or higher

100MB of free hard disc space

CD Rom Drive (2X or higher)

Windows Media Player 10.0 or higher

Resolution 1024 X 768 or higher

Internet Explorer 6.0 or higher

512 MB RAM or higher

CAUTION

ƒ

Do not disconnect the USB cable during fi le transfer. Disconnecting during transfer may damage the player or your PC.

ƒ

Connect the player to the computer directly rather than through a USB hub to avoid an unstable connection.

NOTE

ƒ

All functions are disabled during connection.

ƒ

Use FAT 32 for the fi le system when formatting the player on your PC.

In Windows Vista, click Restore device defaults and format it.

EmoDio _ 33

INSTALLING EMODIO

CAUTION

ƒ

Ensure that you run the <EmoDio> installer in your PC’s administrator account.

Otherwise, <EmoDio> will not be installed. To fi nd the administrator account, please refer to your PC’s user manual.

1.

Insert the Installation CD provided with the player into the CD-ROM drive of your computer.

2.

Click <Install now>.

ƒ

Follow the instruction to start installation.

ƒ

<EmoDio> installation starts and then creates an

icon

on your desktop when installation is complete.

CAUTION

ƒ

Use care when inserting the Installation CD into a vertically oriented CD-ROM drive.

NOTE

ƒ

Music recognition technology and related data are provided by Gracenote and

Gracenote CDDB

®

Music Recognition Service

SM

.

ƒ

CDDB is a registered trademark of Gracenote. The Gracenote logo and logotype, the Gracenote CDDB logo and logotype, and the “Powered by Gracenote CDDB” logo are trademarks of Gracenote. Music Recognition Service and MRS are service marks of Gracenote. All functions are disabled during connection.

34 _

EmoDio

USING EMODIO

EmoDio is the easy-to-use software application that helps you organize your fi les on your PC. With your fi les already sorted and organized in EmoDio, you can quickly transfer them to your mp3 without searching your entire hard drive for the right fi le.

“EmoDio” fi le transfer is the easiest way to get fi les from your PC to your MP3 player.

With “EmoDio”, you can create your own collection, or album, of audio fi les.

You can transfer blog information and fi les registered on RSS to the player for your entertainment.

NOTE

It’s an online community service for EmoDio.com users. It provides simple and easy upload / download of content produced by using

EmoDio and ways to share your stories with other users in the community.

ƒ

For further information on <EmoDio>, click <MENU> ĺ <Help> ĺ <Help> on the top of the <EmoDio> program.

EmoDio _ 35

NOTE

listening to music

ƒ

Before you start -

Connect the earphones, then turn on the player, and check the battery.

ƒ

Tap [ ] to move to the previous screen.

Press and hold [ ] to move to the main menu screen.

LISTENING BY CATEGORY

Music

Now Playing

Artists

Albums

Songs

Genres

Playlists

Recorded Files

Music Browser

Music

Rising Sun

02:13 04:28

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select <Music> and tap the

[Select] button

.

ƒ

The <Music> list appears.

3.

Tap the [Up, Down] button to select the desired list and tap the [Select]

button

.

ƒ

The music fi les appear.

4.

Tap the [Up, Down] button to select the fi le to play and tap the [Select]

button

.

ƒ

The music will start playing.

36 _

listening to music

LISTENING BY CATEGORY (Continued)

Music List

File information including the artist name, album name, music title and genre will be displayed according to the ID3 Tag information on the appropriate music fi le. A fi le without an ID3 Tag is displayed as [Unknown].

Now Playing

: Plays a recently played fi le or moves to the playback screen of the current fi le.

Artists

: To play by artist.

Albums

: To play by album. Tap [ ] to select a <List Type>. Select <Album Art> to view both the album cover image and the album title simultaneously or select <List> to view only the album title.

Songs

: To play in numeric or alphabetical order.

Genres

: To play by genre.

Playlists

: To play by Playlist.

Recorded Files

: Shows all recorded fi les.

Music Browser

: Shows all the music fi les stored in the Music Folder.

NOTE

ƒ

ƒ

ƒ

ƒ

MP3 and WMA music fi les are compatible with the player.

MP1 or MP2 fi les which only have a changed extension to MP3 may not play on the player.

Disconnecting the earphones during music playback will pause the playback.

What is an ID3 Tag?

This is what is attached to an MP3 to carry information relevant to the fi le such as the title, artist, album, year, genre and a comment fi eld.

listening to music _ 37

PAUSING

1.

Tap the [Select] button while the music is playing.

ƒ

The music playback will be paused.

2.

Tap the [Select] button again.

ƒ

The music will play from the point where it stopped.

SEARCHING WITHIN A TRACK

1.

Press and hold the [Left, Right] button while the selected track is playing.

ƒ

It searches to the beginning or the end of the track.

2.

Release the button at the point you wish to start.

ƒ

It starts playing from the point you release the button.

PLAYING FROM THE BEGINNING OF THE CURRENT TRACK

Tap the [Left] button after 3 seconds of play has elapsed from the beginning of the track.

ƒ

The current track starts playing from the beginning.

PLAYING THE PREVIOUS TRACK

Tap the [Left] button before 3 seconds of play has elapsed from the beginning of the track.

Tap the [Left] button twice after 3 seconds of play has elapsed from the beginning of the track.

ƒ

The previous track will start playing.

CAUTION

ƒ

When playing Variable Bit Rate (VBR) fi les, the previous track may not play even if you tap the [Left] button within 3 seconds.

PLAYING THE NEXT TRACK

Tap the [Right] button.

ƒ

The next track will start playing.

38 _

listening to music

CREATING A PLAYLIST ON YOUR MP3 PLAYER

If you’ve already downloaded fi les to your MP3 player, you can create a

“Favorites” playlist.

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select <File

Browser>

and tap the [Select] button.

Music

Rising Sun

My love

1/2

3.

Tap the [Up, Down] button to select <Music> and tap the

[Select] button

.

ƒ

The music fi le(s) appear.

4.

Tap the [Up, Down] button to select a fi le to add to the playlist list and tap [

]

.

ƒ

The Playlist menu appears.

Add to Playlist

Delete

5.

Tap the [Up, Down] button to select <Add to Playlist> and tap the [Select]

button

.

ƒ

<Playlist 1> to <Playlist 5> appears.

6.

Tap the [Up, Down] button to select a playlist number to add the selected fi le and tap the [Select] button.

ƒ

The selected fi le will be added to the playlist.

ƒ

You can check the playlist in <Music> ĺ <Playlists> ĺ <Playlist 1> to <Playlist 5> in the main menu.

NOTE

ƒ

You can add up to 100 music fi les to each playlist (<Playlist 1> to <Playlist 5>).

ƒ

For information on how to create a playlist in <EmoDio> and transfer it to the player, refer to <EmoDio>.

listening to music _ 39

PLAYING A PLAYLIST

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select <Music>

3.

and tap the [Select] button.

ƒ

The <Music> list appears.

Tap the [Up, Down] button to select <Playlists> and tap the [Select] button.

ƒ

The playlist(s) appear.

Music

Now Playing

Artists

Albums

Songs

Genres

Playlists

Recorded Files

Music Browser

4.

Tap the [Up, Down] button to select the playlist of your choice and tap the [Select] button.

ƒ

Music fi les stored in the selected playlist appear.

ƒ

If there is no playlist found, you will see a <No fi le> message on the screen.

5.

Tap the [Up, Down] button to select a music fi le to play and tap the [Select]

button

.

ƒ

The music fi le will start playing.

40 _

listening to music

DELETING A FILE FROM THE PLAYLIST

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select <Music> and tap the [Select] button.

ƒ

The <Music> list appears.

3.

Tap the [Up, Down] button to select <Playlists> and tap the

[Select] button

.

ƒ

The playlist(s) appear.

4.

Tap the [Up, Down] button to select the playlist of your choice and tap the [Select] button.

ƒ

Music fi les stored in the selected playlist appear.

5.

Tap the [Up, Down] button to select a fi le to delete from the playlist and tap [

]

.

ƒ

The Playlist menu appears.

6.

Tap the [Up, Down] button to select <Delete from

Playlist>

and tap the [Select] button.

ƒ

The selected fi le is deleted from the playlist.

Playlists

Playlist 1

Playlist 2

Playlist 3

Playlist 4

Playlist 5

Playlist 1

Rising Sun

My love

Delete from Playlist

Delete All from Playli..

1/2

DELETING ALL FILES FROM THE PLAYLIST

Follow the steps 1-4 above.

5.

Tap [

]

.

ƒ

The Playlist menu appears.

6.

Tap the [Up, Down] button to select <Delete All from

Playlist>

and tap the [Select] button.

ƒ

All fi les are deleted from the playlist.

NOTE

ƒ

The selected fi le in the playlist cannot be deleted while its playing back.

Playlist 1

Rising Sun

My love

Delete from Playlist

Delete All from Playlist

1/2 listening to music _ 41

USING THE MUSIC MENU

The Music menu allows you manage all facets of listening - from repeating tracks and albums to choosing the background on the screen as you listen.

To set the sound effect

You can enjoy clearer sound.

1.

Tap [

]

while listening to music.

ƒ

The <Music> menu appears.

2.

Tap the [Up, Down] button to select <Sound

Effect>

and the [Select] button.

ƒ

The <Sound Effect> menu appears.

3.

Tap the [Up, Down] button to select the desired sound effect and tap the [Select] button.

ƒ

Select from <Street Mode> and <Audio Upscaler>.

Music

Sound Effect

DNSe

Play Mode

Music Play Screen

Play Speed

Rising Sun

Repeat A-B Mode On

02:13 04:28

Sound Effect Options

ƒ

Street Mode :

Allows you to hear the music outdoors clearly by fi ltering out some of the street noise. Select from 0~2.

ƒ

Audio Upscaler :

This function reconstructs the sound source lost by WMA /

MP3 encoding close to its original. The Audio Upscaler only functions with music fi les of low quality. Select either <Off> or <On>.

NOTE

ƒ

To exit the menu, tap [ ].

42 _

listening to music

USING THE MUSIC MENU (Continued)

To set the Digital Natural Sound engine (DNSe)

Select the right sound for each music genre.

1.

Tap [

]

while listening to music.

ƒ

The <Music> menu appears.

Music

2.

Tap the [Up, Down] button to select <DNSe> and

3.

tap the [Select] button.

ƒ

ƒ

The <DNSe> menu appears.

Tap the [Up, Down] button to select a desired

DNSe and tap the [Select] button.

Sound Effect

DNSe

Play Mode

Music Play Screen

Play Speed

Rising Sun

Repeat A-B Mode On

02:13 04:28

Select from <Auto>, <Normal>, <Studio>, <Rock>,

<Classical>, <Jazz>, <Ballad>, <Club>, <Rhythm & Blues>, <Dance>,

<Café>, <Concert>, <Church> and <myDNSe>.

ƒ

ƒ

<Auto> will automatically select the corresponding DNSe mode if music genre information is included in the ID3 Tag of the music fi le.

Selecting <myDNSe> allows setting up user DNSe. See page 44.

NOTE

ƒ

What is DNSe?

Digital Natural Sound Engine (DNSe) is a sound effect function for MP3 players developed by Samsung. It provides various sound settings to enhance the type of music you’re listening to.

listening to music _ 43

USING THE MUSIC MENU (Continued)

To select myDNSe

You can set a user DNSe on your player or the user DNSe transferred from <EmoDio>.

1.

Tap [

]

while listening to music.

ƒ

The <Music> menu appears.

2.

Tap the [Up, Down] button to select <DNSe> and tap the [Select] button.

ƒ

The <DNSe> menu appears.

Music

Sound Effect

DNSe

3.

Tap the [Up, Down] button to select <myDNSe> and tap the [Select] button.

ƒ

The user DNSe list appears.

Repeat A-B Mode On

02:13 04:28

4.

Tap the [Up, Down] button to select a desired user DNSe and tap the [Select] button.

ƒ

ƒ

The selected user DNSe is set.

You can set <EQ>, <3D & BASS>, <Concert Hall> and <Clarity> when you have selected <myDNSe>. See pages 45~48.

NOTE

ƒ

For further information on setting a user DNSe using <EmoDio>, refer to

<EmoDio>.

ƒ

Up to 97 user DNSe settings excluding <User 1> to <User 3> can be transferred to the player.

44 _

listening to music

USING THE MUSIC MENU (Continued)

To select myDNSe (Continued)

<EQ>

You can adjust individual frequencies to adjust the sound to your preference.

1.

Tap the [Up, Down] button to select a desired user DNSe in the myDNSe menu and tap [

]

.

ƒ

The user DNSe menu appears.

2.

Tap the [Up, Down] button to select <EQ> and tap the [Select] button.

ƒ

The <EQ> setting screen appears.

myDNSe

User 1

User 2

3D & BASS

Concert Hall

Clarity

3.

Tap the [Left, Right] button to select the frequency you want to adjust and tap the [Up,

Down] button

to adjust the selected frequency’s level.

ƒ

You can select from –10 to +10 for the selected frequency’s level.

4.

Tap the [Select] button.

ƒ

The setting is completed.

listening to music _ 45

USING THE MUSIC MENU (Continued)

To select myDNSe (Continued)

<3D & BASS>

You can set the 3D surround sound and bass boost level.

1.

Tap the [Up, Down] button to select a desired user DNSe in the myDNSe menu and tap [

]

.

ƒ

The user DNSe menu appears.

2.

Tap the [Up, Down] button to select <3D &

BASS>

and tap the [Select] button.

ƒ

The <3D & BASS> setting screen appears.

myDNSe

User 1

User 2

3D & BASS

Concert Hall

Clarity

3.

Tap the [Left, Right] button to select <3D> or

<BASS>

and tap the [Up, Down] button.

ƒ

You can select from <0-4> for the <3D> and <Bass>.

4.

Tap the [Select] button.

ƒ

The setting is completed.

46 _

listening to music

USING THE MUSIC MENU (Continued)

To select myDNSe (Continued)

<Concert Hall>

You can adjust the concert hall size and the level as if you are listening to music in a real concert hall.

1.

Tap the [Up, Down] button to select a desired user DNSe in the myDNSe menu and tap [

]

.

ƒ

The user DNSe menu appears.

2.

Tap the [Up, Down] button to select <Concert

Hall>

and tap the [Select] button.

ƒ

The <Concert Hall> setting screen appears.

3.

Tap the [Left, Right] button to select <Size> or

<Level>

and tap the [Up, Down] button.

ƒ

You can select from <0-3> for the <Size> and <Level>.

4.

Tap the [Select] button.

ƒ

The setting is completed.

myDNSe

User 1

User 2

3D & BASS

Concert Hall

Clarity

NOTE

ƒ

Depending on music fi les, selecting <Concert Hall> may disable other sound effects.

listening to music _ 47

USING THE MUSIC MENU (Continued)

To select myDNSe (Continued)

<Clarity>

You can enjoy clearer sound with improved quality.

1.

Tap the [Up, Down] button to select a desired user DNSe in the myDNSe menu and tap [

]

.

ƒ

The user DNSe menu appears.

2.

Tap the [Up, Down] button to select <Clarity> and tap the [Select] button.

ƒ

ƒ

The <Clarity> setting screen appears.

You can select from <0-2>.

3.

Tap the [Up, Down] button to select the desired level and tap the [Select] button.

ƒ

The setting is completed.

myDNSe

User 1

User 2

User 3

EQ

3D & BASS

Concert Hall

Clarity

48 _

listening to music

USING THE MUSIC MENU (Continued)

To set the play mode

Select playback mode such as repeat settings.

1.

Tap [

]

while listening to music.

ƒ

The <Music> menu appears.

2.

Tap the [Up, Down] button to select <Play

Mode>

and tap the [Select] button.

ƒ

The <Play Mode> menu appears.

3.

Tap the [Up, Down] button to select a desired play mode and tap the [Select] button.

Music

Sound Effect

DNSe

Play Mode

Music Play Screen

Play Speed

Rising Sun

Repeat A-B Mode On

02:13 04:28

Play Mode Options

ƒ

ƒ

ƒ

ƒ

Normal :

Plays all fi les of the current music list in order one time.

Repeat

: Repeats playing all fi les of the current music list.

Repeat One

: Repeats playing one fi le.

Shuffl e

: Repeats playing all fi les of the current music list at random.

listening to music _ 49

USING THE MUSIC MENU (Continued)

To select the music play screen

Choose a background image from those provided, or choose an image of your own to be displayed as you listen to music.

1.

Tap [

]

while listening to music.

ƒ

The <Music> menu appears.

2.

Tap the [Up, Down] button to select <Music Play

Screen>

and tap the [Select] button.

ƒ

The <Music Play Screen> menu appears.

3.

Tap the [Left, Right] button to select a desired music play screen and tap the [Select] button.

Music

Sound Effect

DNSe

Play Mode

Music Play Screen

Play Speed

Rising Sun

Repeat A-B Mode On

02:13 04:28

Music Play Screen Options

ƒ

ƒ

ƒ

ƒ

Select from <Refl ection>, <Auto>, <Passionate>, <Sweet>, <Quiet>,

<Cheerful>, <Album Art>, <Album Info.>

Auto :

Automatically switches music play screens depending on the ID3 Tag information of the music fi le.

Album Art :

The album cover image is displayed if an album cover image is included in the ID3 Tag information of the music fi le.

Album cover images less than 200 pixel (horizontal) x 200 pixel(vertical) in size are supported.

Album Info. :

Information on the artist name, album and genre is displayed if

ID3 Tag information is stored on the music fi le.

NOTE

ƒ

What is an ID3 Tag?

This is what is attached to an MP3 to carry information relevant to the fi le such as the title, artist, album, year, genre and a comment fi eld.

50 _

listening to music

USING THE MUSIC MENU (Continued)

To set the play speed

Speed up or slow down your favorite music by adjusting the play speed.

1.

Tap [

]

while listening to music.

ƒ

The <Music> menu appears.

2.

Tap the the [Up, Down] button to select <Play

Speed>

and tap the [Select] button.

ƒ

The <Play Speed> menu appears.

3.

Tap the [Up, Down] button to select a desired play speed and tap the [Select] button.

ƒ

Select from <Slow3>, <Slow2>, <Slow1>, <Normal>,

<Fast1>, <Fast2>, <Fast3>.

Music

Sound Effect

DNSe

Play Mode

Music Play Screen

Play Speed

Rising Sun

Repeat A-B Mode On

02:13 04:28 listening to music _ 51

USING THE MUSIC MENU (Continued)

To set the skip interval

You can fast forward through a fi le at various intervals. Skip a whole track or skip several seconds at a time.

1.

Tap [

]

while listening to music.

ƒ

The <Music> menu appears.

2.

Tap the [Up, Down] button to select <Skip

Interval>

and tap the [Select] button.

ƒ

The <Skip Interval> menu appears.

3.

Tap the [Up, Down] button to select a desired skip interval and tap the [Select] button.

ƒ

Select from <1 Song>, <5sec>, <10sec>, <30sec> and

<1min>.

Music

Sound Effect

DNSe

Play Mode

Music Play Screen

Play Speed

Rising Sun

Repeat A-B Mode On

02:13 04:28

NOTE

ƒ

If the fi le was developed with a variable bit rate (VBR), the actual length of the skip interval may not be exactly what you select.

52 _

listening to music

USING THE MUSIC MENU (Continued)

To set Section Repeat

This function enables you to listen to specifi c parts of a track repeatedly.

It’s helpful when learning a language.

1.

Tap [

]

at the point you want while listening to music.

ƒ

The <Music> menu appears.

Music

2.

Tap the [Up, Down] button to select <Repeat A-B

Mode On>

and tap the [Select] button.

ƒ

Section Repeat setup screen appears.

3.

Tap [

]

at the beginning of the section you want to repeat.

ƒ

The starting point is set and < > mark will appear on the play status bar.

Sound Effect

DNSe

Play Mode

Music Play Screen

Play Speed

Rising Sun

Repeat A-B Mode On

02:13 04:28

4.

Tap [

]

again to set the ending of the section you want to repeat.

ƒ

< > mark will appear on the play status bar and the specifi ed section starts to play repeatedly.

To cancel Section Repeat

1.

Tap [

]

during Section Repeat.

ƒ

Section Repeat will be canceled.

NOTE

ƒ

Section Repeat will be automatically canceled in the following case.

- The starting point of the section repeat is set but the ending point is not set until after the current track ends.

- The end point is set for less than 3 seconds of playback after the start point.

listening to music _ 53

watching a video

ƒ

Before you start -

Connect the earphones, then turn on the player, and check the battery.

Transfer a video fi le to the player using <EmoDIo>.

ƒ

Tap [ ] to move to the previous screen.

Press and hold [ ] to move to the main menu screen.

NOTE

WATCHING A VIDEO

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select <Videos> and tap the [Select] button.

ƒ

The <Videos> list appears.

3.

Tap the [Up, Down] button to select a video to play and tap the [Select] button.

ƒ

The selected video fi le starts to play horizontally.

PAUSING

[Up, Down] button

1.

Tap the [Select] button during video playback.

ƒ

The player pauses playing.

2.

Tap the [Select] button again.

ƒ

The player resumes playing from the last played point.

[Left, Right] button

<In horizontal view>

NOTE

ƒ

When transferring a video fi le to the player using <EmoDio>, it is automatically converted into SVI format before transfer. The fi le size is automatically adjusted, too.

For more information, refer to <EmoDio>.

54 _

watching a video

TO MOVE TO A SPECIFIC FRAME

1.

In horizontal view, press and hold the [Left, Right]

button

.

ƒ

This enables you to move backwards or forwards within the current video fi le.

2.

Release the button when you have moved to the position you want.

ƒ

The video starts playing from the position.

Video Track 1

TO PLAY THE PREVIOUS VIDEO FILE

Tap the [Left] button once before 3 seconds of play has elapsed from the beginning of the fi le.

Tap the [Left] button twice after 3 seconds of play has elapsed from the beginning of the fi le.

ƒ

This will return to the previous video.

Video Track 1

TO PLAY THE NEXT VIDEO FILE

Tap the [Right] button.

ƒ

This will move to the next video.

Video Track 2 watching a video _ 55

USING THE VIDEO MENU

To set a bookmark

Once you set a bookmark, you can easily fi nd that position later.

1.

Tap [

]

at the desired scene you want during video playback.

ƒ

The <Video> menu appears.

2.

Tap the [Up, Down] button to select <Add

Bookmark>

and tap the [Select] button.

Add Bookmark

Go to Bookmark

Delete Bookmark

Brightness

DNSe

NOTE

ƒ

ƒ

The current play / stop point will be added to the bookmark.

You will see the [ Ň ] symbol on the play status bar.

ƒ

The Overwrite window appears if there is a bookmark previously set. If you select <Yes>, the previously set bookmark is deleted and a new bookmark is added.

ƒ

One bookmark can be set for each video fi le, and a maximum number of

50 bookmarks can be set.

To move to (play) / remove the bookmark

1.

Tap [

]

during video playback.

ƒ

The <Video> menu appears.

2.

Tap the [Up, Down] button to select <Go to

Bookmark>

or <Delete Bookmark> and tap the [Select] button.

Add Bookmark

Go to Bookmark

Delete Bookmark

Brightness

DNSe

ƒ

ƒ

When you selected <Go to Bookmark> then the player will move to the selected bookmark in the fi le and start playback.

<Delete Bookmark> will remove the selected bookmark from the video fi le.

ƒ

To exit the menu, tap [ ].

NOTE

56 _

watching a video

USING THE VIDEO MENU (Continued)

To adjust the brightness

You can adjust the screen brightness.

1.

Tap [

]

during video playback.

ƒ

The <Video> menu appears.

2.

Tap the [Up, Down] button to select

<Brightness>

and tap the [Select] button.

ƒ

The <Brightness> menu appears.

3.

Tap the [Up, Down] button to adjust a desired brightness and tap the [Select] button.

Add Bookmark

Go to Bookmark

Delete Bookmark

Brightness

DNSe

ƒ

Select from <0~10>.

To set the Digital Natural Sound engine (DNSe)

Select the right sound for each video genre.

1.

Tap [

]

during video playback.

ƒ

The <Video> menu appears.

2.

Tap the [Up, Down] button to select

<DNSe>

and tap the [Select] button.

ƒ

The <DNSe> menu appears.

3.

Tap the [Up, Down] button to select a desired DNSe and tap the [Select] button.

ƒ

Select from <Normal>, <Drama> and <Action>.

Add Bookmark

Go to Bookmark

Delete Bookmark

Brightness

DNSe

NOTE

ƒ

What is DNSe?

Digital Natural Sound Engine (DNSe) is a sound effect function for MP3 players developed by Samsung. It provides various sound settings to enhance the type of music you’re listening to.

watching a video _ 57

viewing pictures

NOTE

ƒ

Before you start -

Connect the earphones, then turn on the player, and check the battery.

Transfer picture fi les to the player using <EmoDIo>.

ƒ

Tap [ ] to move to the previous screen.

Press and hold [ ] to move to the main menu screen.

VIEWING PICTURES

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select <Pictures> and tap the [Select] button.

ƒ

The picture preview window appears.

3.

Tap the [Up, Down, Left, Right] button to select the picture you want to look at and tap the [Select] button.

ƒ

The selected picture will be displayed.

ƒ

Tap [ ] to move to the preview window.

To move to the previous/next picture

[Up, Down] button

In horizontal view, tap the [Left, Right]

button

.

ƒ

The previous/next picture will be displayed.

NOTE

ƒ

When transferring a picture to the player using <EmoDio>, it is automatically converted into JPG format before transfer. The fi le size is automatically adjusted, too. For more

[Left, Right] button

<In horizontal view>

information, refer to <EmoDio>.

will be displayed if the JPG fi les have the wrong thumbnail information.

ƒ

ƒ

ƒ

Some pictures may be slow to appear.

You can also use the <File Browser> to search for a picture. See page 21.

58 _

viewing pictures

USING THE PICTURE MENU

To view pictures while listening to music or FM radio

You can enjoy music or FM radio while viewing pictures.

1.

Tap [

]

while viewing a picture.

ƒ

The <Picture> menu appears.

2.

Tap the [Up, Down] button to select <Music

On>

or <FM Radio On> and tap the [Select]

button

.

ƒ

Each tap of the <Music On> or <FM Radio On> toggles between the sound on/off.

Music On

FM Radio On

Start Sildeshow

Zoom

Rotate

Auto Pivot

Transition Effect

Select as My Skin

NOTE

To watch a slideshow

How To 1

1.

Tap the [Select] button while viewing a picture.

ƒ

You will see [ ] on the screen and then the player will start the slideshow.

How To 2

1.

In the picture preview mode, tap [

]

.

ƒ

The Start Slideshow window appears.

2.

Tap the [Up, Down] button to select <Start

Slideshow>

and tap the [Select] button.

ƒ You will see [

] on the screen and then the player will start the slideshow.

ƒ

To exit the menu, tap [ ].

Pictures

Picture Image 1.jpg

Start Slideshow

1/8 viewing pictures _ 59

USING THE PICTURE MENU (Continued)

To stop the slideshow

How To 1

1.

In the slideshow mode, tap the [Select]

button

.

ƒ

The slideshow stops.

Stop Sildeshow

Slideshow Speed

Transition Effect

How To 2

1.

In the slideshow mode, tap [

]

.

ƒ

The <Picture> menu appears.

2.

Tap the [Up, Down] button to select <Stop Slideshow> and tap the

[Select] button

.

ƒ

The slideshow stops.

To set the slideshow speed

1.

In the slideshow mode, tap [

]

.

ƒ

The slideshow menu appears.

2.

Tap the [Up, Down] button to select

<Slideshow Speed>

and tap the [Select]

button

.

ƒ

The <Slideshow Speed> menu appears.

Stop Sildeshow

Slideshow Speed

Transition Effect

3.

Tap the [Up, Down] button to select a desired speed and tap the

[Select] button

.

ƒ

Select from <Fast>, <Normal> and <Slow>.

60 _

viewing pictures

USING THE PICTURE MENU (Continued)

To enlarge a picture

You can zoom in a picture.

1.

Tap [

]

while viewing a picture.

2.

ƒ

ƒ

The <Picture> menu appears.

Tap the [Up, Down] button to select

<Zoom>

and tap the [Select] button.

The <Zoom> menu appears.

3.

Tap the [Up, Down] button to select a desired zoom factor and tap the [Select] button.

Music On

FM Radio On

Start Sildeshow

Zoom

Rotate

Auto Pivot

Transition Effect

Select as My Skin

ƒ

Select from <100%>, <200%> and <400%>.

4.

Tap the [Up, Down, Left, Right] button to move to the portion of the picture to magnify.

To cancel the zooming

Tap the [Select] button in an enlarged picture view.

ƒ

This returns to the original size.

NOTE

ƒ

A big picture fi le may take awhile to zoom.

viewing pictures _ 61

USING THE PICTURE MENU (Continued)

To rotate a picture

You can rotate a picture for your convenience.

1.

Tap [

]

while viewing a picture.

ƒ

The <Picture> menu appears.

2.

Tap the [Up, Down] button to select

<Rotate>

and tap the [Select] button.

ƒ

The <Rotate> menu appears.

3.

Tap the [Up, Down] button to select a desired angle and tap the [Select] button.

ƒ

Select from <Left 90°>, <Right 90°> and <180°>.

Music On

FM Radio On

Start Sildeshow

Zoom

Rotate

Auto Pivot

Transition Effect

Select as My Skin

To set the Auto Pivot function

Auto Pivot will rotate the picture proportionally so that it can be displayed on the screen in the maximum size possible.

1.

Tap [

]

while viewing a picture.

ƒ

The <Picture> menu appears.

2.

Tap the [Up, Down] button to select <Auto

Pivot>

and tap the [Select] button.

ƒ

The <Auto Pivot> menu appears.

3.

Tap the [Up, Down] button to select <On> and tap the [Select] button.

ƒ

Auto Pivot will be set.

Music On

FM Radio On

Start Sildeshow

Zoom

Rotate

Auto Pivot

Transition Effect

Select as My Skin

62 _

viewing pictures

USING THE PICTURE MENU (Continued)

To change the transition effect

You can set the transition effect for the way the current picture switches to the previous or next one.

1.

Tap [

]

while viewing a picture.

ƒ

The <Picture> menu appears.

2.

Tap the [Up, Down] button to select

<Transition Effect> button

.

and tap the [Select]

Music On

FM Radio On

Start Sildeshow

Zoom

Rotate

Auto Pivot

Transition Effect

Select as My Skin

ƒ

The <Transition Effect> menu appears.

3.

Tap the [Up, Down] button to select a desired transition effect and tap the [Select] button.

ƒ

Select from <Off>, <Auto>, <Cover>, <Fade>, <Push>, <Split>, <Blinds> and <Zoom>.

To set a picture as a background image

You can set a desired picture as a background image for the display window.

1.

Select a picture fi le to set as a background image and tap [

]

.

ƒ

The <Picture> menu appears.

2.

Tap the [Up, Down] button to select <Select

as My Skin>

and tap the [Select] button.

Music On

FM Radio On

Start Sildeshow

Zoom

Rotate

Auto Pivot

Transition Effect

Select as My Skin

ƒ

ƒ

The save confi rmation window appears.

3.

Tap the [Left, Right] button to select <Yes> and tap the [Select]

button

.

The selected picture will be set to the background image.

viewing pictures _ 63

reading text

Whether it’s a novel, the manuscript of a new story, or your research paper, your MP3 player allows you to read it… all while listening to music!

ƒ

ƒ

Before you start -

Connect the earphones, then turn on the player, and check the battery.

Transfer text fi les to the player using <EmoDio>.

Set a preferred text language for text. See page 69.

Tap [

]

to move to the previous screen.

Press and hold [

]

to move to the main menu screen.

NOTE

READING TEXT

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select <Texts> and tap the [Select] button.

ƒ

The Text fi le list appears.

3.

Tap the [Up, Down] button to select a desired text fi le and tap the [Select] button.

ƒ

You will see the text on the screen.

ƒ

Press and hold the [Select] button to display in full screen.

To return to the previous screen, press and hold the [Select] button again.

To move to previous/next page

Tap the [Left, Right] button.

ƒ

Press and hold the [Left, Right] button to move continuously to the previous / next page.

ƒ

ƒ

You can also use the <File Browser> to search for a text fi le. See page 21.

Your MP3 player supports the TXT fi le format in Text mode.

NOTE

64 _

reading text

USING THE TEXT MENU

To read texts while listening music to or FM radio

You can enjoy music or FM radio while reading texts.

1.

Tap [ ] while viewing a text.

ƒ

The <Text> menu appears.

2.

Tap the [Up, Down] button to select <Music On> or <FM Radio On> and tap the [Select] button.

ƒ

Each tap of the <Music On> or <FM Radio On> toggles between the sound on/off.

Book1

< Over View>

DNSe 2.0 : Music That

Comes Alives

Go to 1st Page

Samsung Electronics

Co., Ltd. is one of the

Delete Bookmark fastest growing global

Font Size

45.40%

NOTE

To move to the fi rst page

Use this if you want to view the text from the fi rst page.

1.

Tap [ ] while viewing a text.

ƒ

The <Text> menu appears.

2.

Tap the [Up, Down] button to select <Go to 1st

Page>

and tap the [Select] button.

ƒ

The Confi rmation window will appear.

3.

Tap the [Left, Right] button to select <Yes> and tap the [Select] button.

ƒ

Moves to the fi rst page of the text fi le.

ƒ

To exit the menu, tap [ ].

Book1

< Over View>

DNSe 2.0 : Music That

Comes Alives

FM Radio On

Go to 1st Page

Samsung Electronics

Co., Ltd. is one of the fastest growing global

Font Size

45.40% reading text _ 65

USING THE TEXT MENU (Continued)

To set a bookmark

Set a bookmark to return to that point in the text at any time.

1.

Tap [ ] at the desired page you want while

2.

NOTE

viewing a text.

ƒ

ƒ

The <Text> menu appears.

Tap the [Up, Down ] button to select <Add

Bookmark>

and tap the [Select] button.

Book1

< Over View>

DNSe 2.0 : Music That

Comes Alives

FM Radio On

Go to 1st Page

Samsung Electronics

Co., Ltd. is one of the

45.40%

The current text screen is set to a bookmark with the

[ ] symbol displayed on the top left corner.

ƒ

The Overwrite window appears if there is a bookmark previously set. If you select <Yes>, the previously set bookmark is deleted and a new bookmark is added.

Font Size

ƒ

One bookmark can be set for each text fi le, and you can set a maximum of

50 bookmarks.

To move to/ remove the bookmark

1.

Tap [ ] while viewing a text.

ƒ

The <Text> menu appears.

2.

Tap the [Up, Down] button to select <Go to

Bookmark>

or <Delete Bookmark> and tap the

[Select] button

.

ƒ

When you selected <Go to Bookmark> then it will move to the selected bookmark and <Delete Bookmark> will remove the selected bookmark from the text fi le.

Book1

< Over View>

DNSe 2.0 : Music That

Comes Alives

Go to 1st Page

Samsung Electronics

Co., Ltd. is one of the fastest growing global

Font Size

45.40%

66 _

reading text

USING THE TEXT MENU (Continued)

To set the text viewer color

Choose what color you’d like the text to appear.

1.

Tap [ ] while viewing a text.

ƒ

The <Text> menu appears.

2.

Tap the [Up, Down] button to select <Text

Viewer Color>

and tap the [Select] button.

ƒ

The <Text Viewer Color> menu appears.

3.

Tap the [Left, Right] button to select a desired text viewer color and tap the [Select] button.

ƒ

Select from <Type 1> to <Type 6>.

Book1

< Over View>

DNSe 2.0 : Music That

Comes Alives

FM Radio On

Go to 1st Page

45.40%

Co., Ltd. is one of the fastest growing global

Font Size

To change the font size

You can change the font size of the text.

1.

Tap [ ] while viewing a text.

ƒ

The <Text> menu appears.

2.

Tap the [Up, Down] button to select <Font Size> and tap the [Select] button.

ƒ

The <Font Size> menu appears.

3.

Tap the [Left, Right] button to select a desired font size and tap the [Select] button.

ƒ

Select from <Small>, <Medium> and <Large>.

Book1

< Over View>

DNSe 2.0 : Music That

Comes Alives

FM Radio On

Go to 1st Page

Samsung Electronics

Add Bookmark

Co., Ltd. is one of the fastest growing global

Text Viewer Color

Font Size

45.40% reading text _ 67

USING THE TEXT MENU (Continued)

To set the text view type

You can view text horizontally or vertically.

1.

Tap [ ] while viewing a text.

ƒ

The <Text> menu appears.

2.

Tap the [Up, Down] button to select <View Type> and tap the [Select] button.

ƒ

The <View Type> menu appears.

Book1

< Over View>

DNSe 2.0 : Music That

Comes Alives

45.40%

3.

Tap the [Up, Down] button to select a desired view type and tap the [Select] button.

Samsung Electronics

Co., Ltd. is one of the fastest growing global

ƒ

ƒ

Select from <Normal> and <Horizontal>.

Select <Normal> to view the text vertically and select <Horizontal> to rotate the text horizontally.

68 _

reading text

USING THE TEXT MENU (Continued)

To set a text language

You can select a language for text to view.

1.

Tap [ ] while viewing a text.

ƒ

The <Text> menu appears.

2.

Tap the [Up, Down] button to select <Language> and tap the [Select] button.

ƒ

ƒ

Book1

< Over View>

DNSe 2.0 : Music That

Comes Alives

45.40%

The <Language> list appears.

Samsung Electronics

<English>, <Korean>, <French>, <German>, <Italian>,

<Japanese>, <Chinese(S)>, <Chinese(T)>, <Spanish>,

<Russian>, <Hungarian>, <Dutch>, <Polish>,

<Portuguese>, <Swedish>, <Thai>, <Finnish>,

Co., Ltd. is one of the fastest growing global

<Danish>, <Norwegian>, <Farsi>, <Afrikaans>, <Basque>, <Catalan>,

<Czech>, <Estonian>, <Greek>, <Hrvatski>, <Icelandic>, <Rumanian>,

<Slovak>, <Slovene>, <Turkish>, <Vietnamese>.

3. Tap the [Up, Down] button to select a desired language and tap the

[Select] button

.

ƒ

You can view text in the selected language.

ƒ

The supported languages can be changed or added.

NOTE

reading text _ 69

USING THE TEXT MENU (Continued)

To listen to TTS (Text to Speech)

Using TTS function of <EmoDio>, you can convert a text fi le into an

TTS fi le and listen to it.

ƒ

Before you start - Transfer TTS fi les to the player using <EmoDio>.

1. Press and hold [ ] to move to the main menu screen.

2. Tap the [Up, Down, Left, Right] button to select <Texts> and tap the [Select] button.

ƒ

The TTS fi le list appears.

3. Tap the [Up, Down] button to select a downloaded TTS and tap the

[Select] button.

ƒ

You can listen to the fi le.

NOTE

ƒ

You can adjust the play speed and skip interval by tapping [ ].

ƒ

For further information on TTS function of <EmoDio>, refer to <EmoDio>.

70 _ reading text

NOTE

listening to FM radio

ƒ

Before you start -

Connect the earphones, then turn on the player, and check the battery.

ƒ

Tap [ ] to move to the previous screen.

Press and hold [ ] to move to the main menu screen.

LISTENING TO FM RADIO

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select <FM

Radio>

and tap the [Select] button.

ƒ

FM radio reception will start.

TO USE THE MUTE FUNCTION

1.

Tap the [Select] button while listening to FM Radio.

ƒ

Sound is muted.

2.

Tap the [Select] button once again to resume listening.

NOTE

ƒ

Always connect your earphones to the player when searching or setting frequencies and listening to FM Radio.

The earphones serve as antennas to receive FM radio reception.

ƒ

In poor reception areas, the player may not be able to fi nd an available FM frequency.

listening to FM radio _ 71

TO SEARCH FOR FM STATIONS

1.

Press and hold the [Left, Right] button and then release in

Manual mode.

ƒ

The search will stop at the frequency nearest from the point the button is released.

Auto Searching

OR,

1.

Tap the [Left, Right] button to progress through the frequencies one by one in Manual mode.

ƒ

Moves to frequencies whenever the button is pressed.

72 _

listening to FM radio

USING THE FM RADIO MENU

To switch to Preset Mode

Select this mode if you want to search through your saved FM presets one preset at a time.

1.

Tap [ ] in Manual mode.

ƒ

The <FM Radio> menu appears.

2.

Tap the [Up, Down] button to select <Go to

Preset Mode>

and tap the [Select] button.

ƒ

You will see <Preset> on the screen.

Go to Preset Mode

Add to Preset

Auto Preset

Start Recording

FM Sensitivity

FM Region

NOTE

ƒ

If no preset frequencies are set, the player will not switch to Preset mode.

To switch to Manual Mode

Select this mode if you want to manually search through the FM band one frequency at a time.

1.

Tap [ ] in Preset mode.

ƒ

The <FM Radio> menu appears.

2.

Tap the [Up, Down] button to select <Go to

Manual Mode>

and tap the [Select] button.

ƒ

You will see <Manual> on the screen.

Go to Manual Mode

Delete from Preset

Auto Preset

Start Recording

FM Sensitivity

FM Region listening to FM radio _ 73

USING THE FM RADIO MENU (Continued)

To store stations in the preset memory

You can store up to 30 stations in your MP3 player’s memory and return to them with the press of just one number. Have the MP3 player choose only the stations you want using the manual process, or fi nd and store the local stations automatically.

Manual - choose only the stations you want to store

1.

Tap the [Left, Right] button to select a frequency to preset in Manual mode and tap [ ].

ƒ

The <FM Radio> menu appears.

2.

Tap the [Up, Down] button to select <Add to

Preset>

and tap the [Select] button.

ƒ

The selected frequency will be added to the preset list.

3.

To set a preset for other frequencies, follow 1-2 steps above.

Go to Preset Mode

Add to Preset

Auto Preset

Start Recording

FM Sensitivity

FM Region

ƒ

If the same frequency is already set, the setting is disabled.

NOTE

74 _

listening to FM radio

USING THE FM RADIO MENU (Continued)

To store stations in the preset memory (Continued)

Automatic – automatically store all the stations the player receives

1.

Tap [ ] in FM Radio mode.

ƒ

The <FM Radio> menu appears.

2.

Tap the [Up, Down] button to select <Auto Preset> and tap the [Select] button.

ƒ

The confi rmation window appears.

3.

Tap the [Left, Right] button to select <Yes> and tap the [Select] button.

ƒ

Up to 30 frequencies are automatically set.

Go to Preset Mode

Add to Preset

Auto Preset

Start Recording

FM Sensitivity

FM Region

To cancel Auto Preset

If you want to cancel the auto preset, tap the [Select] button in the process.

ƒ

The auto preset setting is canceled, and only frequencies set up to that point are stored.

NOTE

ƒ

You may want to re-set the stored stations if you’re going to listen to your

MP3 player in a different city. To delete the preset stations and store new ones, simply repeat the process.

listening to FM radio _ 75

USING THE FM RADIO MENU (Continued)

To listen to preset stations

While in Preset mode, tap the [Left, Right] button to scroll through preset stations.

ƒ

You can listen to the stored radio frequency.

To delete a preset

Follow the steps below to delete frequencies while listening to FM

Radio.

1.

While in Preset mode, tap the [Left, Right] button to search for a preset frequency to delete and tap [ ].

ƒ

The <FM Radio> menu appears.

2.

Tap the [Up, Down] button to select <Delete

from Preset>

and tap the [Select] button.

ƒ

The selected frequency will be deleted.

3.

To delete other preset frequencies, follow 1-2 steps above.

Go to Manual Mode

Delete from Preset

Auto Preset

Start Recording

FM Sensitivity

FM Region

76 _

listening to FM radio

USING THE FM RADIO MENU (Continued)

To record FM Radio broadcasting

You can record an FM radio program at any time while listening to the radio.

1.

Tap the [Left, Right] button to select a frequency to record in FM Radio mode and tap [ ].

ƒ

The <FM Radio> menu appears.

2.

Tap the [Up, Down] button to select <Start

Recording>

and tap the [Select] button.

ƒ

An automatically created fi le name appears and the recording starts.

Go to Preset Mode

Add to Preset

Auto Preset

Start Recording

FM Sensitivity

FM Region

To stop recording

1.

Tap the [Select] button during the recording.

ƒ

A message appears asking you if you want to listen to the fi le you just recorded.

2.

Tap the [Left, Right] button to select <Yes> or

<No>

and tap the [Select] button.

ƒ

ƒ

Selecting <Yes> will play the just recorded fi le.

Selecting <No> will not play the recorded fi le.

NOTE

FM Record

ƒ

The recorded fi le is stored in <File Browser> ĺ

<Recorded Files>.

ƒ

ƒ

ƒ

ƒ

Each FM Radio recording fi le can be as long as 5 hours.

You can store a maximum of 999 fi les for FM radio recording.

You can make a recording for up to approximately 15 hours. (based on

128Kbps, 1GB)

The recording fi le name will be automatically specifi ed, for example, as “FM_

YYMMDD_XXX.MP3”. “FM” means FM radio recording, “YYMMDD” indicates the recorded date and “XXX” is the recording fi le number.

listening to FM radio _ 77

USING THE FM RADIO MENU (Continued)

To set the FM sensitivity

To receive more or fewer FM radio frequencies, adjust the FM sensitivity.

1.

Tap [ ] in FM Radio mode.

ƒ

The <FM Radio> menu appears.

2.

Tap the [Up, Down] button to select <FM

Sensitivity>

and tap the [Select] button.

ƒ

The< FM Sensitivity> menu appears.

3.

Tap the [Up, Down] button to select the search level and tap the [Select] button.

ƒ

ƒ

Select from <High>, <Middle> and <Low>.

If you select <High>, more frequencies will be received.

Go to Preset Mode

Add to Preset

Auto Preset

Start Recording

FM Sensitivity

FM Region

ƒ

To exit the menu, tap [ ].

NOTE

78 _

listening to FM radio

USING THE FM RADIO MENU (Continued)

To set the FM region

You can change an FM region setting in preparation for overseas travel.

1.

Tap [ ] in FM Radio mode.

ƒ

The <FM Radio> menu appears.

2.

Tap the [Up, Down] button to select <FM

Region>

and tap the [Select] button.

ƒ

The <FM Region> menu appears.

3.

Tap the [Up, Down] button to select your regional area for FM radio and tap the [Select] button.

ƒ

Select from <Korea/US>, <Japan> and <Other

Countries>.

Go to Preset Mode

Add to Preset

Auto Preset

Start Recording

FM Sensitivity

FM Region

NOTE

ƒ

Your previously stored radio frequencies will be deleted when you change the <FM Region> on your player.

ƒ

FM region can be deleted or changed according to the target region of the player.

ƒ

Frequency range by region

- Korea/US: Search for FM frequencies in 100 kHz increments between

87.5 MHz~108.0 MHz.

- Japan: Search for FM frequencies in 100 kHz increments between 76.0

MHz~108.0 MHz.

- Other Countries: Search for FM frequencies in 50 kHz increments between 87.50 MHz~108.00 MHz.

listening to FM radio _ 79

NOTE

viewing datacasts

VIEWING DATACASTS

You can view channel posts added to <Datacasts>.

ƒ

Before you start

- Transfer a desired channel post to the player using <EmoDio>.

NOTE

ƒ

ƒ

What are Datacasts?

You can automatically receive updated information without having to visit your frequently visited news, blog and UCC sites every time.

Tap [ ] to move to the previous screen.

Press and hold [ ] to move to the main menu screen.

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select

<Datacasts>

and tap the [Select] button.

ƒ

The <Datacasts> list appears.

3.

Tap the [Up, Down] button to select a desired channel list and tap the [Select] button.

ƒ

The fi le list appears.

ƒ

ƒ

icon : main text for the transferred post icon : picture fi le

ƒ

ƒ

icon : music fi le icon : video fi le

4.

Tap the [Up, Down] button to select a desired fi le and tap the [Select] button.

ƒ

The selected fi le will start playing.

Datacasts

Datacast 1

Datacast 2

Datacast 3

Datacast 4

1/4

ƒ

Refer to the <Datacasts> of <EmoDio> for detailed instructions.

80 _

viewing datacasts

enjoying the prime pack

Prime Pack enables you to enjoy various functions such as playing games and a voice recording, etc.

ƒ

Before you start -

Connect the earphones, then turn on the player, and check the battery.

VOICE RECORDING

You can make a voice recording.

To make a voice recording

1.

Press and hold [

]

to move to the main menu screen.

2.

Tap the [Up, Down, Left, Right] button to select

<Prime Pack>

and tap the [Select] button.

ƒ

The <Prime Pack> list appears.

3.

Tap the [Left, Right] button to select <Voice

REC>

and tap the [Select] button.

4.

Tap the [Select] button.

ƒ

The player starts recording.

NOTE

ƒ

ƒ

ƒ

ƒ

ƒ

The recorded fi le is stored in <File Browser> ĺ <Recorded Files>.

Each voice recording fi le can be as long as 5 hours.

You can store a maximum of 999 fi les for voice recording.

You can make a recording for up to approximately 15 hours. (based on

128Kbps, 1GB)

The recording fi le name will be automatically specifi ed, for example, as

“VCE_YYMMDD_XXX.MP3”. “VCE” means voice recording, “YYMMDD” indicates the recorded date and “XXX” is the recording fi le number.

enjoying the prime pack_ 81

VOICE RECORDING (Continued)

To stop voice recording

1.

Tap the [Select] button during the recording.

ƒ

A message appears asking you if you want to listen to the fi le you just recorded.

2.

Tap the [Left, Right] button to select <Yes> or

<No>

and tap the [Select] button.

ƒ

ƒ

Selecting <Yes> will play the just recorded fi le.

Selecting <No> will not play the recorded fi le.

Voice Record

CAUTION

ƒ

Do not put the microphone too close to or far away from your mouth as it may cause a poor recording.

ƒ

Voice recording does not perform properly when the battery is low.

82 _

enjoying the prime pack

PLAYING VIDEO GAMES

Your MP3 player comes with exciting games already loaded!

NOTE

ƒ

Tap [ ] to move to the previous screen.

Press and hold [ ] to move to the main menu screen.

1.

Press and hold [

]

to move to the main menu.

2.

Tap the [Up, Down, Left, Right] button to select <Prime

Pack>

and tap the [Select] button.

ƒ

The <Prime Pack> list appears.

3.

Tap the [Left, Right] button to select <Games> and tap the [Select] button.

ƒ

The <Games> list appears.

4.

Tap the [Up, Down] button to select a desired game and tap the [Select] button.

BOMB BOMB

This is a brain game where you change the order of three blocks to match the color of the hammer-imaged block with that of stacked ones, which removes blocks. Remove blocks as many as possible.

Tap the [Left, Right] button to move the blocks to the left or right.

Tap the [Up] button to change the position of the blocks horizontally or vertically.

Tap the [Down] button to drop the blocks.

enjoying the prime pack_ 83

PLAYING VIDEO GAMES (Continued)

Bubble Smile

You have to gain as many scores as possible by changing the order of three bubbles to fi t them horizontally or diagonally.

Tap the [Up, Down, Left, Right] button to move the combination of three bubbles.

Tap [ ] to change the order of bubbles clockwise.

Tap [

]

to change the order of bubbles counter clockwise.

You will gain scores only if at least three bubbles are fi tted together.

Chicken Runaway

This is a game where you move the hen and the chickens chasing it to the left or right. i.e you should avoid balls from the sky to keep the hen safe as long as possible.

Tap the [Left, Right] button to move the hen to the left or right.

NOTE

ƒ

ƒ

Games may be added or changed without notice.

For more information about Game navigation, see the How To Play section.

84 _

enjoying the prime pack

VIEWING THE WORLD SUBWAY MAP

You can browse through the World Subway Map and noted places around stations.

1.

Press and hold [

]

to move to the main menu.

2.

Tap the [Up, Down, Left, Right] button to select <Prime

Pack>

and tap the [Select] button.

ƒ

The <Prime Pack> list appears.

3.

Tap the [Left, Right] button to select <Subway> and tap the [Select] button.

ƒ

World Region selection screen appears.

4.

Tap the [Up, Down, Left, Right] button to select the desired region and tap the [Select] button.

ƒ

Select one from <AMERICA>, <EUROPE>, <ASIA/OCEANIA>.

ƒ

Cities within the selected region are displayed.

5.

Tap the [Left, Right] button to select the desired city and tap the [Select]

button

.

ƒ

The subway map of the selected city is displayed.

6.

Tap the [Up, Down, Left, Right] button to select an area that you want to enlarge and tap the [Select] button.

ƒ

If the enlarged map includes information on tourist attraction adjacent to the subway station, tap the [Select] button again to display the red arrow. Use the [Up, Down,

Left, Right] button to select a desired icon and tap the [Select] button. You can fi nd out the tourist attraction.

NOTE

ƒ

ƒ

Tap [ ] to return to the World Region selection screen.

It may differ from the actual subway map.

enjoying the prime pack_ 85

troubleshooting

If you have a problem with your new MP3 player, check for a solution in this list. If the problem persists, contact your local Samsung Customer

Service Centre.

PROBLEM

Power will not turn on.

Buttons do not work.

The screen will not turn on.

SOLUTION

Power will not turn on if the battery is completely drained. Recharge the battery and turn the power on again.

Press the Reset hole.

• Check if the [ ] switch is pushed towards the top of the player.

Check if you pressed the right button, then press again.

Press the Reset hole.

The screen may not be visible under direct sunlight.

If <Display Off> is selected from <Settings> ĺ <Display>, the screen display can be turned off. Tap any button and see if it turns on.

86 _

troubleshooting

PROBLEM

Power is turning off.

Battery life differs from the manual.

EmoDio Program

Malfunction

Connection to your PC is disabled.

The fi le transfer rate is too slow.

SOLUTION

The power is automatically turned off when the battery is completely drained. Recharge the battery.

If <Auto Power Off> is selected from

<Settings>

ĺ <System>, the Power will be turned off when the player is in Pause mode.

Turn on the Player.

The battery life can vary depending on the sound mode and display setting.

Battery life may be shortened when the player is left for extended periods in low or high temperatures.

Check if your PC meets the basic system requirements.

Check if the USB cable is correctly connected and try again.

Run Windows Update on your PC. Select Key

Updates and Service Packs, then update all.

Reboot your PC and reconnect.

If you are running multiple programs including

<EmoDio> on your PC, the fi le transfer rate will be slow. Exit unnecessary programs and try transferring again.

troubleshooting _ 87

PROBLEM

Player isn’t playing.

File upload doesn’t work.

Files or data are missing.

Abnormal play time display during play.

The product is hot.

A message appears while watching a video.

SOLUTION

Check if the available fi le has been saved in the memory.

Check if the music fi le is damaged.

Check if there is enough battery power.

Check if the USB cable is securely connected.

Reconnect if necessary.

Check if the memory is full.

Press the Reset hole.

Check if the USB cable has been disconnected during fi le or data transmission. If this is the case, it may cause serious damage not only to fi les/data but also to the product. Samsung is not responsible for any data lost.

Check if the fi le is in Variable Bit Rate (VBR) format.

Heat may be generated during recharging. This has no effect on the product life or functions.

Try to download the video clip through EmoDio again.

88 _

troubleshooting

appendix

MENU TREE

Here’s a quick look at how the menus and functions are organized on your new

MP3 player.

Menu Select Screen

Music Videos Pictures Texts FM Radio

Sound

Effect

Add

Bookmark

DNSe

Go to

Bookmark

Play Mode

Delete

Bookmark

Music Play

Screen

Play

Speed

Skip

Interval

Repeat

A-B Mode

On

Brightness

DNSe

Music On Music On

FM Radio

On

FM Radio On

Go to Preset

Mode /

Go to Manual

Mode

Add to Preset /

Delete from

Preset

Start

Slideshow

Zoom

Rotate

Auto Pivot

Transition

Effect

Select as

My Skin

Go to 1st

Page

Font Size

Auto Preset

Add

Bookmark

Start

Recording

Go to

Bookmark FM Sensitivity

Delete

Bookmark

FM Region

Text Viewer

Color

View Type

Language

Datacasts Prime Pack

Voice REC

Games

Subway

File Browser Settings

Menu Style

Sound

Display

Language

Date&Time

System appendix _ 89

PRODUCT SPECIFICATIONS

Model Name

Rating

Built-in Battery Power

File Compatibility

YP-Q1

DC 5.0V/ 500mA

620 mAh/ DC 3.7V

AUDIO : MPEG1/2/2.5 Layer3 (8kbps ~ 320kbps,

22kHz ~ 48kHz),

WMA(8kbps ~ 320kbps, 8kHz ~ 48kHz)

VIDEO : SVI (Video : MPEG4,

Audio : MP3(44.1kHz, 128Kbps),

WMV(Video : WMV9 Simple Profi le,

Audio : WMA Spec (Max 860kbps),

Resolution : 320X240, Frame Rate :

30fps)

IMAGE : JPEG(ISO/IEC 10918-1/Annex

F-Sequential DCT-based mode of operation)

Folder : Max. 1000 / File: Max. 6000 (Including

Folder)

Supported Number of

Folders/Files

Earphone Output

Output Frequency Range

20mW/Ch (France 5mW/Ch) (based on 16ȍ)

40Hz~20kHz

90 dB

Signal to Noise Ratio

Play Time

Music : Max. 30 hours (MP3 128kbps, Volume: 15,

Normal Sound Mode , LCD Off)

Video : Max. 4 hours (Brightness 5, Volume: 15,

Normal Sound Mode)

Temperature Range for Operation

-5~35°C (23~95°F)

Case

Weight

Plastic

65 g

Dimensions (WxHxD)

51 X

98

X

10.9 mm

90 _

appendix

FM Radio

FM Frequency

FM Signal to

Noise Ratio

87.5~108.0MHz

55 dB

FM T.H.D

FM Useable

Sensitiivity

1%

38dB—

The contents of this Manual are subject to change without prior notice for further improvement.

• This Class B digital apparatus complies with Canadian ICES-003.

appendix _ 91

LICENSE

The product player accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents.

No rights are granted for commercial use.

The license does not cover any product player other than this product player and the license does not extend to any unlicensed product player or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product player. The license only covers the use of this product player to encode and/or decode audio fi les conforming to the ISO/IEC 11172-3 or

ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

92 _

appendix

Samsung Limited Warranty

Samsung Electronics Canada Inc. (SECA),

warrants that this product is free from defective material and workmanship

SECA further warrants that if this product fails to operate properly within the specifi ed warranty period and the failure is due to improper workmanship or defective material SECA will repair or replace the product at its option.

All warranty repairs must be performed by a SECA authorized service centre.

(The name and address of the location nearest you can be obtained by calling toll free 1-800-726-7864 or visiting our web site at www.samsung.com/ca)

Labour Parts one (1) year (carry-in) one (1) year

On carry-in models, transportation to and from the service centre is the customer’s responsibility.

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service centre at the time service is requested.

Exclusions

This warranty does not cover damage due to accident, fi re fl ood and/or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs in shipping. Exterior and interior fi nish, lamps and glass are not covered under this warranty. Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Samsung Electronics Canada Inc., Customer Service

1-800-SAMSUNG (7267864) www.samsung.com/ca

REV.0.0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
