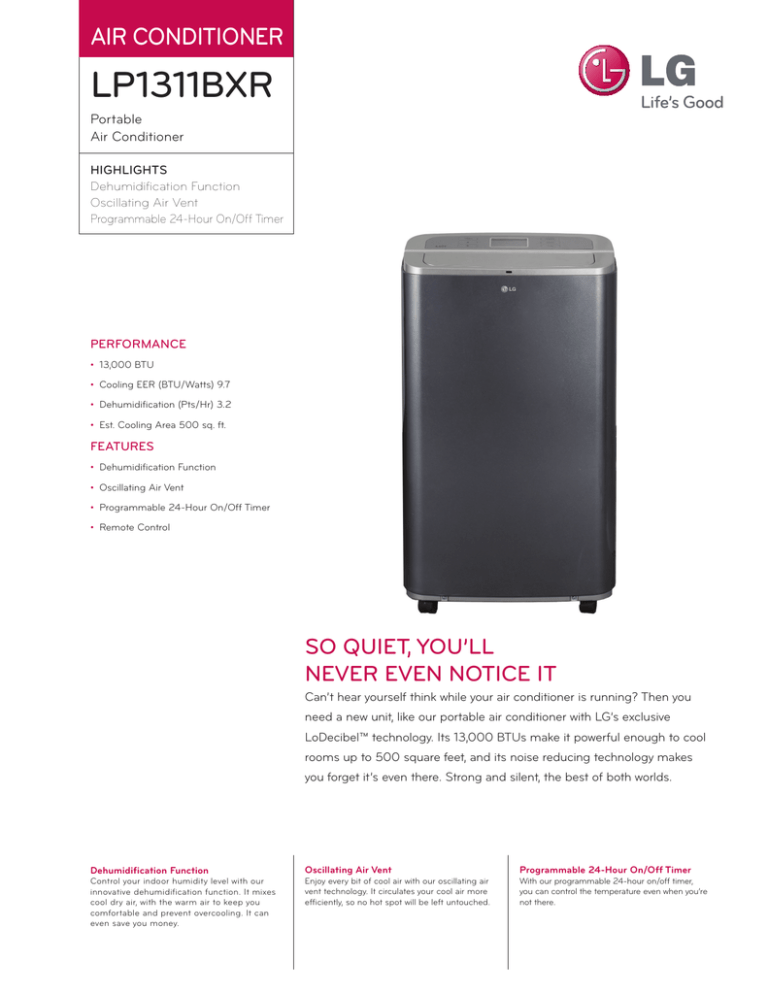

LG LP1311BXR Specification
AIR CONDITIONER
LP1311BXR
Portable
Air Conditioner
HIGHLIGHTS
Dehumidification Function
Oscillating Air Vent
Programmable 24-Hour On/Off Timer
PERFORMANCE
• 13,000 BTU
• Cooling EER (BTU/Watts) 9.7
• Dehumidification (Pts/Hr) 3.2
• Est. Cooling Area 500 sq. ft.
FEATURES
• Dehumidification Function
• Oscillating Air Vent
• Programmable 24-Hour On/Off Timer
• Remote Control
SO QUIET, YOU’LL
NEVER EVEN NOTICE IT
Can’t hear yourself think while your air conditioner is running? Then you
need a new unit, like our portable air conditioner with LG’s exclusive
LoDecibel™ technology. Its 13,000 BTUs make it powerful enough to cool
rooms up to 500 square feet, and its noise reducing technology makes
you forget it’s even there. Strong and silent, the best of both worlds.
Dehumidification Function
Control your indoor humidity level with our
innovative dehumidification function. It mixes
cool dry air, with the warm air to keep you
comfortable and prevent overcooling. It can
even save you money.
Oscillating Air Vent
Enjoy every bit of cool air with our oscillating air
vent technology. It circulates your cool air more
efficiently, so no hot spot will be left untouched.
Programmable 24-Hour On/Off Timer
With our programmable 24-hour on/off timer,
you can control the temperature even when you’re
not there.
AIR CONDITIONER
LP1311BXR
PERFORMANCE
BTU Performance
EER
Dehumid. (Pts/Hr)
Dry Air Flow (CFM)
dBA Level (Front)
Est. Cooling Area (SQ. FT.)
FEATURES
Display Panel
Thermostat Control
Remote Controller
Control Button Type
Auto Swing
Energy Saver Function
Auto Restart
Auto Door Open/Close System
Timer
Fan Speed Cooling
Fan Only Speed
Compressor
Indoor/Outdoor Fan Type
Type Air Discharge
Water Full Indicator
Outdoor Vent/Exhaust
Chassis Type
13,000
9.7
3.2
250
52
500
White LCD
•
LCD Remote Controller
Digital Touch Sensor
•
•
•
•
24 Hr. On/Off
3
3
LVN
Blower
Inclined and Top
•
Exhaust Only (1.5M)
Fixed
MATERIALS/FINISHES
Available Colors
Easy-Roll Casters
Air Filter
Window Installation Kit
ELECTRICAL RATINGS
Voltage/60Hz
Watts
Rated Amps
DIMENSIONS
Product (WxHxD)
Shipping (WxHxD)
Net Weight
Shipping Weight
WARRANTY
Metallic Silver/Black
•
Washable
•
115
1,340
11.8
18 1/2" x 32 15/16" x 15 7/16"
20 7/16" x 34 7/16" x 17 13/16"
68.3 lbs.
75 lbs.
1 Year Parts and Labor
UPC CODE
LP1311BXR
048231 364386
www.LG.com
Dimensions and weights are approximate. Design, features and specifications
subject to change without notice.
LG Electronics U.S.A., Inc.
©2013 LG Electronics USA, Inc. All rights reserved. “LG Life’s Good” is a
registered trademark of LG Corp. All other product and brand names are
trademarks or registered trademarks of their respective companies.
1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: (800) 243-0000
HAAC-LP1311BXR-SS
03/21/13
