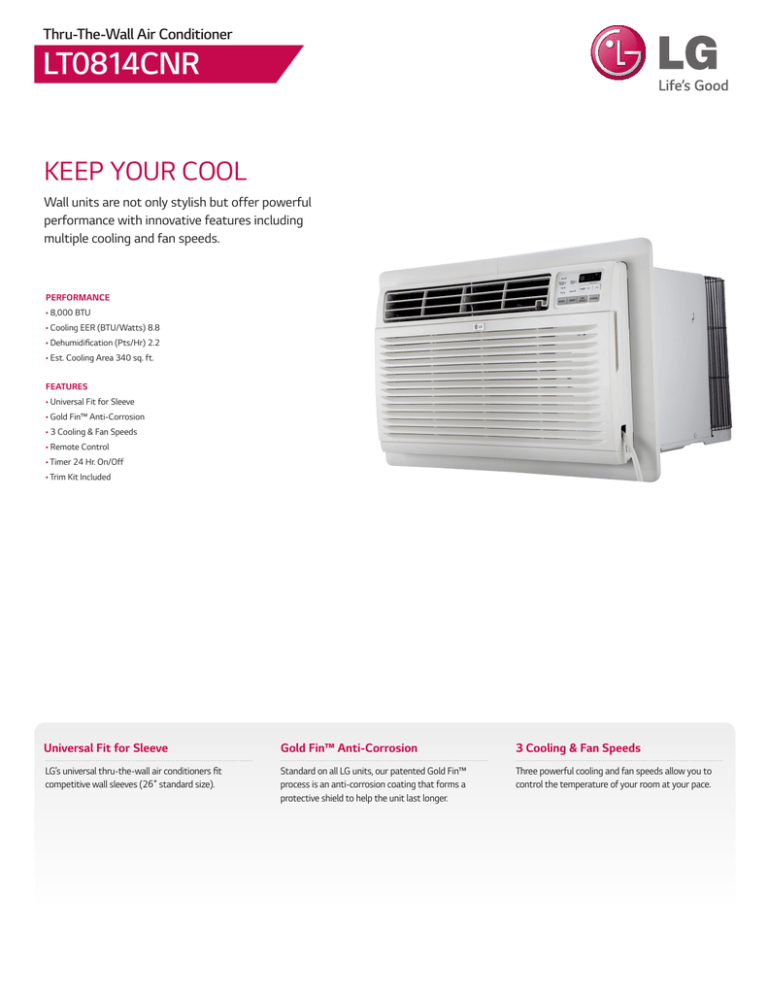

LG LT0814CNR Specification
Thru-The-Wall Air Conditioner
LT0814CNR
KEEP YOUR COOL
Wall units are not only stylish but offer powerful
performance with innovative features including
multiple cooling and fan speeds.
PERFORMANCE
• 8,000 BTU
• Cooling EER (BTU/Watts) 8.8
• Dehumidification (Pts/Hr) 2.2
• Est. Cooling Area 340 sq. ft.
FEATURES
• Universal Fit for Sleeve
• Gold Fin™ Anti-Corrosion
• 3 Cooling & Fan Speeds
• Remote Control
• Timer 24 Hr. On/Off
• Trim Kit Included
Universal Fit for Sleeve
Gold Fin™ Anti-Corrosion
3 Cooling & Fan Speeds
LG’s universal thru-the-wall air conditioners fit
competitive wall sleeves (26” standard size).
Standard on all LG units, our patented Gold Fin™
process is an anti-corrosion coating that forms a
protective shield to help the unit last longer.
Three powerful cooling and fan speeds allow you to
control the temperature of your room at your pace.
Thru-The-Wall Air Conditioner
LT0814CNR
PERFORMANCE
BTU Performance EER Dehumid. (Pts/Hr) Dry Air Flow (CFM) dBA Level (Indoor/Outdoor) Est. Cooling Area (SQ. FT.) MATERIALS/FINISHES
8,000
8.8
2.2
260
53/60
340
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: (800) 243-0000
LG.com
White
ELECTRICAL RATINGS
Voltage/60Hz Watts (Cooling)
Rated Amps (Cooling)
115
910
8.3
DIMENSIONS
FEATURES
Thermostat Control Air Direction Remote Controller
Auto Restart
Energy Saver Function
Timer
Fan Speed Cooling
Fan Only Speed Compressor In Door Fan Type Type Air Discharge Outdoor Vent/Exhaust Rear Grille
Chassis Type Available Colors Thermistor
4-Way
•
•
•
24 Hr, On/Off
3
3
Rotary
Turbo
Top
•
•
Thru-The-Wall
Product (WxHxD) Shipping (WxHxD) Net Weight Shipping Weight Stuffing Quantity (40ft)
24" x 14 13/32" x 20 3/32"
27 23/32" x 17 13/32" x 22 13/32"
73 lbs.
83 lbs.
339
LIMITED WARRANTY
1 Year Parts and Labor
UPC CODES
LT0814CNR 048231 372862
Design, features and specifications are subject to change without notice. Non-metric weights and
measurements are approximate.
© 2014 LG Electronics USA, Inc. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp. All
other product and brand names are trademarks or registered trademarks of their respective companies. 3/07/14
