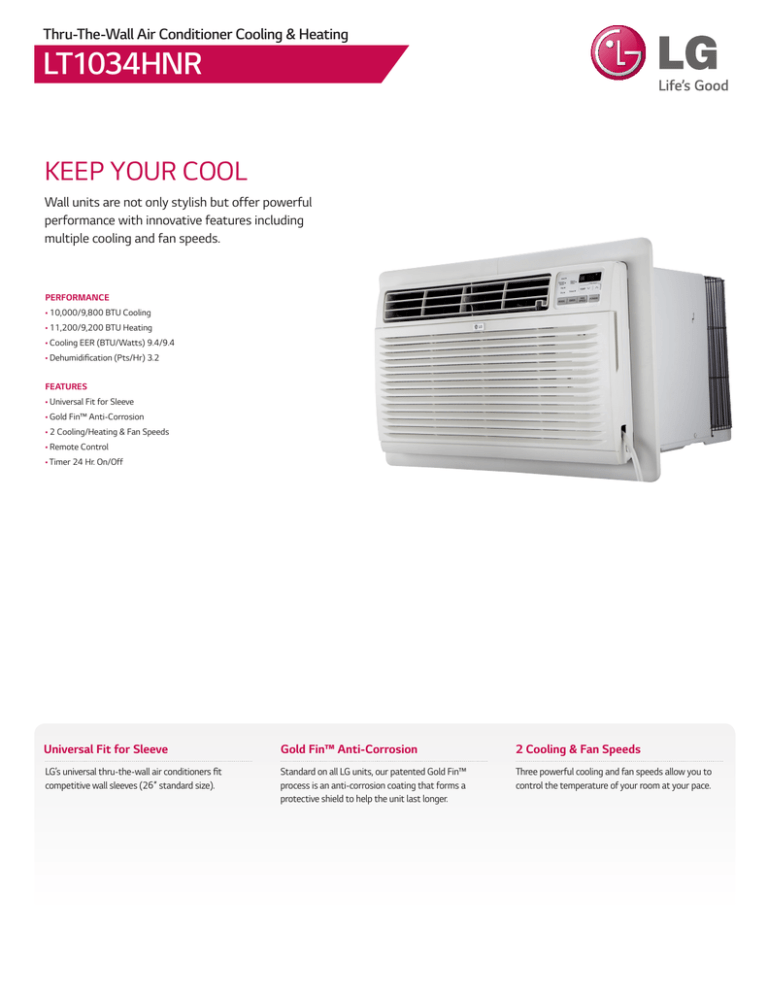

Thru-The-Wall Air Conditioner Cooling & Heating
LT1034HNR
KEEP YOUR COOL
Wall units are not only stylish but offer powerful
performance with innovative features including
multiple cooling and fan speeds.
PERFORMANCE
• 10,000/9,800 BTU Cooling
• 11,200/9,200 BTU Heating
• Cooling EER (BTU/Watts) 9.4/9.4
• Dehumidification (Pts/Hr) 3.2
FEATURES
• Universal Fit for Sleeve
• Gold Fin™ Anti-Corrosion
• 2 Cooling/Heating & Fan Speeds
• Remote Control
• Timer 24 Hr. On/Off
Universal Fit for Sleeve
Gold Fin™ Anti-Corrosion
2 Cooling & Fan Speeds
LG’s universal thru-the-wall air conditioners fit
competitive wall sleeves (26” standard size).
Standard on all LG units, our patented Gold Fin™
process is an anti-corrosion coating that forms a
protective shield to help the unit last longer.
Three powerful cooling and fan speeds allow you to
control the temperature of your room at your pace.
Thru-The-Wall Air Conditioner Cooling & Heating
LT1034HNR
PERFORMANCE
BTU Performance (Cooling)
BTU Performance (Heating)
EER Dehumid. (Pts/Hr) Dry Air Flow (CFM) dBA Level (Indoor/Outdoor) Est. Cooling Area (SQ. FT.) MATERIALS/FINISHES
10,000/9,800
11,200/9,200
9.4/9.4
3.2
285
54/61
450
Available Colors Thermistor
4-Way
•
•
•
24 Hr, On/Off
2 (2)
2
Rotary
Turbo
Top
•
•
XA
DIMENSIONS
FEATURES
Thermostat Control Air Direction Remote Controller
Auto Restart
Energy Saver Function
Timer
Fan Speed Cooling
Fan Only Speed Compressor In Door Fan Type Type Air Discharge Outdoor Vent/Exhaust Rear Grille
Chassis Type White
ELECTRICAL RATINGS
Voltage/60Hz Watts (Cooling)
Watts (Heating)
Rated Amps (Cooling)
Rated Amps (Heating)
Product (WxHxD) Shipping (WxHxD) Net Weight Shipping Weight 230/208, 20 Amp
1,060/1,040
3,500/2,900
4.7/5.2
15.3/14.0
24 21/32" x 14 13/32" x 19 21/32"
27 23/32" x 18 4/32" x 22 13/32"
78 lbs.
88 lbs.
OPTIONAL ACCESSORIES
Wall Sleeve Wall Sleeve with Stamped Aluminum Grille Stamped Aluminum Grille AXSVA1
AXSVA4
AXRGALA01
LIMITED WARRANTY
1 Year Parts and Labor
UPC CODES
LT1034HNR LG Electronics U.S.A., Inc.
1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: (800) 243-0000
LG.com
048231 372923
Design, features and specifications are subject to change without notice. Non-metric weights and
measurements are approximate.
© 2014 LG Electronics USA, Inc. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp. All
other product and brand names are trademarks or registered trademarks of their respective companies. 3/07/14
