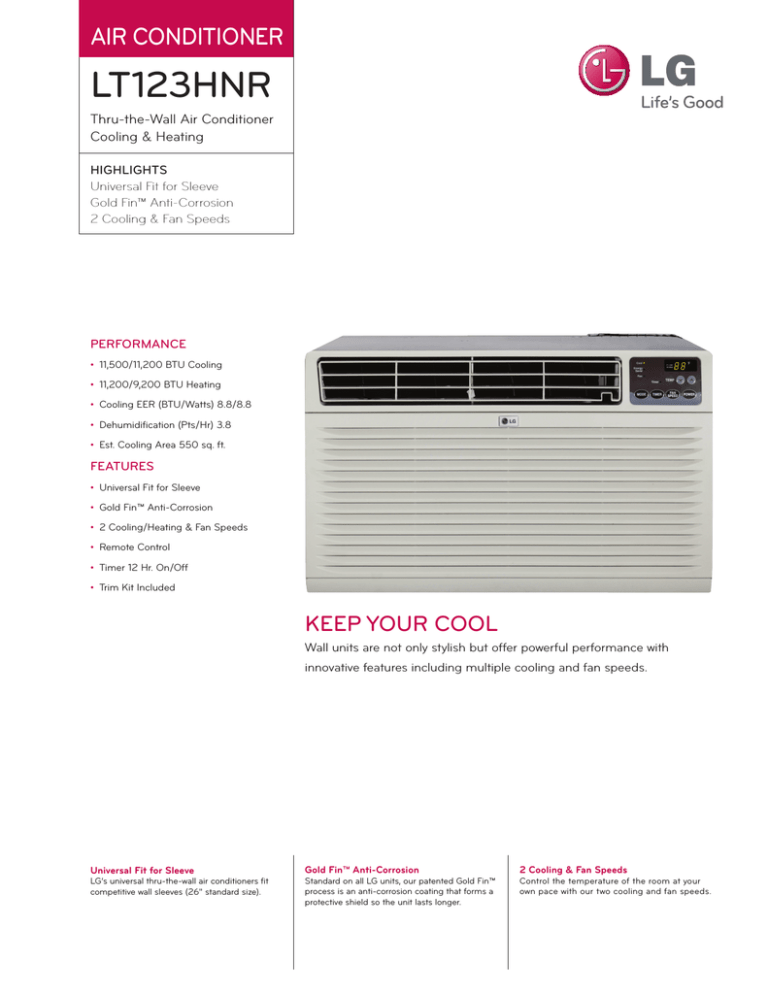

LG LT123HNR Specification
AIR CONDITIONER
LT123HNR
Thru-the-Wall Air Conditioner
Cooling & Heating
HIGHLIGHTS
Universal Fit for Sleeve
Gold Fin™ Anti-Corrosion
2 Cooling & Fan Speeds
PERFORMANCE
• 11,500/11,200 BTU Cooling
• 11,200/9,200 BTU Heating
• Cooling EER (BTU/Watts) 8.8/8.8
• Dehumidification (Pts/Hr) 3.8
• Est. Cooling Area 550 sq. ft.
FEATURES
• Universal Fit for Sleeve
• Gold Fin™ Anti-Corrosion
• 2 Cooling/Heating & Fan Speeds
• Remote Control
• Timer 12 Hr. On/Off
• Trim Kit Included
KEEP YOUR COOL
Wall units are not only stylish but offer powerful performance with
innovative features including multiple cooling and fan speeds.
Universal Fit for Sleeve
LG’s universal thru-the-wall air conditioners fit
competitive wall sleeves (26" standard size).
Gold Fin™ Anti-Corrosion
Standard on all LG units, our patented Gold Fin™
process is an anti-corrosion coating that forms a
protective shield so the unit lasts longer.
2 Cooling & Fan Speeds
Control the temperature of the room at your
own pace with our two cooling and fan speeds.
AIR CONDITIONER
LT123HNR
PERFORMANCE
BTU Performance (Cooling)
BTU Performance (Heating)
EER
Dehumid. (Pts/Hr)
Dry Air Flow (CFM)
dBA Level (Indoor/Outdoor)
Est. Cooling Area (SQ. FT.)
FEATURES
Thermostat Control
Air Deflection
Remote Controller
Auto Restart
Energy Saver Function
Timer
Fan Speed Cooling (Heating)
Fan Only Speed
Compressor
In Door Fan Type
Type Air Discharge
Outdoor Vent/Exhaust
Rear Grille
Chassis Type
11,500/11,200
11,200/9,200
8.8/8.8
3.8
290
52/61
550
Thermistor
4-Way
•
•
•
12 Hr. On/Off
2 (2)
2
Rotary
Turbo
Top
•
•
XA
MATERIALS/FINISHES
Available Colors
White
ELECTRICAL RATINGS
Voltage/60Hz
230/208
Watts (Cooling)
1,310/1,270
Watts (Heating)
3,500/2,900
Rated Amps (Cooling)
6.0/6.4
Rated Amps (Heating)
15.3/14.0
DIMENSIONS
Product (WxHxD)
24 21/32" x 14 13/32" x 19 21/32"
Shipping (WxHxD)
27 23/32" x 18 4/32" x 22 13/32"
Net Weight
80 lbs.
Shipping Weight
87 lbs.
OPTIONAL ACCESSORIES
Wall Sleeve
AXSVA1
Wall Sleeve with Stamped Aluminum Grille
AXSVA4
Stamped Aluminum Grille
AXRGALA01
WARRANTY
1 Year Parts and Labor
UPC CODE
LT123HNR 048231 362788
www.LG.com
Dimensions and weights are approximate. Design, features and specifications
subject to change without notice.
LG Electronics U.S.A., Inc.
© 2011 LG Electronics USA, Inc. All rights reserved. “LG Life’s Good” is a
registered trademark of LG Corp. All other product and brand names are
trademarks or registered trademarks of their respective companies.
1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: (800) 243-0000
HAAC-LT123HNR-SS 04/25/11
