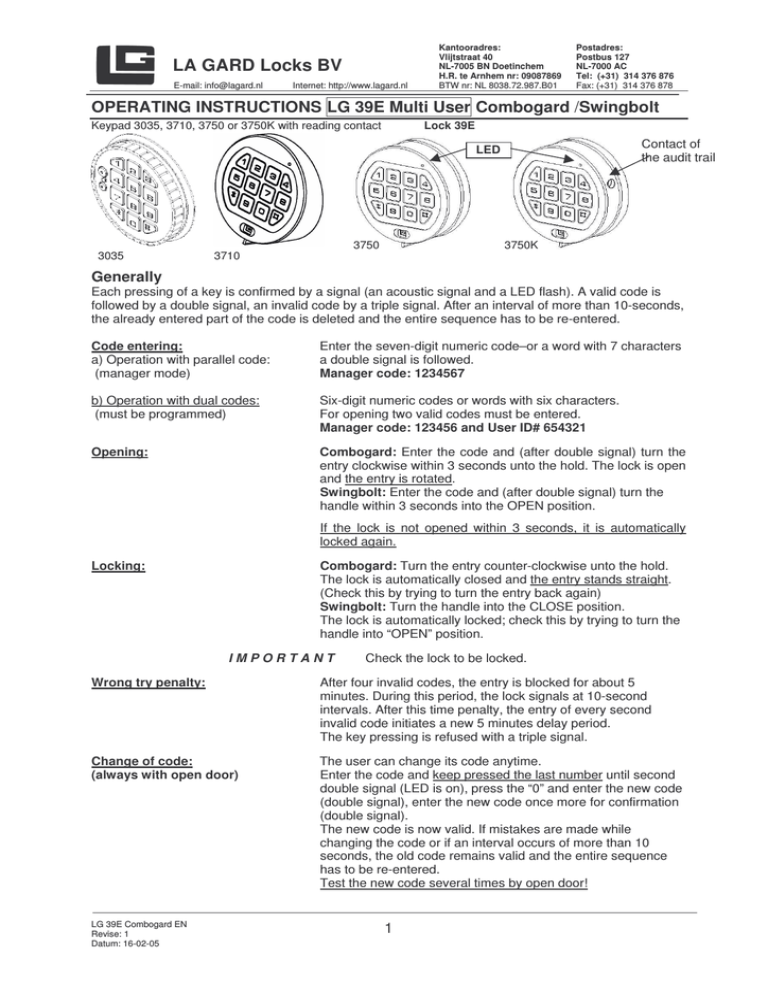

OPERATING INSTRUCTIONS LG 39E Multi User Combogard /Swingbolt
Keypad 3035, 3710, 3750 or 3750K with reading contact
Lock 39E
Contact of
the audit trail
LED
3035
3750
3710
3750K
Generally
Each pressing of a key is confirmed by a signal (an acoustic signal and a LED flash). A valid code is
followed by a double signal, an invalid code by a triple signal. After an interval of more than 10-seconds,
the already entered part of the code is deleted and the entire sequence has to be re-entered.
Code entering:
a) Operation with parallel code:
(manager mode)
Enter the seven-digit numeric code–or a word with 7 characters
a double signal is followed.
Manager code: 1234567
b) Operation with dual codes:
(must be programmed)
Six-digit numeric codes or words with six characters.
For opening two valid codes must be entered.
Manager code: 123456 and User ID# 654321
Opening:
Combogard: Enter the code and (after double signal) turn the
entry clockwise within 3 seconds unto the hold. The lock is open
and the entry is rotated.
Swingbolt: Enter the code and (after double signal) turn the
handle within 3 seconds into the OPEN position.
If the lock is not opened within 3 seconds, it is automatically
locked again.
Combogard: Turn the entry counter-clockwise unto the hold.
The lock is automatically closed and the entry stands straight.
(Check this by trying to turn the entry back again)
Swingbolt: Turn the handle into the CLOSE position.
The lock is automatically locked; check this by trying to turn the
handle into “OPEN” position.
Locking:
IMPORTANT
Check the lock to be locked.
Wrong try penalty:
After four invalid codes, the entry is blocked for about 5
minutes. During this period, the lock signals at 10-second
intervals. After this time penalty, the entry of every second
invalid code initiates a new 5 minutes delay period.
The key pressing is refused with a triple signal.
Change of code:
(always with open door)
The user can change its code anytime.
Enter the code and keep pressed the last number until second
double signal (LED is on), press the “0” and enter the new code
(double signal), enter the new code once more for confirmation
(double signal).
The new code is now valid. If mistakes are made while
changing the code or if an interval occurs of more than 10
seconds, the old code remains valid and the entire sequence
has to be re-entered.
Test the new code several times by open door!
LG 39E Combogard EN
Revise: 1
Datum: 16-02-05
1
LA GARD Locks BV
E-mail: info@lagard.nl
Internet: http://www.lagard.nl
Kantooradres:
Vlijtstraat 40
NL-7005 BN Doetinchem
H.R. te Arnhem nr: 09087869
BTW nr: NL 8038.72.987.B01
Postadres:
Postbus 127
NL-7000 AC
Tel: (+31) 314 376 876
Fax: (+31) 314 376 878
Silent alarm:
(must be programmed)
If feature is active AND optional alarm box or SP-box is connected.
If the last digit is chosen one higher (+1) when entering the code, the lock
will open as usual (double signal), but at the same time the alarm box is
activated. Example: Combination: 471147
Alarm code: 471148
Time delay for opening:
(Must be programmed)
If feature is active:
After entering a valid code (double signal) the delay period starts, the LED
flashes red each 2-second interval.
At the end of the delay period the Open window starts, the LED flashes
each second and the lock beeps every 2 seconds.
To open the lock, a valid code has to be entered during the Open window.
If the Open window expires without the lock being opened, then the lock is
secured again with the Time delay.
Delete current delay time: press key “0”
Extend current delay times: enter valid code. The delay period will start
again.
Time delay override:
(Must be programmed)
The user ID# 9 (money carrier) can open immediately. At the operation
with two codes the ID# 9 is entered as the second code.
Power supply:
When the batteries are running low, the lock will signal for about 3
seconds while being opened. The batteries then have to be changed.
Use DURACELL ALKALINE batteries only!
The codes are stored in the lock also without power supply.
3710, 3750 and 3750K: Battery compartment is in the bottom of the entry.
3035: Open battery box (inside door) and insert new batteries.
If the batteries have not been changed in time and the tension does not
suffice to cancel the lock‘s blocking feature, a new 9V DURACELL
ALKALINE battery can be pressed onto the contacts on the entry, until
the code has been entered and the entry is rotated.
When Time Delay is programmed, use a battery clip (on general sale).
Black upper position, red lower position.
When connected to the alarm equipment through the interlock device “SP“
then the power supply is secured from this place.
Safety notice:
•
•
•
LED and acoustic signals:
1 x short signal
2 x short signal
3 x short signal
6 x short signal
Change the manager code immediately
Do not use personal data (birth date) as a code
Keep the code from unauthorised use
enter confirmation
valid code entered
wrong code, not accepted
remote disable, blocked by the alarm
equipment
LED signal each 10sec. 1 flashing blocking time after a wrong tries
LED signal each 2sec.
Time delay before opening is running
Alternate LED and acoustic signals Time window for opening is running
A series of triple signals, ca. 3seconds: Low battery
Still possible ca. 10 openings.
According to the battery capacity there may be also less signals
therefore the battery change should be made also in case of
double signals
Use 9V DURACELL ALKALINE batteries only!
LG 39E Combogard EN
Revise: 1
Datum: 16-02-05
2
LA GARD Locks BV
E-mail: info@lagard.nl
Internet: http://www.lagard.nl
Manual programming
Factory Mode
(Pre-Setup-mode)
Kantooradres:
Vlijtstraat 40
NL-7005 BN Doetinchem
H.R. te Arnhem nr: 09087869
BTW nr: NL 8038.72.987.B01
Postadres:
Postbus 127
NL-7000 AC
Tel: (+31) 314 376 876
Fax: (+31) 314 376 878
LG 39E Multi User
The lock maybe mounted in the factory mode. It opens when
pressing key “1” and it sends a silent alarm signal.
The advantage is that there is only 1 version storage and an
easy use during mounting.
Exit the Factory-Mode
Keep pressed the key “0” until the double signal (4-5
seconds). Now the manager code is 555555.
Code length and program selection
(6-9 digit code length is possible)
The code length and program selection are made with the
function “8” in a group of 2 digits. The first digit is the code
length and the second one is the program number.
Program 0 = Manager mode (operation with parallel code)
Program 1 = Manager mode with delay override
Program 2 = Operation with two codes
Program 3 = Two code operation with delay override
Program 4 = Manager mode with alarm
Program 5 = Manager with alarm and with delay override
Program 6 = Two code operation with alarm
Program 7 = Two code operation, alarm and delay override
Programming
(function 8)
Enter the manager code “555555” and keep pressed the
last number until the double signal is repeated (LED is on)
and enter “8”. Enter the group of 2-digits (code length and
program number) double signal and repeat the group for
confirmation (double signal).
In case of the 7-digit codes the manager code is 7x “5”.
Install (Enable) user
(function 1)
Enter manager-code and keep last digit pushed until LED
stays on. Press „1“ (double signal) and enter user-ID Nr. f.i.
„1“ (double signal). Enter user code (double signal) and to
confirm, enter the code again. Double signal and LED
extinguished.
In case a new code is not accepted (3-time-signal), this code
is too similar to an already existing code. Select new code.
NOTE: Users who are not installed in this stage will be
blocked after changing the manager code!
Program “freeze”
After changing the manager code the program is „frozen“ and
the program settings can only be changed after a reset to
Factory Mode.
Reset to Factory Mode
In case the manger code is lost or the setting of the lock has
to be changed, a reset can be executed by means of the
RESET-BOX (PN#6066). Unplug battery from the lock or
entry.
Push the "0" button for ca. 3 minutes (or leave it for
10minuts powerless) and plug the RESET-BOX in the BATconnection of the lock. Wait until a longer signal. (0,5 sec)
The Reset-Box requires a connected 9V-DURACELL
ALKALINE-battery.
The lock is in FACTORY MODE. Disconnect Reset-Box and
plug battery back again. Lock opens with “1”.
Safety notice: Do not assign code to the users of no use for the time being.
Remove the codes. (Function 3 and user number)
LG 39E Combogard EN
Revise: 1
Datum: 16-02-05
3
