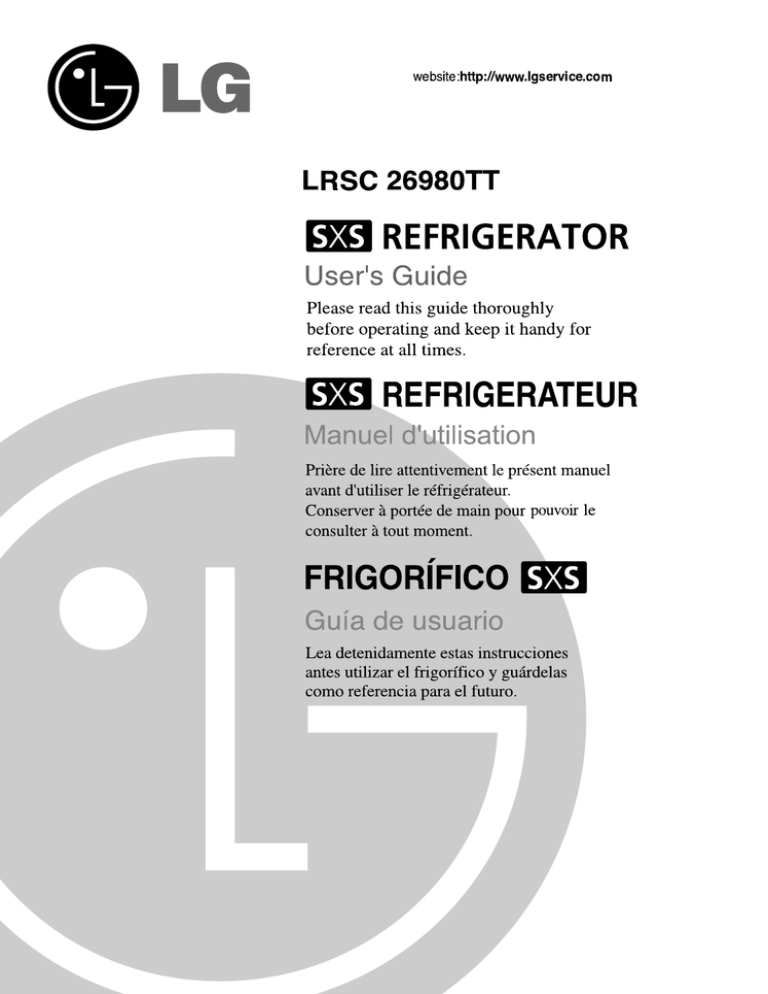

LG 26980TT User manual
website:http://www.lgservice.com
LRSC 26980TT
Table of Contents
Introduction
Installation
Operation
Suggestion on
Food Storage
Care and
Maintenance
2
Entry
3
Important Safety Instruction
3
Identification of Parts
4
Where to Install
5
Door Removal
6
Door Replacement
7
Feed Water Pipe Installation
7
Water Connection Instruction Guide
8
Operation Instruction Guide
10
Height Adjustment
12
External Equipment Connections
13
Starting
14
Adjusting the Temperatures and functions
(Dispenser/Automatic Icemaker)
14
Shelf
20
Wine Holder
20
Can Server Adjustment
20
Egg Bin
21
Humidity Control in the Vegetable Compartment
21
Vegetable/meat compartment
21
Optichill Temperature Transition Corner
22
Location of Foods
23
Storing Foods
24
How to Dismantle Parts
25
General Information
27
Cleaning
27
Troubleshooting
28
Introduction
Entry
The model and serial numbers are found on the inner case or back of refrigerator
compartment of this unit. These numbers are unique to this unit and not
available to others. You should record requested information here and retain
this guide as a permanent record of your purchase. Staple your receipt here.
Date of purchase
Dealer
Dealer address
Dealer phone no.
Model no.
Serial no.
:
:
:
:
:
:
Important safety instruction
Before use, this refrigerator must be properly installed and located in accordance with
the installation instructions in this manual.
Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly
and pull it straight out from the outlet.
When moving your appliance away from the wall, be careful not to roll over the power
cord or to damage it in any way. Do not crush or damage the water line.
After your refrigerator is in operation, do not touch the cold surfaces in the freezer
compartment, particularly when your hands are damp or wet. Skin could adhere to
these extremely cold surfaces.
Unplug the power cord from the power outlet for cleaning or other requirements. Never
touch it with wet hands because you can get an electric shock or be injured.
Never damage, bend, kink, pull out, or twist the power cord because damage to the
power cord can cause product failure, fire, or electric shock. If you have doubts the
appliance is properly grounded, consult a qualified electrician.
Never place glass products in the freezer because they may be broken from expansion
when their contents are frozen.
Never put your hands within the ice storage bin of the automatic icemaker. You can be
injured by the operation of the automatic icemaker.
The appliance is not intended for use by young children without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Never allow anyone to climb, sit, stand, or hang on the door. These actions may
damage the refrigerator and even tip it over, causing severe personal injury.
Before you move your refrigerator into its final location,
it is important to make sure you have the proper electrical
connection:
A 115 Volt, 60 Hz., AC only 15, or 20 ampere fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet that
cannot be turned off by a switch. Do not use an extension cord.
The refrigerator-freezer should be so positioned that the supply plug
is accessible for quick disconnection in the event of an emergency.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or
a similarly qualified person in order to avoid any hazard.
Recommended
Grounding
Method
Accessibility of
Supply Plug
Supply Cord
Replacement
3
Introduction
Child Entrapment
Warning
DANGER: Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
Take off the doors but leave the shelves in place so that children may not easily climb
inside.
The appliance is not intended for use by young children without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Don’t Store
Don’t store or use gasoline or other flammable vapor and liquids in the vicinity of this or
any other appliance.
In the event of an electric short circuit, grounding (earthing) reduces the risk of electric
shock by providing an escape wire for the electric current.
In order to prevent possible electric shock, this appliance must be grounded.
improper use of the grounding plug can result in an electric shock. Consult a qualified
electrician or service person if the grounding instructions are not completely
understood, or if you have doubts on whether the appliance is properly grounded.
Grounding (Earthing)
Identification of Parts
Freezer
Compartment
Refrigerator
Compartment
Dairy Corner
Water Filter
Lamp
Shelf
Door Rack
Automatic
Icemaker
Can Server
Lamp
Shelf
Snack Drawer
Shelf
(steel or glass)
Lamp
Jet Freezing
Door Rack
Vegetable Drawer
Door Rack
Drawer
Optichill
Door Rack
Lower Cover
NOTE
•
4
If you found some parts missing of different from your unit, they may be parts only
used in other models. (i.c. the Optichill is not included in all models)
Installation
Where to Locate
1. Place your appliance where it is easy to use.
Select a Good
Location
2. Avoid placing the unit near heat sources, direct sunlight, or moisture.
3. To avoid vibrations, the appliance must be leveled.
4. Do not install this refrigerator in areas where the ambient temperature is below 41°F.
It will have an adverse effect on performance.
5
Installation
Door removal
Warning
Electric Shock Hazard
Disconnect electrical supply to the refrigerator before installing.
Failure to do so could result in death or serious injury.
If your entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator door and pass the refrigerator laterally.
Remove Lower
Cover and
Water Feed Tube
Remove the lower cover by lifting upward, and
then pull up the water feed tube while pressing
area shown in the figure to the right.
Lower Cover
Water Feed Tube
NOTE
•
Remove the
Freezer
Compartment
Door
If a tube end is deformed or damaged, trim the tube past the bad part.
If the refrigerator has been connected to a water line, disconnecting the tube under
the door will cause about 1.5 litters water to flow out. Please have a large container
ready.
Hinge
Cover
1) Removing the hinge cover by loosening the
screws. Disconnect all connections except
the ground line.
Connection
Wires
Earth Line
Upper Hinge
Keeper
2) Remove the keeper by rotating it counter
clockwise and then lifting the upper
hinge up .
Upper Hinge
NOTE
•
When removing the upper hinge, be careful that the door does not fall forward .
3) Remove the freezer compartment door by lifting it
upward. This time, the door should be lifted enough
for the water feed tube to be completely pulled out
pulled out of the lower hinge.
Lower hinge
NOTE
•
Remove the
Refrigerator
Door
After removing the door, take it into the kitchen where you are installing the
refrigerator. Lay it down on a blanket and be careful to avoid damaging the water
feed tube.
1) Loosen the hinge cover screws and remove
the cover. Remove connection wire, if any,
except for the ground line.
Connection
Wires
2) Remove keeper by rotating it clockwise and then remove the upper hinge by lifting
it up .
Upper Hinge
3) Remove the refrigerator compartment door
by lifting it up.
6
Lower Hinge
Keeper
Installation
Push the refrigerator sideways through the
entrance door as shown in the right picture.
Move the
Refrigerator
Max
5
4
3
2
1
FRZ
TEMP
Min
1
2
REF
TEMP
3
4
5
Max
Door replacement
After the refrigerator is moved to the installation area, install the doors in the reverse
order in which they were removed.
Feed water tube installation
Before
Installation
Automatic icemaker operation needs water pressure of 21.3~121psi is too
much(lb/inch2) (That a 7 ounce paper cup will fill within 3 sec.).
2
If the water pressure does not reach 21.3psi(lb/inch ), it is necessary to purchase a
separate pressure pump for the cool water feed.
Keep the total length of the water feed tube less than 40 feet and be careful not to
bend or kink the tube. If the tube is longer than 40 feet, the icemaker and water
dispenser will not operate properly.
Install the water feed tube away from any heat sources.
Warning
7
Connect to potable water supply only.
Refer to instructions with water filter kit for installation.
Installation
Water Connection Instruction Guide
Connecting
the Refrigerator
to a Water Source
Read all directions carefully before you begin.
Warning
Connect to potable water supply only.
IMPORTANT
Tools Required
•
If operating the refrigerator before installing the water connection, turn icemaker
to the OFF position to prevent operation without water.
•
All installations must be in accordance with local plumbing code requirements.
•
Use copper tubing and check for leaks.
•
Install copper tubing only in areas where temperatures will remain above freezing.
•
It may take up to 24 hours for your icemaker to begin producing ice.
Standard screwdriver
7/16-inch and 1/2-inch open-end wrenches or two adjustable wrenches
1/4-inch nut driver
1/4-inch drill bit
Hand drill or electric drill (properly grounded)
NOTE
•
Cold Water Supply
Your refrigerator dealer has a kit available with a 1/4-inch saddle-type shut-off valve,
a union, and copper tubing. Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes. Do not use a piercing-type or 3/16-inch
saddle valve which reduces water flow and clogs more easily.
The icemaker water valve contains a flow washer which is used as a water
pressure regulator.
The icemaker needs to be connected to a cold water line with water pressure
21.3~121psi(lb/inch2)
8
Installation
Connect
the Tubing to
Water Line
1. Unplug refrigerator or disconnect power.
2. Turn off the main water supply. Turn on the nearest faucet to relieve the
pressure on the line. It may help to open an outside faucet to allow the water to
drain from the line in the house.
3. Find a 1/2-inch to 1-1/4-inch vertical COLD water pipe near the refrigerator.
NOTE
•
Horizontal pipe will work, but the following precaution must be taken: Drill on the top of
the pipe, not the bottom. This will help keep water away from the drill. This also keeps
normal sediment from collecting in the valve.
4. To determine the length of copper tubing you will need, measure from the
connection on the lower left rear of the refrigerator to the water pipe. Add 7
feet (2.1m) to allow for moving refrigerator for cleaning. Use 1/4-inch O.D.
(outside diameter) copper tubing. Be sure both ends of copper tubing are cut
square.
5. Using a drill, drill a 1/4-inch hole in the cold water pipe you have selected.
6. Fasten the shut-off valve to cold water a pipe with pipe clamp. Be sure outlet
end is securely in the 1/4-inch drilled hole and the washer is under the pipe
clamp. Tighten the packing nut. Tighten the pipe clamp screws carefully and
evenly so the washer makes a watertight seal. Do not overtighten or you may
crush the copper tubing, especially if soft (coiled) copper tubing is used. Now
you are ready to connect the copper tubing.
7. Slip the compression sleeve and compression nut onto the copper tubing as
shown. Insert end of the tubing into outlet end squarely as far as it will go.
Screw compression nut onto the outlet end with an adjustable wrench. Do not
over tighten.
8. Place the free end of the tubing into a container or sink, and turn ON main
water supply. Flush out tubing until water is clear. Turn OFF the shutoff valve
on the water pipe. Coil the copper tubing as shown below.
Cold Water Pipe
Pipe Clamp
Coil of Polyethylene or
Copper Tubing
Packing Nut
Shut Off Valve
Compression Sleeve
9
Compression Nut
Installation
Operation Instruction Guide
Connect the Tubing
to the Refrigerator
Before making the connection to the refrigerator, be sure the refrigerator
power cord is not plugged into the
Refrigerator
wall outlet.
Connection
• If your refrigerator does not have a
water filter, we recommend
Ferrule
installing one. sand or particles
could clog the screen of the
Tubing
refrigerator’s water valve. Install
Clamp
the filter in the water line near the
refrigerator.
1/4"
Compression
1. Remove the plastic flexible cap
Nut
from the water valve.
1/4"
2. Place the compression nut and
Tubing
ferrule (sleeve) onto the end of the
tubing as shown.
3. Insert the end of the copper tubing into the connection as far as possible. While
holding the tubing, tighten the fitting.
Turn the Water On at
the Shutoff Valve
Tighten any connections that leak.
Automatic Ice maker
Plug In the Refrigerator
Arrange the coil of copper tubing behind the refrigerator so it does not vibrate
against the back of the refrigerator or against the wall. Push the refrigerator
back to the wall.
Start the lcemaker
Set the icemaking stop switch to the ON position The icemaker will not begin
to operate until it reaches its operating temperature of 15 °F (-9 °C). It will then
begin operation automatically if the icemaking stop switch is in the ON
position.
The automatic icemaker makes 8 cubes at a time, 120/150 pieces per day.
But these quantities may vary according to circumstance, including ambient
temperature, door openings, freezer load.etc.
The Icemaker stops when the bin is full.
NOTE
•
10
It is normal to hear a noise when ice drops into the bin.
Installation
When Icemaker
Does Not Operate
Properly
Ice is clumped together
When ice is clumped together, take the ice clumps out of the ice storage bin,
break them into small pieces, and then place them into the ice storage bin
again.
When the icemaker produces too small or clumped ice, the amount of water
supplied to the ice maker must be adjusted. Contact the service center.
If ice is not used frequently, it may clump together.
Power failure
Water may drop into the freezer compartment. Take the ice storage bin out and
discard all the ice. Dry the bin and replace it.
The unit is newly installed
It takes about 12 hours for a newly installed refrigerator to make ice.
The first ice and water may include particles or odor from the feed water pipe or
feed water box. Throw away the first few batches of ice. This is also necessary if the
refrigerator has not been used for a long time.
CAUTION
Never store beverage cans or other foods in ice storage bin for the purpose of rapid
cooling. Such actions may damage the automatic ice maker.
Never remove the icemaker cover.
Ice may pile up just around the icemaker causing the icemaker to think that the ice
storage bin is full. Shake the bin occasionally to cause the ice to settle.
If discolored ice is dispensed, contact an Authorized Service Center immediately.
Do not use the ice or water until the problem is corrected.
11
Installation
Height Adjustment
If the freezer
compartment door
is lower than the
refrigerator
compartment door
Level the door by inserting a flat ( - type) driver into the groove of the left height adjusting
screw and rotating it clockwise .
If the freezer
compartment door
is higher than the
refrigerator
compartment door
Level the door by inserting a flat ( - type) driver into the groove of the right height
adjusting screw and rotating it clockwise .
After leveling the
door height
The refrigerator doors will close smoothly after adjusting the height adjusting screw
properly. If the doors do not close correctly, performance may be affected.
Next
1. Wipe off all dust accumulated during shipping and clean your appliance thoroughly.
2. Install accessories such as the ice cube box, cover evaporating tray, etc., in their
proper places. They are packed together to prevent possible damage during shipping.
3. Connect the power supply cord (or plug) to the outlet. Use this appliance on a
single-outlet circuit.
12
Installation
External Equipment Connections
Antenna Connection
Antenna or Cable Service without a Cable Box Connections
For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
wall antenna
socket
Bronze Wire
RF coaxial wire (75 ohm)
VHF antenna
UHF antenna
Turn clockwise to tighten.
Bronze Wire
outdoor
antenna
Be careful not to bend the bronze wire when
connecting the antenna.
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
After hooking up the connection turn the TV on
and preform a channel search. On the remote
press menu, Auto program will be highlighted,
and then press right(Volume Up)twice.
In a poor signal area to improve picture quality,
purchase and install a signal amplifier.
If the antenna is not installed properly, contact
your dealer for assistance.
Connection & Viewing Setup
1. Set VCR switch to 3 or 4 and then tune TV to the
same channel number.
2. Insert a video tape into the VCR and press PLAY
on the VCR. (Refer to the VCR owner’s manual.)
VCR Setup
- If your cable service does not require separate converter box please following the
instructions for an antenna connection above.
- For further cable TV information, contact a local cable service provider.
Cable TV Setup
Connection & Viewing Setup
1. Select 3 or 4 with channel switch on cable box.
2. Tune the TV channel to the same selected output
channel of cable box.
3. Select channels at the cable box or
with the cable box remote control.
13
Operation
Starting
When your refrigerator is first installed, allow it to stabilize at normal operating
temperatures for 2-3 hours prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
Adjusting The Temperatures and Functions
ICEBEAM
COOLING
OFF
CUBE
WATER
CRUSH
5
4
3
2
1
FILTER
MONTH
FILTER RESET
HOLD 3 SECS
ROOM TEMP
3 SECS
DISPENSER & KEY
EXPRESS/JET FRZ DISPENSER FREEZER REFRIGERATOR FILTER/LIGHT LOCK
Express/Jet Freezing Button
Dispenser Button
Lock
Dispenser
Selection Button.
Freezer Compartment Temperature Setting
14
Filter Timer Reset
Dispenser Light Toggle
Refrigerator Compartment
Temperature Setting
JET FRZ : (Applicable to some models only)
Operation
You can adjust temperature of the freezer and refrigerator Compartment.
How to adjust the
temperature in
the freezer
compartment
Freezer Compartment temperature adjustment
Setting
temperature
BAR
Indication
How to adjust the
temperature in
the refrigerator
compartment
Refrigerator Compartment temperature adjustment
Setting
temperature
BAR
Indication
❇ Whenever pressing button, setting is repeated in the order of (Middle) ➔
(Middle Strong) ➔ (Strong) ➔ (Weak) ➔ (Middle Weak).
The actual inner temperature varies depending on the food status, as the
indicated setting temperature is the target temperature, not the actual
temperature within the refrigerator.
A new refrigerator will cool better after it has run for several days, so you may
need to re-adjust the temperature after 3 days of use.
Dispenser
selection
You can select water or ice.
❇ Please select water, Crushed ice, or cubed ice by
pressing
button as you desire.
❇ Please press the button gently by pushing in cup.
You will hear a clap when the ice door closes
after ice is dispensed.
DISPENSER
WATER
DISPENSER
•
15
Reference : Hold your cup in place for a couple of seconds after
dispensing ice or water so the last few drips go in
your cup instead of on the floor.
CUBE
CRUSH
Pressing
Switch
Operation
Automatic
Icemaker
The automatic icemaker can automatically make 8 cubes at a time,
120~150 pieces per day. This quantity may vary by circumstance, including ambient
temperature, door opening, freezer load. etc.
Icemaking stops when the ice storage bin is full.
If you don't want to use automatic icemaker, turn the icemaker switch to
OFF. If you want to use automatic ice-maker again, change the switch to ON.
NOTE
•
It is normal that a noise is produced when ice made drops into the ice storage bin.
Ice is lumped together
If the ice lumps together, take it out, break it apart, and put it back into the storage
bin.
When the ice maker produces too small or lumped together ice, the amount of
water supplied to the ice maker needs to adjusted. Contact the service center.
❈ If ice is not used frequently, it may lump together.
When ice maker
does not operate
Properly
Power failure
Ice may drop into the freezer compartment. Take the ice storage bin out and discard
all the ice then dry it and place it back. After the machine is powered again, crushed
ice will be automatically selected.
The unit is newly installed
It takes about 12 hours for a newly installed refrigerator to make ice.
Please select this function for express freeze.
”OFF➝ EXPRESS FRZ➝ JET FRZ➝ OFF” or
”OFF➝ ON➝ OFF” is repeated whenever
EXPRESS/JET FRZ
pressing
button.
Jet Freezer
EXPRESS FRZ
EXPRESS FRZ
EXPRESS/JET FRZ
The arrow mark graphic remains at the On
status after flickering 4 times.
The express freeze function automatically turns
off after a fixed time passes.
Locks the other buttons and the dispenser.
Locking or Release is repeated whenever
is
pressed for more than 3 seconds.
Lock
JET FRZ
Ex) In selecting
Ex) In selecting
On
Off
LOCK
16
If you use the LOCK button, none of the other
buttons will work until you unlock them.
LOCK
3 SECS LOCK
3 SECS
DISPENSER & KEY
DISPENSER & KEY
Ex) In selecting
LOCK
Ex) In selecting
UNLOCK
Operation
The Other
Functions
Ambient Temperature Display Window
Temperature is displayed only between 16°F ~ 120°F.
Temperature less than 15°F is indicated with LO and
temperature more than 121°F is indicated with HI.
ROOM TEMP
Door open warning
A warning tone will sound 3 times at thirty-second intervals if the refrigerator or freezer
door is left open for more than sixty seconds.
Please contact with the local service center if warning continue to sound even after
closing the door.
Diagnosis (failure detection) function
Diagnosis function automatically detects failures.
If your refrigerator fails, do not turn off the power. Instead, contact a local Authorized
service center or call our support line for assistance. Turning off the appliance will
make it more difficult for the service technician to determine the problem.
Water is cooled while stored in the water tank in freezer door, and then sent to the
dispenser.
How Ice/Cold
Water is Supplied
How to Use
Dispenser
17
Select among crushed ice, water, or cubed ice and press the push switch with a glass
or other container.
Water
Light the water lamp
by pressing the
selection button.
• Water will be dispensed
by pressing the push
switch with a glass.
Crushed Ice
Light the crushed ice
lamp by pressing the
selection button.
• Crushed ice will be
dispensed by pressing the
push switch with a glass.
DISPENSER
DISPENSER
WATER
CRUSHED
Cubed Ice
Light the cubed ice
lamp by pressing
the selection
button.
• Cubed ice will be dispensed
by pressing the push
switch with a glass.
DISPENSER
CUBED
Operation
NOTE
Crushed ice will be automatically selected after a power failure or when the power plug
is connected again.
• Place glasses or other containers near the ice outlet otherwise ice is likely to be dropped
on the floor.
• A snap sound will be heard 5 seconds after ice is fully dispensed.
This sound is made when the ice outlet is closed.
• Please leave your glass near the ice outlet for 2-3 seconds after releasing your glass
from pressing the push switch to allow any left over water or ice to be dispensed.
• Please wipe away water dropped below the dispenser by removing the water collector
cover.
• If cubed ice is selected following crushed ice, there may still be some left over
crushed ice dispensed.
•
Dispenser Light
18
The dispenser switch and
the dispenser light button
turn the dispenser light on
and off.
ON
Dispenser light OFF
Dispenser light ON
Dispenser light ON/OFF
LCD
LCD
LED
The dispenser light turns
off automatically after 7 minutes.
Operation
Fiter condition
display
This units displays the months left before thee water filter needs to be changed. It
starts when the unit is first plugged in.
After 6 months, the following sentence and 3 SECS will appear on the filter condition
part of the LCD. FILTER LIGHT 3SECS.
Press and hold the filter button for 3 seconds to reset the filter timer.
FILTER LIGHT
Classification
Filter Status
Display
In initial
Power On
Pass of
a month
Pass of
2 months
Pass of
3 months
Pass of
4 months
Pass of
5 months
MONTH
MONTH
MONTH
MONTH
MONTH
6 FILTER
5 FILTER
4 FILTER
3 FILTER
2 FILTER
1
FILTER MONTH
Pass of
6 months
MONTH
0 FILTER
FILTER LIGHT
3 SECS
Throw away the ice (about 20 pieces) and water (about 7 glasses) first made after
refrigerator installation.
This is also necessary when the refrigerator has not been used for a long time.
Cautions
Keep children away from the dispenser.
Children may play with or damage the controls.
Be careful that food does not block the ice passage.
If foods are placed at the entrance of ice passage,
the dispenser may malfunction. The passage may
also become blocked with frost if only crushed ice
is used. Remove the frost that accumulates.
Storing cans or other items in the ice bin may
damage the icemaker or the container may burst.
Never use thin crystal glass or crockery to collect
ice.
Such glasses or containers may be broken.
Put ice first into a glass before filling water or other beverages.
Water may be splashed if ice is added to existing liquid in a glass.
Keep your hands and tools out of the ice door and passage.
You might break something or injure yourself.
Never remove the ice maker cover.
Shake the ice bin occasionally to level the ice in it.
Sometimes the ice piles up near the icemaker, causing the icemaker to misread the
bin level and stop producing ice.
If discolored ice or water is dispensed, contact an Authorized service center
immediately and discontinue use until the problem is corrected.
Never use too narrow or deep glass.
Ice may be jammed in ice passage and, thus, the refrigerator may be failed.
Keep the glass at a proper distance from ice outlet.
A glass too close to the outlet may hinder ice from coming out.
19
Operation
Shelf
Shelf Height
Adjustment
The refrigerator compartment shelf is movable so that you can place it at a height
according to the space requirement of foods.
1
How to separate a shelf :
Lift the shelf in the direction of
Arrow,then remove it from the rack by
pulling it in the direction of Arrow .
2
1
How to install a shelf :
Holding the shelf up at the front, insert the
tab at the desired height and lower the shelf
into place.
NOTE
•
Make sure the shelf is horizontal. If not, it may drop.
Wine Holder
Wine Holder
Adjustment
Bottles can be stored on their sides in this
wine rack. It can be attached to any shelf.
Wine holder adjustment :
Wine holder can be separated by pulling
it straight out and installed by placing it at
the end of the shelf you want and pushing
it inward.
Can Server adjustment
Cans be stored on their sides out of the way
using the Can server. It can be only be attached
to an upper shelf.
Can Server
Adjustment
20
2
Operation
Egg Bin (Applicable to some models only)
[Normal]
[For Many Eggs]
NOTE
•
•
Never use the egg box as an ice storage bin, it could break.
Never store the egg box in the freezer or the fresh compartment.
Humidity control in the vegetable compartment
The humidity can be controlled by adjusting the humidity control switch to the left
or right when storing vegetabes or fruits.
High humidity
Humidity Control
High
Low
Low
High
Low
Low humidity
Low
h
Hig
Humidity Control
High
Low
High
Vegetable/meat compartment
The bottom drawer in the refrigerator can be used as a vegetable or meat
compartment
The meat compartment maintains the temperature at a lower point than the
refrigerator compartment so that meat or fish can be stored fresh longer.
NOTE
•
21
Vegetables or fruits are frozen if the conversion switch is set to meats
compartment. Be sure to check it before storing foods.
Operation
OptiChill Temperature Transition Bin
By pressing the button, store vegetables,
fruits or other types of food such as meat to
be defrosted.
Method to Use
You can select optimum temperature
range depending on types of foods
stored.
- four steps of temperature selection
are available, including 27°F,30°F,
39°F and 50°F.Vegetables, fruits,
cold storage items requiring humidity
maintenance, meats, and fishes can
be stored under optimal conditions
by selectiong the correct storage
temperature for the foods being stored.
When using the OptiChill to store meats or fishes, fruits, or vegetables may be frozen.
When using the OptiChill to store fruits or vegetables, meats and fishes must be stored
in the freezer compartments.
If you open the refrigerator door, an indicator lamp shows the status of the Optichill.
The lamp goes off when the door is closed.
Press the left SELECT button to cycle through FRUIT VEGE(39°F)➔ CHILLED
ROOM(30°F)➔ PARTIAL FREEZING(27°F)➔ WINE(50°F_Option)➔ FRUIT
VEGE(39°F).
Press the right SELECT button to cycle between
EXPRESS CHILL➔ THAW(Optional).
The thawing setting can be adjusted by the weight of the meats being thawed.
The THAW and the EXPRESS CHILL operations are cancelled when you press left
button.
To remove
First, remove the vegetable bin.
After holding back and front of the OptiChill and pull it outward.
Fit the OptiChill case on to the ledge and gently
slide it in .
When forced, the connecting parts can be damaged.
To install
22
Suggestion on Food Storage
Location of Foods
(Refer to Identification of Parts)
Wine Holder
Store wine.
Snack Drawer
Store small foods such as bread, snacks, etc.
Freezer
Compartment
Shelf
Store various frozen foods such as meat, fish,
ice cream, frozen snacks, etc.
Freezer
Compartment
Door Rack
Freezer
Compartment
Drawer
Store small packed frozen food.
Temperature is likely to increase as door
opens. So, do not store long-term food such
ice cream, etc.
Store meat, fish, chicken, etc. after
wrapping them with thin foil.
Store dry.
Store milk products such as butter, cheese,
etc.
Milk Product
Corner
Egg Bin
Place this egg box in the proper location.
Refreshment
Center
Store foods of frequent use such as beverage,
etc.
Refrigerator
Compartment
Shelf
Store side dishes or other foods at a proper
distance.
Refrigerator
Compartment
Door Rack
Store small packed food or beverages such
as milk, juice, beer, etc.
Vegetable Drawer
Store vegetables or fruits.
Vegetable
Drawer
/Meat Drawer
Conversion
Corner
Store vegetable, fruits, meat to thaw, raw
fish, etc. setting the conversion switch as
necessary.
Be sure to check the conversion switch
setting before storing foods.
23
Suggestion on Food Storage
Storing Foods
Store fresh food in the refrigerator compartment. How food is frozen and thawed is an
important factor in maintaining its freshness and flavor.
Do not store food which spoils easily at low temperatures, such as bananas and
melons.
Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil
other food, and lead to higher energy consumption.
When storing the food, cover it with vinyl wrap or store in a container with a lid. This
prevents moisture from evaporating, and helps food to keep its taste and nutrients.
Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator
temperatures even.
Do not open the door frequently. Opening the door lets warm air enter the refrigerator,
and cause temperatures to rise.
Never keep too much food in door rack because they may push against by inner racks
so that the door cannot be fully closed.
Freezer
Compartment
Refrigerator
Compartment
Do not store bottles in the freezer compartment - they may break when frozen.
Do not refreeze food that has been thawed. This causes loss of taste and nutrient.
When storing frozen food like ice cream for a long period, place it on the freezer
shelf, not in the door rack.
Avoid placing moist food in top refrigerator shelves, it could freeze from direct
contact with chilled air.
Always clean food prior to refrigeration. Vegetables and fruits should be washed and
wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
When storing eggs in their storage rack or box, ensure that they are fresh, and always
store them in an upright position, which keeps them fresh longer.
NOTE
•
24
If you keep the refrigerator in a hot and humid place, frequent opening of the door or
storing a lot of vegetables in it may cause condensation to form which has no effect
on its performance. Remove the condensation with a cloth.
Care and Maintenance
How to Dismantle Parts
NOTE
•
Freezer
Compartment
Lamp
Dismantling is done in the reverse sequence of assembly.
Be sure to unplug the power plug before dismantling and assembly.
Never apply severe force to dismantle parts. Parts may be damaged.
To remove the lamp cover pull out firmly on the
lamp cover and rotate. This should expose the bulb.
Turn the bulb counterclockwise. Max. 40 W
refrigerator bulb is used and can be purchased at a
service center.
Dispenser Lamp
Seperate the lamp by pulling it out, and then
remove the lamp. Max. 15 W refrigerator bulb
is used and can be purchased at a service
center.
Freezer
Compartment
Shelf
To remove a shelf, lift the left part of the shelf
a bit, push it to direction , lift the right part to
direction , and take it out.
Door Rack and
Support
Lift the door rack holding both sides and
pull it in direction .
Ice Storage Bin
Hold the ice storage bin as shown in the figure
to the right and pull it out while slightly lifting
it.
It is recommended not to dismantle the ice
storage bin unless it is necessary.
Use both hands to remove the ice bin to avoid
dropping it.
If the ice bin does not slide into place easily,
twist the drive device slightly.
After Dispenser
Is Used
The water collector has no self-drainage
function. It should be cleaned regularly.
Remove the cover by pulling the front side of
water collector cover and dry it with a cloth.
25
1
2
3
EXPRESS/JET FRZ DISPENSER
FREEZER
REFRIGERATER FILTER/LIGHT
LOCK
1
2
Care and Maintenance
To remove the lamp cover, press the protrusion under the lamp cover to the front and
then pull the lamp cover out.
Turn the bulb counterclockwise. Max. 40 W refrigerator bulb is used and can be
purchased at a service center.
Lamp in
Refrigerator
Compartment
NOTE
•
Be sure to remove parts from the refrigerator door when removing the vegetable
compartment, snack drawer, and refreshment center cover.
2
Vegetable
Compartment
Cover
26
To remove the vegetable compartment
cover, pull out the vegetable compartment
a bit to the front , lift the front part of the
vegetable compartment cover as shown by
, and take it out.
1
Care and Maintenance
General Information
Vacation Time
During average length vacations, you will probably find it best to leave the refrigerator
in operation. Place freezable items in freezer for longer life.
When you plan to store the refrigerator, remove all food, disconnect the power cord,
clean the interior thoroughly, and block the doors open to prevent mold and mildew.
Be certain the stored refrigerator does not present a child entrapment danger.
Power Failure
Most power failures that are corrected in an hour or two will not affect your
refrigerator temperatures.
However, you should minimize the number of door openings while the power is off.
If You Move
Remove or securely fasten down all loose items inside the refrigerator.
To avoid damaging the height adjusting screws, turn them all the way into the base.
The outside wall of the refrigerator cabinet may sometimes get warm, especially just
after installation.
Don’t be alarmed. This is due to the anti-condensation pipe, which pumps hot
refrigerant to prevent sweating on the outer cabinet wall.
AntiCondensation
Pipe
Cleaning
It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled
food should be wiped up immediately, since it may acidify and stain plastic surfaces if
allowed to settle.
Exterior
Use a lukewarm solution of mild soap or detergent to clean the durable finish of your
refrigerator. Wipe with a clean damp cloth and then dry.
Interior
Regular cleaning is recommended. Wash all compartments with a baking soda
solution or a mild detergent and warm water. Rinse and dry.
After Cleaning
Please verify that the power cord is not damaged, power plug is not overheated, and
the power plug is well inserted into the power outlet.
Warning
Always remove the power cord from the wall outlet prior to cleaning in the vicinity of
electrical parts (lamps, switches, controls, etc.).
Wipe up excess moisture with a sponge or cloth to prevent water or liquid from
getting into any electrical part and causing an electric shock.
Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline
solutions, flammable or toxic cleaning liquids on any surface.
Do not touch frozen surfaces with wet or damp hands, because damp object will stick
or adhere to extremely cold surfaces.
27
Care and Maintenance
Troubleshooting
Before calling for service, review this list. It may save you both time and expense.
This list includes common occurrences that are not the result of defective
workmanship or materials in this appliance.
Occurrence
Possible cause
Solution
Running of refrigerator
Refrigerator
compressor
does not run.
Refrigerator
runs too much
or too long
Refrigerator control is off.
Set refrigerator control. See setting the
controls.
Refrigerator is in defrost cycle.
This is normal for a fully automatic
defrosting refrigerator. The defrost
cycle occurs periodically.
Plug at wall outlet is disconnected.
Make sure plug is tightly pushed into
outlet.
Power outage. Check house lights.
Call local electric company.
Refrigerator is larger than the previous
one you owned.
This is normal. Larger, more efficient
units run longer in these conditions.
Room or outside weather is hot.
It is normal for the refrigerator to work
longer under these conditions.
Refrigerator has recently been
disconnected for a period of time.
Large amounts of warm or hot food
may have been stored recently.
It takes some hours for the refrigerator
to cool down completely.
Doors are opened too frequently or too
long.
Warm food will cause the refrigerator to
run longer until the desired temperature
is reached.
Warm air entering the refrigerator
causes it to run longer. Open the door
less often.
Refrigerator or freezer door may be
slightly open.
Make sure the refrigerator is level.
Keep food and containers from
blocking door. See problem section.
OPENING/CLOSING of doors.
Refrigerator control is set too cold.
Set the refrigerator control to a
warmer setting until the refrigerator
temperature is satisfactory.
Refrigerator or freezer gasket is dirty,
worn, cracked, or poorly fitted.
Clean or change gasket. Leaks in the
door seal will cause refrigerator to run
longer in order to maintain desired
temperatures.
Thermostat is keeping the refrigerator
at a constant temperature.
28
This is normal. Refrigerator goes on and
off to keep the temperature constant.
Care and Maintenance
Possible cause
Occurrence
Solution
Temperatures are too cold
Temperature in the
freezer is too cold
but the refrigerator
temperature is
satisfactory.
Temperature in the
refrigerator is too
cold and the freezer
temperature
is satisfactory.
Food stored in
drawers freezes.
Meat stored in
fresh meat
drawer freezes.
Freezer control is set too cold
Set the freezer control to a warmer
setting until the freezer temperature is
satisfactory.
Refrigerator control is set too cold.
Set the refrigerator control to a
warmer setting
Refrigerator control is set too cold.
See above solution.
Meat should be stored at a temperature
just below the freezing point of water (32˚F,
0˚C) for maximum fresh storage time.
It is normal for ice crystals to form due
to the moisture content of meat.
Temperatures are too warm
Temperatures in
the refrigerator
or freezer are
too warm.
Temperature in the
refrigerator
is too warm but
the freezer
temperature is
satisfactory.
29
Freezer control is set too warm.
Set the freezer or refrigerator control to
a colder setting until the freezer or
refrigerator temperature is satisfactory.
Refrigerator control is set too warm.
Refrigerator control has some effect on
freezer temperature.
Set the freezer or refrigerator control to a
colder setting until the freezer or
refrigerator temperature is satisfactory.
Doors are opened too frequently or too
long.
Warm air enters the refrigerator/ freezer
whenever the door is opened.
Open the door less often.
Door is slightly open.
Close the door completely.
Large amounts of warm or hot food
may have been stored recently.
Wait until the refrigerator or freezer
has a chance to reach its selected
temperature.
Refrigerator has recently been
disconnected for a period of time.
A refrigerator requires some hours to
cool down completely.
Door seal damaged.
Check the door seal for damage or
deformity, contact an LG service
Center if it is damaged.
Refrigerator control is set too warm.
Set the refrigerator control to a colder
setting.
Care and maintenance
Occurrence
Possible cause
Solution
Sound and noise
Louder sound
levels when
refrigerator is on.
Today’s refrigerators have increased
storage capacity and maintain more
even temperatures.
It is normal for sound levels to be higher.
Louder sound
levels when
compressor
comes on.
Refrigerator operates at higher pressures
during the start of the ON cycle.
This is normal. The sound will level off as
the refrigerator continues to run.
Vibrating or
rattling noise.
Floor is uneven or weak.
Refrigerator rocks on the floor when it is
moved slightly.
Be sure floor is level and solid and can
adequately support refrigerator.
Items placed on the top of the refrigerator
are vibrating.
Remove items.
Dishes are vibrating on the shelves in
the refrigerator.
It is normal for dishes to vibrate slightly.
Move dishes slightly.
Make sure refrigerator is level and firmly
set on floor.
Refrigerator is touching wall or cabinets.
Move refrigerator so that it does not
touch the wall or cabinets.
Water/Moisture/Ice inside refrigerator
Moisture collects
on the inside walls
of the refrigerator.
The weather is hot and humid which
increases the rate of frost buildup
and internal sweating.
This is normal.
Door is slightly open.
See problem section opening/closing of
doors.
Door is opened too often or too long.
Open the door less often.
Water/Moisture/Ice outside refrigerator
Moisture forms
on the outside of
the refrigerator
or between doors.
30
Weather is humid.
This is normal in humid weather.
When humidity is lower, the moisture
should disappear.
Door is slightly open,causing cold air
from the inside the refrigerator to meet
warm air from the outside.
Make sure the door is closed
completely.
Care and Maintenance
Possible cause
Occurrence
Solution
Odors in refrigerator
Interior needs to be cleaned.
Clean interior with sponge,warm water
and baking soda.
Food with strong odor is in the refrigerator.
Cover food completely.
Some containers and wrapping materials
produce odors.
Use a different container or brand of
wrapping materials.
Opening/Closing of doors/Drawers
Door(s) will not
close.
Food package is keeping door open.
Move packages that keep door from
closing.
Door(s) will not
close.
Door was closed too hard, causing other
door to open slightly.
Close both doors gently.
Refrigerator is not level. It rocks on the
floor when it is moved slightly.
Adjust the height adjusting screw.
Floor is uneven or weak.
Refrigerator rocks on the floor when it
is moved slightly.
Be sure floor is level and can adequately
support refrigerator.
Contact carpenter to correct sagging or
sloping floor.
Refrigerator is touching wall or cabinets.
Move refrigerator..
Food is touching shelf on top of the
drawer
Keep less food in drawer.
Track that drawer slides on is dirty.
Clean drawer and track.
Ice storage bin is empty.
When the first supply of ice is dropped
into the bin, the dispenser should operate.
Freezer temperature is set too warm.
Turn the freezer control to a higher
setting so that ice cubes will be made.
When the first supply of ice is made,
the dispenser should operate.
Household water line valve is not open.
Open household water line valve and
allow sufficient time for ice to be made.
When ice is made, dispenser should
operate.
Refrigerator or freezer door is not closed.
Be sure both doors are closed.
Drawers are
difficult to move.
Dispenser
Dispenser will not
dispense ice
31
Care and Maintenance
Occurrence
Possible cause
Dispenser will
not dispense
ice.
Ice has melted and frozen around auger
due to infrequent use, temperature
fluctuations and/or power outrages.
Remove ice storage bin, and thaw and
the contents. Clean bin, wipe dry and
replace in proper position.
When new ice is made, dispenser should
operate.
Ice dispenser
is jammed.
Ice cubes are jammed between the ice
maker arm and back of the bin.
Remove the ice cubes that are jamming
the dispenser.
Ice cubes are frozen together.
Use the dispenser often so that cubes do
not freeze together.
Ice cubes that have been purchased or
made in some other way have been
used in the dispenser.
Only the ice cubes made by the ice maker
should be used with the dispenser.
Household water line valve is not open.
See problem Icemaker is not making
any ice.
Open household water line valve.
Refrigerator or freezer door is not closed.
Be sure both doors are closed.
Water has been in the tank for too long.
Draw and discard 7 glasses of water
to freshen the supply. Draw and discard
an additional 7 glasses to completely rinse
out tank.
Unit not properly connected to cold
water line.
Connect unit to cold water line which
supplies water to kitchen faucet.
Check the water dispenser to verify the
unit is still receiving water.
Check to power switch on the ice maker.
There will be a switch on the side of the
ice maker, the bar (I) is on and the circle
(O) is off.
Dispenser will
not dispense
water.
Water has an
odd taste
and/or odor.
Ice maker is
not making ice.
Sound of ice
dropping
Sound of water
supply
Other
Solution
This sound is normally made when automatically made ice is dropped into ice storage
bin. Volume may vary according to refrigerator’s location.
This sound is normally made when ice maker is supplied with water after dropping
the automatically made ice.
Please thoroughly read Automatic icemaker and dispenser in this manual.
CUSTOMER ASSISTANCE NUMBERS:
http://www.lgservice.com
Retain your Sales Receipt to prove date of purchase.
A copy of your Sales Receipt must be submitted at the time warranty service is provided.
To Obtain Product, Customer or Service Assistance
Call our Customer Information Center at: 877-714-7486
Tel : 1-877-714-7486
To find the Nearest Authorized Service Center
Call 1-877-714-7486, push option #1, 24 hours a day, 7days per week.
Please have your product type (Monitor, TV, VCR, MWO, Refrigerator) and ZIP code ready.
32
LG Twin Tower, 20, Yoido-Dong,
Youngdungpo-Gu, Seoul, 150-721, Korea.
http://www.lge.com
P/NO : 3828JD8645A
Printed in Korea
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
