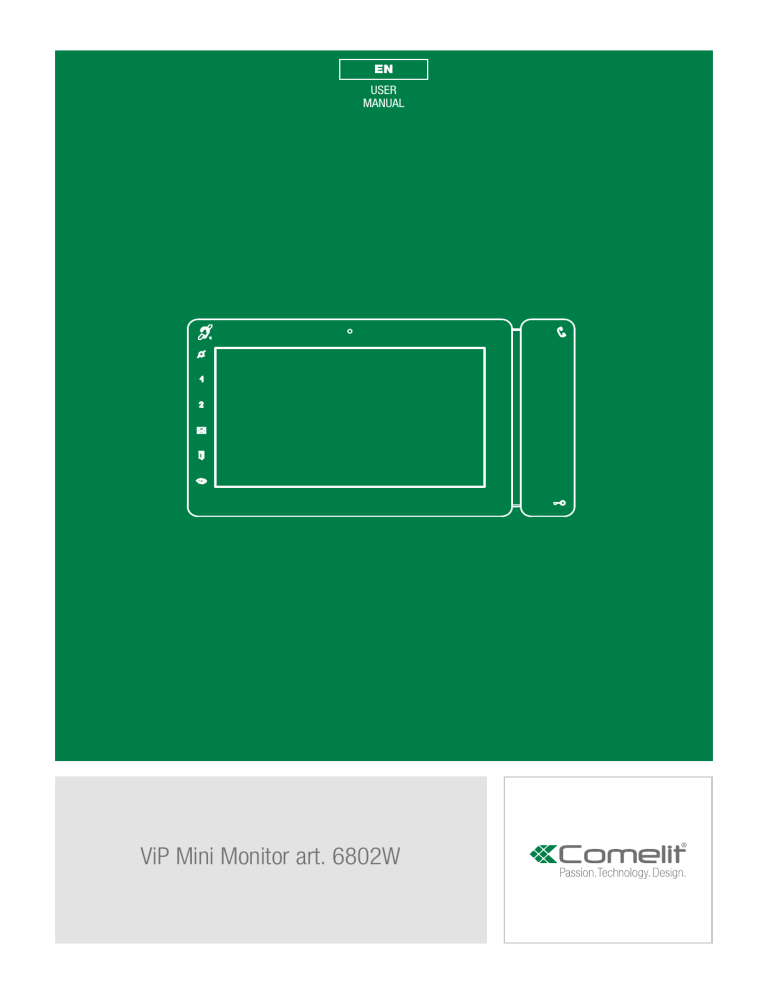

ViP Mini Monitor art. 6802W

ViP Mini Monitor art. 6802W
EN
USER
MANUAL
ViP Mini Monitor art. 6802W
Warning
Intended use
This Comelit product was designed for use in the creation of audio and video communication systems in residential,
commercial or industrial settings and in public buildings or buildings used by the public.
Installation
All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with
careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products.
Wires
Cut off the power supply before carrying out any maintenance procedures.
Use wires with a cross-section suited to the distances involved, observing the instructions provided in the system
manual.
We advise against running the system wires through the same duct as the power cables (230V or higher).
Safe usage
To ensure Comelit products are used safely:
• carefully observe the indications provided in the Manuals / Instruction sheets
• make sure the system created using Comelit products has not been tampered with / damaged.
Maintenance
Comelit products do not require maintenance aside from routine cleaning, which should be carried out in accordance
with the indications provided in the Manuals / Instruction sheets.
Any repair work must be carried out
•for the products themselves, exclusively by Comelit Group S.p.A.,
•for systems, by qualified technical personnel.
Disclaimer
Comelit Group S.p.A. does not assume any responsibility for
• any usage other than the intended use
• non-observance of the indications and warnings contained in this Manual / Instruction sheet.
Comelit Group S.p.A. nonetheless reserves the right to change the information provided in this Manual / Instruction
sheet at any time and without prior notice.
Table of contents
Warning............................................................................................. 2
Description of the monitor............................................................... 3
Key functions.................................................................................... 3
Key to the indicator LEDs................................................................ 3
ViP Maxi Monitor Menu.................................................................... 4
Date and time settings..............................................................................4
Functions available........................................................................... 4
Intercoms...................................................................................................4
Cameras.....................................................................................................4
Doors open................................................................................................4
Answering service setup..........................................................................5
Video memory..............................................................................5
Record always..............................................................................5
Messages...................................................................................................5
Video memory...........................................................................................5
Call divert...................................................................................................5
Actuators...................................................................................................6
2
User Setup menu.............................................................................. 6
Language...................................................................................................6
Lock keys and touch screen....................................................................7
Information................................................................................................7
Volume adjustment...................................................................................7
Backlight adjustment................................................................................7
Melody settings.........................................................................................7
Installer setup menu......................................................................... 8
NAVIGATION TREE....................................................................................8
Description of the monitor
1.
2.
 1.Microphone
5.
 2Built-in magnetic induction loop
3.
 3.7" touch screen
 4.Soft-touch keys / Indicator LEDs
 5.Keys / Indicator LEDs
4.
 6.Micro SD card port
6.
5.
Key functions
Key to the indicator LEDs
 
 
AUDIO: allows you to answer incoming calls
√√ Incoming call:
ff Press to start the conversation
ff Press again to interrupt the conversation
»» (*) It is possible to resume the conversation for
as long as the LED continues to flash
 
STEADY LED: in communication
 
 
[programmable]
3 FLASHES EVERY 5 SEC.: Doctor function
activated
STEADY LED: Privacy mode activated
STEADY AND FLASHING LED: Doctor and Privacy
activated.
ACTUATOR: allows activation of the associated relay
[programmable]
 
PRIVACY: the ringtone will be silenced on receipt
of a call from the external unit and from the
switchboard
DOCTOR: allows automatic operation of the lockrelease on receipt of a call from an external unit
1 FLASH: door opening confirmation
FLASHING LED: call in progress
LOCK-RELEASE: opens the corresponding door
lock
 
(*) FLASHING LED: call in progress
STEADY LED: video memory / Call
divert activated
FLASHING LED: signals presence in directory of a
video message that has not been viewed
 
STEADY LED: signals the opening of one or more
doors
PRIVACY + DOCTOR: activates both functions
 
[programmable [Default: deactivated]
INTERCOM / SELF-IGNITION / CALL PRIORITY
1-4 / LOCK-RELEASE / ACTUATOR / ACTIVATE
OUTPUT / FUNCTION DISABLED
 
 
 
MESSAGE MENU: allows access to the section
Messages
DOORS OPEN: allows access to the section Doors
open
[programmable]
SELF-IGNITION: allows ignition of the external video
unit, and therefore viewing of the external image
INTERCOM / SELF-IGNITION / CALL PRIORITY
1-4 / LOCK-RELEASE / ACTUATOR / ACTIVATE
OUTPUT / FUNCTION DISABLED
3
ViP Maxi Monitor Menu
Functions available
The menu icons vary depending on the type of system
installed and the functions available. To navigate the menu,
simply use your finger to touch the icon corresponding to the
desired function.
ff Touch the display to access the main menu
ff Press the desired menu option to select it
07:15
10/01/2017
When the ACTUATORS DIRECTORY is enabled, the icon
will be displayed in the main menu.
07:15
[Function can be enabled via ViP Manager software].
10/01/2017
Intercoms
ff Navigate the menus by scrolling up/down through the
page
This function allows you to call addresses saved in the
directory.
ff Press the icon to access the
function, then select from the
directory the device which you
wish to call
SETUP
Language
Lock keypad and touch screen
07:15
ff Enter the address in the field to start the communication
10/01/2017
Information
Volume adjustment
ff Short press the icon
screen
ff Press the icon 123 to call a specific ViP address.
[Function can be disabled via ViP Manager software].
to return to the previous
Cameras
This function allows you to view a directory of cameras and to
start live streaming.
ff Press the icon to access the
function, then select from the
directory the camera to be
interrogated
Date and time settings
This function allows you to set the time and date of the
device.
07:15
10/01/2017
SW:
IP:
MAC:
GW:
VIP:
Mem.:
ff Press the date and time
2.0.100
169.254.156.131 (x/24)
00:25:29:03:AA:BB
192.168.1.1
Set the desired values for day / month / year /
00000101 Sub: 0hours / minutes.
128 MB
Save the settings
4
Doors open
07:15
This function allows you to view a directory
of doors to check
10/01/2017
their status (open/closed).
ff Press the icon in the main menu to
access the directory
07:15
10/01/2017
Messages
»»
The soft-touch key LED
illuminates to indicate that one or
more doors are open
ff Press the icon LED to gain
immediate access to the directory,
then select the door to interrogate
in order to start live streaming
from the camera
This function allows you to access the ViP messaging system
of the device.
ff Press the icon to access the
dedicated sub-menu
07:15
10/01/2017
ff Press VIDEO MESSAGES to access the video memory
sub-menu.
Answering service setup
MESSAGES
This function allows you to manage the parameters for the
device's video memory function.
Video messages
ff Press the icon to access the
dedicated sub-menu
07:15
10/01/2017
Examples:
Memory
Video messages
Video memory
Record always
20/02/2017 08:24
1.
Video memory
This function automatically starts audio/video recording in
the event of no reply.
2.
20/02/2017 20:25
3.
  1. Date
  2. Time
  3. Example of a previously viewed recording
ff Tick the box to enable the function
»» The icon in the main menu changes colour
»»
The soft-touch key LED illuminates (Steady light)
ff Short press on the video recording preview to START
playback
ff Short press on the video recording to STOP playback
Record always
ff Long press to delete the video recording
This function automatically starts audio/video recording on
receipt of a call from an external unit.
ff Tick the box to enable the function.
Both functions must be ticked
Video memory
This function allows you to enable/disable the video memory
on the device.
ff Press the icon to enable the
function
07:15
»» The icon in the main menu
10/01/2017
changes colour.
»»
The soft-touch key LED
illuminates (Steady light)
5
Call divert
This function allows you to quickly enable/disable the call
divert function.
User Setup menu
ff Press the icon to enable the
function
07:15
f07:15
f Press the icon
»» The icon in10/01/2017
the main menu
changes colour.
ff Select User setup menu
10/01/2017
Actuators
This function allows you to activate an actuator by selecting it
from the programmed directory.
ff Access the dedicated section,
then select the command
you wish to activate from the
directory
SETUP
Language
Lock keypad and touch screen
Information
Volume adjustment
07:15
10/01/2017
ff Swipe your finger up or down to view all the available
menu options
ff To access the desired sub-menu, press the corresponding
icon
Language
You can change the interface language.
Language
Italiano
English
Français
Español
ff Select the desired language by pressing the relative icon,
then confirm the selection
Lingua
Italiano
Confirm language choice?
English
YES
Français
Español
6
NO
Lock keys and touch screen
The function can be used to lock the device touch screen for
60 seconds, for cleaning purposes.
0
Confirm keypad lock
and touch-screen lock for 60 seconds?
YES
SW:
IP:
MAC:
GW:
VIP:
Mem.:
7
MAX
7
2.0.100
169.254.156.131 (x/24)
00:25:29:03:AA:BB
192.168.1.1
00000101 Sub: 0
128 MB
NO
Save the setting
ff Confirm the operation
Backlight adjustment
»» After 60 seconds, the screen is unlocked automatically.
It is possible to increase and reduce the monitor backlighting
level.
Information
This menu provides technical information about the device
(e.g. type of device, versions, addresses, etc.).
ff Move the cursor to select the desired brightness
0
SW:
IP:
MAC:
GW:
VIP:
Mem.:
2.0.100
169.254.156.131 (x/24)
00:25:29:03:AA:BB
192.168.1.1
00000101 Sub: 0
128 MB
SW:
IP:
MAC:
GW:
VIP:
Mem.:
2.0.100
169.254.156.131 (x/24)
00:25:29:03:AA:BB
192.168.1.1
00000101 Sub: 0
128 MB
SW:
IP:
MAC:
GW:
VIP:
Mem.:
7
MAX
7
2.0.100
169.254.156.131 (x/24)
00:25:29:03:AA:BB
192.168.1.1
00000101 Sub: 0
128 MB
Save the setting
Press the icon to exit the screen.
Volume adjustment
The menu allows you to manage and control the audio
volumes associated with the various functions of the device.
Melody settings
From the menu you can choose a melody for each of the
device's call functions.
ff Select the desired option
ff Select the desired option
Melody settings
External unit call
Vol. adjustment
Intercom call
Audio
Floor door call
Ringtone
Alarms
Keys
ff Press and drag the cursor to adjust the volume.
7
Installer setup menu
Melody selection
Melody 1
f07:15
f Press the icon
ff Select Installer setup menu
10/01/2017
Melody 2
Melody 3
Melody 4
INSTALLER PASSWORD
2..
1..
1. Press the name of the melody to hear a preview
2. Press the circle to conform the selected ringtone
ff Short press the icon
to return to the previous screen
****
1
2
3
4
5
6
7
8
9
0
ff Type in the password (default = 0000) and confirm
NAVIGATION TREE
INSTALLER SETUP MENU.................................................................
Directories...................................................................................................
Intercoms...............................................................................................
CONFIGURE ViP ADDRESS...........................................................
Edit or delete a contact..................................................................
Actuators...............................................................................................
CONFIGURE ViP ADDRESS...........................................................
Doors.....................................................................................................
Cameras.................................................................................................
External unit camera.......................................................................
PAL camera....................................................................................
IP (RSTP) Camera...........................................................................
Key programming........................................................................................
....................................................................................................
Lock-release...................................................................................
Actuator..........................................................................................
............................................................................................................
............................................................................................................
.......................................................................................................
Intercom.........................................................................................
Self-ignition....................................................................................
Alarms.............................................................................................
Lock-release...................................................................................
Actuator..........................................................................................
Activate output...............................................................................
..........................................................................................................
Privacy / Doctor / Privacy Doctor...................................................
Total reset....................................................................................................
Addresses....................................................................................................
ViP ADDRESS PROGRAMMING....................................................
Set ringtone repetition................................................................................
Set call times...............................................................................................
Call divert.....................................................................................................
CONFIGURE ViP ADDRESS...........................................................
WAIT TIME......................................................................................
ACTIVATE TIMED DIVERT..............................................................
ACTIVATE DIVERT WHEN BUSY....................................................
8
Alarm..............................................................................................
Panic...............................................................................................
Fire..................................................................................................
Priority call 4...................................................................................
Hands-free...................................................................................................
For programming and configuration of the internal
unit and the system parameters, use the ViP Manager
1449 software, which can be downloaded from pro.
comelitgroup.com
CERTIFIED MANAGEMENT SYSTEMS
w w w.comelitgroup.com
Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy
1ª edizione 12/2016
cod. 2G40001900
Alarms..........................................................................................................
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
