Life Fitness CLSR-0XXX-01 User manual

Life Fitness CLSR-0XXX-01 User manual

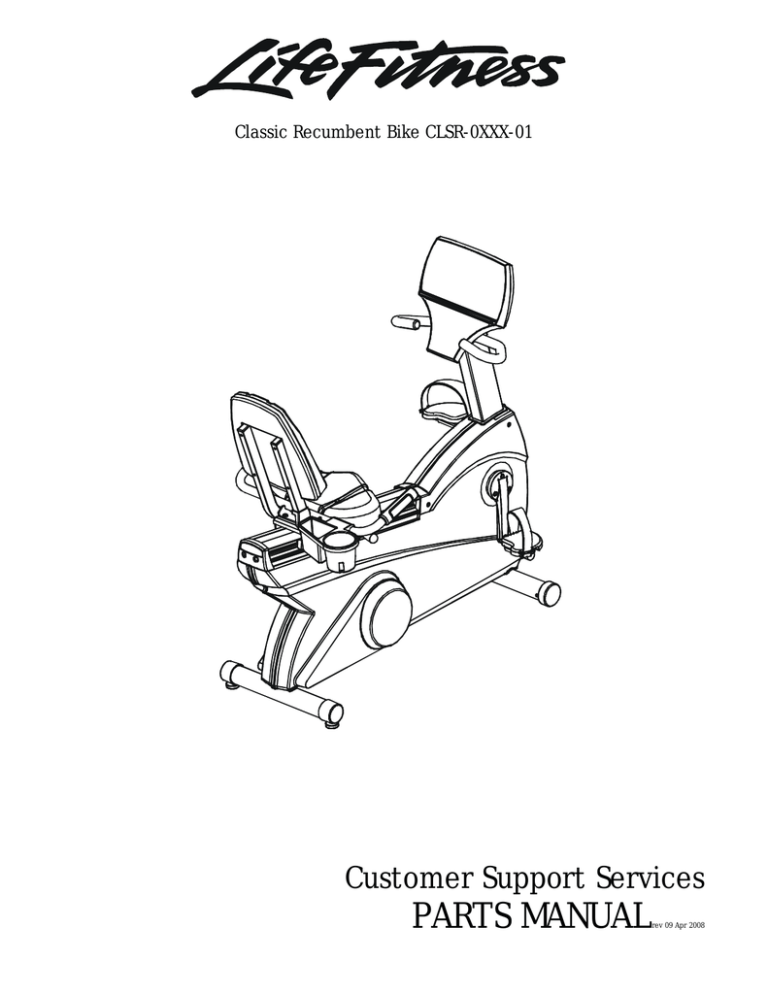

Classic Recumbent Bike CLSR-0XXX-01
Customer Support Services
PARTS MANUAL
rev 09 Apr 2008
CLASSIC RECUMBENT BIKE
Contents
CLSR-0XXX-01
S/N CLR100000 and up
Miscellaneous .......................................................................................................... 3
Console Components.................................................................................................. 4
Console Support Assembly ........................................................................................... 5
Shrouds, End Cap, Crank Arms, and Pedals ...................................................................... 6
Belts and 6V Battery ................................................................................................. 7
Resistor Assembly .................................................................................................... 8
Power Control Board.................................................................................................. 9
Alternator w/Pulley .................................................................................................10
Crankshaft and Bearing Assembly .................................................................................11
Intermediate Shaft and Bearing Assembly .......................................................................12
Idler Bracket Assembly .............................................................................................13
Seat Assembly ........................................................................................................14
Seat Bottom Assembly ...............................................................................................15
Seat Frame Assembly ...............................................................................................16
Seat Pads and Accessory Tray .....................................................................................17
Extrusion Assembly...................................................................................................18
Seat Locking Assembly ..............................................................................................19
Wheel and Leveler ...................................................................................................20
Cables .................................................................................................................21
2
CLASSIC RECUMBENT BIKE
Miscellaneous
CLSR-0XXX-01
S/N CLR100000 and up
Description
Part No.
OPERATION MANUAL
M051-00K39-A167
POWER OPTION KIT 120V
GK39-00002-0002
POWER OPTION KIT 240/50V UK
GK39-00002-0004
POWER OPTION KIT 240V+AUS
GK39-00002-0005
POWER OPTION KIT 230/50V CON
GK39-00002-0006
HARDWARE BAG
GK39-00002-0008
TOUCH UP PAINT:
SPRAY CAN
.5 OZ BOTTLE W/APPLICATOR
.33 OZ PEN
0017-00008-0204
0017-00008-0205
0017-00008-0206
SERVICE MANUAL
M051-00K39-A012
3
CLASSIC RECUMBENT BIKE
Console Components
CLSR-0XXX-01
S/N CLR100000 and up
Polar Receiver
AK39-00064-0000
Cable
AK39-00063-0000
Overlay Bezel/Switch Assembly
Console Board - Upper
A084-92219-A027
Phillips Pan Screws (13)
0017-00101-1650
Double-sided Tape
0K39-01044-0000
Battery Door
0K63-01029-0001
Lower PCB
B084-92222-B000
Language
Eng
Eng Met
Ger Met
Spn Met
Jap Met
Frn Met
Itl Met
Dut Met
Console Case Assembly
AK63-00121-0001
Case
0K63-01028-0001
Decal
0K63-01277-0000
Part
Console
Assembly
AK39-00133-0001
AK39-00133-0002
AK39-00133-0003
AK39-00133-0004
AK39-00133-0006
AK39-00133-0007
AK39-00133-0008
AK39-00133-0009
4
No.
Overlay/Bezel/
Switch Assembly
AK63-00165-0001
AK63-00165-0001
AK63-00165-0003
AK63-00165-0004
AK63-00165-0006
AK63-00165-0007
AK63-00165-0008
AK63-00165-0009
CLASSIC RECUMBENT BIKE
Console Support Assembly
CLSR-0XXX-01
S/N CLR100000 and up
Console Mounting Screws (4)
0017-00101-1744
Grips (2)
0K39-01005-0001
Console Support
AK39-00003-0002
Frame Post Bolts (4)
0017-00101-1756
Frame Post
5
CLASSIC RECUMBENT BIKE
Shrouds, End Cap, Crank Arms, and Pedals
Shroud Screws (7)
0017-00101-1741
Crank Arm, RT
0K39-01042-0007
Screws (3)
0017-00101-1855
CLSR-0XXX-01
S/N CLR100000 and up
Right Shroud
AK39-00136-0000
Decal
0K39-01109-0000
End Cap Screws (2)
0017-00101-1614
End Cap
AK39-00050-0005
Decal
0K51-01085-0001
Right Pedal
AK63-00263-0003
Pedal Strap (not shown)
0K63-01238-0003
Shroud Screws (4)
0017-00101-1741
Left Pedal
AK63-00263-0004
Pedal Strap (not shown)
0K63-01238-0004
Left Shroud
AK39-00137-0000
Decal
0K39-01109-0000
Crank Arm, LT
0K39-01042-0008
Screws (3)
0017-00101-1855
6
CLASSIC RECUMBENT BIKE
Belts and 6V Battery
CLSR-0XXX-01
S/N CLR100000 and up
Intermediate
Pulley Belt
0K63-01066-0001
Screw
0017-00101-1193
Mounting Screw(2)
0017-00101-0975
Bracket
0K51-01036-0000
Screw
0017-00101-1193
Alternator Belt
0017-00009-0735
6V Battery
0017-00003-0685
7
CLASSIC RECUMBENT BIKE
Resistor Assembly
CLSR-0XXX-01
S/N CLR100000 and up
Resistor Assembly
AK39-00020-0001
Washers (2)
0017-00104-0309
Pan Screws (2)
0017-00101-1057
Resistor Retainer
0K39-01043-0000
Resistor
100E-00002-0092
Hex Nuts (3)
0017-00103-0081
Power Cable Assy.
AK39-00006-0000
Mounting Rod
0K63-01166-0000
Mounting Bracket
0K39-01036-0000
8
CLASSIC RECUMBENT BIKE
Power Control Board
CLSR-0XXX-01
S/N CLR100000 and up
Power Control Board Assembly
AK39-00022-0001
Plastic Grommets (4)
0017-00042-0821
Bracket
0K39-01027-0000
Philip Screws (4)
0017-00101-0823
Power Control Board
B084-92218-D002
9
CLASSIC RECUMBENT BIKE
Alternator w/Pulley Assembly
CLSR-0XXX-01
S/N CLR100000 and up
Alternator w/Pulley Assembly
AK63-00093-0000
Alternator Pulley
0K61-02500-0001
Alternator
0017-00009-0841
Locking Nut
0017-00103-0117
Washer
0017-00104-0044
10
Bolt
0017-00101-0956
CLASSIC RECUMBENT BIKE
Crank Shaft and Bearing Assembly
Crank Arm Hub
0K63-01095-0001
CLSR-0XXX-01
S/N CLR100000 and up
Pulley Assembly
AK63-00051-0000
Pulley
0K63-01018-0000
Washers (3)
0017-00104-0458
Flywheel Screws (3)
0017-00101-1715
*Crankshaft & Bearing Kit
GK63-00002-0077
*Crankshaft
0K63-01012-0001
*Small Thrust Washer (2)
0K63-01129-0000
*Large Thrust Washer (2)
0K63-01129-0001
*Bowed Retainer Ring (2)
0017-00100-0243
Washer (2)
0017-00104-0409
*Needle Bearing (2)
0K63-01344-0000
*Small Snap Ring (2)
0017-00100-0241
Crank Arm Hub (2)
0K63-01095-0001
11
Bolt (2)
0017-00101-1705
CLASSIC RECUMBENT BIKE
Intermediate Shaft and Bearing Assembly
CLSR-0XXX-01
S/N CLR100000 and up
Intermediate Shaft and Bearing
Assembly
GK63-00002-0007
Retaining Ring
0017-00100-0242
Clutch Assembly
AK63-00026-0000
Intermediate Bearing
0017-00006-0276
(part of kit)
DELRIN Washers (2) Intermediate
0017-00104-0455
Bearing
(part of kit)
0017-00006-0276
(part of kit)
Spacer
0K63-01236-0000
Intermediate Pulley
Assembly (includes magnet)
AK63-00052-0000
12
Intermediate Pulley
AK63-00087-0000
(part of kit)
CLASSIC RECUMBENT BIKE
Idler Bracket Assembly
CLSR-0XXX-01
S/N CLR100000 and up
Idler Bracket Assembly
AK63-00021-0000
Idler Bracket
0K63-01050-0000
Lock Nut
0017-00103-0218
13
Idler Bearing
AK63-00008-0000
CLASSIC RECUMBENT BIKE
Seat Assembly
CLSR-0XXX-01
S/N CLR100000 and up
Screws (4)
0017-00101-1745
End Caps (4)
0K19-01208-0001
Washers (8)
0017-00104-0461
Double-sided
Foam Tape (2)
0K19-01222-0000
Heart Rate Electrode
AK63-00014-0003
Handlebar w/Insert
AK39-00024-0002
Bushing Hole
0017-00042-0866
Screws (2)
0017-00101-1282
Seat Assembly
AK51-00023-0003
Tape (2)
0K19-01222-0000
Flat-Flex Cable
AK19-00082-0001
Cable Sleeve
0K19-01230-0000
Hex Bolts (4)
0017-00101-1749
14
Upper Flex Cable Clamp
0K19-01221-0000
CLASSIC RECUMBENT BIKE
Seat Assembly - Bottom
CLSR-0XXX-01
S/N CLR100000 and up
Roller Shields (4)
0K51-01059-0001
Washer
0017-00104-0461
Spacers (4)
0K51-01044-0000
Locking Nuts (4)
0017-00103-0326
Washers (4)
0017-00104-0463
Washers (4)
0017-00104-0462
Screws (2)
0017-00101-1748
Lock Assembly
AK51-00053-0001
Bolts (4)
0017-00101-1743
Locking Nuts (8)
0017-00103-0325
Roller Assembly
AK51-00056-0001
Rollers, RT (2)
0K51-01034-0001
Rollers, LT (2)
0K51-01034-0002
15
CLASSIC RECUMBENT BIKE
Seat Frame Assembly
CLSR-0XXX-01
S/N CLR100000 and up
Seat Assembly Frame
AK39-00036-0002
Screws (4)
0017-00101-1746
Washers (4)
0017-00104-0462
Front Stop Bracket
0K51-01062-0000
Plastic Shield
0K19-01185-0001
Split Clamp
0017-00042-0880
Pan Screw
0017-00101-1295
Push Mount Wire Clips (2)
0017-00042-0879
16
CLASIC RECUMBENT BIKE
Seat Pads and Accessory Tray
CLSR-0XXX-01
S/N CLR100000 and up
Accessory Tray
AK39-00052-0003
Seat Back
0K51-01055-0001
Seat Bottom
0K51-01054-0001
Washers (4)
0017-00104-0462
Mounting Screws (4)
0017-00101-1743
17
CLASIC RECUMBENT BIKE
Extrusion Assembly
CLSR-0XXX-01
S/N CLR100000 and up
Bumper
0017-00041-0654
Seat Extrusion Assembly
AK39-00027-0005
Stop Bracket
0K51-01061-0001
Screws (2)
0017-00101-1751
Locking Rack
0K51-01013-0002
Screws (2)
0017-00101-1750
Decal
0K51-01039-0001
Plastic Grommet2 (2)
0017-00042-1055
Bolts (2)
0017-00101-1183
Extrusion Assy.
AK39-00029-0001
18
CLASSIC RECUMBENT BIKE
Locking Assembly
CLSR-0XXX-01
S/N CLR100000 and up
Locking Assembly
AK51-00053-0001
TORX Screw
0017-00101-1742
Anti-Rattle Washer
0K51-01060-0001
Knob
AK51-00029-0001
Retainer Bearing
0K51-01011-0000
Handle Shaft
0K51-01007-0000
E-Ring
0017-00100-0018
Groove Pin
0017-00007-0245
Washer
0017-00104-0421
Compression Spring
0K51-01012-0000
Housing-Insert Assembly
AK51-00030-0001
Locking-Block Assembly
AK19-00147-0000
19
CLASSIC RECUMBENT BIKE
Wheel and Leveler
CLSR-0XXX-01
S/N CLR100000 and up
Rear Stabilizer
GK39-00002-0012
End Cap
0K63-01219-0001
Lock Nut
0017-00103-0273
Leveler
0017-00009-0795
Leveler Assembly
AK61-00035-0000
Pan Screws (2)
0017-00101-1747
Wheel Assembly
AK63-00016-0001
Flat Washer
0K63-01041-0000
Wheel Screw
0017-00101-1747
Wheel Insert
0K63-01039-0000
20
CLASSIC RECUMBENT BIKE
Cables
CLSR-0XXX-01
S/N CLR100000 and up
AK63-00050-0000
Reed Switch Assy.
Life Pulse Extension
AK19-00081-0002
Cable Coax - AK32-00020-0001
Cable Power Ext - AK32-00078-0001
21
