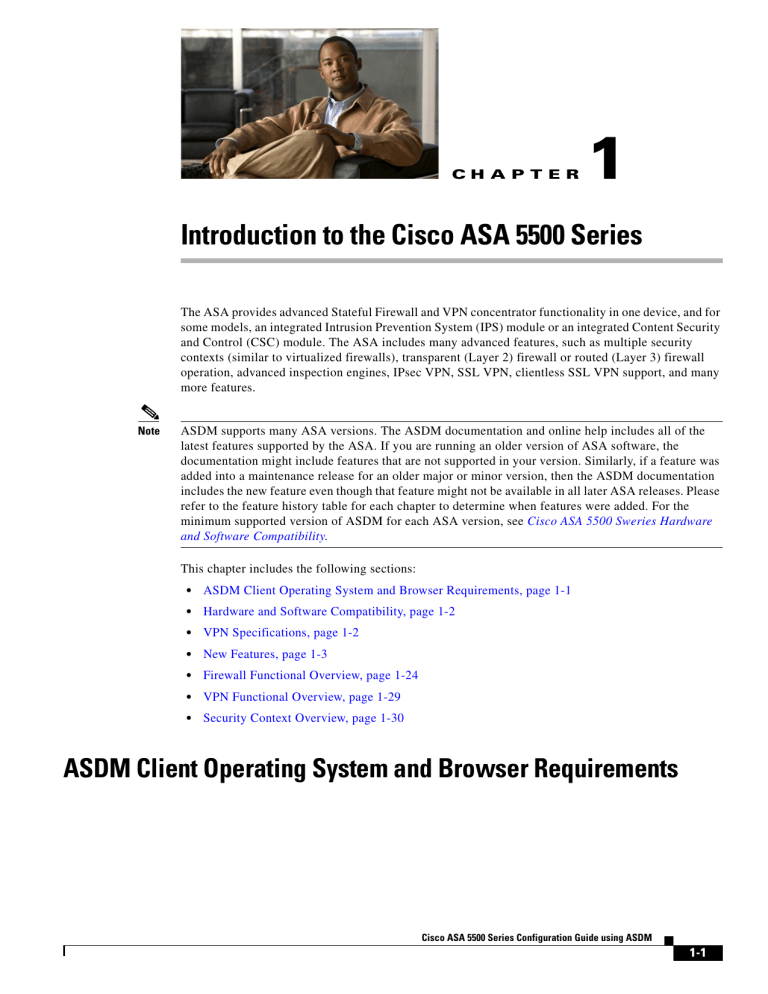

Introduction to the Cisco ASA 5500 Series
C H A P T E R
1
Introduction to the Cisco ASA 5500 Series
The ASA provides advanced Stateful Firewall and VPN concentrator functionality in one device, and for some models, an integrated Intrusion Prevention System (IPS) module or an integrated Content Security and Control (CSC) module. The ASA includes many advanced features, such as multiple security contexts (similar to virtualized firewalls), transparent (Layer 2) firewall or routed (Layer 3) firewall operation, advanced inspection engines, IPsec VPN, SSL VPN, clientless SSL VPN support, and many more features.
Note
ASDM supports many ASA versions. The ASDM documentation and online help includes all of the latest features supported by the ASA. If you are running an older version of ASA software, the documentation might include features that are not supported in your version. Similarly, if a feature was added into a maintenance release for an older major or minor version, then the ASDM documentation includes the new feature even though that feature might not be available in all later ASA releases. Please refer to the feature history table for each chapter to determine when features were added. For the minimum supported version of ASDM for each ASA version, see
Cisco ASA 5500 Sweries Hardware and Software Compatibility
.
This chapter includes the following sections:
•
ASDM Client Operating System and Browser Requirements, page 1-1
•
•
•
•
•
•
Hardware and Software Compatibility, page 1-2
Firewall Functional Overview, page 1-24
VPN Functional Overview, page 1-29
Security Context Overview, page 1-30
ASDM Client Operating System and Browser Requirements
Cisco ASA 5500 Series Configuration Guide using ASDM
1-1
Chapter 1 Introduction to the Cisco ASA 5500 Series
Hardware and Software Compatibility
Table 1-1 lists the supported and recommended client operating systems and Java for ASDM.
Operating System and Browser Requirements Table 1-1
Operating System
Microsoft Windows (English and Japanese):
•
•
7
Vista
•
•
2008 Server
XP
Apple Macintosh OS X:
•
10.7
3
•
•
10.6
10.5
•
•
10.4
Red Hat Enterprise Linux 5 (GNOME or
KDE):
Desktop
Browser
Internet Explorer Firefox
2
6.0 or later
2
1.5 or later
No support
N/A
1.5 or later
1.5 or later
Safari
No support
2.0 or later
N/A
Sun Java SE
Plug-in
1
6.0
6.0
6.0
•
Desktop with Workstation
1.
Support for Java 5.0 was removed in ASDM 6.4. Obtain Sun Java updates from java.sun.com
.
2.
ASDM requires an SSL connection from the browser to the ASA. By default, Internet Explorer on Windows Vista and later and Firefox on all operating systems do not support base encryption (DES) for SSL, and therefore require the ASA to have a strong encryption (3DES/AES) license. For Windows
Internet Explorer, you can enable DES as a workaround. See http://support.microsoft.com/kb/929708 for details. For Firefox on any operating system, you can enable the security.ssl3.dhe_dss_des_sha setting as a workaround. See http://kb.mozillazine.org/About:config to learn how to change hidden configuration preferences.
3.
6.4(7) and later. You may be prompted to install Java the first time you run ASDM; follow the prompts as necessary. ASDM will launch after the installation completes.
Hardware and Software Compatibility
For a complete list of supported hardware and software, see the Cisco ASA Compatibility: http://www.cisco.com/en/US/docs/security/asa/compatibility/asamatrx.html
VPN Specifications
See Supported VPN Platforms, Cisco ASA 5500 Series: http://www.cisco.com/en/US/docs/security/asa/compatibility/asa-vpn-compatibility.html
1-2
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
This section includes the following topics:
•
New Features in Version 8.6(1)/6.6(1), page 1-3
•
•
•
•
•
New Features in Version 8.4(4.1)/6.4(9), page 1-5
New Features in Version 8.4(3)/6.4(7), page 1-9
New Features in Version 8.4(2)/6.4(5), page 1-12
New Features in Version 8.2(5)/6.4(3), page 1-18
New Features in Version 8.4(1)/6.4(1), page 1-19
Note
New, changed, and deprecated syslog messages are listed in syslog message guide.
New Features
Note
Version 8.4(4) was removed from Cisco.com due to build issues; please upgrade to Version 8.4(4.1) or later.
New Features in Version 8.6(1)/6.6(1)
Released: February 28, 2012
Table 1-2 lists the new features for ASA Version 8.6(1)/ASDM Version 6.6(1). This ASA software version is only supported on the ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and ASA
5555-X.
Note
Version 8.6(1) includes all features in 8.4(2), plus the features listed in this table.
Features added in 8.4(3) are not included in 8.6(1) unless they are explicitly listed in this table.
Table 1-2 New Features forASA Version 8.6(1)/ASDM Version 6.6(1)
Feature Description
Hardware Features
Support for the ASA 5512-X through ASA 5555-X
We introduced support for the ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and
ASA 5555-X.
IPS Features
Support for the IPS SSP for the ASA 5512-X through
ASA 5555-X
We introduced support for the IPS SSP software module for the ASA 5512-X, ASA 5515-X,
ASA 5525-X, ASA 5545-X, and ASA 5555-X.
We did not modify any screens.
Remote Access Features
Clientless SSL VPN browser support
The ASA now supports clientless SSL VPN with Microsoft Internet Explorer 9 and Firefox 4.
Also available in Version 8.4(3).
Cisco ASA 5500 Series Configuration Guide using ASDM
1-3
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-2 New Features forASA Version 8.6(1)/ASDM Version 6.6(1) (continued)
Feature
Compression for DTLS and
TLS
Description
To improve throughput, Cisco now supports compression for DTLS and TLS on AnyConnect
3.0 or later. Each tunneling method configures compression separately, and the preferred configuration is to have both SSL and DTLS compression as LZS. This feature enhances migration from legacy VPN clients.
Note
Using data compression on high speed remote access connections passing highly compressible data requires significant processing power on the ASA. With other activity and traffic on the ASA, the number of sessions that can be supported on the platform is reduced.
We modified the following screen: Configuration > Remote Access VPN > Clientless SSL
VPN Access > Group Policies > Edit > Edit Internal Group Policy > Advanced > AnyConnect
Client > SSL Compression.
Clientless SSL VPN Session
Timeout Alerts
Also available in Version 8.4(3).
Allows you to create custom messages to alert users that their VPN session is about to end because of inactivity or a session timeout.
We introduced the following screens:
Remote Access VPN > Configuration > Clientless SSL VPN Access > Portal > Customizations
> Add/Edit > Timeout Alerts
Remote Access VPN > Configuration > Clientless SSL VPN Access > Group Policies >
Add/Edit General
Also available in Version 8.4(3).
Multiple Context Mode Features
Automatic generation of a
MAC address prefix
In multiple context mode, the ASA now converts the automatic MAC address generation configuration to use a default prefix. The ASA auto-generates the prefix based on the last two bytes of the interface MAC address. This conversion happens automatically when you reload, or if you reenable MAC address generation. The prefix method of generation provides many benefits, including a better guarantee of unique MAC addresses on a segment. If you want to change the prefix, you can reconfigure the feature with a custom prefix. The legacy method of
MAC address generation is no longer available.
Note
To maintain hitless upgrade for failover pairs, the ASA does not convert the MAC address method in an existing configuration upon a reload if failover is enabled.
However, we strongly recommend that you manually change to the prefix method of generation. After upgrading, to use the prefix method of MAC address generation, reenable MAC address generation to use the default prefix.
We modified the following screen: Configuration > Context Management > Security Contexts
AAA Features
1-4
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-2 New Features forASA Version 8.6(1)/ASDM Version 6.6(1) (continued)
Feature
Increased maximum LDAP values per attribute
Support for sub-range of
LDAP search results
Description
The maximum number of values that the ASA can receive for a single attribute was increased from 1000 (the default) to 5000, with an allowed range of 500 to 5000. If a response message is received that exceeds the configured limit, the ASA rejects the authentication. If the ASA detects that a single attribute has more than 1000 values, then the ASA generates informational syslog 109036. For more than 5000 attributes, the ASA generates error level syslog 109037.
We introduced the following command: ldap-max-value-range number (Enter this command in aaa-server host configuration mode).
ASDM does not support this command; enter the command using the Command Line Tool.
Also available in Version 8.4(3).
When an LDAP search results in an attribute with a large number of values, depending on the server configuration, it might return a sub-range of the values and expect the ASA to initiate additional queries for the remaining value ranges. The ASA now makes multiple queries for the remaining ranges, and combines the responses into a complete array of attribute values.
Also available in Version 8.4(3).
Troubleshooting Features
Regular expression matching for the show asp
table classifier and show
asp table filter commands
You can now enter the show asp table classifier and show asp table filter commands with a regular expression to filter output.
We modified the following commands: show asp table classifier match regex, show asp table
filter match regex.
ASDM does not support this command; enter the command using the Command Line Tool.
Also available in Version 8.4(3).
New Features in Version 8.4(4.1)/6.4(9)
Released: June 18, 2012
Table 1-3 lists the new features for ASA Version 8.4(4.1)/ASDM Version 6.4(9).
Note
Version 8.4(4) was removed from Cisco.com due to build issues; please upgrade to Version 8.4(4.1) or later.
Cisco ASA 5500 Series Configuration Guide using ASDM
1-5
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-3 New Features for ASA Version 8.4(4.1)/ASDM Version 6.4(9)
Feature
Certification Features
FIPS and Common Criteria certifications
Description
The FIPS 140-2 Non-Proprietary Security Policy was updated as part of the Level 2 FIPS 140-2 validation for the Cisco ASA 5500 series adaptive security appliances, which includes the
Cisco ASA 5505, ASA 5510, ASA 5520, ASA 5540, ASA 5550, and ASA 5585-X.
The Common Criteria Evaluation Assurance Level 4 (EAL4) was updated, which provides the basis for a specific Target of Evaluation (TOE) of the Cisco ASA and VPN platform solutions.
This feature is not available in 8.5(1), 8.6(1), 8.7(1), 9.0(1), or 9.1(1).
Remote Access Features
Clientless SSL VPN:
Enhanced quality for rewriter engines
The clientless SSL VPN rewriter engines were significantly improved to provide better quality and efficacy. As a result, you can expect a better end-user experience for clientless SSL VPN users.
We did not add or modify any ASDM screens for this feature.
This feature is not available in 8.5(1), 8.6(1), or 8.7(1).
Authentication and Encryption Features
Support for password policy The ASA enables administrators with the necessary privileges to modify password policy for users in the current context.
We introduced the following screen:
Configuration > Device Management > Users/AAA > Password Policy
This feature is not available in 8.5(1), 8.6(1), 8.7(1), 9.0(1), or 9.1(1).
Support for password change The ASA enables administrators with the necessary privileges to change passwords for users in the current context.
Support for SSH public key authentication
We introduced the following screen:
Configuration > Device Management > Users/AAA > Change Password
This feature is not available in 8.5(1), 8.6(1), 8.7(1), 9.0(1), or 9.1(1).
The ASA enables administrators with the necessary privileges to authenticate users in the current context using an SSH public key.
We introduced the following screen:
Support for maximum number of management sessions allowed and
Diffie-Hellman Key
Exchange Group 14 support for SSH
Configuration > Device Management > Users/AAA > User Accounts > Edit User Account >
Public Key Authentication.
This feature is not available in 8.5(1), 8.6(1), 8.7(1), 9.0(1), or 9.1(1).
The maximum number of simultaneous ASDM, SSH, and Telnet sessions allowed was added.
Support for Diffie-Hellman Key Exchange Group 14 for SSH was added.
We introduced or modified the following screens:
Configuration > Device Management > Management Access > Management Session Quota
Configuration > Device Management > Management Access > ASDM/HTTPS/Telnet/SSH.
This feature is not available in 8.5(1), 8.6(1), 8.7(1), 9.0(1), or 9.1(1).
1-6
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-3 New Features for ASA Version 8.4(4.1)/ASDM Version 6.4(9) (continued)
Feature
Additional ephemeral
Diffie-Hellman ciphers for
SSL encryption
Description
The ASA now supports the following ephemeral Diffie-Hellman (DHE) SSL cipher suites:
•
•
DHE-AES128-SHA1
DHE-AES256-SHA1
These cipher suites are specified in RFC 3268, Advanced Encryption Standard (AES)
Ciphersuites for Transport Layer Security (TLS).
When supported by the client, DHE is the preferred cipher because it provides Perfect Forward
Secrecy. See the following limitations:
•
•
DHE is not supported on SSL 3.0 connections, so make sure to also enable TLS 1.0 for the
SSL server.
Some popular applications do not support DHE, so include at least one other SSL encryption method to ensure that a cipher suite common to both the SSL client and server can be used.
•
Some clients may not support DHE, including AnyConnect 2.5 and 3.0, Cisco Secure
Desktop, and Internet Explorer 9.0.
We modified the following screen: Configuration > Device Management > Advanced > SSL
Settings.
This feature is not available in 8.5(1), 8.6(1), 8.7(1), 9.0(1), or 9.1(1).
File System Features
Image verification Support for SHA-512 image integrity checking was added.
This feature is not available in 8.5(1), 8.6(1), 8.7(1), 9.0(1), or 9.1(1).
Failover Features
Configure the connection replication rate during a bulk sync
You can now configure the rate at which the ASA replicates connections to the standby unit when using Stateful Failover. By default, connections are replicated to the standby unit during a 15 second period. However, when a bulk sync occurs (for example, when you first enable failover), 15 seconds may not be long enough to sync large numbers of connections due to a limit on the maximum connections per second. For example, the maximum connections on the
ASA is 8 million; replicating 8 million connections in 15 seconds means creating 533 K connections per second. However, the maximum connections allowed per second is 300 K. You can now specify the rate of replication to be less than or equal to the maximum connections per second, and the sync period will be adjusted until all the connections are synced.
This feature is not available in 8.6(1) or 8.7(1). This feature is also in 8.5(1.7).
Application Inspection Features
SunRPC change from dynamic ACL to pin-hole mechanism
Previously, Sun RPC inspection does not support outbound access lists because the inspection engine uses dynamic access lists instead of secondary connections.
In this release, when you configure dynamic access lists on the ASA, they are supported on the ingress direction only and the ASA drops egress traffic destined to dynamic ports. Therefore,
Sun RPC inspection implements a pinhole mechanism to support egress traffic. Sun RPC inspection uses this pinhole mechanism to support outbound dynamic access lists.
This feature is not available in 8.5(1), 8.6(1), or 8.7(1).
Cisco ASA 5500 Series Configuration Guide using ASDM
1-7
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-3 New Features for ASA Version 8.4(4.1)/ASDM Version 6.4(9) (continued)
Feature
Inspection reset action change
Description
Previously, when the ASA dropped a packet due to an inspection engine rule, the ASA sent only one RST to the source device of the dropped packet. This behavior could cause resource issues.
In this release, when you configure an inspection engine to use a reset action and a packet triggers a reset, the ASA sends a TCP reset under the following conditions:
•
The ASA sends a TCP reset to the inside host when the service resetoutbound command is enabled. (The service resetoutbound command is disabled by default.)
•
The ASA sends a TCP reset to the outside host when the service resetinbound command is enabled. (The service resetinbound command is disabled by default.)
For more information, see the service command in the ASA command reference.
This behavior ensures that a reset action will reset the connections on the ASA and on inside servers; therefore countering denial of service attacks. For outside hosts, the ASA does not send a reset by default and information is not revealed through a TCP reset.
This feature is not available in 8.5(1), 8.6(1), or 8.7(1).
Platform Features
Improved pseudo-random number generation
Hardware-based noise for additional entropy was added to the software-based random number generation process. This change makes pseudo-random number generation (PRNG) more random and more difficult for attackers to get a repeatable pattern or guess the next random number to be used for encryption and decryption operations. Two changes were made to improve PRNG:
•
•
Use the current hardware-based RNG for random data to use as one of the parameters for software-based RNG.
If the hardware-based RNG is not available, use additional hardware noise sources for software-based RNG. Depending on your model, the following hardware sensors are used:
–
–
–
–
ASA 5505—Voltage sensors.
ASA 5510 and 5550—Fan speed sensors.
ASA 5520, 5540, and 5580—Temperature sensors.
ASA 5585-X—Fan speed sensors.
This feature is not available in 8.5(1), 8.6(1), 8.7(1), 9.0(1), or 9.1(1).
Module Features
1-8
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-3 New Features for ASA Version 8.4(4.1)/ASDM Version 6.4(9) (continued)
Feature Description
ASA 5585-X support for the
ASA CX SSP-10 and -20
The ASA CX module lets you enforce security based on the complete context of a situation.
This context includes the identity of the user (who), the application or website that the user is trying to access (what), the origin of the access attempt (where), the time of the attempted access (when), and the properties of the device used for the access (how). With the ASA CX module, you can extract the full context of a flow and enforce granular policies such as permitting access to Facebook but denying access to games on Facebook or permitting finance employees access to a sensitive enterprise database but denying the same to other employees.
ASA 5585-X support for network modules
We introduced the following screens:
Home > ASA CX Status
Wizards > Startup Wizard > ASA CX Basic Configuration
Configuration > Firewall > Service Policy Rules > Add Service Policy Rule > Rule Actions >
ASA CX Inspection
This feature is not available in 9.0(1) or 9.1(1).
The ASA 5585-X now supports additional interfaces on network modules in slot 1. You can install one or two of the following optional network modules:
•
ASA 4-port 10G Network Module
•
•
ASA 8-port 10G Network Module
ASA 20-port 1G Network Module
This feature is not available in 9.0(1) or 9.1(1).
New Features in Version 8.4(3)/6.4(7)
Released: January 9, 2012
Table 1-4 lists the new features for ASA Version 8.4(3)/ASDM Version 6.4(7).
Table 1-4 New Features for ASA Version 8.4(3)/ASDM Version 6.4(7)
Feature
NAT Features
Round robin PAT pool allocation uses the same IP address for existing hosts
Description
When using a PAT pool with round robin allocation, if a host has an existing connection, then subsequent connections from that host will use the same PAT IP address if ports are available.
We did not modify any screens.
This feature is not available in 8.5(1) or 8.6(1).
Cisco ASA 5500 Series Configuration Guide using ASDM
1-9
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-4 New Features for ASA Version 8.4(3)/ASDM Version 6.4(7) (continued)
Feature
Flat range of PAT ports for a
PAT pool
Description
If available, the real source port number is used for the mapped port. However, if the real port is not available, by default the mapped ports are chosen from the same range of ports as the real port number: 0 to 511, 512 to 1023, and 1024 to 65535. Therefore, ports below 1024 have only a small PAT pool.
If you have a lot of traffic that uses the lower port ranges, when using a PAT pool, you can now specify a flat range of ports to be used instead of the three unequal-sized tiers: either 1024 to
65535, or 1 to 65535.
We modified the following screens:
Configuration > Firewall > NAT Rules > Add/Edit Network Object
Configuration > Firewall > NAT Rules > Add/Edit NAT Rule
This feature is not available in 8.5(1) or 8.6(1).
Extended PAT for a PAT pool Each PAT IP address allows up to 65535 ports. If 65535 ports do not provide enough translations, you can now enable extended PAT for a PAT pool. Extended PAT uses 65535 ports per service, as opposed to per IP address, by including the destination address and port in the translation information.
We modified the following screens:
Configuration > Firewall > NAT Rules > Add/Edit Network Object
Configuration > Firewall > NAT Rules > Add/Edit NAT Rule
Configurable timeout for
PAT xlate
This feature is not available in 8.5(1) or 8.6(1).
When a PAT xlate times out (by default after 30 seconds), and the ASA reuses the port for a new translation, some upstream routers might reject the new connection because the previous connection might still be open on the upstream device. The PAT xlate timeout is now configurable, to a value between 30 seconds and 5 minutes.
We modified the following screen: Configuration > Firewall > Advanced > Global Timeouts.
This feature is not available in 8.5(1) or 8.6(1).
1-10
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-4 New Features for ASA Version 8.4(3)/ASDM Version 6.4(7) (continued)
Feature Description
Automatic NAT rules to translate a VPN peer’s local
IP address back to the peer’s real IP address
In rare situations, you might want to use a VPN peer’s real IP address on the inside network instead of an assigned local IP address. Normally with VPN, the peer is given an assigned local
IP address to access the inside network. However, you might want to translate the local IP address back to the peer’s real public IP address if, for example, your inside servers and network security is based on the peer’s real IP address.
You can enable this feature on one interface per tunnel group. Object NAT rules are dynamically added and deleted when the VPN session is established or disconnected. You can view the rules using the show nat command.
Note
Because of routing issues, we do not recommend using this feature unless you know you need this feature; contact Cisco TAC to confirm feature compatibility with your network. See the following limitations:
•
•
Only supports Cisco IPsec and AnyConnect Client.
Return traffic to the public IP addresses must be routed back to the ASA so the NAT policy and VPN policy can be applied.
Does not support load-balancing (because of routing issues).
•
•
Does not support roaming (public IP changing).
ASDM does not support this command; enter the command using the Command Line Tool.
Remote Access Features
Clientless SSL VPN browser support
The ASA now supports clientless SSL VPN with Microsoft Internet Explorer 9 and Firefox 4.
Compression for DTLS and
TLS
To improve throughput, Cisco now supports compression for DTLS and TLS on AnyConnect
3.0 or later. Each tunneling method configures compression separately, and the preferred configuration is to have both SSL and DTLS compression as LZS. This feature enhances migration from legacy VPN clients.
Note
Using data compression on high speed remote access connections passing highly compressible data requires significant processing power on the ASA. With other activity and traffic on the ASA, the number of sessions that can be supported on the platform is reduced.
We modified the following screen: Configuration > Remote Access VPN > Clientless SSL
VPN Access > Group Policies > Edit > Edit Internal Group Policy > Advanced > AnyConnect
Client > SSL Compression.
Clientless SSL VPN Session
Timeout Alerts
Allows you to create custom messages to alert users that their VPN session is about to end because of inactivity or a session timeout.
We introduced the following screens:
Remote Access VPN > Configuration > Clientless SSL VPN Access > Portal > Customizations
> Add/Edit > Timeout Alerts
Remote Access VPN > Configuration > Clientless SSL VPN Access > Group Policies >
Add/Edit General
AAA Features
Cisco ASA 5500 Series Configuration Guide using ASDM
1-11
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-4 New Features for ASA Version 8.4(3)/ASDM Version 6.4(7) (continued)
Feature
Increased maximum LDAP values per attribute
Description
The maximum number of values that the ASA can receive for a single attribute was increased from 1000 (the default) to 5000, with an allowed range of 500 to 5000. If a response message is received that exceeds the configured limit, the ASA rejects the authentication. If the ASA detects that a single attribute has more than 1000 values, then the ASA generates informational syslog 109036. For more than 5000 attributes, the ASA generates error level syslog 109037.
We introduced the following command: ldap-max-value-range number (Enter this command in aaa-server host configuration mode).
ASDM does not support this command; enter the command using the Command Line Tool.
Support for sub-range of
LDAP search results
Key vendor-specific attributes (VSAs) sent in
RADIUS access request and accounting request packets from the ASA
When an LDAP search results in an attribute with a large number of values, depending on the server configuration, it might return a sub-range of the values and expect the ASA to initiate additional queries for the remaining value ranges. The ASA now makes multiple queries for the remaining ranges, and combines the responses into a complete array of attribute values.
Four New VSAs—Tunnel Group Name (146) and Client Type (150) are sent in RADIUS access request packets from the ASA. Session Type (151) and Session Subtype (152) are sent in
RADIUS accounting request packets from the ASA. All four attributes are sent for all accounting request packet types: Start, Interim-Update, and Stop. The RADIUS server (for example, ACS and ISE) can then enforce authorization and policy attributes or use them for accounting and billing purposes.
Troubleshooting Features
Regular expression matching for the show asp
table classifier and show
asp table filter commands
You can now enter the show asp table classifier and show asp table filter commands with a regular expression to filter output.
We modified the following commands: show asp table classifier match regex, show asp table
filter match regex.
ASDM does not support this command; enter the command using the Command Line Tool.
New Features in Version 8.4(2)/6.4(5)
Released: June 20, 2011
1-12
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-5 lists the new features for ASA Version 8.4(2)/ASDM Version 6.4(5).
New Features for ASA Version 8.4(2)/ASDM Version 6.4(5) Table 1-5
Feature
Firewall Features
Identity Firewall
Description
Typically, a firewall is not aware of the user identities and, therefore, cannot apply security policies based on identity.
The Identity Firewall in the ASA provides more granular access control based on users’ identities. You can configure access rules and security policies based on usernames and user groups name rather than through source IP addresses. The ASA applies the security policies based on an association of IP addresses to Windows Active Directory login information and reports events based on the mapped usernames instead of network IP addresses.
The Identity Firewall integrates with Window Active Directory in conjunction with an external
Active Directory (AD) Agent that provides the actual identity mapping. The ASA uses
Windows Active Directory as the source to retrieve the current user identity information for specific IP addresses.
In an enterprise, some users log onto the network by using other authentication mechanisms, such as authenticating with a web portal (cut-through proxy) or by using a VPN. You can configure the Identity Firewall to allow these types of authentication in connection with identity-based access policies.
We introduced the following screens:
Configuration > Firewall > Identity Options.
Configuration > Firewall > Objects > Local User Groups
Monitoring > Properties > Identity
Identity NAT configurable proxy ARP and route lookup
We modified the following screen: Configuration > Device Management > Users/AAA > AAA
Server Groups > Add/Edit Server Group.
In earlier releases for identity NAT, proxy ARP was disabled, and a route lookup was always used to determine the egress interface. You could not configure these settings. In 8.4(2) and later, the default behavior for identity NAT was changed to match the behavior of other static
NAT configurations: proxy ARP is enabled, and the NAT configuration determines the egress interface (if specified) by default. You can leave these settings as is, or you can enable or disable them discretely. Note that you can now also disable proxy ARP for regular static NAT.
For pre-8.3 configurations, the migration of NAT exempt rules (the nat 0 access-list command) to 8.4(2) and later now includes the following keywords to disable proxy ARP and to use a route lookup: no-proxy-arp and route-lookup. The unidirectional keyword that was used for migrating to 8.3(2) and 8.4(1) is no longer used for migration. When upgrading to 8.4(2) from
8.3(1), 8.3(2), and 8.4(1), all identity NAT configurations will now include the no-proxy-arp and route-lookup keywords, to maintain existing functionality. The unidirectional keyword is removed.
We modified the following screens:
Configuration > Firewall > NAT Rules > Add/Edit Network Object > Advanced NAT Settings
Configuration > Firewall > NAT Rules > Add/Edit NAT Rule
Cisco ASA 5500 Series Configuration Guide using ASDM
1-13
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-5 New Features for ASA Version 8.4(2)/ASDM Version 6.4(5) (continued)
Feature
PAT pool and round robin address assignment
Description
You can now specify a pool of PAT addresses instead of a single address. You can also optionally enable round-robin assignment of PAT addresses instead of first using all ports on a
PAT address before using the next address in the pool. These features help prevent a large number of connections from a single PAT address from appearing to be part of a DoS attack and makes configuration of large numbers of PAT addresses easy.
Note
Currently in 8.4(2), the PAT pool feature is not available as a fallback method for dynamic NAT or PAT. You can only configure the PAT pool as the primary method for dynamic PAT (CSCtq20634).
IPv6 Inspection
We modified the following screens:
Configuration > Firewall > NAT Rules > Add/Edit Network Object
Configuration > Firewall > NAT Rules > Add/Edit NAT Rule
You can configure IPv6 inspection by configuring a service policy to selectively block IPv6 traffic based on the extension header. IPv6 packets are subjected to an early security check. The
ASA always passes hop-by-hop and destination option types of extension headers while blocking router header and no next header.
You can enable default IPv6 inspection or customize IPv6 inspection. By defining a policy map for IPv6 inspection you can configure the ASA to selectively drop IPv6 packets based on following types of extension headers found anywhere in the IPv6 packet:
•
Hop-by-Hop Options
•
•
•
Routing (Type 0)
Fragment
Destination Options
Authentication
•
•
Encapsulating Security Payload
We introduced the following screen: Configuration > Firewall > Objects > Inspect Maps >
IPv6.
Remote Access Features
Portal Access Rules This enhancement allows customers to configure a global clientless SSL VPN access policy to permit or deny clientless SSL VPN sessions based on the data present in the HTTP header. If denied, an error code is returned to the clients. This denial is performed before user authentication and thus minimizes the use of processing resources.
We modified the following screen: Configuration > Remote Access VPN > Clientless SSL
VPN Access > Portal > Portal Access Rules.
Also available in Version 8.2(5).
Clientless support for
Microsoft Outlook Web App
2010
The ASA 8.4(2) clientless SSL VPN core rewriter now supports Microsoft Outlook Web App
2010.
1-14
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-5 New Features for ASA Version 8.4(2)/ASDM Version 6.4(5) (continued)
Feature
Secure Hash Algorithm
SHA-2 Support for IPsec
IKEv2 Integrity and PRF
Description
This release supports the Secure Hash Algorithm SHA-2 for increased cryptographic hashing security for IPsec/IKEv2 AnyConnect Secure Mobility Client connections to the ASA. SHA-2 includes hash functions with digests of 256, 384, or 512 bits, to meet U.S. government requirements.
Secure Hash Algorithm
SHA-2 Support for Digital
Signature over IPsec IKEv2
We modified the following screen: Configuration > Remote Access VPN > Network (Client)
Access > Advanced > IPsec > IKE Policies > Add/Edit IKEv2 Policy (Proposal).
This release supports the use of SHA-2 compliant signature algorithms to authenticate IPsec
IKEv2 VPN connections that use digital certificates, with the hash sizes SHA-256, SHA-384, and SHA-512.
SHA-2 digital signature for IPsec IKEv2 connections is supported with the AnyConnect Secure
Mobility Client, Version 3.0.1 or later.
Split Tunnel DNS policy for
AnyConnect
This release includes a new policy pushed down to the AnyConnect Secure Mobility Client for resolving DNS addresses over split tunnels. This policy applies to VPN connections using the
SSL or IPsec/IKEv2 protocol and instructs the AnyConnect client to resolve all DNS addresses through the VPN tunnel. If DNS resolution fails, the address remains unresolved and the
AnyConnect client does not try to resolve the address through public DNS servers.
By default, this feature is disabled. The client sends DNS queries over the tunnel according to the split tunnel policy: tunnel all networks, tunnel networks specified in a network list, or exclude networks specified in a network list.
We modified the following screen: Configuration > Remote Access VPN > Network (Client)
Access > Group Policies > Add/Edit Group Policy > Advanced > Split Tunneling (see the Send
All DNS Lookups Through Tunnel check box).
Also available in Version 8.2(5).
Cisco ASA 5500 Series Configuration Guide using ASDM
1-15
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-5 New Features for ASA Version 8.4(2)/ASDM Version 6.4(5) (continued)
Feature
Mobile Posture
(formerly referred to as
AnyConnect Identification
Extensions for Mobile
Device Detection)
Description
You can now configure the ASA to permit or deny VPN connections to mobile devices, enable or disable mobile device access on a per group bases, and gather information about connected mobile devices based on a mobile device’s posture data. The following mobile platforms support this capability: AnyConnect for iPhone/iPad/iPod Versions 2.5.x and AnyConnect for
Android Version 2.4.x.
Licensing Requirements
Enforcing remote access controls and gathering posture data from mobile devices requires an
AnyConnect Mobile license and either an AnyConnect Essentials or AnyConnect Premium license to be installed on the ASA. You receive the following functionality based on the license you install:
•
AnyConnect Premium License Functionality
•
Enterprises that install the AnyConnect Premium license will be able to enforce DAP policies, on supported mobile devices, based on these DAP attributes and any other existing endpoint attributes. This includes allowing or denying remote access from a mobile device.
AnyConnect Essentials License Functionality
Enterprises that install the AnyConnect Essentials license will be able to do the following:
–
Enable or disable mobile device access on a per group basis and to configure that feature using ASDM.
–
Display information about connected mobile devices via CLI or ASDM without having the ability to enforce DAP policies or deny or allow remote access to those mobile devices.
We modified the following screen: Configuration > Remote Access VPN > Network (Client)
Access > Dynamic Access Policies > Add/Edit Endpoint Attributes > Endpoint Attribute
Type:AnyConnect.
Also available in Version 8.2(5).
SSL SHA-2 digital signature You can now use of SHA-2 compliant signature algorithms to authenticate SSL VPN connections that use digital certificates. Our support for SHA-2 includes all three hash sizes:
SHA-256, SHA-384, and SHA-512. SHA-2 requires AnyConnect 2.5(1) or later (2.5(2) or later recommended). This release does not support SHA-2 for other uses or products.
Caution: To support failover of SHA-2 connections, the standby ASA must be running the same image.
We did not modify any screens.
SHA2 certificate signature support for Microsoft
Windows 7 and
Android-native VPN clients
Also available in Version 8.2(5).
ASA supports SHA2 certificate signature support for Microsoft Windows 7 and Android-native
VPN clients when using the L2TP/IPsec protocol.
We did not modify any screens.
Also available in Version 8.2(5).
1-16
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-5 New Features for ASA Version 8.4(2)/ASDM Version 6.4(5) (continued)
Feature
Enable/disable certificate mapping to override the group-url attribute
Description
This feature changes the preference of a connection profile during the connection profile selection process. By default, if the ASA matches a certificate field value specified in a connection profile to the field value of the certificate used by the endpoint, the ASA assigns that profile to the VPN connection. This optional feature changes the preference to a connection profile that specifies the group URL requested by the endpoint. The new option lets administrators rely on the group URL preference used by many older ASA software releases.
We modified the following screens:
Configuration > Remote Access VPN > Clientless SSL VPN > Connection Profiles
Configuration > Remote Access VPN > Network (Client) Access > AnyConnect Connection
Profiles
Also available in Version 8.2(5).
ASA 5585-X Features
Support for Dual SSPs for
SSP-40 and SSP-60
For SSP-40 and SSP-60, you can use two SSPs of the same level in the same chassis.
Mixed-level SSPs are not supported (for example, an SSP-40 with an SSP-60 is not supported).
Each SSP acts as an independent device, with separate configurations and management. You can use the two SSPs as a failover pair if desired.
Note
When using two SSPs in the chassis, VPN is not supported; note, however, that VPN has not been disabled.
We did not modify any screens.
Support for the IPS SSP-10,
-20, -40, and -60
We introduced support for the IPS SSP-10, -20, -40, and -60 for the ASA 5585-X. You can only install the IPS SSP with a matching-level SSP; for example, SSP-10 and IPS SSP-10.
Also available in Version 8.2(5).
CSC SSM Features
CSC SSM Support For the CSC SSM, support for the following features has been added:
•
HTTPS traffic redirection: URL filtering and WRS queries for incoming HTTPS connections.
•
•
Configuring global approved whitelists for incoming and outgoing SMTP and POP3 e-mail.
E-mail notification for product license renewals.
We modified the following screens:
Configuration > Trend Micro Content Security > Mail > SMTP
Configuration > Trend Micro Content Security > Mail > POP3
Configuration > Trend Micro Content Security > Host/Notification Settings
Configuration > Trend Micro Content Security > CSC Setup > Host Configuration
Monitoring Features
Smart Call-Home
Anonymous Reporting
Customers can now help to improve the ASA platform by enabling Anonymous Reporting, which allows Cisco to securely receive minimal error and health information from the device.
We modified the following screen: Configuration > Device Monitoring > Smart Call-Home.
Also available in Version 8.2(5).
Cisco ASA 5500 Series Configuration Guide using ASDM
1-17
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-5 New Features for ASA Version 8.4(2)/ASDM Version 6.4(5) (continued)
Feature Description
IF-MIB ifAlias OID support The ASA now supports the ifAlias OID. When you browse the IF-MIB, the ifAlias OID will be set to the value that has been set for the interface description.
Also available in Version 8.2(5).
Interface Features
Support for Pause Frames for Flow Control on
1-Gigabit Ethernet Interface
You can now enable pause (XOFF) frames for flow control on 1-Gigabit Ethernet interfaces; support was previously added for 10-Gigabit Ethernet interfaces in 8.2(2).
We modified the following screens:
(Single Mode) Configuration > Device Setup > Interfaces > Add/Edit Interface > General
(Multiple Mode, System) Configuration > Interfaces > Add/Edit Interface
Also available in Version 8.2(5).
Management Features
Increased SSH security; the
SSH default username is no longer supported
Starting in 8.4(2), you can no longer connect to the ASA using SSH with the pix or asa username and the login password. To use SSH, you must configure AAA authentication using the aaa authentication ssh console LOCAL command (CLI) or Configuration > Device
Management > Users/AAA > AAA Access > Authentication (ASDM); then define a local user by entering the username command (CLI) or choosing Configuration > Device Management
> Users/AAA > User Accounts (ASDM). If you want to use a AAA server for authentication instead of the local database, we recommend also configuring local authentication as a backup method.
Unified Communications Features
ASA-Tandberg
Interoperability with H.323
Inspection
H.323 Inspection now supports uni-directional signaling for two-way video sessions. This enhancement allows H.323 Inspection of one-way video conferences supported by Tandberg video phones. Supporting uni-directional signaling allows Tandberg phones to switch video modes (close their side of an H.263 video session and reopen the session using H.264, the compression standard for high-definition video).
We did not modify any screens.
Also available in Version 8.2(5).
Routing Features
Timeout for connections using a backup static route
When multiple static routes exist to a network with different metrics, the ASA uses the one with the best metric at the time of connection creation. If a better route becomes available, then this timeout lets connections be closed so a connection can be reestablished to use the better route.
The default is 0 (the connection never times out). To take advantage of this feature, change the timeout to a new value.
We modified the following screen: Configuration > Firewall > Advanced > Global Timeouts.
Also available in Version 8.2(5).
New Features in Version 8.2(5)/6.4(3)
/ASDM Version 6.4(3)
1-18
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
New Features in Version 8.4(1)/6.4(1)
Released: January 31, 2011
Table 1-6 lists the new features for ASA Version 8.4(1)/ASDM Version 6.4(1).
Table 1-6 New Features for ASA Version 8.4(1)/ASDM Version 6.4(1)
Feature Description
Hardware Features
Support for the ASA 5585-X We introduced support for the ASA 5585-X with Security Services Processor (SSP)-10, -20,
-40, and -60.
No Payload Encryption hardware for export
Note
•
Support was previously added in 8.2(3) and 8.2(4); the ASA 5585-X is not supported in 8.3(x).
You can purchase the ASA 5585-X with No Payload Encryption. For export to some countries, payload encryption cannot be enabled on the Cisco ASA 5500 series. The ASA software senses a No Payload Encryption model, and disables the following features:
Unified Communications
•
VPN
You can still install the Strong Encryption (3DES/AES) license for use with management connections. For example, you can use ASDM HTTPS/SSL, SSHv2, Telnet and SNMPv3. You can also download the dynamic database for the Botnet Traffic Filer (which uses SSL).
Remote Access Features
L2TP/IPsec Support on
Android Platforms
We now support VPN connections between Android mobile devices and ASA 5500 series devices, when using the L2TP/IPsec protocol and the native Android VPN client. Mobile devices must be using the Android 2.1, or later, operating system.
UTF-8 Character Support for AnyConnect Passwords
Also available in Version 8.2(5).
AnyConnect 3.0 used with ASA 8.4(1), supports UTF-8 characters in passwords sent using
RADIUS/MSCHAP and LDAP protocols.
IPsec VPN Connections with
IKEv2
Internet Key Exchange Version 2 (IKEv2) is the latest key exchange protocol used to establish and control Internet Protocol Security (IPsec) tunnels. The ASA now supports IPsec with
IKEv2 for the AnyConnect Secure Mobility Client, Version 3.0(1), for all client operating systems.
On the ASA, you enable IPsec connections for users in the group policy. For the AnyConnect client, you specify the primary protocol (IPsec or SSL) for each ASA in the server list of the client profile.
IPsec remote access VPN using IKEv2 was added to the AnyConnect Essentials and
AnyConnect Premium licenses.
Site-to-site sessions were added to the Other VPN license (formerly IPsec VPN). The Other
VPN license is included in the Base license.
We modified the following screens:
Configure > Site-to-Site VPN > Connection Profiles
Configure > Remote Access > Network (Client) Access > AnyConnect Connection Profiles
Network (Client) Access > Advanced > IPsec > IKE Parameters > IKE Policies
Network (Client) Access > Advanced > IPsec > IKE Parameters > IKE Parameters
Network (Client) Access > Advanced > IPsec > IKE Parameters > IKE Proposals
Cisco ASA 5500 Series Configuration Guide using ASDM
1-19
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-6 New Features for ASA Version 8.4(1)/ASDM Version 6.4(1) (continued)
Feature Description
SSL SHA-2 digital signature This release supports the use of SHA-2 compliant signature algorithms to authenticate SSL
VPN connections that use digital certificates. Our support for SHA-2 includes all three hash sizes: SHA-256, SHA-384, and SHA-512. SHA-2 requires AnyConnect 2.5.1 or later (2.5.2 or later recommended). This release does not support SHA-2 for other uses or products. This feature does not involve configuration changes.
SCEP Proxy
Caution: To support failover of SHA-2 connections, the standby ASA must be running the same image. To support this feature, we added the Signature Algorithm field to the show
crypto ca certificate command to identify the digest algorithm used when generating the signature.
SCEP Proxy provides the AnyConnect Secure Mobility Client with support for automated third-party certificate enrollment. Use this feature to support AnyConnect with zero-touch, secure deployment of device certificates to authorize endpoint connections, enforce policies that prevent access by non-corporate assets, and track corporate assets. This feature requires an AnyConnect Premium license and will not work with an Essentials license.
Host Scan Package Support This feature provides the necessary support for the ASA to install or upgrade a Host Scan package and enable or disable Host Scan. This package may either be a standalone Host Scan package or one that ASA extracts from an AnyConnect Next Generation package.
In previous releases of AnyConnect, an endpoint’s posture was determined by Cisco Secure
Desktop (CSD). Host Scan was one of many features bundled in CSD. Unbundling Host Scan from CSD gives AnyConnect administrators greater freedom to update and install Host Scan separately from the other features of CSD.
Kerberos Constrained
Delegation (KCD)
This release implements the KCD protocol transition and constrained delegation extensions on the ASA. KCD provides Clientless SSL VPN (also known as WebVPN) users with SSO access to any web services protected by Kerberos. Examples of such services or applications include
Outlook Web Access (OWA), Sharepoint, and Internet Information Server (IIS).
Implementing protocol transition allows the ASA to obtain Kerberos service tickets on behalf of remote access users without requiring them to authenticate to the KDC (through Kerberos).
Instead, a user authenticates to ASA using any of the supported authentication mechanisms, including digital certificates and Smartcards, for Clientless SSL VPN (also known as
WebVPN). When user authentication is complete, the ASA requests and obtains an impersonate ticket, which is a service ticket for ASA on behalf of the user. The ASA may then use the impersonate ticket to obtain other service tickets for the remote access user.
Clientless SSL VPN browser support
Constrained delegation provides a way for domain administrators to limit the network resources that a service trusted for delegation (for example, the ASA) can access. This task is accomplished by configuring the account under which the service is running to be trusted for delegation to a specific instance of a service running on a specific computer.
We modified the following screen: Configuration > Remote Access VPN > Clientless SSL
VPN Access > Advanced > Microsoft KCD Server.
The ASA now supports clientless SSL VPN with Apple Safari 5.
1-20
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-6 New Features for ASA Version 8.4(1)/ASDM Version 6.4(1) (continued)
Feature
Clientless VPN Auto
Sign-on Enhancement
Expanded Smart Tunnel application support
Description
Smart tunnel now supports HTTP-based auto sign-on on Firefox as well as Internet Explorer.
Similar to when Internet Explorer is used, the administrator decides to which hosts a Firefox browser will automatically send credentials. For some authentication methods, if may be necessary for the administrator to specify a realm string on the ASA to match that on the web application (in the Add Smart Tunnel Auto Sign-on Server window). You can now use bookmarks with macro substitutions for auto sign-on with Smart tunnel as well.
The POST plug-in is now obsolete. The former POST plug-in was created so that administrators could specify a bookmark with sign-on macros and receive a kick-off page to load prior to posting the the POST request. The POST plug-in approach allows requests that required the presence of cookies, and other header items, fetched ahead of time to go through.
The administrator can now specify pre-load pages when creating bookmarks to achieve the same functionality. Same as the POST plug-in, the administrator specifies the pre-load page
URL and the URL to send the POST request to.
You can now replace the default preconfigured SSL VPN portal with your own portal. The administrators do this by specifying a URL as an External Portal. Unlike the group-policy home page, the External Portal supports POST requests with macro substitution (for auto sign-on) as well as pre-load pages.
We introduced or modified the following screens:
Configuration > Remote Access VPN > Clientless SSL VPN Access > Portal > Customization.
Configuration > Remote Access VPN > Clientless SSL VPN Access > Portal > Bookmarks >
Edit > Edit Bookmark
Smart Tunnel adds support for the following applications:
•
Microsoft Outlook Exchange Server 2010 (native support).
•
Users can now use Smart Tunnel to connect Microsoft Office Outlook to a Microsoft
Exchange Server.
Microsoft Sharepoint/Office 2010.
Users can now perform remote file editing using Microsoft Office 2010 Applications and
Microsoft Sharepoint by using Smart Tunnel.
Interface Features
EtherChannel support (ASA
5510 and higher)
You can configure up to 48 802.3ad EtherChannels of eight active interfaces each.
Note
You cannot use interfaces on the 4GE SSM, including the integrated 4GE SSM in slot 1 on the ASA 5550, as part of an EtherChannel.
We introduced or modified the following screens:
Configuration > Device Setup > Interfaces
Configuration > Device Setup > Interfaces > Add/Edit EtherChannel Interface
Configuration > Device Setup > Interfaces > Add/Edit Interface
Configuration > Device Setup > EtherChannel
Cisco ASA 5500 Series Configuration Guide using ASDM
1-21
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-6 New Features for ASA Version 8.4(1)/ASDM Version 6.4(1) (continued)
Feature
Bridge groups for transparent mode
Description
If you do not want the overhead of security contexts, or want to maximize your use of security contexts, you can group interfaces together in a bridge group, and then configure multiple bridge groups, one for each network. Bridge group traffic is isolated from other bridge groups.
You can configure up to 8 bridge groups in single mode or per context in multiple mode, with
4 interfaces maximum per bridge group.
Note
Although you can configure multiple bridge groups on the ASA 5505, the restriction of 2 data interfaces in transparent mode on the ASA 5505 means you can only effectively use 1 bridge group.
We modified or introduced the following screens:
Configuration > Device Setup > Interfaces
Configuration > Device Setup > Interfaces > Add/Edit Bridge Group Interface
Configuration > Device Setup > Interfaces > Add/Edit Interface
Scalability Features
Increased contexts for the
ASA 5550, 5580, and
5585-X
For the ASA 5550 and ASA 5585-X with SSP-10, the maximum contexts was increased from
50 to 100. For the ASA 5580 and 5585-X with SSP-20 and higher, the maximum was increased from 50 to 250.
Increased VLANs for the
ASA 5580 and 5585-X
For the ASA 5580 and 5585-X, the maximum VLANs was increased from 250 to 1024.
Additional platform support Google Chrome has been added as a supported platform for ASA Version 8.4. Both 32-bit and
64-bit platforms are supported on Windows XP, Vista, and 7 and Mac OS X Version 6.0.
Increased connections for the ASA 5580 and 5585-X
We increased the firewall connection limits:
•
•
ASA 5580-20—1,000,000 to 2,000,000.
ASA 5580-40—2,000,000 to 4,000,000.
•
•
ASA 5585-X with SSP-10: 750,000 to 1,000,000.
ASA 5585-X with SSP-20: 1,000,000 to 2,000,000.
Increased AnyConnect VPN sessions for the ASA 5580
Increased Other VPN sessions for the ASA 5580
High Availability Features
Stateful Failover with
Dynamic Routing Protocols
•
•
ASA 5585-X with SSP-40: 2,000,000 to 4,000,000.
ASA 5585-X with SSP-60: 2,000,000 to 10,000,000.
The AnyConnect VPN session limit was increased from 5,000 to 10,000.
The other VPN session limit was increased from 5,000 to 10,000.
Routes that are learned through dynamic routing protocols (such as OSPF and EIGRP) on the active unit are now maintained in a Routing Information Base (RIB) table on the standby unit.
Upon a failover event, traffic on the secondary active unit now passes with minimal disruption because routes are known. Routes are synchronized only for link-up or link-down events on an active unit. If the link goes up or down on the standby unit, dynamic routes sent from the active unit may be lost. This is normal, expected behavior.
We did not modify any screens.
Unified Communication Features
1-22
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
New Features
Table 1-6 New Features for ASA Version 8.4(1)/ASDM Version 6.4(1) (continued)
Feature
Phone Proxy addition to
Unified Communication
Wizard
UC Protocol Inspection
Enhancements
Description
The Unified Communications wizard guides you through the complete configuration and automatically configures required aspects for the Phone Proxy. The wizard automatically creates the necessary TLS proxy, then guides you through creating the Phone Proxy instance, importing and installing the required certificates, and finally enables the SIP and SCCP inspection for the Phone Proxy traffic automatically.
We modified the following screens:
Wizards > Unified Communications Wizard.
Configuration > Firewall > Unified Communications.
SIP Inspection and SCCP Inspection are enhanced to support new features in the Unified
Communications Solutions; such as, SCCP v2.0 support, support for GETPORT messages in
SCCP Inspection, SDP field support in INVITE messages with SIP Inspection, and QSIG tunneling over SIP. Additionally, the Cisco Intercompany Media Engine supports Cisco RT
Lite phones and third-party video endpoints (such as, Tandberg).
We did not modify any screens.
Inspection Features
DCERPC Enhancement DCERPC Inspection was enhanced to support inspection of RemoteCreateInstance RPC messages.
We did not modify any screens.
Troubleshooting and Monitoring Features
SNMP traps and MIBs Supports the following additional keywords: connection-limit-reached, entity
cpu-temperature, cpu threshold rising, entity fan-failure, entity power-supply,
ikev2 stop | start, interface-threshold, memory-threshold, nat packet-discard, warmstart.
The entPhysicalTable reports entries for sensors, fans, power supplies, and related components.
TCP Ping Enhancement
Show Top CPU Processes
Supports the following additional MIBs: ENTITY-SENSOR-MIB,
CISCO-ENTITY-SENSOR-EXT-MIB, CISCO-ENTITY-FRU-CONTROL-MIB,
CISCO-PROCESS-MIB, CISCO-ENHANCED-MEMPOOL-MIB,
CISCO-L4L7MODULE-RESOURCE-LIMIT-MIB, NAT-MIB, EVENT-MIB,
EXPRESSION-MIB
Supports the following additional traps: warmstart, cpmCPURisingThreshold, mteTriggerFired, cirResourceLimitReached, natPacketDiscard, ciscoEntSensorExtThresholdNotification.
We modified the following screen: Configuration > Device Management > Management
Access > SNMP.
TCP ping allows users whose ICMP echo requests are blocked to check connectivity over TCP.
With the TCP ping enhancement you can specify a source IP address and a port and source interface to send pings to a hostname or an IPv4 address.
We modified the following screen: Tools > Ping.
You can now monitor the processes that run on the CPU to obtain information related to the percentage of the CPU used by any given process. You can also see information about the load on the CPU, broken down per process, at 5 minutes, 1 minute, and 5 seconds prior to the log time. Information is updated automatically every 5 seconds to provide real-time statistics, and a refresh button in the pane allows a manual data refresh at any time.
We introduced the following screen: Monitoring > Properties > CPU - Per Process.
Cisco ASA 5500 Series Configuration Guide using ASDM
1-23
Chapter 1 Introduction to the Cisco ASA 5500 Series
Firewall Functional Overview
Table 1-6 New Features for ASA Version 8.4(1)/ASDM Version 6.4(1) (continued)
Description Feature
General Features
Password Encryption
Visibility
ASDM Features
ASDM Upgrade
Enhancement
You can show password encryption in a security context.
We did not modify any screens.
Implementing IKEv2 in
Wizards
IPS Startup Wizard enhancements
When ASDM loads on a device that has an incompatible ASA software version, a dialog box notifies users that they can select from the following options:
•
•
Upgrade the image version from Cisco.com.
Upgrade the image version from their local drive.
•
Continue with the incompatible ASDM/ASA pair (new choice).
We did not modify any screens.
This feature interoperates with all ASA versions.
IKEv2 support has been implemented into the AnyConnect VPN Wizard (formerly SSL VPN wizard), the Clientless SSL VPN Wizard, and the Site-to-Site IPsec VPN Wizard (formerly
IPSec VPN Wizard) to comply with IPsec remote access requirements defined in federal and public sector mandates. Along with the enhanced security, the new support offers the same end user experience independent of the tunneling protocol used by the AnyConnect client session.
IKEv2 also allows other vendors’ VPN clients to connect to the ASAs.
We modified the following wizards: Site-to-Site IPsec VPN Wizard, AnyConnect VPN Wizard, and Clientless SSL VPN Wizard.
For the IPS SSP in the ASA 5585-X, the IPS Basic Configuration screen was added to the startup wizard. Signature updates for the IPS SSP were also added to the Auto Update screen.
The Time Zone and Clock Configuration screen was added to ensure the clock is set on the
ASA; the IPS SSP gets its clock from the ASA.
We introduced or modified the following screens:
Wizards > Startup Wizard > IPS Basic Configuration
Wizards > Startup Wizard > Auto Update
Wizards > Startup Wizard > Time Zone and Clock Configuration
Firewall Functional Overview
Firewalls protect inside networks from unauthorized access by users on an outside network. A firewall can also protect inside networks from each other, for example, by keeping a human resources network separate from a user network. If you have network resources that need to be available to an outside user, such as a web or FTP server, you can place these resources on a separate network behind the firewall, called a demilitarized zone (DMZ). The firewall allows limited access to the DMZ, but because the DMZ only includes the public servers, an attack there only affects the servers and does not affect the other inside networks. You can also control when inside users access outside networks (for example, access to the Internet), by allowing only certain addresses out, by requiring authentication or authorization, or by coordinating with an external URL filtering server.
1-24
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
Firewall Functional Overview
When discussing networks connected to a firewall, the outside network is in front of the firewall, the
inside network is protected and behind the firewall, and a DMZ, while behind the firewall, allows limited access to outside users. Because the ASA lets you configure many interfaces with varied security policies, including many inside interfaces, many DMZs, and even many outside interfaces if desired, these terms are used in a general sense only.
This section includes the following topics:
•
Security Policy Overview, page 1-25
•
•
Firewall Mode Overview, page 1-28
Stateful Inspection Overview, page 1-28
Security Policy Overview
A security policy determines which traffic is allowed to pass through the firewall to access another network. By default, the ASA allows traffic to flow freely from an inside network (higher security level) to an outside network (lower security level). You can apply actions to traffic to customize the security policy. This section includes the following topics:
•
Permitting or Denying Traffic with Access Rules, page 1-25
•
•
•
•
•
Protecting from IP Fragments, page 1-26
Using AAA for Through Traffic, page 1-26
Applying HTTP, HTTPS, or FTP Filtering, page 1-26
•
•
•
•
Applying Application Inspection, page 1-26
Sending Traffic to the IPS Module, page 1-26
Sending Traffic to the Content Security and Control Module, page 1-26
Applying QoS Policies, page 1-27
•
•
•
Applying Connection Limits and TCP Normalization, page 1-27
Enabling Threat Detection, page 1-27
Enabling the Botnet Traffic Filter, page 1-27
Configuring Cisco Unified Communications, page 1-27
Permitting or Denying Traffic with Access Rules
You can apply an access rule to limit traffic from inside to outside, or allow traffic from outside to inside.
For transparent firewall mode, you can also apply an EtherType access list to allow non-IP traffic.
Applying NAT
Some of the benefits of NAT include the following:
•
You can use private addresses on your inside networks. Private addresses are not routable on the
Internet.
•
NAT hides the local addresses from other networks, so attackers cannot learn the real address of a host.
Cisco ASA 5500 Series Configuration Guide using ASDM
1-25
Chapter 1 Introduction to the Cisco ASA 5500 Series
Firewall Functional Overview
•
NAT can resolve IP routing problems by supporting overlapping IP addresses.
Protecting from IP Fragments
The ASA provides IP fragment protection. This feature performs full reassembly of all ICMP error messages and virtual reassembly of the remaining IP fragments that are routed through the ASA.
Fragments that fail the security check are dropped and logged. Virtual reassembly cannot be disabled.
Using AAA for Through Traffic
You can require authentication and/or authorization for certain types of traffic, for example, for HTTP.
The ASA also sends accounting information to a RADIUS or TACACS+ server.
Applying HTTP, HTTPS, or FTP Filtering
Although you can use access lists to prevent outbound access to specific websites or FTP servers, configuring and managing web usage this way is not practical because of the size and dynamic nature of the Internet. We recommend that you use the ASA in conjunction with a separate server running one of the following Internet filtering products:
•
•
Websense Enterprise
Secure Computing SmartFilter
Applying Application Inspection
Inspection engines are required for services that embed IP addressing information in the user data packet or that open secondary channels on dynamically assigned ports. These protocols require the ASA to perform a deep packet inspection.
Sending Traffic to the IPS Module
If your model supports the IPS module for intrusion prevention, then you can send traffic to the module for inspection. The IPS module monitors and performs real-time analysis of network traffic by looking for anomalies and misuse based on an extensive, embedded signature library. When the system detects unauthorized activity, it can terminate the specific connection, permanently block the attacking host, log the incident, and send an alert to the device manager. Other legitimate connections continue to operate independently without interruption. For more information, see the documentation for your IPS module.
Sending Traffic to the Content Security and Control Module
If your model supports it, the CSC SSM provides protection against viruses, spyware, spam, and other unwanted traffic. It accomplishes this by scanning the FTP, HTTP, POP3, and SMTP traffic that you configure the ASA to send to it.
Applying QoS Policies
Some network traffic, such as voice and streaming video, cannot tolerate long latency times. QoS is a network feature that lets you give priority to these types of traffic. QoS refers to the capability of a network to provide better service to selected network traffic.
1-26
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
Firewall Functional Overview
Applying Connection Limits and TCP Normalization
You can limit TCP and UDP connections and embryonic connections. Limiting the number of connections and embryonic connections protects you from a DoS attack. The ASA uses the embryonic limit to trigger TCP Intercept, which protects inside systems from a DoS attack perpetrated by flooding an interface with TCP SYN packets. An embryonic connection is a connection request that has not finished the necessary handshake between source and destination.
TCP normalization is a feature consisting of advanced TCP connection settings designed to drop packets that do not appear normal.
Enabling Threat Detection
You can configure scanning threat detection and basic threat detection, and also how to use statistics to analyze threats.
Basic threat detection detects activity that might be related to an attack, such as a DoS attack, and automatically sends a system log message.
A typical scanning attack consists of a host that tests the accessibility of every IP address in a subnet (by scanning through many hosts in the subnet or sweeping through many ports in a host or subnet). The scanning threat detection feature determines when a host is performing a scan. Unlike IPS scan detection that is based on traffic signatures, the ASA scanning threat detection feature maintains an extensive database that contains host statistics that can be analyzed for scanning activity.
The host database tracks suspicious activity such as connections with no return activity, access of closed service ports, vulnerable TCP behaviors such as non-random IPID, and many more behaviors.
You can configure the ASA to send system log messages about an attacker or you can automatically shun the host.
Enabling the Botnet Traffic Filter
Malware is malicious software that is installed on an unknowing host. Malware that attempts network activity such as sending private data (passwords, credit card numbers, key strokes, or proprietary data) can be detected by the Botnet Traffic Filter when the malware starts a connection to a known bad IP address. The Botnet Traffic Filter checks incoming and outgoing connections against a dynamic database of known bad domain names and IP addresses (the blacklist), and then logs any suspicious activity. When you see syslog messages about the malware activity, you can take steps to isolate and disinfect the host.
Configuring Cisco Unified Communications
The Cisco ASA 5500 series is a strategic platform to provide proxy functions for unified communications deployments. The purpose of a proxy is to terminate and reoriginate connections between a client and server. The proxy delivers a range of security functions such as traffic inspection, protocol conformance, and policy control to ensure security for the internal network. An increasingly popular function of a proxy is to terminate encrypted connections in order to apply security policies while maintaining confidentiality of connections.
Firewall Mode Overview
The ASA runs in two different firewall modes:
•
Routed
Cisco ASA 5500 Series Configuration Guide using ASDM
1-27
Chapter 1 Introduction to the Cisco ASA 5500 Series
Firewall Functional Overview
•
Transparent
In routed mode, the ASA is considered to be a router hop in the network.
In transparent mode, the ASA acts like a “bump in the wire,” or a “stealth firewall,” and is not considered a router hop. The ASA connects to the same network on its inside and outside interfaces.
You might use a transparent firewall to simplify your network configuration. Transparent mode is also useful if you want the firewall to be invisible to attackers. You can also use a transparent firewall for traffic that would otherwise be blocked in routed mode. For example, a transparent firewall can allow multicast streams using an EtherType access list.
Stateful Inspection Overview
All traffic that goes through the ASA is inspected using the Adaptive Security Algorithm and either allowed through or dropped. A simple packet filter can check for the correct source address, destination address, and ports, but it does not check that the packet sequence or flags are correct. A filter also checks every packet against the filter, which can be a slow process.
Note
The TCP state bypass feature allows you to customize the packet flow. See the “TCP State Bypass” section on page 57-3 .
A stateful firewall like the ASA, however, takes into consideration the state of a packet:
•
Is this a new connection?
If it is a new connection, the ASA has to check the packet against access lists and perform other tasks to determine if the packet is allowed or denied. To perform this check, the first packet of the session goes through the “session management path,” and depending on the type of traffic, it might also pass through the “control plane path.”
The session management path is responsible for the following tasks:
–
Performing the access list checks
–
Performing route lookups
–
Allocating NAT translations (xlates)
–
Establishing sessions in the “fast path”
The ASA creates forward and reverse flows in the fast path for TCP traffic; the ASA also creates connection state information for connectionless protocols like UDP, ICMP (when you enable ICMP inspection), so that they can also use the fast path.
Note
For other IP protocols, like SCTP, the ASA does not create reverse path flows. As a result,
ICMP error packets that refer to these connections are dropped.
•
Some packets that require Layer 7 inspection (the packet payload must be inspected or altered) are passed on to the control plane path. Layer 7 inspection engines are required for protocols that have two or more channels: a data channel, which uses well-known port numbers, and a control channel, which uses different port numbers for each session. These protocols include FTP, H.323, and SNMP.
Is this an established connection?
1-28
Cisco ASA 5500 Series Configuration Guide using ASDM
Chapter 1 Introduction to the Cisco ASA 5500 Series
VPN Functional Overview
If the connection is already established, the ASA does not need to re-check packets; most matching packets can go through the “fast” path in both directions. The fast path is responsible for the following tasks:
–
–
IP checksum verification
Session lookup
–
–
TCP sequence number check
NAT translations based on existing sessions
–
Layer 3 and Layer 4 header adjustments
Data packets for protocols that require Layer 7 inspection can also go through the fast path.
Some established session packets must continue to go through the session management path or the control plane path. Packets that go through the session management path include HTTP packets that require inspection or content filtering. Packets that go through the control plane path include the control packets for protocols that require Layer 7 inspection.
VPN Functional Overview
A VPN is a secure connection across a TCP/IP network (such as the Internet) that appears as a private connection. This secure connection is called a tunnel. The ASA uses tunneling protocols to negotiate security parameters, create and manage tunnels, encapsulate packets, transmit or receive them through the tunnel, and unencapsulate them. The ASA functions as a bidirectional tunnel endpoint: it can receive plain packets, encapsulate them, and send them to the other end of the tunnel where they are unencapsulated and sent to their final destination. It can also receive encapsulated packets, unencapsulate them, and send them to their final destination. The ASA invokes various standard protocols to accomplish these functions.
The ASA performs the following functions:
•
•
•
•
•
•
•
•
Establishes tunnels
Negotiates tunnel parameters
Authenticates users
Assigns user addresses
Encrypts and decrypts data
Manages security keys
Manages data transfer across the tunnel
Manages data transfer inbound and outbound as a tunnel endpoint or router
The ASA invokes various standard protocols to accomplish these functions.
Security Context Overview
You can partition a single ASA into multiple virtual devices, known as security contexts. Each context is an independent device, with its own security policy, interfaces, and administrators. Multiple contexts are similar to having multiple standalone devices. Many features are supported in multiple context mode, including routing tables, firewall features, IPS, and management. Some features are not supported, including VPN and dynamic routing protocols.
Cisco ASA 5500 Series Configuration Guide using ASDM
1-29
Chapter 1 Introduction to the Cisco ASA 5500 Series
Security Context Overview
In multiple context mode, the ASA includes a configuration for each context that identifies the security policy, interfaces, and almost all the options you can configure on a standalone device. The system administrator adds and manages contexts by configuring them in the system configuration, which, like a single mode configuration, is the startup configuration. The system configuration identifies basic settings for the ASA. The system configuration does not include any network interfaces or network settings for itself; rather, when the system needs to access network resources (such as downloading the contexts from the server), it uses one of the contexts that is designated as the admin context.
The admin context is just like any other context, except that when a user logs into the admin context, then that user has system administrator rights and can access the system and all other contexts.
1-30
Cisco ASA 5500 Series Configuration Guide using ASDM
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
advertisement
